1-6 Speed Gear Display Indicator Ecu Direct Mount For Honda For Kawasaki ER6N Ninja 650 Ninja 300 Z750 Z900 Z800 Zx6R Motorcycle
$30.99
- Product Code: ED0016504
- Availability: In Stock
- Ex Tax: $30.99
Available Options
Description:
Shows current gear number
Indicates current gear from 1 to max of 6. as well as a neutral indicator.
Auto programming
Compatible with all motorbikes,four wheelers,bikes etc. will fit anything with a shi ft lever
Red illuminated display will automatically dim at night.
Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.
Display can be mounted anywhere.
Specification:

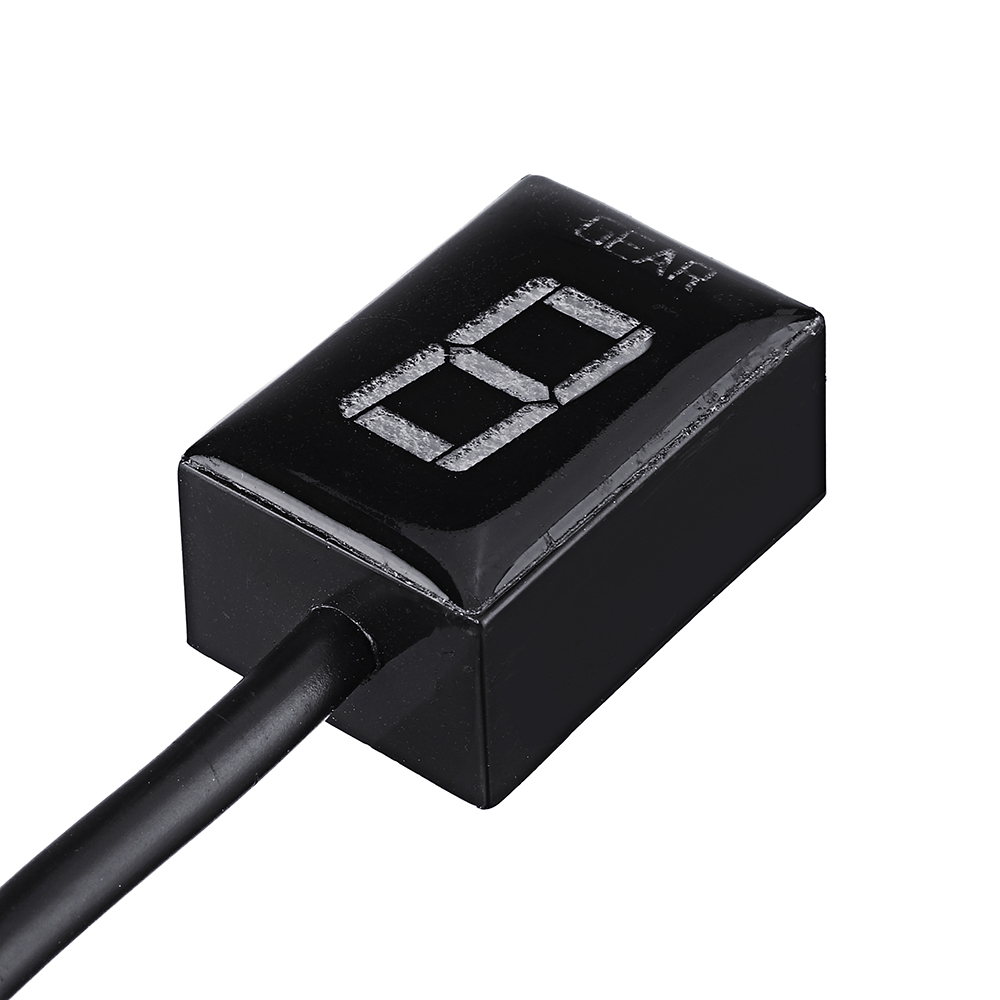

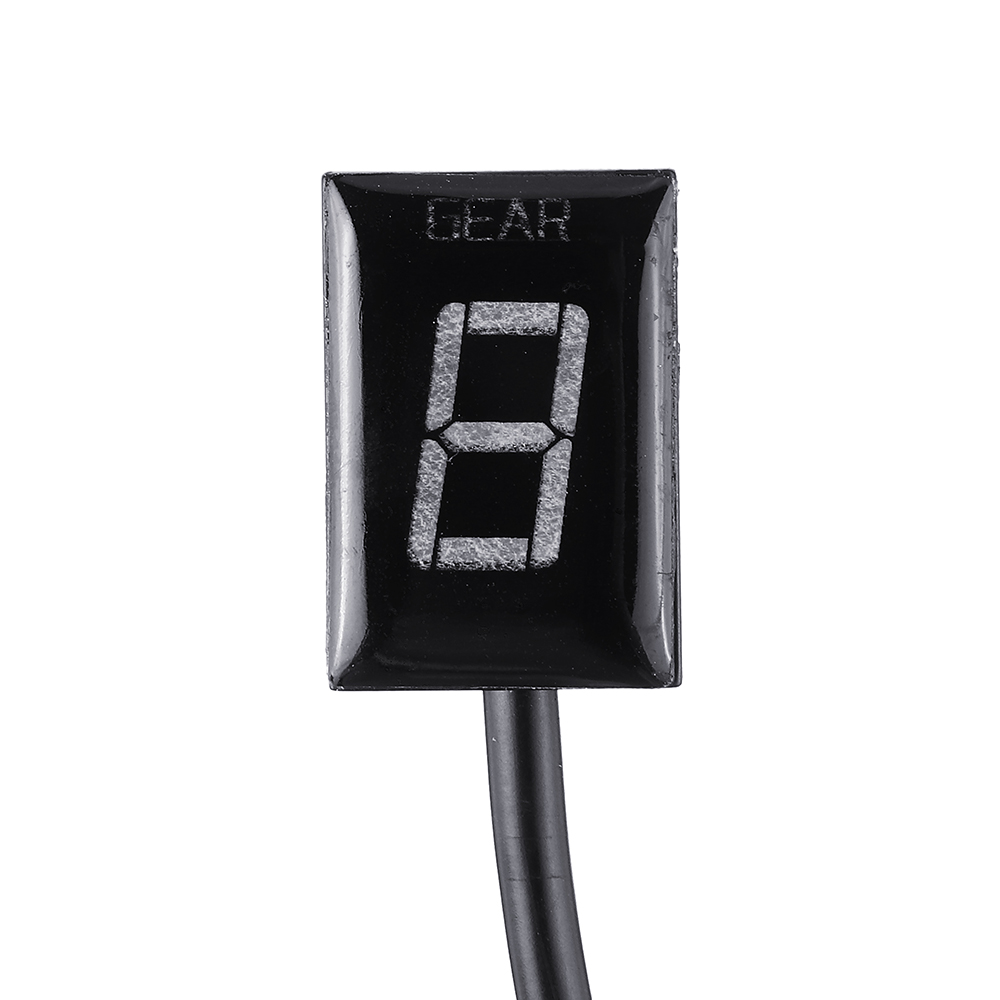

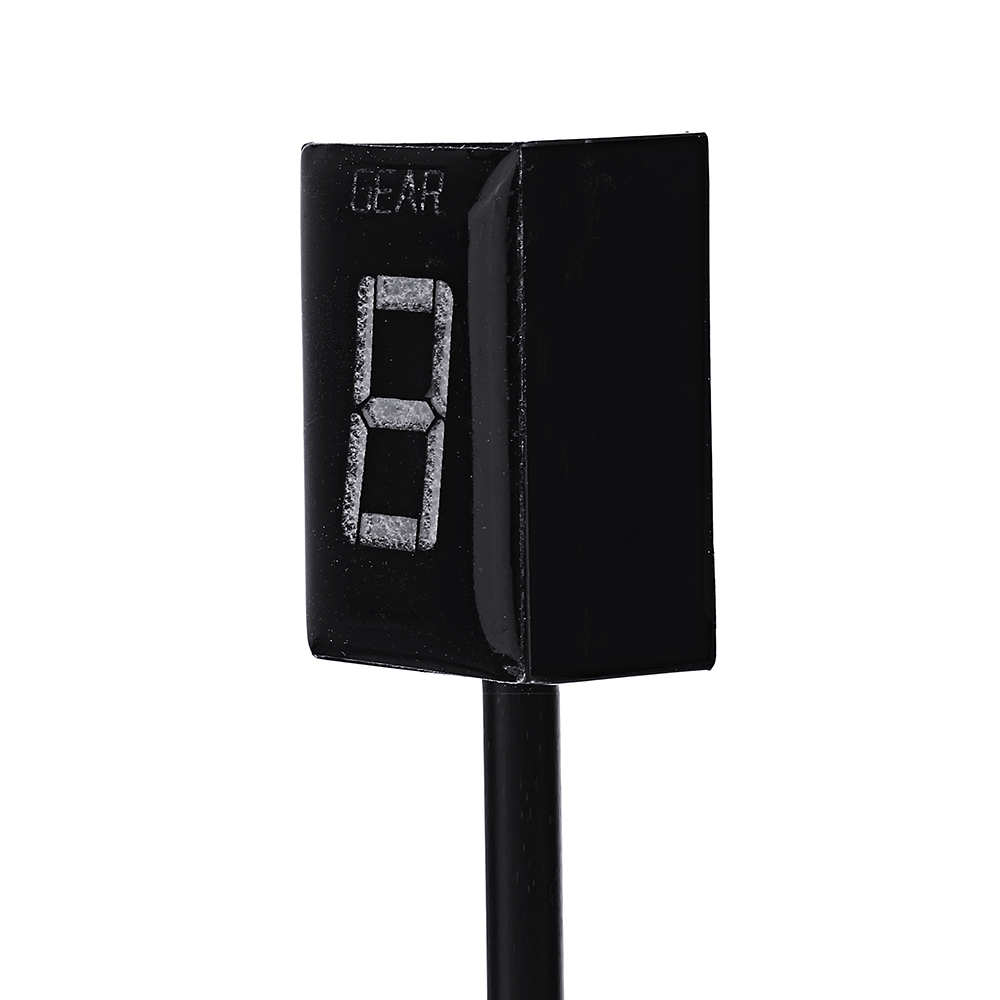

Item Name:Speed Gear Display Indicator
Specification:
Item Name:Speed Gear Display Indicator

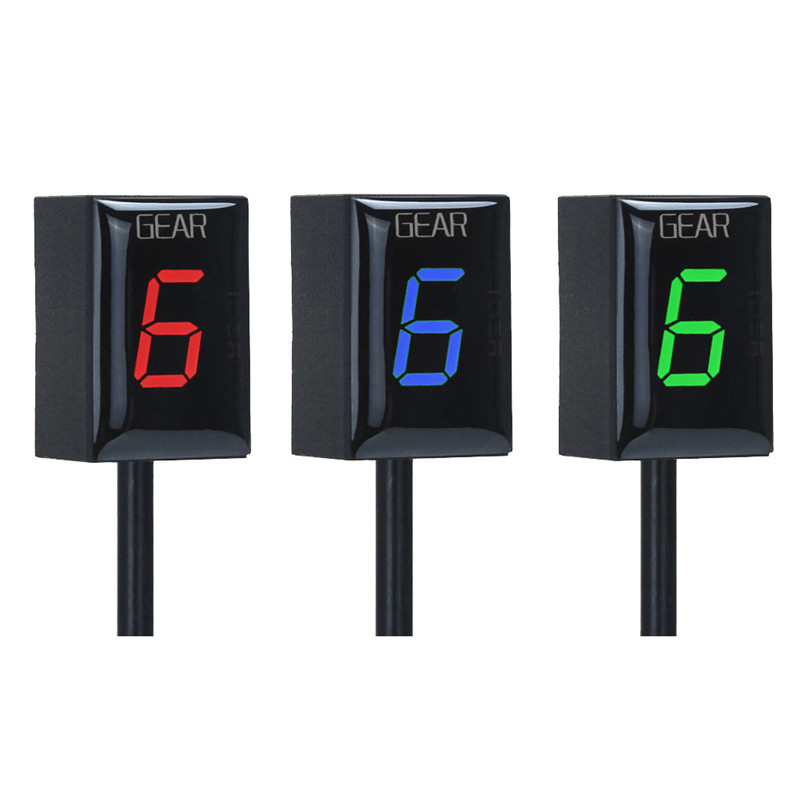

Color of Light Source:Red/Green/Blue

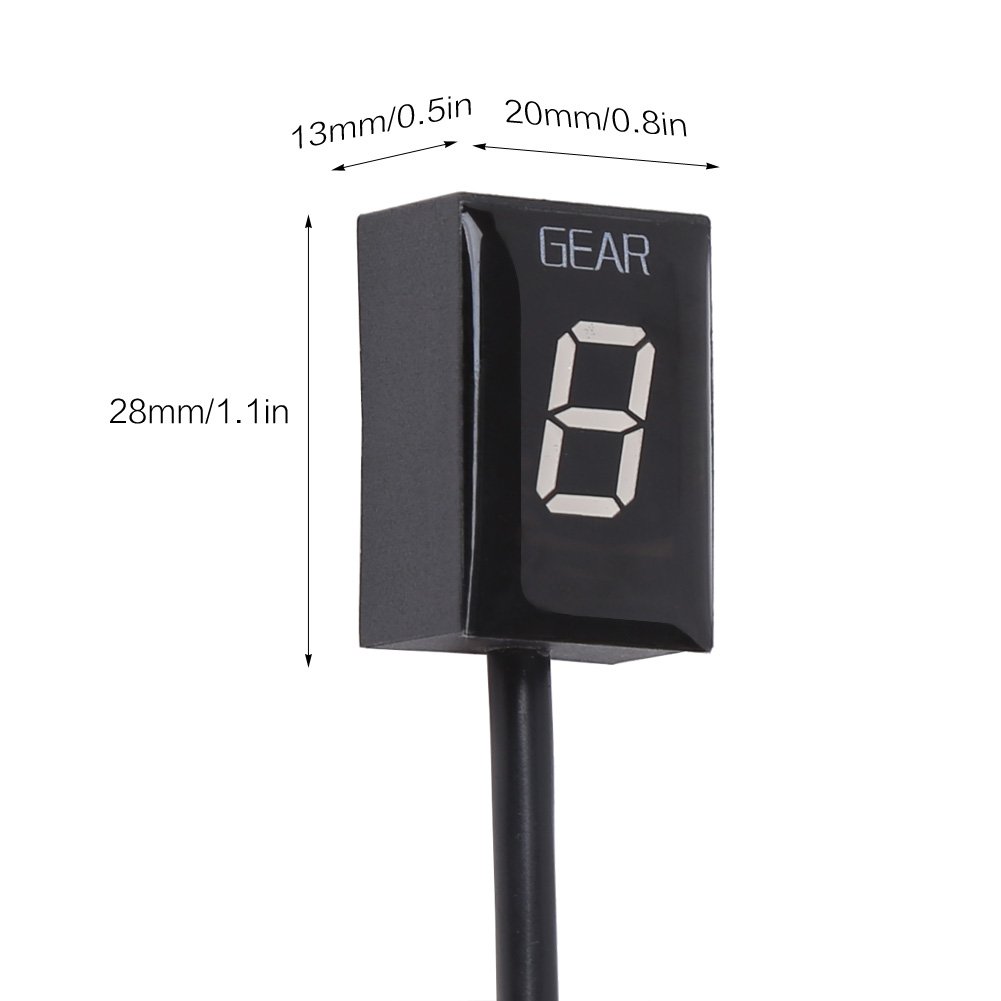

Size:4CM*4CM*4CM/1.57inch*1.57inch*1.57inch
Material: Aluminum alloy
Light source color: Red/Green
Shell color: Black
Fitment:
Suitable for Kawasaki and Honda motorcycle ATV UTV.
For HONDA CTX700 NC750X
For HONDA CBR125 CBR250 CBR300
For HONDACBR500 CBR650F CBR1000
For HONDA CB400X CB500X CB650F
For HONDACB1100 CB1300 CB1000R
For Kawasaki ER-6F 2012-2017
For Kawasaki KLE650 2010-2017
For Kawasaki Ninja 250R(Fi model) 2013-2015
For Kawasaki Ninja 300 2013-2018
For Kawasaki Ninja 400R 2013-2016
For Kawasaki Ninja 400 2018
For Kawasaki Ninja 650 2012-2016
For Kawasaki Ninja 1000 2011-2016
For Kawasaki Versys 650 2010-2018
For Kawasaki VN900 2011-2015
For Kawasaki Vulcan S 650 2015-2018
For Kawasaki Vulcan 900 2011-2018
For Kawasaki W800 2011-2017
For Kawasaki Z300 2015-2016
For Kawasaki Z650 2017-2018
For Kawasaki Z750 2010-2012
For Kawasaki Z750R 2011-2012
For Kawasaki Z800 2013-2017
For Kawasaki Z800e 2013-2017
For Kawasaki Z1000 2010-2016
For Kawasaki Z1000SX 2011-2016
For Kawasaki ZRX1200 2011-2015
For Kawasaki Brute Force 750(ATV) All Years
For Kawasaki Mule (ATV) All Years
For Kawasaki Teryx (ATV) All Years
Foreword:
Congratulations on your purchase of a SEPP gear position indicator,This product will fit for Kawasaki fuel injected(FI)
motorcycles which have on board Diagnostic System connector. This connector is referred as KDS(for Kawasaki Diagnostic System)
in the for Kawasaki manuals.Unlike other gear indicators available for your bike,this product connects to the diagnostic connector.
It make the installation very sample. The unit reads data directly from the ECU, offering faster and more reliable readings than
competing products.The display is auto learning,there are no button and no "programming wire" Know limitations;
Your bike is not equipped with Gear Position Sensor. therefore determining the gear in use is only possible when the engine is running and the clutch is released.
motorcycles which have on board Diagnostic System connector. This connector is referred as KDS(for Kawasaki Diagnostic System)
in the for Kawasaki manuals.Unlike other gear indicators available for your bike,this product connects to the diagnostic connector.
It make the installation very sample. The unit reads data directly from the ECU, offering faster and more reliable readings than
competing products.The display is auto learning,there are no button and no "programming wire" Know limitations;
Your bike is not equipped with Gear Position Sensor. therefore determining the gear in use is only possible when the engine is running and the clutch is released.

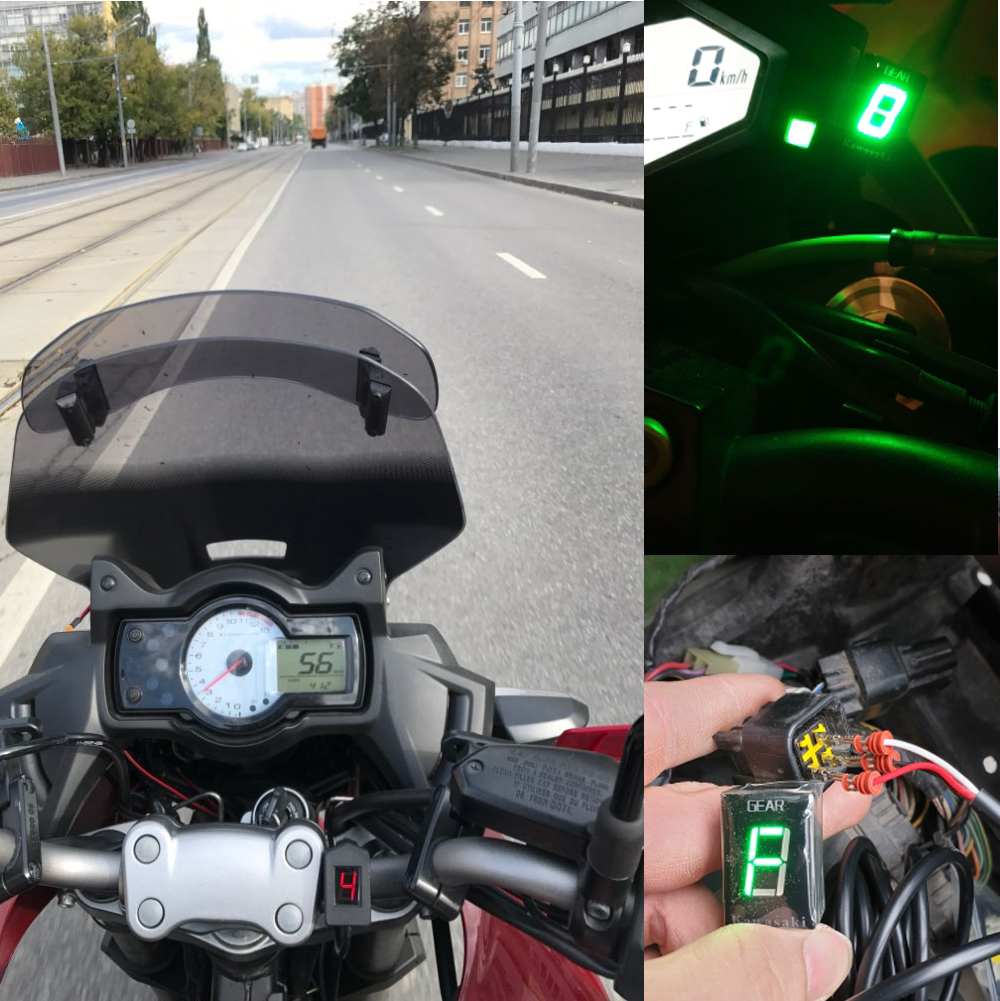

Installation:

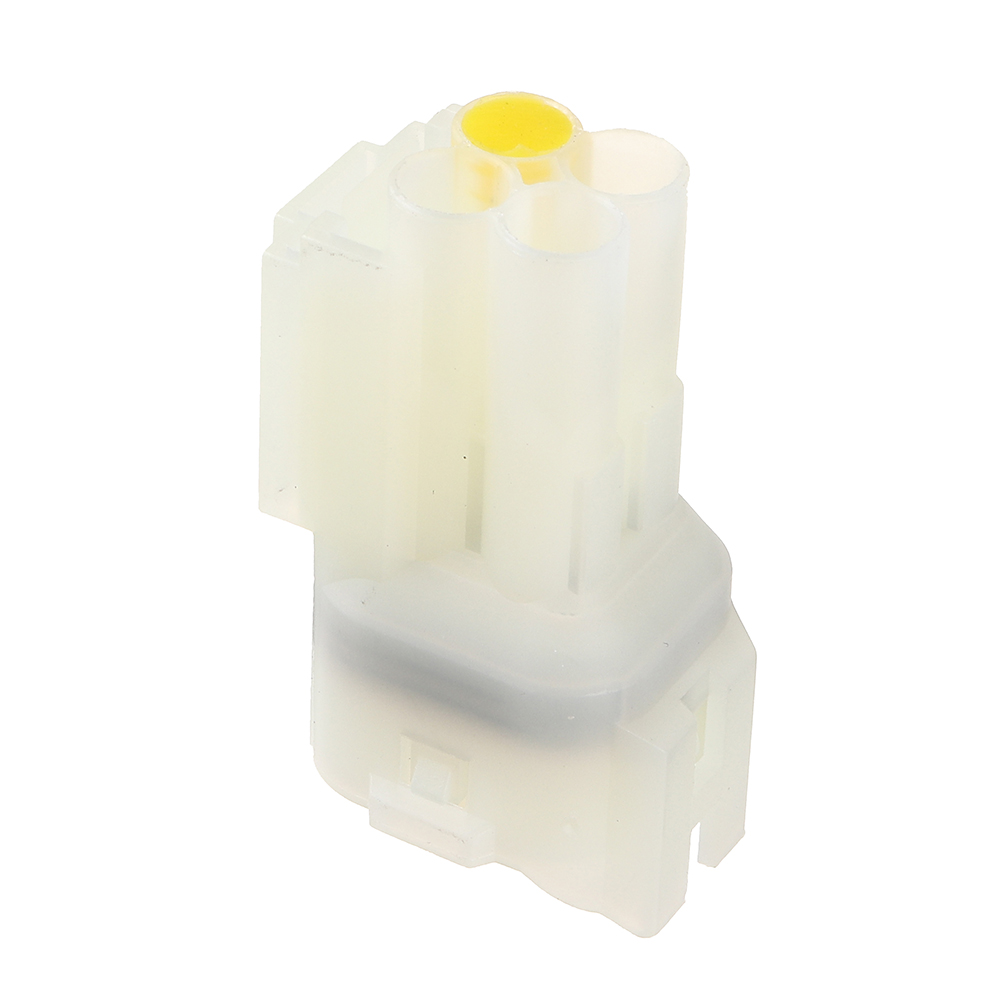

Find the 4-pole male diagnostic connector(KDS) under the seat,near the ECU box,It has a removable cap and
is either semi-transparent or black in color. Note; you may find TWO of this connector on your bike. In this case,
try both connectors, but only one of them will supply date to the SEPP gear position indicator.It will not harm your
bike if you connect the SEPP gear position indicator to the wrong plug first. Remove the cap,and connect the gear
indicator plug.Route the cable to the mounting location. Peel off the green plastic from the back of the unit,
and mount the display. Secure the cable with the cable ties supplied,ensuring that the steering movement is not impaired by the cable.
is either semi-transparent or black in color. Note; you may find TWO of this connector on your bike. In this case,
try both connectors, but only one of them will supply date to the SEPP gear position indicator.It will not harm your
bike if you connect the SEPP gear position indicator to the wrong plug first. Remove the cap,and connect the gear
indicator plug.Route the cable to the mounting location. Peel off the green plastic from the back of the unit,
and mount the display. Secure the cable with the cable ties supplied,ensuring that the steering movement is not impaired by the cable.
Troubleshooting:
You may find TWO semi-transparent connectors on the bike with a removable cap or dummy plug.

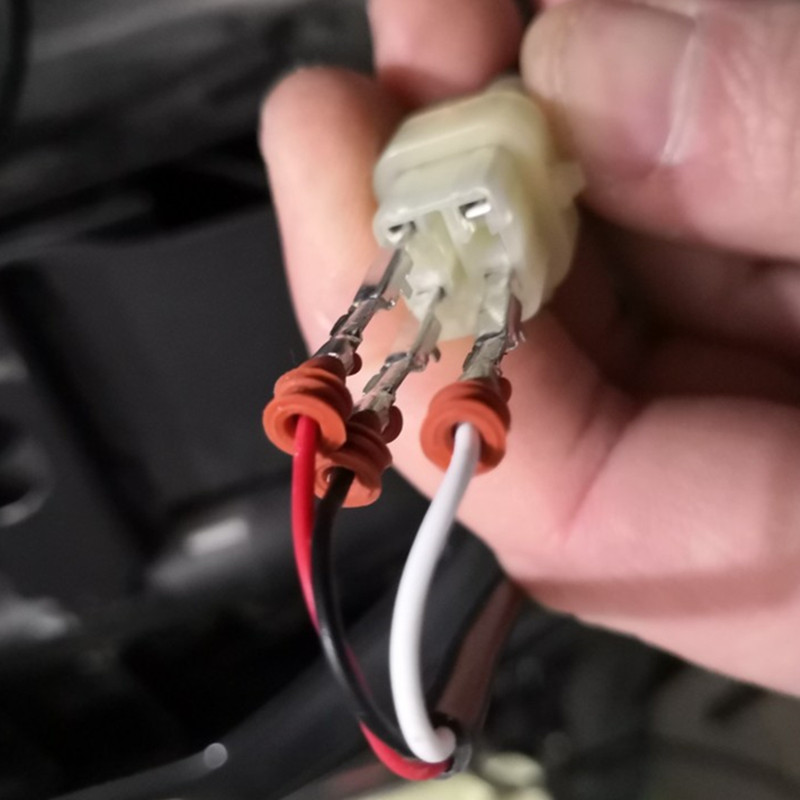

Try the second one if the unit does not work from the first one.Disconnect the SEPP connector and check whether the pins are
broken,bent or pushed out of position.Reconnect the plug,and make sure that all connections are good and the connector
is fully seated.If you can not execute the setup procedure,your battery might be old or weak.Charge the battery or connect
another battery using a jumper cable.If some gears are not indicated properly when the engine is running and clutch is
released,rest the unit and setup again.If the problem persists.your clutch might be slipping.
Try the second one if the unit does not work from the first one.Disconnect the SEPP connector and check whether the pins are
broken,bent or pushed out of position.Reconnect the plug,and make sure that all connections are good and the connector
is fully seated.If you can not execute the setup procedure,your battery might be old or weak.Charge the battery or connect
another battery using a jumper cable.If some gears are not indicated properly when the engine is running and clutch is
released,rest the unit and setup again.If the problem persists.your clutch might be slipping.
Note:
The unit is completely sealed and epoxy encapsulated, which gives extreme protection for the internal parts from shocks,
vibrations and water. To ensure trouble-free operation from the start, all units have been extensively tested prior to shipment.
Our dealers are offering a 30-day money-back guarantee on HealTech products, thus you will get your money back if
the product does not fulfill your expectations.( ALL parts must be returned in original condition for full refund.)
Furthermore the product is covered by our 2-year replacement warranty from the date of purchase
vibrations and water. To ensure trouble-free operation from the start, all units have been extensively tested prior to shipment.
Our dealers are offering a 30-day money-back guarantee on HealTech products, thus you will get your money back if
the product does not fulfill your expectations.( ALL parts must be returned in original condition for full refund.)
Furthermore the product is covered by our 2-year replacement warranty from the date of purchase

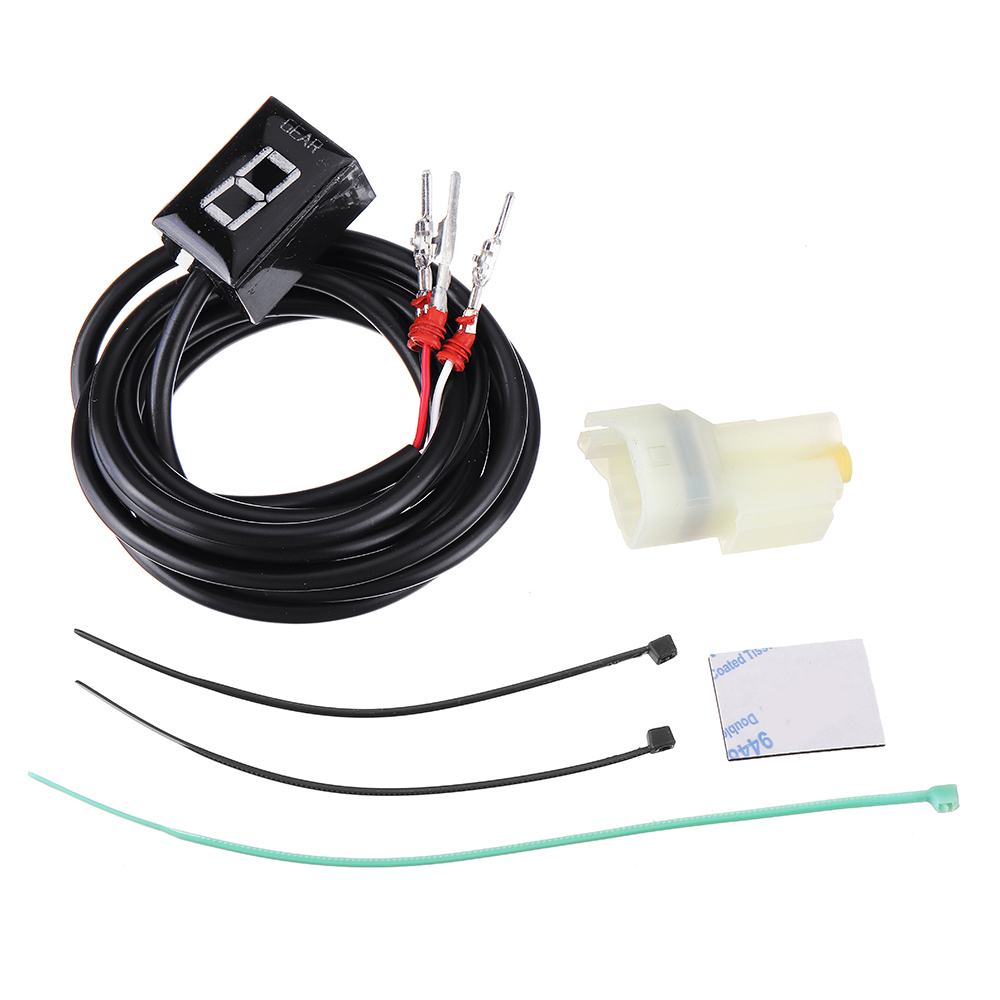

Package Included:
1 X Motorcycle Speed Gear Display
1 Set X Accessories
