10.1 Inch 2 DIN for Android 9.0 Car Stereo 8 Core 4+32G MP5 Player 4G WIFI bluetooth FM AM RDS Radio GPS
$181.63
- Product Code: ED0002404
- Availability: In Stock
- Ex Tax: $181.63
Specification:
Main Processors: 8 Core 1.8GHz
System: for Android 9.0
Operation mode: Capacitive screen multi-touch
CPU: Alllwinner
RAM: 4GB DDR3
ROM: 32GB EMMC
CPU: Alllwinner
RAM: 4GB DDR3
ROM: 32GB EMMC
Screen size: 10.1 inch, LVDS display interface
Installation Space: 2 DIN
Installation Space: 2 DIN
Screen resolution: 1024*600, Maximum support 1920*1200(you can install a 1920*1200 screen to exchange It)
Theme: Free wallpaper replacement

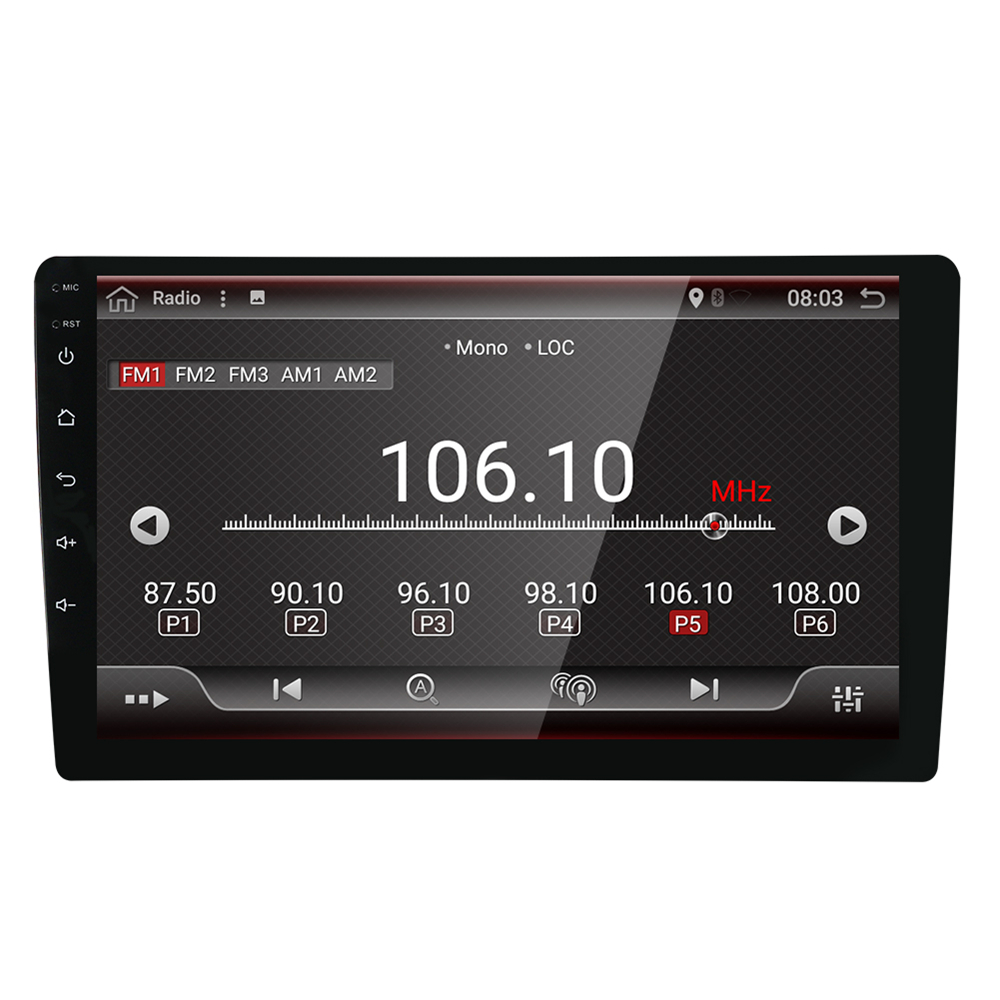

Radio: TDA7786, support FM, AM, RDS, support store channel.
Navigation: google map/waze/sygic and so on, support map built-in/external, support navigation split screen function
AUX: A set of AV inputs
DTV: External DVB-T (Support, Not included), supporting square control and touch control mode to control DTV
USB: Supports maximum 2T disk, 2-way back USB
DAB: Support external DAB( Not included, need to buy seperately)
bluetooth: Supports phone book, call removal and hand-free function, call recording, bluetooth music playing. Support
only one bluetooth device to connect this uint.
only one bluetooth device to connect this uint.
DVR: CVBS and USB

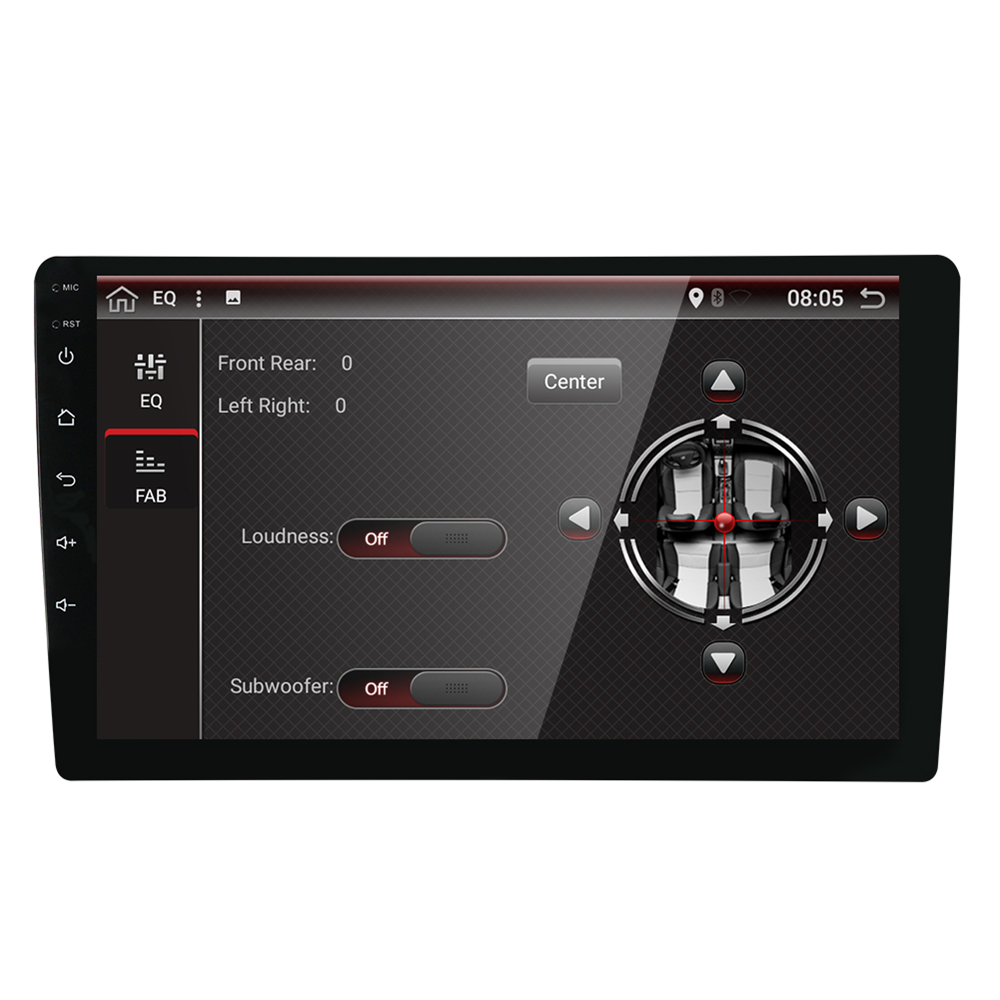

EQ: Support
EQ: Support
Phone interconnection: Support USB/WIFI connection
Phone charging: 1A phone charging current
Steering wheel control: Support original car steering wheel learning
Rear view: Reversing the car automatically switches the video, the screen starts quickly: ≤1.5S
Handbrake control: Can control whether the handbrake is functioning by setting the host
TFT image output: Supports mirror video of CVBS output TFT
Internet access: 3G/4G dongle or WIFI
User software download: Web application download, install, uninstall

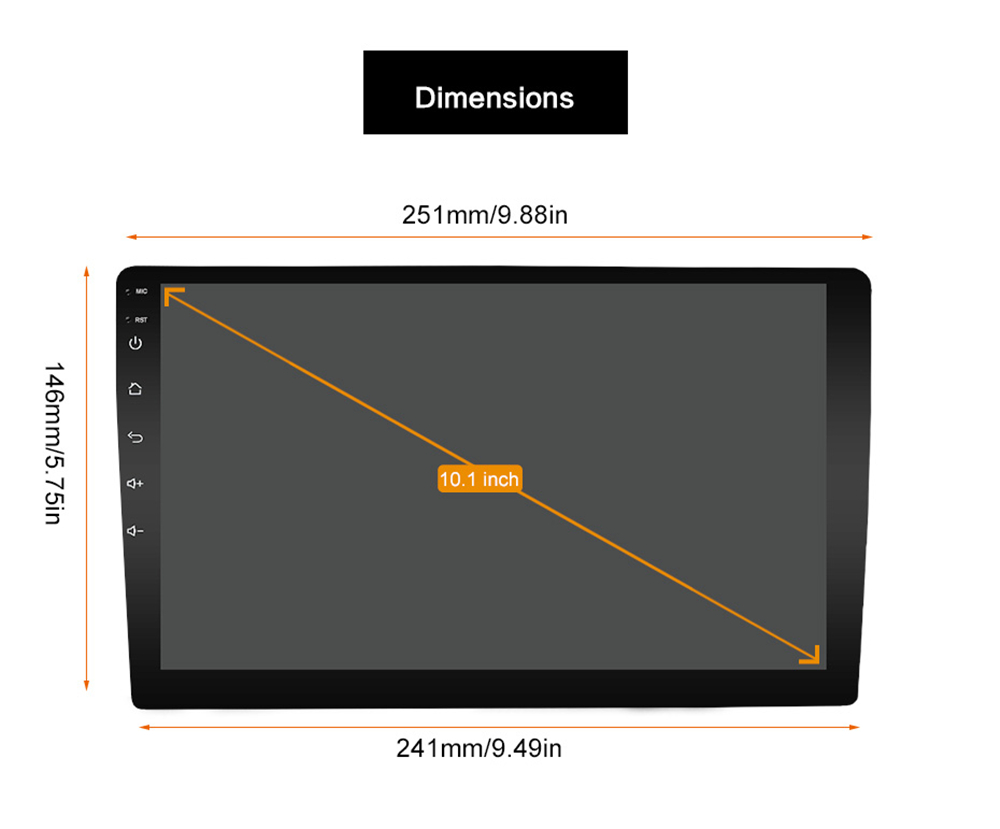

Size: Show on the picture
Size: Show on the picture
Language :
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Input method: Handwriting
Working environment temperature: -20 °C ~ +70 °C
Output power: 4x45W high power output TDA 7388
RCA Output: No Video Output; 3 Channel Audio Output: Front-Left, Front-Right, Overweight Bass Special Output
3G/4G Dongle Setup:
Connect the 3G/4G dongle to the USB slot on the back. the system will automatically recognize the dongle and connect.
3G/4G Dongle Setup:
Connect the 3G/4G dongle to the USB slot on the back. the system will automatically recognize the dongle and connect.
Video function:
Video format: DVD, MPEG1-4, DVIX, AVI, MKV, AVI, RMVB, FLAG and other video formats
Format resolution: Support 4K video
Audio function:
Music format: MP3, WMA, AAC, APE and other audio formats,automatic identification ID3 and album display
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
Start Logo Setup:
Support: Touch the ES File Explorer, select your car logo from the USB device.(the image of car logo must be BMP format), click
the upper right corner, select Set As Bootlogo.
Steering Wheel Control Setup:
Support: Click the Wheel APP to setup key function learning.(click Reset to reset the keys)
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
Start Logo Setup:
Support: Touch the ES File Explorer, select your car logo from the USB device.(the image of car logo must be BMP format), click
the upper right corner, select Set As Bootlogo.
Steering Wheel Control Setup:
Support: Click the Wheel APP to setup key function learning.(click Reset to reset the keys)
Picture function:
Picture format: JPEG/BMP
Thumbnail display: support
E-book function:
E-book format: TXT
Phone Mirror Link:
for Android phone: via WIFI or USB connection
for IOS phone: via WIFI connection
Not Support:
Phone Mirror Link:
for Android phone: via WIFI or USB connection
for IOS phone: via WIFI connection
Not Support:
External microphone, front USB charging port.
Note:
1.Note: This screen comes with ISO power socket(show as the picture), and not including fascia frame panel and CANBUS box. Some special
vehicles need a specific power socket, fascia panel and CANBUS box to fit it. Pls confirm whether it fits your vehicle model before placing an order.
vehicles need a specific power socket, fascia panel and CANBUS box to fit it. Pls confirm whether it fits your vehicle model before placing an order.
2.The fascia frame panel, specified power socket and CANBUS box need to purchase seperately.

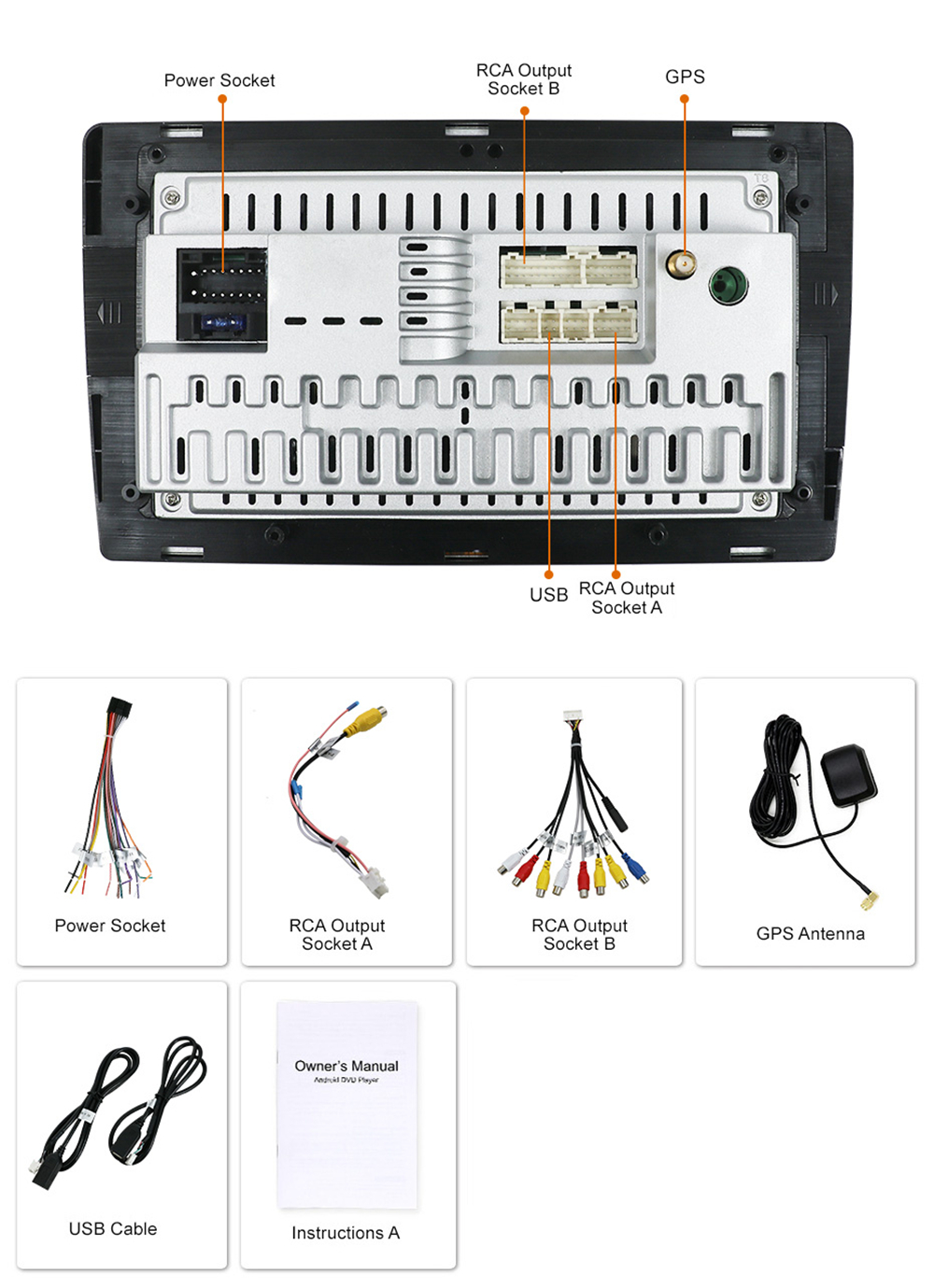

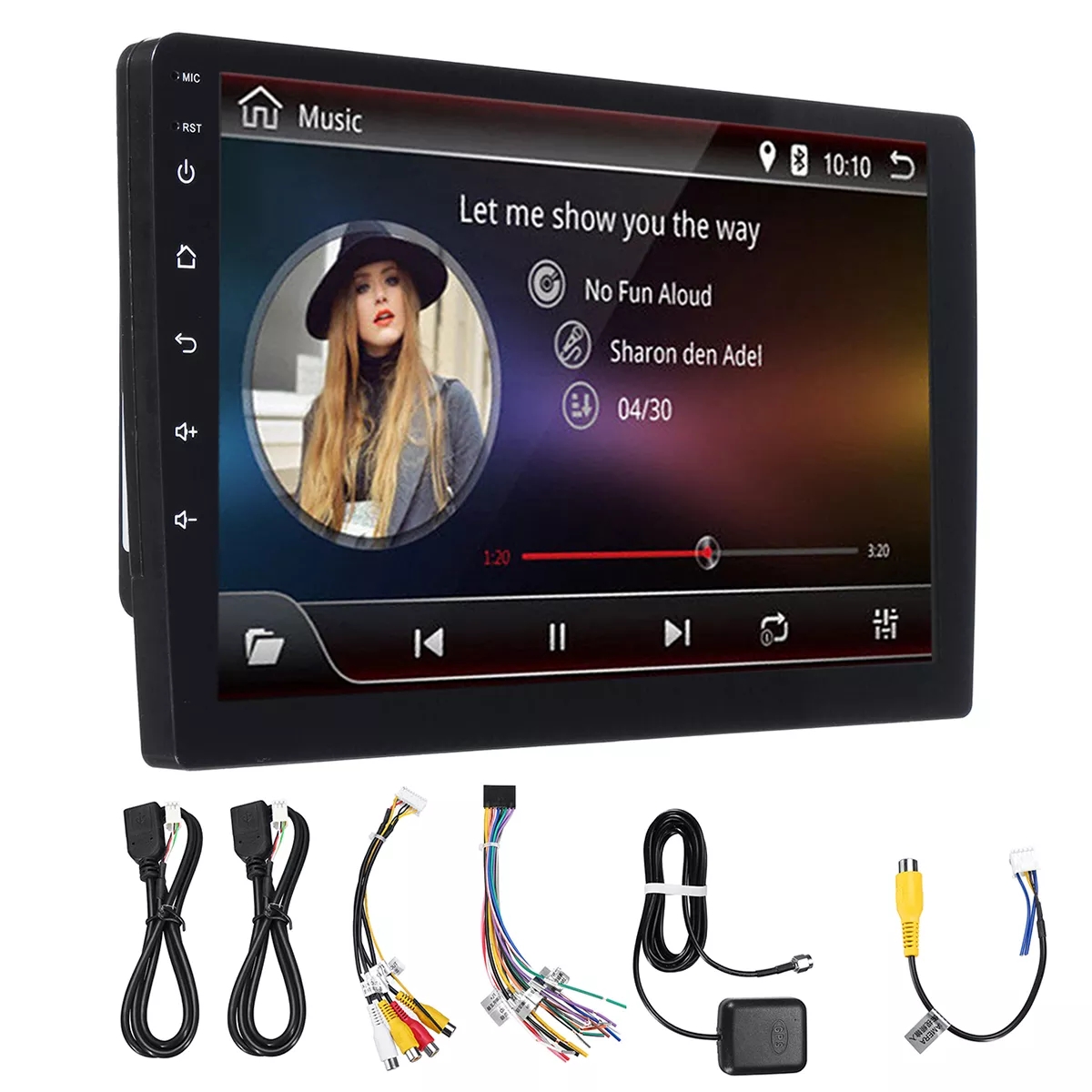

Package included:
1 X 10.1 Inch Car Player
1 X Power Socket
1 X RCA Cable Socket A
1 X RCA Cable Socket B
1 X RCA Cable Socket B
1 X GPS Antenna
2 X USB Cable
1 X User Manual(linkage: https://www.elecdeer.com/image/catalog/download/pdf/1U0PpeT8VIr3UbsElhTMwt2vgalLRyVnC.pdf)
