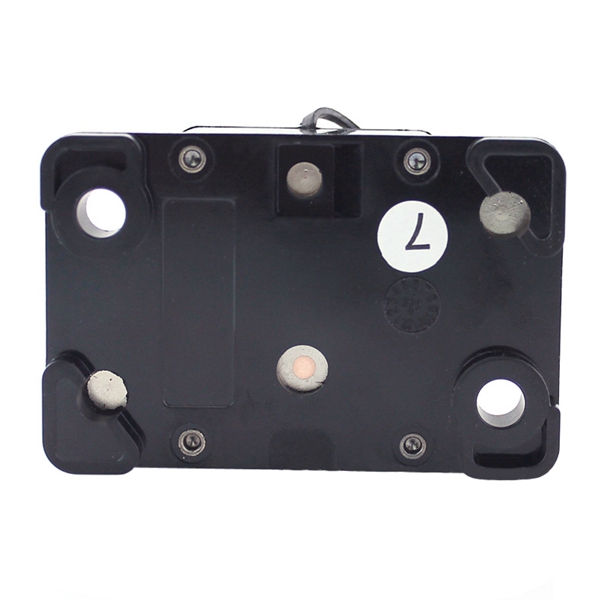

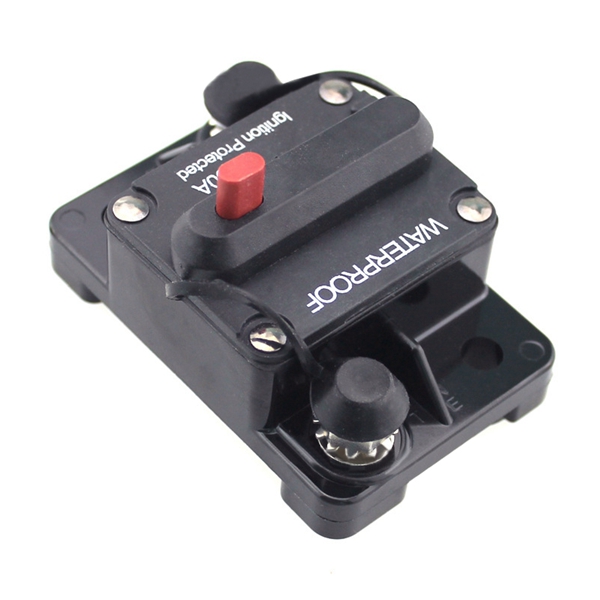

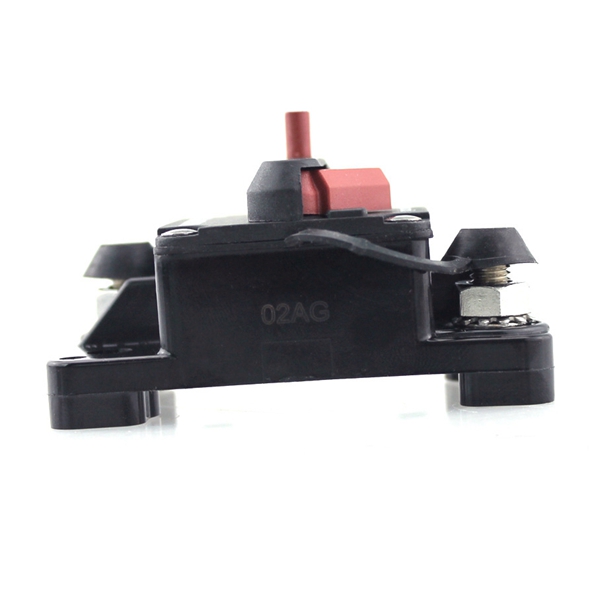

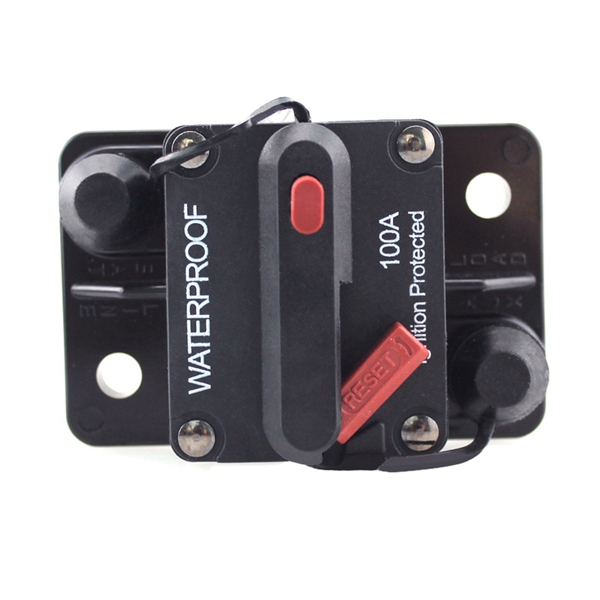

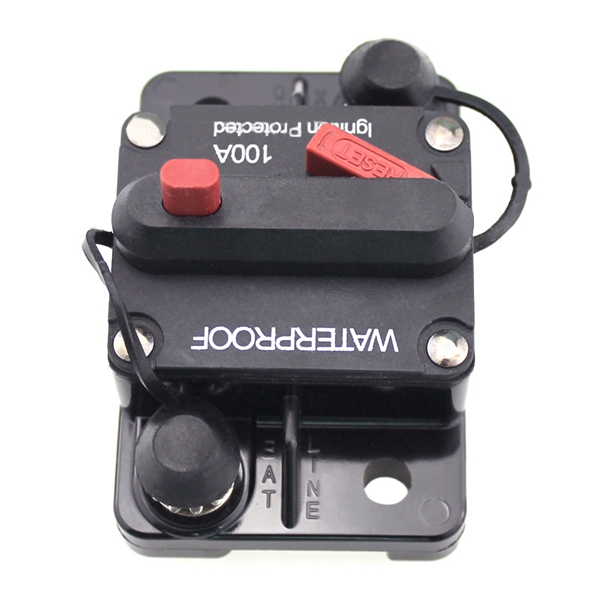

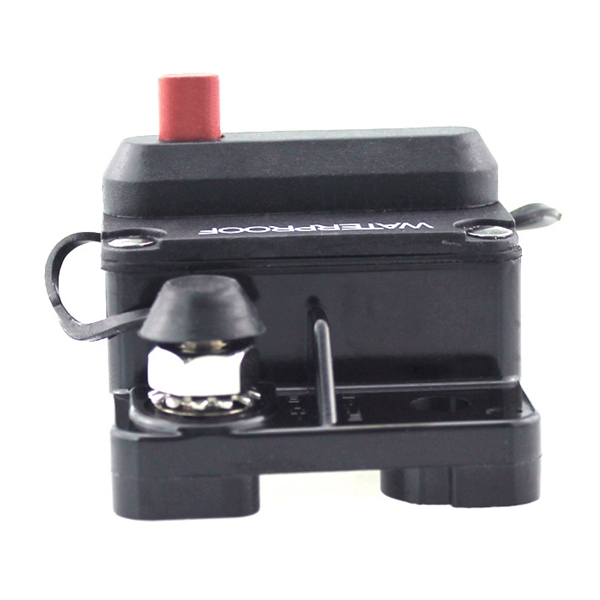

100A Car Boat RV Ignition Protected Switch Manual Reset Circuit Breaker Resettable Fuse Holder
$27.61
- Product Code: ED0001594
- Availability: In Stock
- Ex Tax: $27.61
100A Car Boat RV Ignition Protected Switch Manual Reset Circuit Breaker Resettable Fuse Holder
Specification:
Model: F433-100A
Rated Current: 100A
Rated Voltage: 48VDC Maximum
Breaking Capacity: 3000A @ 48 Vdc
Environment Temperature: -32°C to 82 °C (-25°F to 180 °F)
Storage Temperature: -34°C to 149 °C (-30°F to 300 °F)
Stud Size:¼“ -28
Test Standard: SAE J1627 J1171 UL1500 (Igniton Protected)
Net Weight: 104g
Gross Weight: 108g

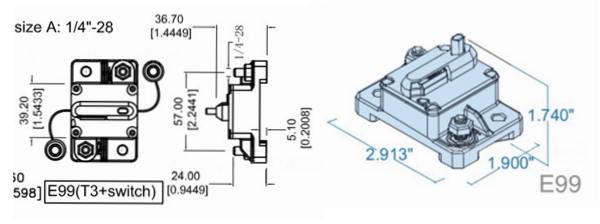

Size: 72*46*31mm
Usage: Mainly used for car, boats, RV electrical current overload protection.
Function: To prevent excessive current and protect appliances.
Package Included:
1 X 100A Car Circuit Breaker
,,,,,,,
Specification:
Model: F433-100A
Rated Current: 100A
Rated Voltage: 48VDC Maximum
Breaking Capacity: 3000A @ 48 Vdc
Environment Temperature: -32°C to 82 °C (-25°F to 180 °F)
Storage Temperature: -34°C to 149 °C (-30°F to 300 °F)
Stud Size:¼
Test Standard: SAE J1627 J1171 UL1500 (Igniton Protected)
Net Weight: 104g
Gross Weight: 108g
Size: 72*46*31mm
Usage: Mainly used for car, boats, RV electrical current overload protection.
Function: To prevent excessive current and protect appliances.
Package Included:
1 X 100A Car Circuit Breaker
,
,
,
,
,
,
,
