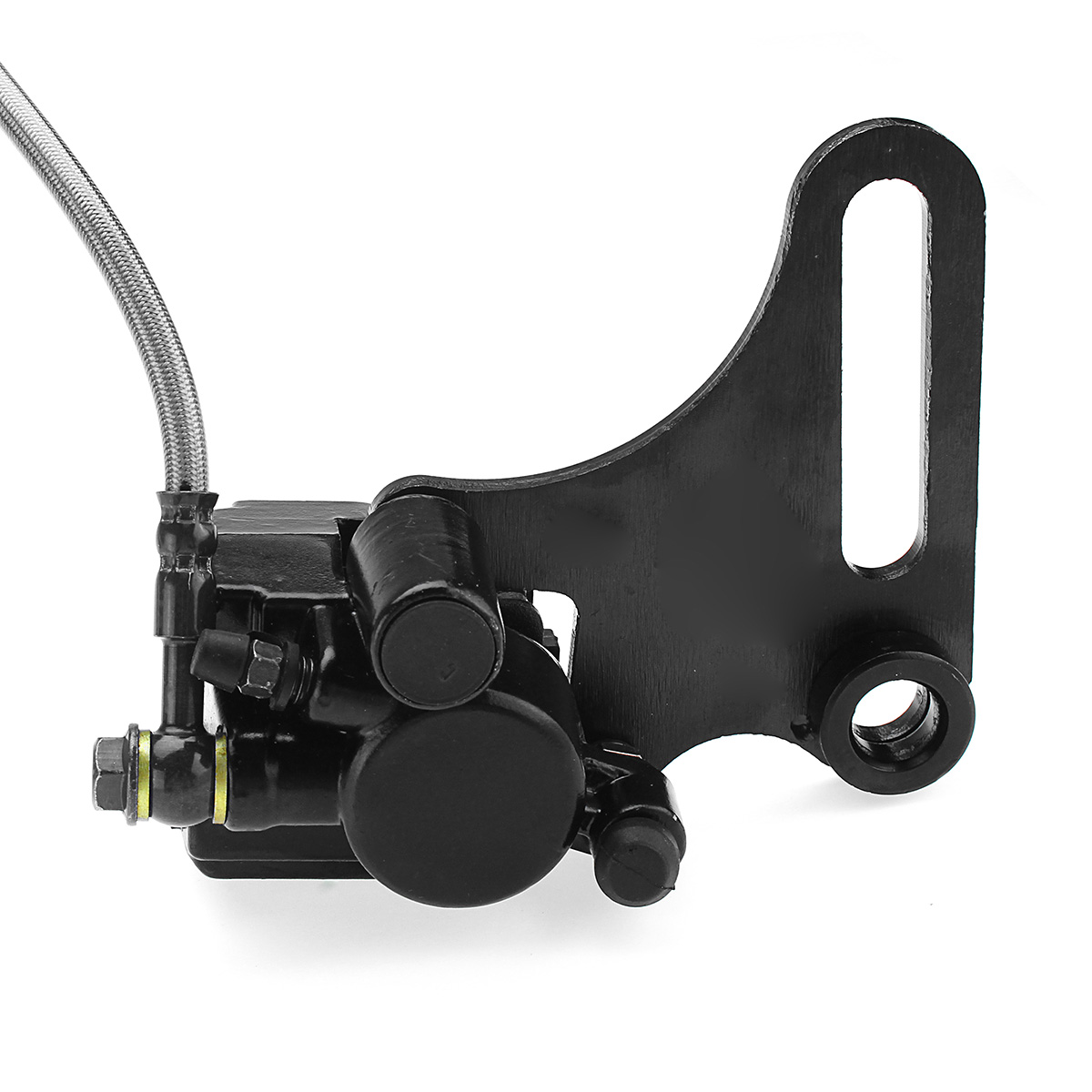

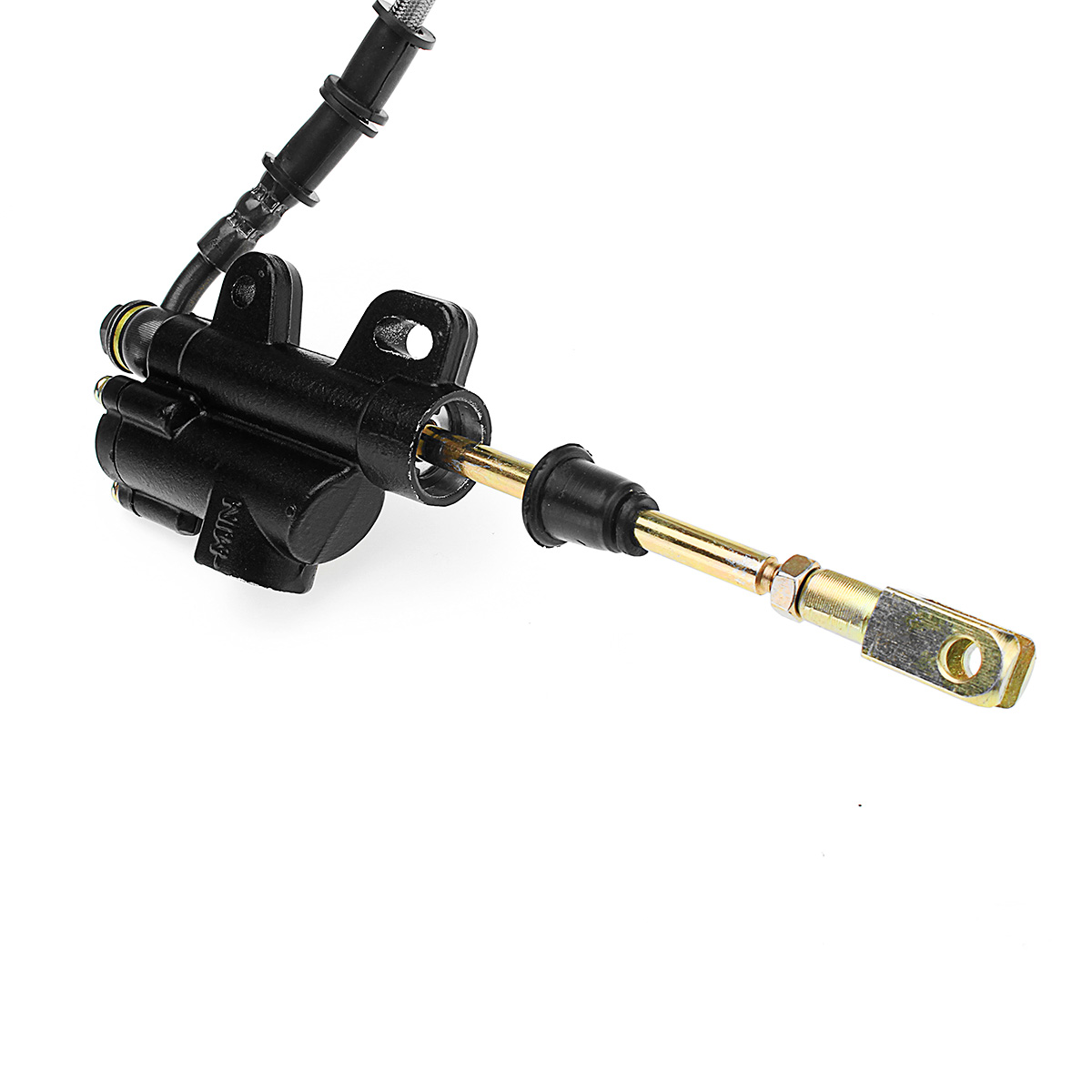

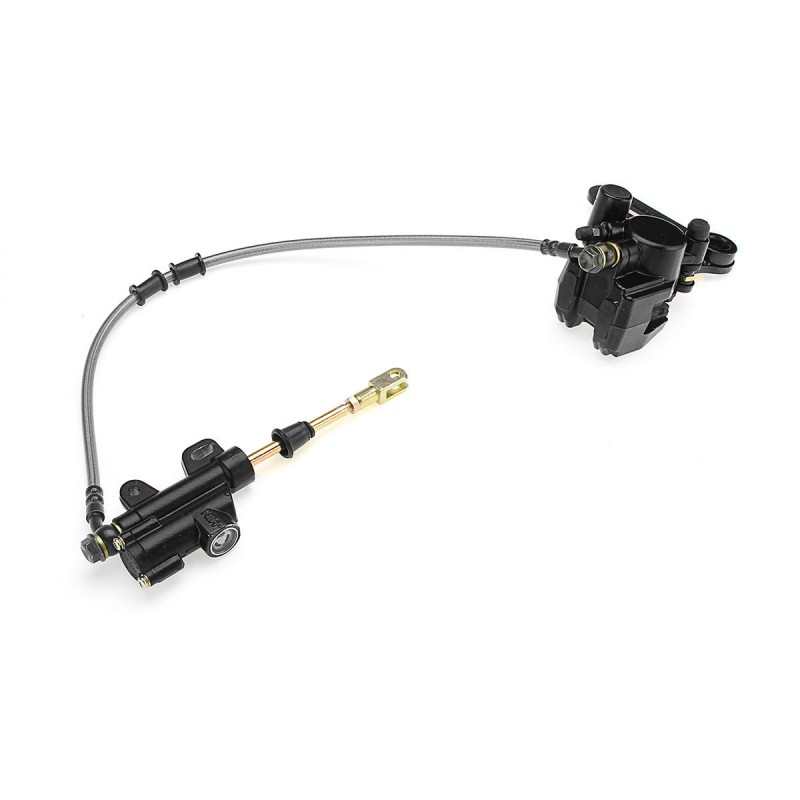

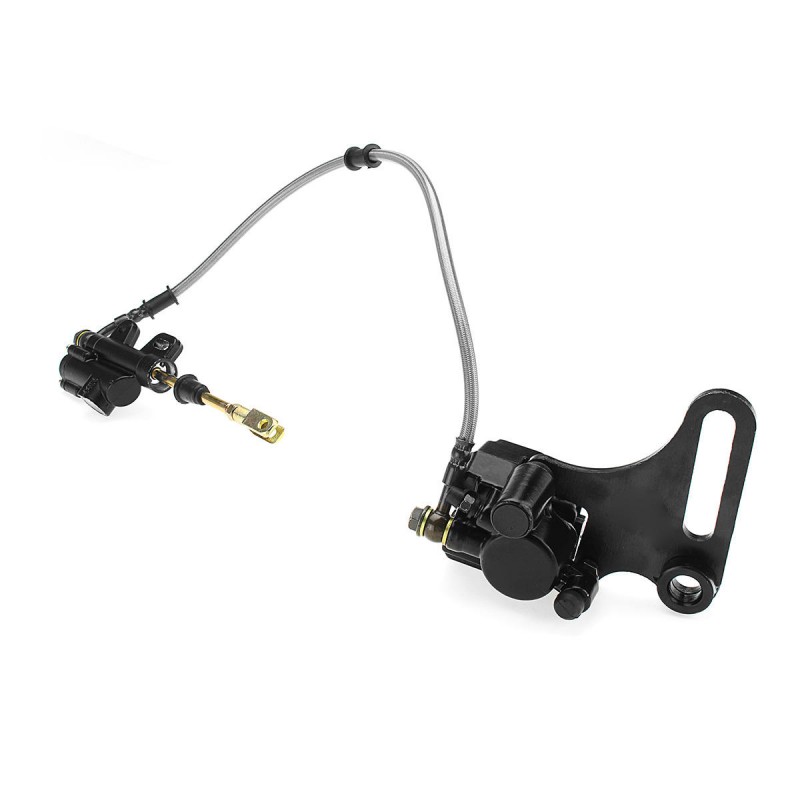

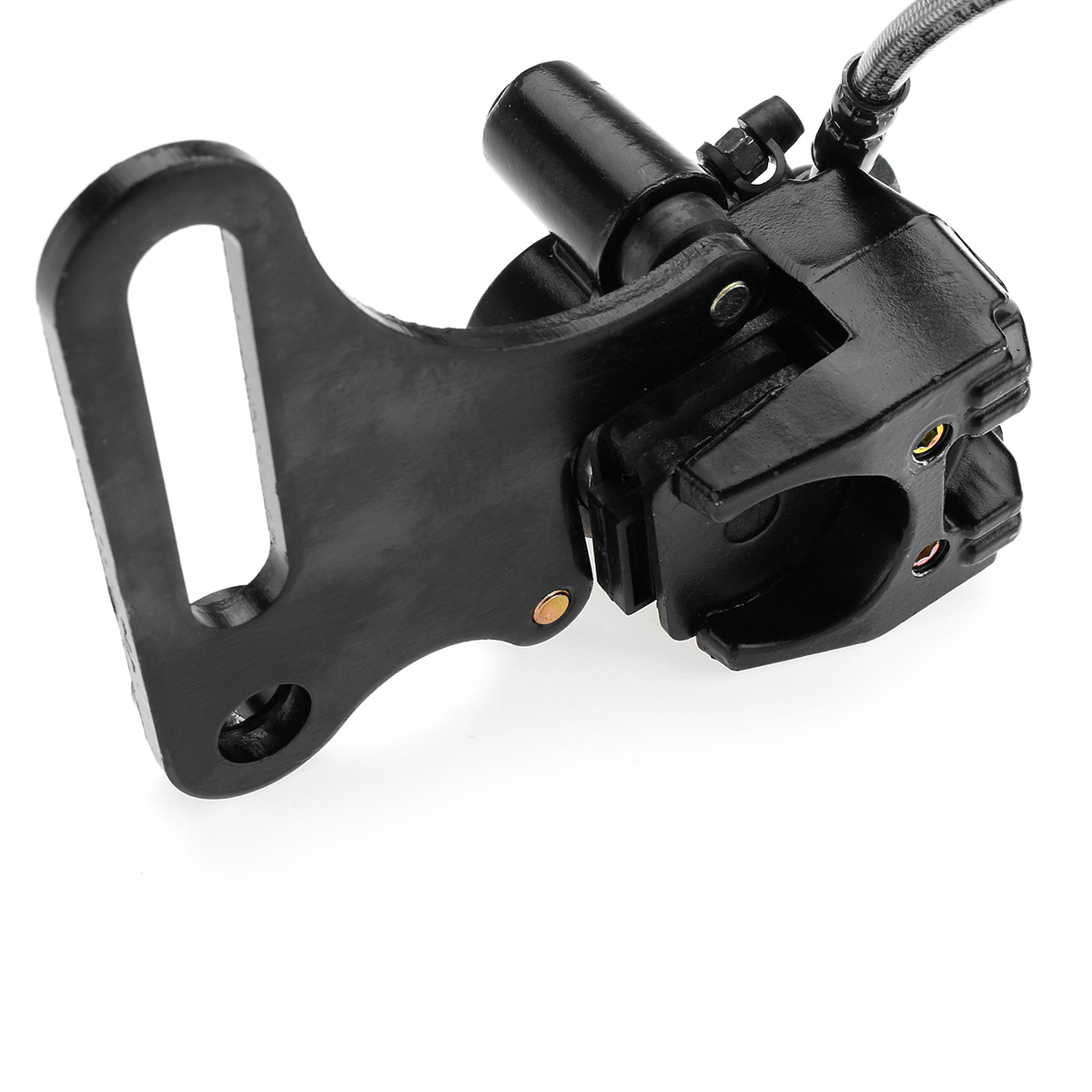

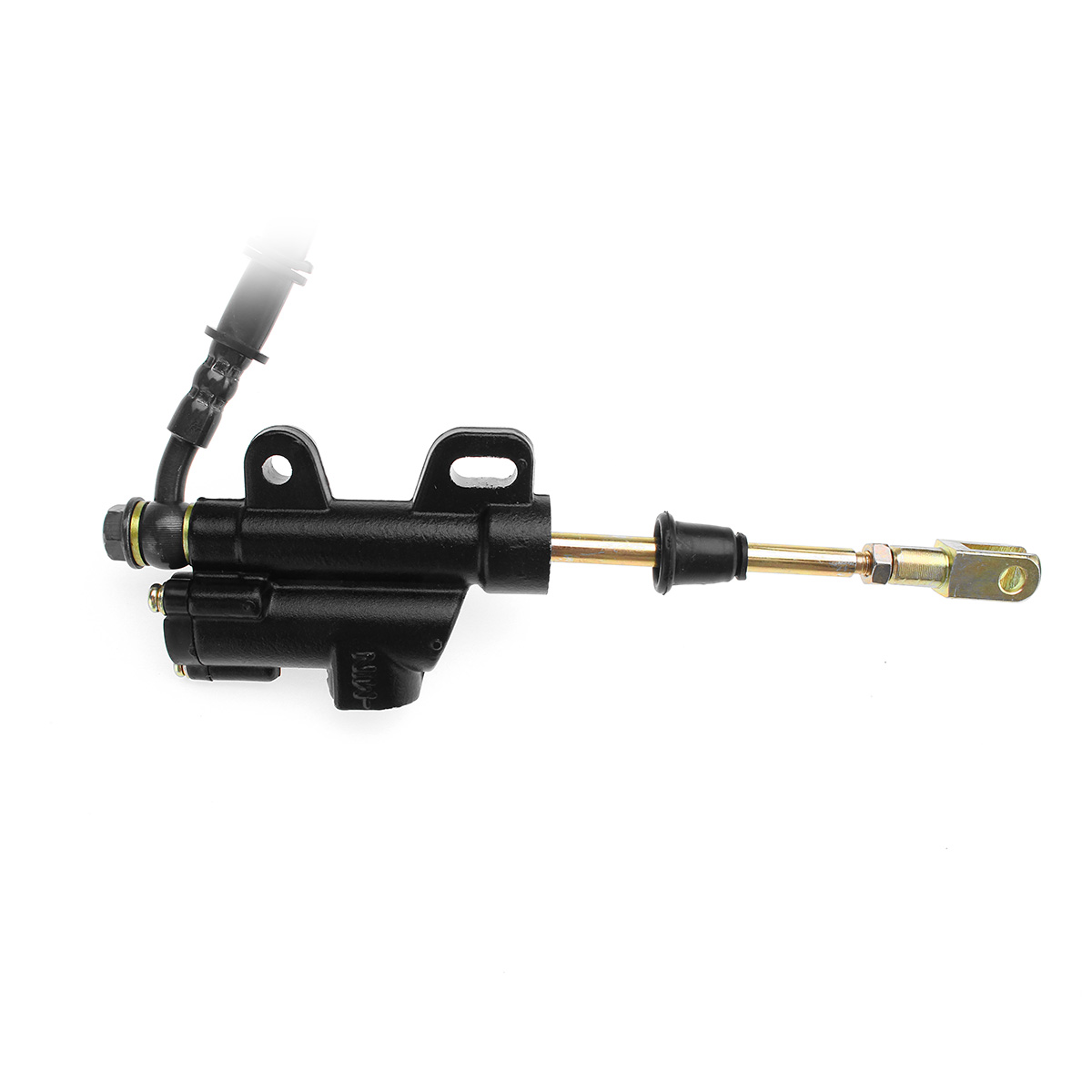

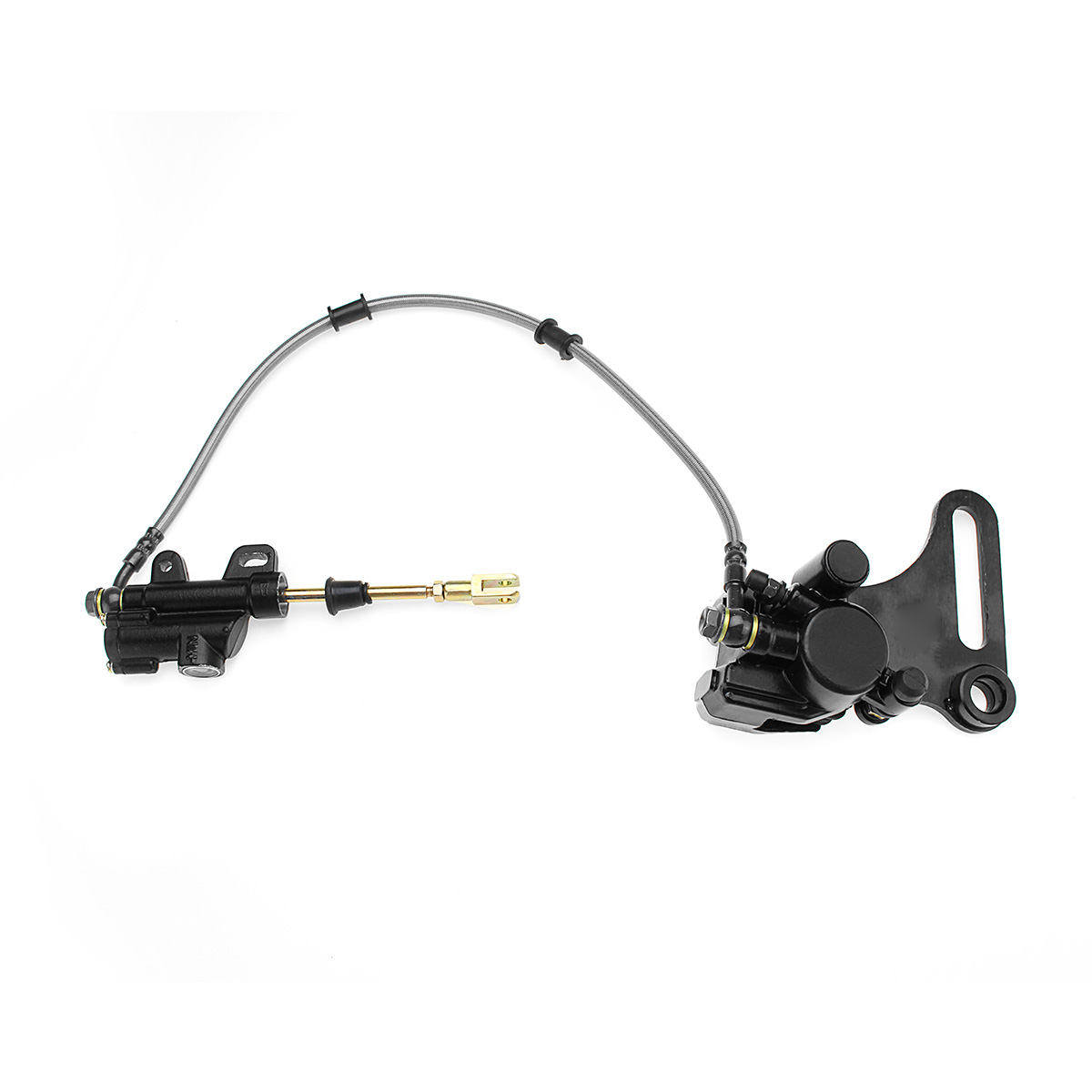

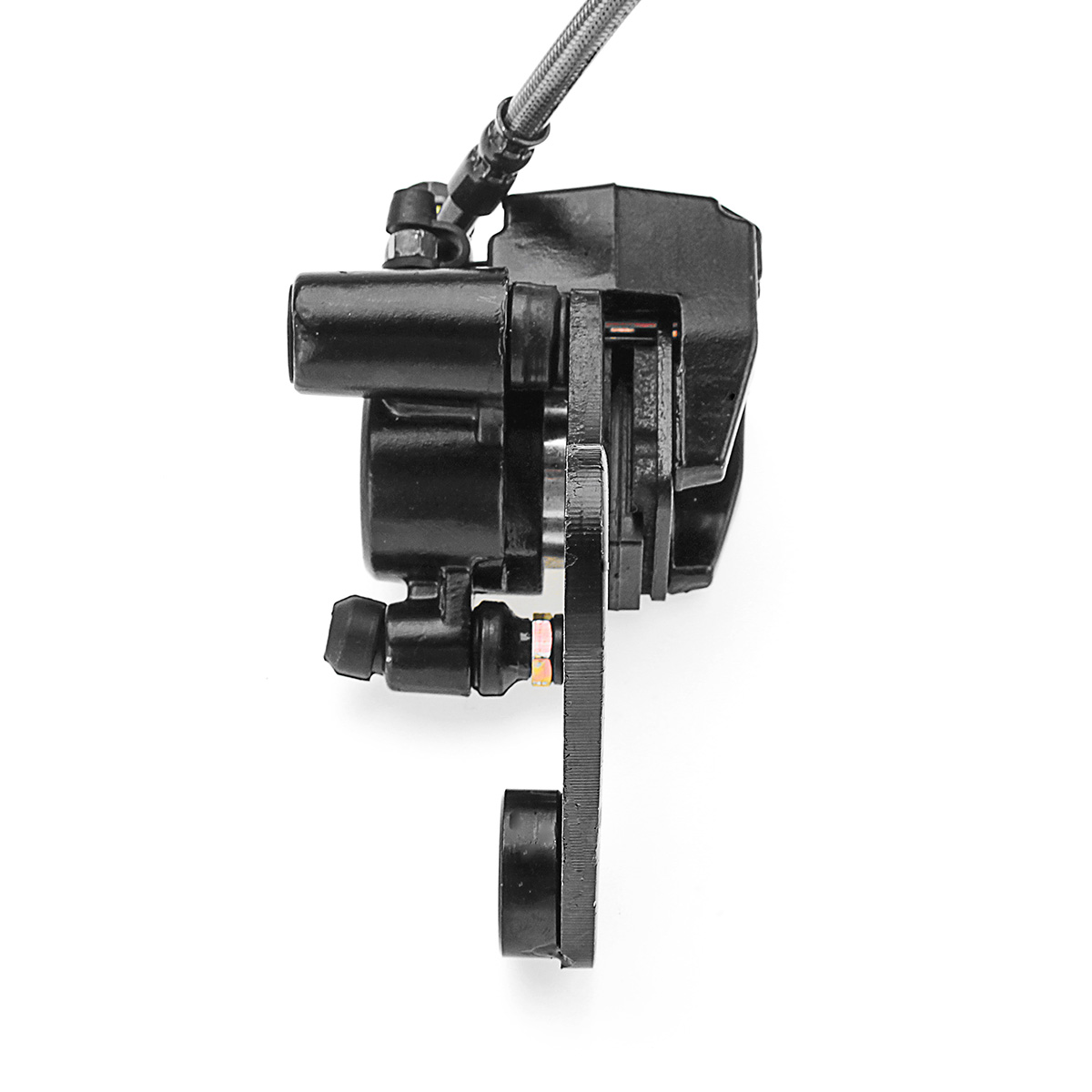

110cc 125cc 140cc Rear Foot Brake Disc Calliper Master Cylinder For Pit Dirt Bike

$38.99

  • Product Code: ED0015614
  • Availability: In Stock
  • Ex Tax: $38.99

Tags: master cylinder

Specification:
Product Name: Calliper Master Cylinder
Color: As pictured showed
Material: Metal
Calliper Overall Height (excluding operation arm, if present): 157.02 6.18
Calliper Overall Length (excluding operation arm, if present): 118.70 4.67
Calliper Overall Width (excluding operation arm, if present): 81.56 3.21
Compatible Brake Disc Thickness: 4mm/0.22“”
Height Excluding Bracket: 100.17mm/3.94"
Width Excluding Bracket 79.68mm/3.14"
Diameter of Fixing Holes (Master Cylinder): 6.27mm/0.25"
Diameter of Fixing Hole (Calliper Bracket): 14.95mm/0.59"
Height of Calliper: 84mm/3.31"
Distance Between Fixing Holes (Center of Eye to Center of Eye (Master Cylinder)): 43.97mm/1.73"
Length of Oil Pipe: 480mm/18.89"

Fitment:
Fits many pit bikes 50cc - 140cc. Used on some Stomps, WPB, Demon X, M2R,
Orion, Braaap, DHZ, Pitster Pro, Atomic, Piranha SSR and many others
(Please compare the part No.with your original one before purchasing)

Note:
1. We provide clear pictures, measurements where possible.
Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3. Instruction is not included,professional installation is highly recommended.

Package Included:
1 X Rear Foot Brake Disc Calliper Master Cylinder
