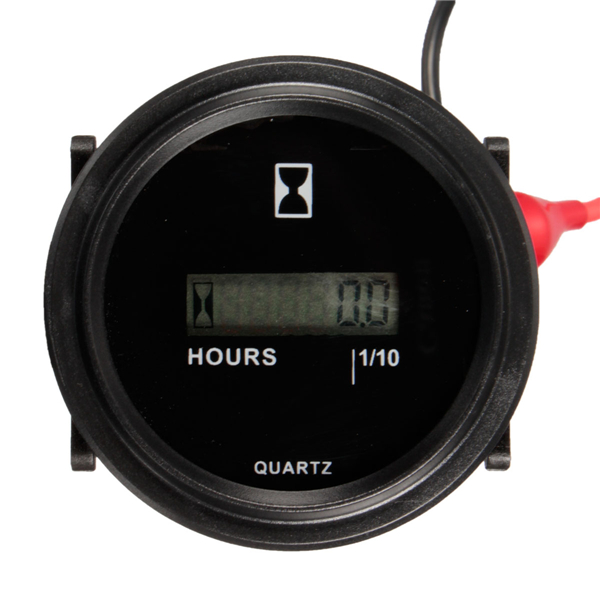

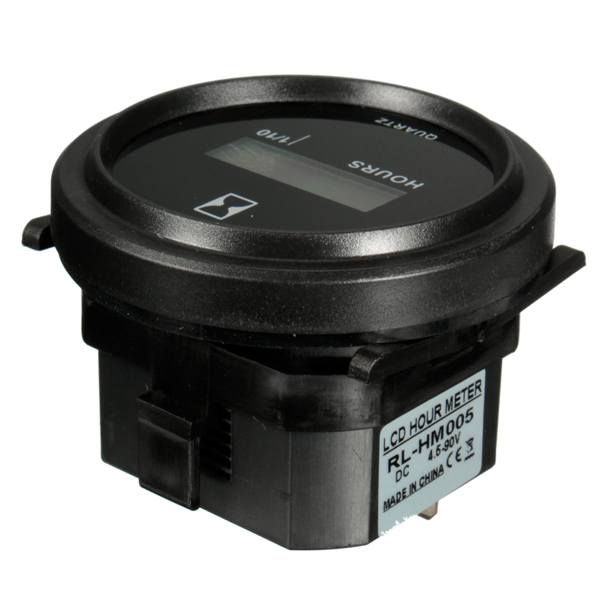

12/24/36V 2 inch Digital Hour Meter CE Gauge for Marine Boat Engine

$23.99

  • Product Code: ED0021180
  • Availability: In Stock
  • Ex Tax: $23.99
12/24/36V 2 inch Digital Hour Meter CE Gauge for Marine Boat Engine

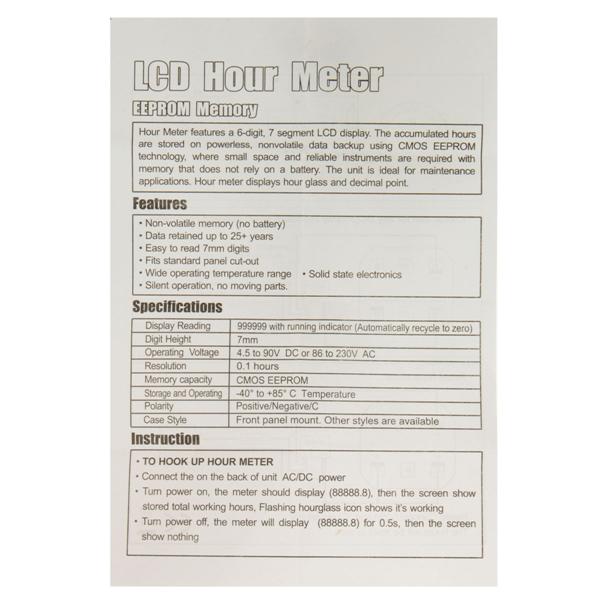

Description:

CE Cetification
Non-volatile memory (no battery)
Data retained up to 25+ years
Easy to read 7mm digits
Fits standard panel cut-out
Wide operating temperature,range
Solid state electronics
Silent operation, no moving parts

Specification:

Material: Plastic

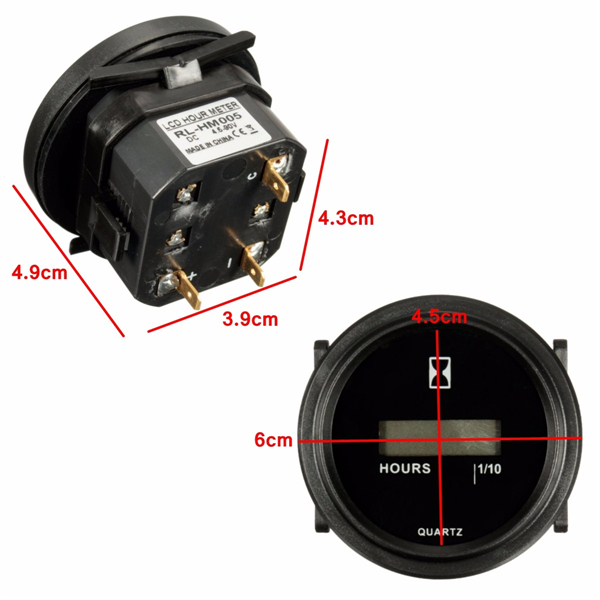

Size: As the picture shown
Color: Black
Quantity: Pack of 1
Display Reading: 999999 with running indicator (Automatically recycle to zero)
Digit Height: 7mm
Working Voltage: 4.5~90V DC
Operating Voltage: 4.5 to 90V DC or 86 to 230V AC
Resolution: 0.1 hours
Memory Capacity: CMOS EEPROM
Storage and Operating: -40° to +85℃
Polarity: Positive/Negative/C
Case Style: Front panel mount. Other styles are available

Instruction:

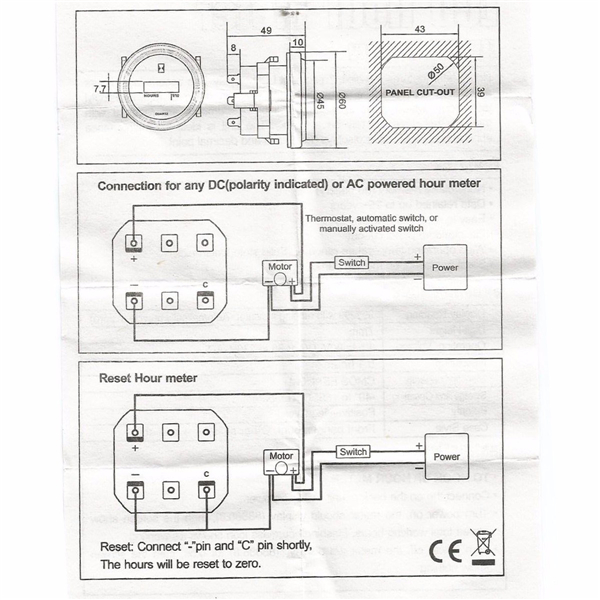

TO HOOK UP HOUR METER

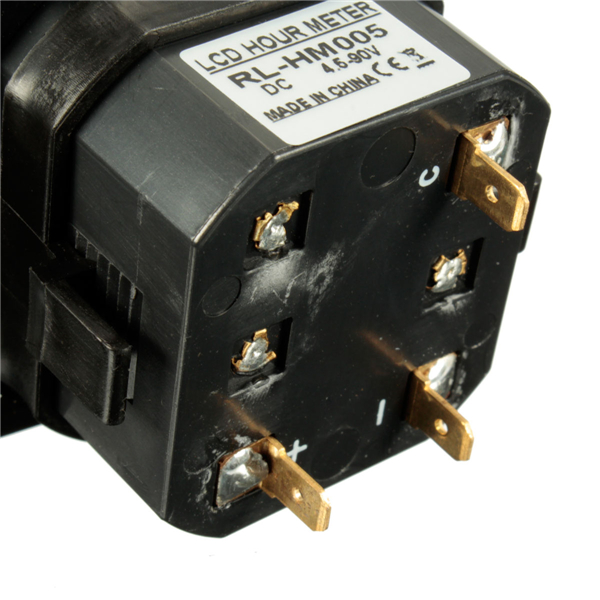

Connect the on the back of unit AC/DC power
Turn power on, the meter should display (88888.8), then the screen show stored total working hours, flashing hourglass icon shows it's working
Turn power off, the meter will display (88888.8) for 0.5s, then the screen show nothing

Notes:
-Please check the size measurement chart carefully before making a payment.
-Please allow 0.1-0.5cm difference due to manual measurement.
-Instruction is not included.

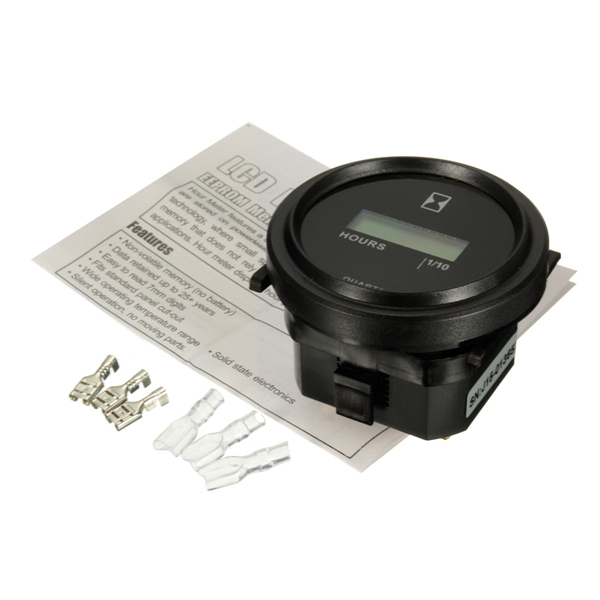

Package Included:

1 x Boat Gauge
