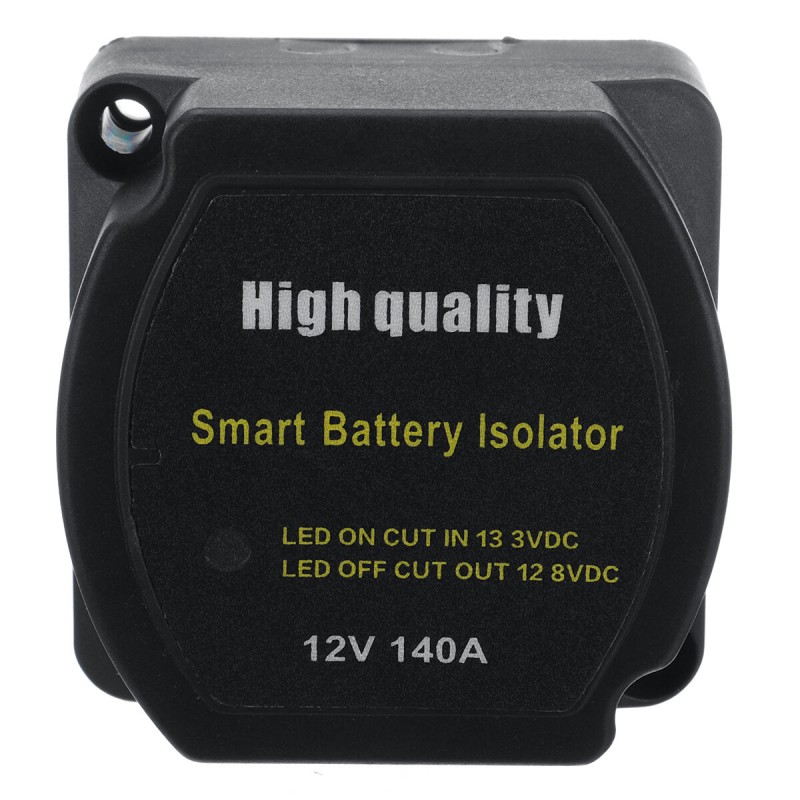

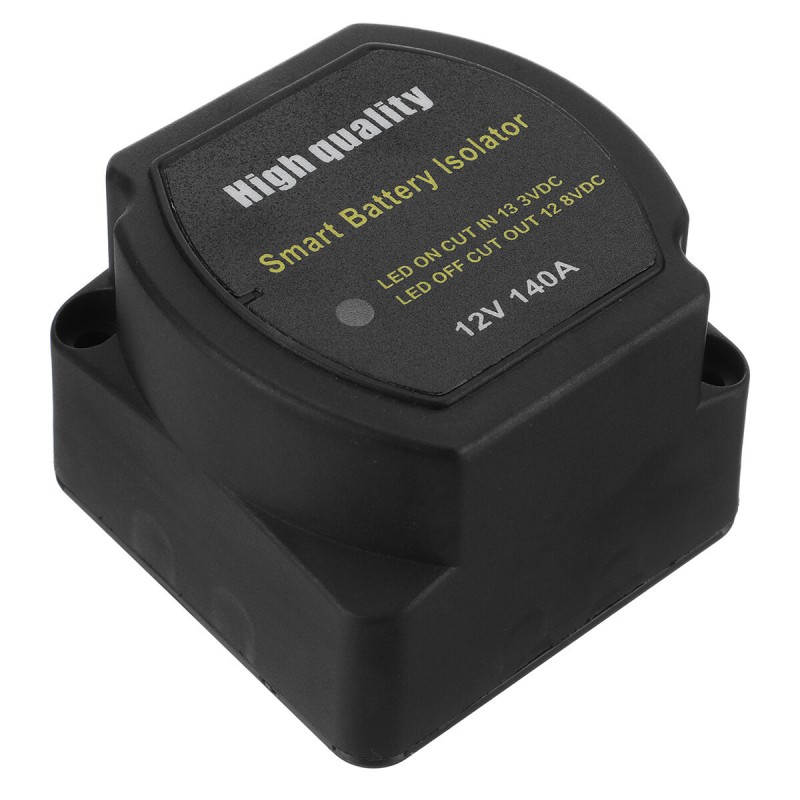

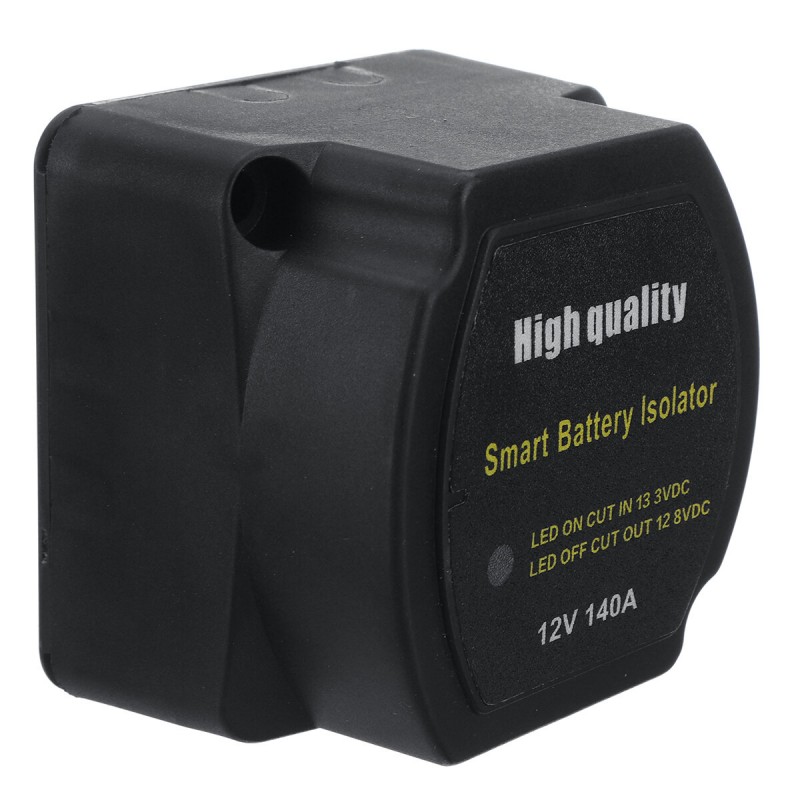

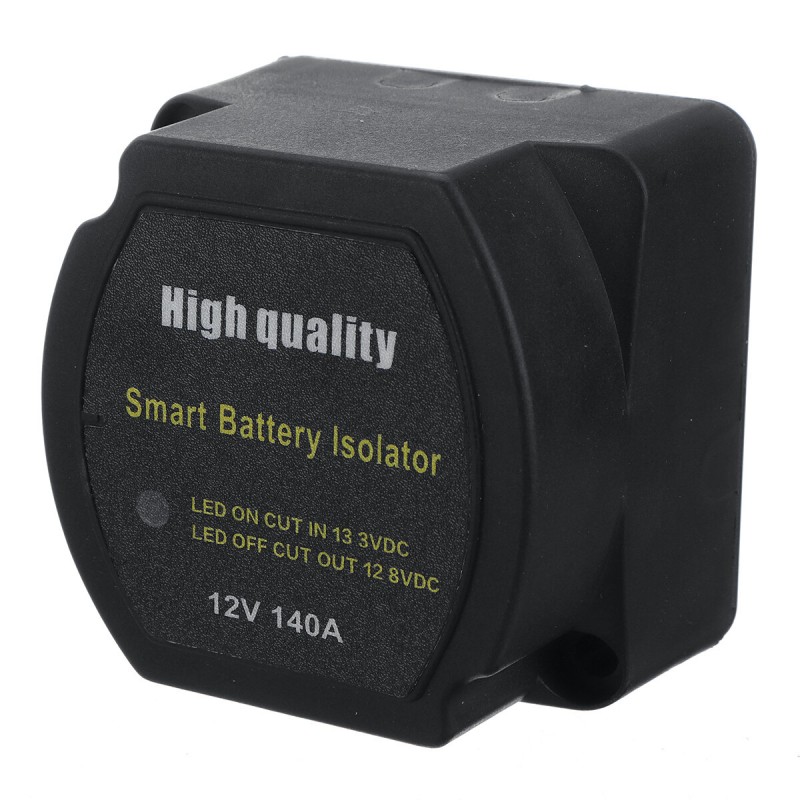

12V 140A Dual Battery System Isolator Voltage Sensitive Relay Switch VSR

$35.99

  • Product Code: ED0020764
  • Availability: In Stock
  • Ex Tax: $35.99

Tags: 12V 140A Voltage Sensitive Relay

Feature:

1.12V 140A brand new dual system voltage sensitive relay

2.Small convenient size, wide application

3.Suitable for all off-road vehicles and weather exposed applications.

4.Fast & easy installation, simple power wire IN, power wire OUT install

5.IP65 Weather & Strong Vibration Protection

6.Zero voltage drop, won't rob valuable power from your batteries and electrical system.

7.Comes With Necessary Hardware & Mounting Instructions.

8.Specially designed for ATV, UTV, boats, RV's, campers, 5th wheels, off road vehicles, Rhino, Polaris, Artic, Cat, Etc.

Specification:

Type

Voltage Sensitive Relay

Continuous Current

140A

Max Current

160A

Current Draw - Charging

280mA

Current Draw - Standby

8mA

Disengage delay

5-10 Seconds

Recommended Fuse

80Amp

Power Studs

M6 Stainless Steel

Surge Protection

Built-in

Dimensions

70x52x70 mm

More Information:

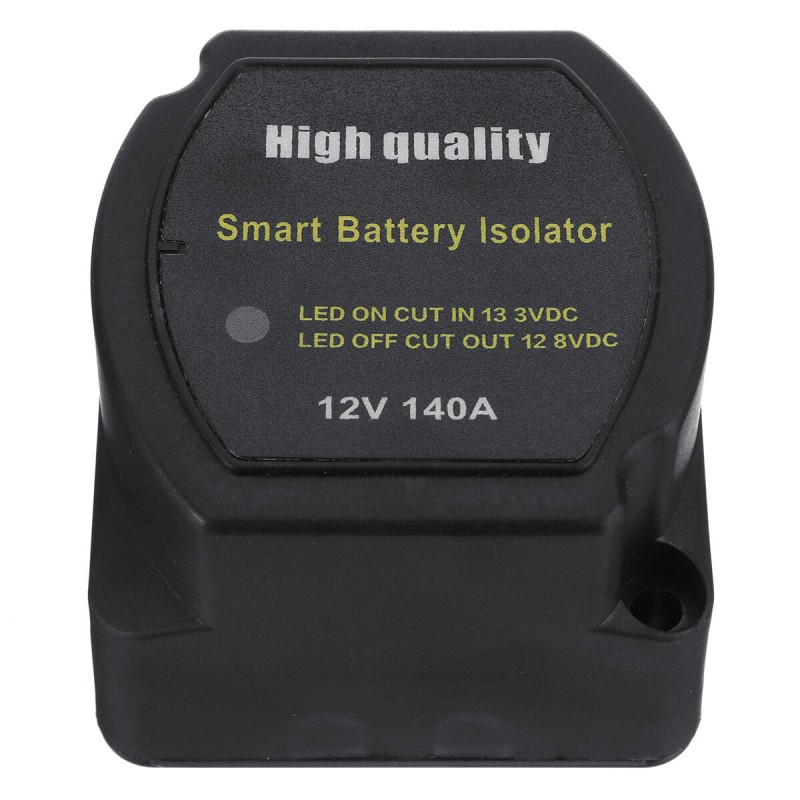

1.When the engine is started, the starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.3 volts the VSR engages allowing both starting and auxiliary batteries to be charged. This is indicated by the red light in the top LH corner being illuminated. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

2.This VSR is "Dual Sensing" which senses the voltage of both batteries.This is very useful in that being Dual Sensing (bi directional), you have a battery charger or solar power connected to your auxiliary battery and this battery gets charged enough to the VSR's set points , the VSR then will allow your charging source to back charge the cranking battery as well bringing that to fully charged as well but again, if the voltage drops below 12.8 volts, the VSR will again disconnect (isolate) the batteries.

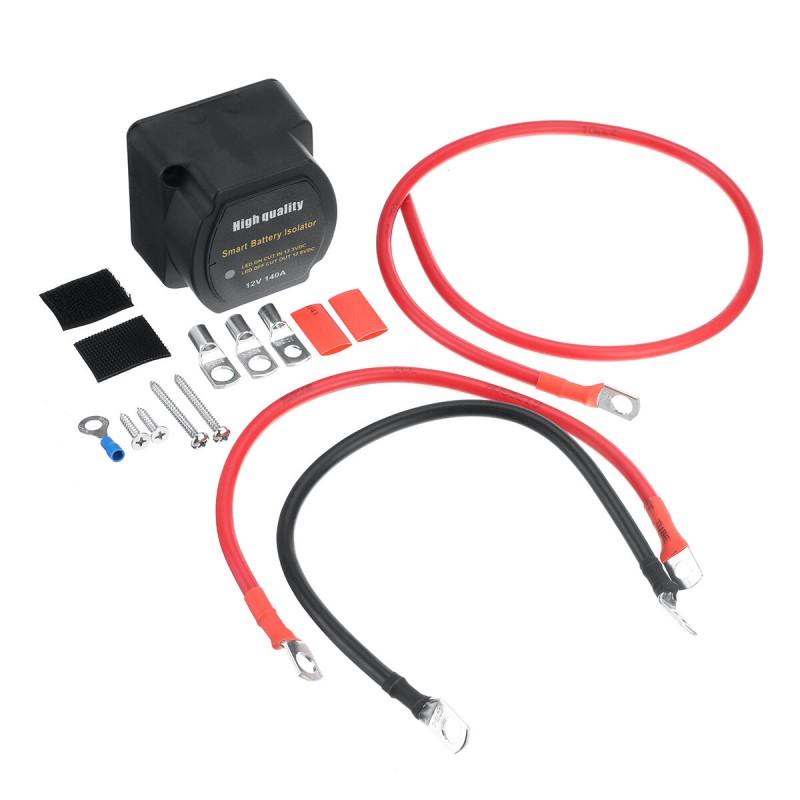

Package Included:

1 X

12V 140A Voltage Sensitive Relay

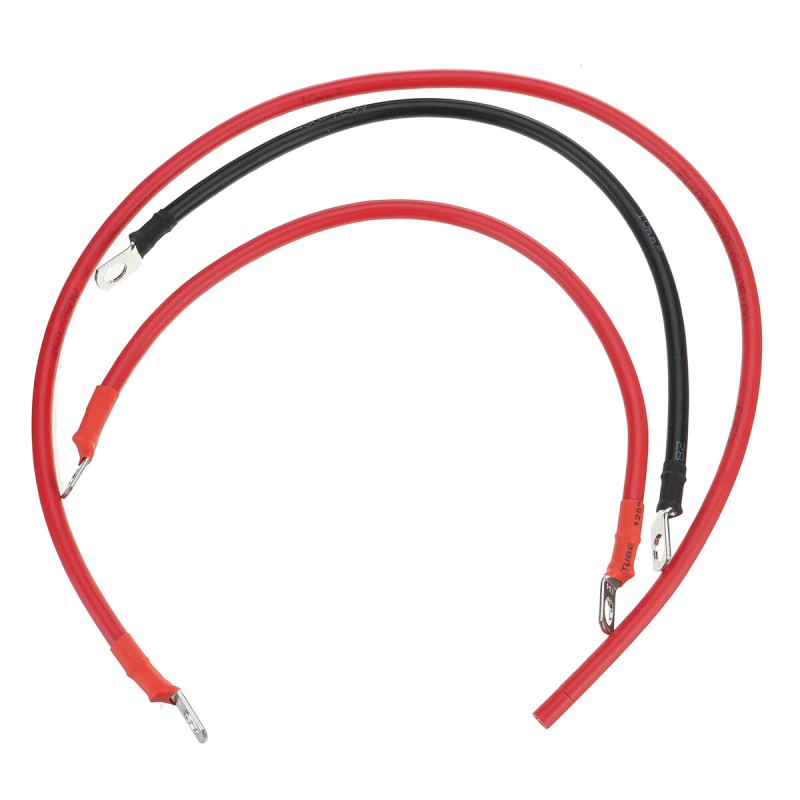

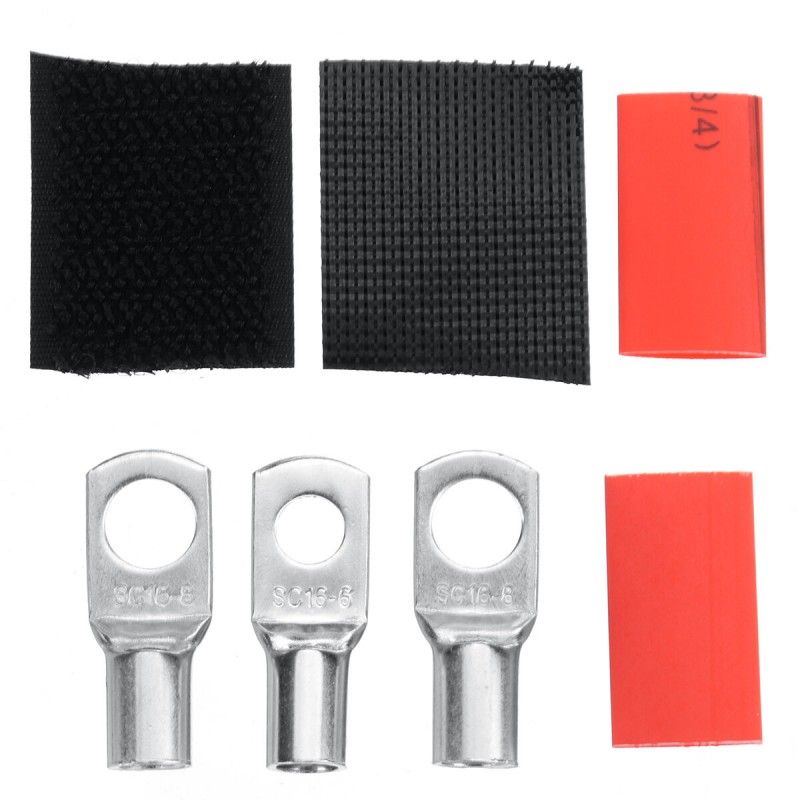

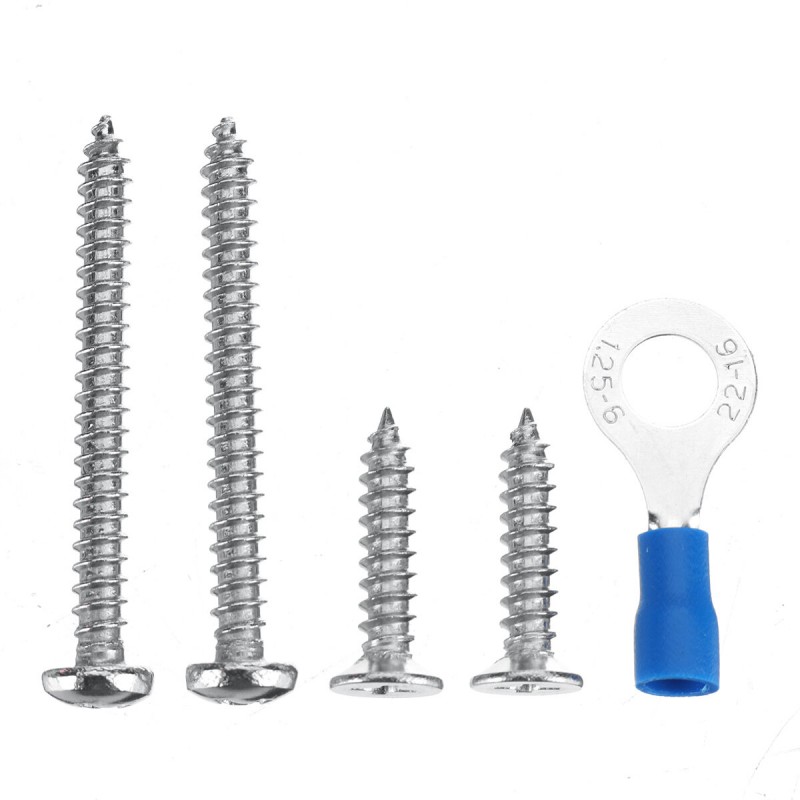

Cables and Accessories
