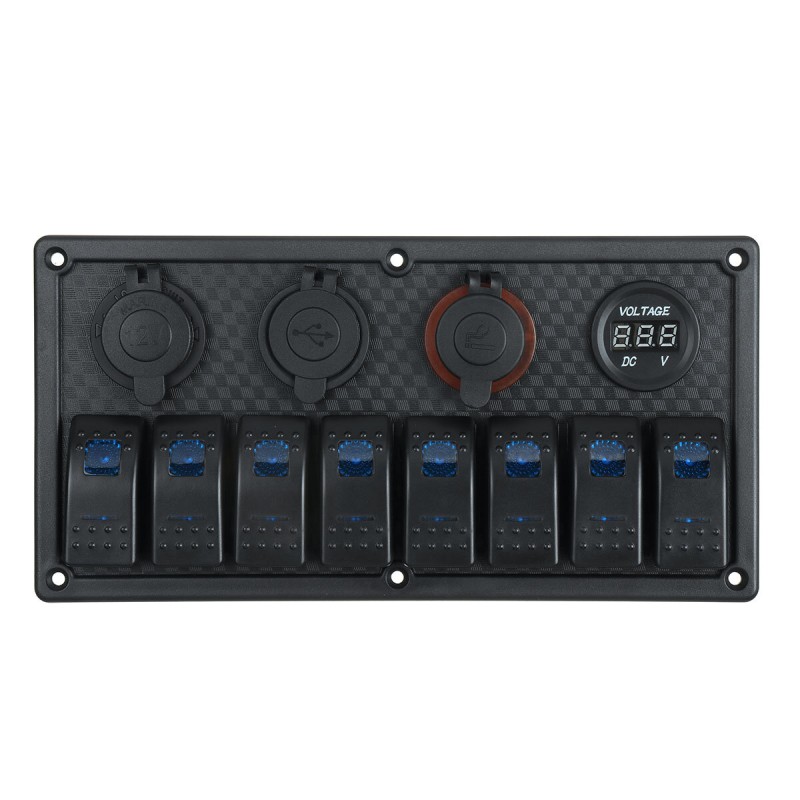

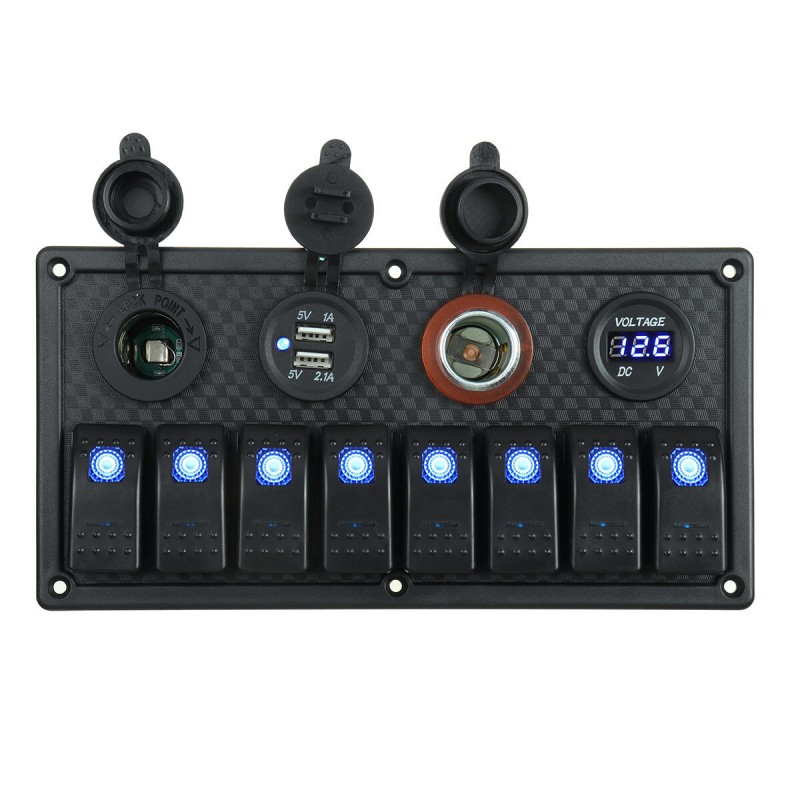

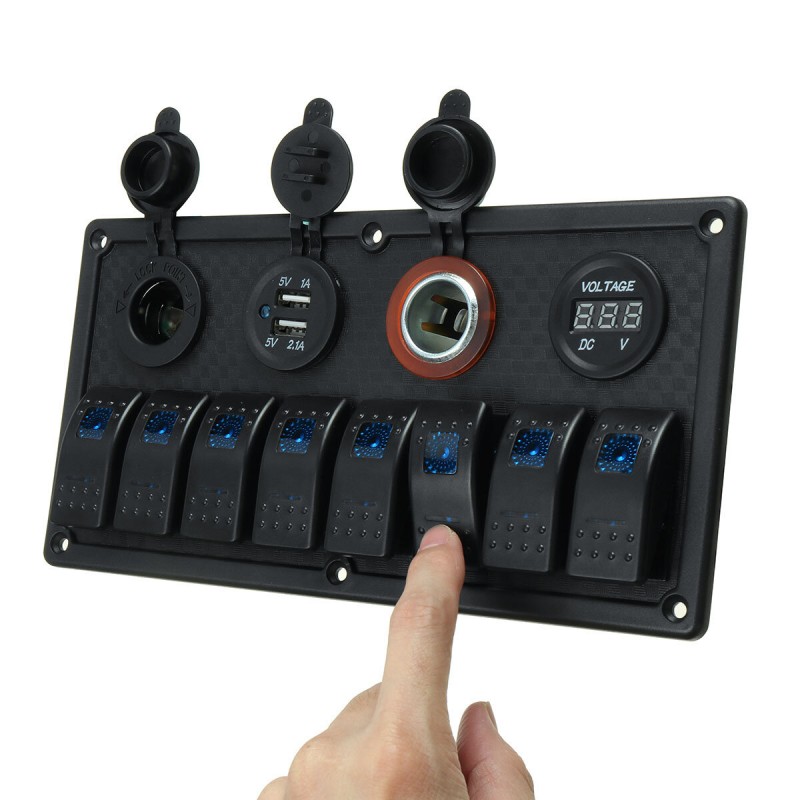

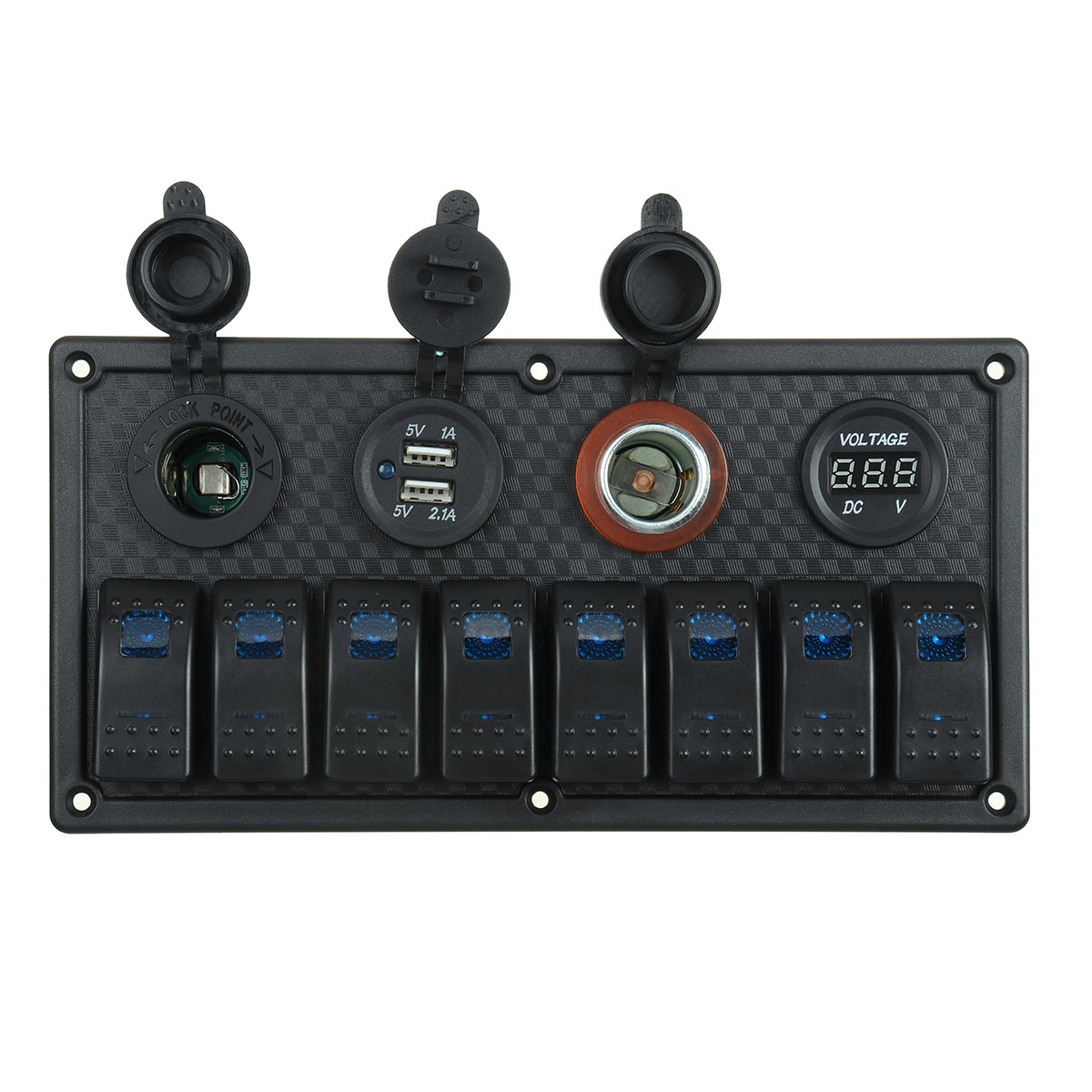

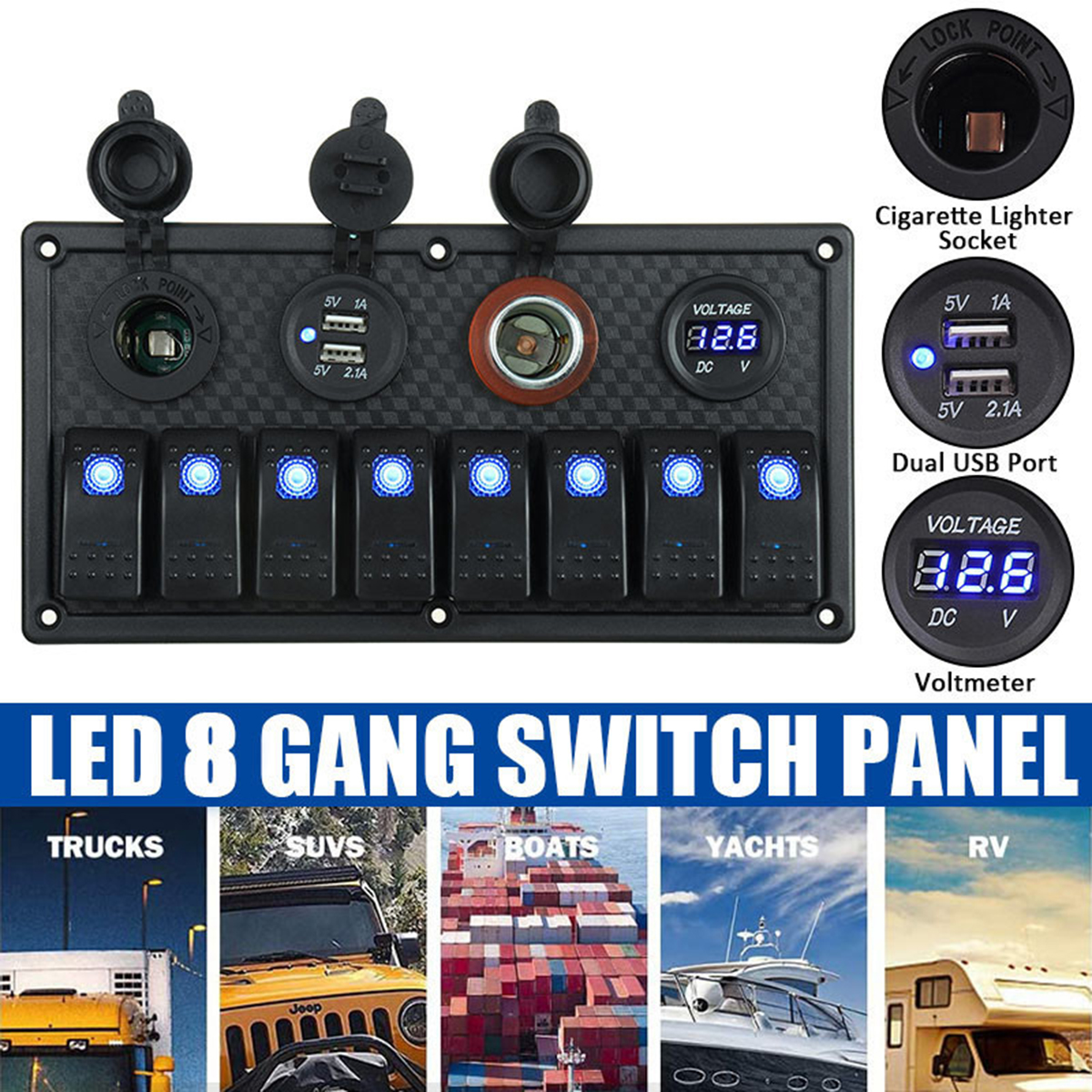

12V 24V 8 Gang Blue LED Rocker Switch Panel Car Marine Boat Dual USB Waterproof
$54.99
- Product Code: ED0020545
- Availability: In Stock
- Ex Tax: $54.99
Description:
1. Material: High quality ABS. CE certified quality, environmental anti-retardant materials ,ABS and copper for USB ,power socket and voltmeter,including the switch panel ,wires and Stainless Steel Screw.

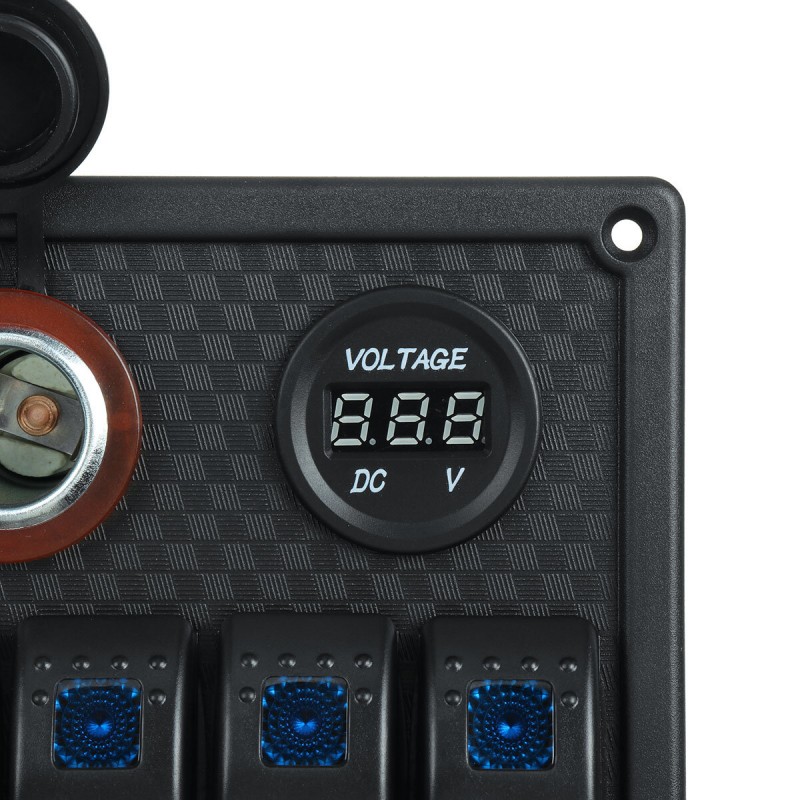

2. Short circuit / overheat protection for on-off rocker switch ,USB(2.1A x1,1A x1)and DC voltmeter
3. With rubber seal-cap to keep it water-tight,best for marine
4. Overload protection by Circuit breaker, splashproof,anti-corrosion.
5. Easy to install,can be installed horizontally
6. Suitable for both 12V and 24V systems Panel is pre-wired, Includes 6x Stainless Steel Screw
7. Easy to install and durable.With our strict quality control system, we test each item and 100% ensure in good condition before we ship.
Specification：

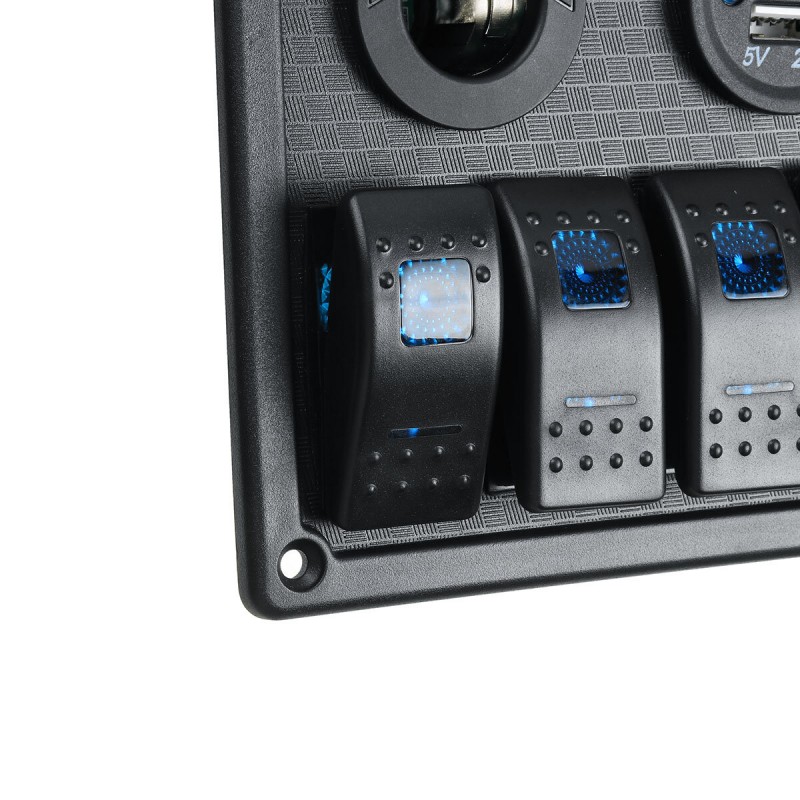

Rocker Switch |
8(LED LIGHT BAR, SPOT LIGHTS, SIDE LIGHTS, ROOF LIGHTS, ZOMBIE LIGHTS, DRIVING LIGHTS etc) |
Loop Circuit |
ON-OFF |
Switch System |
Water-resistant enclosed Rocker switch |
Rating |
AC 125V 16A,250V 10A;DC 12V 20A,24V 10A |
Input voltage |
DC12V/24V |
Maximum power |
240W |
Operating Temperature |
-25degree to 80degree |
Electrical Life |
10000 make and break cycles at full load |
IP Rating |
IP67 |

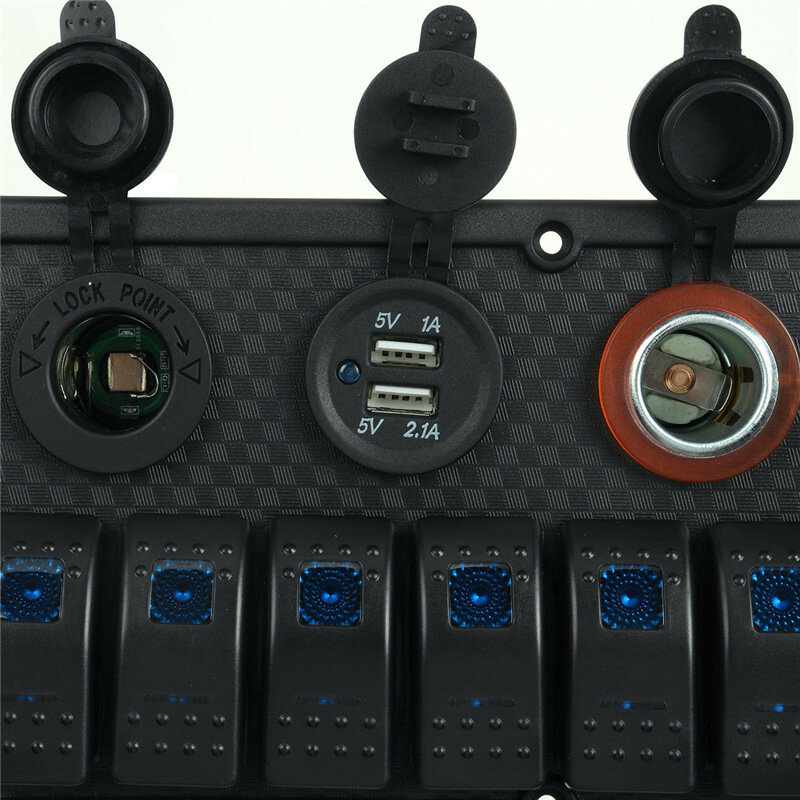

USB |
Dual USB Charger Socket |
Input |
DC 12-24V |
Output |
DC 5V 2.1A, 5V 1A |

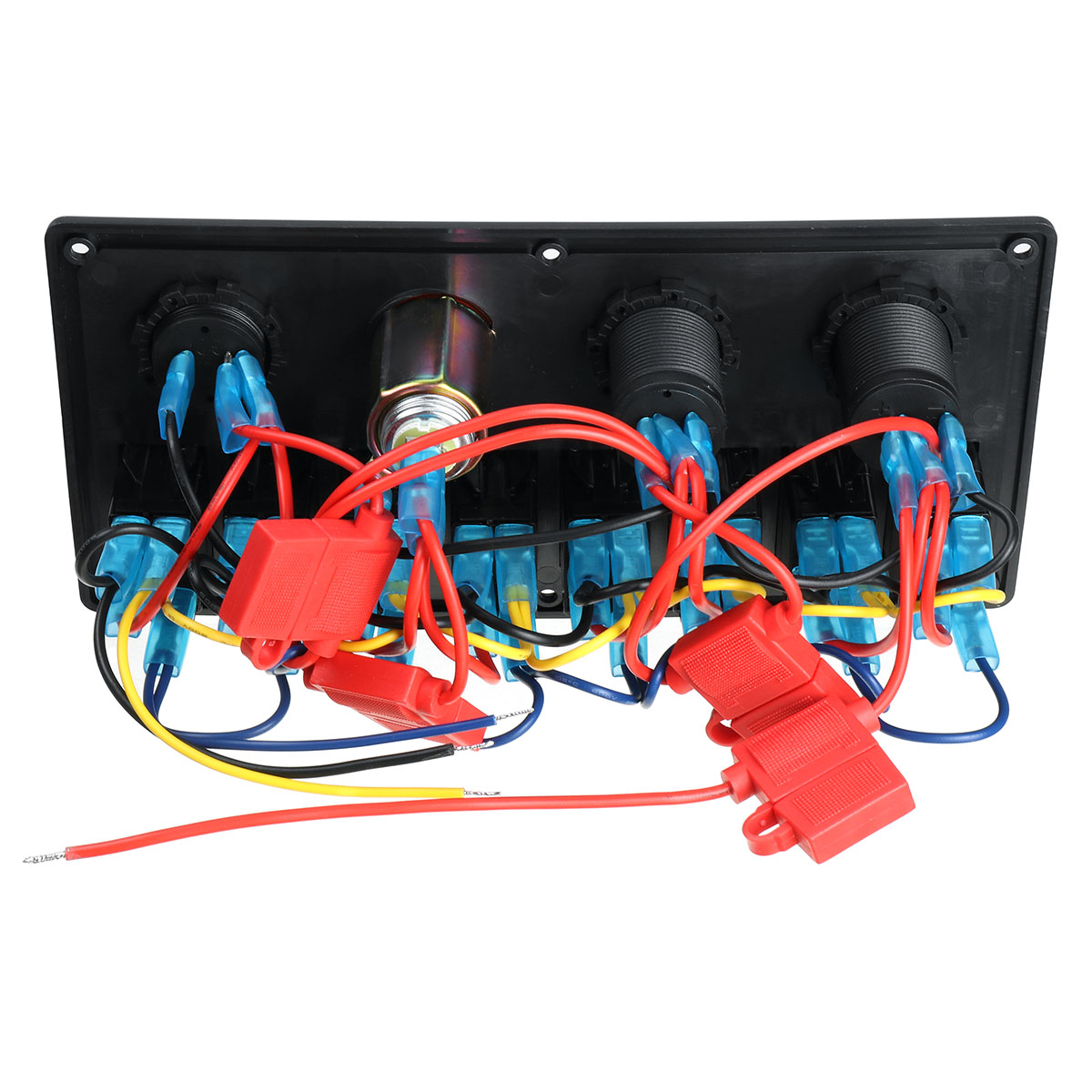

Wiring connection | |

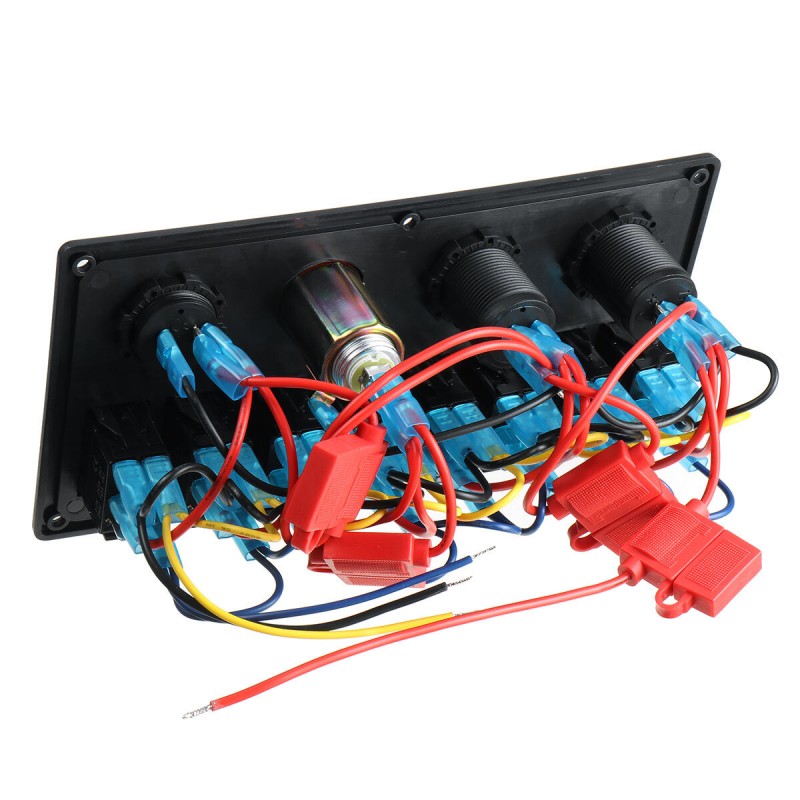

Installation |
Pre-wired ( Can be horizontal mounted ) |

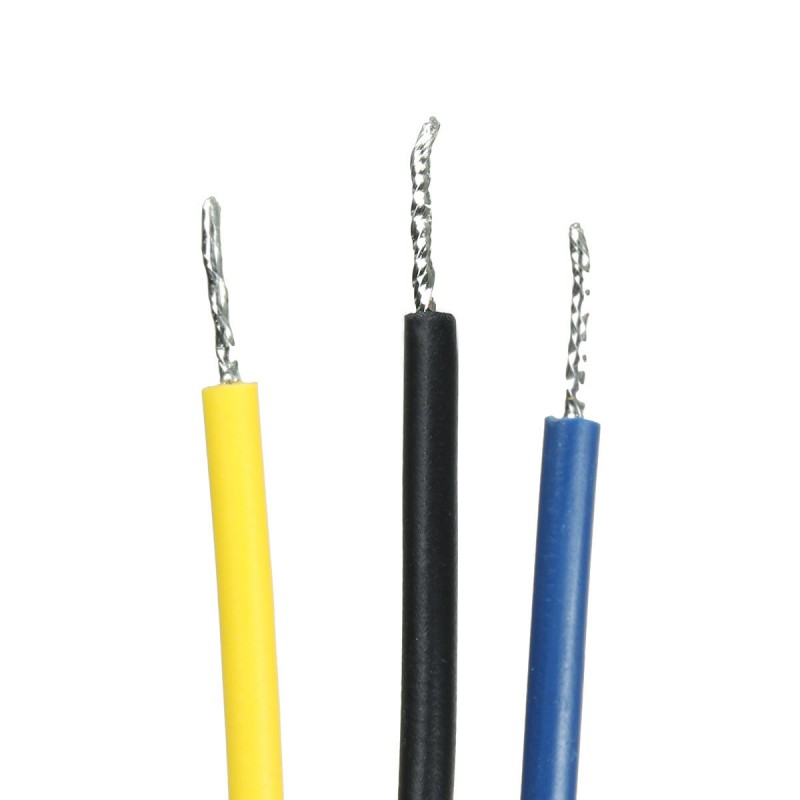

The four red wires |
Connect the cathode of the storage battery. |
The black wire |
Connect the anode of the storage battery. |
The blue wire |
Connect the cathode of the storage battery. |
The yellow wire |
Connect the anode of the storage battery. |
Eight sheet coppers |
The load generator positive connection. |

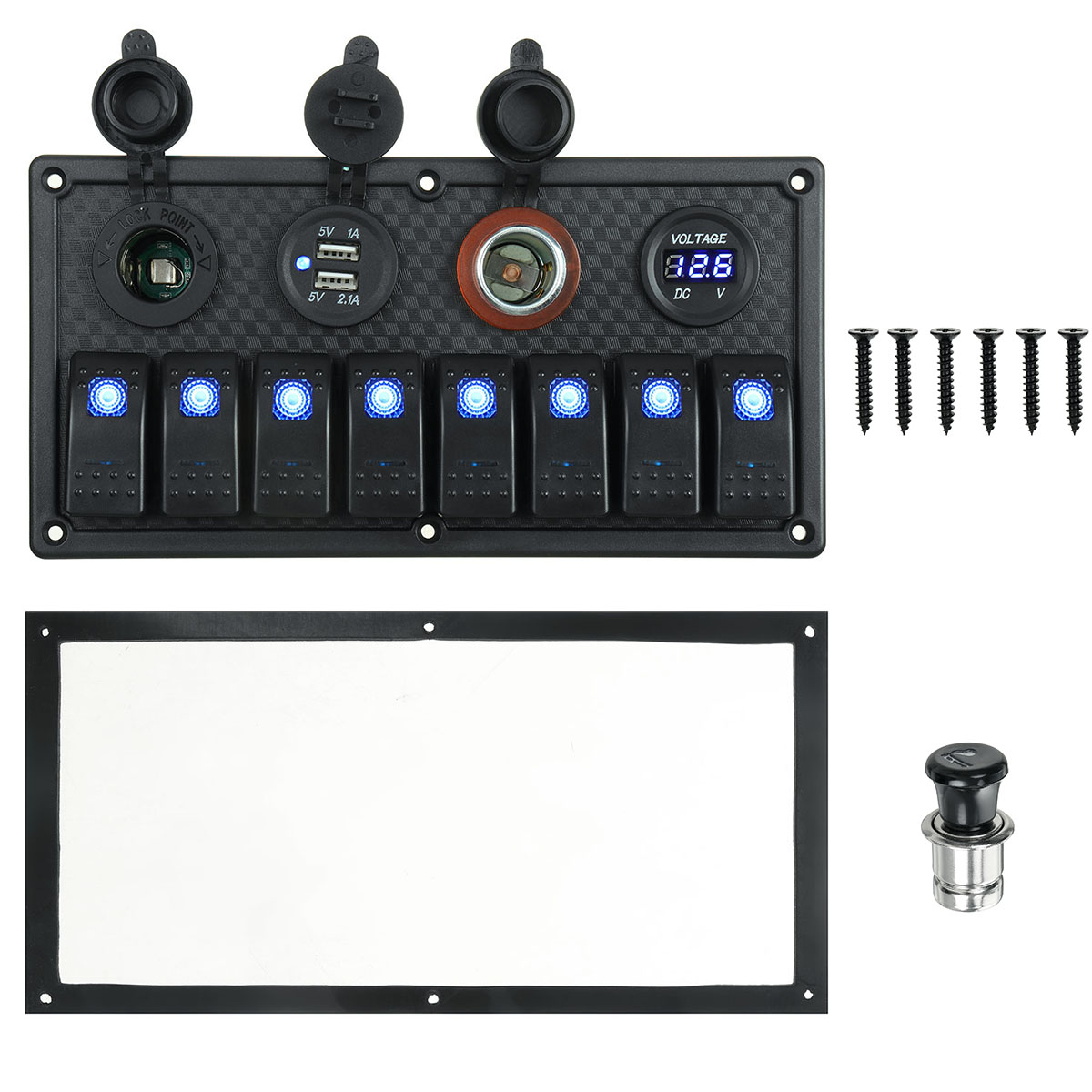

Package Include:
1 X |

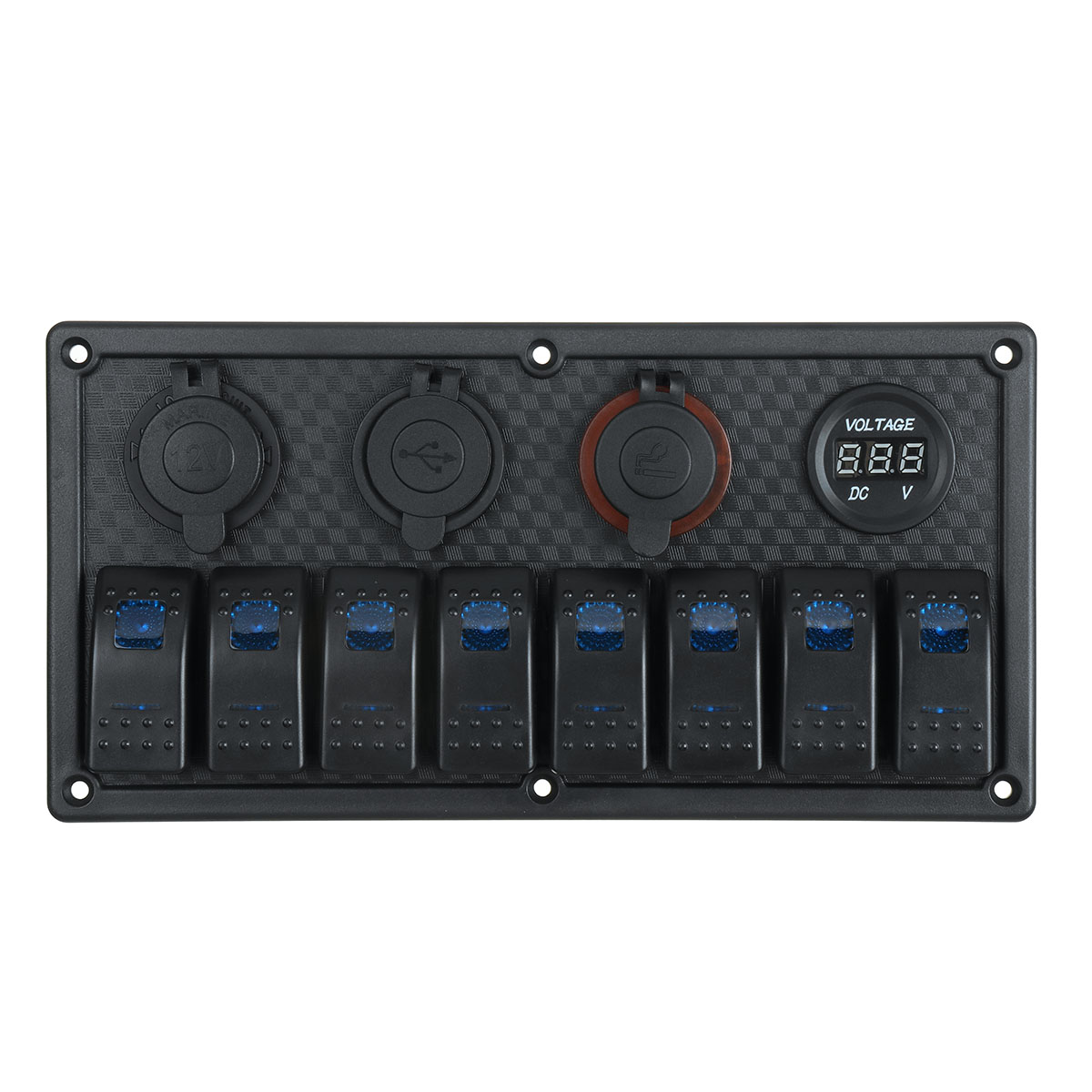

Switch panel（L*W: 23.5*12CM） |
1 X |

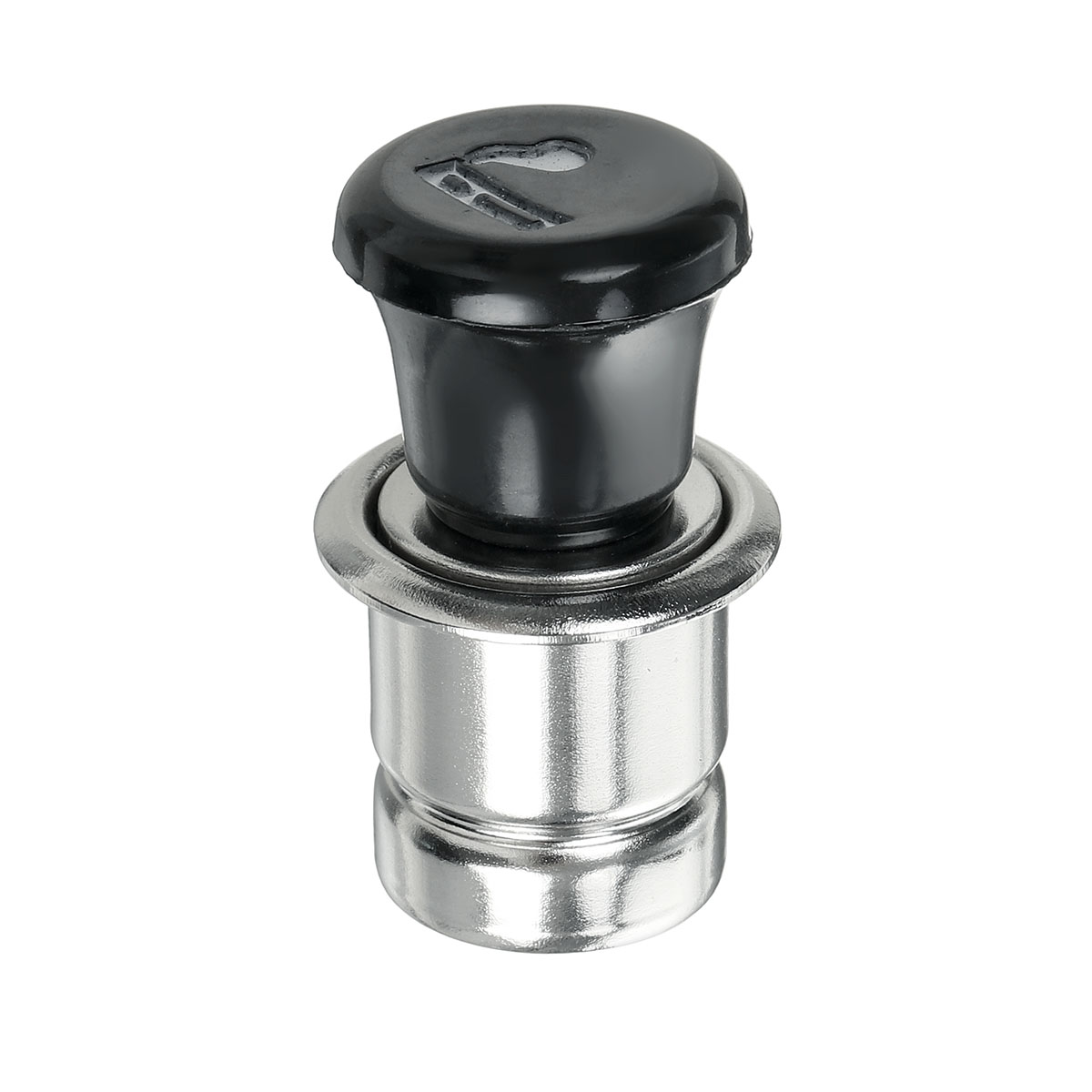

Lighter |
1 X |

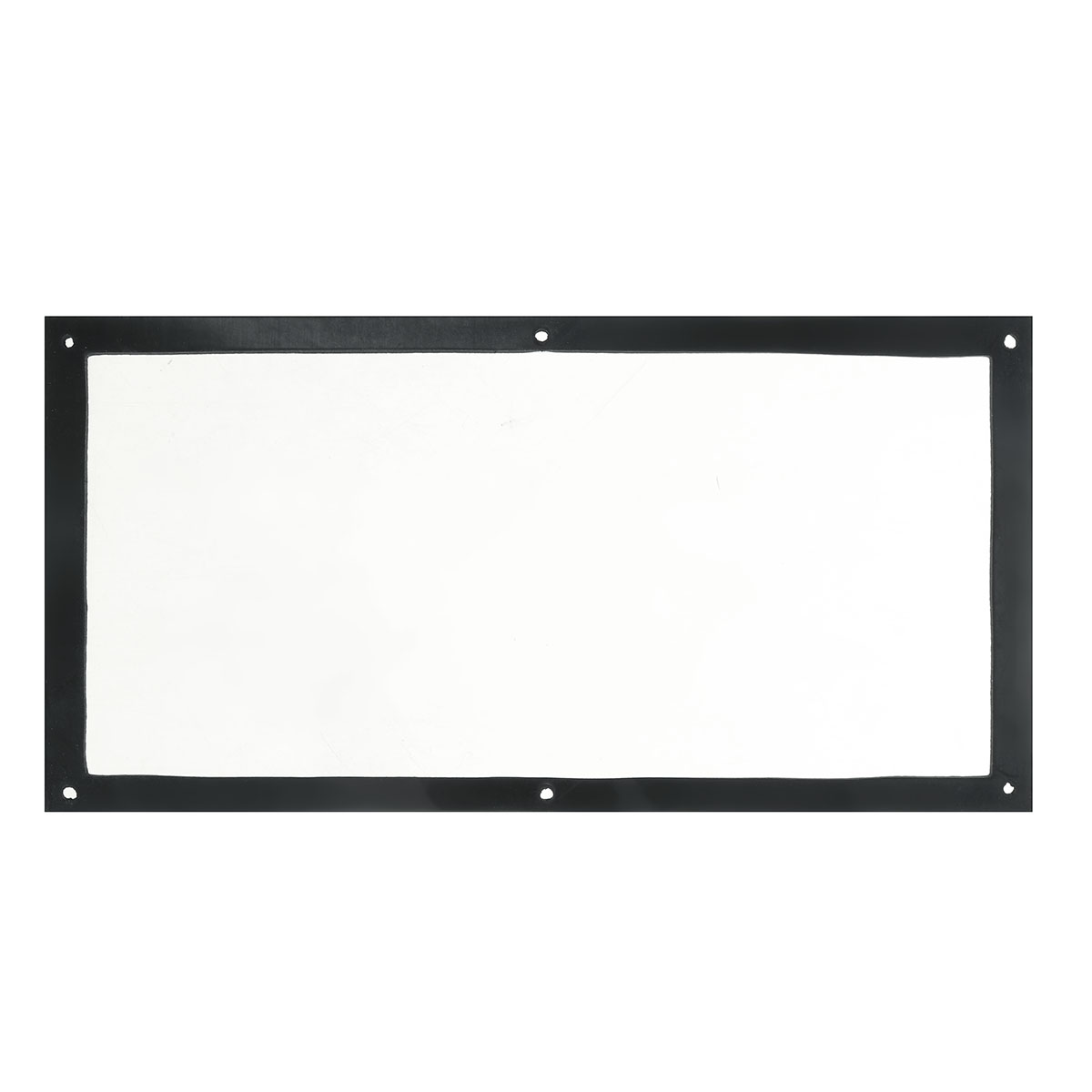

Rubber seal pad |
6 X |
Stainless Steel Screw |
