12V 24V 85mm 200Km/h Car GPS Speedometer Odometer Speed Gauge 7 Color Waterproof Marine Boat Universal
$86.99
- Product Code: ED0020811
- Availability: In Stock
- Ex Tax: $86.99
Feature:

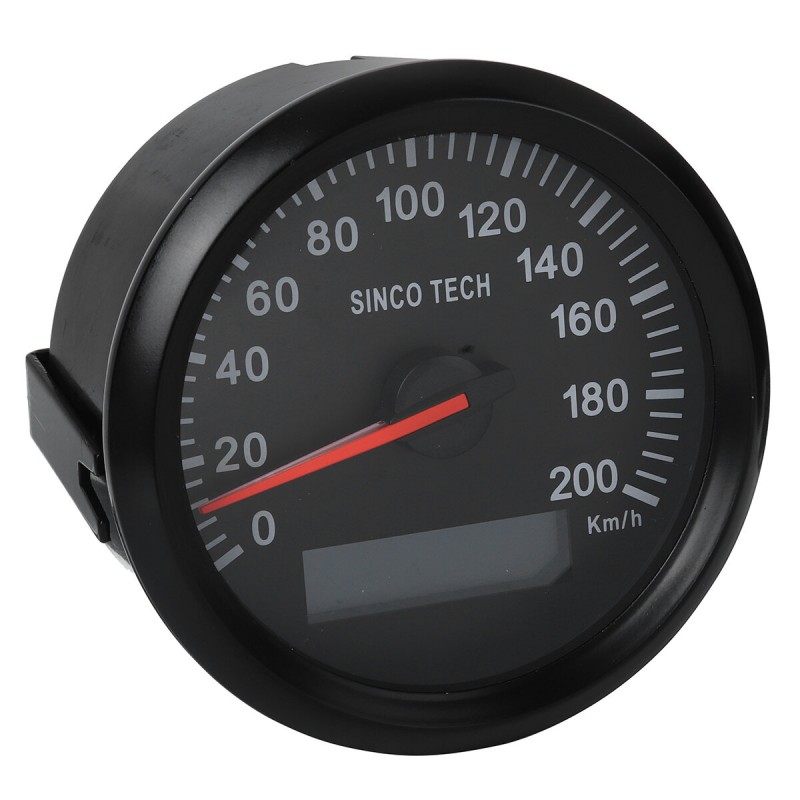

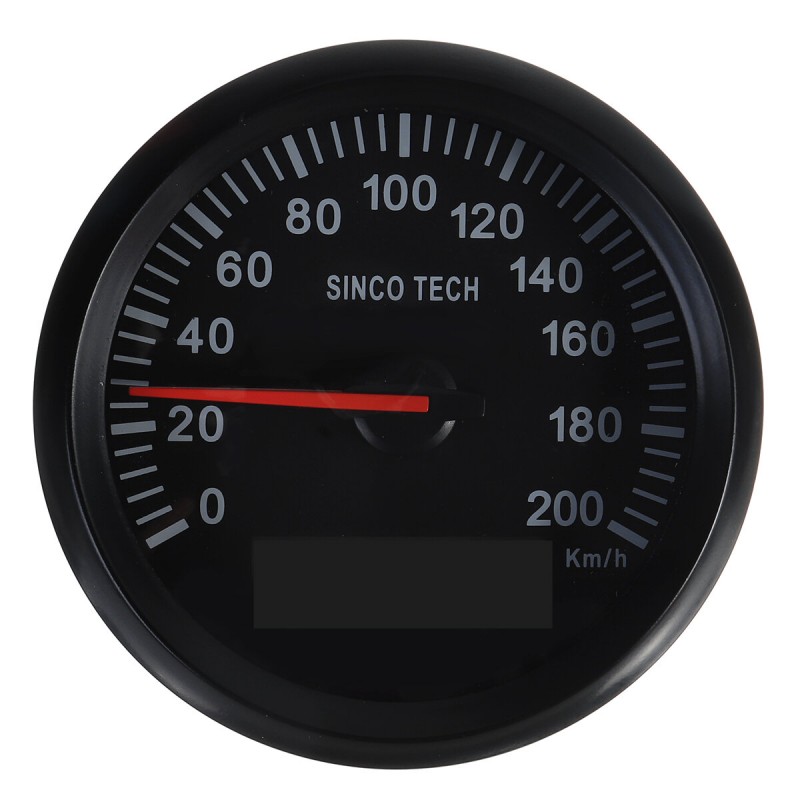

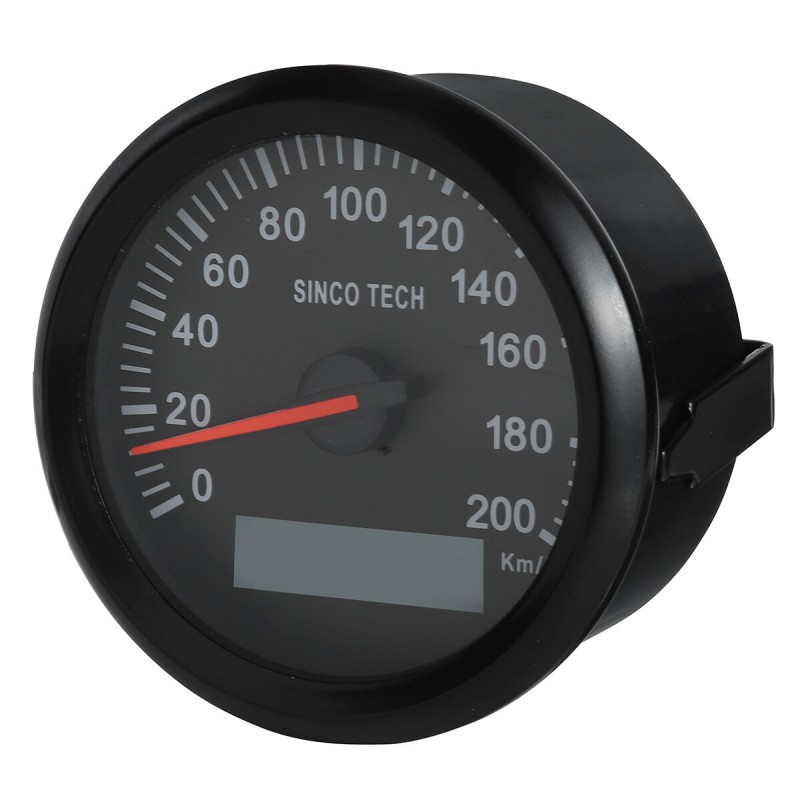

1.The composition of the GPS speedometer interface is divided into upper and lower parts. The above indicates the speed of the car in the form of pointer and scale, the unit is Km/h;
2.There is a rectangular LCD screen at the bottom, and there are three interfaces on the display screen during normal operation, which display the three data of speed, heading, and mileage respectively.

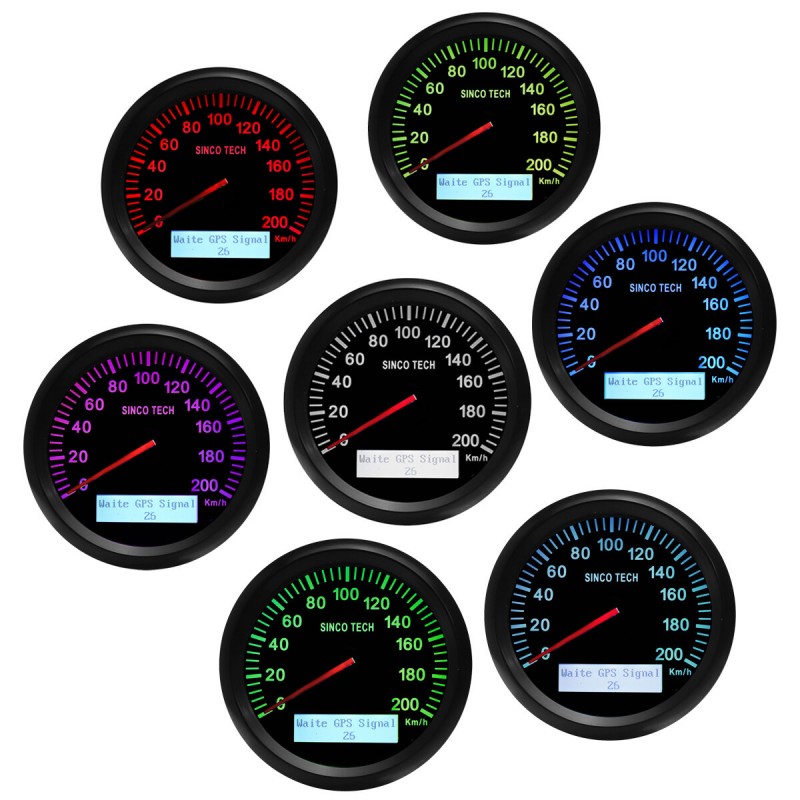

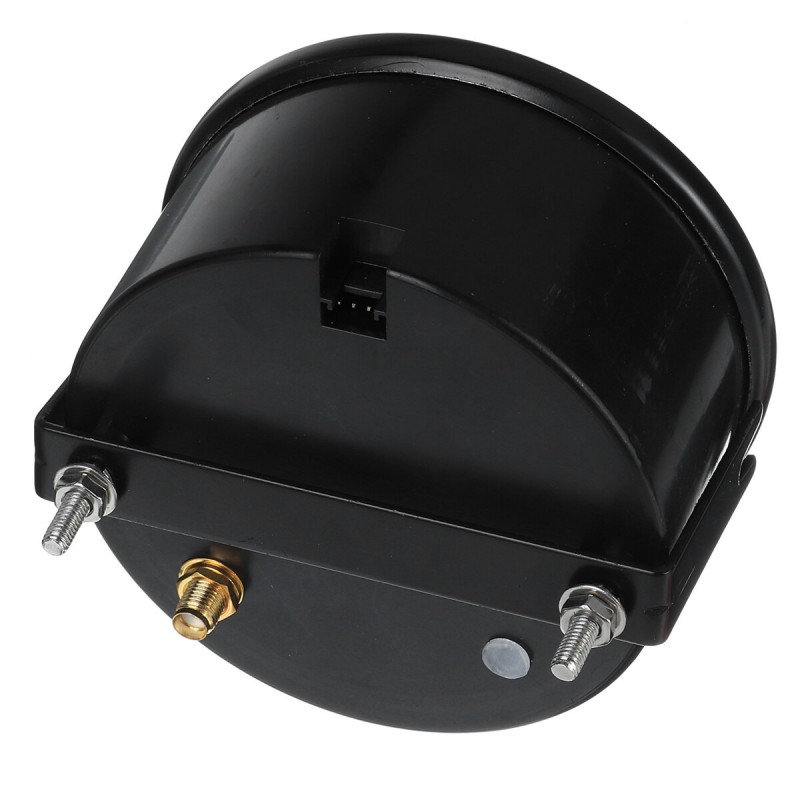

3.There is a button on the back of the meter. Short press the button to switch the three interfaces of the LCD screen; if the backlight is on, long press the button to switch the backlight color, which are: blue, green, red, yellow, white, Purple, cyan, off; if you press and hold the button for more than 4 seconds in the mileage display interface, the trip subtotal mileage will be cleared.
Specification:
Product name |
GPS Speed Odometer |
Product material |
ABS+metal |
Shell color |
black |
Size |
89.6mm/3.52inx50.6mm/1.99in (LxW) |
Product size |
85mm/3.34in |
Working voltage |
12V |
Working current |
<=100mA |
Display range |
0-200KM/H |
Working temperature |
-30~75℃ |
Storage temperature |
-40~85℃ |
Waterproof and dustproof |
IP67 |
Background light |
red/blue/cyan/purple/white/green/yellow (switched by the button behind the meter) |
Wiring:
Red |
Positive |
Green |
Positive-Ignition Switch |
Yellow |
Positive-Light Switch |
Black |
Negative |
Application range:
1.This product is suitable for 12v/24v vehicles. It can accurately display the engine speed through the stepper motor driving the pointer, and it can also display the heading angle and
mileage.
2.Applicable models: engines, generator sets, ships, construction machinery, agricultural machinery, modified vehicles, etc.
product manual:
3.Using stepper motor, it has the characteristics of low power consumption, long life and high precision.
4.With curved glass (with anti-fog function)
5.There is a buckle with the harness connector, the best connection, the connection is firm, and it can work even under strong vibration
6.3 in 1 function can display speed, heading angle and mileage
Interfaces Instructions:
1.GPS Speed Interface
The interface reads the current speed in the form of digital display ,unit: KM/H,and the maximum reading speed is 200KM/H.
2.GPS Course Interface
The Value on the left indicates the course angle,Due north is 0°，and increases clockwise.The right side is abbreviated to indicate the current course.
N -- NORTH -- course angle shows 345 °-15 °.
NE -- NORTHEAST -- course angle shows 15 °-75 °.
E -- EAST -- course angle shows 75 °-105 °.
SE -- SOUTHEAST -- course angle shows 105°-165 °.
S -- SOUTH -- course angle shows 165°-195 °.
SW -- SOUTHWEST-- course angle shows 195°-255 °.
W -- WEST -- course angle shows 255°-285 °.
NW -- NORTHWEST -- course angle shows 285°-345 °.
3.Mileage Interface
The mileage interface displays two parts: TRIP in the upper part and total ODO in the lower part.
In the mileage display interface, long press the button for more than 4 seconds, and the TRIP mileage will be cleared.
Instructions:

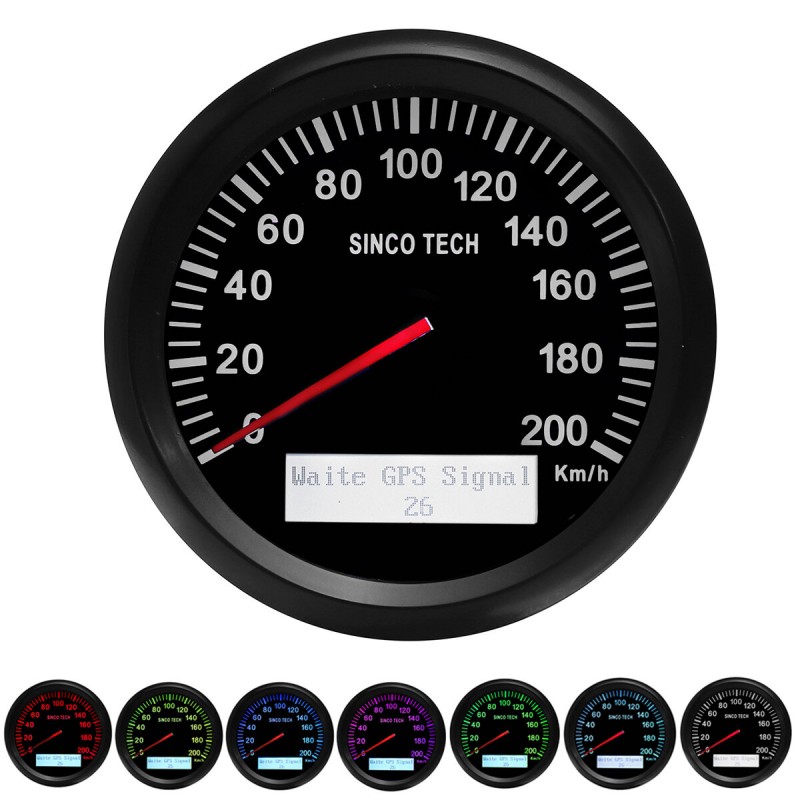

Connect the GPS antenna, turn on the power, the meter enters the power-on self-test, the pointer hits the maximum range, and then returns, and the LED backlights of each color are sequentially lit. After the self-check is completed, the meter enters the state of waiting for the GPS signal, the first line of the LCD screen displays "Waite GPS Signal", and the second line has a second count (the watch should be placed in an open area and not suitable for indoor use) After the positioning is completed, the counting will automatically enter the normal working state.
Note:
The GPS antenna should be installed face up as much as possible, and must be placed in an open outdoor place when installing, and the GPS signal should not be blocked as much as possible.
Install Instruction:

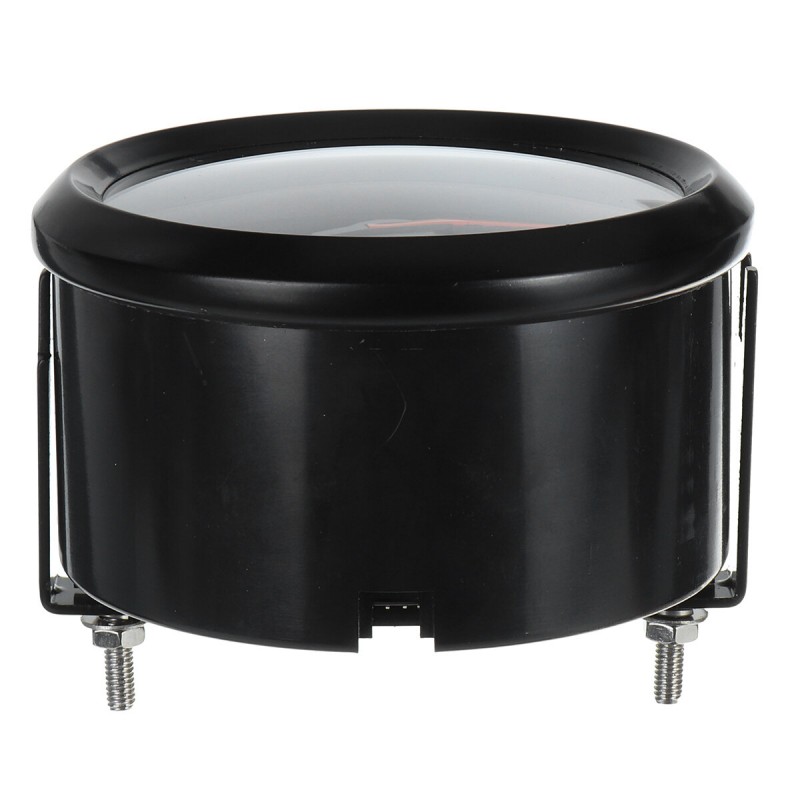

Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3 3/8'') of the instrument panel at the back of the instrument

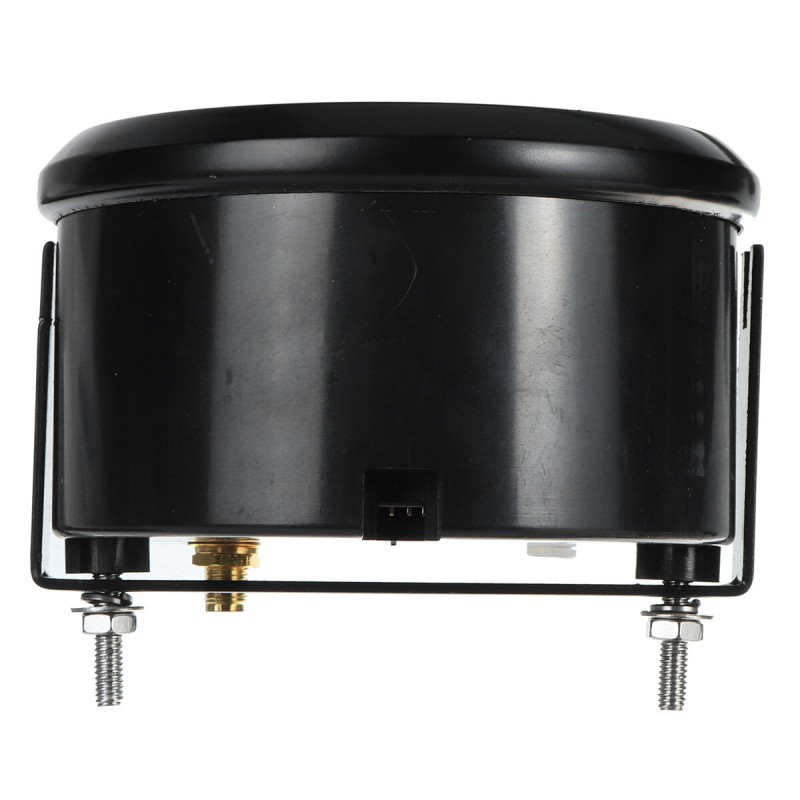

After the instrument is mounted in the panel,screw down with a fixed ring
Connect the wire,the instrument housing is directly connected to the 12/24v power supply
Insert wire harness,firmly locked in the table
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

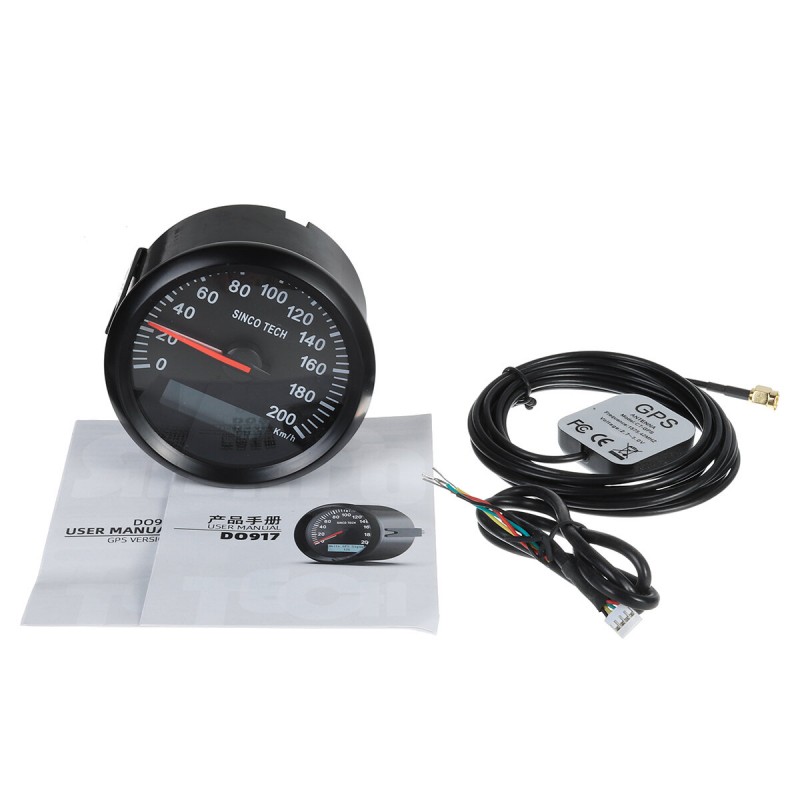

Package Included:
1 X |
GPS speedometer |
1 X |
Power connection cable |
1 X |

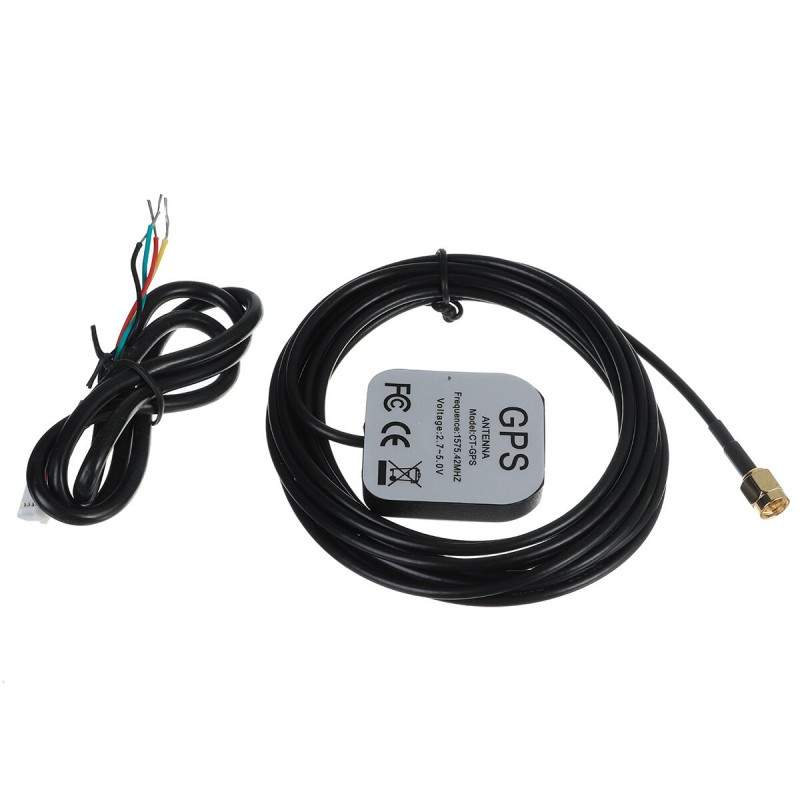

GPS antenna |
1 X |
Installation instructions |
