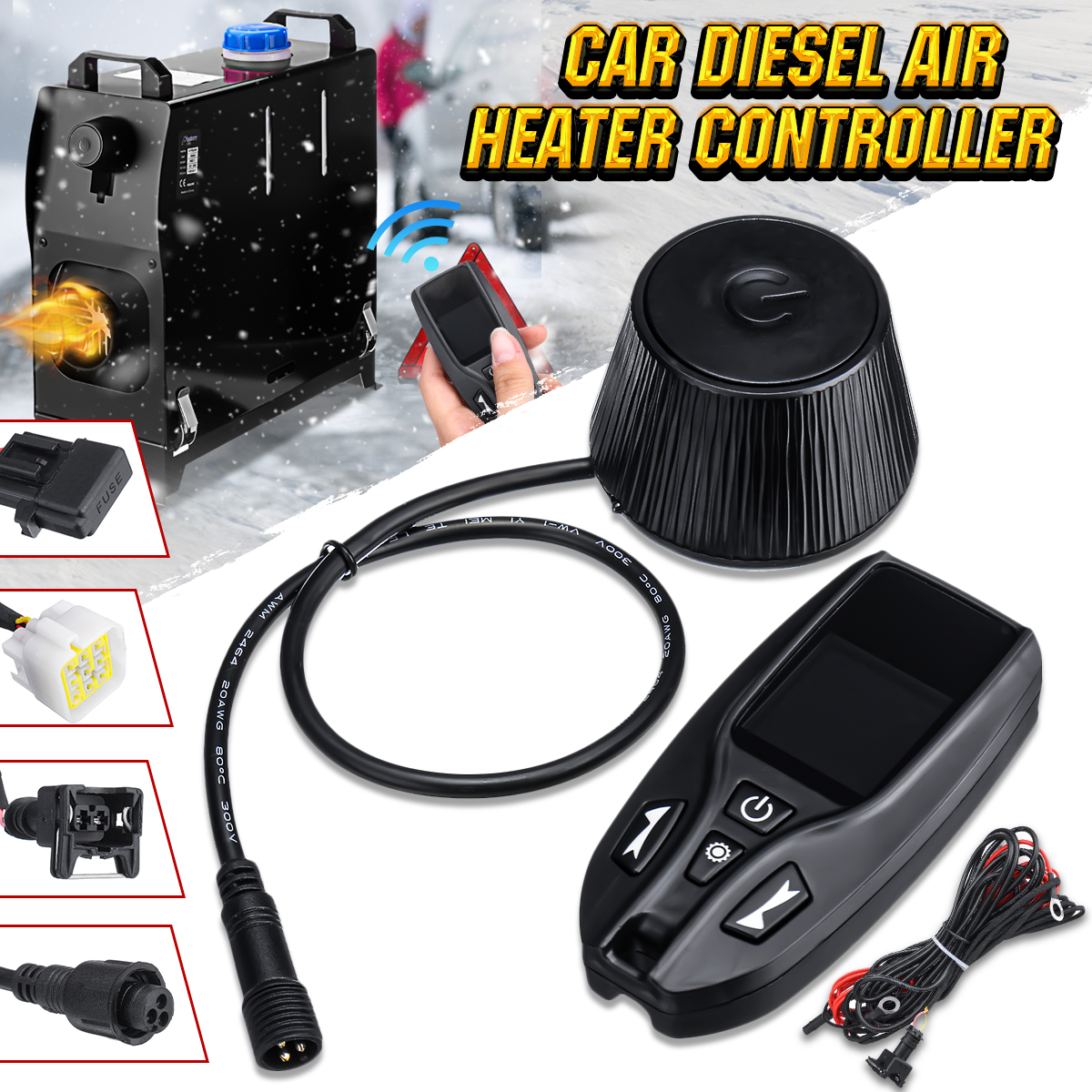

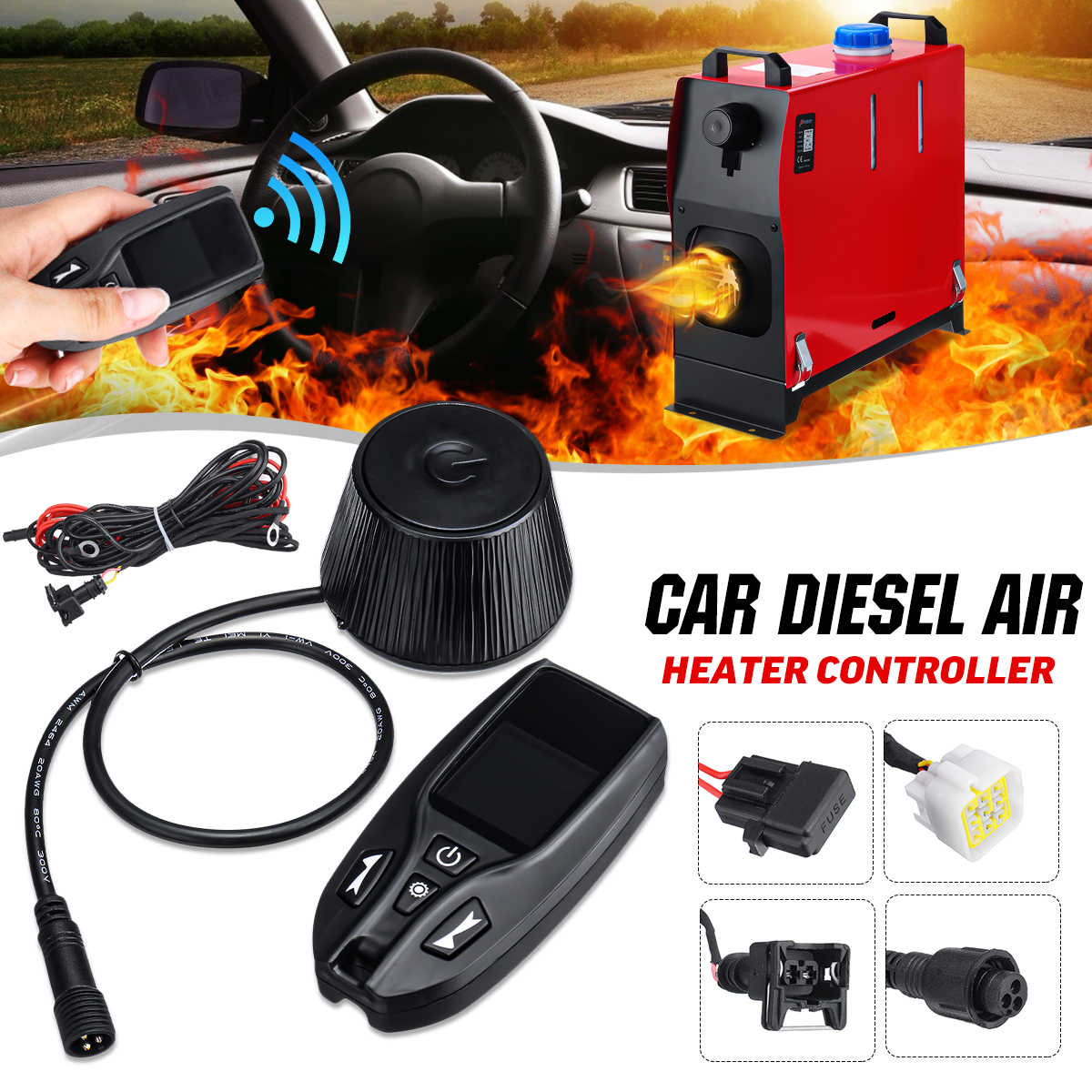

12V 24V Two-way remote control Car Diesel Air Heater LCD Monitor Switch Parking Heater Controller
$32.74
- Product Code: ED0001269
- Availability: In Stock
- Ex Tax: $32.74
Specification:
Color: Black
Quantity: 2pcs
Material: Plastic

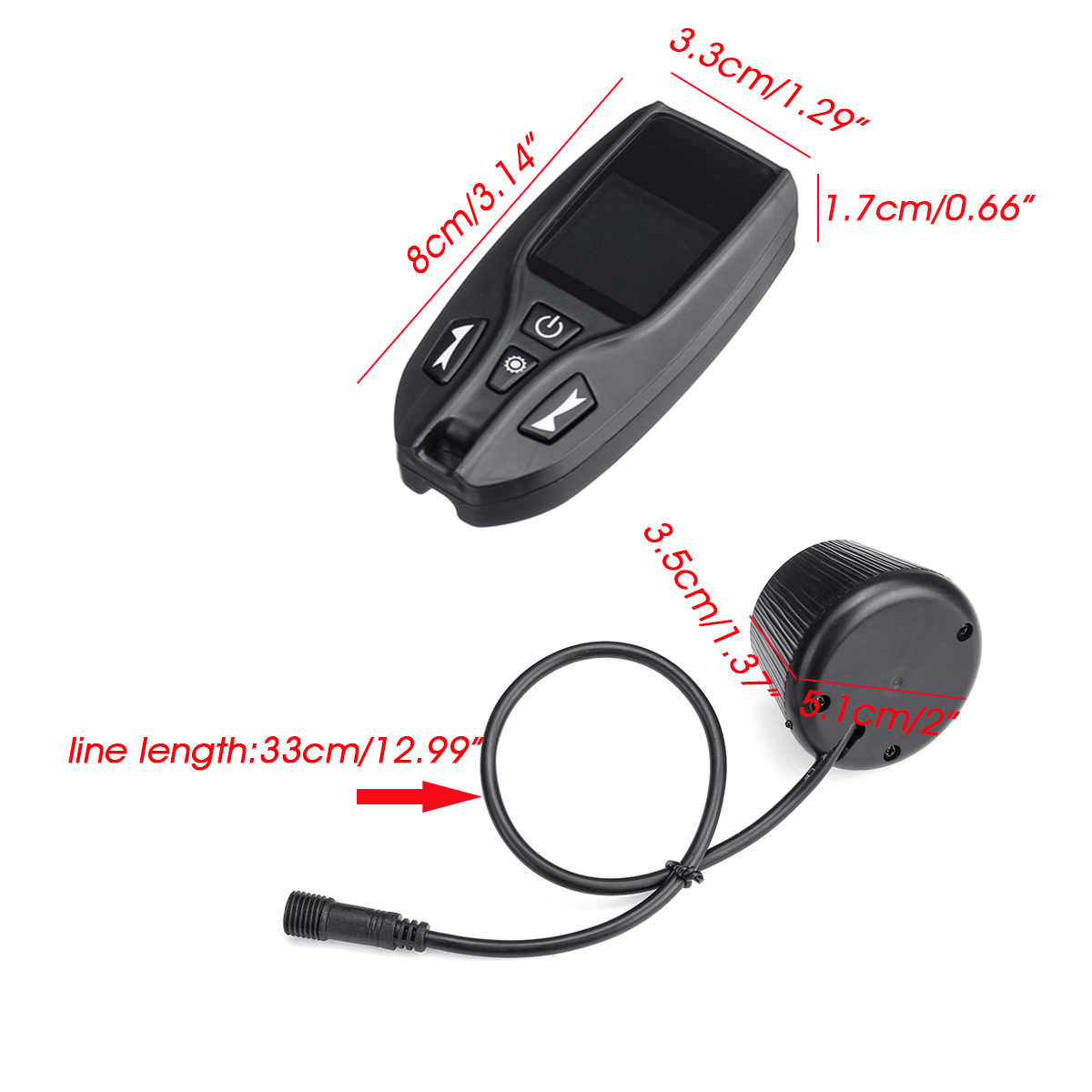

Remote Receiver Size: 5.1x3.5cm (LxH)

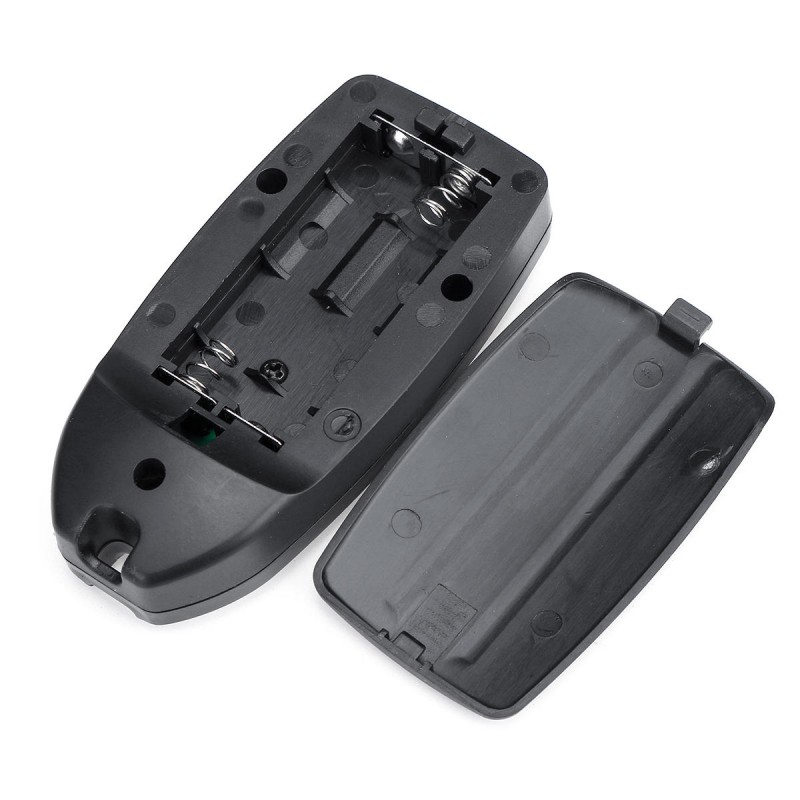

Remote Controller Size: 8x3.3x1.7cm (LxWxH)
Color: Black
Quantity: 2pcs
Material: Plastic
Remote Receiver Size: 5.1x3.5cm (LxH)
Remote Controller Size: 8x3.3x1.7cm (LxWxH)
Product Name: Car Diesel Air Heater Controller
Whether battery is included: No (Need to buy 2 sessions 7th battery)
Fitment:
For Car Diesel Air Heater

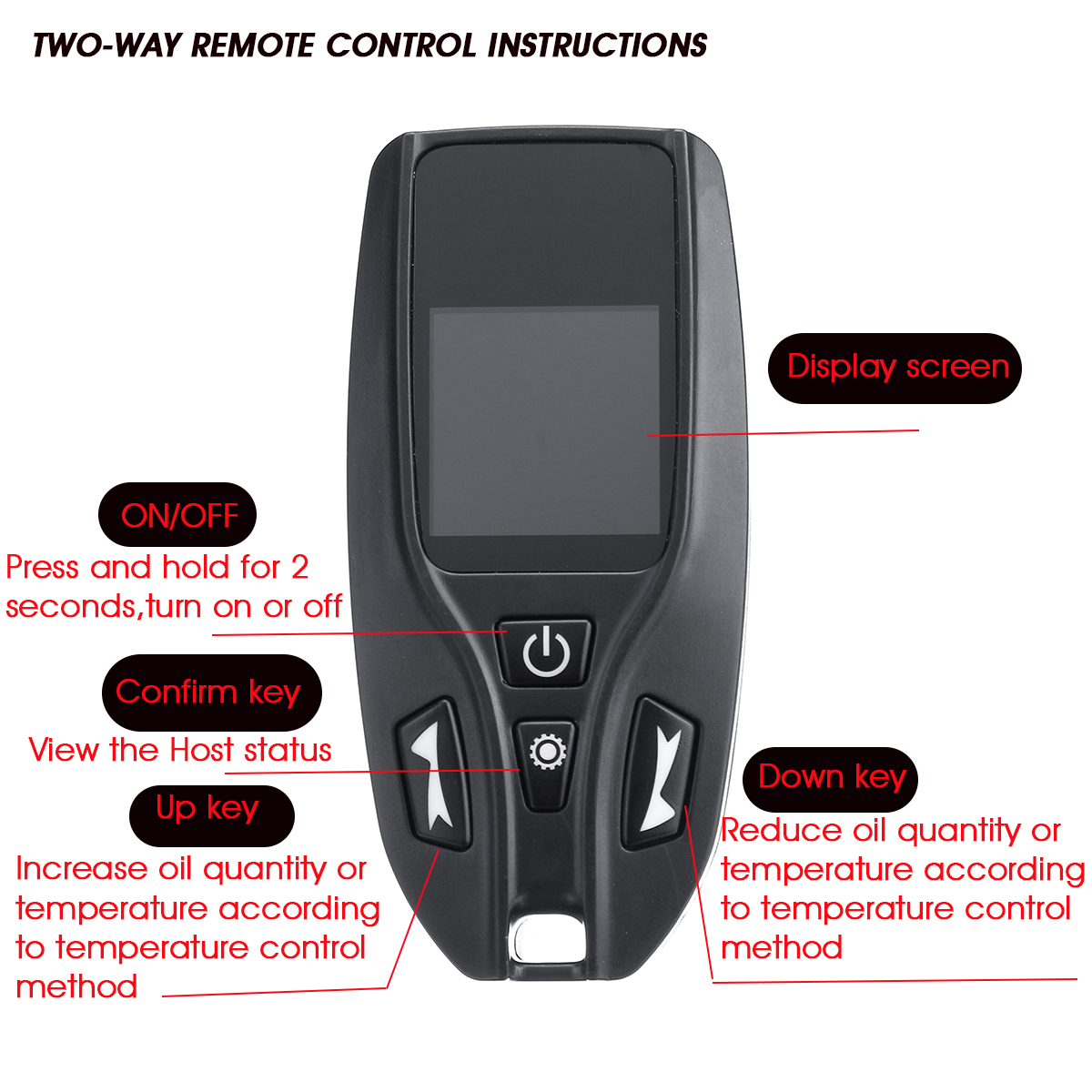

Two-way remote control instructions:
1.Remote pairing operation:
1). First put the receiving parts that need to be paired into the waiting pairing state.
2). Then press and hold the key on the remote control and confirm the build at the same time, the remote control appears waiting for pairing interface.
3). The remote control and switch enter the automatic pairing process. After the code is successfully matched, it will automatically exit the code pairing interface and display normal working parameters.
4). If the code fails, it will not enter the normal display working parameter state. If the remote control code is not received after timeout, it will automatically exit the code matching state.
2.Temperature control mode switching:
When selecting the temperature control method by remote control, you only need to press the up and down keys at the same time to switch to the automatic temperature control and display the temperature. If the temperature is manually controlled, the oil quantity is displayed.
3.Adjustment of working status:
The working state of the heater can be adjusted by remote control at any time. Methods as below:
1). Up adjustment key: increase the pump oil volume (manual temperature control mode), or increase the set temperature to increase the output temperature of the heater.
2). Down key: reduce the amount of pump oil (manual temperature control mode), or reduce the set temperature to reduce the output temperature of the heater.

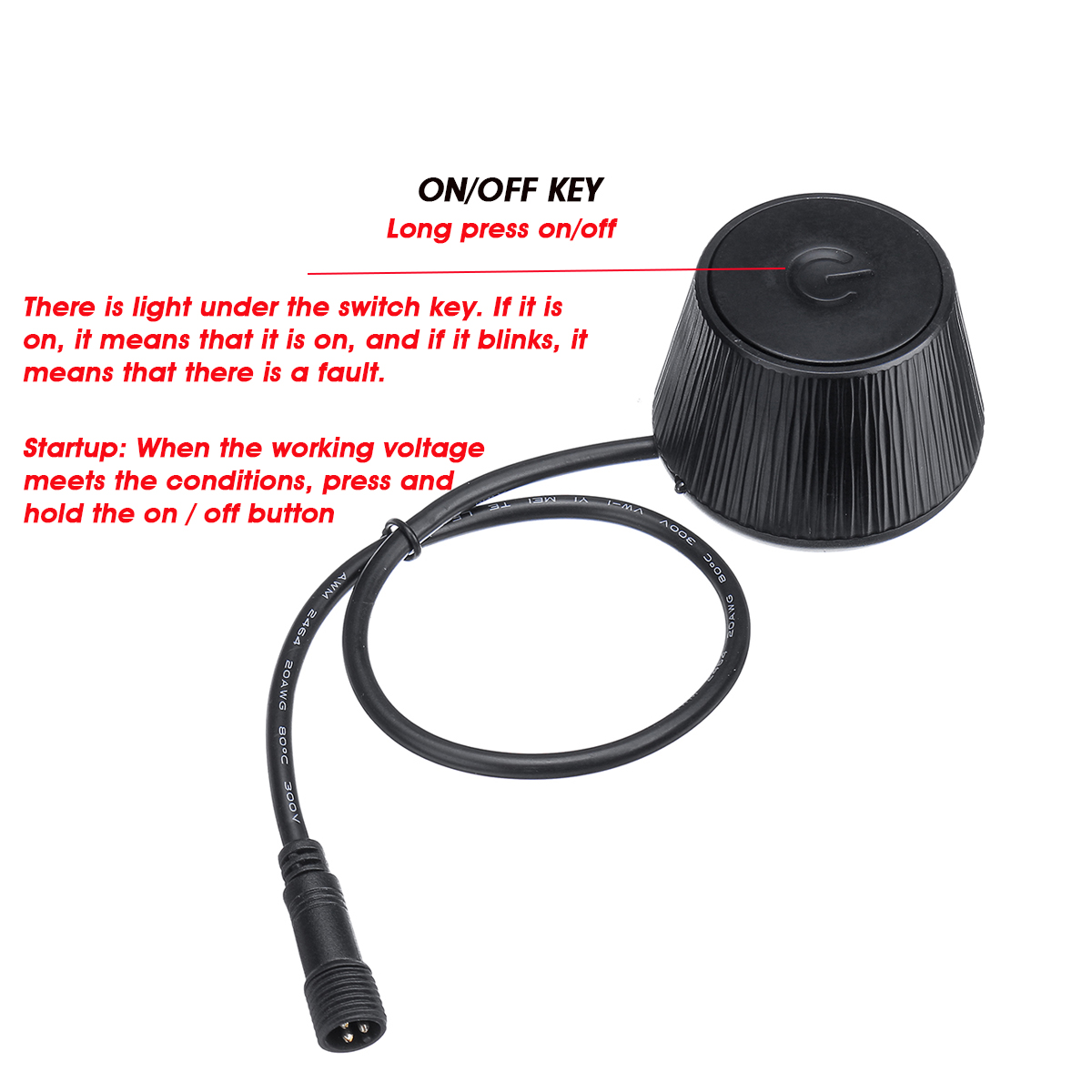

Two-way remote receiver description:
1.ON/OFF KEY: Long press on/off:

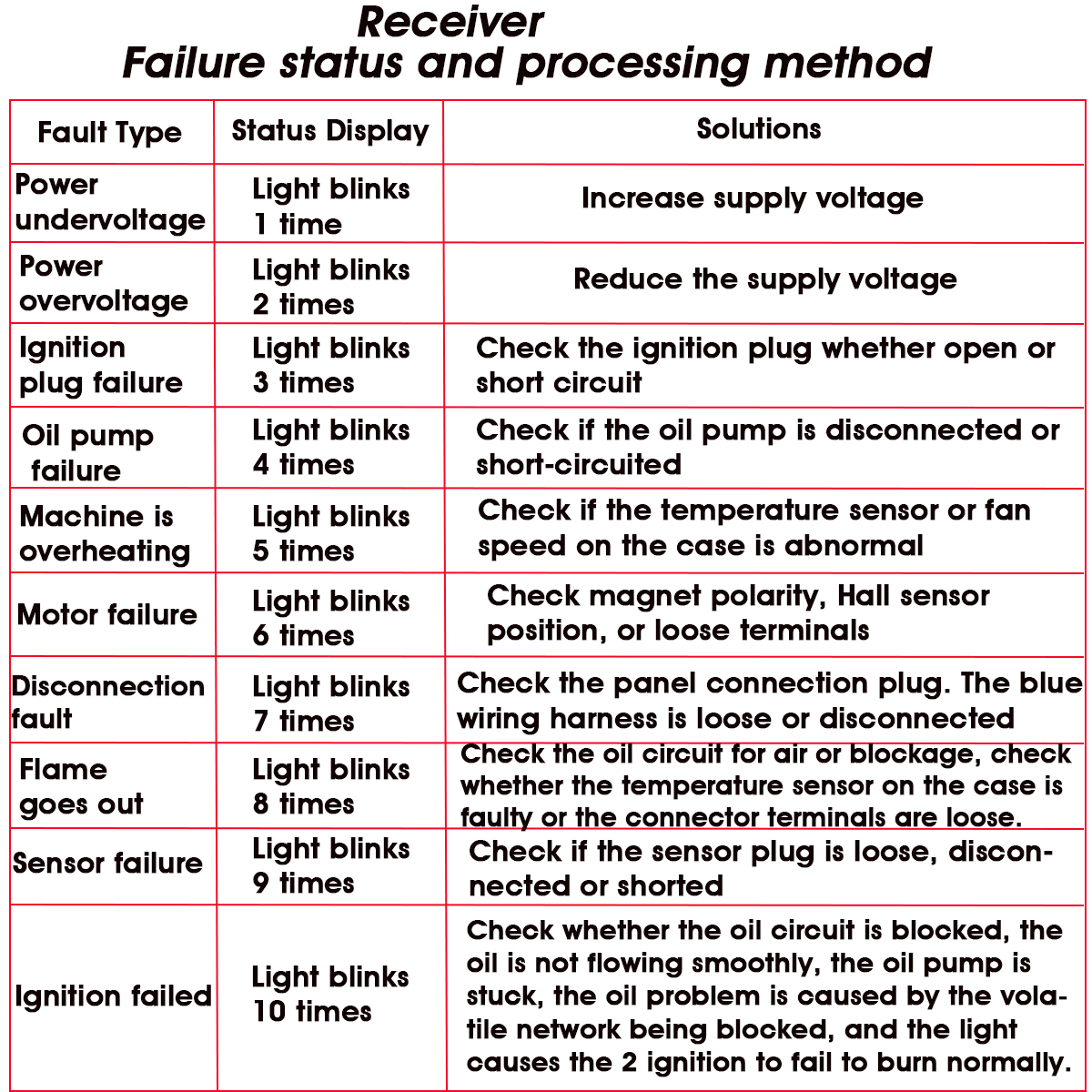

1).There is light under the switch key. If it is on, it means that it is on, and if it blinks, it means that there is a fault.
2).Startup: When the working voltage meets the conditions, press and hold the on / off button.
2.Manual fueling:
In the off state, press the on / off key 5 times continuously and quickly to start the manual pump oil. When all the air in the oil circuit is exhausted, press the ON / OFF button to stop the pump. This process requires someone to observe, to avoid excessive fuel entering the machine and causing black smoke at startup.
3.Remote pairing:
In the power-on state, press the on / off key 5 times in rapid succession, the indicator light flashes, and enter the remote control pairing waiting state. At the same time, press and hold the power button + set button on the remote control to start remote control pairing. Wait for the auto-complete pairing to exit.

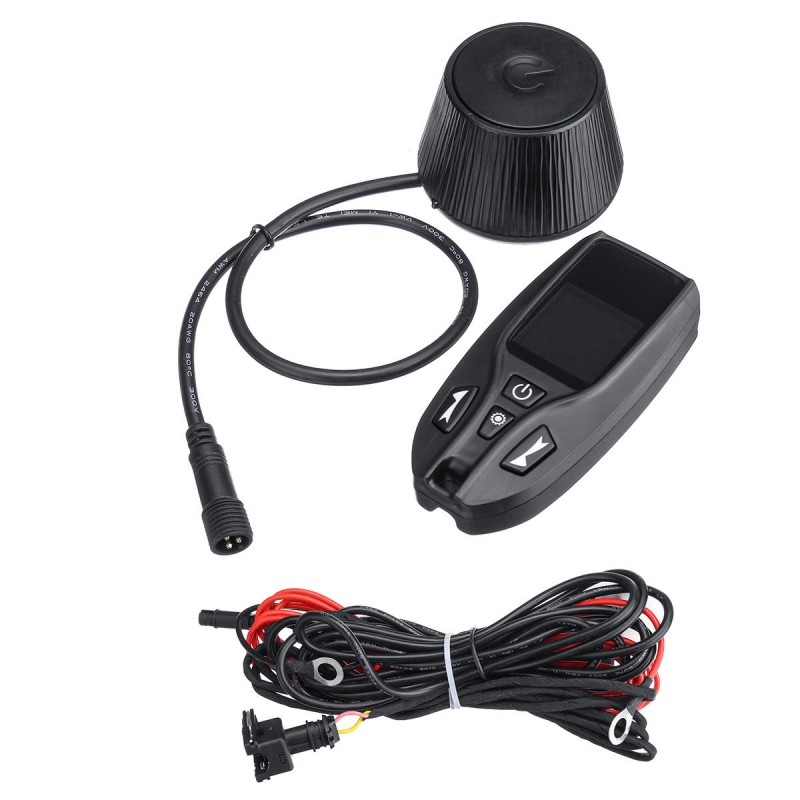

Package Included:

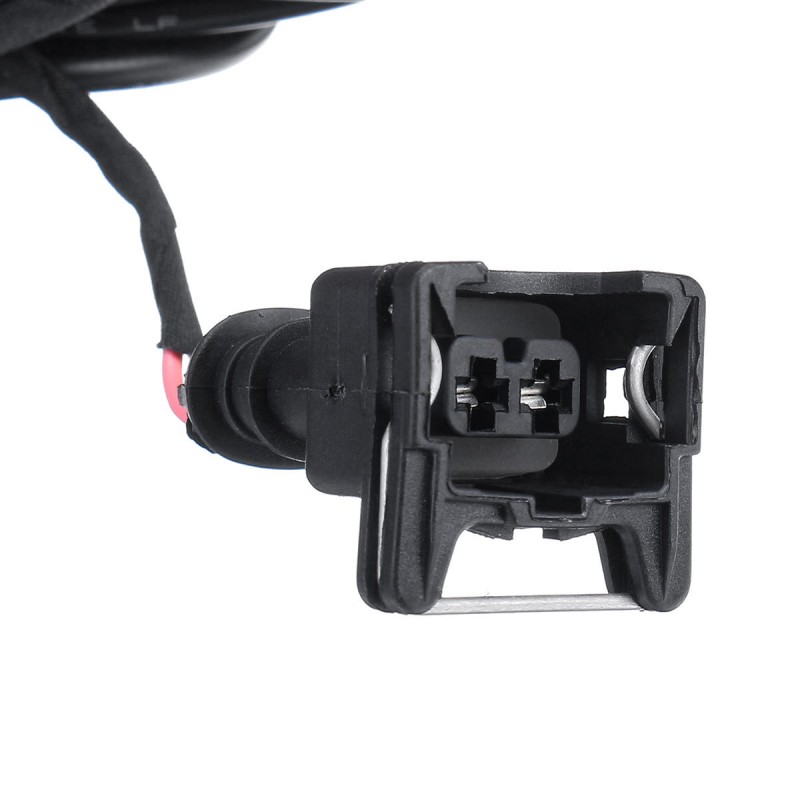

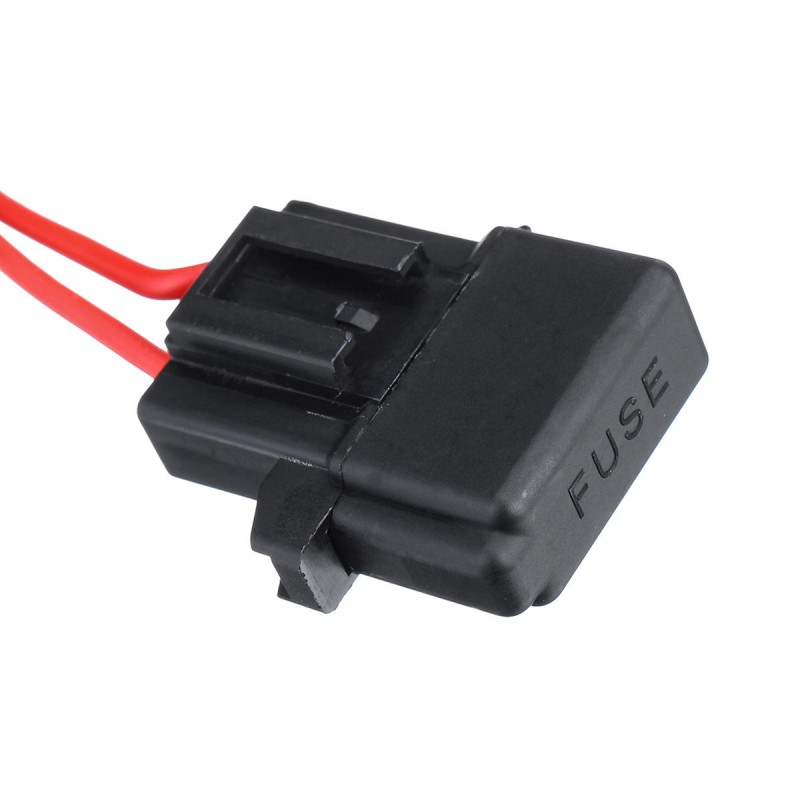

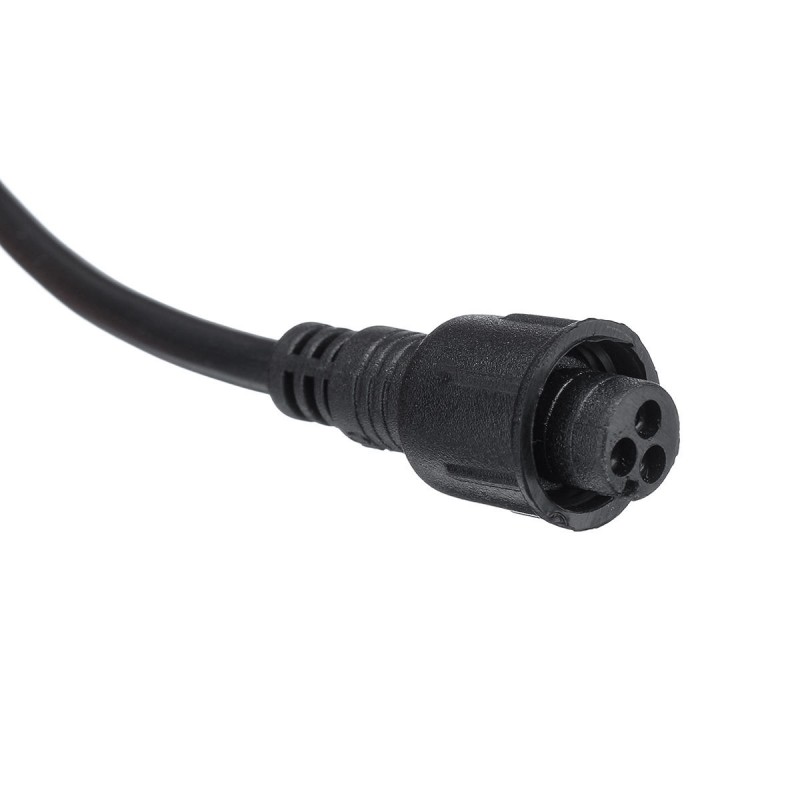

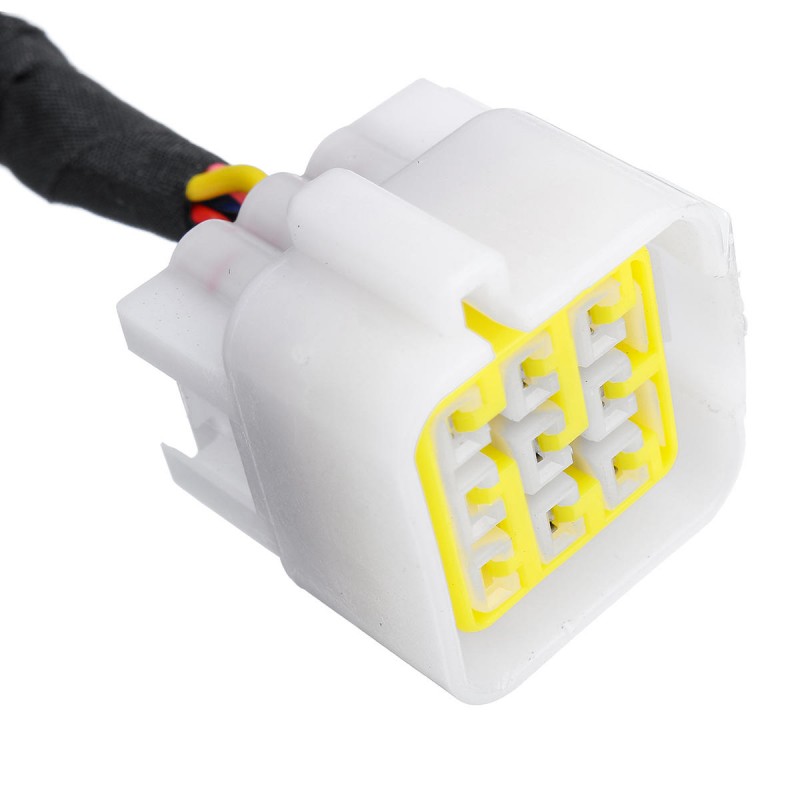

1 X Harness
1 X Two-way remote receiver
1 X Harness
1 X Two-way remote receiver
1 X Two-way remote controller
Note:
1. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
1. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
2. We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
3. There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.
