12V 40A 300W Relay Fuse Wiring Harness For Any 5-Pin LED Light Rocker Switch
$22.33
- Product Code: ED0002043
- Availability: In Stock
- Ex Tax: $22.33
12V 40A 300W Relay Fuse Wiring Harness For Any 5-Pin LED Light Rocker Switch
Specification:
Wattage: Max 300W
Colour: Black

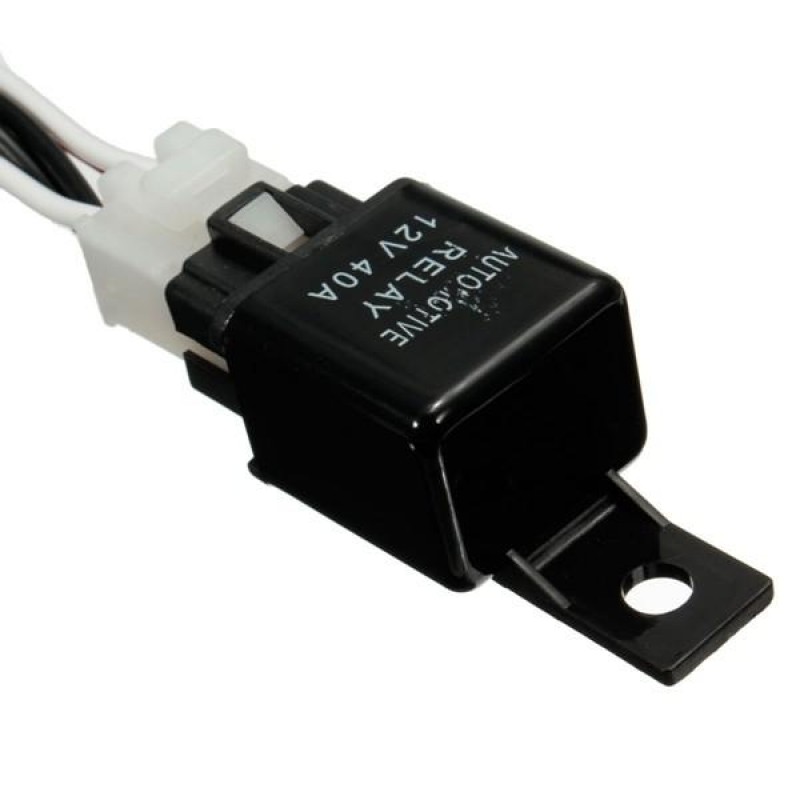

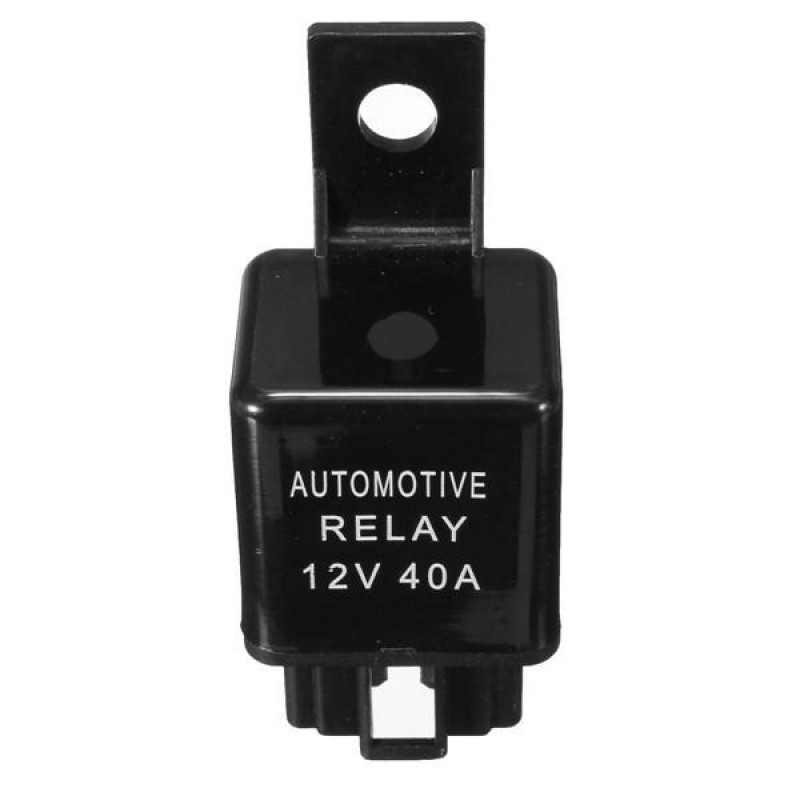

Relay: 12V 40A

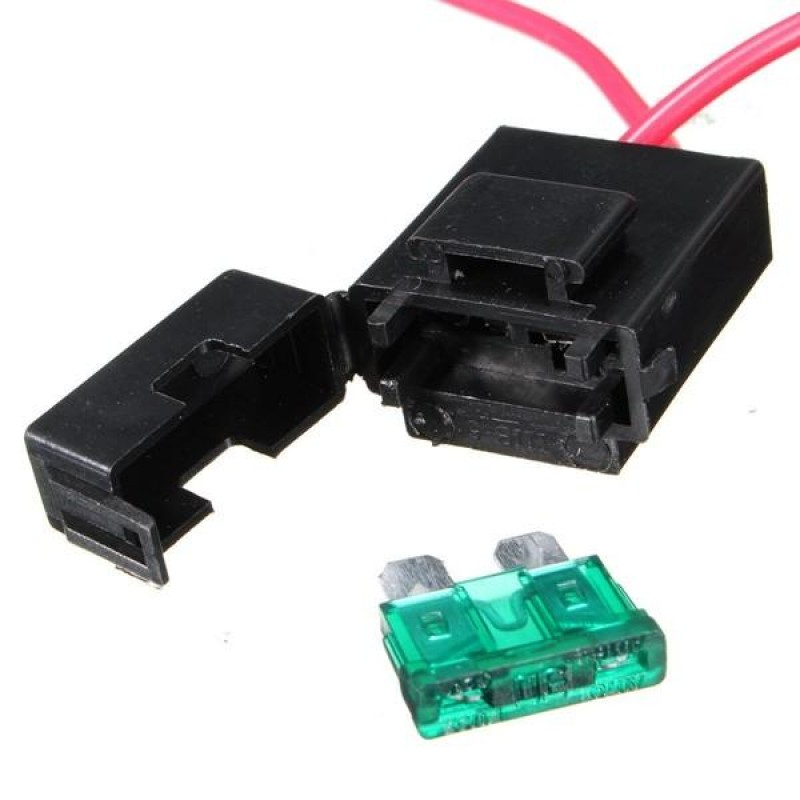

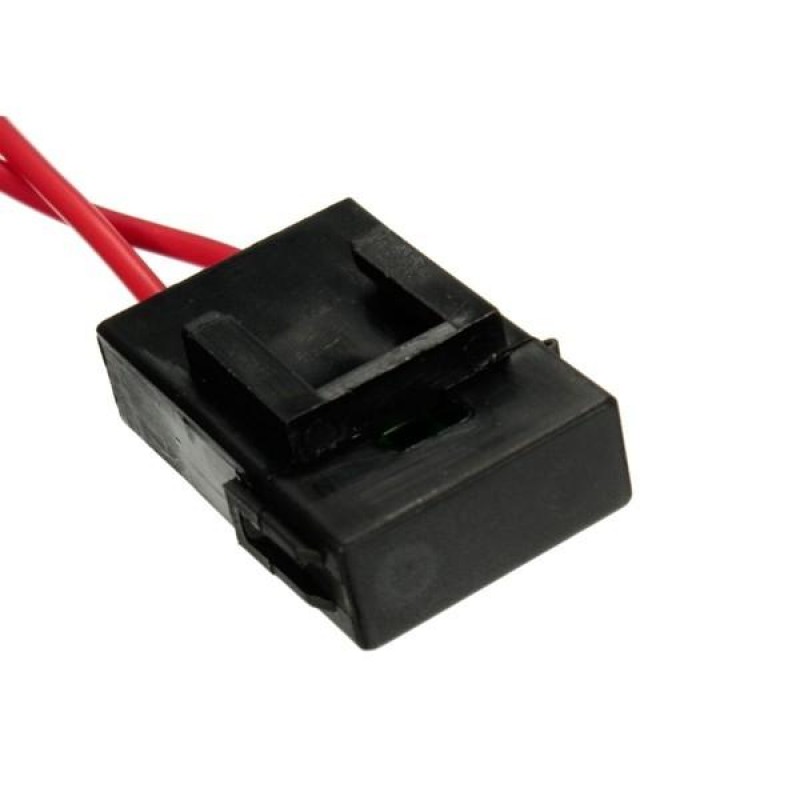

Fuse: 30A
Fitment:
All automobiles and devices equipped with a 10 to 30 Volt DC power source. Full Wiring Kit for All Light Bars with LASER ROCKER SWITCH ON/ OFF switch.
Features:
- The wiring harness for LED off road lights is the perfect accessory for off road vehicles, working vehicles, and any automobile that could use a relay to power specific equipment.
- This wiring harness for LED off road lights simplifies the installation process of powering various equipment on all automobiles.
Installation: (Just for reference)

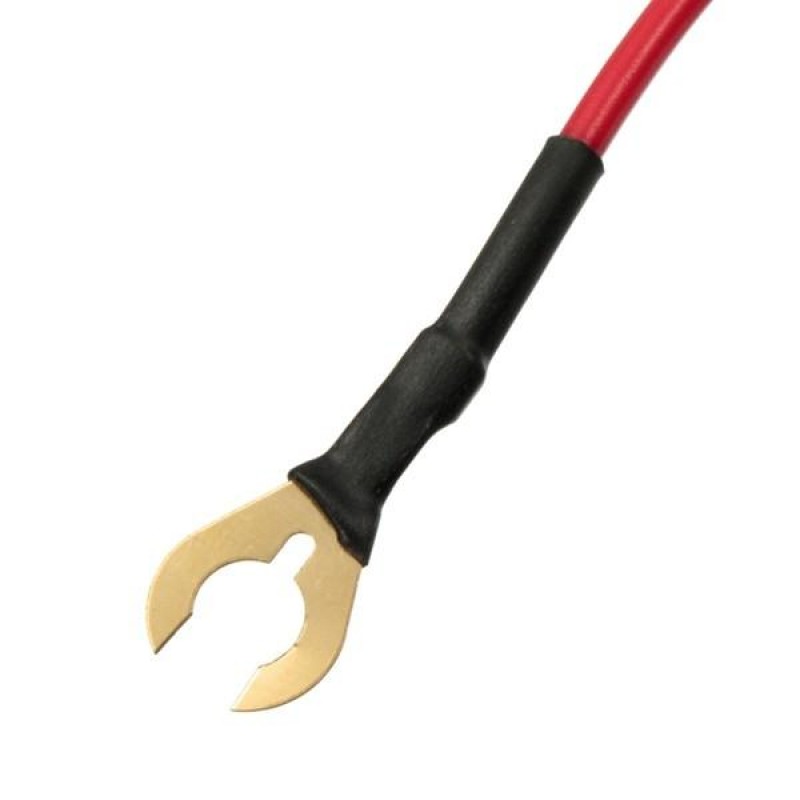

1. connect the red+ wire from the fuse to battery +; connect the black wire from the reply to the battery -;

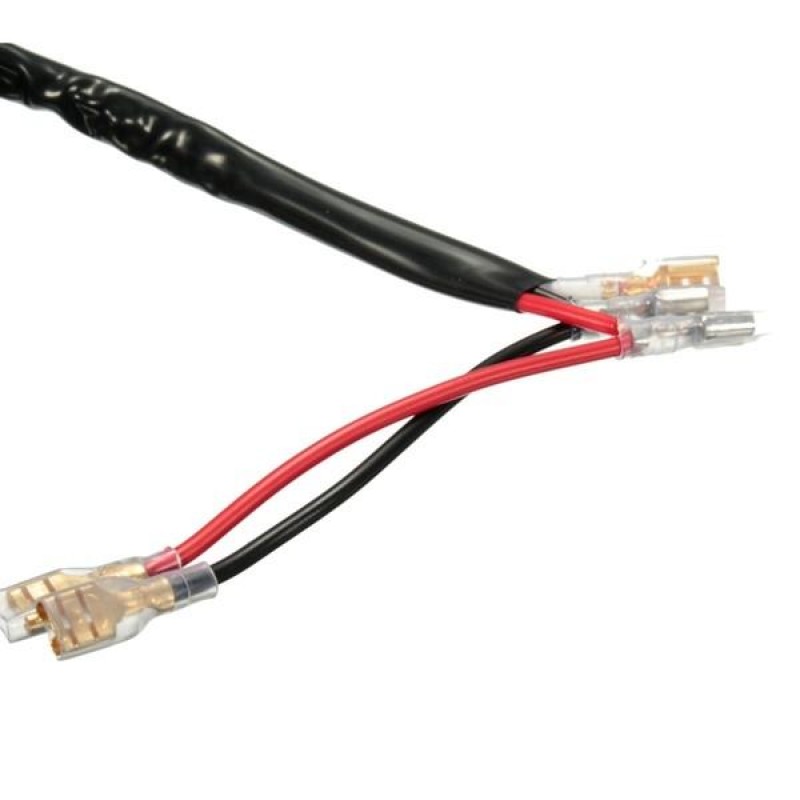

2. connect the wire for lights bar from the relay; (red/black correspond to the wire of lights bar)
3. connect the white +/black- wire of the switch to battery or any place of your car system to get power for the switch
4. turn on on/off button of switch to test the lights bar
IMPORTANT NOTE:
Switch is not included. You can use your any 5-Pin switch.
Our store have any 5-Pin switch on sale, if you need, you can contact us.
Note:
1. Please check the size measurement chart carefully before making payment.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4. Instruction is not included.
Package Included:

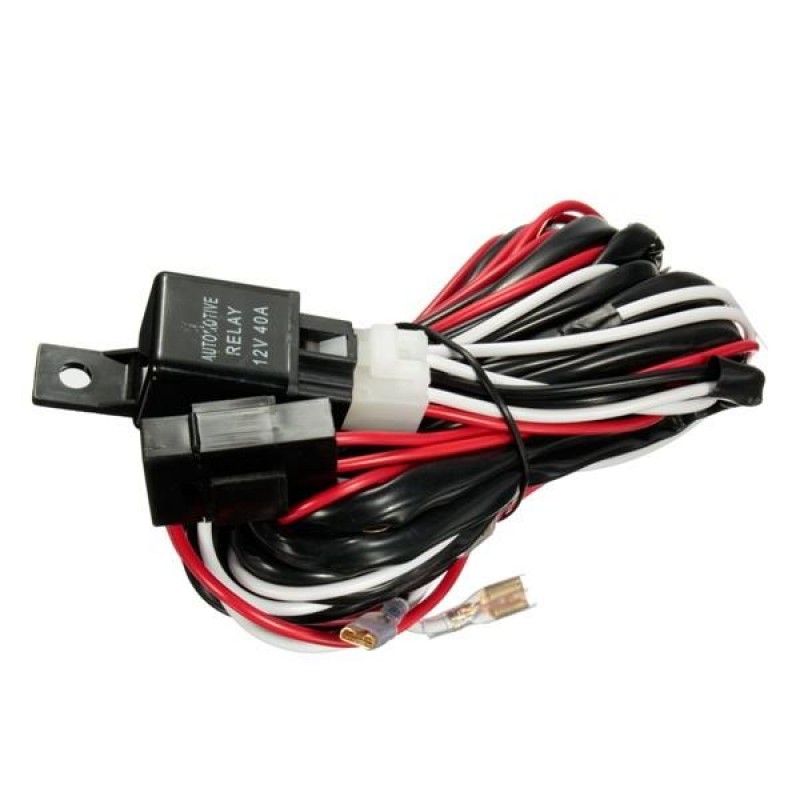

1 X Wiring Harness (Comes with a relay and a fuse)
(Switch is not included.)
