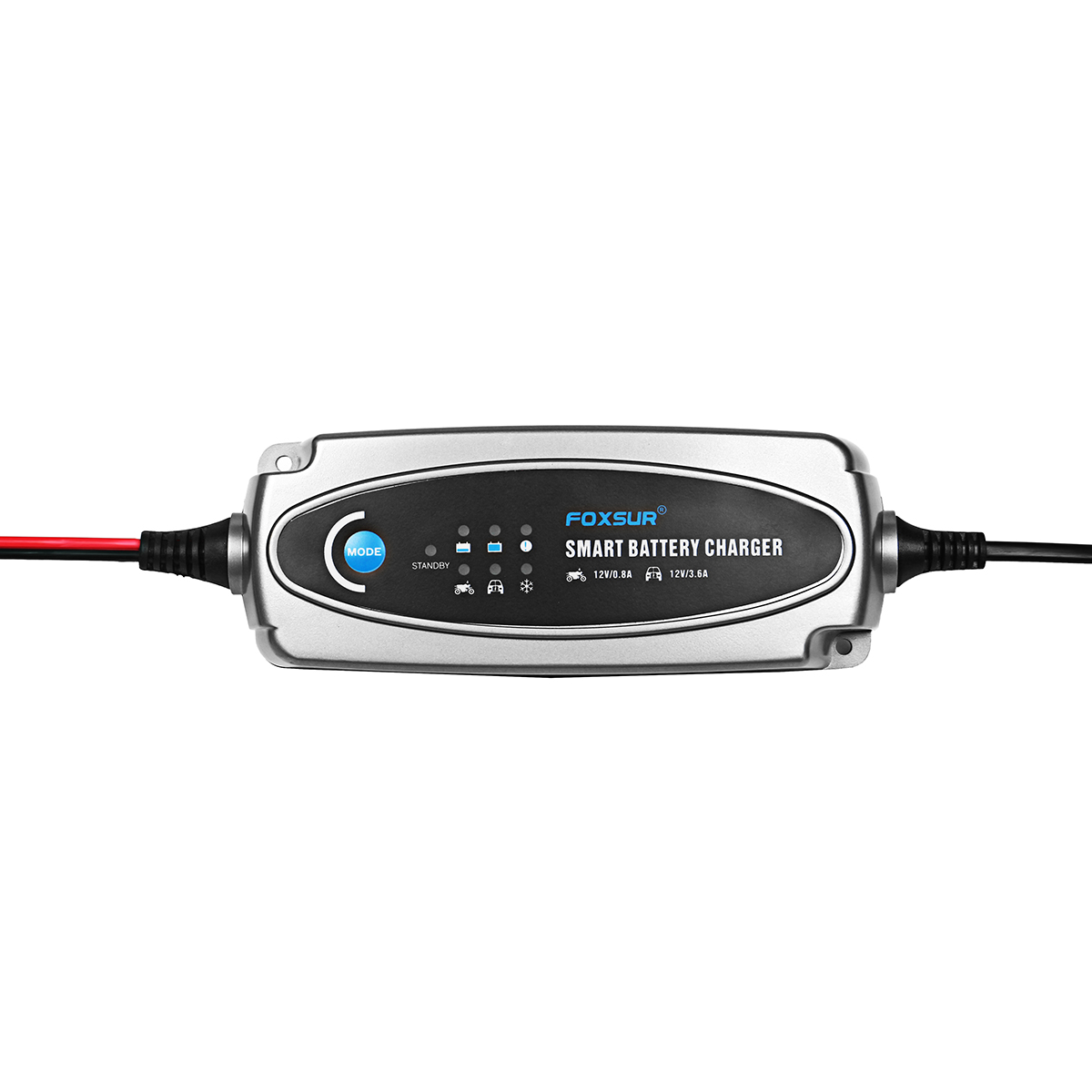

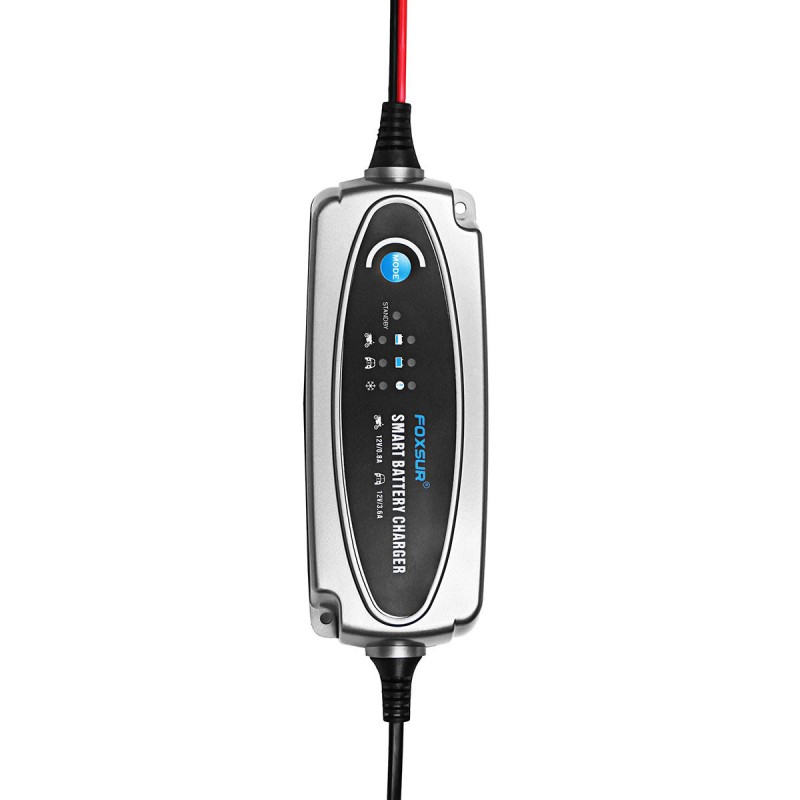

12V 5-Stage 0.8A 3.6A Battery Smart Charger Acid Intelligent Motorcycle Auto Car
$42.99
- Product Code: ED0018775
- Availability: In Stock
- Ex Tax: $42.99
Description:
5-STAGE AUTOMATIC CHARGING:
This is a fully automatic battery charger with 5 charge stages.
Automatic charging protects your battery from being overcharged. So you can leave the charger
connected to the battery indefinitely.
connected to the battery indefinitely.
5-stage charging is a very comprehensive and accurate charging process that gives your battery
longer life and better performance compared to using traditional chargers.
longer life and better performance compared to using traditional chargers.
5-stage chargers are suitable for most battery types including Calcium, Gel and AGM, Wet batteries.
They may also help restore drained and sulphated batteries.
They may also help restore drained and sulphated batteries.
Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM,
Wet Motorcycle: for 2Ah -20AH; Car: for 20AH -100AH
Wet Motorcycle: for 2Ah -20AH; Car: for 20AH -100AH
1. Desulphation
The Desulphation stage may break down sulphation that occurs in batteries that have been
left flat for extended periods of time, returning them back to full charge. sulphation occurs
when lead-sulphate hardens and clogs up the battery cells.
left flat for extended periods of time, returning them back to full charge. sulphation occurs
when lead-sulphate hardens and clogs up the battery cells.
2. Bulk (Constant Current)
Bulk mode charges the battery at the maximum rate (constant current) putting a large amount
of power into the battery in a short amount of time. This stage will charge the battery to approximately 60%,
until the voltage reaches 14.7 volts for 12V charger
of power into the battery in a short amount of time. This stage will charge the battery to approximately 60%,
until the voltage reaches 14.7 volts for 12V charger
3. Absorption (Constant Voltage)
The charge rate slows down so the battery can absorb more power and reach 80% charge.
The voltage remains at a constant 14.7 volts for 12V charger while the current is gradually reduced
until no more power can be added without over-charging the battery.
The voltage remains at a constant 14.7 volts for 12V charger while the current is gradually reduced
until no more power can be added without over-charging the battery.
4. Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery.
This means the charger can be left connected to the battery indefinitely.
This means the charger can be left connected to the battery indefinitely.
5. Stop - The Charger stop charging and cut-off output.
Specification:
Switchmode technology: Yes

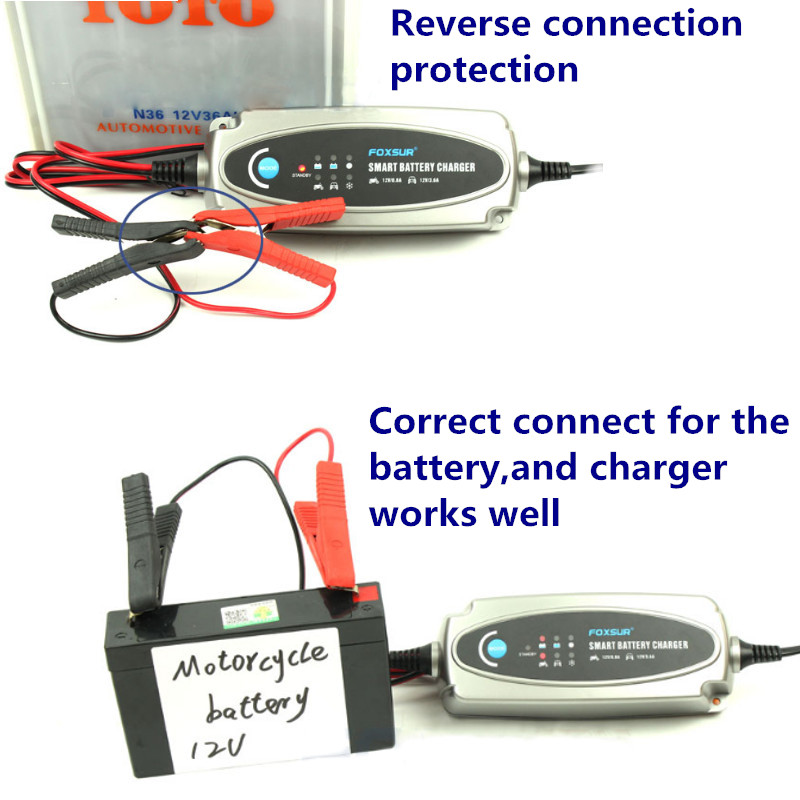

Polarity protection: Yes

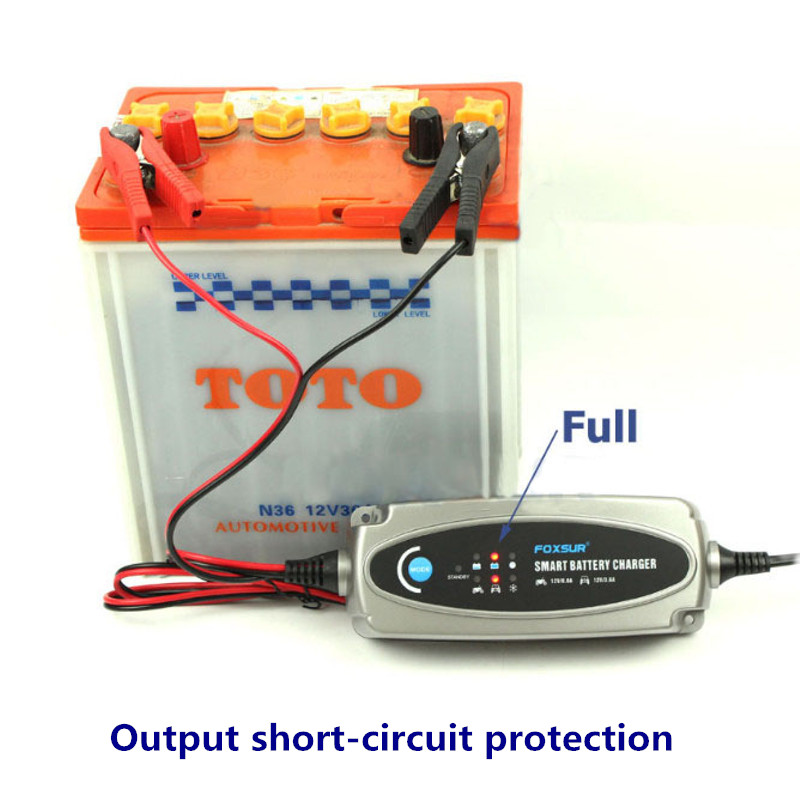

Output short protection: Yes
Non battery link protection: Yes
Over voltage protection: Yes
Over temperature protection: Yes

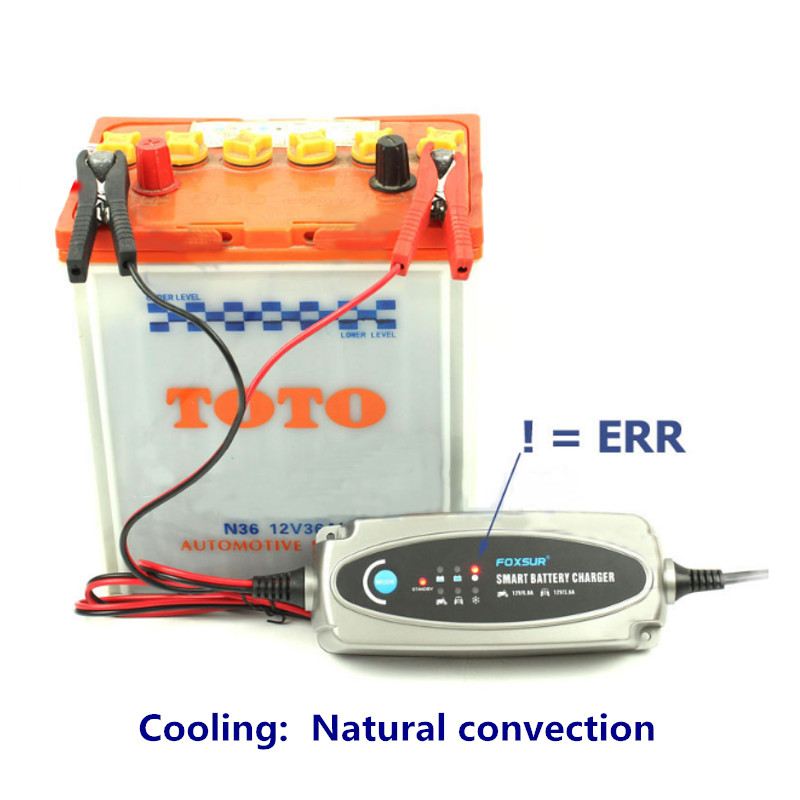

Cooling: Natural convection
Input voltage: 100V-240V AC, 50-60Hz
Rated output: 12V DC, 0.8A/3.6A
Minimum start voltage: 8.0V
The 5 stages are: Desulphation ; Bulk; Absorption; Float, Auto-cut off
Battery range: 2A-100Ah
Thermal protect: 65'C+/-5'C
Efficiency: App. 85%.
Compliant standards: CB,CE, IEC60335, EN61000, EN55014
Dimension (L×W×H): 170×65×40mm

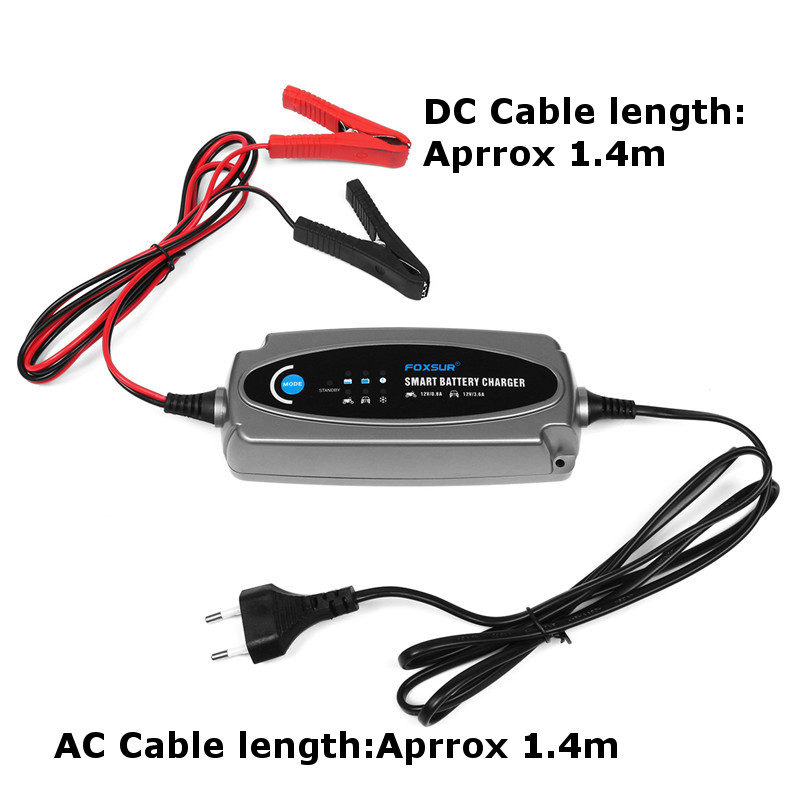

AC cable length: About 1.5m
DC cable length: About 1.4m
We will send you an AU Adapter

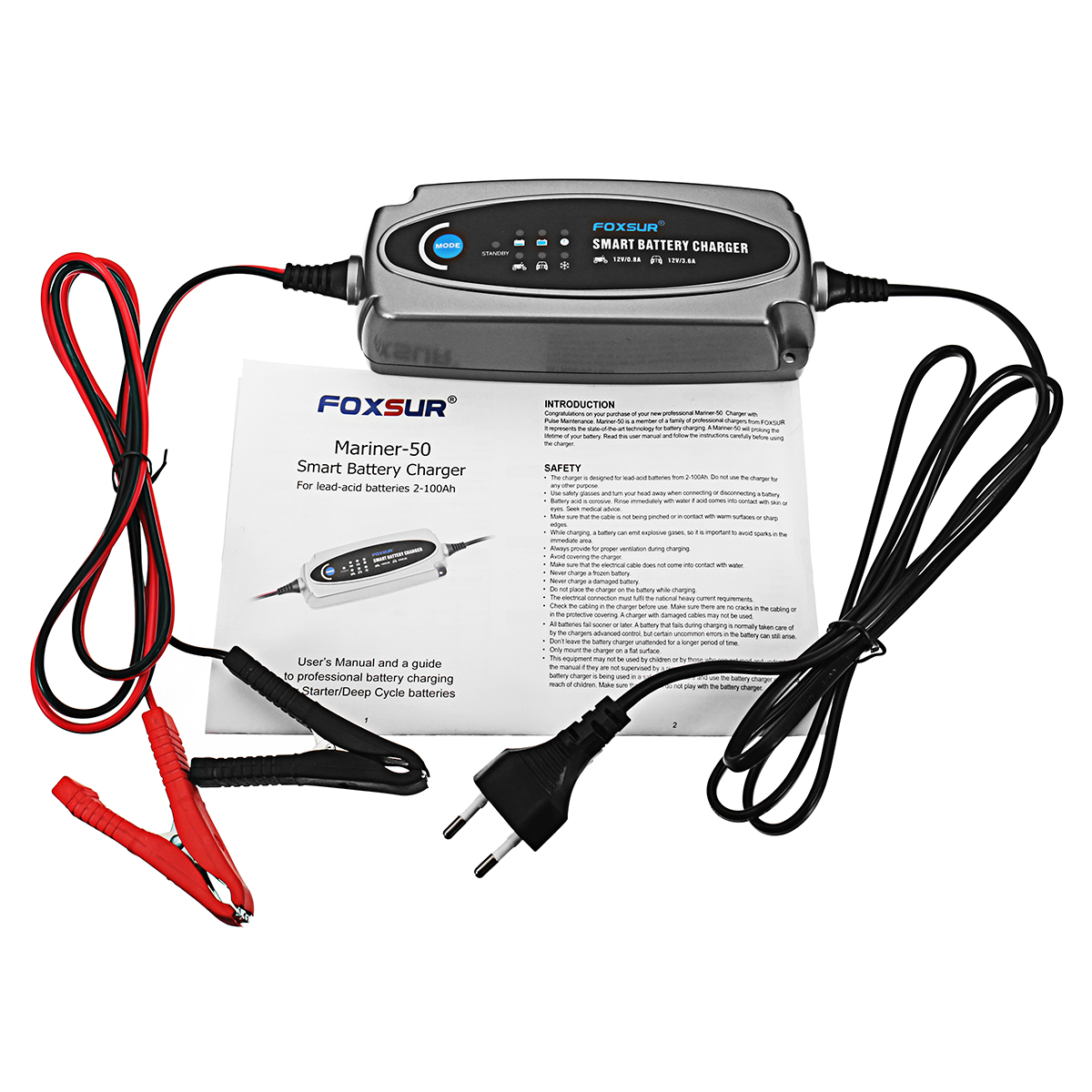

Package Included:

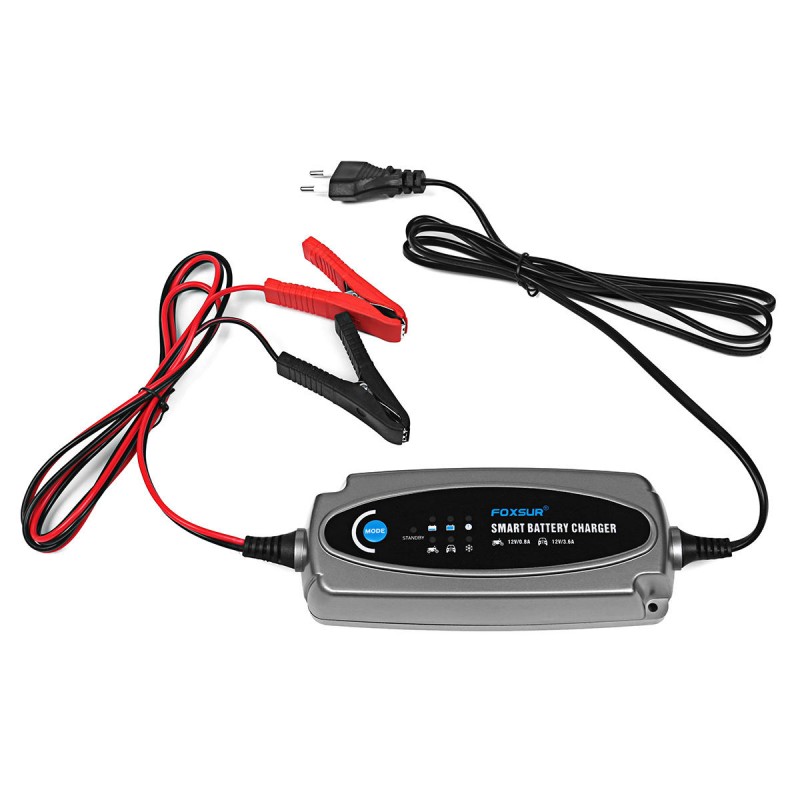

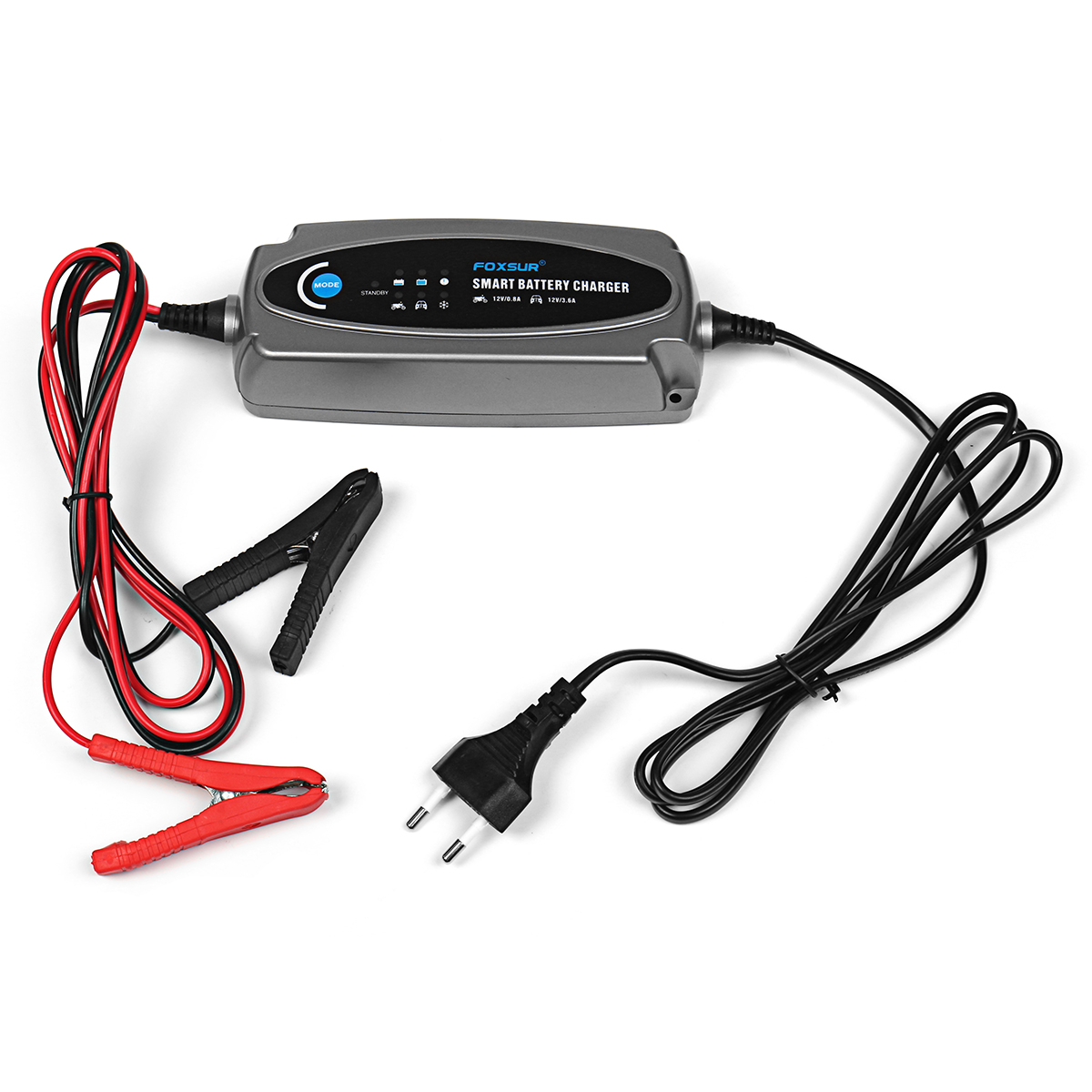

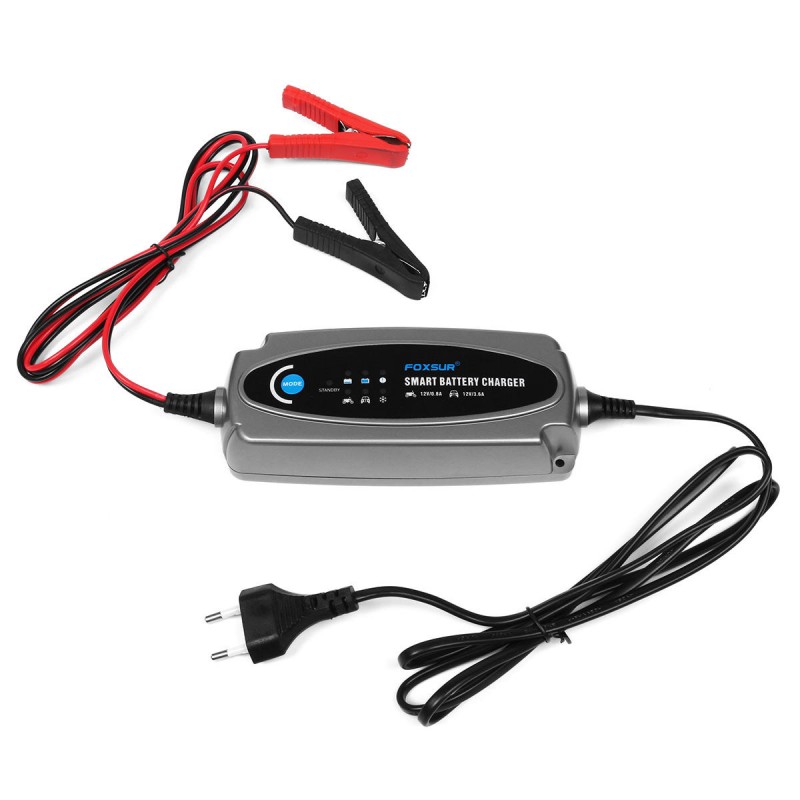

1 X Battery Smart Charger with AC & DC Cable
1 X User Manual
,
,
,
,
,
,
,
