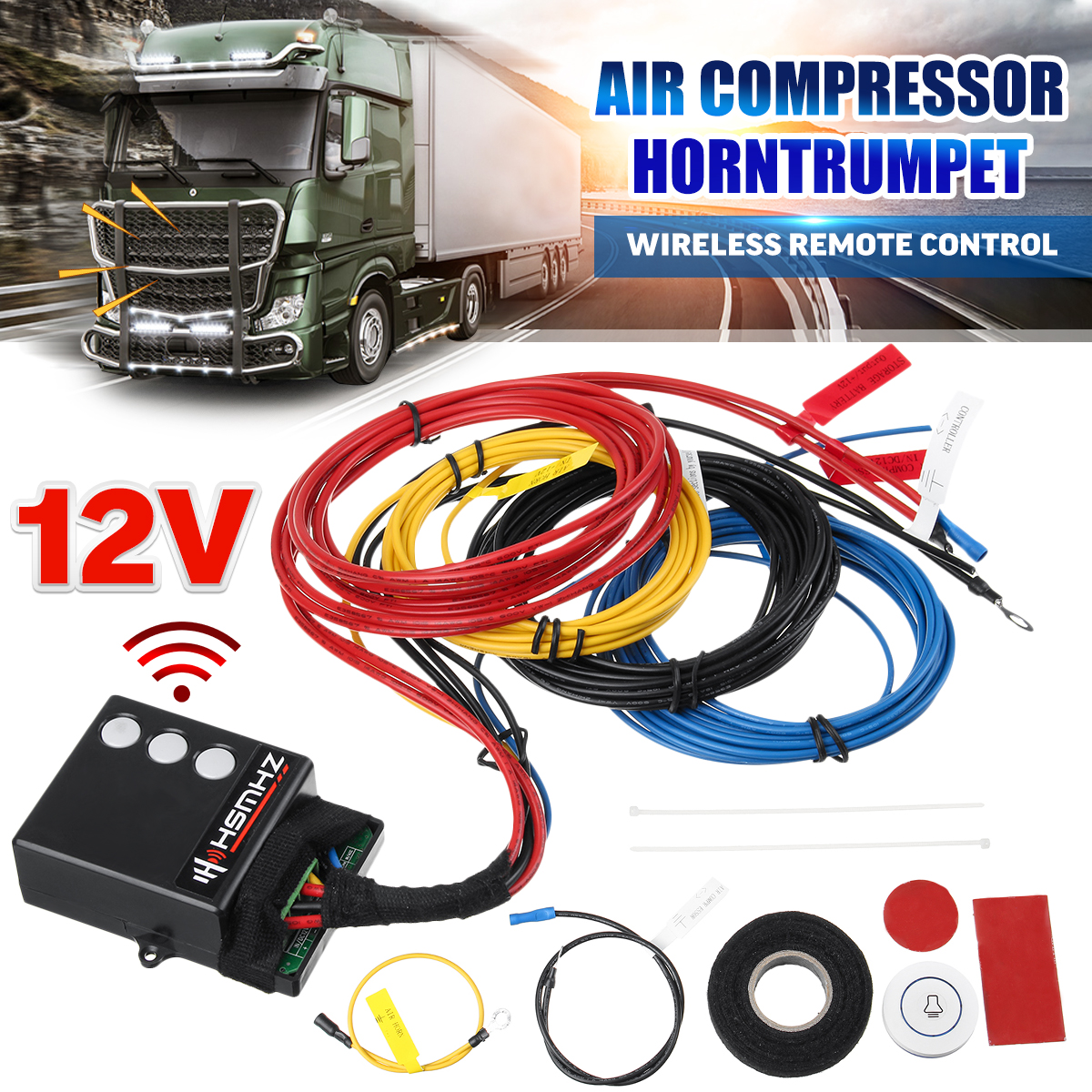

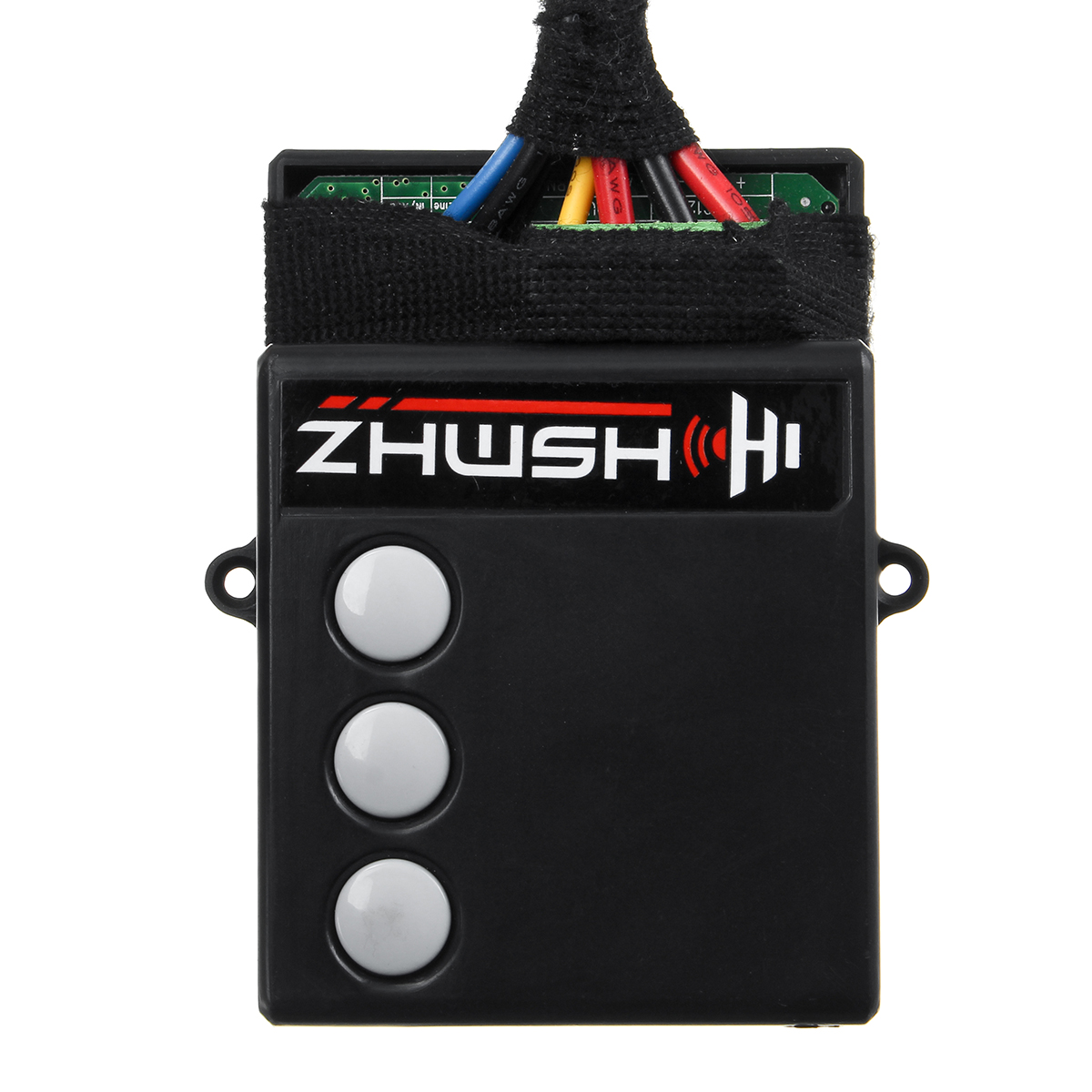

12V Wireless Remote Control Set For Car Truck Air Compressor HornTrumpet
$31.77
- Product Code: ED0002236
- Availability: In Stock
- Ex Tax: $31.77
Specification:
Voltage: 12V
Quantity: 1 Set
Color: Multiple Color
Model Number: E05441

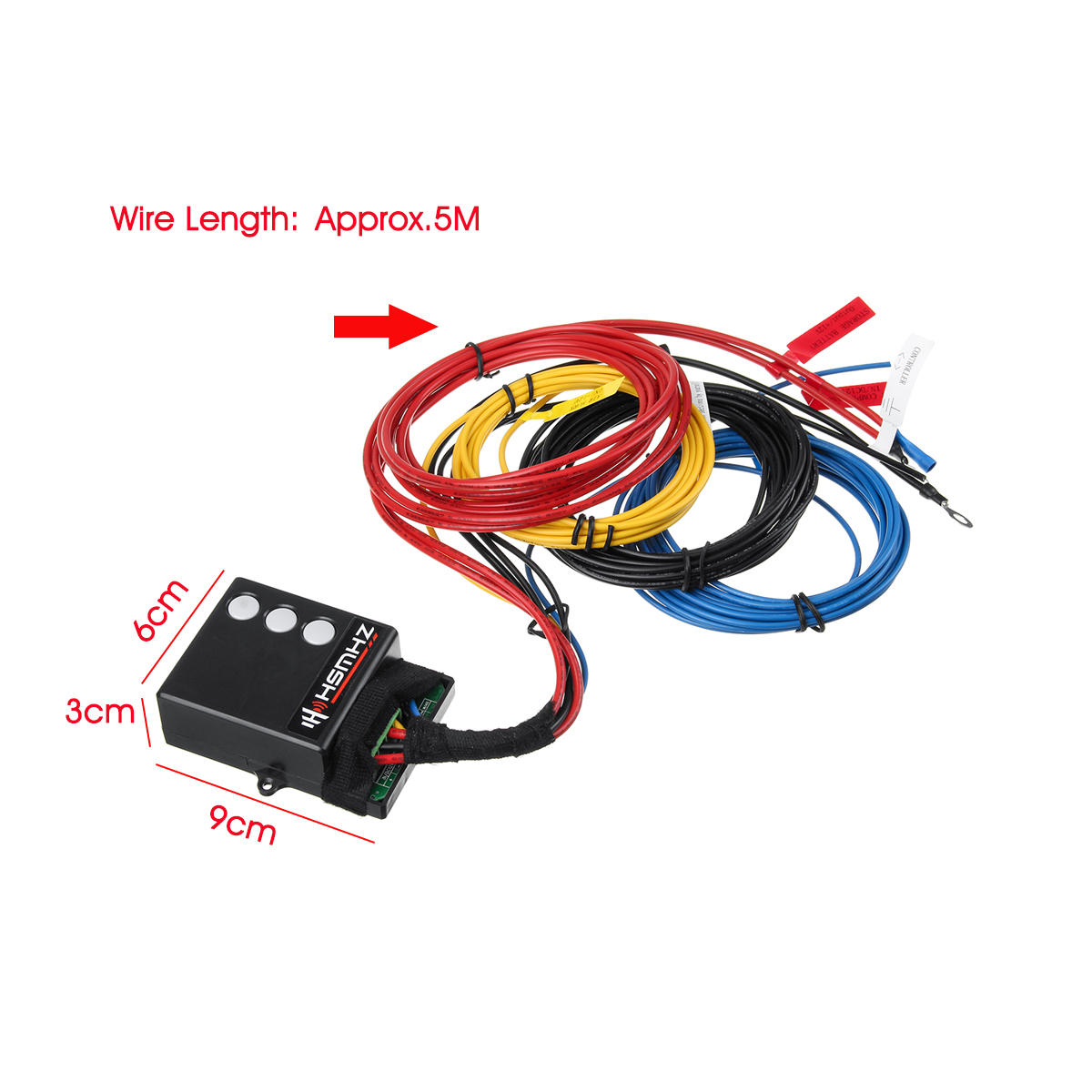

Wire Length: Approx.5M
Material: Plastic & Copper
Remote Frequency: 433HZ
Voltage: 12V
Quantity: 1 Set
Color: Multiple Color
Model Number: E05441
Wire Length: Approx.5M
Material: Plastic & Copper
Remote Frequency: 433HZ
Condition: 100% Brand New
Maximum Voltage and Current: 30A
Maximum Voltage and Current: 30A
Product Name: Horn Wireless Remote Control

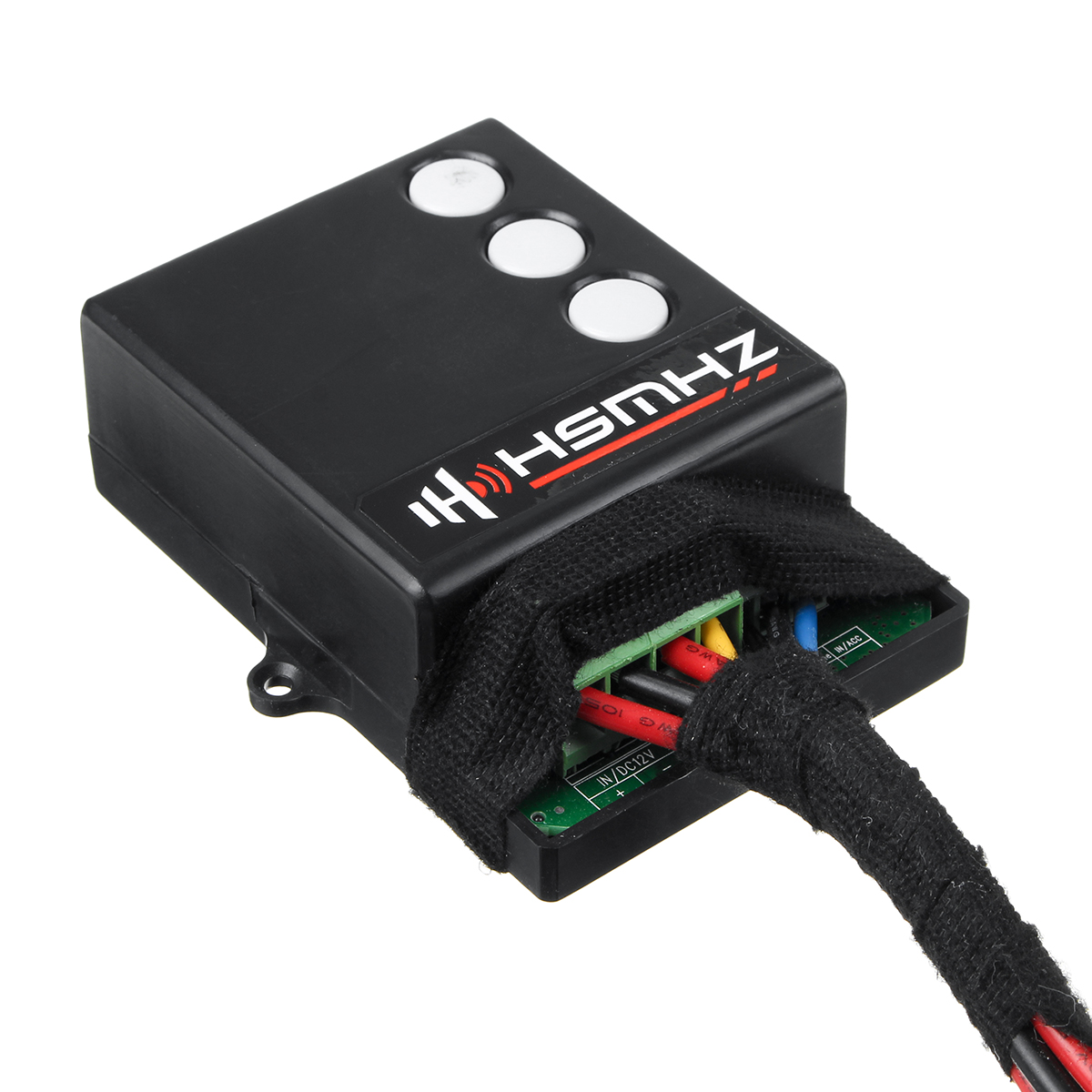

Remote Control Size: 9cmx6cmx3cm(LxWxH)
The main function:
1. Wireless control speaker, control distance 1000M (specifically related to the actual use environment).
2. The horn can also be controlled by wire, adjustable delay start (adjustable from 0-10 seconds), to prevent the engine starting current from being too large, and to protect electrical appliances and automobile circuits.
3. The engine automatically shuts off when the engine is off, protecting the battery and preventing the compressor from consuming the battery power after the compressor is off.

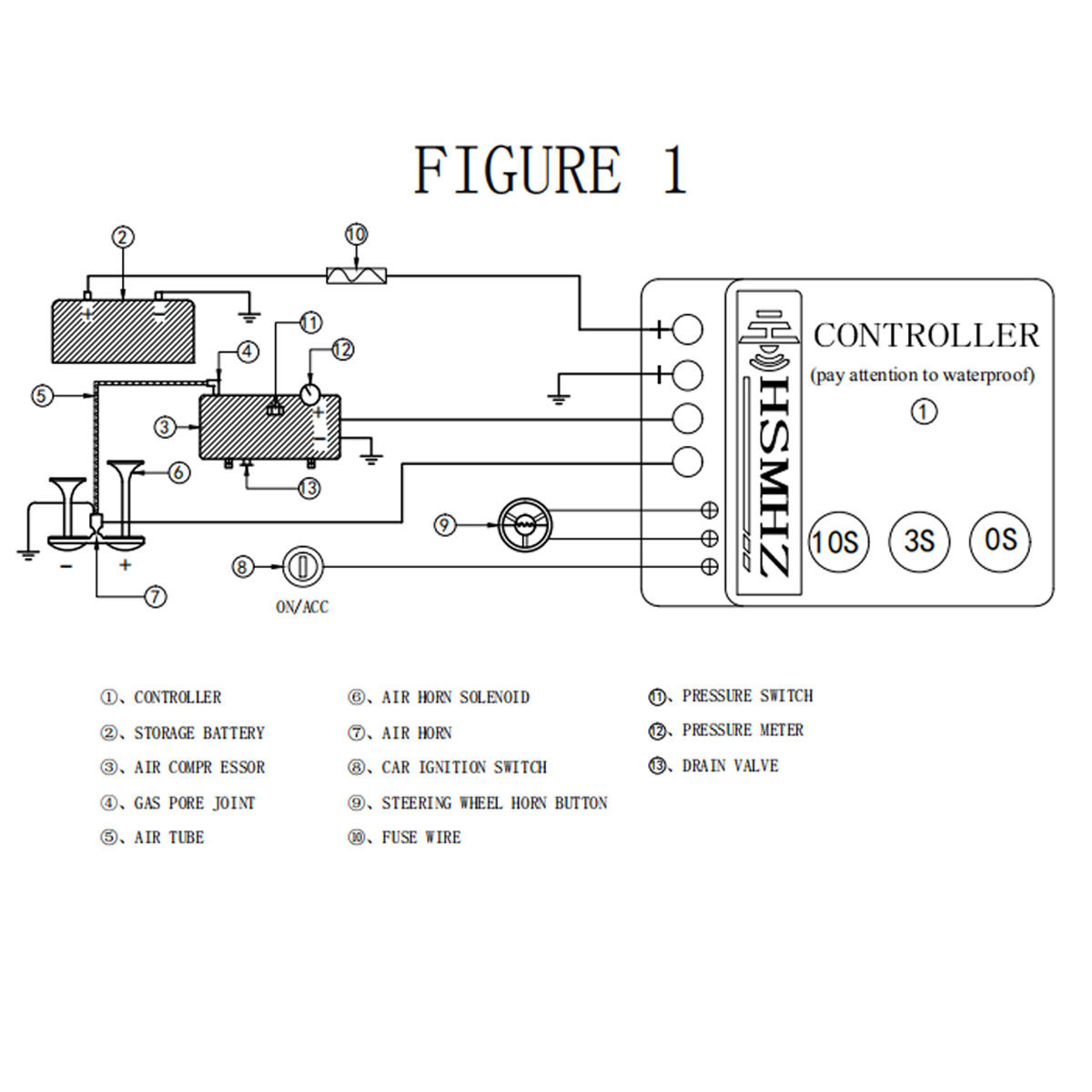

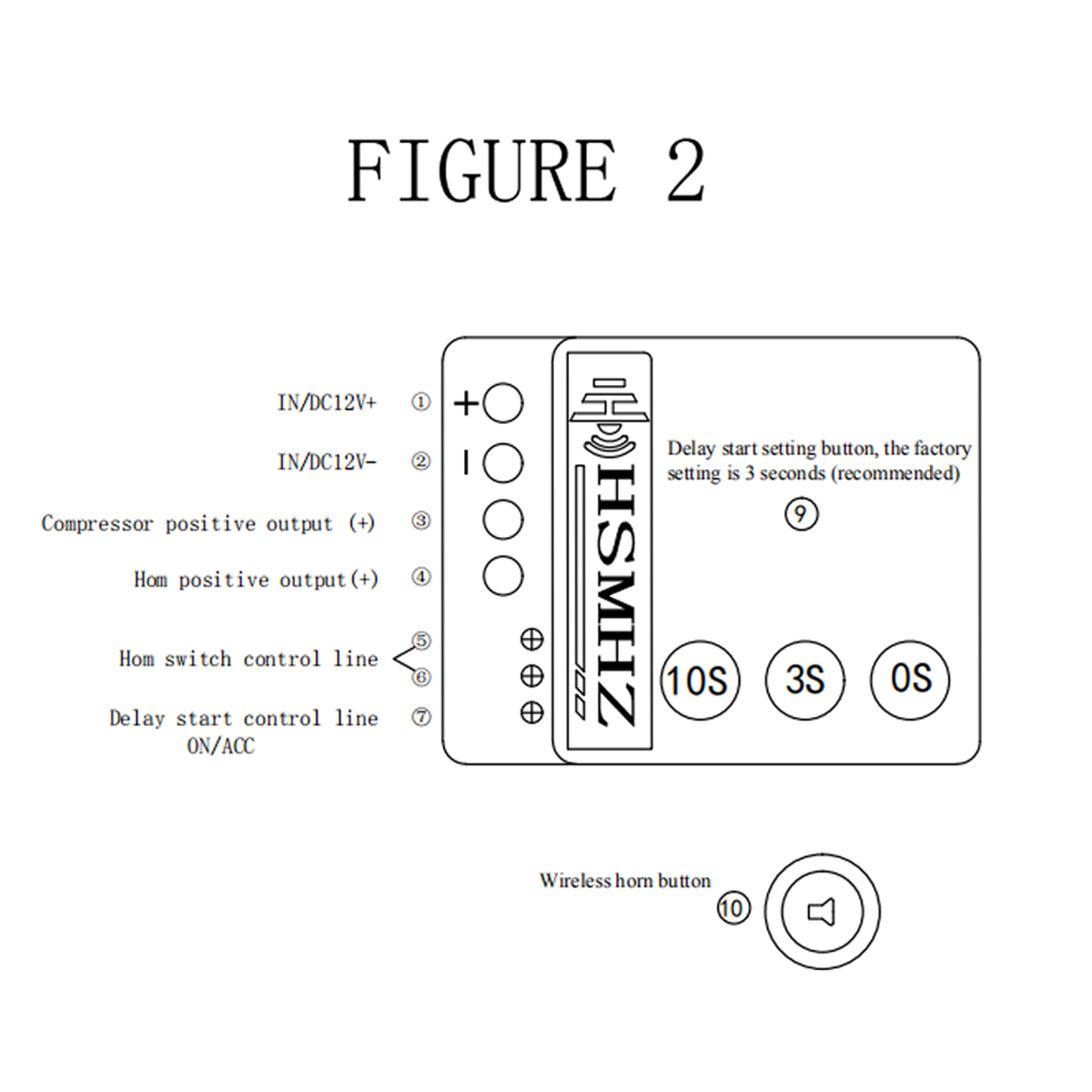

Connect the wire harness to the specified port according to Wiring Diagram 1 and power on. Note: The delay start control line (Figure 2-7) provides a 12volt positive supply from the cable that is only energized when the ignition switch is in the "ON" or "ACC" position. Never directly install the wire on thebattery or on a live wire.
1.delay start, and modification is not recommended; please select the setting based on your need for special circumstances).

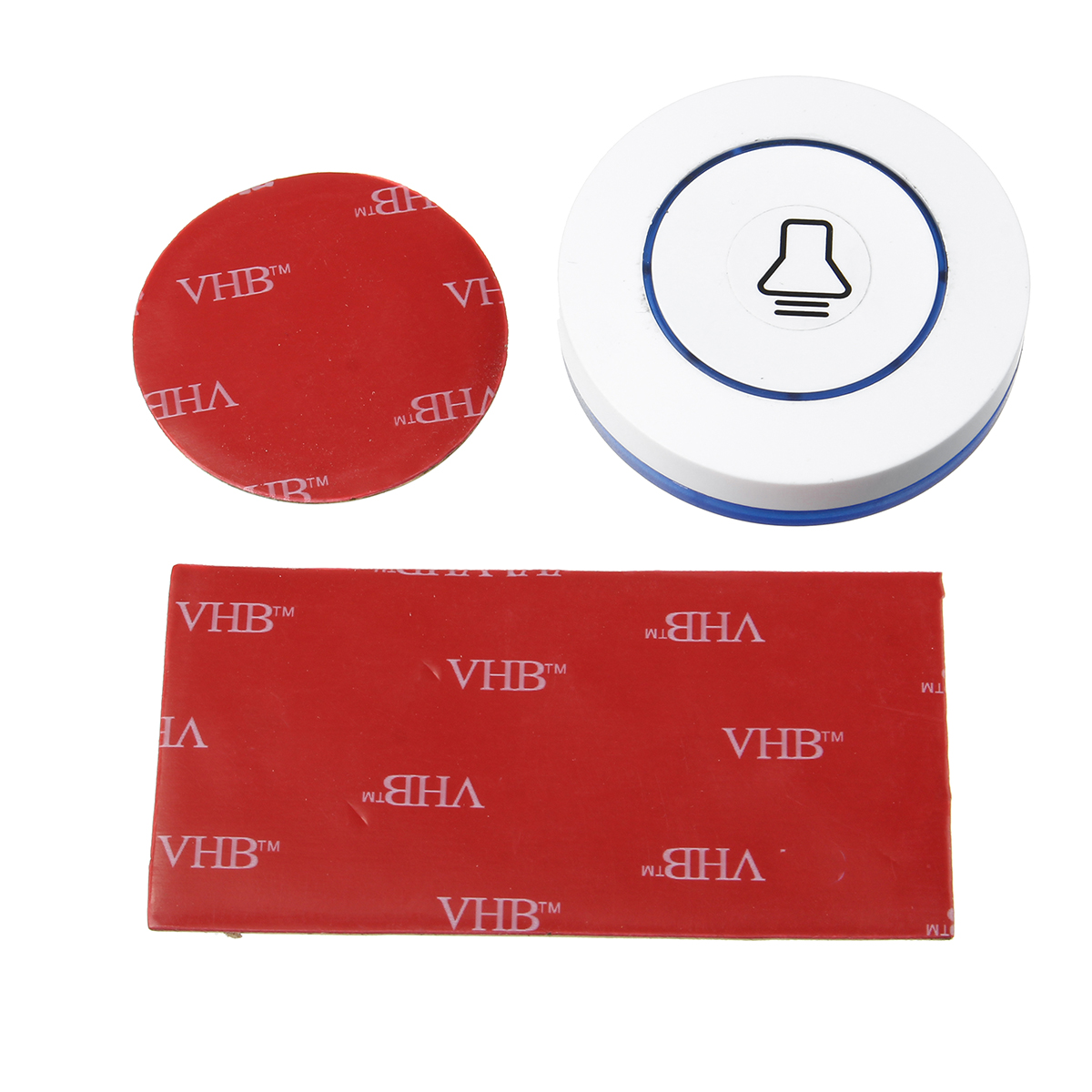

2. Horn wireless control switch: Figure2-ŀ is the wireless horn switch button, press the button and the horn is ON,release the button and the horn is OFF.
3. Horn wired control switch: The port of Figure 2-Ļ and ļis the horn wired control port, which connects to the hornbutton or the steering wheel horn button, press the button and the horn is ON, release the button and the horn is OFF.
4. Remote control learning pa iring: press the learning button, and release after the learning indicator lights up;then press a remote control button to learn, the learning light flashes once and indicates the learning is successful.
5. Clear the remote control data: press and hold the learning button, and then release after the learningindicator is off, at this point,the data has been cleared. After clearing, the remote control is no longer controlled.
6. Pay attention to the controller waterproof and please install it in a dry place.
7. Install the system in acool dry area.avoed wet and hot areas.
8. Compressor motor must be installed in a flat area.avoid installing at an angle.
9. It is highly recommended that you install,the tank and compressor in the rear trunk of the vehicle.ifyou needadditional nylon a ir hose it can be obtained at any hardware store.
10. It can be obtained at any hardware store.after you have installed the tank,compressor and horns,proceed toinstalled the nylon hoses making sure that they enter the brass
11.Fittings all the way and past the bult.in 0-rings(small bumps).The electrical installation should be done using
12. Rollow the drawing closely in oroer to avoid mis.takes,if you have any doubts contact an electro.mechanic for help.
13. After you have finished the installation,check closely for a ir leak
14 gauge or thicker wire do not use a to the battery or a wire as the motor uses
15 amps and under stressit may use as much as 20 amps.

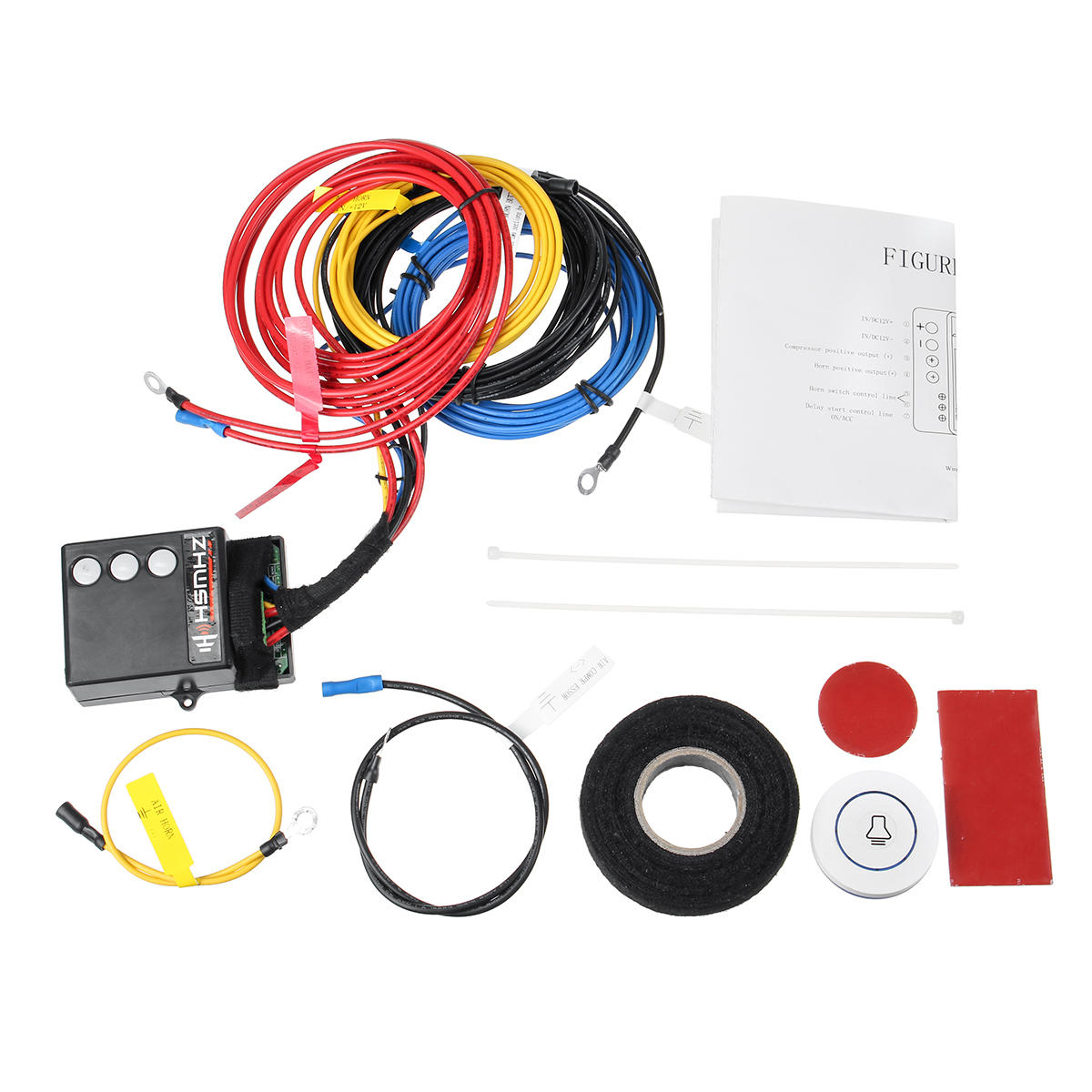

Package Included:
1 Set Horn Wireless Remote Control
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.
4.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
