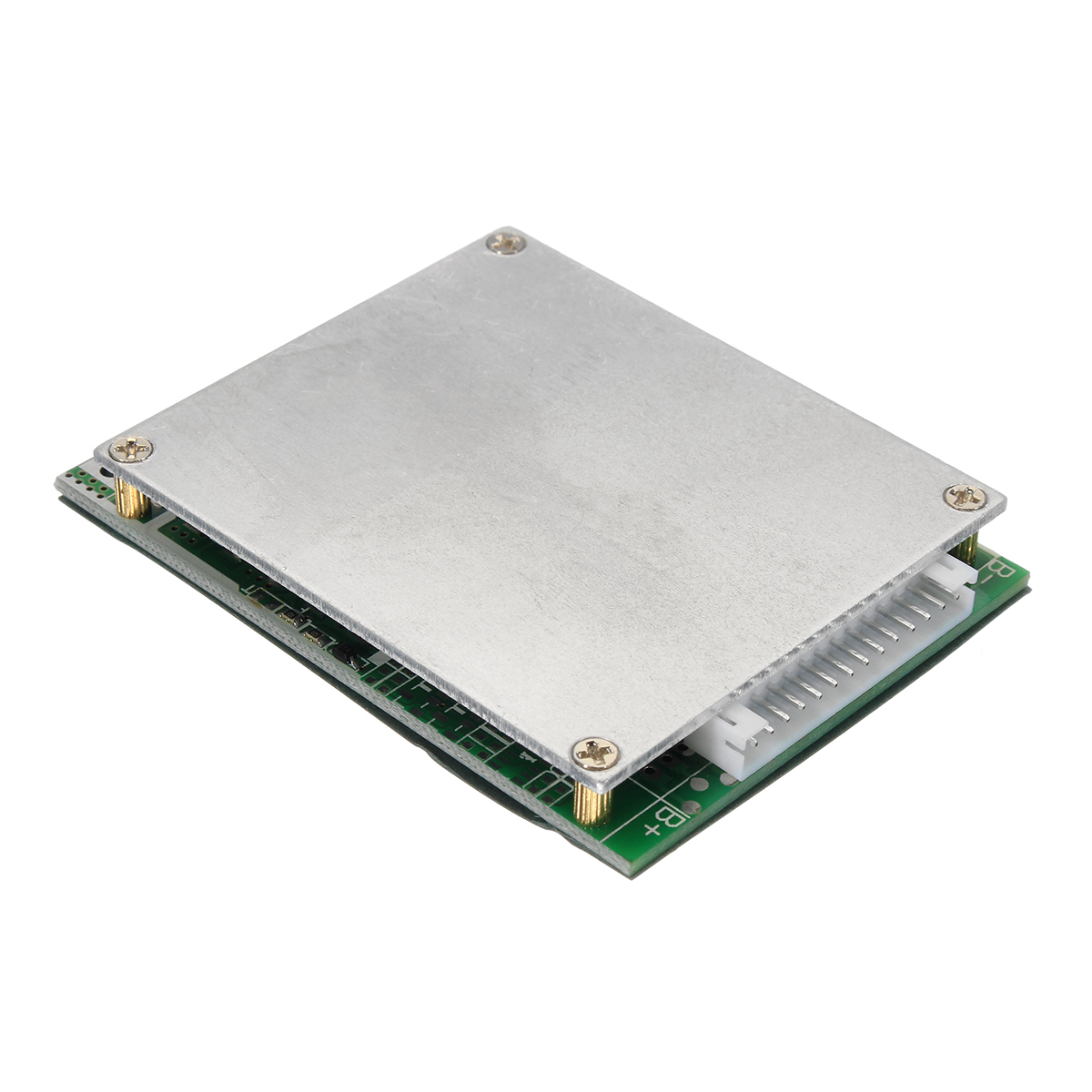

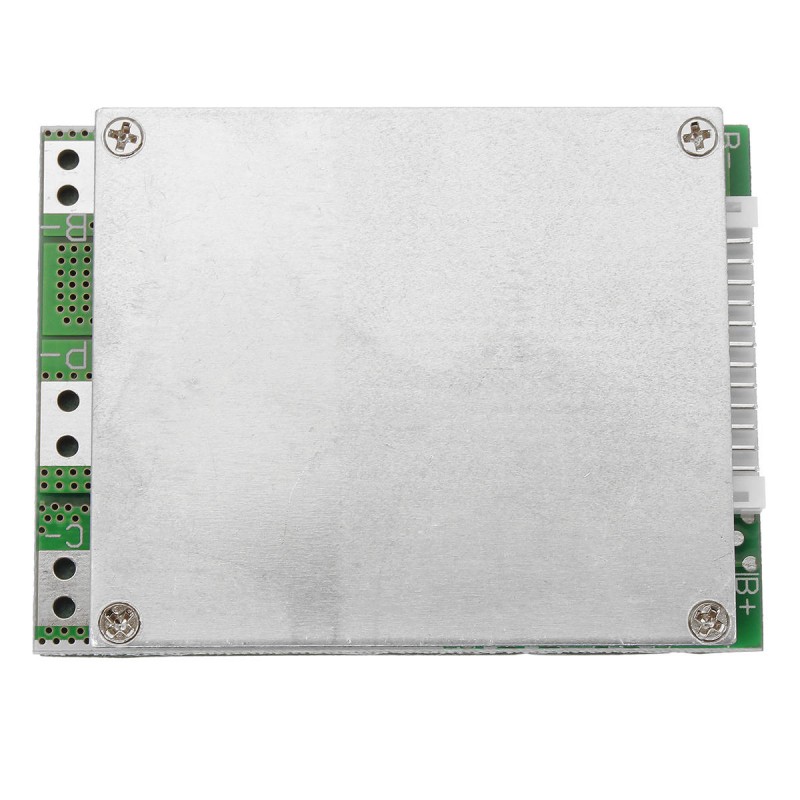

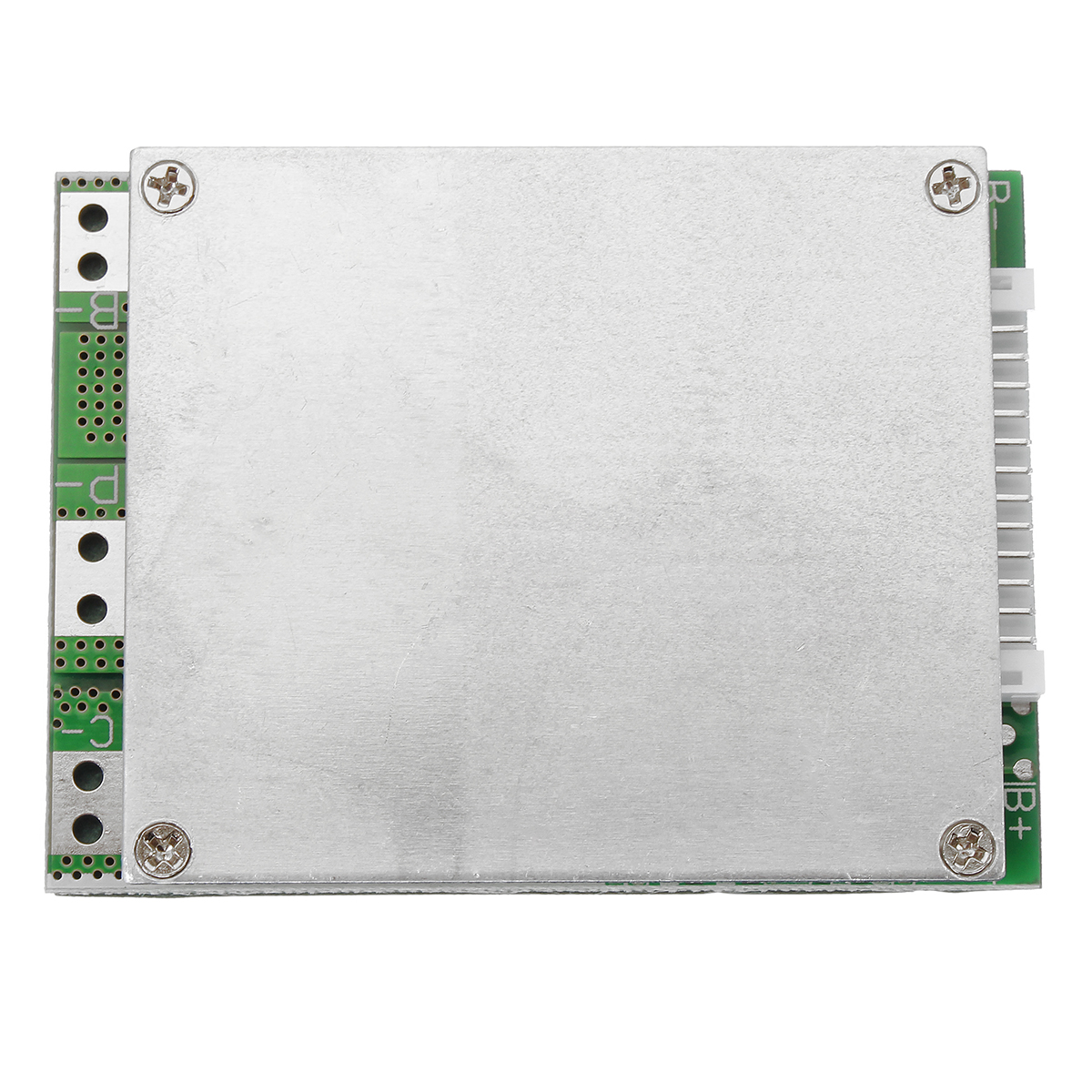

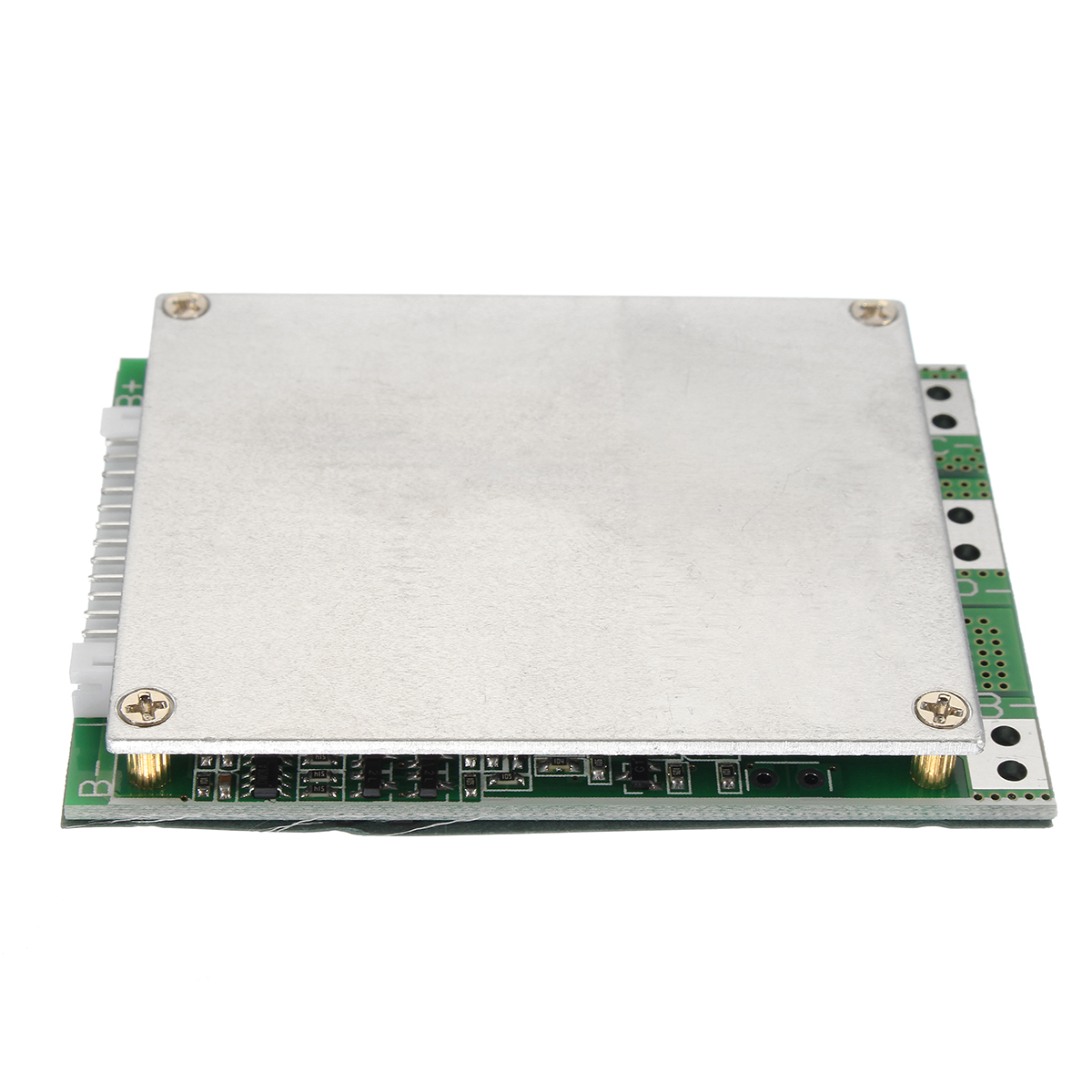

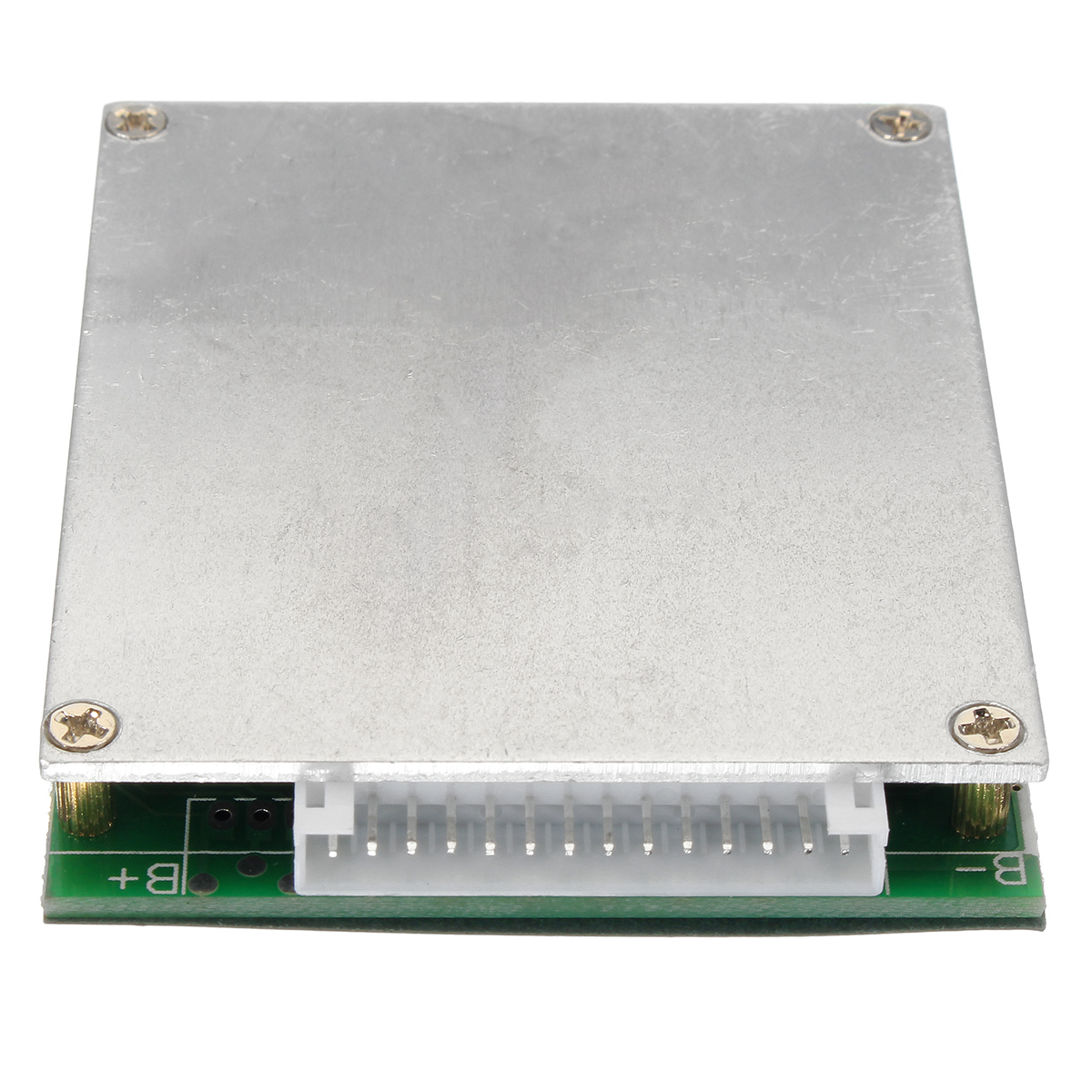

13S 35A 48V Li-ion Battery Protection Board BMS PCB with Balance For E-bike Scooter
$21.99
- Product Code: ED0021262
- Availability: In Stock
- Ex Tax: $21.99
Description:
With a balanced
Overcharge protection
Over discharge protection
Over current protection
Short circuit protection
Temperature protection
Specification:
Name: 13S 35A 48V Protection Board with Balance

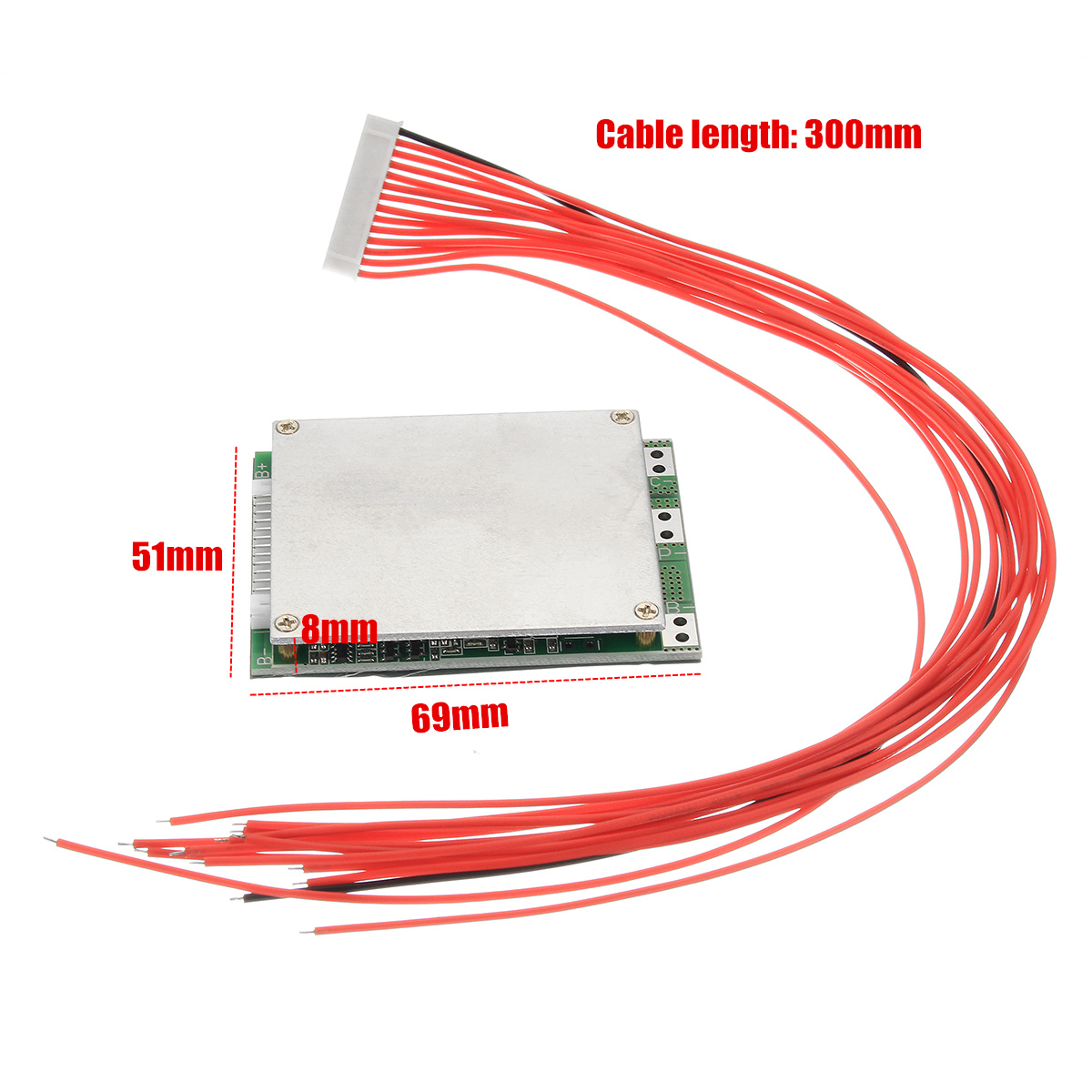

Size: 69*51*8mm

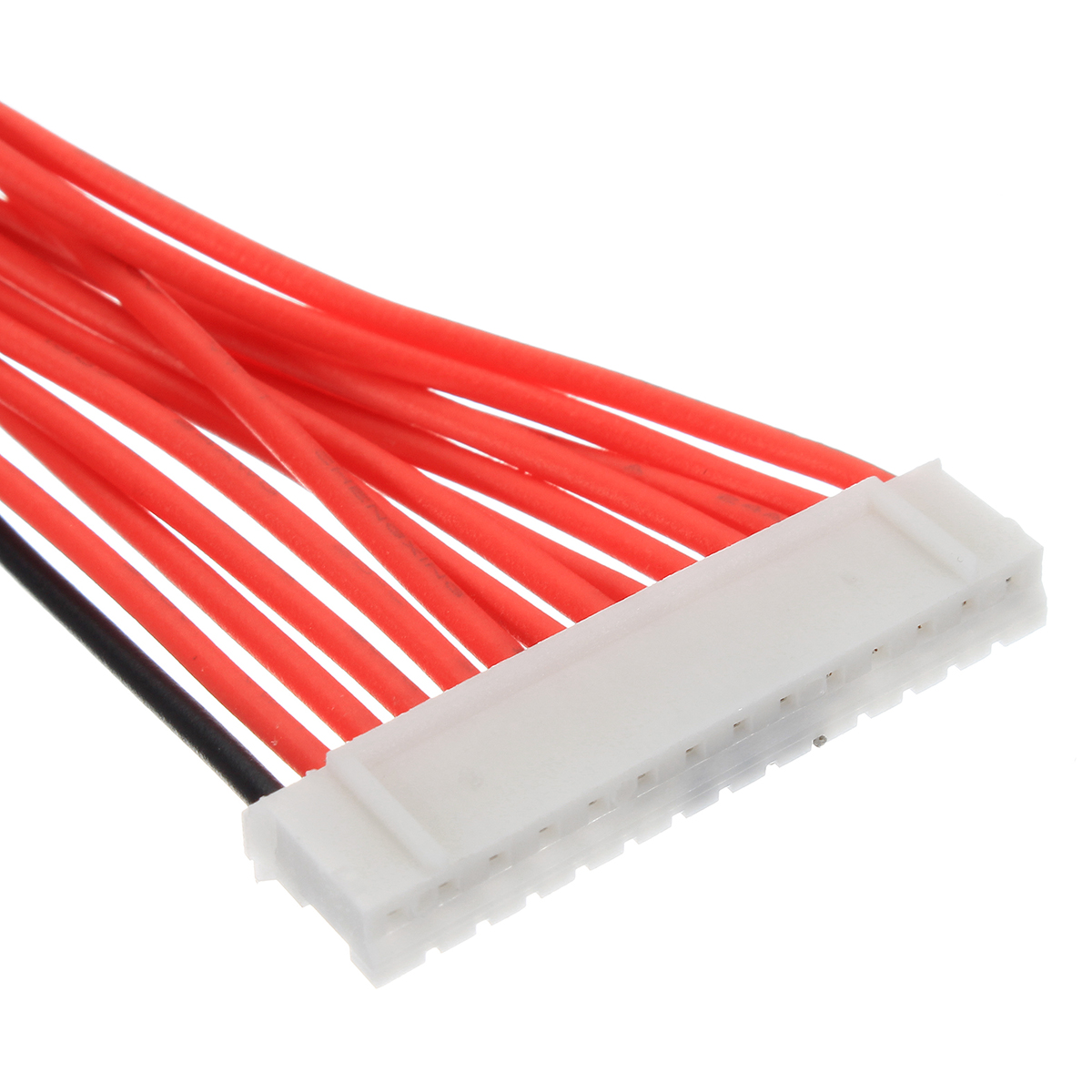

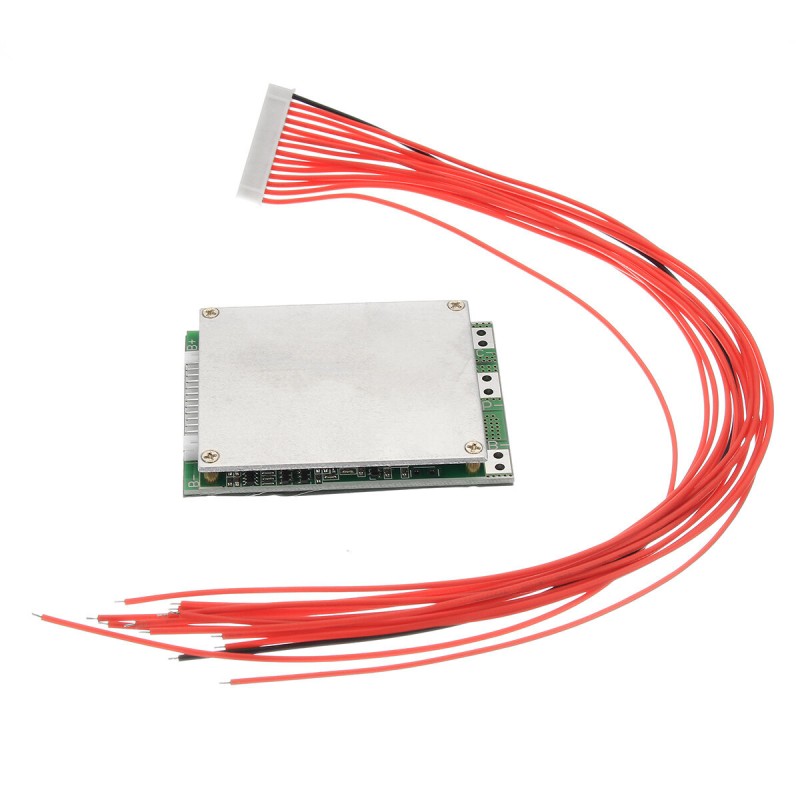

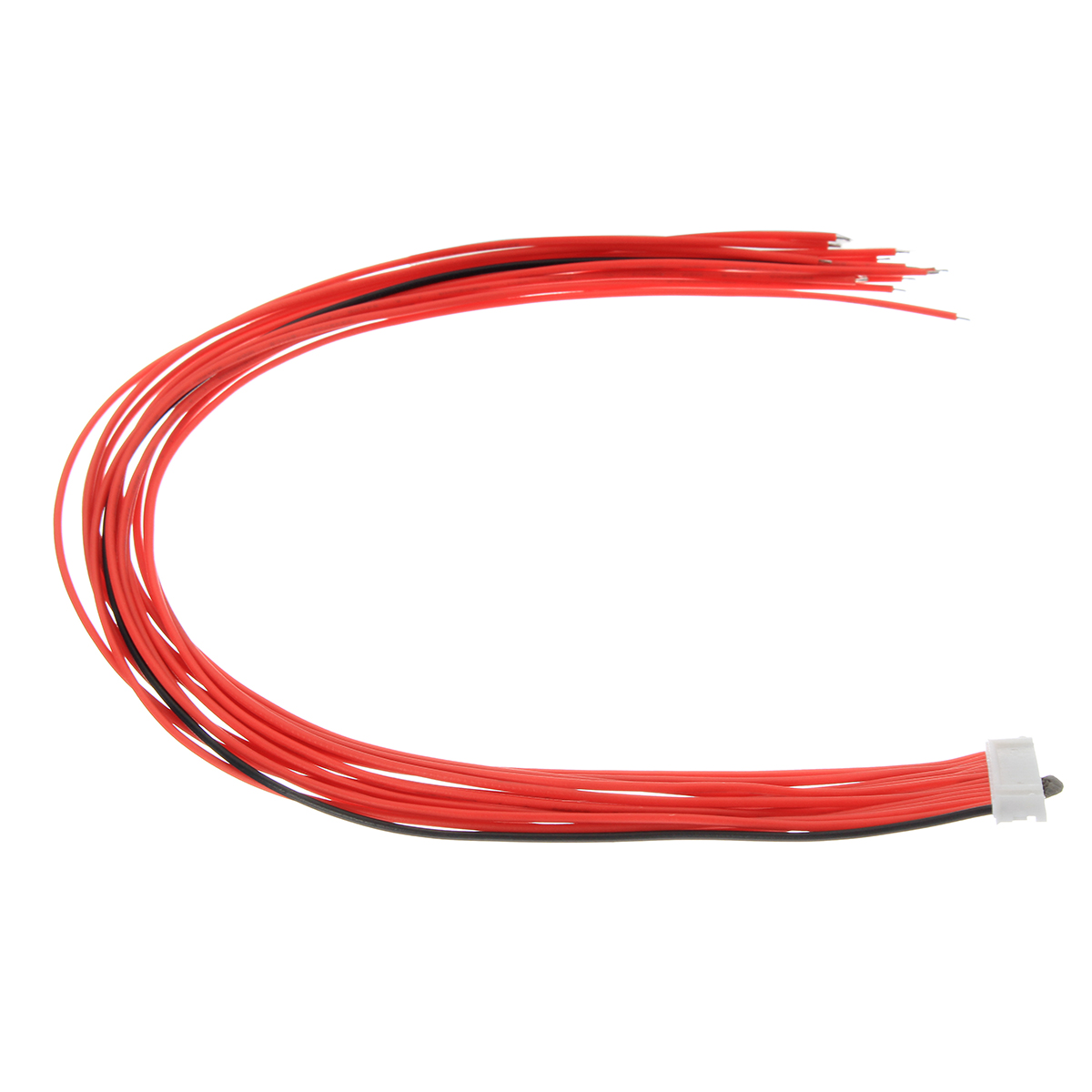

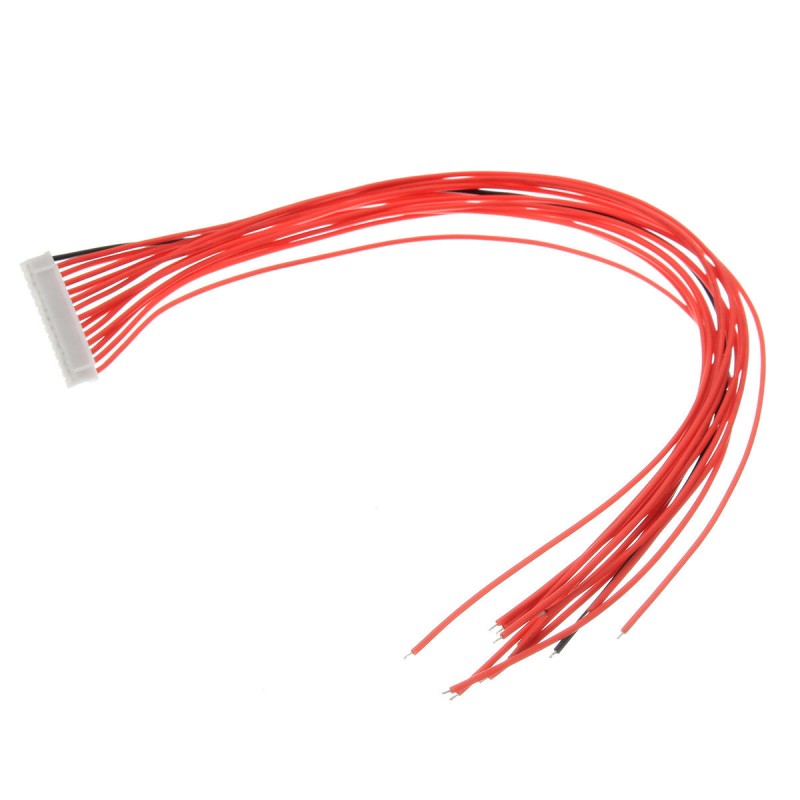

Cable Length: 300mm
Charging current: ≤8A
Electrical parameters: As shown in following table

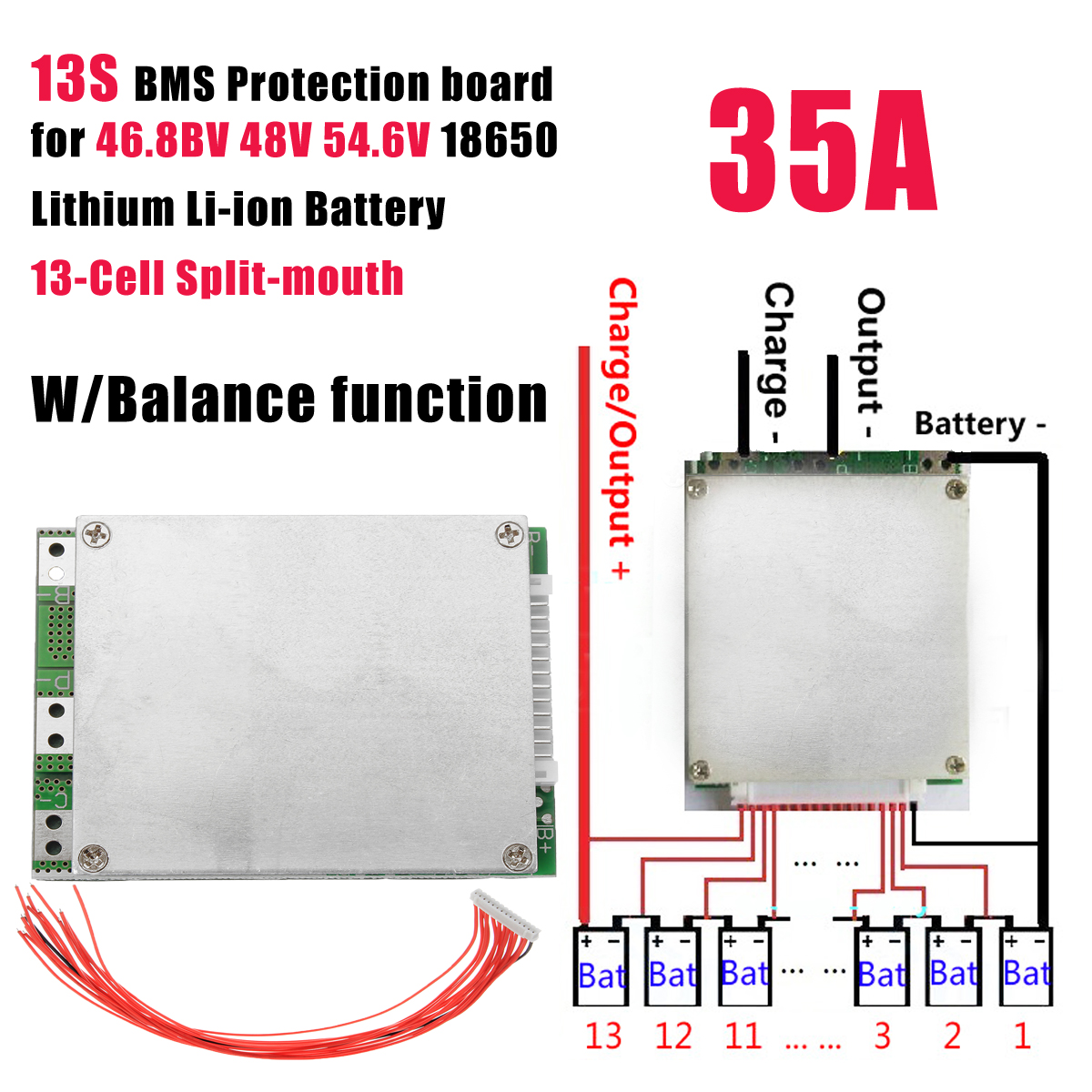

Electrical Parameters: (13 string split-mouth)
| Detail | Specifications | Tipical | Unit |
| Discharge |
Continuous
Discharging Current
|
35(Max) | A |
|
Instantaneous
Discharge Current
|
100 | A | |
| Charge | Charging Voltage | 54.6 | V |
| Charging Current | 8(Max) | A | |
| Overcharge Protect | Over-charge Detect | 4.28±0.05 | V |
| Protect Delay | 100 | mS | |
| Over-charge release | 4.08±0.05 | V | |
| Balance | Detect Voltage | 4.2±0.025 | V |
| Release Voltage | 4.2±0.05 | V | |
| Balance Current | 60±5 | mA | |
| Over-discharge Protect | Over-discharge Detect | 2.55±0.08 | V |
| Over-discharge Detect delay | 50 | mS | |
| Release Voltage | 3.0±0.1 | V | |
| Over-current Protect | Detect Voltage | 150 | mV |
| Detect Delay | 15 | mS | |
| Current Detect | 120±0.5 | A | |
| Release Condition | Cut Load | ||
| Short-circuit Protect | Protect Condition |
External load
short circuit
|
|
| Detect Delay | 200 | uS | |
| Release Condition | Cut Load | ||
| Temperature Protect | Temperature Protect | / | ℃ |
| Resistance | Inner | ≤15 | mΩ |
| Self-Consumption | Working Current | ≤50 | uA |
| Sleep Current (when Over-discharge) | ≤10 | uA | |
| Working Temperature | Range | -30/+80 | ℃ |
Package Included:
1 X Battery Protection Board
,
,
,
,
,
,
,
,
,
