150cc 125cc GY6 4-Stroke Scooter Motor Complete Engine Kits Carburetor Ignition Coil Starter Relay CDI Voltage Regulator Set Single Cylinder Short Case
$341.99
- Product Code: ED0017099
- Availability: In Stock
- Ex Tax: $341.99
Description:

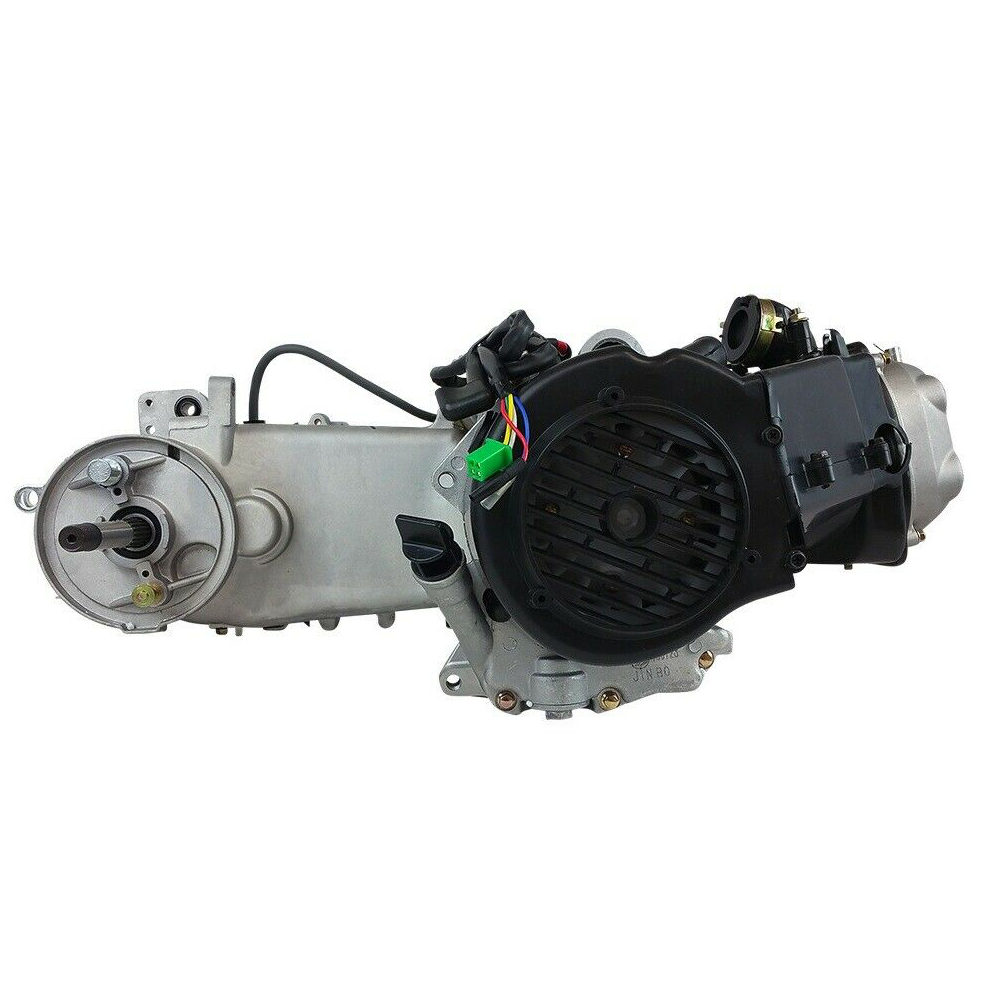

This complete engine includes carburetor, CDI, starter solenoid, coil, used in a wide variety of applications,
including full-size street legal scooters, all terrain vehicles (ATVs), dirt bikes, and go karts,
compatible with both 125cc and 150cc GY6-A Engine size scooters.
Feature:
1. CVT: CVT consist mainly of 2 transmission pulleys and 2 transmission belts. It’s compact, simple design offers seamless shifting between an unlimited amount of varying gear ratios, allowing a smooth rate of acceleration.
2. Crankshaft: The engine is low speed with high torque and has large diameter bearings for crankshaft connecting rod, increasing the reliability of the bearings.
3. Forced Air-cooled Engine: There are metal fins covering the outside of the cylinders and the heat generated by the engine is released directly into the air when the cooling fan blows air over fins. It has the advantages of simple structure, light weight, wide adaptability to climate change, rapid start up and no need of radiator.
4. High-flow Oil Pump: Reduces the wear of friction pairs and prolongs the engine service life.
5. Lubricating Oil Strainer: Helps removing solid contamination from lubricating oil, largely reducing the wear of friction pairs and prolonging the engine service life.
6. Aluminum Cylinder Head & Body: Improves the heat dissipation capability, cuts the weight and increases the torque of the engine.
Specification:
Engine Type: GY6-A Single Cylinder 4-Stroke
Cooling: Air Cooled
Displacement: 150cc
Max power (kw/r/min): 6kw/7500r/min
Rated power (kw/r/min): 5.2kw/7000r/min
Max torque (n.m/r/min):7.6N.m/6500r/min
Piston diameter:52.4mm
Piston stroke: 57.8mm
Compression ratio: 9.2:1
Ignition system: CDI
Transmission:CVT
Start method: Electric/Kick
Model:157qmj-l
Fitment:
Compatible with both 125cc and 150cc engine size scooters and vehicles.

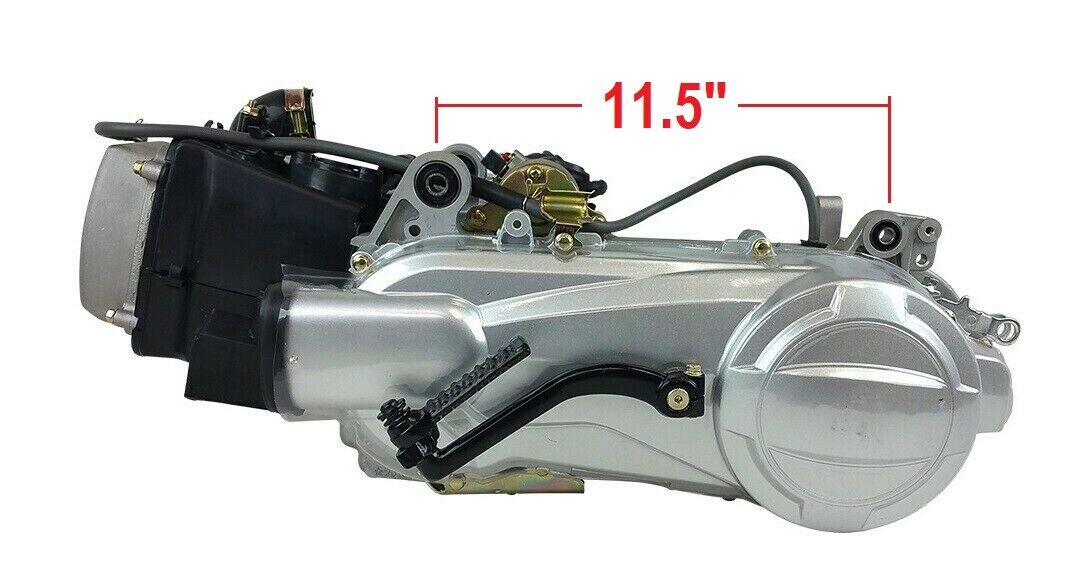

GY6-A 125cc and 150cc motors come in different sizes. The difference is in the length of the rear swing arm. Please measure the physical size to be sure get the correct one before your purchase.

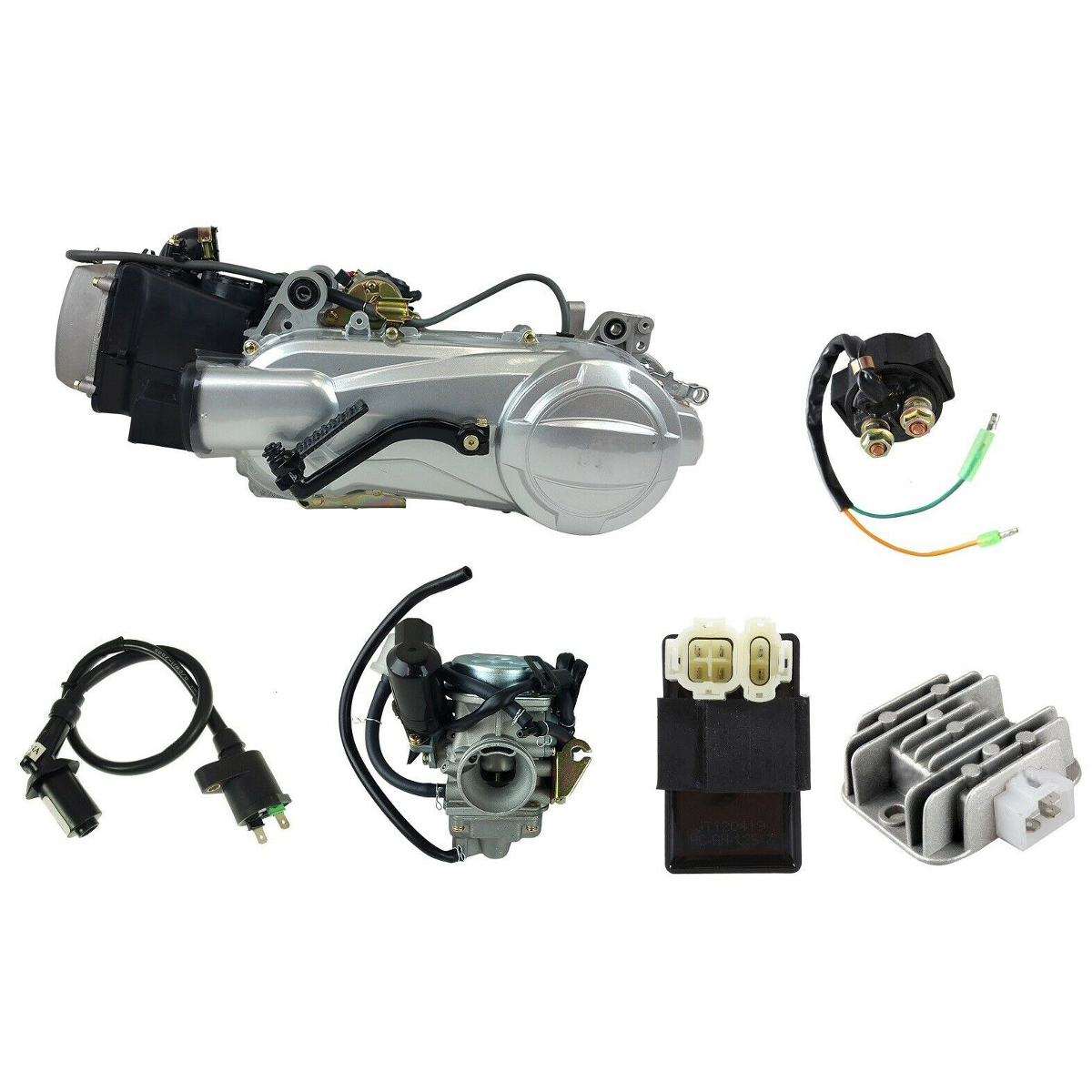

Package Included:
1 X Complete Engine
1 X Carburetor
1 X Ignition Coil
1 X Starter Relay
1 X CDI
1 X Voltage Regulator
