15A 250W/350W Standard Square Wave Controller KT Series Without Light For Electric Scooter Bicycle Motor Conversion Kit
$35.68
- Product Code: ED0017181
- Availability: In Stock
- Ex Tax: $35.68
Description:
Motor cable is with 9pin waterproof connector, others is with SM connector.
Specification:
Controller dimension: about 8 * 5.2 * 3 cm
Motor cable is with 9pin waterproof connector, others is with SM connector.
Specification:
Controller dimension: about 8 * 5.2 * 3 cm
Cable length: all about 10-13cm
6 mosfets

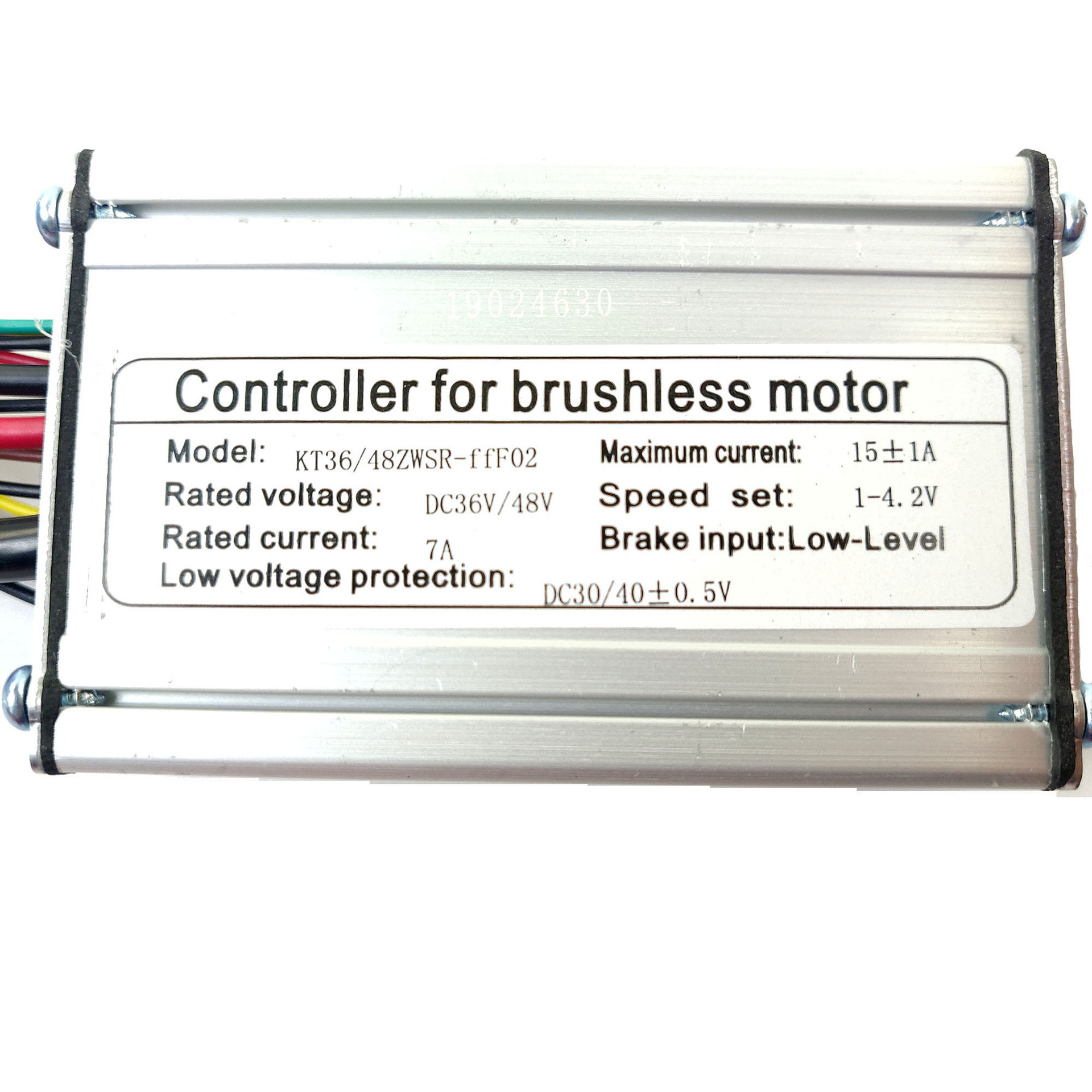

Maximum current: 15±1A
Rated voltage:DC36V/48V
Speed set:1-4.2V
Rated current:7A
Brake input :Low-Level
Low voltage protection: DC30/40±0.5V

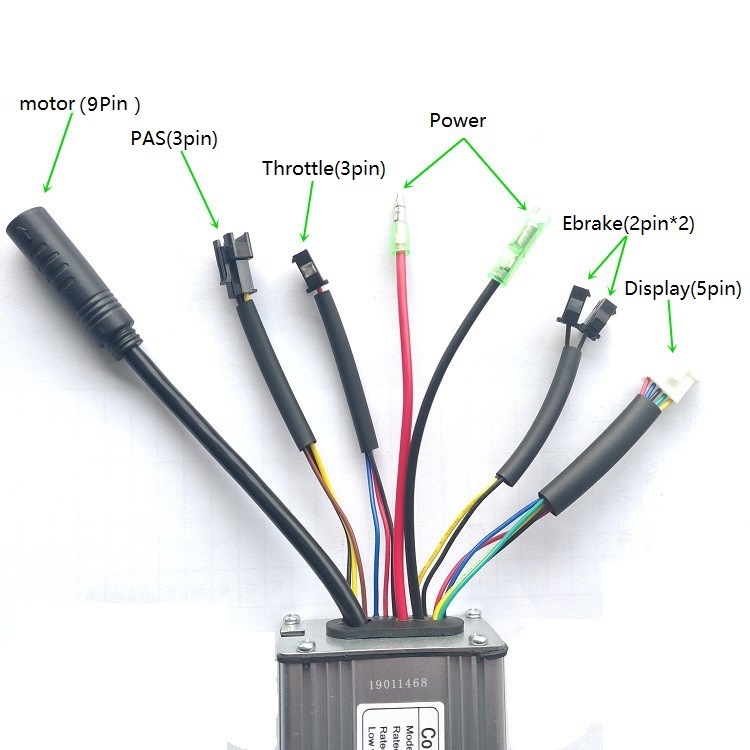

FUNCTION & PLUG (all bullet)
motor (3-green-yellow-blue bullet + 6pin SM plug ) power (red-black bullet plug)
display (5 pin SM plug) throttle (3pin SM plug)
ebrake (3pin SM plug ) *2 PAS (3pin SM plug)
1T4 cable plug(8pin waterproof plug-Throttle-Display-Ebrake*2)
PAS (3pin waterproof plug)
Note:
1. KT controller just only compatible with KT display(same communication protocol)(display is NOT Included).
Please make sure that your system is KT system.
Waterproof connector is special that I can't promise you it can 100% compatible(because of the line sequance).
But most can use it if you check carefully.
Please check your motor cable if it is Julet or Higo 9pin waterproof plug(there is some letters on the connector ).
Julet is better.But for 250W 350W .Higo is also OK.
Please make sure that your system is KT system.
Waterproof connector is special that I can't promise you it can 100% compatible(because of the line sequance).
But most can use it if you check carefully.
Please check your motor cable if it is Julet or Higo 9pin waterproof plug(there is some letters on the connector ).
Julet is better.But for 250W 350W .Higo is also OK.
2. Please contact us if you are not sure which is right.
Package Included:
1 X KT Square Wave Controller
Package Included:
1 X KT Square Wave Controller
