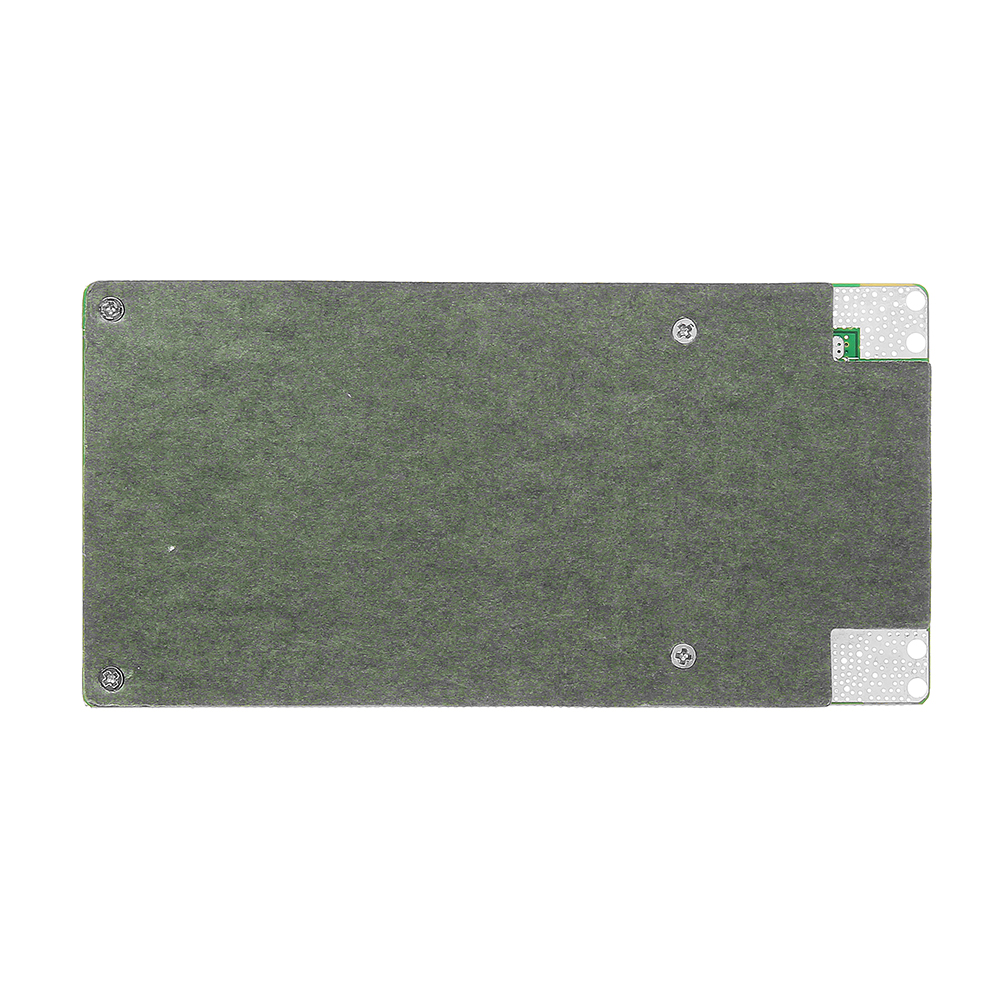

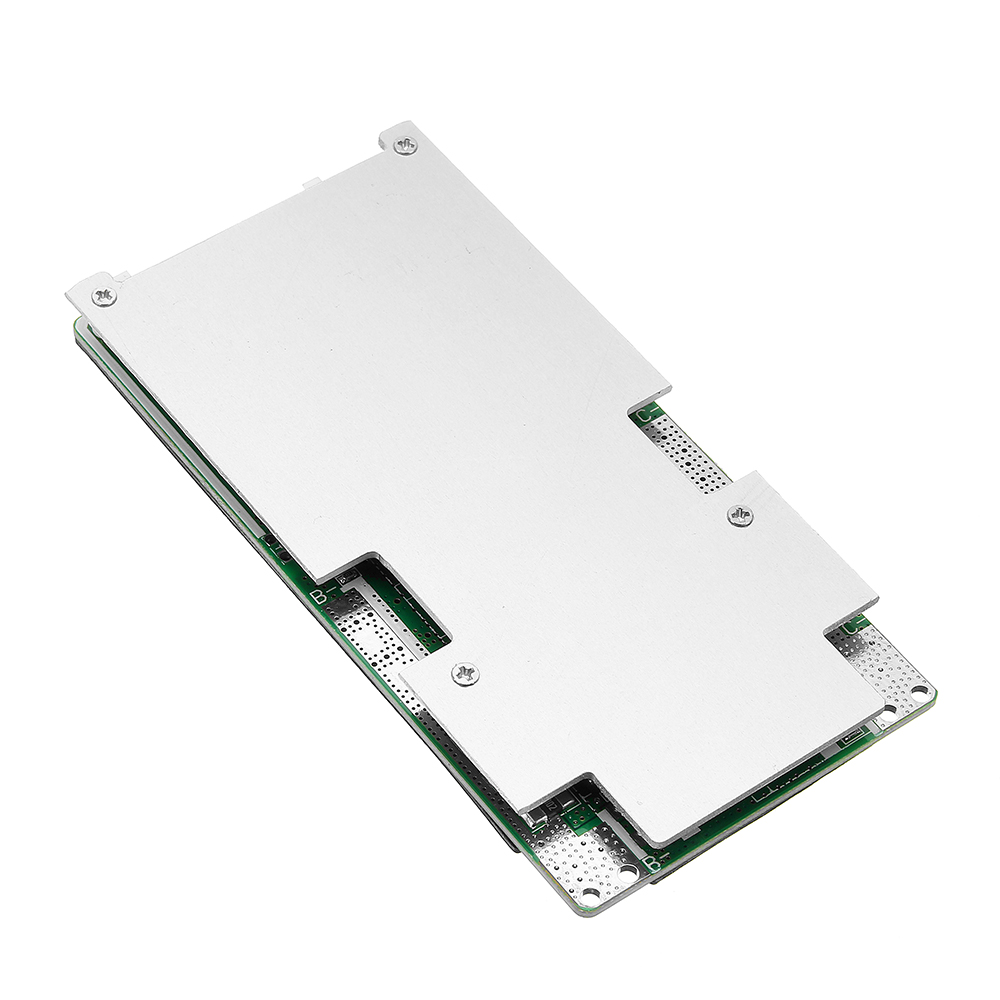

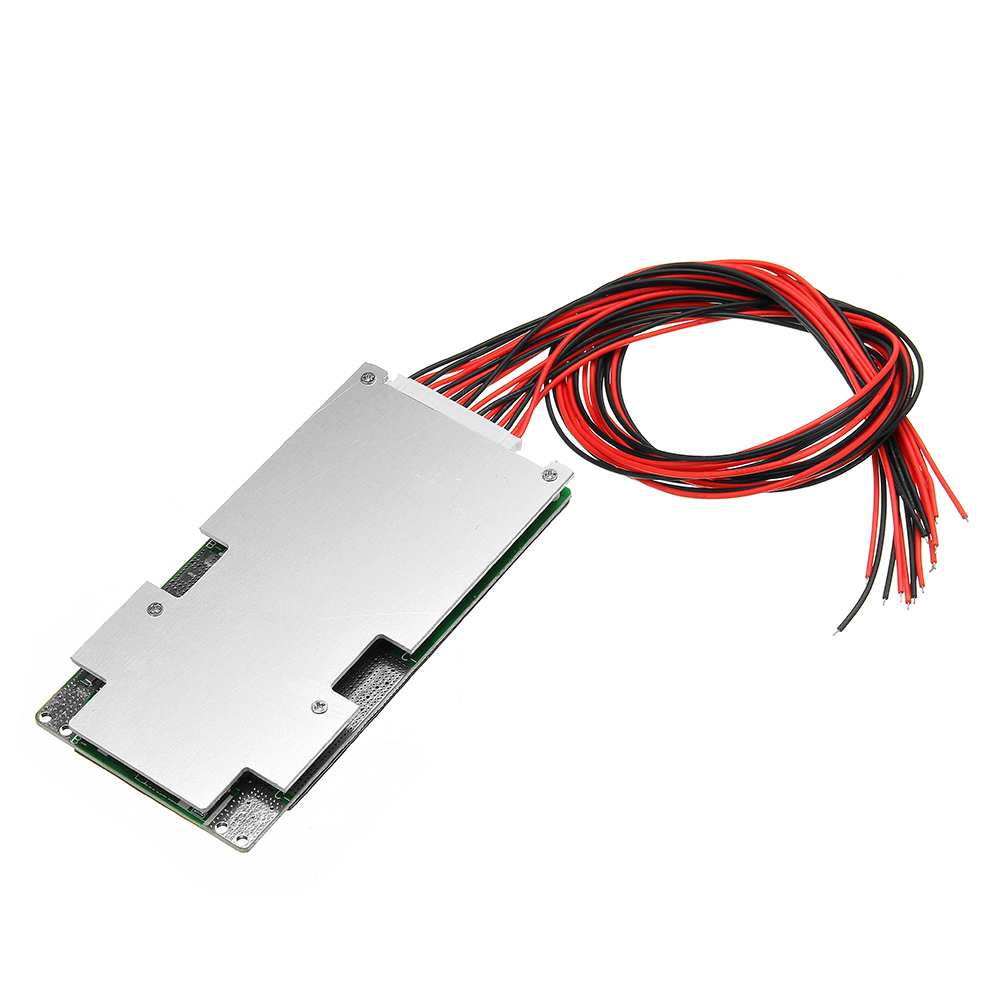

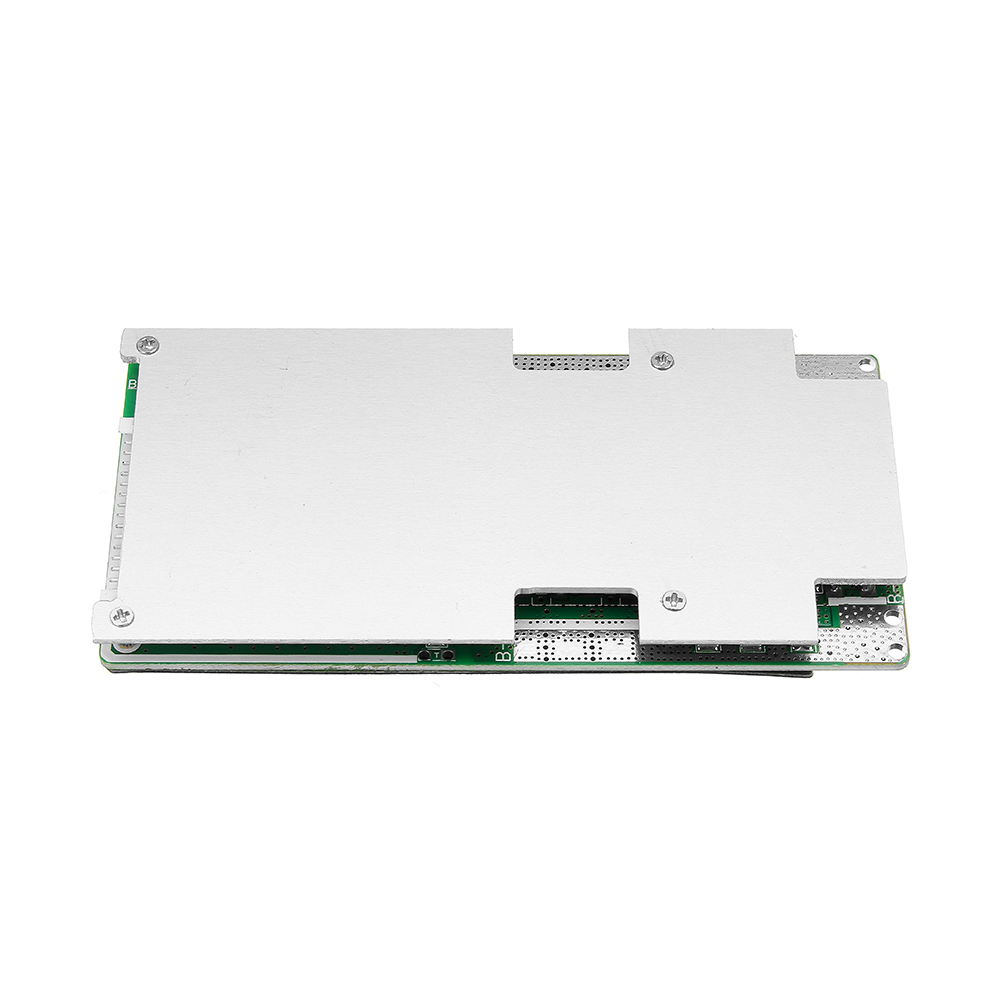

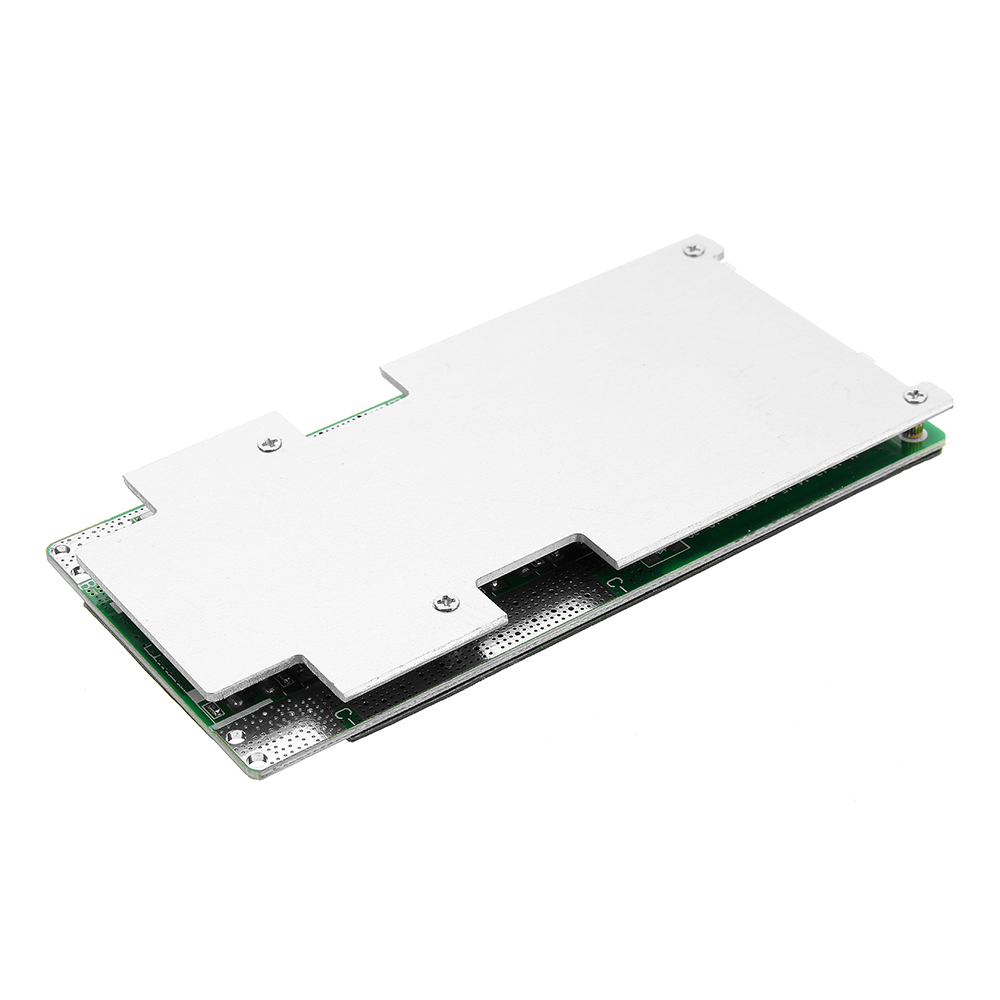

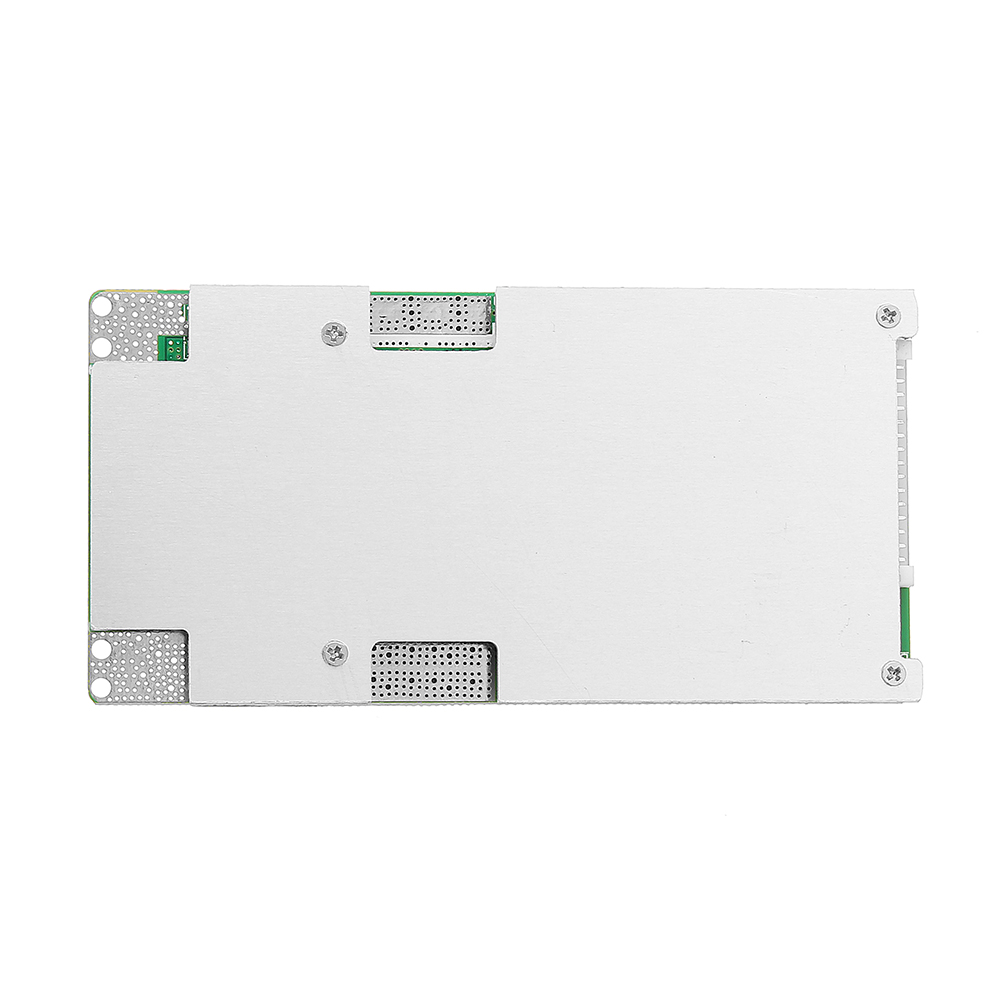

16S 48V 20A PCB PCM LFP Battery BMS Motorcycle Protection Board + Cabel
$17.99
- Product Code: ED0021359
- Availability: In Stock
- Ex Tax: $17.99

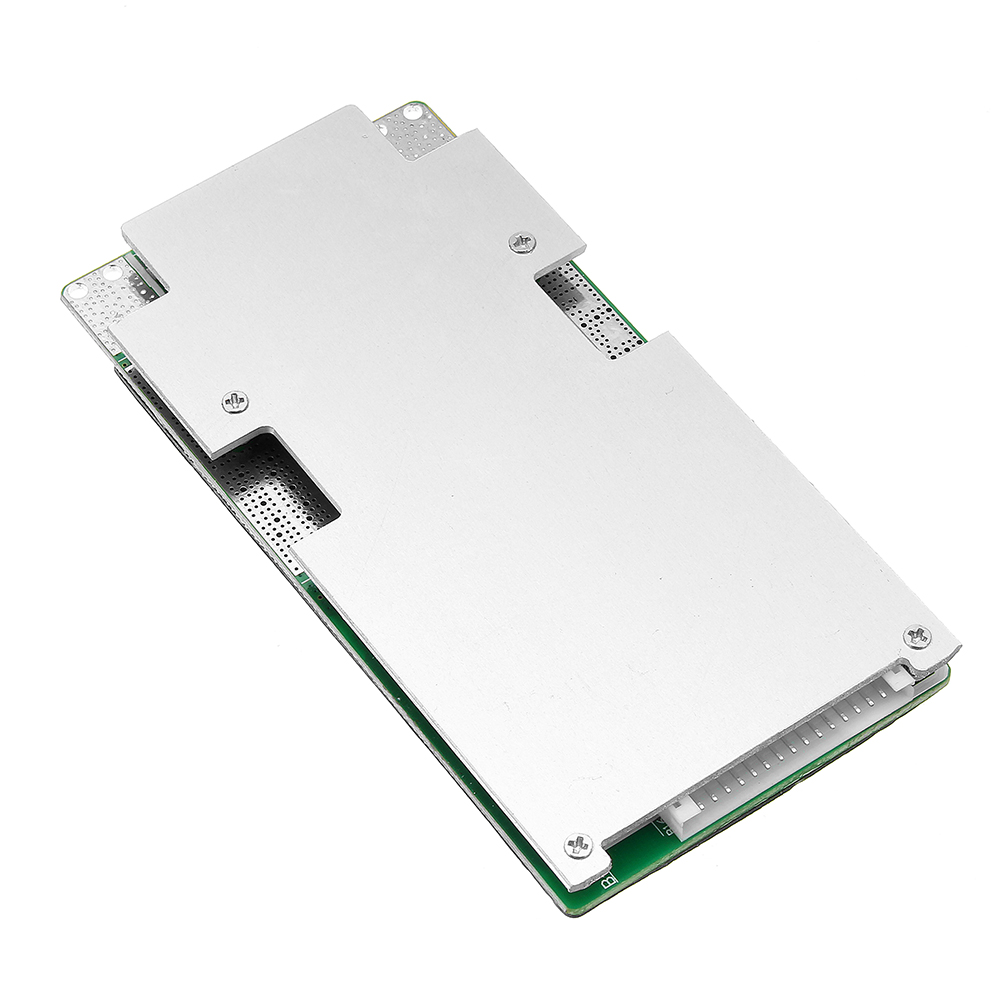

Name: 16S 48V 20A LFP Battery Protection Board
Continuous Discharging Current: 20A
Instantaneous Diacharge Current: 100A
Charging Voltage: 60V
Charging Current: 20A(Max.)
Over-charge Detect: 3.75±0.025V
Protect Delay: 1000ms
Over-charge Release: 3.6±0.05V
Over-discharge: 2.1±0.08V
Over-discharge Detect Delay: 100mS
Release Voltage: 2.3±0.1V
Detect Voltage: 200mV
Detect Delay: 15mS
Current Detect: 150±10A
Resistance: ≤15mΩ
Working Current: ≤60uA
Sleep Current(when Over-discharge): ≤10uA
Working Temperature: -30~80℃
Size: 69mm*51.5mm*10mm
Balance Detection Voltage: 3.6±0.025V
Balance Detection Voltage: 3.6±0.025V
Balance Release Voltage: 3.6±0.05V
Balance Current: 48±5 mA
Short Circuit Detection Delay: 200uS
Balance Current: 48±5 mA
Short Circuit Detection Delay: 200uS
Main Function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function,no with band balance.
Connections:
Connections:
Step1:Connect charging /discharging wire , battery pack negative wire

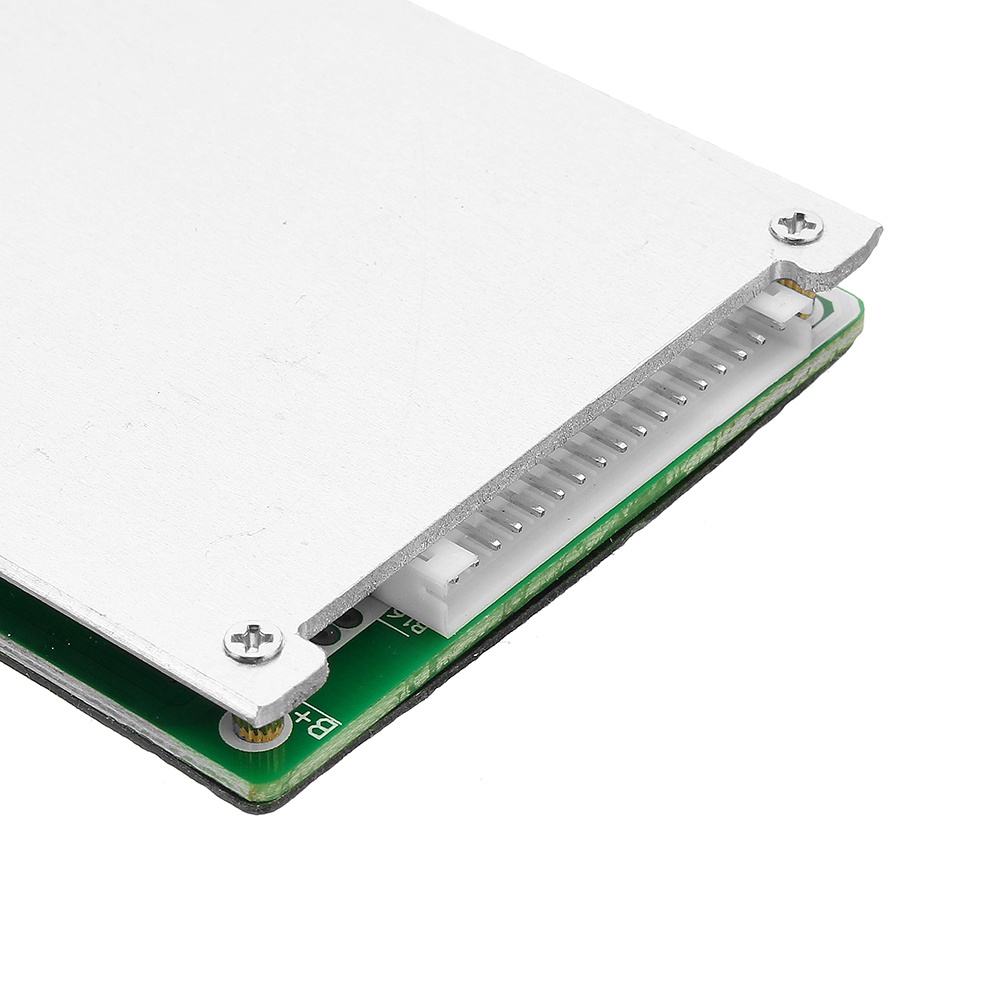

Step2: After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!

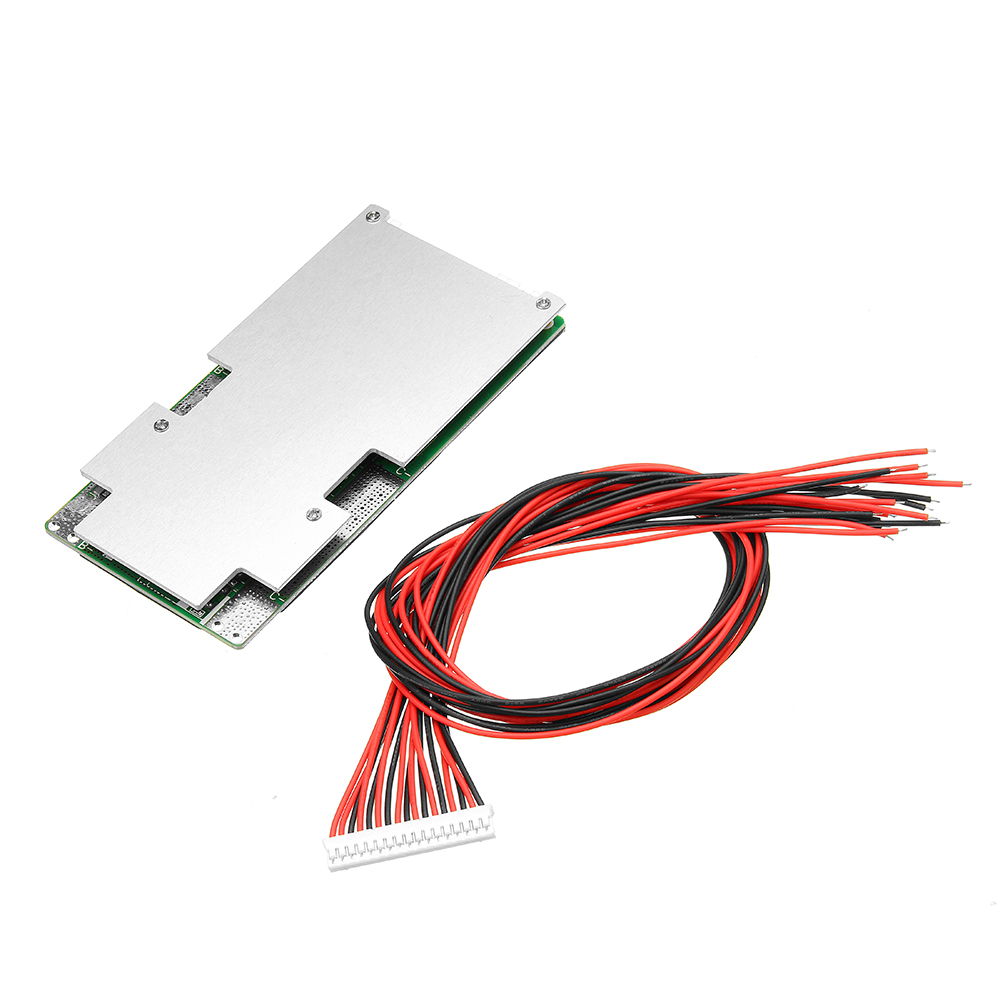

Package Included:
1 X 16S 48V 20A Li-ion Battery Protection Board

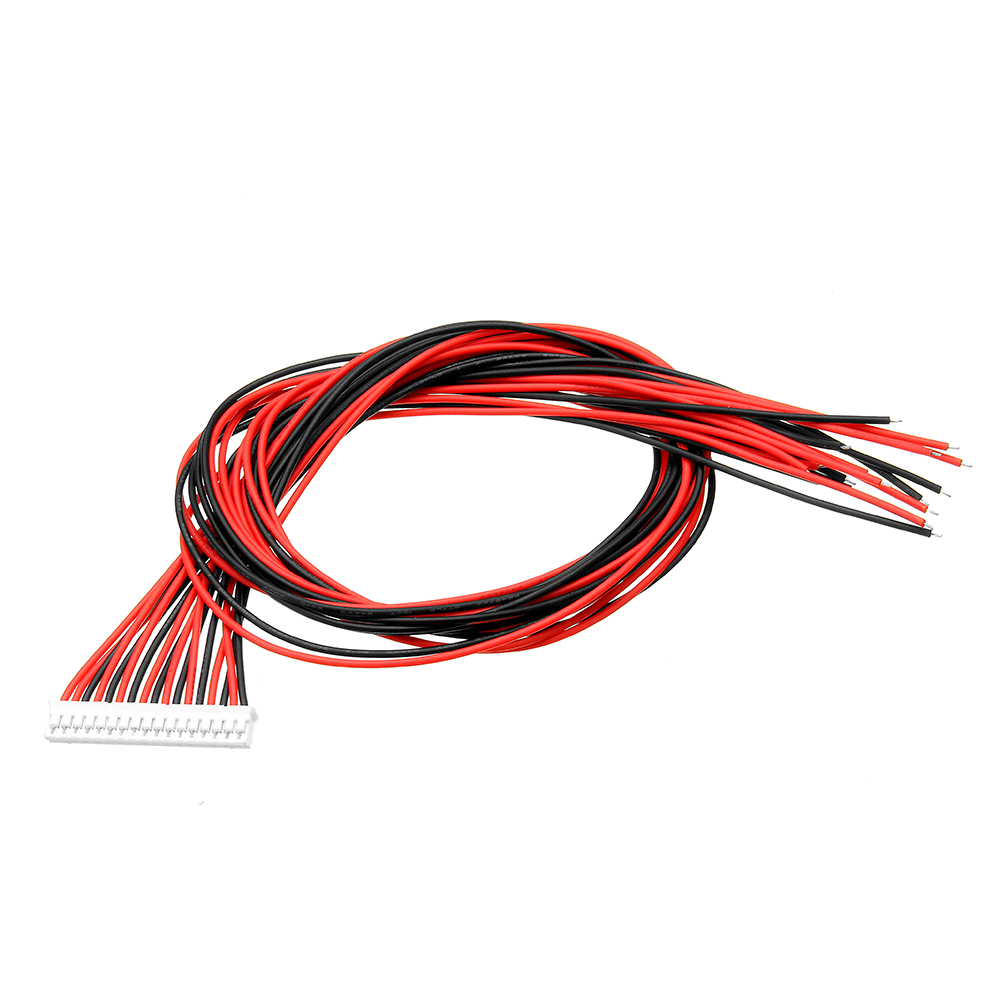

1 X Cabel Wire
