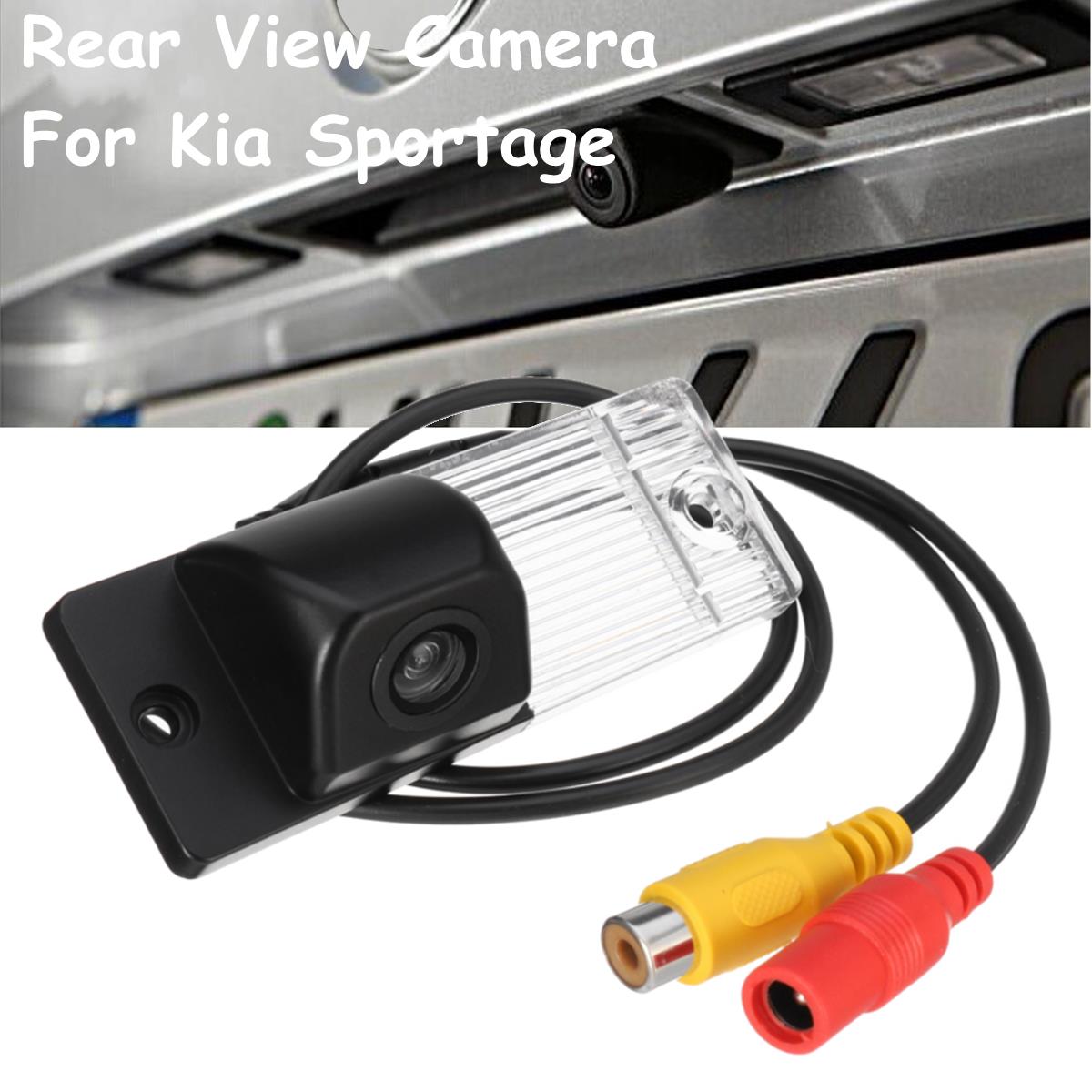

170 Degree Car Rear View Camera Parking Backup Reverse Cam for Kia Sportage 04-09 Sorento
$21.07
- Product Code: ED0001073
- Availability: In Stock
- Ex Tax: $21.07
Feature:
Waterproof
HD night vision
Easy to install
Hidden in the handle
Specification:
Color: Black

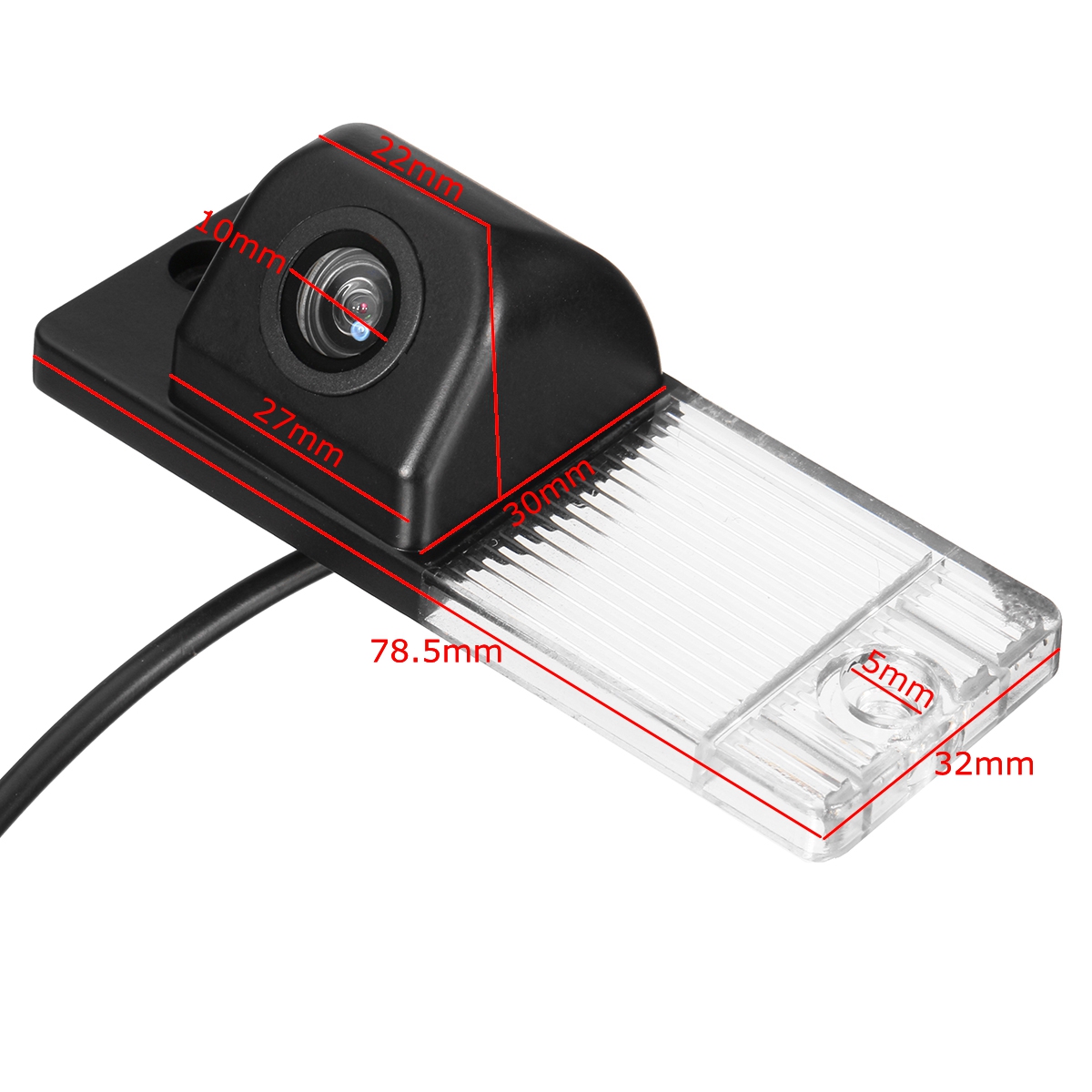

Size: 78.5x32mm
Video Cable Length: 6m
Power Cable Length: 1m
Images Sensors: 1/4 color CCD
Signal System: NTSC/PAL
Horizontal Resolution(TV lines): 520 TV lines
Effective Pixels: 720x540 pixels
Lens viewing angle: 170 degrees
Horizontal viewing angle: 110 degrees
Ip Rating: IP67~68
AGC & BLC: Auto
Current Consumption: No more 300mA
S/N ratio: Better than 48dB
Shutter speed: 1/60s-20us
Minimum Illumination: 0.2Lux/F1.2
Power Supply(DC): 12V
Scanning System: 2:1 interlace
Horizontal Sync Frequency: 15625KHZ
Operating Temperature(Deg.C): -20~60(RH95% Max.)
Storage Temperature(Deg.C): -30~60(RH95% Max.)
Fitment:
For Kia Sportage 2004-2009 Sorento

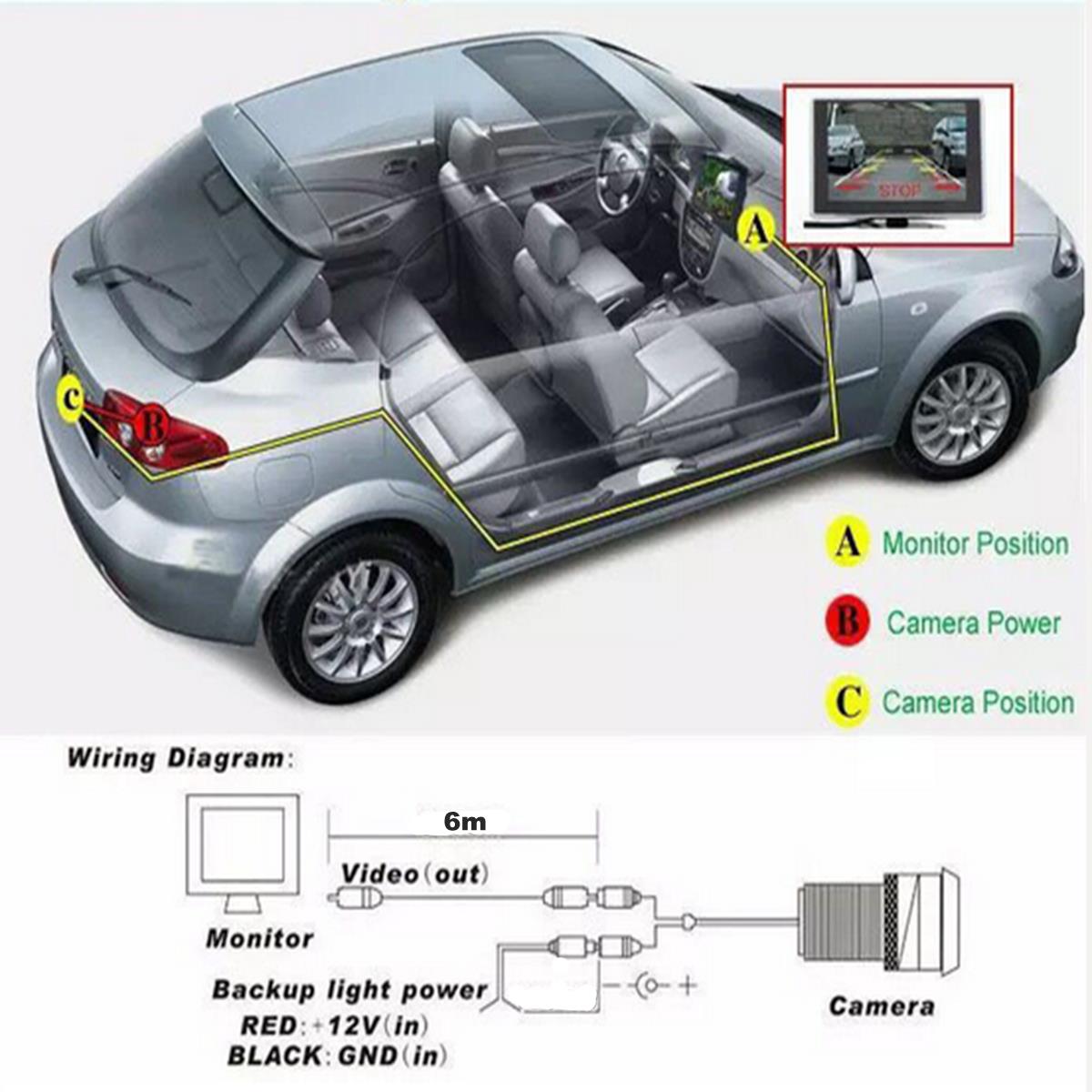

How to Install:
-Take out your stock license plate light at the back of your car.
-Fix the camera to where the stock license plate light.
-Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.
-Connect the power of the camera to your brake lights - red wire to positive and black wire to negative.
-Connect the video cable of the camera to the extension cord.
-Connect the extension cord to your car monitor.
-You will see the images when your car is in reverse shift.
Package Included:
1 X Rear View Camera
1 X 6M Video Cable
1 X 1M Power Cable
1 X Installation Instruction
