170° CMOS Car Rear View Backup Camera Reverse 8 LED Night Vision Waterproof
$13.57
- Product Code: ED0003040
- Availability: In Stock
- Ex Tax: $13.57
Features:
1. Waterproof, shockproof and dust proof
2. Good quality and longer service time.
3. With 8 LED Lamp, will be very clearly even at night
4. Compatible with DVD automobile navigation
5. With CCD core, the video and picture will be more clear
5. With CCD core, the video and picture will be more clear
6. Anti fog glass, CMOS imaging sensor
7. Support NTSC/PAL video system
8. Compact design, easy to install and operate
9. Use high quality Chip to make vivid and clear images
10. Applicable to variety of vehicles: car, truck, RV, etc
8. Compact design, easy to install and operate
9. Use high quality Chip to make vivid and clear images
10. Applicable to variety of vehicles: car, truck, RV, etc
11. With the high sensitivity, you can get rid of the poor rear vision
12. High definition and up to 170 degrees wide viewing angle
13. Helps to avoid incidents, accidents abrasion and ensure your safety
14. IP68 waterproof design, shock-proof and anti-jamming functions

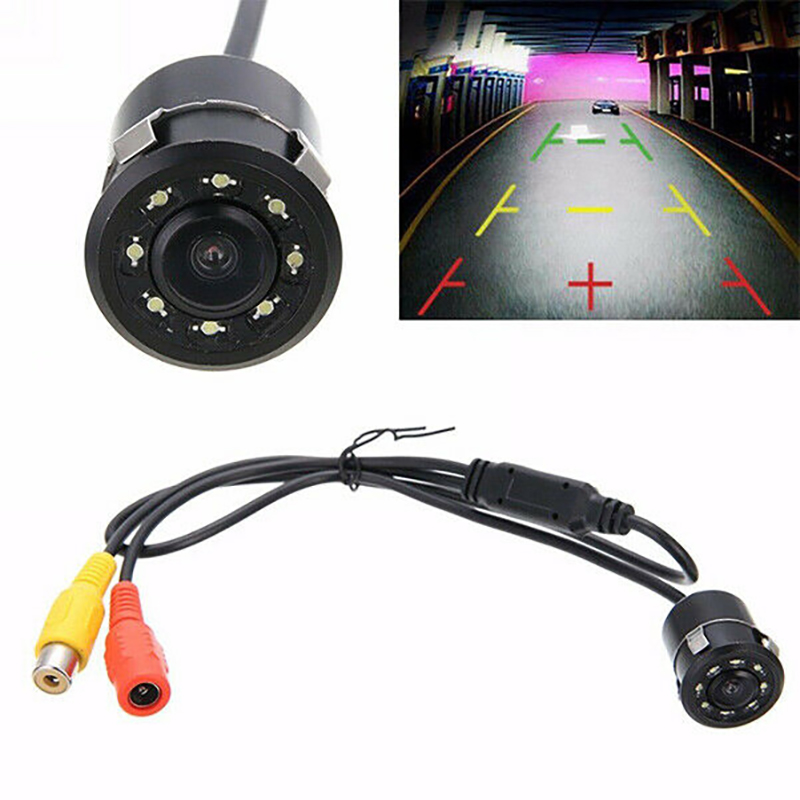

15. Can connect to any type of monitor with a composite yellow RCA jack

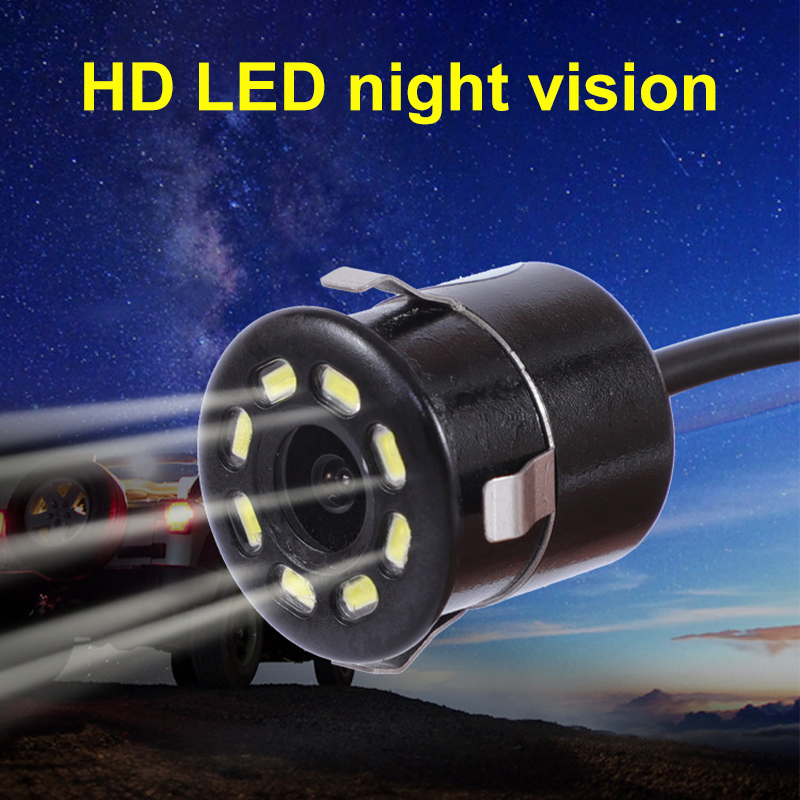

16. 8 LED Infrared Night Vision ensures the car driving safety when -backup or parking at night
16. 8 LED Infrared Night Vision ensures the car driving safety when -backup or parking at night
17. Drill Hole Style Car HD Rear View Camera, gives you a full sight of the back of your car when you are driving
Specifications:
Image Sensors: PC1030 1/4 Inch Color CMOS
Sensor Area: 4.08 x 3.12mm
Effective Pixels: 648 x 488 Pixels
LED Quantity: 8 IR LED
Lens Angle: 170 / 135 degrees
Video System: PAL/NTSC(Automatic throw-over)
Minimum Illumination: 0.2Lux(0Lux with IR on)
Scanning System: 2:1 Interlace
Resolution : 420TV lines
Electronic Shutter: 1/60(NTSC) / 1/50(PAL)~1/1000s
Gamma Coefficient: 0.45
S/N Ratio: >45.6db
Dynamic Range: > 63.5db
Waterproof Class: IP 68
Operation Temperature: -20℃~ +75℃
Storage Temperature: -40℃~+85℃
Video Output: RCA connector, 1.0vp-p, 75Ohm
Working Power: DC12V
Current Consumption:60mA
Video cable length: Approx 6 m/ 236.2 inch
Power supply cable length: Approx 1.2m/ 47.2 inch
Drill Hole Diameter: Approx 18.5mm/0.73 inch

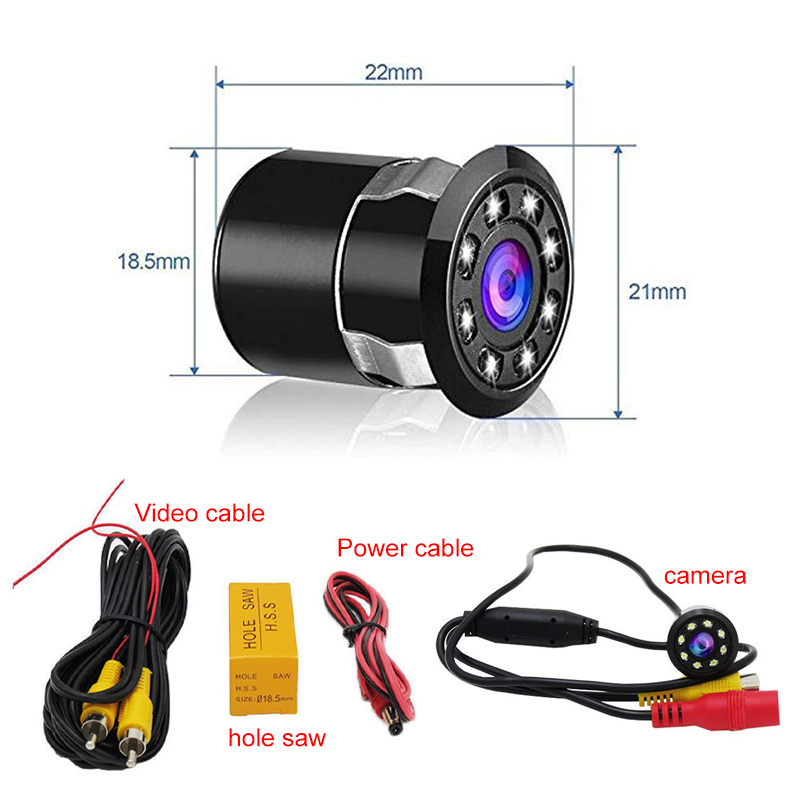

Camera Dimension: Approx 25x21x18.5mm/0.98x0.83x0.73 inch
Image pipeline feature: Auto exposure, AWB, AGC, Auto ficker detection and cancellation
Image pipeline feature: Auto exposure, AWB, AGC, Auto ficker detection and cancellation

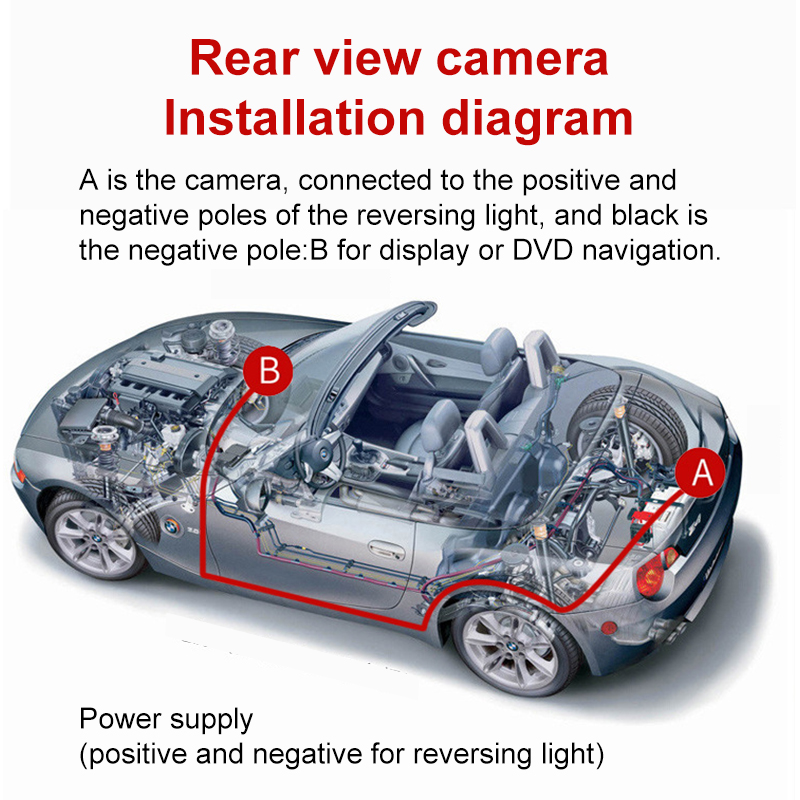

How To Install:
1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
3.Connect the video cable of the camera to the extension cord.
4.Connect the extension cable to the car monitor.
5.You will see the images when your car is in reverse shift.
Note:
1.Does NOT come with Monitor.
1.Does NOT come with Monitor.
2.Please allow 1-2cm error due to manual measurement.
3.The colors may have different as the difference display,please understand.

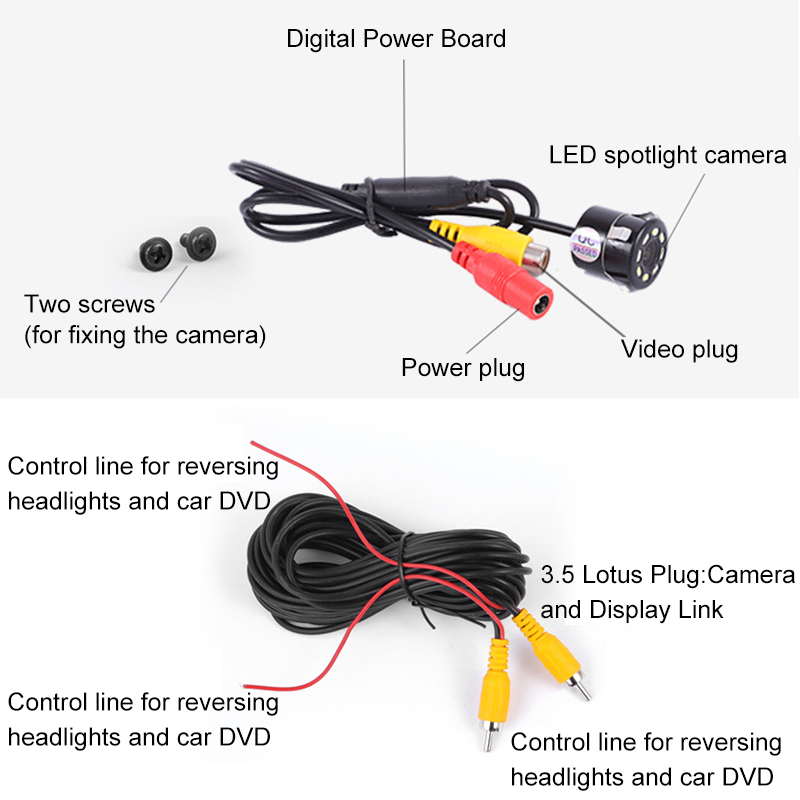

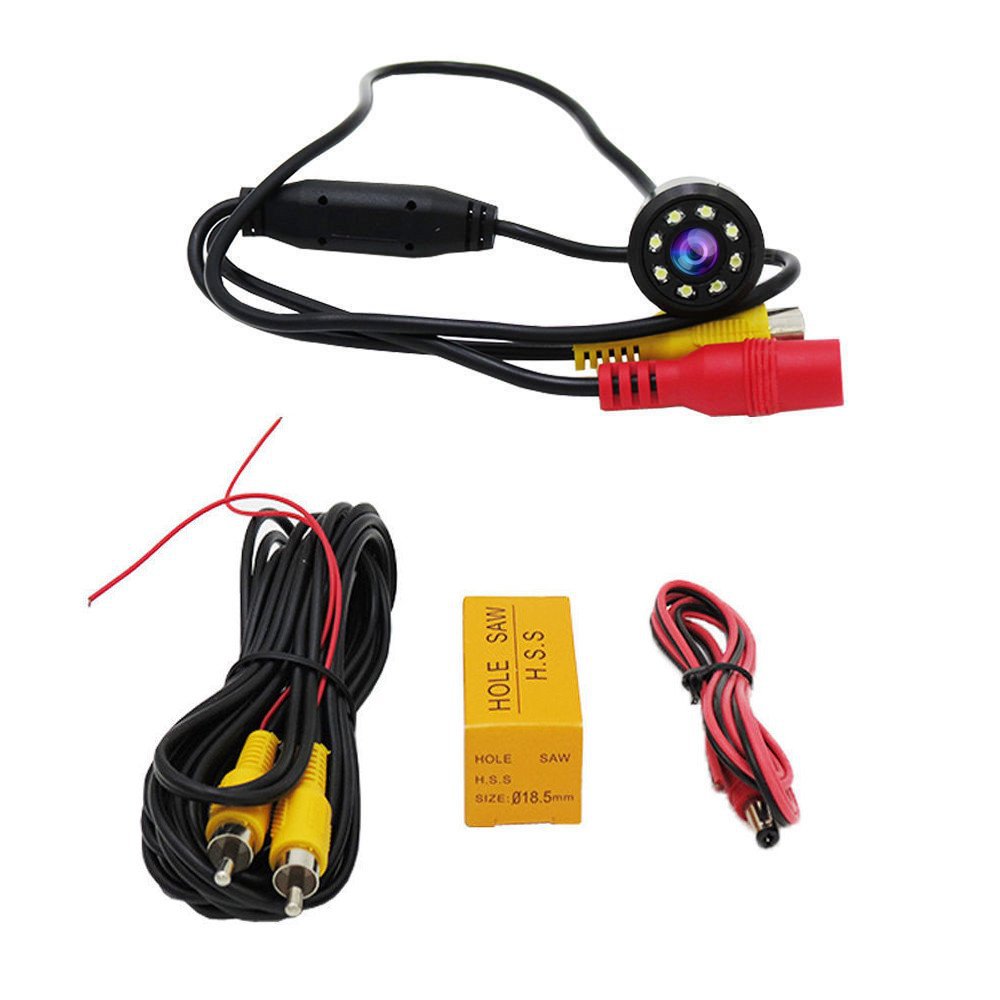

Package Included:
1 X 8 LED round back up camera
1 X Video cable
1 X Power cable
1 X Hole saw
1 X English instruction
1 X Colored box package
