Specification:
Package Included:
Material | Plastic |
Color | Black |

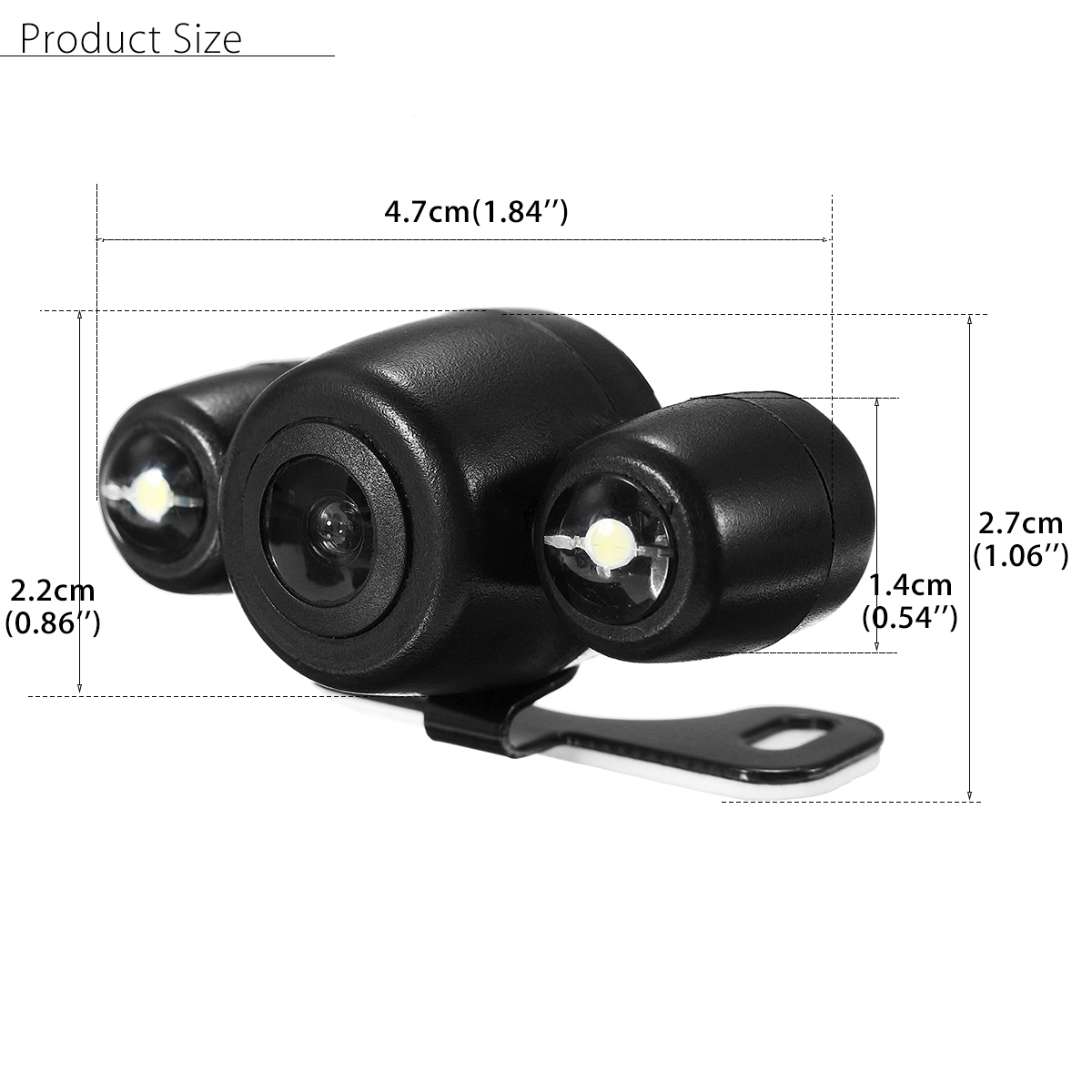

Size | Approx.4.7cm x 2.7cm (1.84''x1.06'') |
Cable length |
Camera's cable: 57cm(22.4'') Power cord: 100cm(39.4'') Video cable: 580cm(228'') |
Power source | DC12V±6V <2000mA |
Transmitting frequency | 2.370G |
Current consumption | 90mA |
Graphic chip | 1/4'' Color CMOS |
Effective pixel | 628x582 |
Minimum illumination | 0.3Lux/F1.2 |

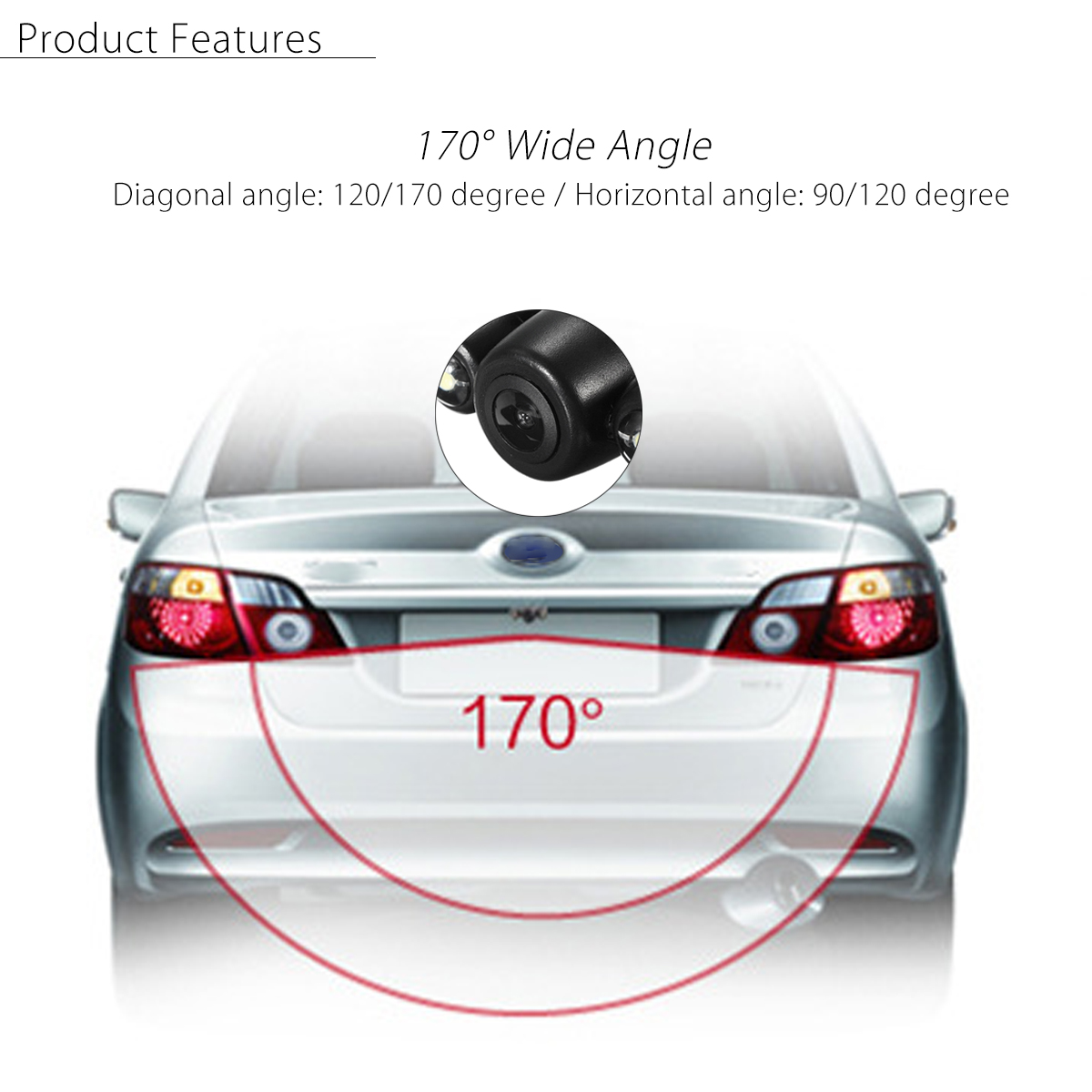

Lens vision angle |
Diagonal angle: 120/170 degree Horizontal angle: 90/120 degree |
Horizontal resolution | 420 TV lines |
Video input | 1.0Vp-p 75 OHM |
S/N Ratio | ≥48dB |
Waterproof level | IP67 |
Quakeproof level | 6.8G |
Operating temperature | -20 - +60℃, RH 95% |

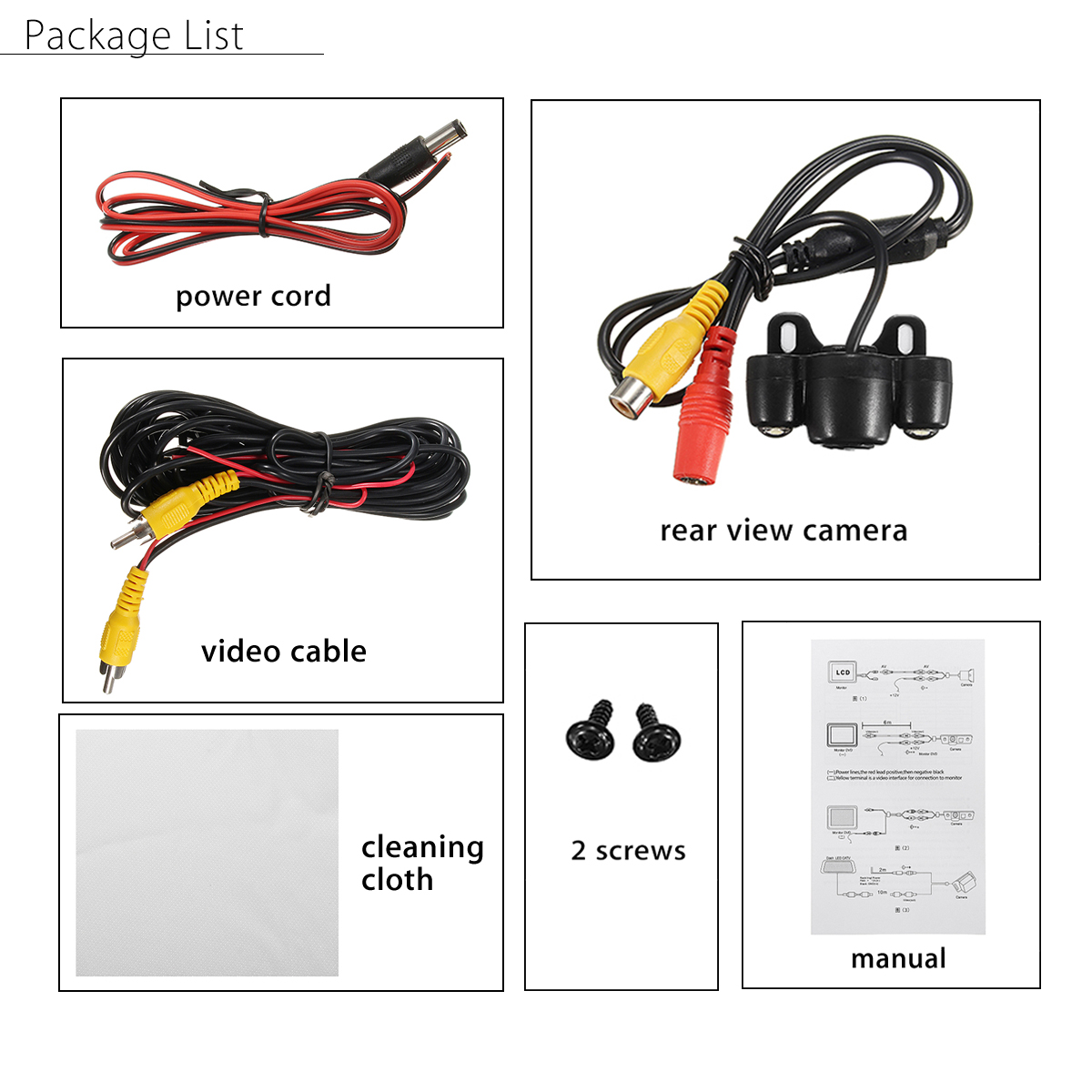

Package Included:
1 X Car Rear View Camera | 1 X Power Cord |
1 X Video Cable | 1 X Cleaning Cloth (for camera lens) |
2 X Screw | 1 X Manual |
