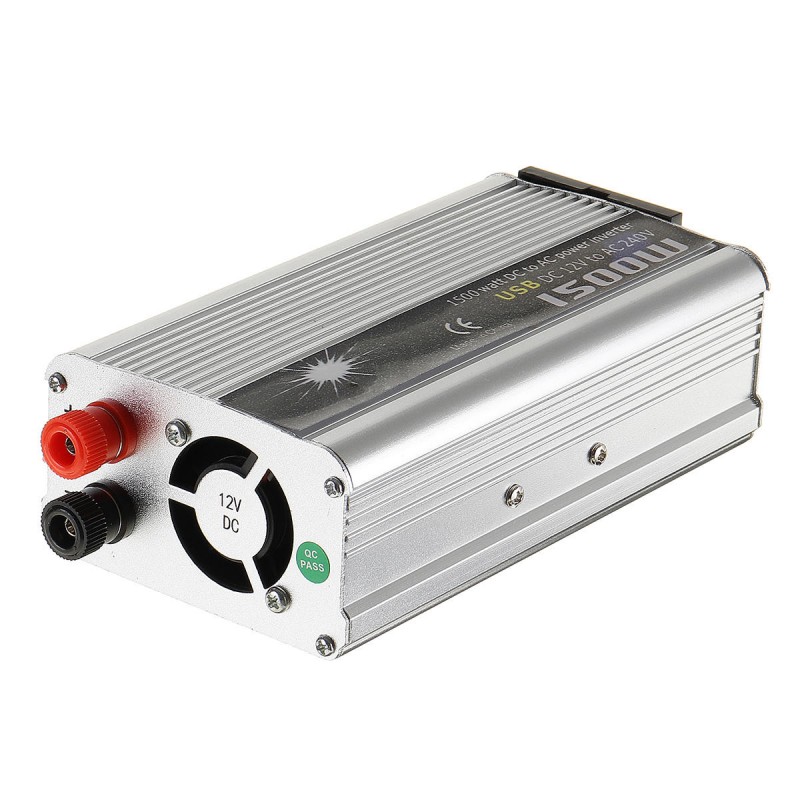

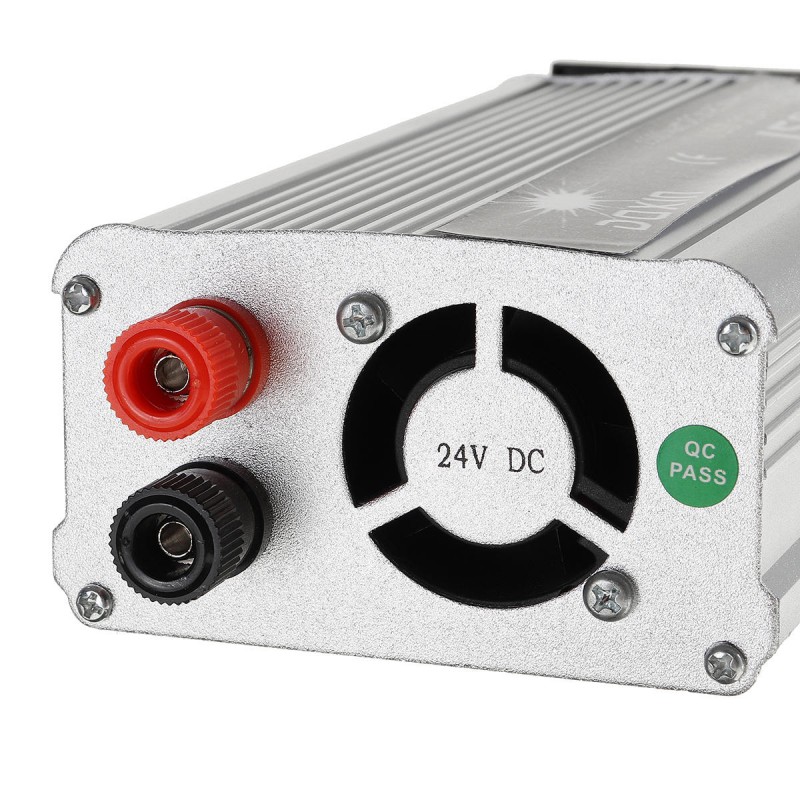

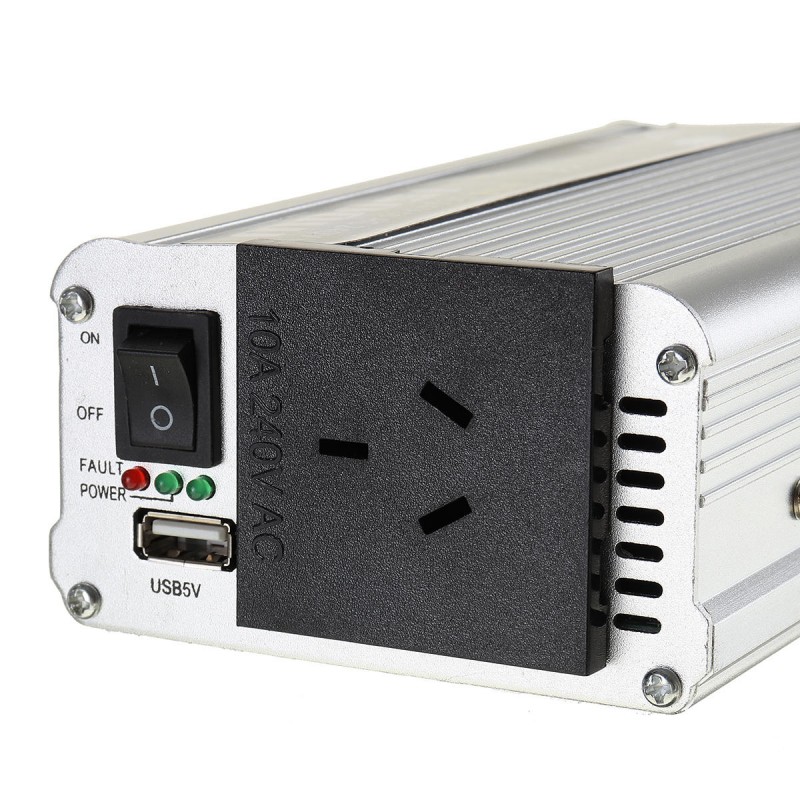

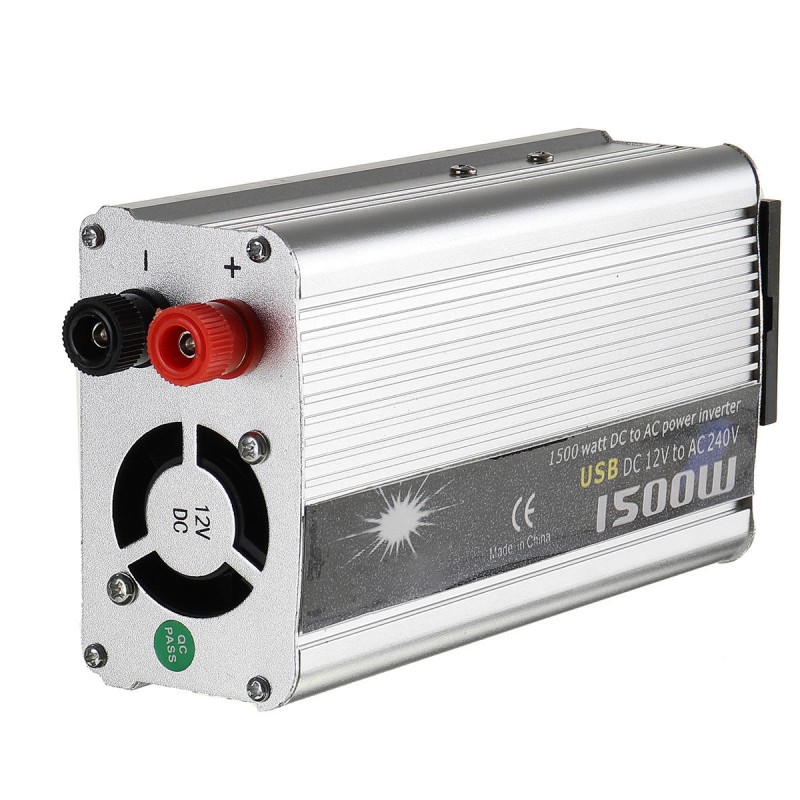

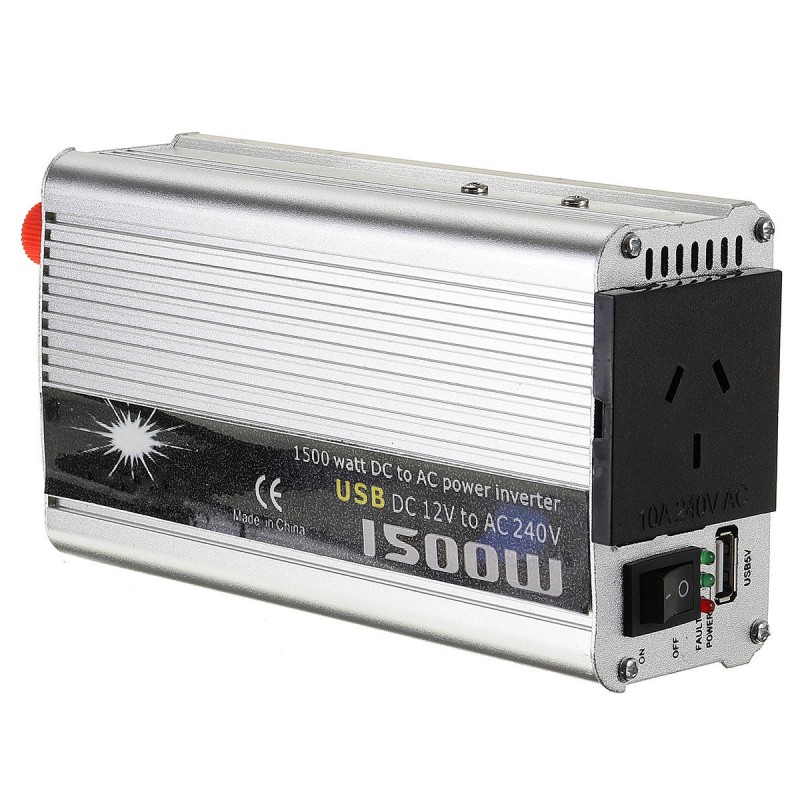

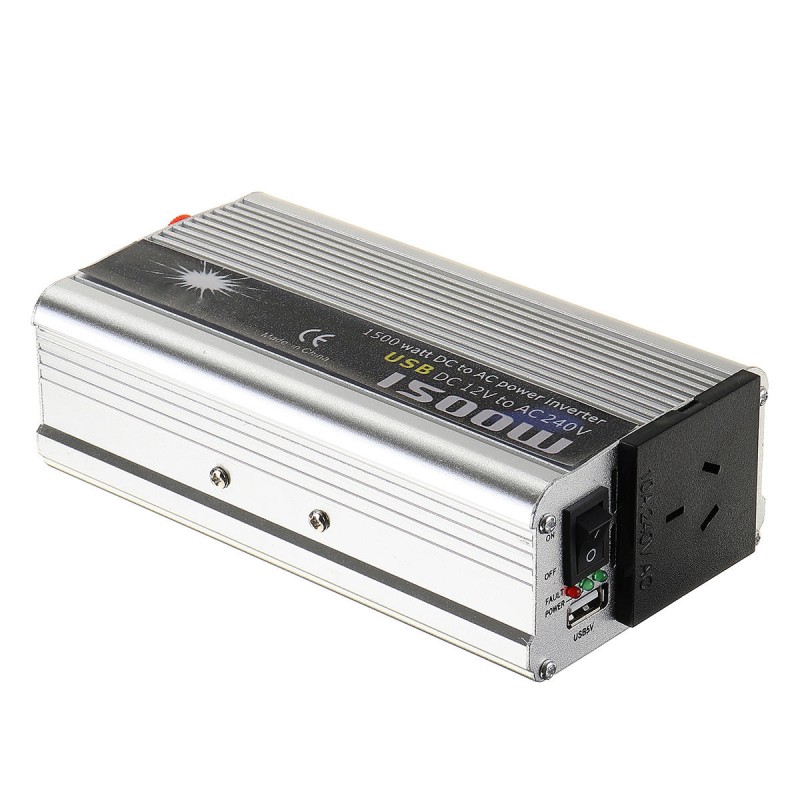

1800W Peak Car Power Inverter Modified Sine Wave DC 12V/24V To AC 240V Converter With USB Output
$39.99
- Product Code: ED0000868
- Availability: In Stock
- Ex Tax: $39.99
Available Options
Features:
1. Can convert DC12V/24V into AC 240V output.
2. Widely using for all kinds of electric equipments, such as cell-phone, laptop, electric light, digital camera, Videocon, TV, CD player, DVD, electrical fan, electrical tools and so on.

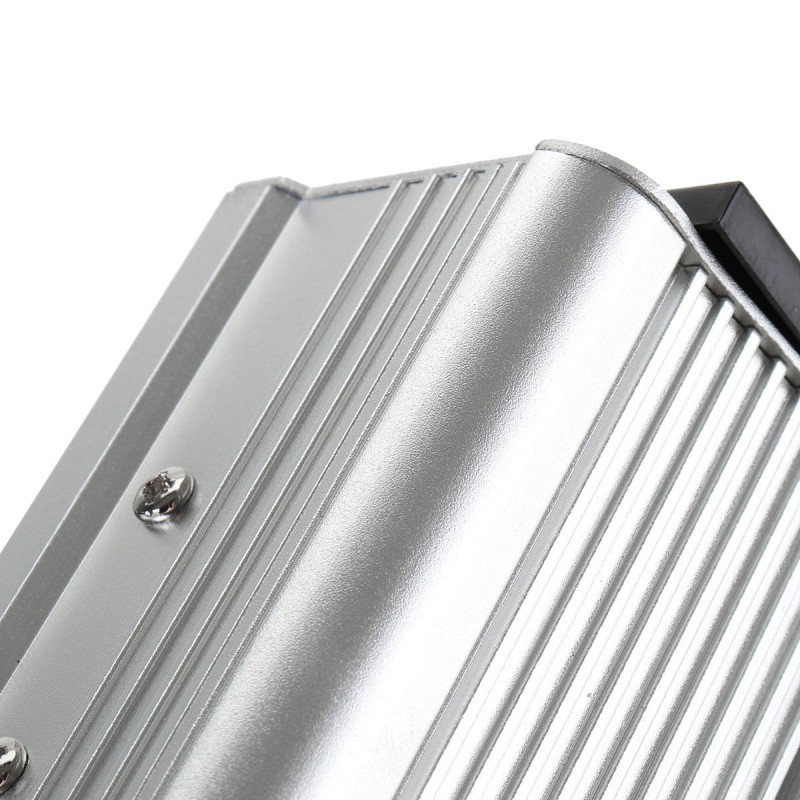

3. Durable metal housing, come with battery cable can use on vacations, work trips, and camping.
4. Integrated cooling fan helps reduce heat and prevents shortages
5. With multiple protecting function, such as low voltage protecting, over load protecting, overheat protecting, short-circuit protecting.
Specification:
1. Name: Car Power Inverter
2. Model: D70037
3. Color: silver
4. Material: aluminum alloy
5. Continuous Power: 720W
6. Peak Power: 1800W
7. Input Voltage: 12V/24V DC
8. Output Voltage: 240V AC
9. Frequency: 50Hz±5%
10. Output Wave: Modified Sine Wave
11. Static Current:<0.15A
12. Maximum power amplifier: over 90%
13. Battery Low Alarm Protecting: 10.4V DC±0.5V or 20.5V DC±1V
14. Battery Low Shutdown Protecting: 9.7V DC±0.5V or 19.5V DC±1V
15. Overload Protecting: Shuts down output, re-power to reset
16. Over Voltage Protecting: 14.5-15.5V
17. Over Temperature Protecting: >55°C
18. Cooling method: fan
19. Item size: approx.17*9.5*6CM
20. Package size: approx.22*15*6.5CM
Note:
1. Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
2. The color of the actual items may slightly vary from the above images due to different computer screen, thanks for your understanding.
3. The red power input line should be correctly connected to the “+” pole of the inverter and the battery, and the black power input line should be properly connected to the “-” pole of the inverter and the battery.
4. To ensure the stability of the input voltage, the input terminals on the inverter must be firmly tightened. The clamp must be fully bitten with the positive and negative terminals of the battery, and ensure that the battery connector is clean and not severely oxidized. Otherwise, the inverter will frequently enter the low-voltage protection state due to the instability of the input voltage and cause a fault.

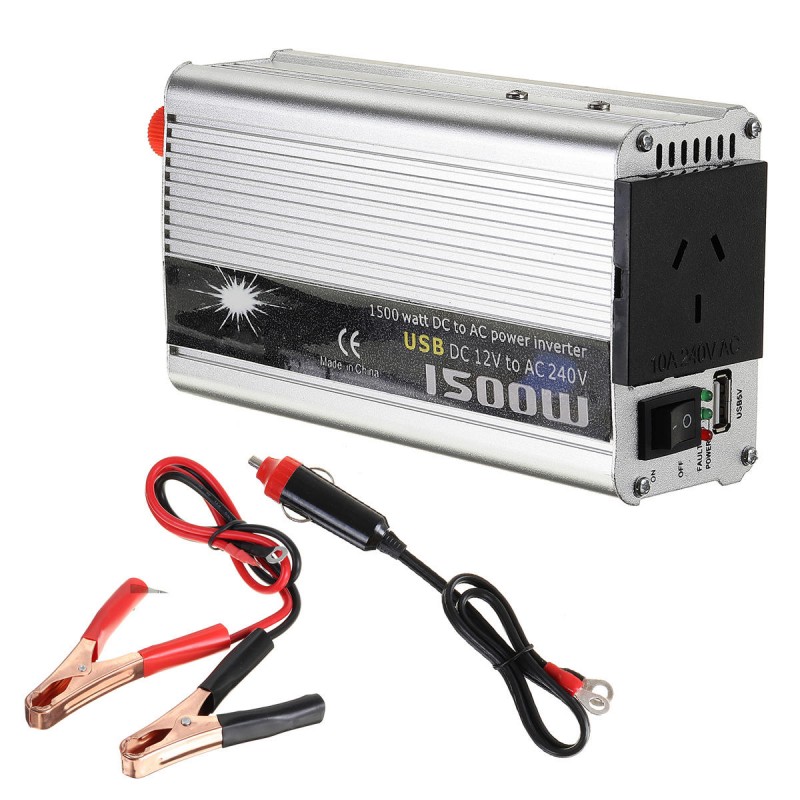

Package Include:
1 x 12V/24V Car Power Inverter (Optional)
1 x Battery Clip Cable Kit (50cm)
1 x Car Lighter Cable (50cm)
1 x Manual
