2 St3.5hp Air Cooling Electric Start Outboard Motor Engine SC-236S Low Noise Marine
$343.19
- Product Code: ED0021075
- Availability: In Stock
- Ex Tax: $343.19
Description:

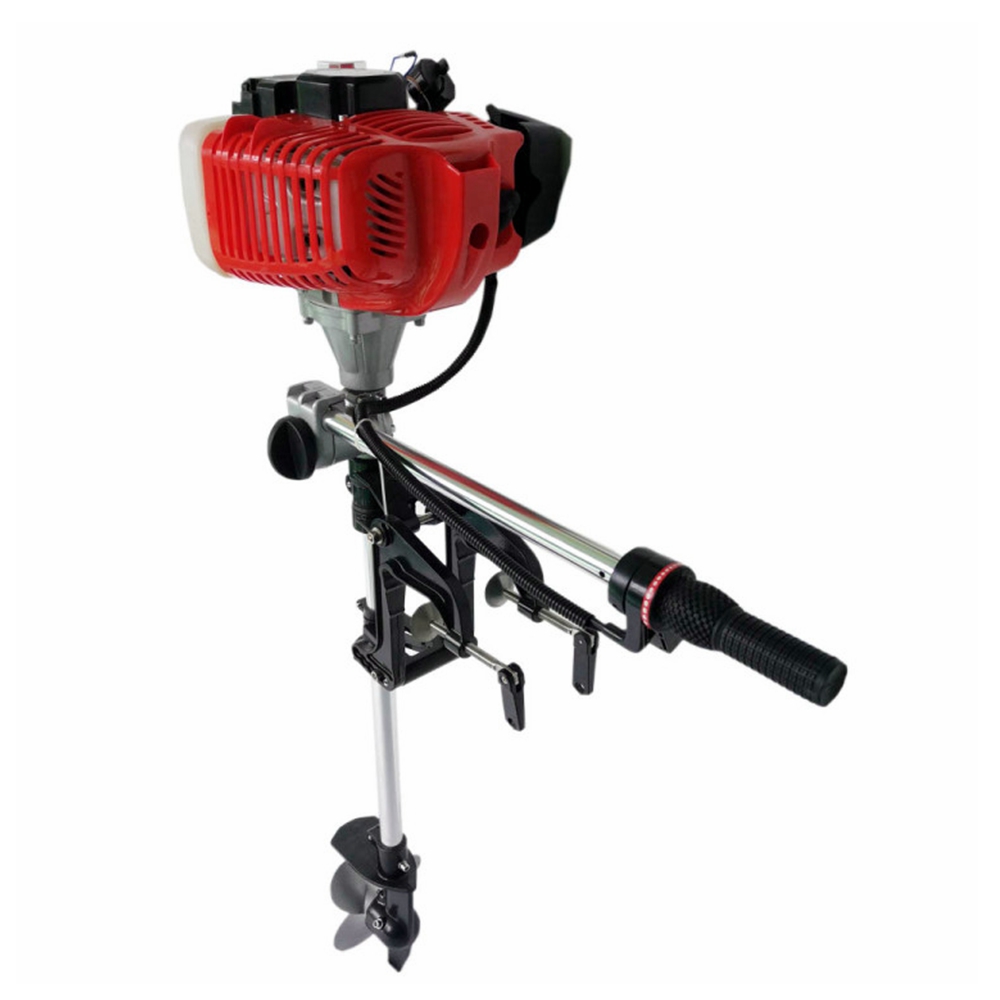

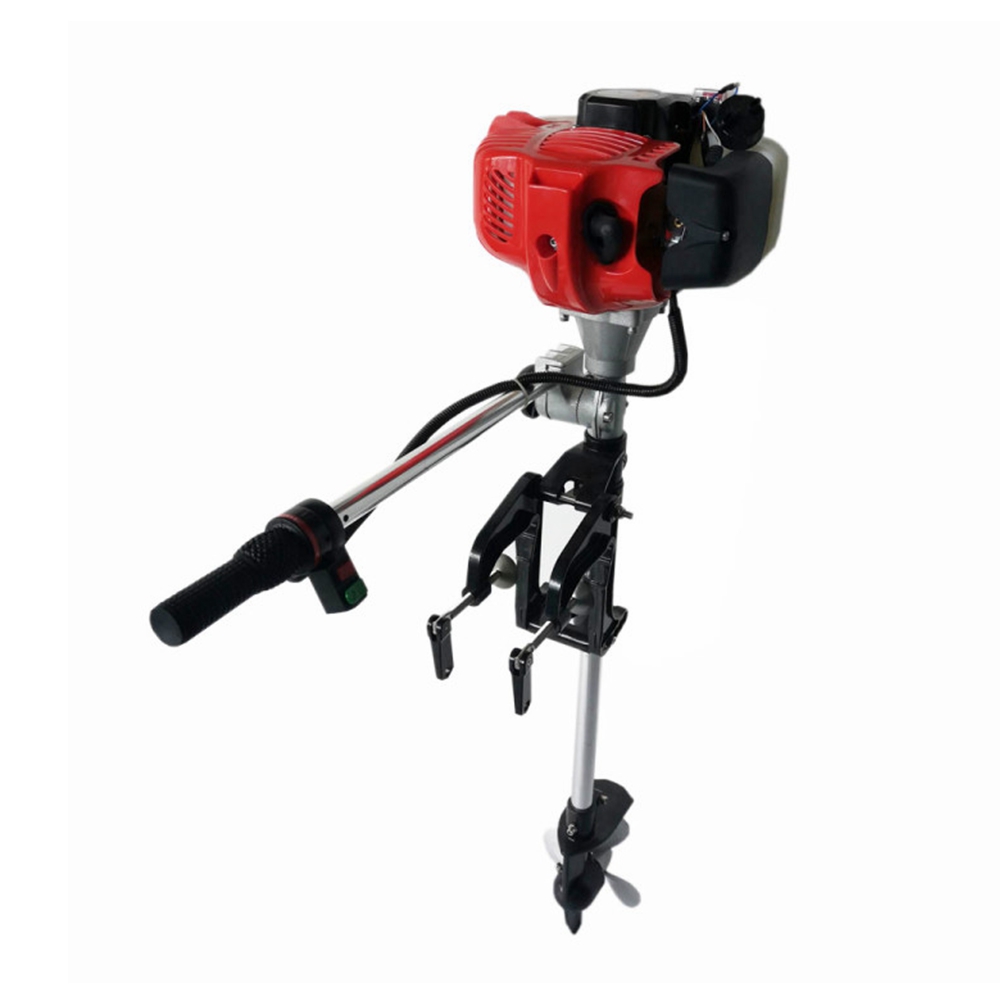

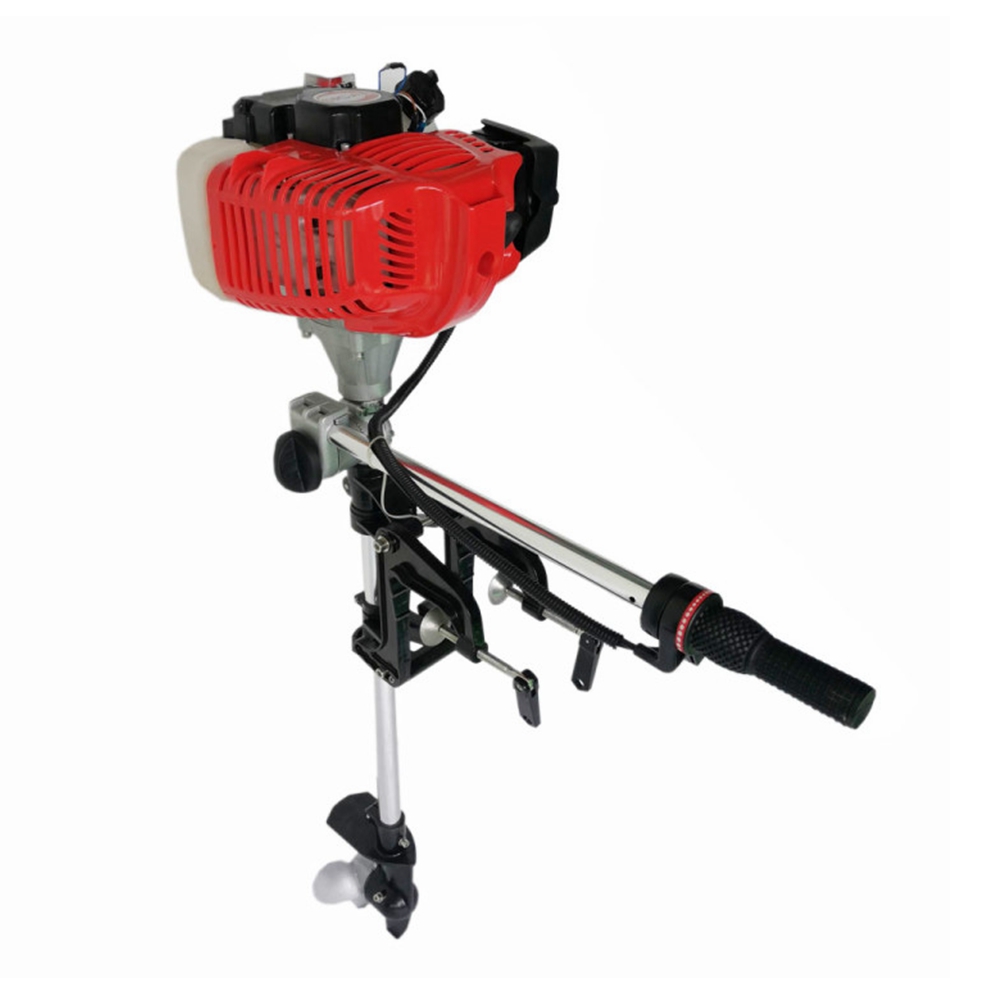

1. 3.5HP outboard motor: The machine itself is lightweight, easy to carry and unique appearance.
It can use on boat weight of 100kg or less, load-bearing 4 people,
but the speed is certainly not the same when one person on it or 4 people on it .
2. Usage: Two strokes 3.5HP are controlled by the handle, which is operated by the cluth.
There is no neutral, idle mode or low speed mode. Strictly for professional use .
3. All the gasoline machines are noisy, currently we did not test the decibel,
but the noise is the same as the motorcycle, so it is a normal phenomena. Low noise design (less than 85dB).
4. 2 Stroke 3.5HP, air cooling, user-friendly design.
5. Professional manufacturing, stable characteristics and high reliability.
Specification:
| Item Type |
Outboard Motor |
| Model |
SC-236S |
| Material |
Metal |
| Size |
Approx. 95x42x28cm/37.4x16.54x11.02inch |
| Displacement |
3.6 (mL) |
| Number of Cylinder |
2 |
| Fuel Consumption Per 100 kilometers |
2 (L) |
| Torque |
2.5 (nm) |
| Applicable Models |
boat |
| Engine Model |
3.5HP |
| Full throttle operating range |
4000-5000r / min |
| Maximum Output |
2.5kw (3.5HP) |
| Speed |
20km / h (four people) |
| Type |
2-stroke |
| Ignition System |
CDI System |
| Starting System |
Manual Start |
| Cooling System |
Water-cooling |
| Starting Carburetion System |
Electric Start |
| Gear Positions |
Clutch Control |
| Propeller Mark |
7-1 / 4x5-A (inch) |
| ecommended Propeller Size |
3 x 7 1/4" x 5" |
| Recommended Engine Oil |
Two Stroke Lubricating Oil |
| Engine and Proprller Gear Ratio |
2: 1 |
| Recommended Fuel |
Regular unleaded gasoline |
| Mixture Ratio of Fuel to Oil |
Fuel/Engine Oil = 30/50:1 |
| Fuel to Oil Ratio |
30: 1 |
| Gear Ratio |
27/13 |
| Bore x Stroke |
44 x 33mm |
Announcements:
After in the sea water or turbid water cruising
1.Use the fresh water cleaning the outboard motor
2.With the moderate SPREED circulating the engine,cool off the water down with fresh water.
3.Before completely running out cooling water,don't put the outboard motor outside.
Otherwise the water cam pass the exhaust port to enter the
air cylinder, from that will cause the engine breakdown.
4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.
5.Before the long term storing,you should run out of the gasoline in the fuel tank.
Note:
Please add gear oil to the gears before use the motor and replace gear oil after the run-in period (10hours).
(if you do not know how to handle this, please contact with us )
Warning:
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1, start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,
then check the impeller of Water pump or check if the water outlet has been blocked.
Package Included:
| 1 X |
Boat Engine |
