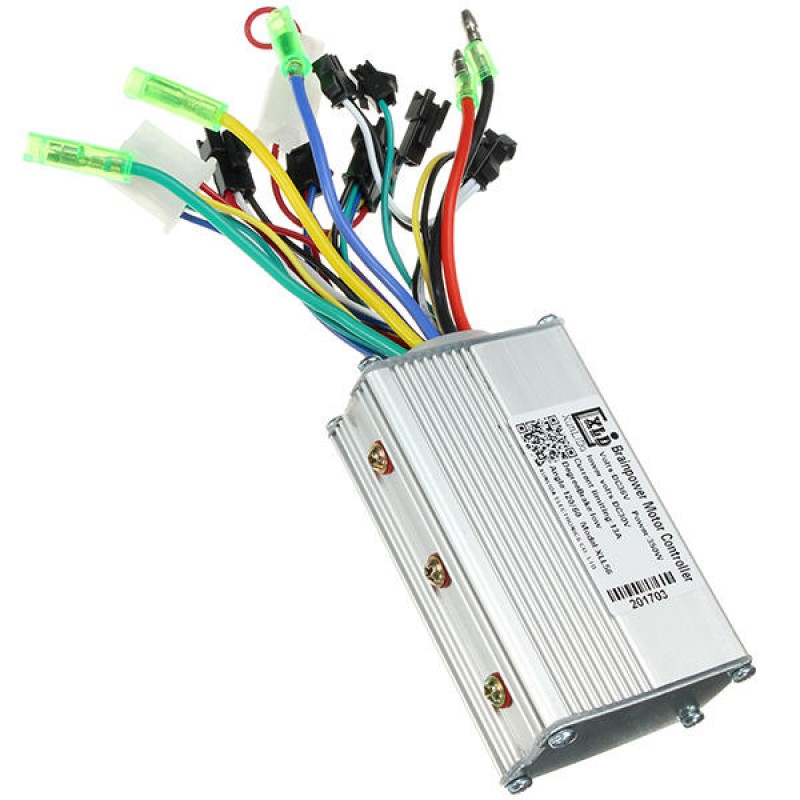

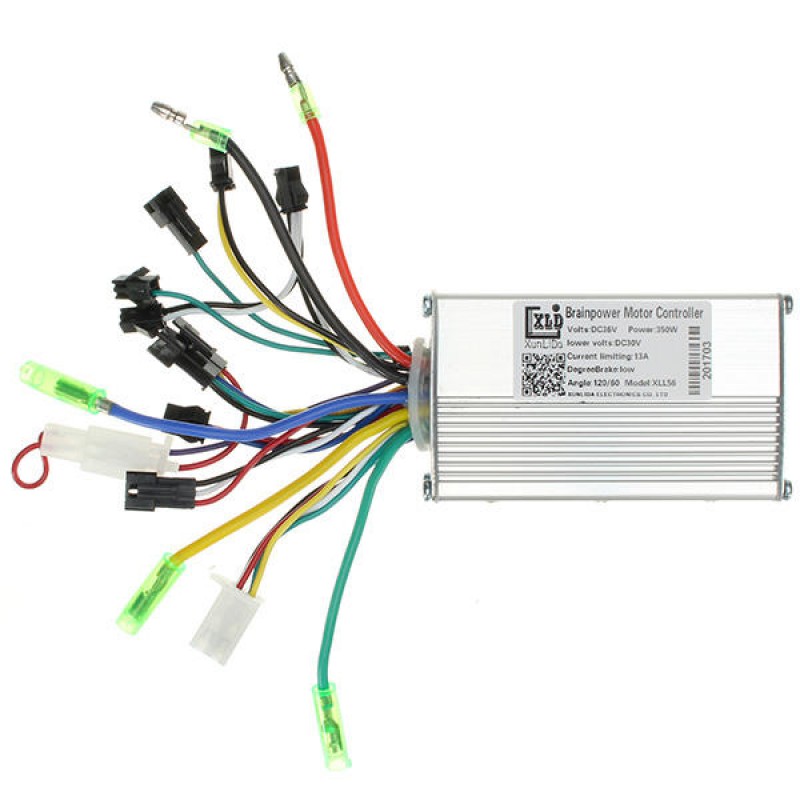

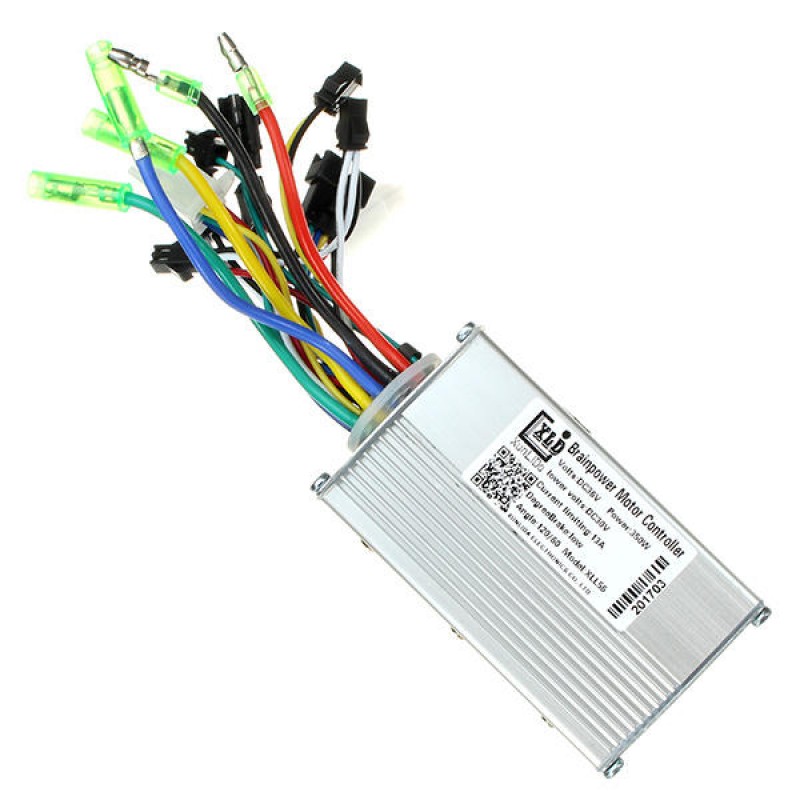

24/36/48V 350W Motor Brushless Speed Controller LCD Meter Electric BicyclE Mountain Bike Scooter

$64.99

  • Product Code: ED0021271
  • Availability: In Stock
  • Ex Tax: $64.99

Available Options

Description:
Constant current controlling
Good quality, durable, high temperature resistance
Custom aluminum shell, good heat dissipation, low temperature
With voltage regulator, wide voltage range, more stable, good performance
1: 1 power, pedal axle mounting force sensor and magnet plate, through the pedal speed to send different frequency pulse signal, the controller controls the motor rotation

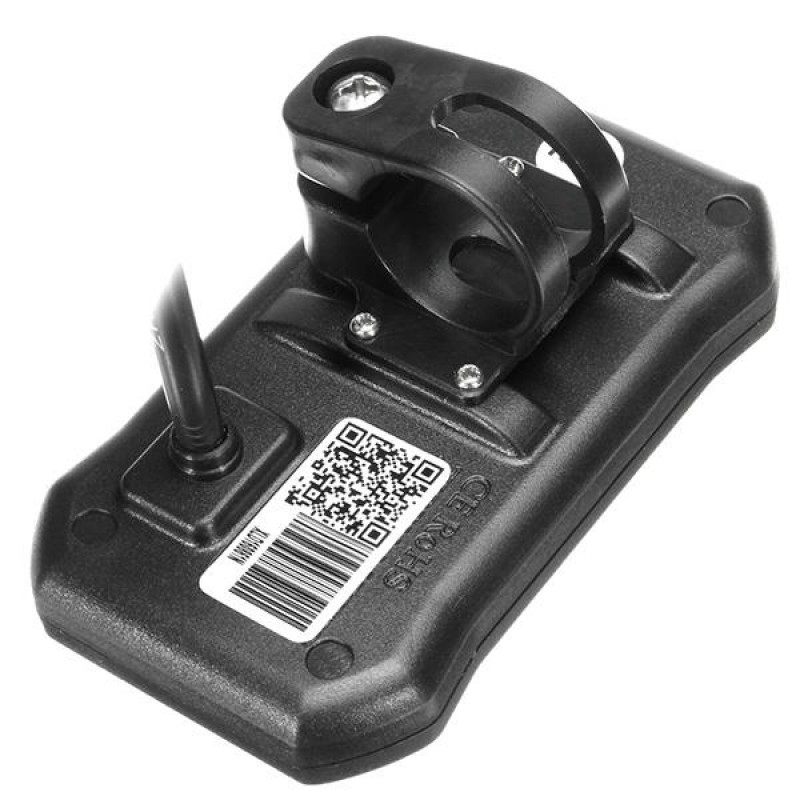

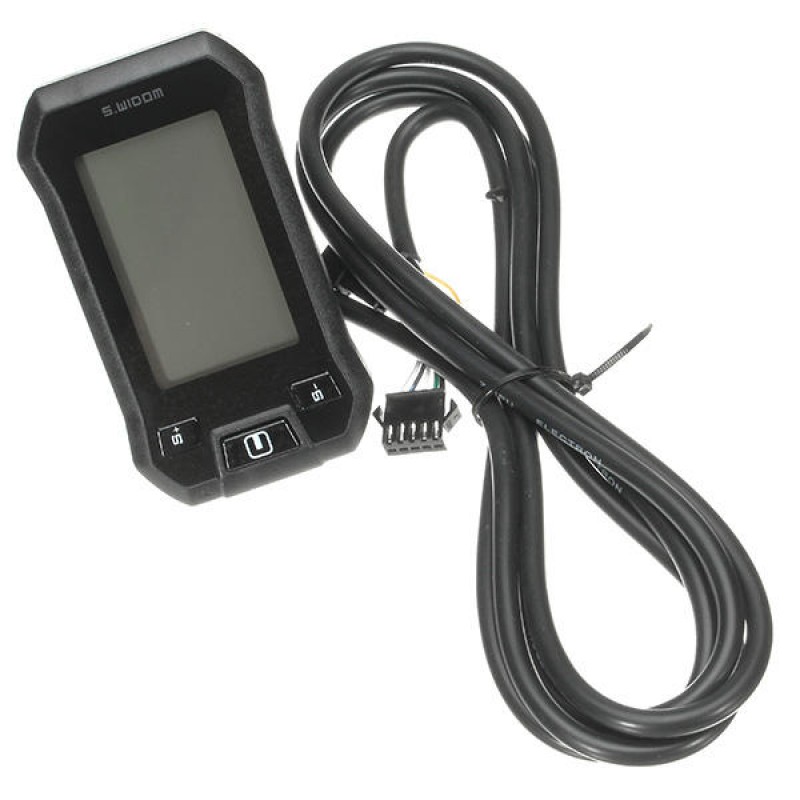

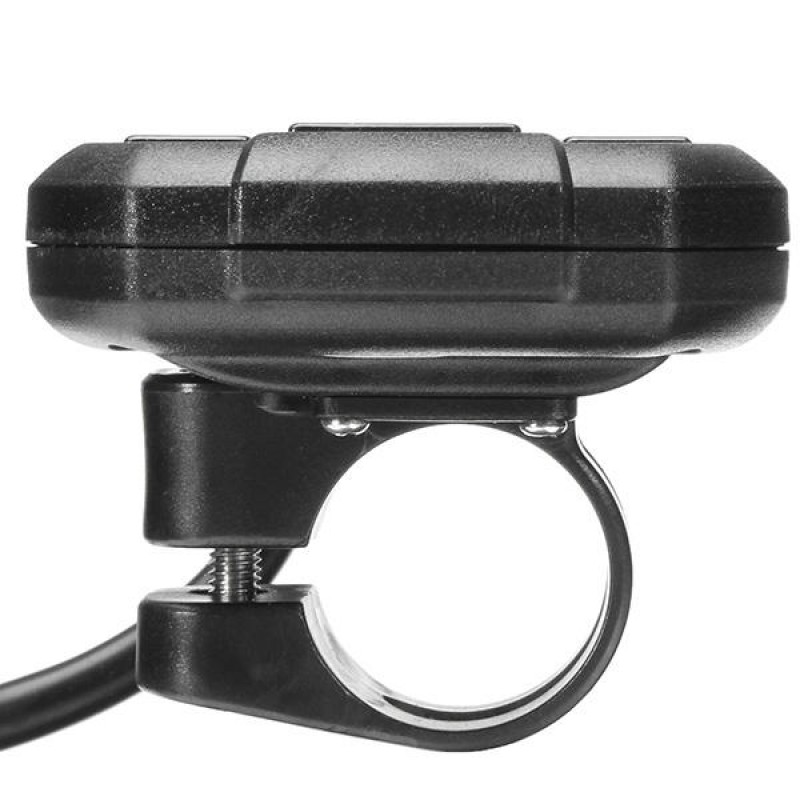

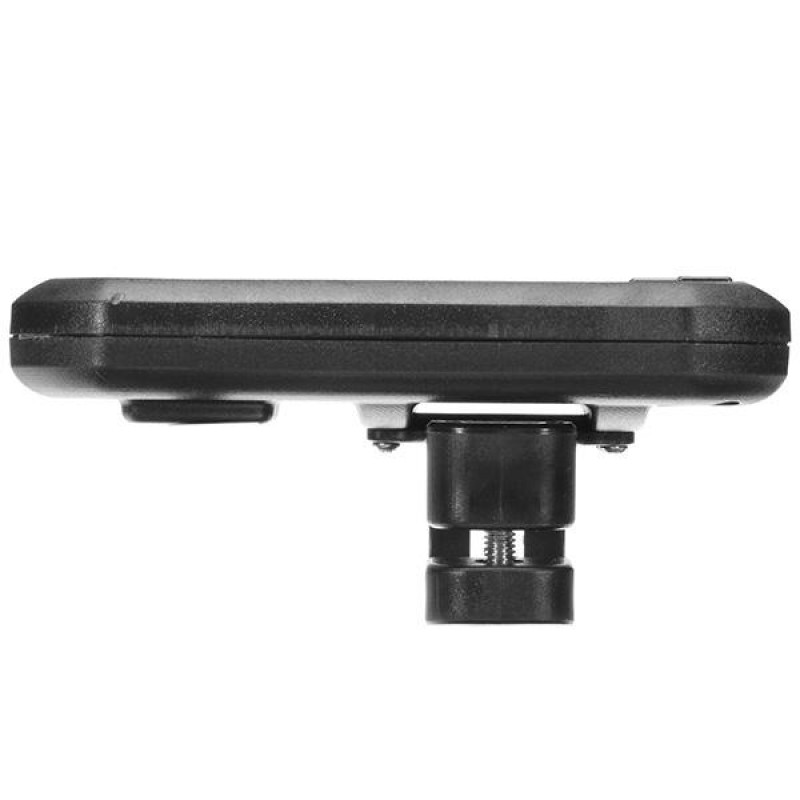

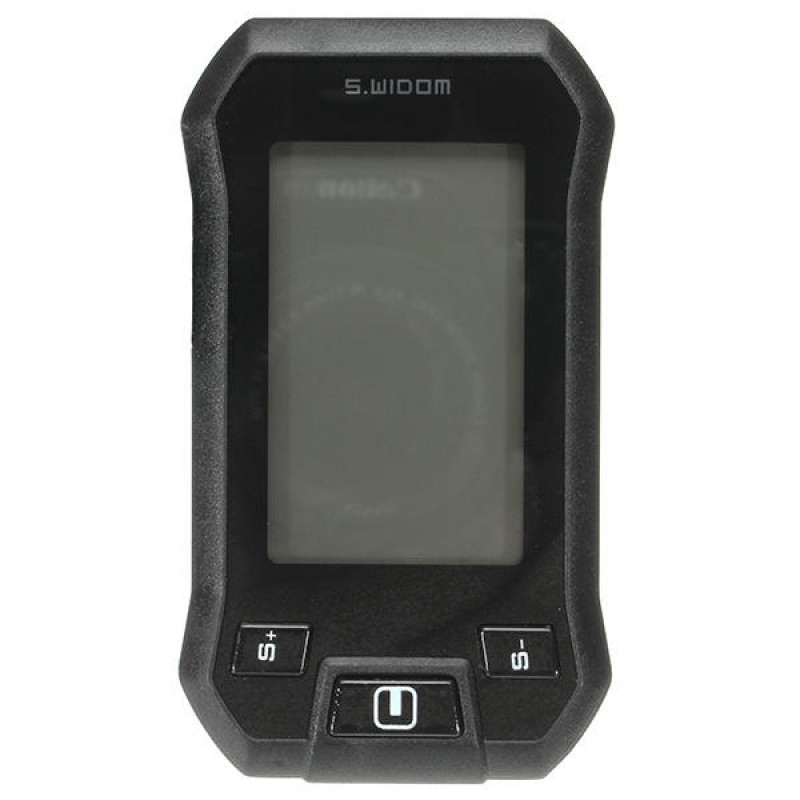

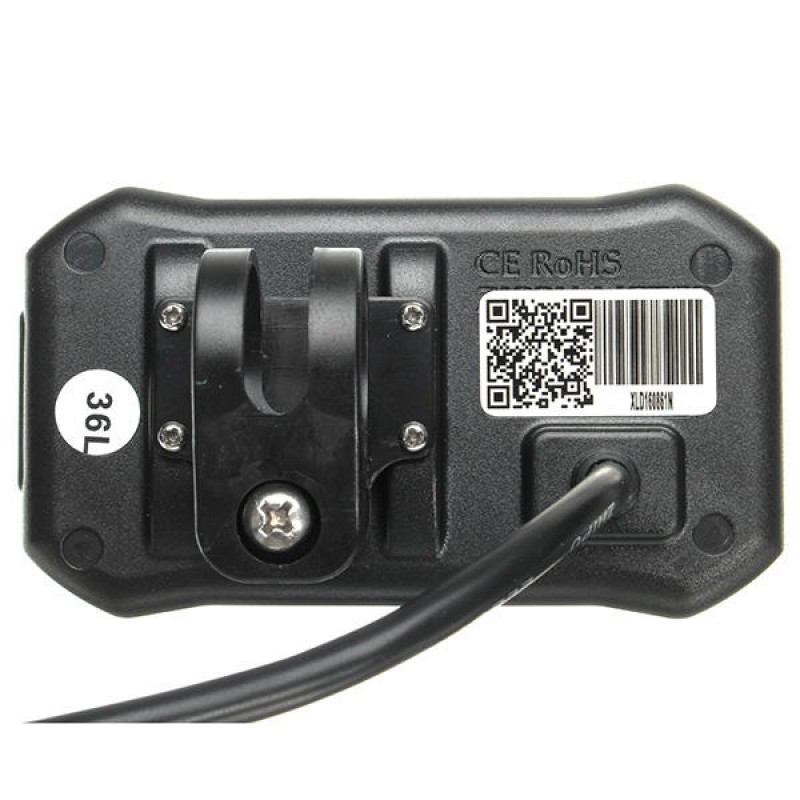

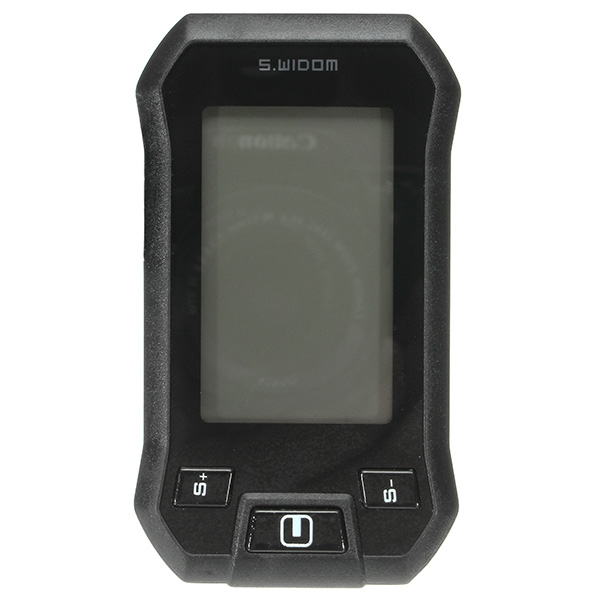

LCD meter display function:
Speed display
Power ratio display
Power indication
error indication
Headlight instructions
Brake instructions
Cruise fixed speed
Real-time power
5 geras, support 5-12 magnetic booster

Lamp interface can be connected to the lights directly, the working voltage is the same as the power supply voltage,does not exceed 5W

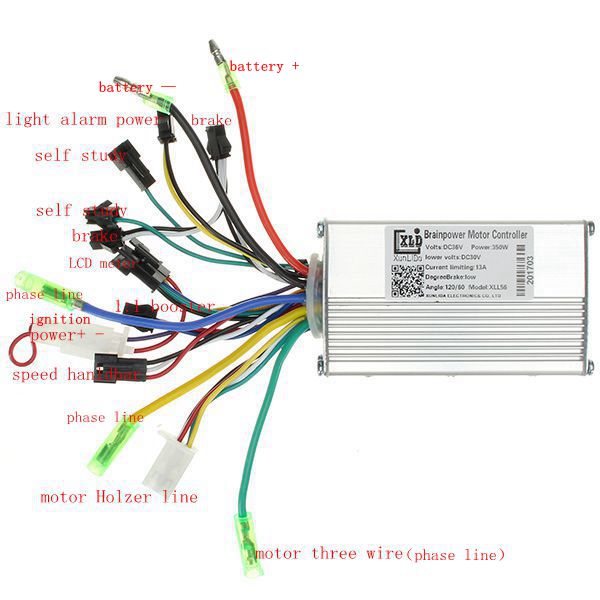

Manual&Diagram:
https://www.elecdeer.com/image/catalog/download/docx/20171117023830594815Manual motor controller.docx

Specifications:
Optioanl Voltage: DC 24V/36V/48V
Power: 250-350W
Hole Diameter: 22.5cm
Angle: 60°/120°
Maximum Current Range: 10A-15A(default 13A)
Undervoltage Protection Point Of Battery: 19V/30V/42V
Controller Size: 90X52X32mm

Package includes:

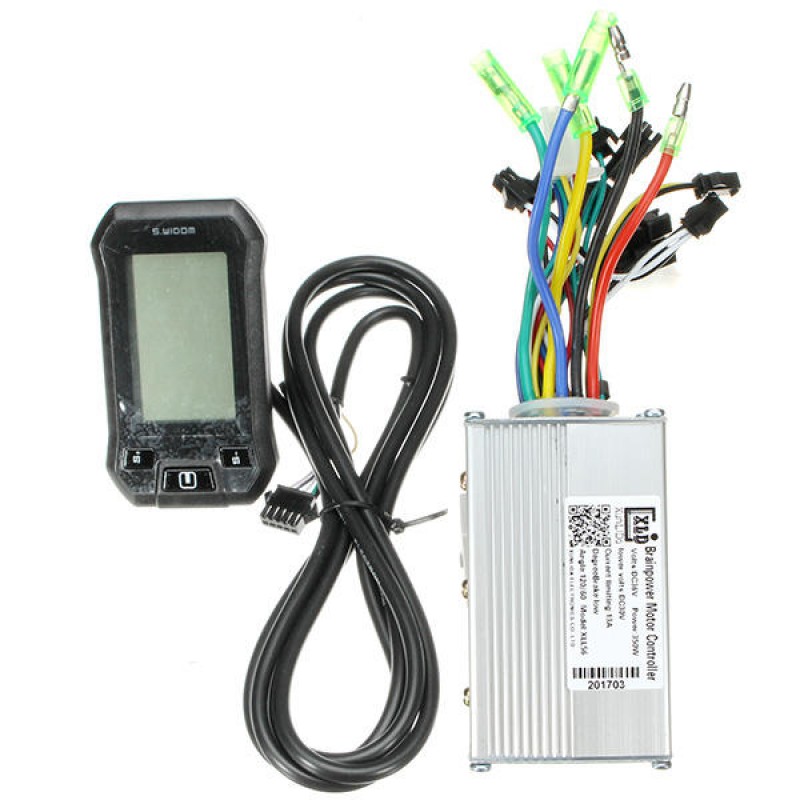

1 X Set Of Controller+LCD Meter
