24V 36V 48V 350W E-bike Brushless Speed Controller LCD Display Meter For MTB Bicycle Scooter
$62.99
- Product Code: ED0021396
- Availability: In Stock
- Ex Tax: $62.99
Available Options
Descriprion:
Easy to install
High quality and long service life
Fit for electric scooter bicycle e-bike

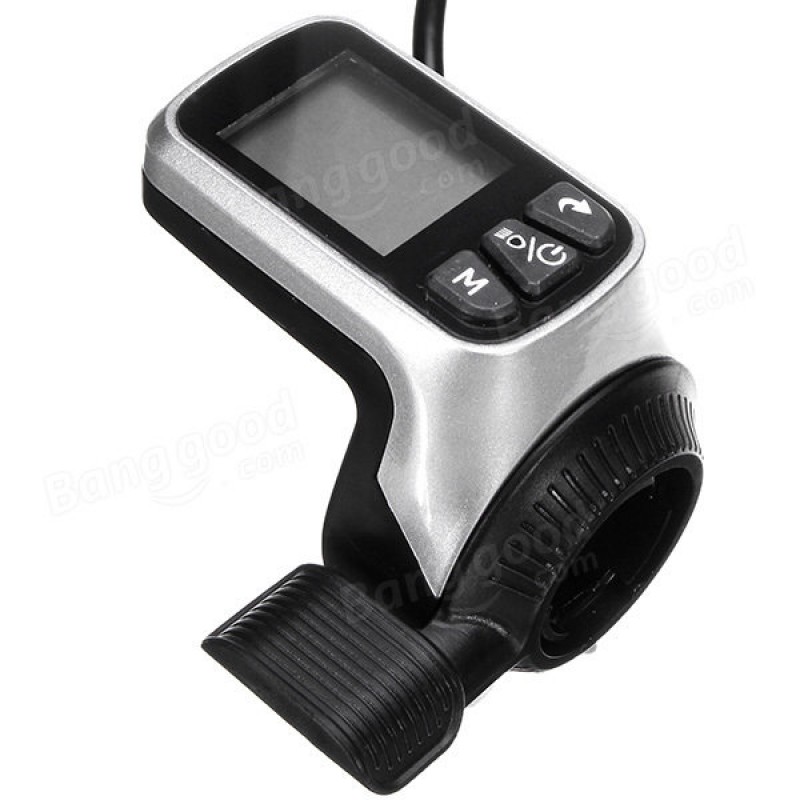

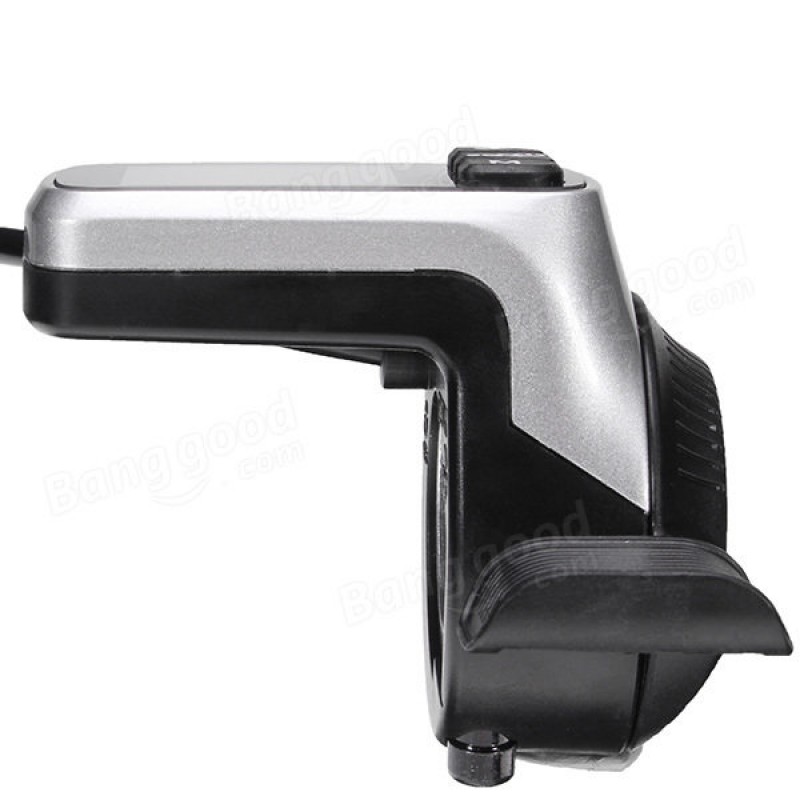

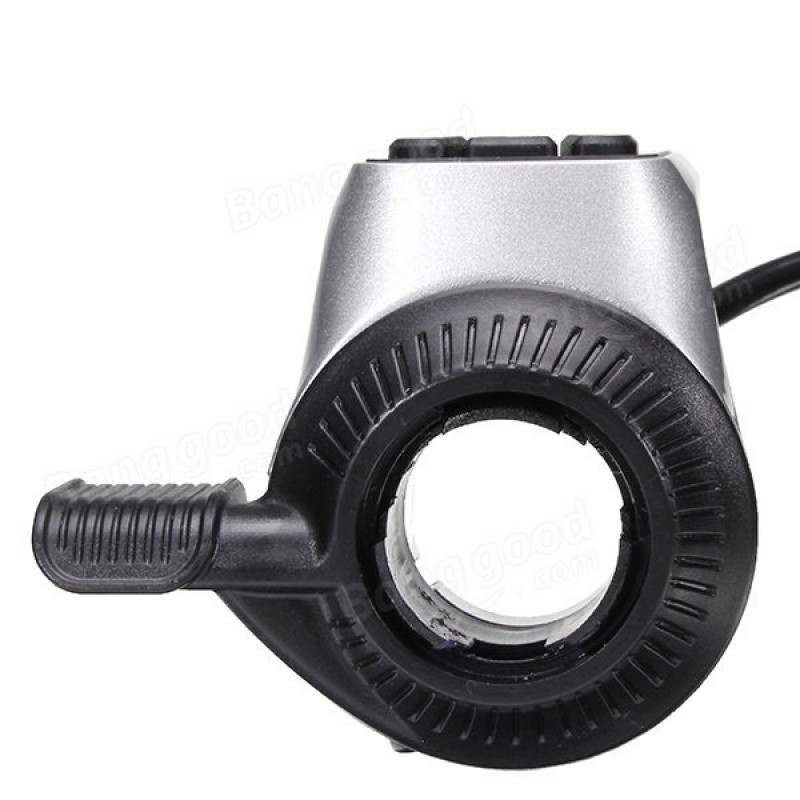

The display is for right handlebar
High quality and long service life
Fit for electric scooter bicycle e-bike
The display is for right handlebar
Specification:

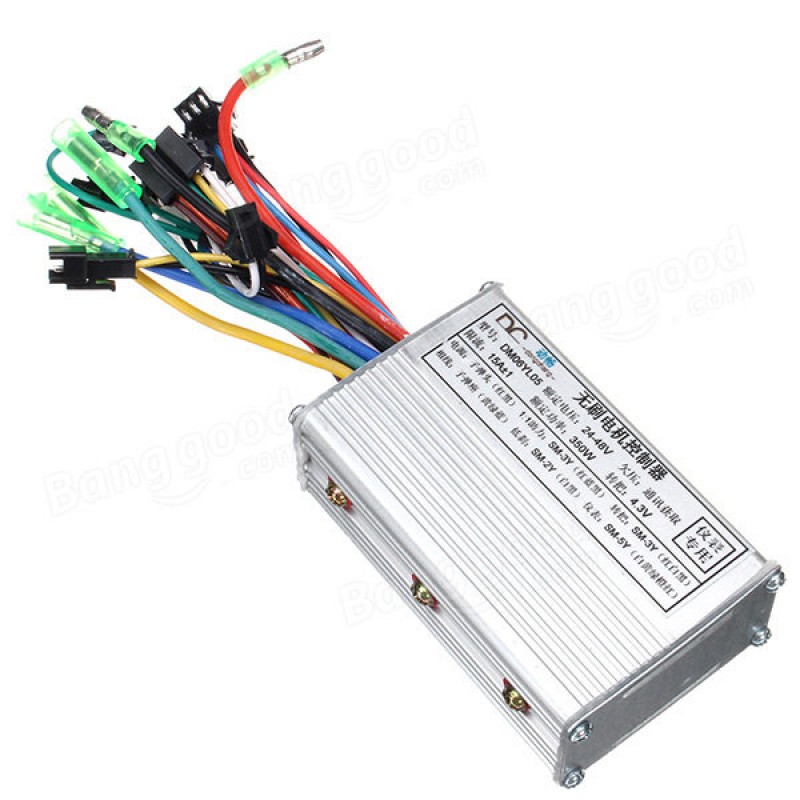

Motor Speed Controller
Material: Aluminum
Voltage: 24V-48V
Power: 350W
Current: 10A-20A(350W15A)
Power: 350W
Current: 10A-20A(350W15A)
Function: real time speed dispaly
battery amount and voltage dispaly
accumulated mileage display
adjustable 3 gears display
intelligent learning
power on the anti-speed
low brake; 1: 1 power
after power-up, the debugging learing is allowed in 2 minutes
battery amount and voltage dispaly
accumulated mileage display
adjustable 3 gears display
intelligent learning
power on the anti-speed
low brake; 1: 1 power
after power-up, the debugging learing is allowed in 2 minutes

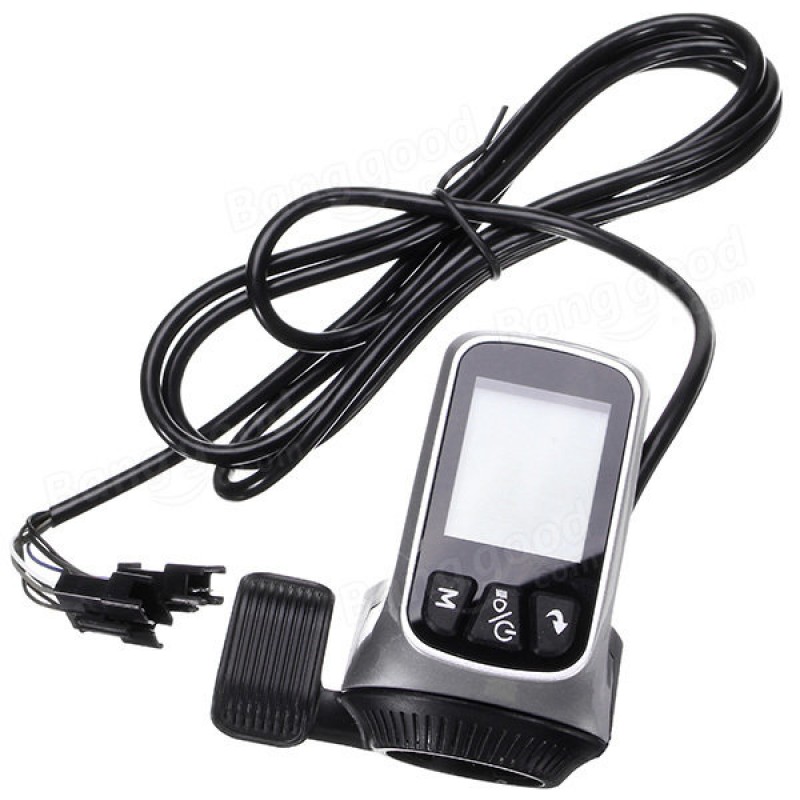

Length Of Meter Wire:150cm

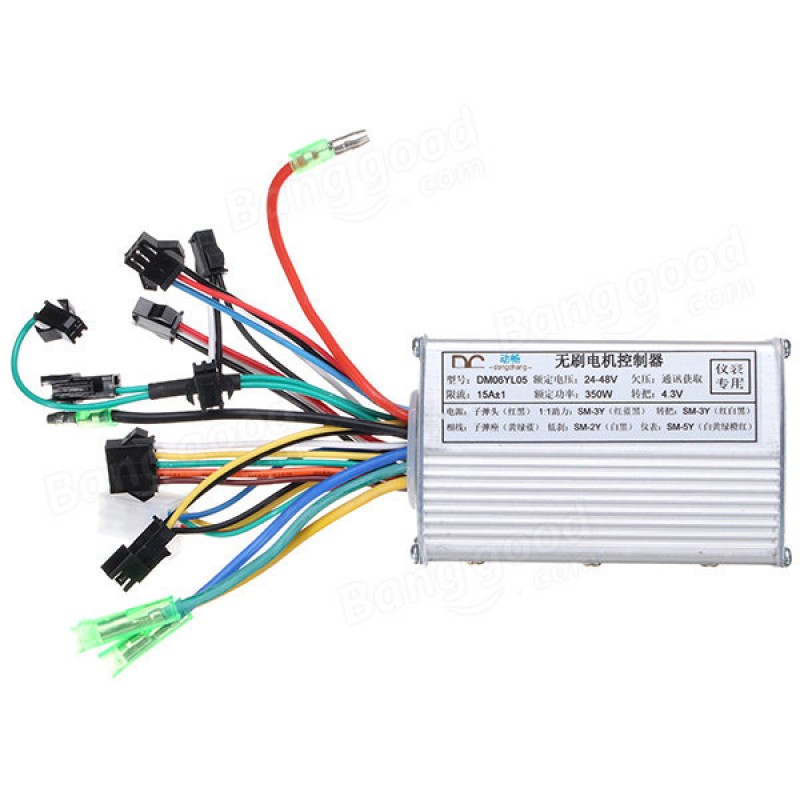

Controller Wiring Instructions:
Motor line: Big Yellow, Big Blue, Big Green
Positive and negative pole and electric door lock: Big red big black,small red integration
Study line: Two white line black head
Holzer line: Five wire plug
Transfer line: Black, red, and green composite plug
Brake line and EABS function: Purple, Black, White
Positive and negative pole and electric door lock: Big red big black,small red integration
Study line: Two white line black head
Holzer line: Five wire plug
Transfer line: Black, red, and green composite plug
Brake line and EABS function: Purple, Black, White
Display Menues Setting:
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.
P02: Mileage unit, 0: KM; 1: MILE.
P03: Voltage level: 24V, 36V, 48V.
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.
P05: Assist gear 1-3
P06: Wheel diameter: unit, inch; precision: 0.1
P07: Number of speed magnets: range: 1-100.
P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.
P10: Drive mode setting 0: Power-assisted drive (the handle is invalid).
1: Electric drive (drive through the handlebar, at this time the assist gear is invalid).
2: Power-assisted drive and electric drive coexist at the same time.
P11: Assist sensitivity setting range: 1-24.
P12: Power-assisted start intensity setting range: 0-5.
P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single-Hall power-assisted sensors.
Setting 12 is used for dual Hall assist sensors.
P14: No such function temporarily.
P15: No such function temporarily.
P16: ODO reset setting Press and hold the up button for 5 seconds ODO reset
P02: Mileage unit, 0: KM; 1: MILE.
P03: Voltage level: 24V, 36V, 48V.
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.
P05: Assist gear 1-3
P06: Wheel diameter: unit, inch; precision: 0.1
P07: Number of speed magnets: range: 1-100.
P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.
P10: Drive mode setting 0: Power-assisted drive (the handle is invalid).
1: Electric drive (drive through the handlebar, at this time the assist gear is invalid).
2: Power-assisted drive and electric drive coexist at the same time.
P11: Assist sensitivity setting range: 1-24.
P12: Power-assisted start intensity setting range: 0-5.
P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single-Hall power-assisted sensors.
Setting 12 is used for dual Hall assist sensors.
P14: No such function temporarily.
P15: No such function temporarily.
P16: ODO reset setting Press and hold the up button for 5 seconds ODO reset
Product Included:

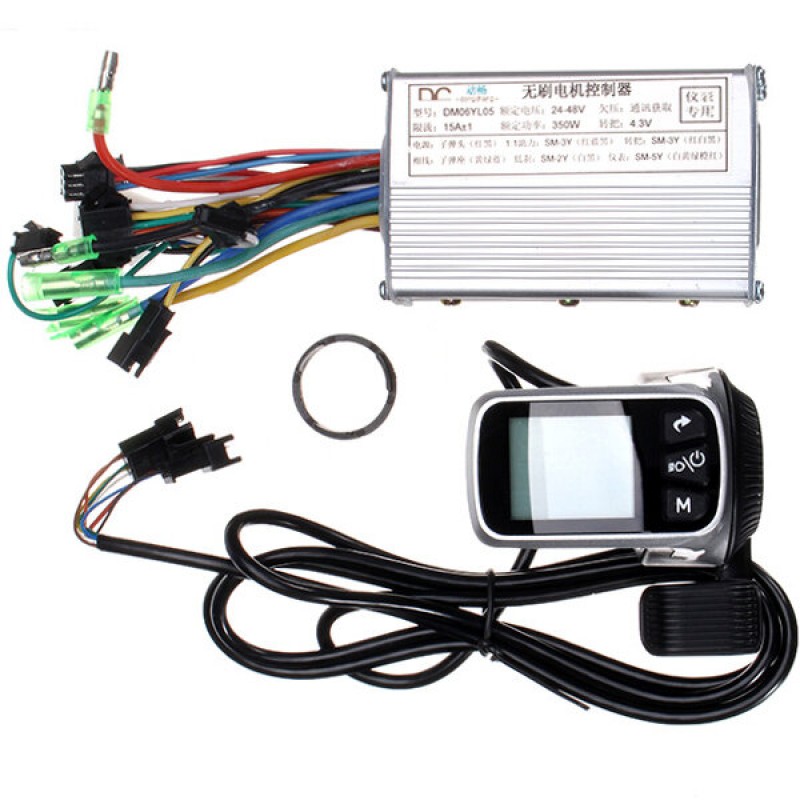

1 X Set Of Motor Speed Controller+LCD Meter
