24V/36V/48V Kunteng KT LCD8H display Electric Bicycle Accessories LC8U TFT Display Waterproof Contact For Electrice Bike Scooter kit
$90.99
- Product Code: ED0021390
- Availability: In Stock
- Ex Tax: $90.99
ATTENTION:
You must be sure that your controller is KT controller.Because this Kunteng LCD8H Display
just compatible with Kunteng controller.They have same communication protocol.
just compatible with Kunteng controller.They have same communication protocol.
Description:
1. 24V 36V 48V SM = 24/36/48V both compatible. Normal SM connector With USB function
Cable length about 180cm ,could connect the controller directly.
2. 24V 36V 48V WP = 24/36/48V both compatible. Waterproof connector With USB function
Cable length about 18cm ,can't connect the controller directly.Need a 1to4 Bus-cable.
Specification:

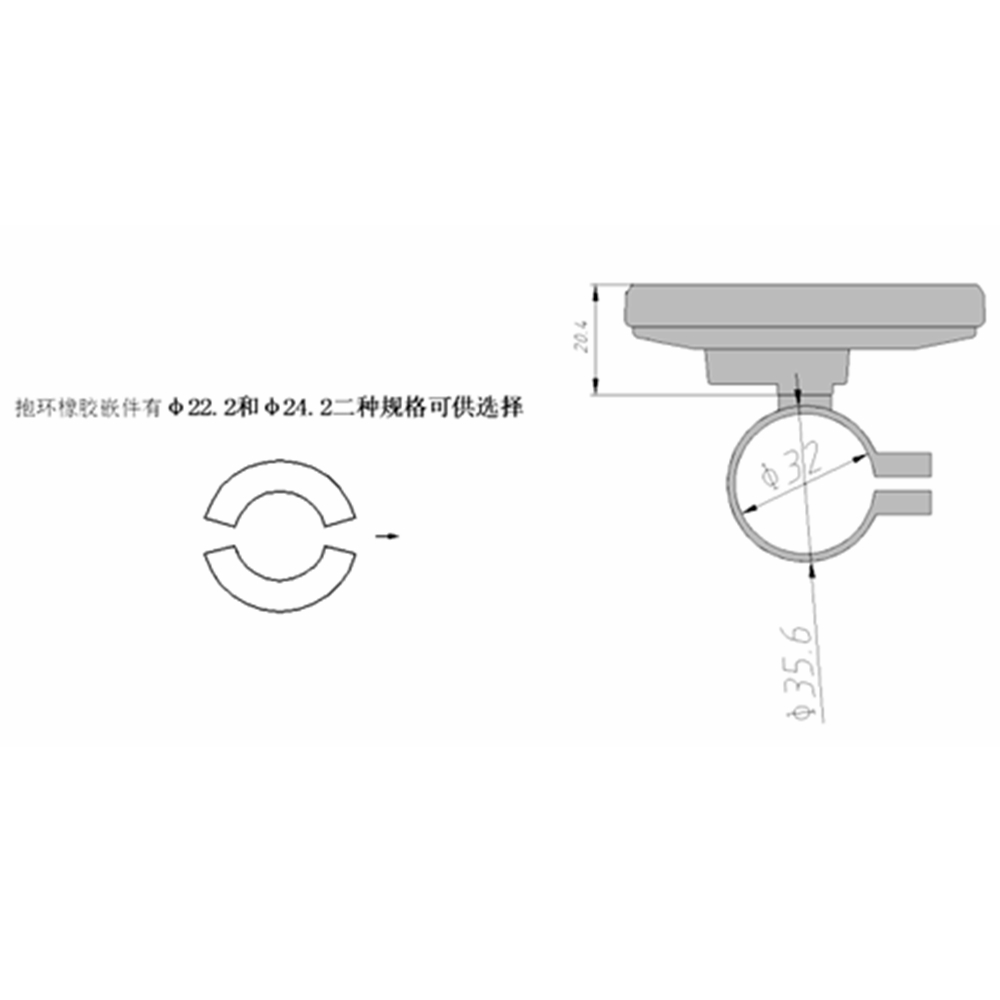

Handlebar for Holding:Ø 22.2- Ø 24.2
Display Cable Length: SM connector ,180cm/ WP connector ,18cm

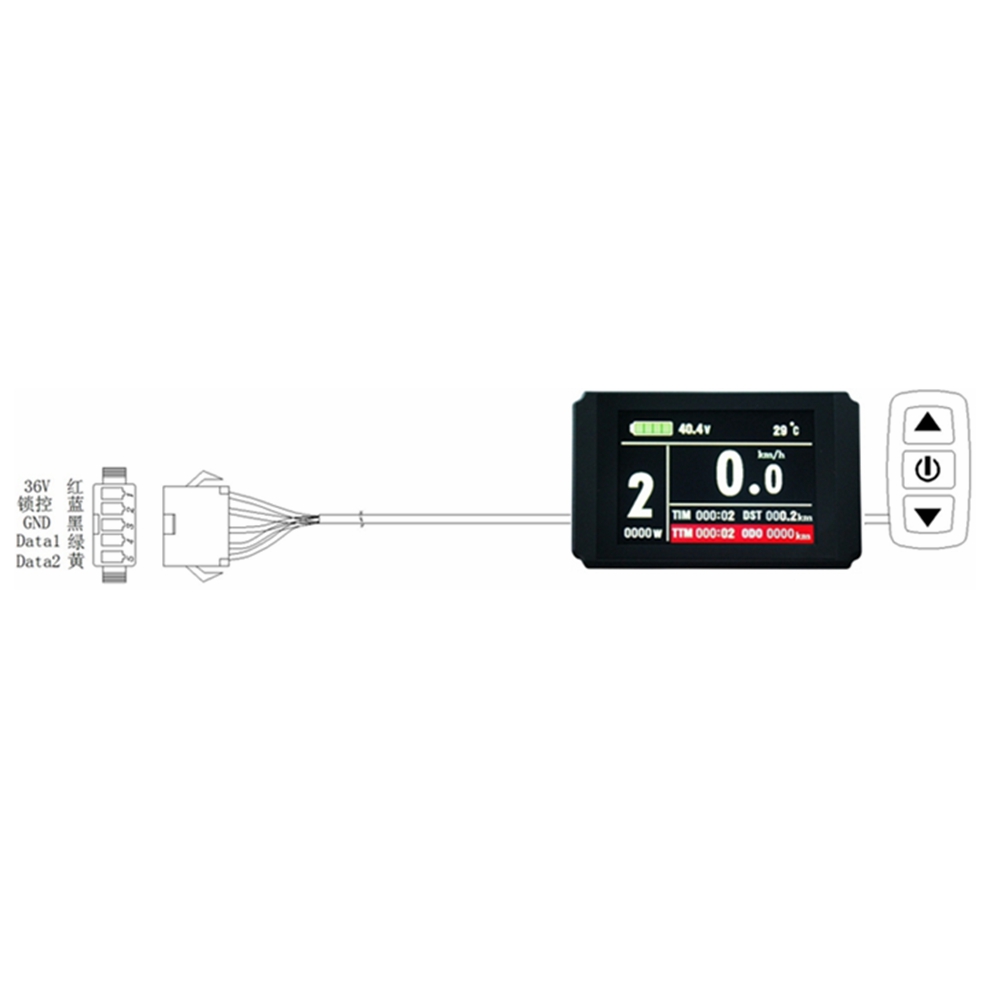

CONNECTOR
5pin SM connector
5pin WP connector
Features:

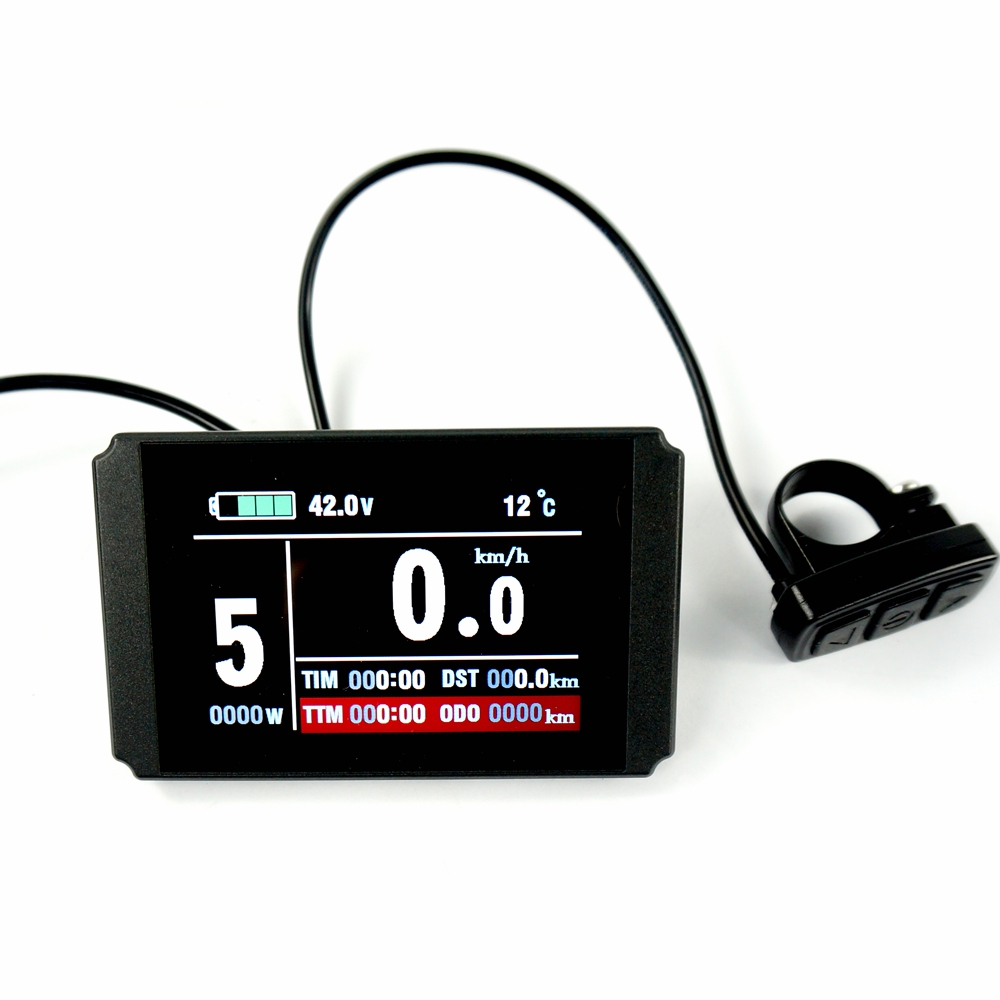

1. Data display:it shows the riding speed, a single mileage and cumulative mileage,
riding time, power-assist gear, motor power and temperature, battery voltage and charge ,
brake and the used ambient temperature and other cycling parameters;
riding time, power-assist gear, motor power and temperature, battery voltage and charge ,
brake and the used ambient temperature and other cycling parameters;
2. Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3. Stalls setting:multi-gear switch and automatic save of the power-assist gear,
and it can restore power off stall state when turned on;
and it can restore power off stall state when turned on;
4. Parameter setting:with a number of user parameter setting functions, motor parameters,
speed measurement parameters, speed-limit parameters, power parameters, power-assist control parameters,
the mid controller voltage and maximum current parameters and other operating models for settings adjustment ;
speed measurement parameters, speed-limit parameters, power parameters, power-assist control parameters,
the mid controller voltage and maximum current parameters and other operating models for settings adjustment ;
5. Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time,
riding mileage, maximum speed and average speed of single riding;
riding mileage, maximum speed and average speed of single riding;
6. Vehicle boosting:With 6Km/h power-assisting functions, the boost flashes during boosting,
and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7. Cadence function:In the assistance mode, the display will show the pedal's Revolutions Per Minute (RPM);
8. Cruising and constant speed:With the setting and display of the cruising,
achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
9. Night driving:With the functions of LCD backlit display and headlight switch control,
instrument backlighting and headlights can be turned on during driving at night;
instrument backlighting and headlights can be turned on during driving at night;
10. Password setting:With three-bit of power-on password setting;
11. Automatically prompt:For the appeared failure of the vehicle,
it can prompt different fault codes for easy inspection and maintenance of vehicle.
With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;
it can prompt different fault codes for easy inspection and maintenance of vehicle.
With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;
12. Use five-line of digital communication, the instrument has good compatibility and interchangeability,
different instruments can be conducted the data exchanges and parameters copy directly;
different instruments can be conducted the data exchanges and parameters copy directly;
13. Host part and operation buttons of the meter use sub-structure design,
making the operation to be more reasonable and convenient;
making the operation to be more reasonable and convenient;
14. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;
Package Included:
1 X KT LCD8H Display
1 X Display Manual
