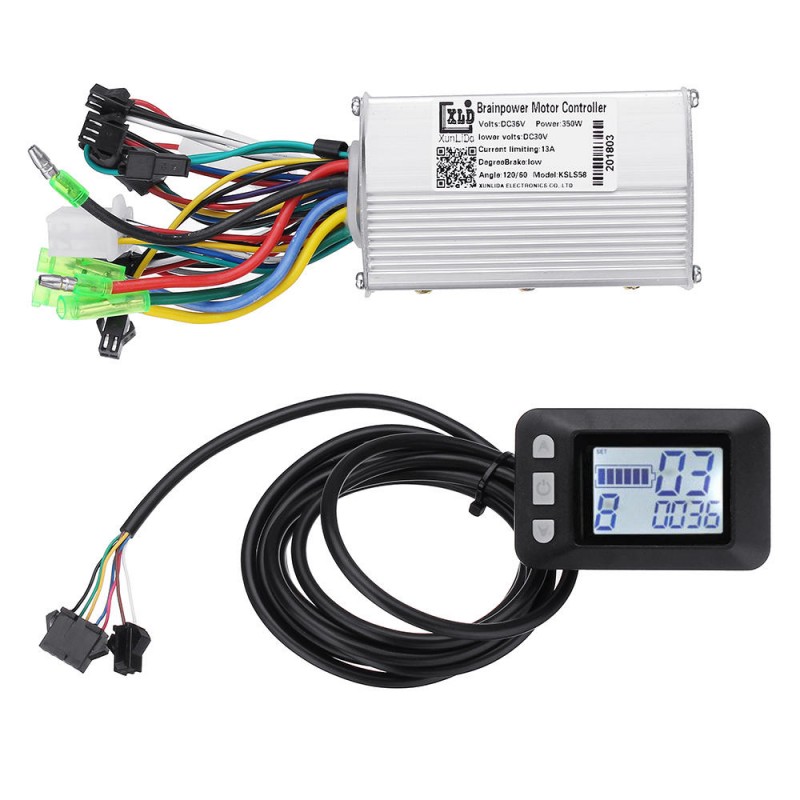

24V/36V48V/60V 250W/350W LCD Brushless Motor Controller Battery Speed For MTB E-Bike Scooter
$64.99
- Product Code: ED0021381
- Availability: In Stock
- Ex Tax: $64.99
Available Options
Description:

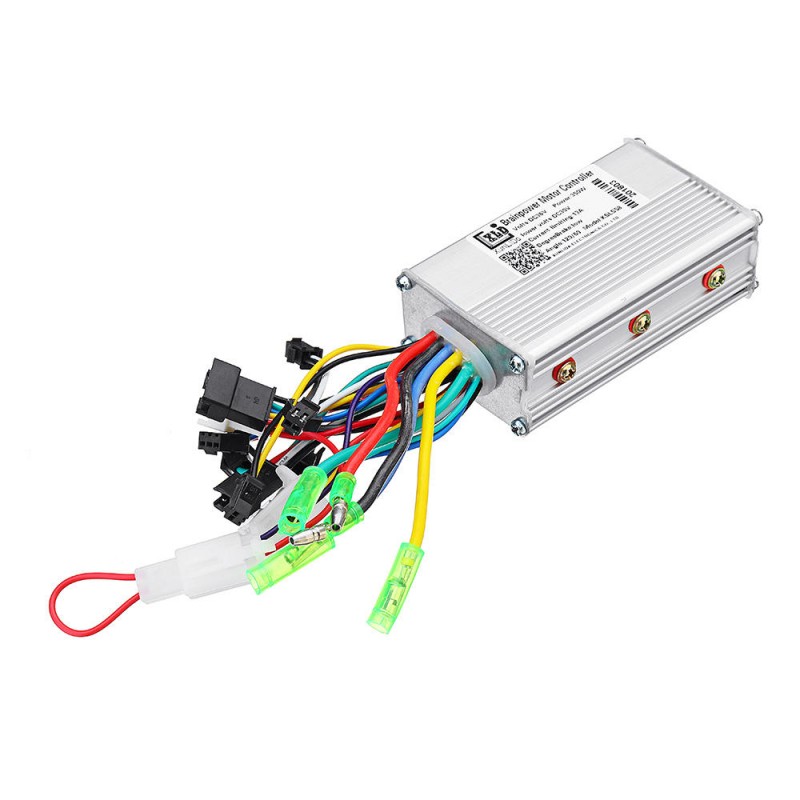

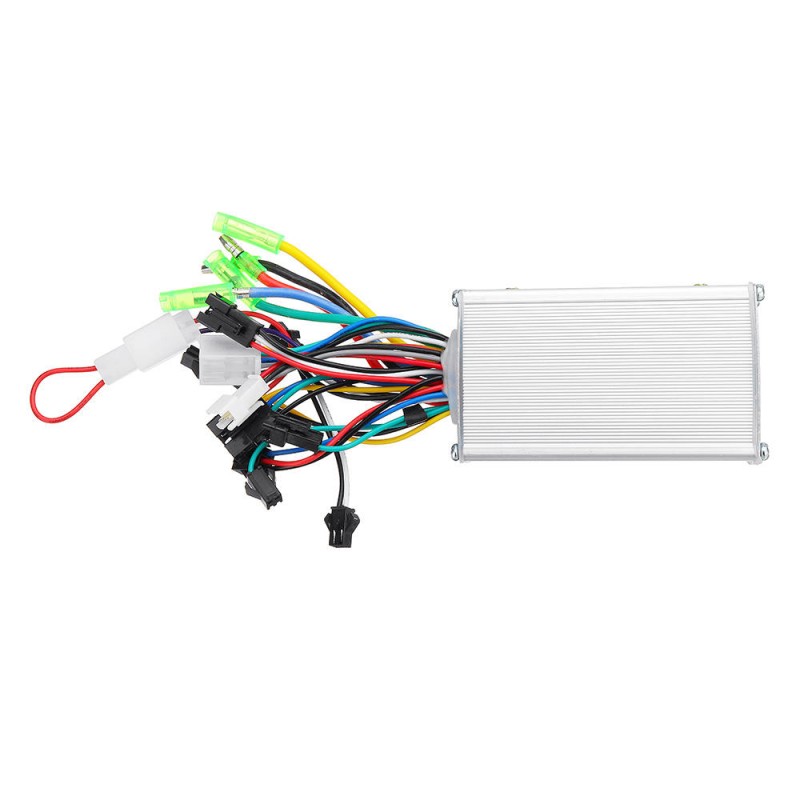

6 mosfet dual mode controller for lithium battery
6 mosfet dual mode controller for lithium battery
Rated working voltage: 24v/36v/48v/60v
Power available :250W/350W
Max current available: 10A-20A (default setting 13a)
Battery voltage undervoltage protection point: 19v/30v/41v/52v
Fit for motor phase angle: 60degree/120 degree (automatic learn )
Controller Feature:
1. Automatically indentify motor phase and angle.
You can learn with debug wire. operation method: connect power cable, main switch wire, motor wire,
hall wire, handle bar wire, learning wire, switch on power and bike lock, the motor will start to work.
If the turning direction is right, please cut off learning wire. The learning is finished.
If direction is opposite, please cut off learning wire, the motor will switch direction automatically,
work 2-3 seconds, cut off learning wire, the learning is finished.( attention please !cut off learning wire after learning)
You can learn with debug wire. operation method: connect power cable, main switch wire, motor wire,
hall wire, handle bar wire, learning wire, switch on power and bike lock, the motor will start to work.
If the turning direction is right, please cut off learning wire. The learning is finished.
If direction is opposite, please cut off learning wire, the motor will switch direction automatically,
work 2-3 seconds, cut off learning wire, the learning is finished.( attention please !cut off learning wire after learning)
2. dual mode (When motor hall work normally, controller work with hall mode.
When motor hall damaged, controller can intelligently test it and change to no-hall mode and keep on work.
(other controller if not double mode, cannot work if motor hall damaged)
When motor hall damaged, controller can intelligently test it and change to no-hall mode and keep on work.
(other controller if not double mode, cannot work if motor hall damaged)
3. can control and match with other electric parts
such as can match with external speed test sensor, so that display can indicate speed
even when bike is in sliding. can match with brake sensor, can match with left shifter work as ebs brake and so on.
even when bike is in sliding. can match with brake sensor, can match with left shifter work as ebs brake and so on.
4. when battery voltage is not enough the controller will automatically lower current, this will protect your battery for longer life.
Controller Function:
1. 1:1 PAS power
2. brake and cut off power
3. connect with lcd display
4. connect throttle
5. light and horn power port
6. self learning
7. hall linear ebs brake
8. cruise
9. 6km/h boosting

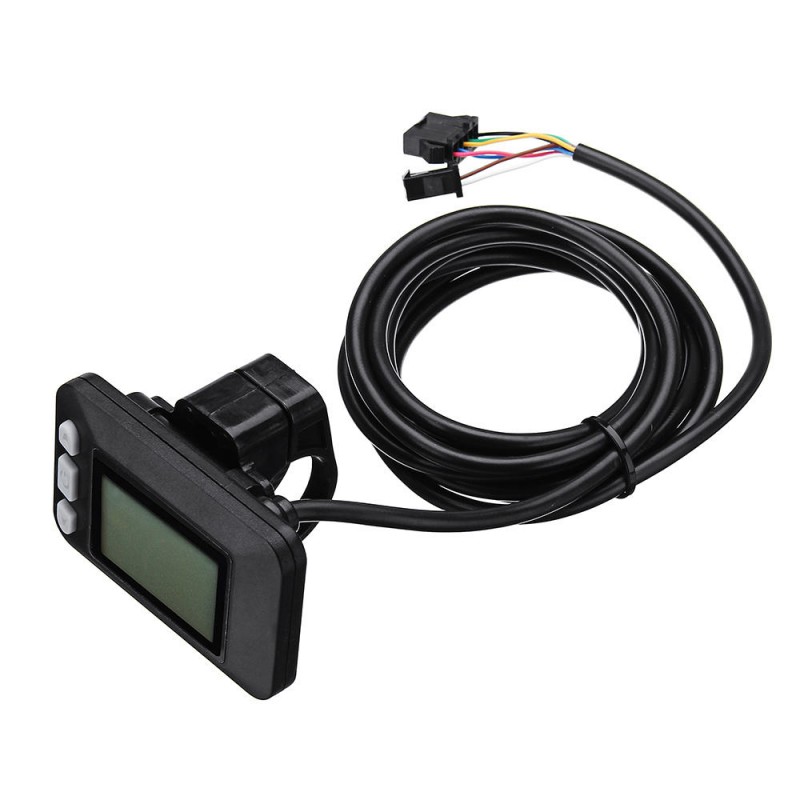

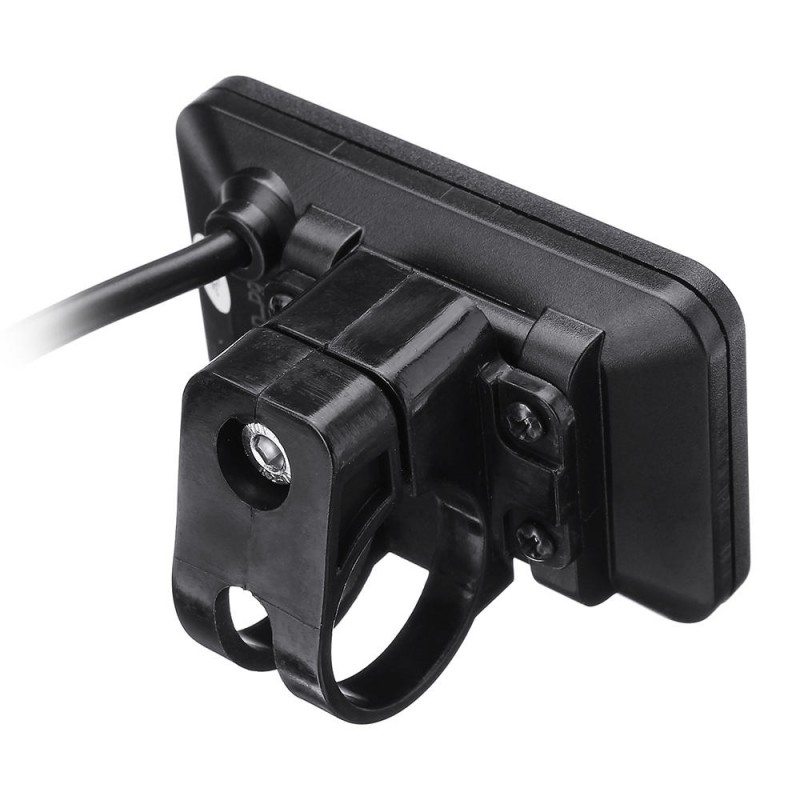

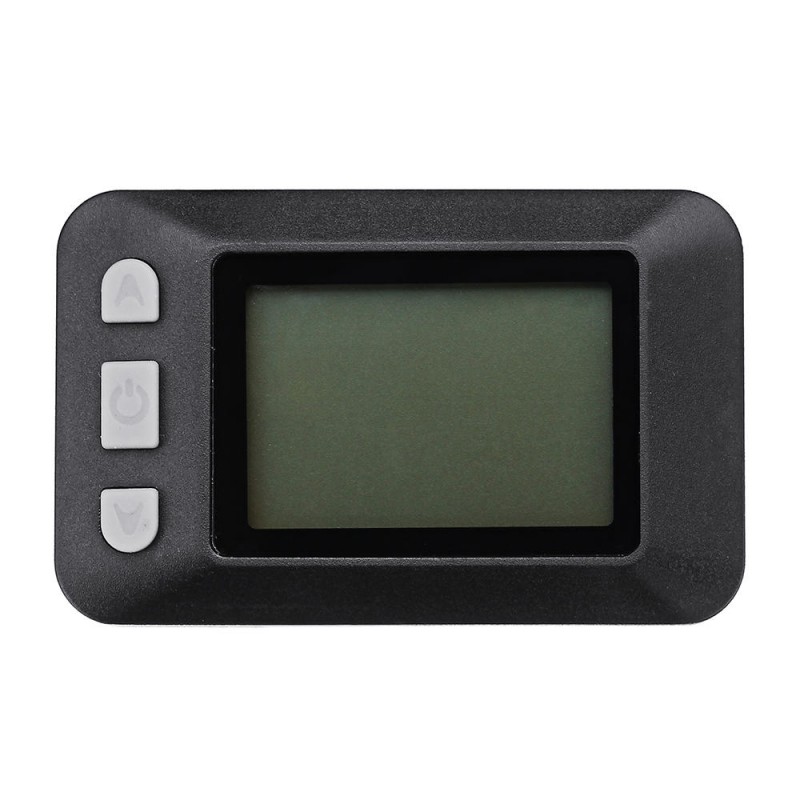

LCD Display
1. it indicate battery level, 6 grid is full, if battery low it will shine
2. indicate speed , default setting unit is km/h
3. indicate gears
4. indicate single trip, DIS, icon located at bottom left side, press power button can switch to this interface,
it means the whole distance the bike run from machine open to machine off,
it means the whole distance the bike run from machine open to machine off,
5. ODO -press power button can switch to this interface
6. error code-- press power button can switch to this interface
002 --brake error
003-pas sensor error
004-boosting 6km/h cruise mode
005-timely cruise mode
006-battery level low
007-motor error
008-throttle error
009-controller error
010-communication receive error
011- communication sending error
012-DMS communication error
013-frontlight error
013-frontlight error
7. Gears adjust --short press up and down button can adjust gears, add or reduce one,
long press up and down button at same time can go into setting interface,
short press power button can switch data item, short press up and down button can adjust data,
long press up and down button can store and exit data interface
long press up and down button at same time can go into setting interface,
short press power button can switch data item, short press up and down button can adjust data,
long press up and down button can store and exit data interface
Fitment:
1. Fit for different battery: lead-acid, Li-Fe battery, LNCMO battery {Li(NiCoMn)O2}, and so on.
For different material there is different under voltage protecting point
For different material there is different under voltage protecting point
2. Fit for DC brushless gear motor lower than 350w, and gearless motor, and high speed motor and so on.
Package Included:
1 X Motor Controller
1 X LCD Display Instrument
1 X LCD Display Instrument
