Feature:
(1) Kevlars material, heat up faster, heat more evenly, and successfully passed abrasion test
(2) Built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is more convenient
(3) 10 seconds rapid heating, large heating area
(4) The heating sheet is fixed by Velcros, which is convenient and quick
(5) IP67 waterproof level, even if the switch and handle cover are soaked in water, they can work normally. When the handle cover needs to be cleaned, only unplug the plug and wash with water, which is very convenient
Specification:
Name |
Electric heating handle cover |
Net weight |
125G |
Product gross weight |
150g |
Packing size |
12.1*3.6*16.1CM/4.76*1.41*6.33" |
Input voltage |
DC12V |
Cable length |
108CM (heating film to switch) 146CM (switch to electric door lock) |
Working temperature |
-30°C---+100°C |
Power |
high-end 20W mid-range 15W low-end 10W |
Material |
Composite fiber heating wire + Kevlars wear-resistant cloth, (L bracket) stainless steel |
Installation method |
Double side glue sticking and fixing, L bracket lens holder fixing |
Wiring method |
red connect to the positive pole, black connect to the negative pole (the lamp does not turn on when the connection is reversed, only heating) |
Operating instructions:
Power on: red light, blue light and green light each flash once and then go out
Standby: the red light flashes in the breathing state, the temperature reaches the relative temperature and it will automatically turn into a blue light
Working status: indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end, green light is always on)

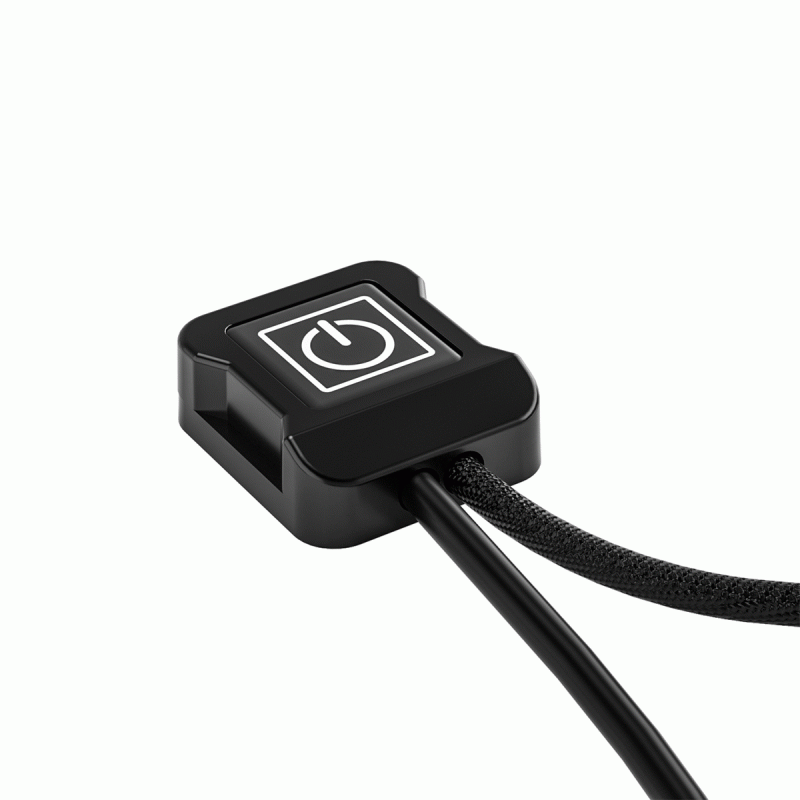

Click on the key: switch gears
Note: The positive and negative poles are connected reversely, the switch cannot be used, and the heating element directly heats up
Note:
[1] Please select the appropriate gear according to the ambient temperature. Under low temperature conditions, if the temperature of the electric heating grip cover cannot be sensed in time due to the numbness of the hand, please use the low or medium gear first to prevent high temperature burns
[2] This product is only suitable for motorcycles with 12V battery. Please read the installation diagram carefully before installation. Incorrect wiring will cause damage to the components
[3] This product can only be installed on the handlebars of motorcycles when it is energized. You can use a battery to test whether the product is properly energized before installation.
[4] It is strictly forbidden to energize and work when not riding (empty burn) to prevent the electric handle from being too high and damaging the original handle
[5] It is recommended to connect the electric door lock wire to the wiring. Most models have black positive pole and green negative pole. For specific conditions, it is recommended to use a multimeter to measure
Package Included:
1 X |
Heated Grips Covers |
1 X |
Double Side Glue |
5 X |
Cable Tie |
1 X |
Stainless Steel L Bracket |
