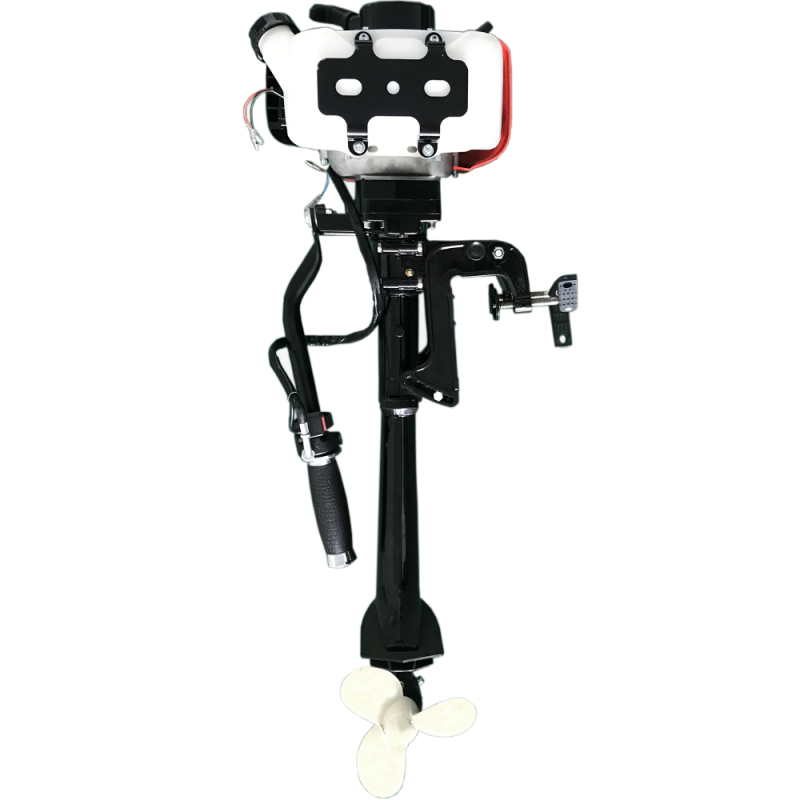

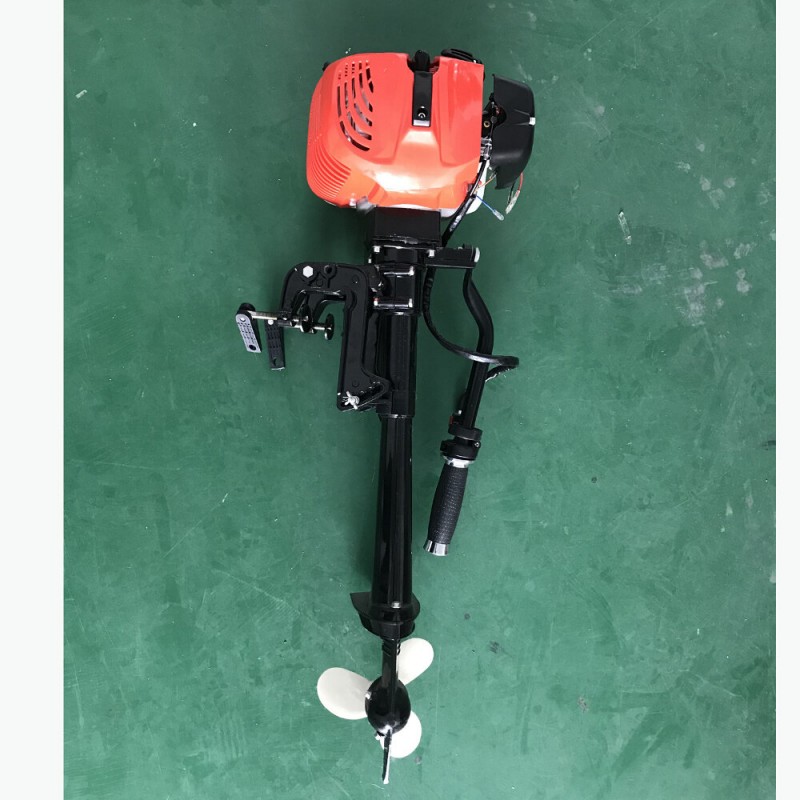

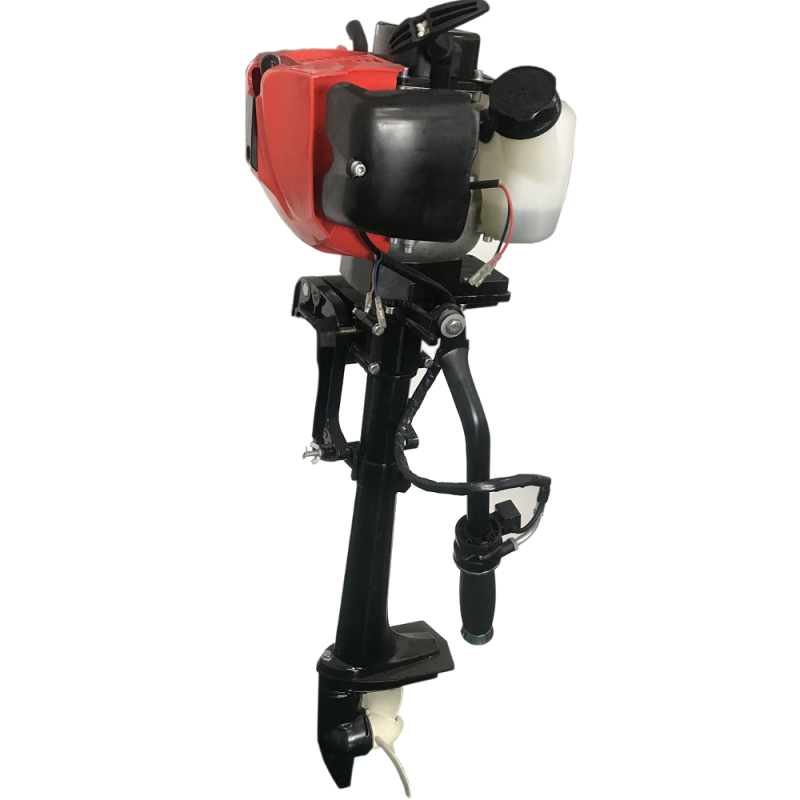

3.6 HP 2 Stroke Outboard Engine Air Cooled Hand Start Sc-236c
$307.99
- Product Code: ED0020800
- Availability: In Stock
- Ex Tax: $307.99
Description:
1.Easy Start Design
2.Low Noise Design(Less Than 85db)
3.Enhance Gear Design
Specifictions:
| Model |
2 Stroke 3.5HP |
| Displacement |
49CC |
| Gear Ratio |
2.08 (27:13) |
| Cylinder |
1 |
| Max. Speed |
4000-5000 r/min |
| Max. Output Power |
2.5KW/3.5HP |
| Gear Positions |
Clutch Control |
| Ignition System |
CDI |
| Cooling System |
Air-Cooling |
| Control System |
Tiller Control |
| Starting Way |
Pull Start |
| Recommended Fuel |
#93 Gasoline |
| Recommended Propeller Size |
3 x 7 1/4" x 5" |
| Recommended Engine Oil |
Two Stroke Lubricating Oil |
| Mixture Ratio of Fuel to Oil |
Fuel/Engine Oil = 30/50:1 |
| Trim and Tilt System |
Manual Tilt |
| Bore x Stroke |
44 x 33mm |
| Separating Fuel Tank |
1.3L |
| Dimensions |
365 x 220 x 920mm (L*W*H) |
Installation instructions:
1.Longest screw as mounting bracket screw.Adjust the screw position to connect the base and fix the support shaft
2.Install the fixing screw of the base and tighten the screw to the hole; next to it is the adjusting screw to make the installation more firm
3.Connect the engine, pay attention to the side of the tank opposite to the operator
4.Installing tiller and connecting line
5.The screw connecting the tiller can be adjusted to adjust the more suitable position of the tiller used by different users.
6.The red wire corresponds to the red wire, the black wire corresponds to the black wire, and the throttle wire is connected to the corresponding position
7.The gasoline engine must use mixed fuel with volume rate of 25:1 for No.90 gasoline to two-stroke automobile oil.Mix and add to the tank
Note:
1.Before start-up, manually pump the oil to reach the carburetor port
2.Before starting the engine, the engine off switch button is in "I" state
3.Turn the switch on and pull it startup
4.If you feel that the accelerator is loose or too tight during use, you can use two methods to improve the situation, adjusting the screw or nut, and then you need to open the air cover with the aid of the tool kit
5.When the outboard aircraft does not work for a long time, use the suspension tilt adjustment pin to raise the propeller assembly to prevent corrosion caused by immersion in water for a long time
Caution:
Before using our outboard engine, please read this manual carefully to understand the proper use of your unit.Keep this manual handy.
Package Included:
| 1 X | Outboard Machine ＆ Accessories |
| 1 X | Instructions |
