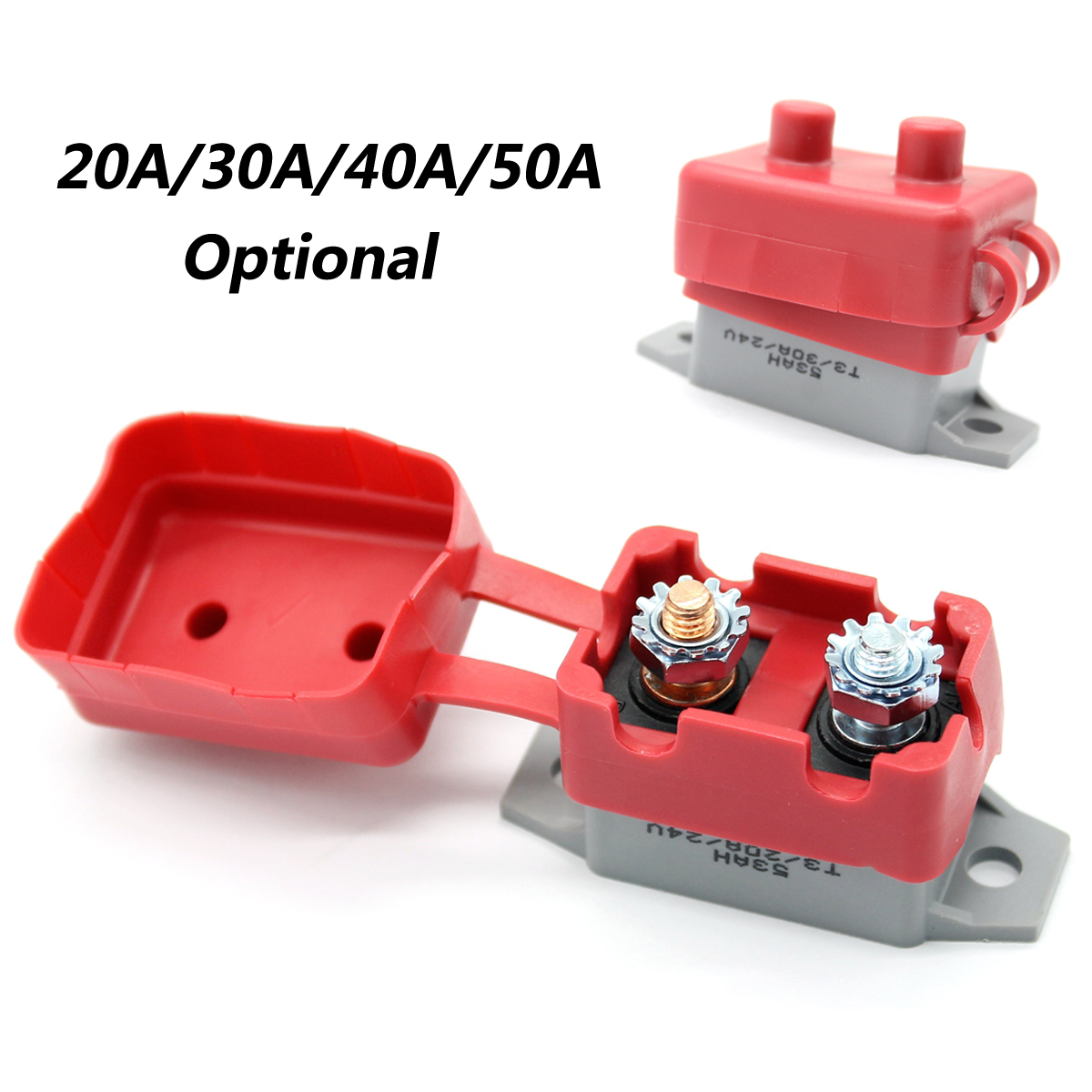

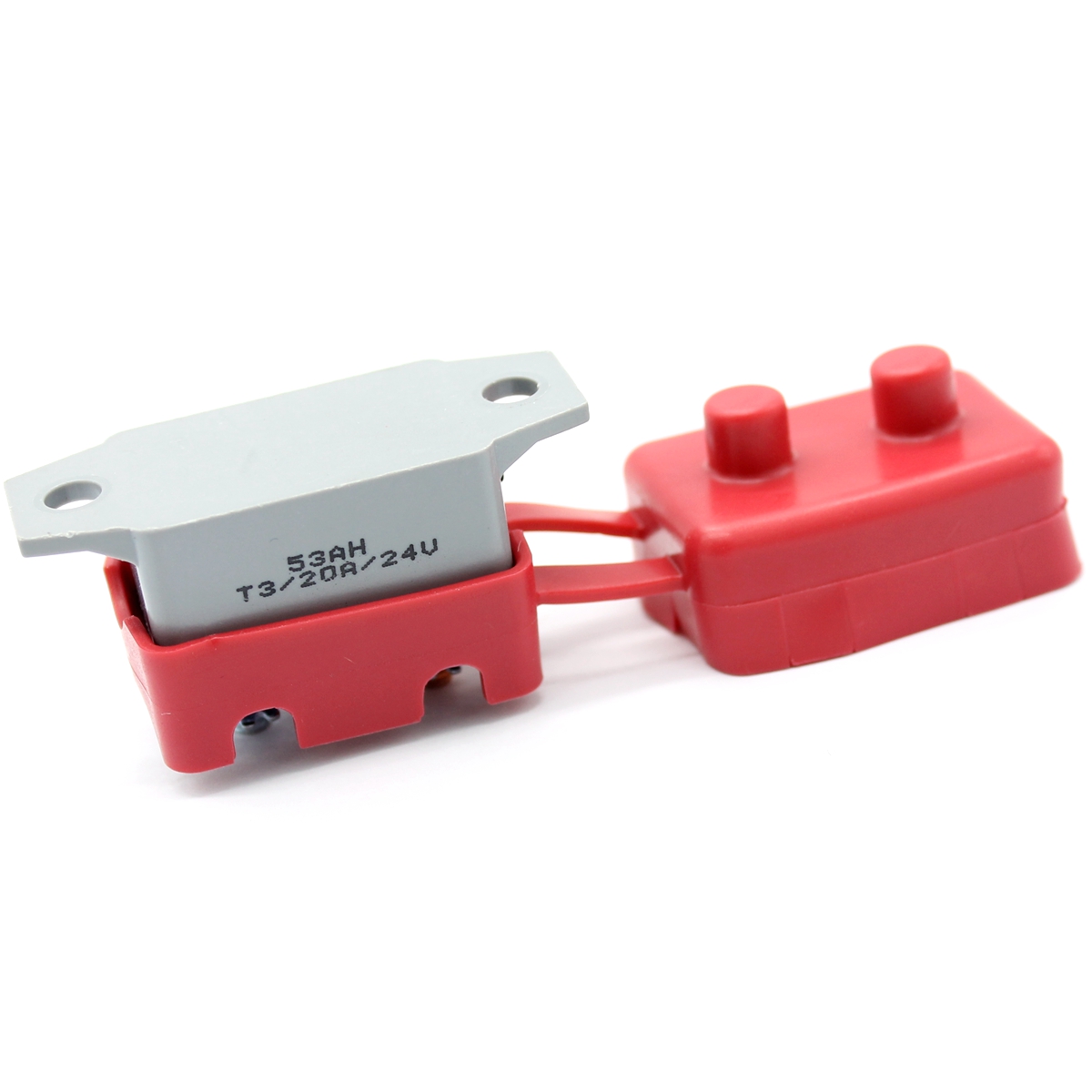

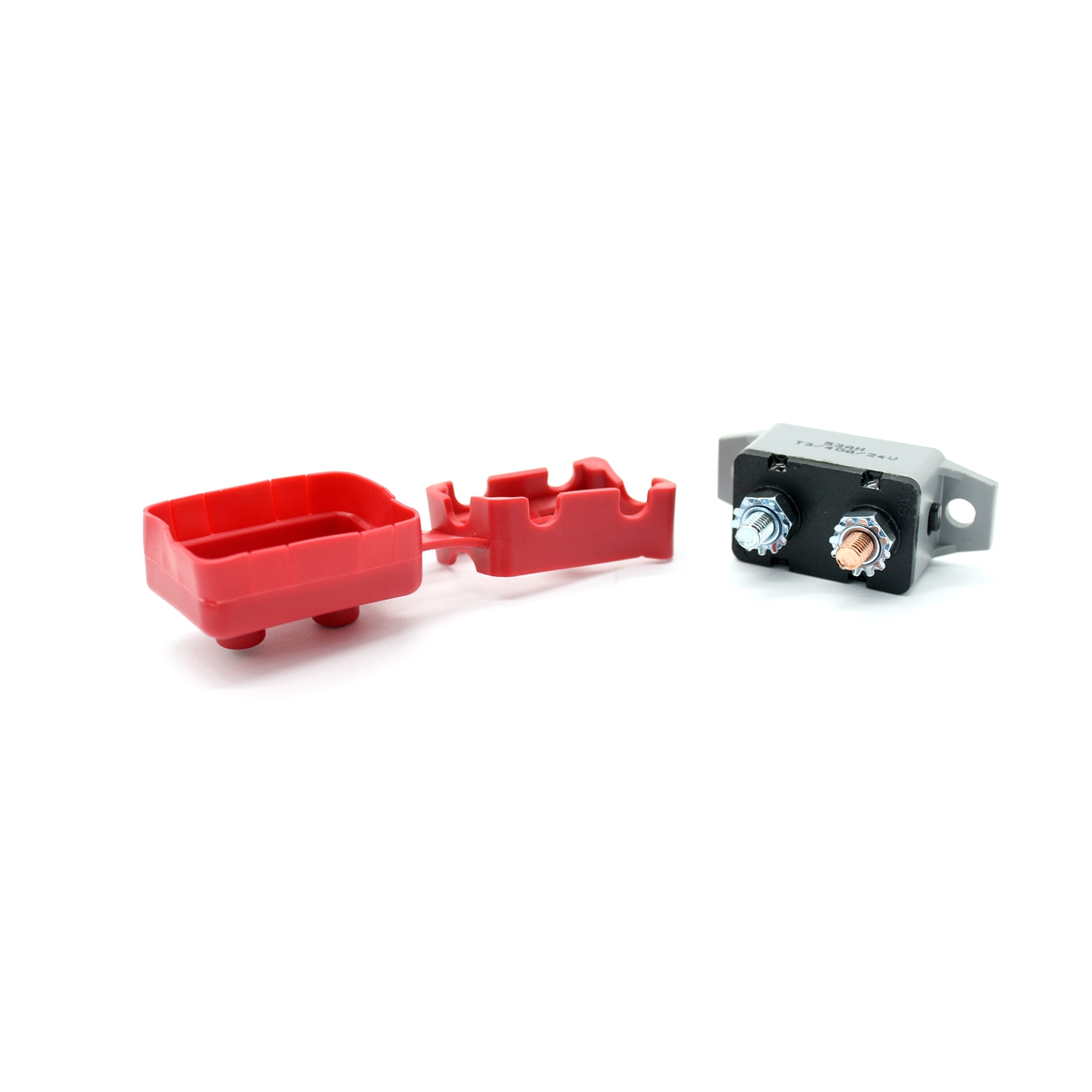

30A AMP 12V Circuit Breaker & Cover Dual Battery Fuse Automatic Auto Reset C0090
$10.38
- Product Code: ED0009590
- Availability: In Stock
- Ex Tax: $10.38
Available Options
Feature:
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection.
Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.
Plastic with parallel mounting bracket.
Rubber protective cover protect terminals from moisture, dust and accidental shorting.
Grey UL rate 94V0 thermoplastic body with red cover thermoplastic.
Specification:
Current: 20A, 30A, 40A, 50A (Optional)
Interrupt Rating: 2.5KA@12VDC
Operating temp: -40°C to 85°C (-40°F to 185°F)
Storage temp: -40°C to 125°C (-40°F to 260°F)
Terminal: #10-32 thread with quick connector.
Mounting Torque Rating: Plastic cover - 15in-lb (1.7Nm)
Ingress Protection Rating: IP66 on plastic cover except for terminal.
Meterial: Metal + Plastic
Package Included:
1 X Auto Reset Circuit Breaker with Cover
Overcurrent circuit breaker, using bimetal structures, when the circuit is overloaded, quickly power protection.
Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.
Plastic with parallel mounting bracket.
Rubber protective cover protect terminals from moisture, dust and accidental shorting.
Grey UL rate 94V0 thermoplastic body with red cover thermoplastic.
Specification:
Current: 20A, 30A, 40A, 50A (Optional)
Interrupt Rating: 2.5KA@12VDC
Operating temp: -40°C to 85°C (-40°F to 185°F)
Storage temp: -40°C to 125°C (-40°F to 260°F)
Terminal: #10-32 thread with quick connector.
Mounting Torque Rating: Plastic cover - 15in-lb (1.7Nm)
Ingress Protection Rating: IP66 on plastic cover except for terminal.
Meterial: Metal + Plastic
Package Included:
1 X Auto Reset Circuit Breaker with Cover
