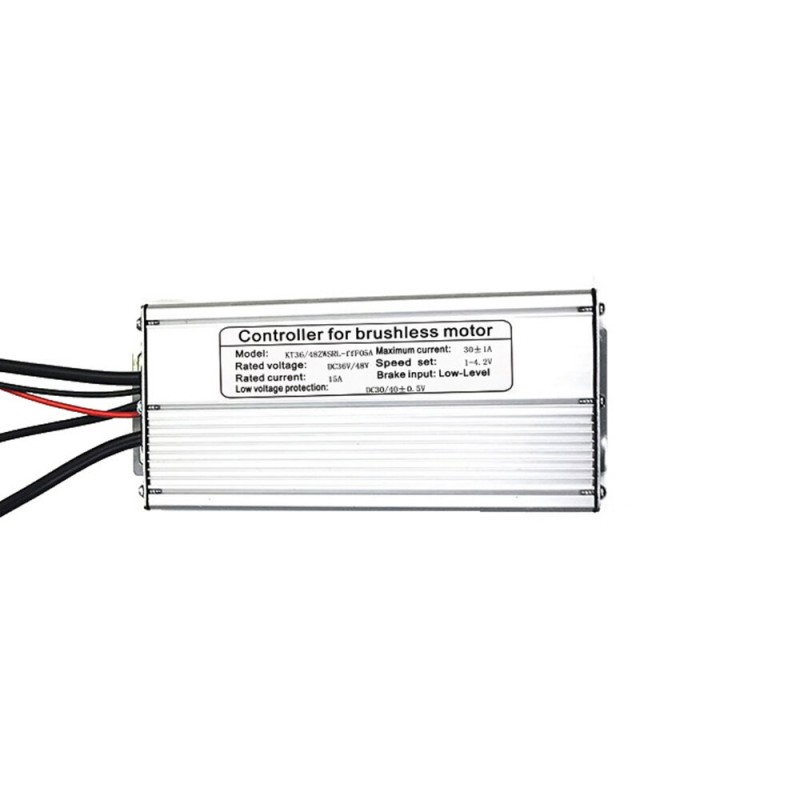

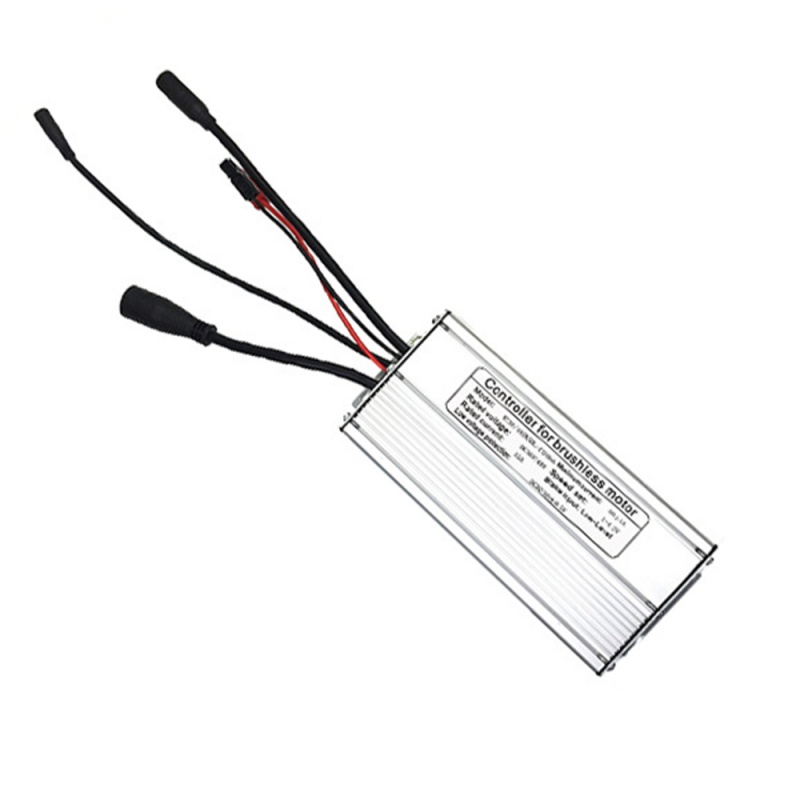

36/48V 30A 1000W Brushless Electric Bicycle Scooter Standard Square Wave Controller KT Series Motor Conversion Kit
$61.99
- Product Code: ED0021440
- Availability: In Stock
- Ex Tax: $61.99
Specification:
Name |
Controller for brushless motor |
Maximum current |
30±1A |
Rated voltage |
DC36/48V |
Speed set |
1-4.2V |
Rated current |
15A |
Brake input |
Low-Level |
Low voltage protection |
DC30/40±0.5V |
Applicable motor power |
36V/48V 1000W |
Controller dimension |
About 18*8.4*4.5cm |

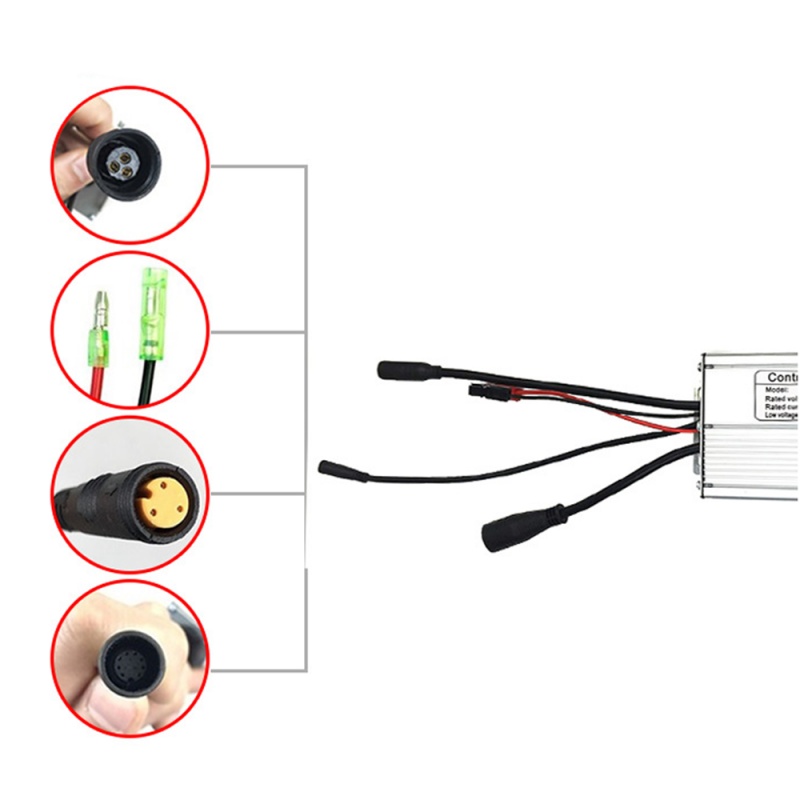

Controller outlet:
Motor wiring
Power wiring
One for four wiring
Power supply positive and negative wiring
ATTENTION:
1.KT controller only can be compatible with KT display(They have the same communication protocols). Please make sure that your system is KT system.Waterproof connector is so special that we have no way to promise it is complete compatible(because of the line sequance). Please check if your motor cable is Julet waterproof plug before you place the order.
2.Please contact us if you are not sure which is right for you or have further questions by message.
3.If you ordered it without discussing ,we reject sales return because of the matching things. I hope you could understand, thanks !
Package Included:
1 X |
Controller |
