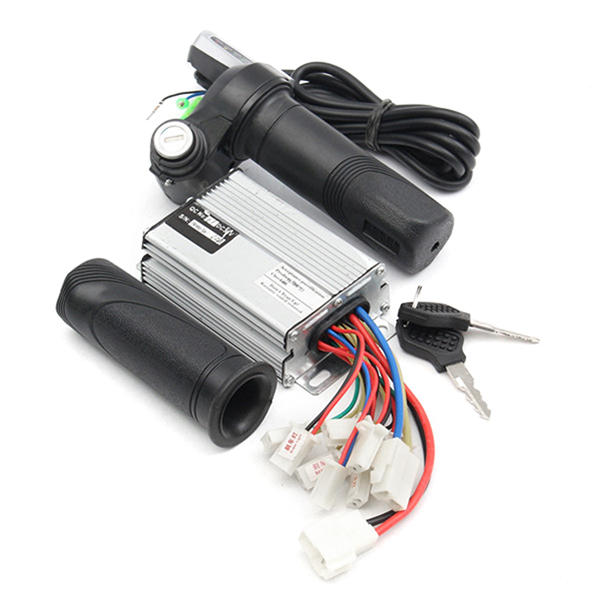

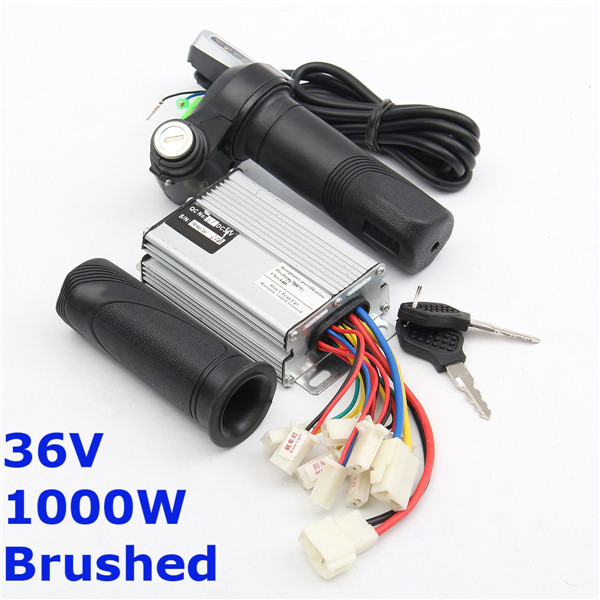

36V 1000W Motorcycle Controller Brushed+Throttle Twist Grips Electric Bike Scooter
$37.39
- Product Code: ED0021252
- Availability: In Stock
- Ex Tax: $37.39
36V motor brushed controller:
Motor brush controller for Electric bicycle & scooter
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)
Specification:
Material: Plastic
Color: As shown
Rated Voltage: DC 36 v
Current Limit : 32A
Rated Power: 1000 W
Under Voltage Protection: 31.5V
Matching Motor: DC brushed motor

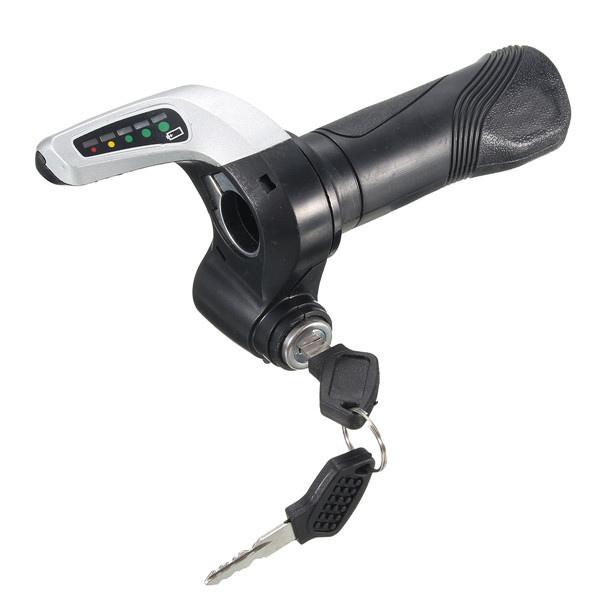

DC36V Throttle Twist Grips:
Electric bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage: DC5V
Speed Adjusting Signal: 0.8V-4.3V
Power Display Voltage: DC 36V

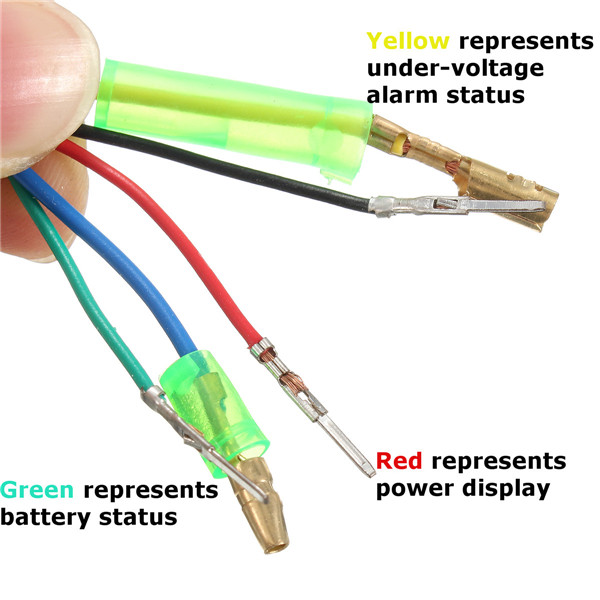

Power Display:
Normal: 35V above, 3 Led Green
Half: 35V ~ 32V, Led Yellow
Empty: 32V or less, Led Red
Rotation Angle: 0 °~ 70 °
Working Temperature: -20 ~ +50

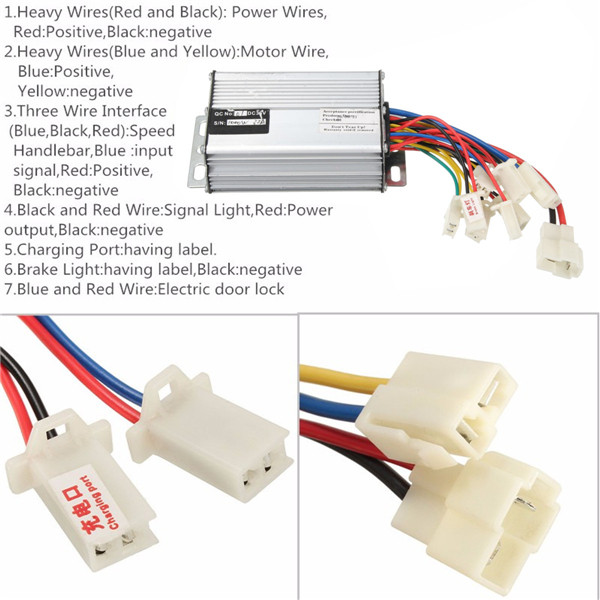

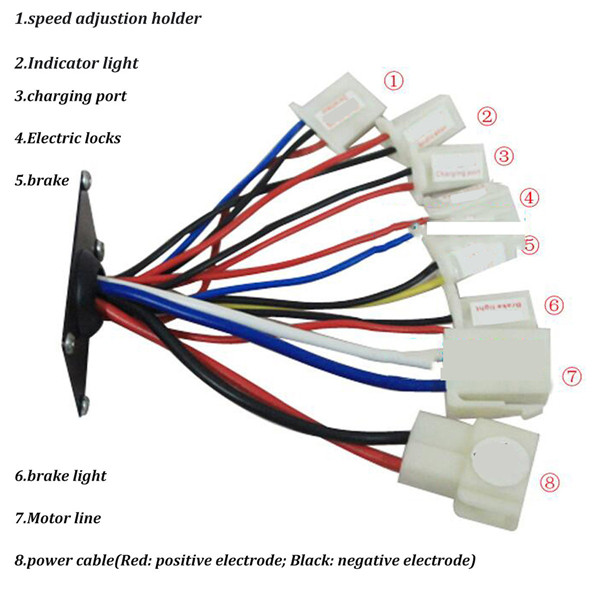

Controller Wires Interface Definition:
Battery : Thick black (power negative) /thick red (power positive)
Motor : Thick yellow (motor negative) /thick blue (motor positive)
Ignition Switch : Thin red(VCC)/thin blue
Indicator : Thin red (indicator power output) /thin black (indicator negative)
Brake : Thin yellow (brake signal)/thin black(negative power)
Speed Governor : Thin blue(speed handlebar signal input) /thin black (negtive power) /thin red(5V positive power)
Charge Port : Thin red (charge input power positive) /thin black (power negative)
Brake Light: Thin red (power positive) /thin black (power negative)
Sport: Thin yellow /thin green(speed limit, connected the wires together)
Package Included:

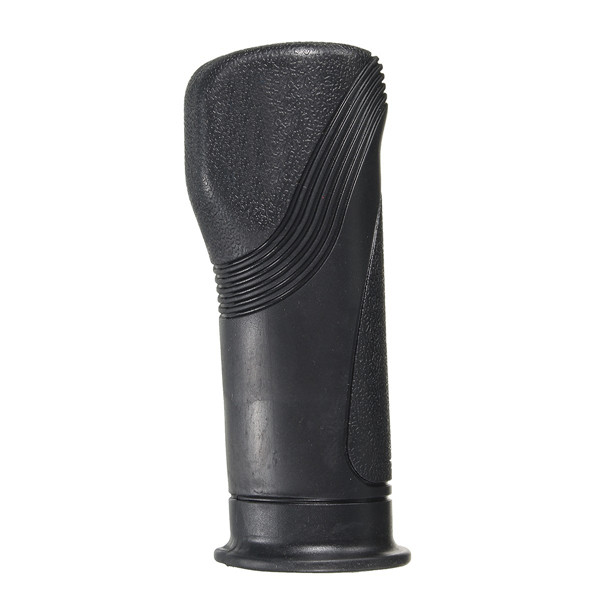

1 X 36V Throttle Grip With Normal Grip

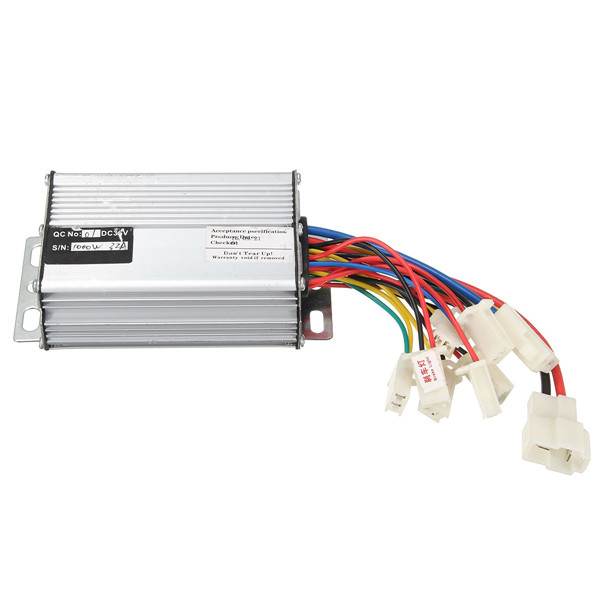

1 X 36V 1000W Controller
1 X Black Terminal Ends
