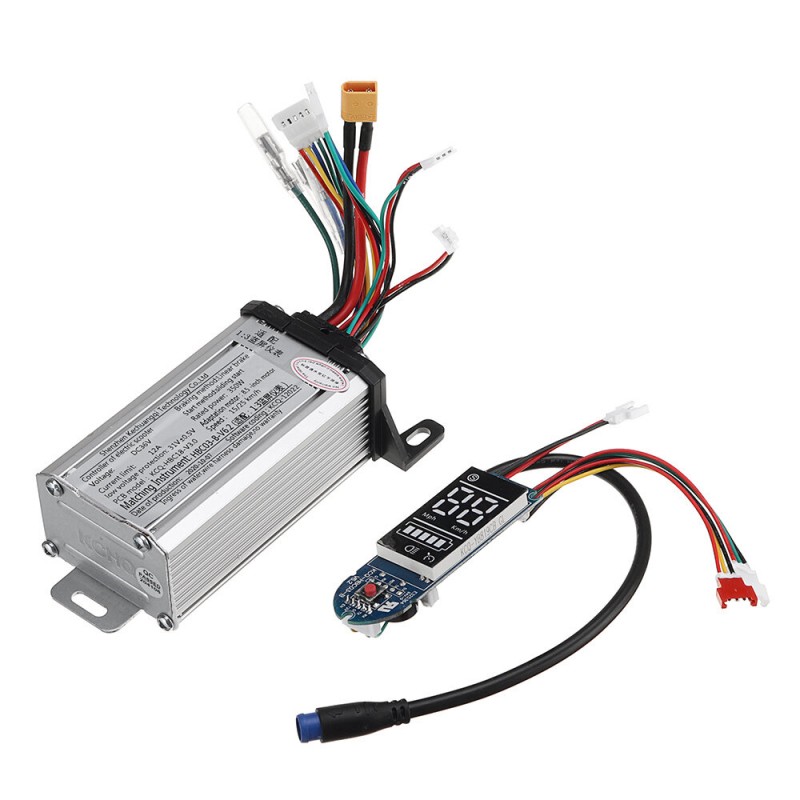

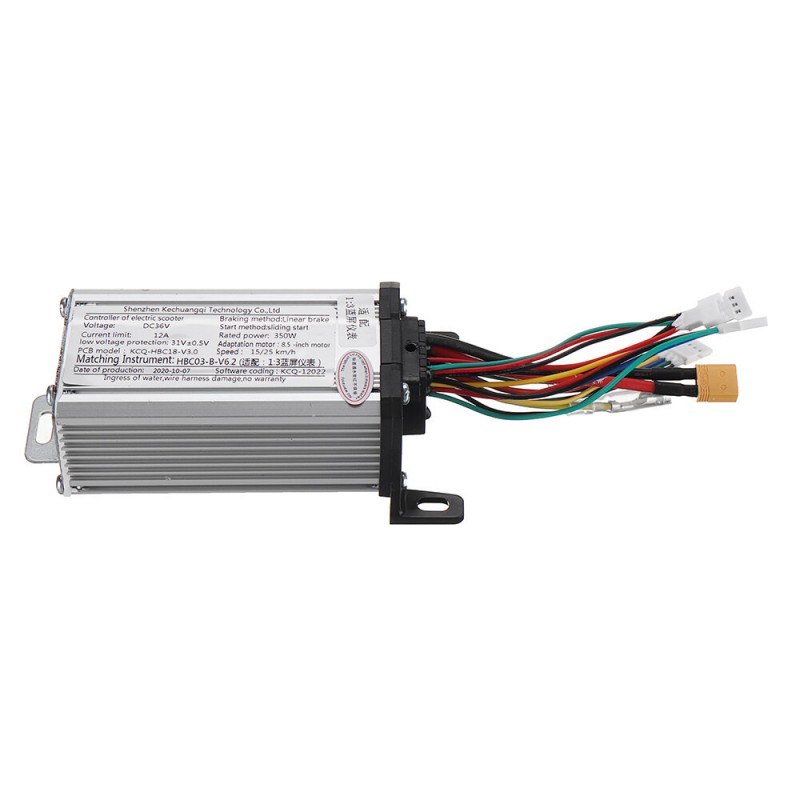

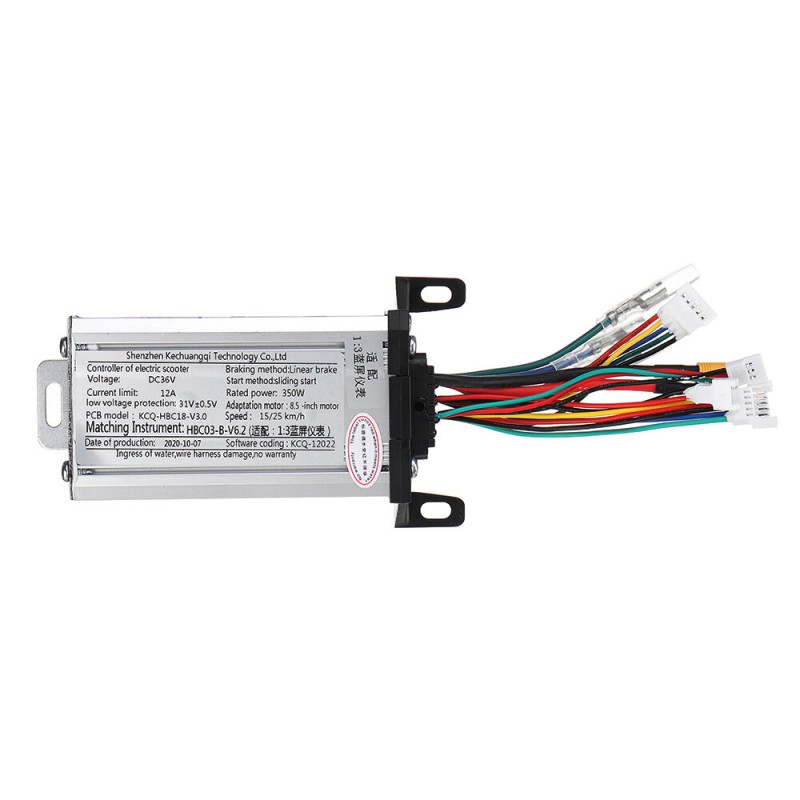

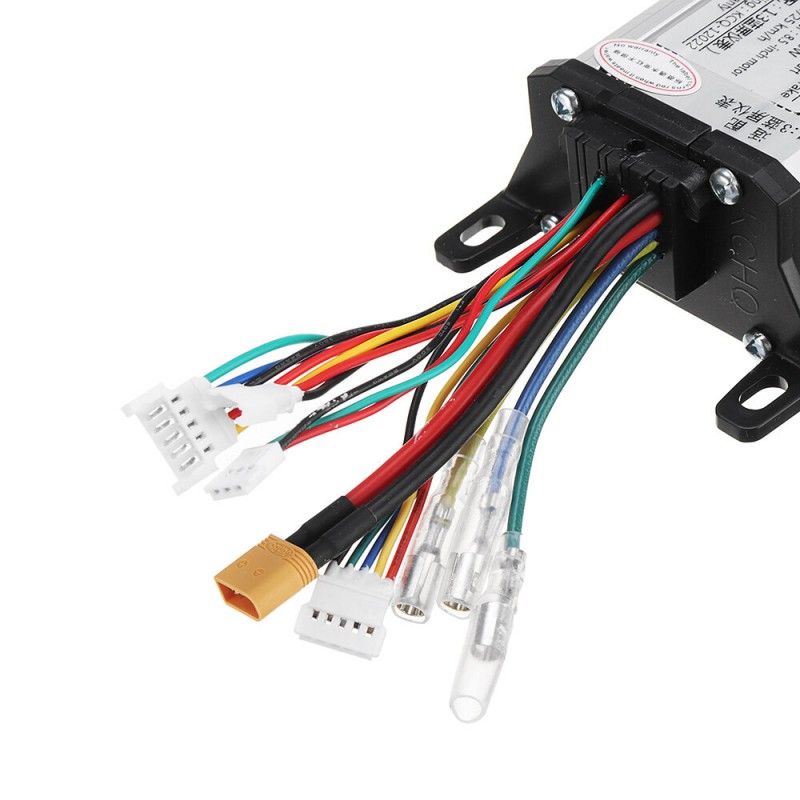

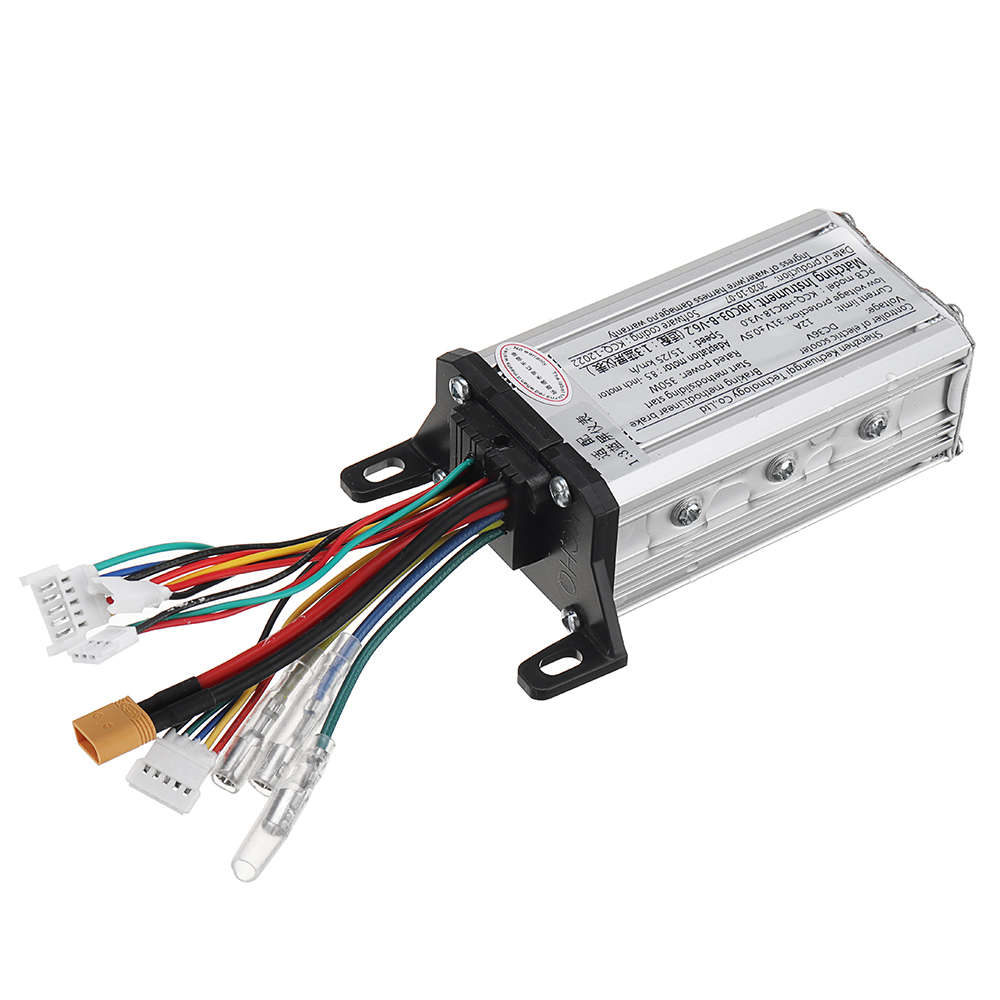

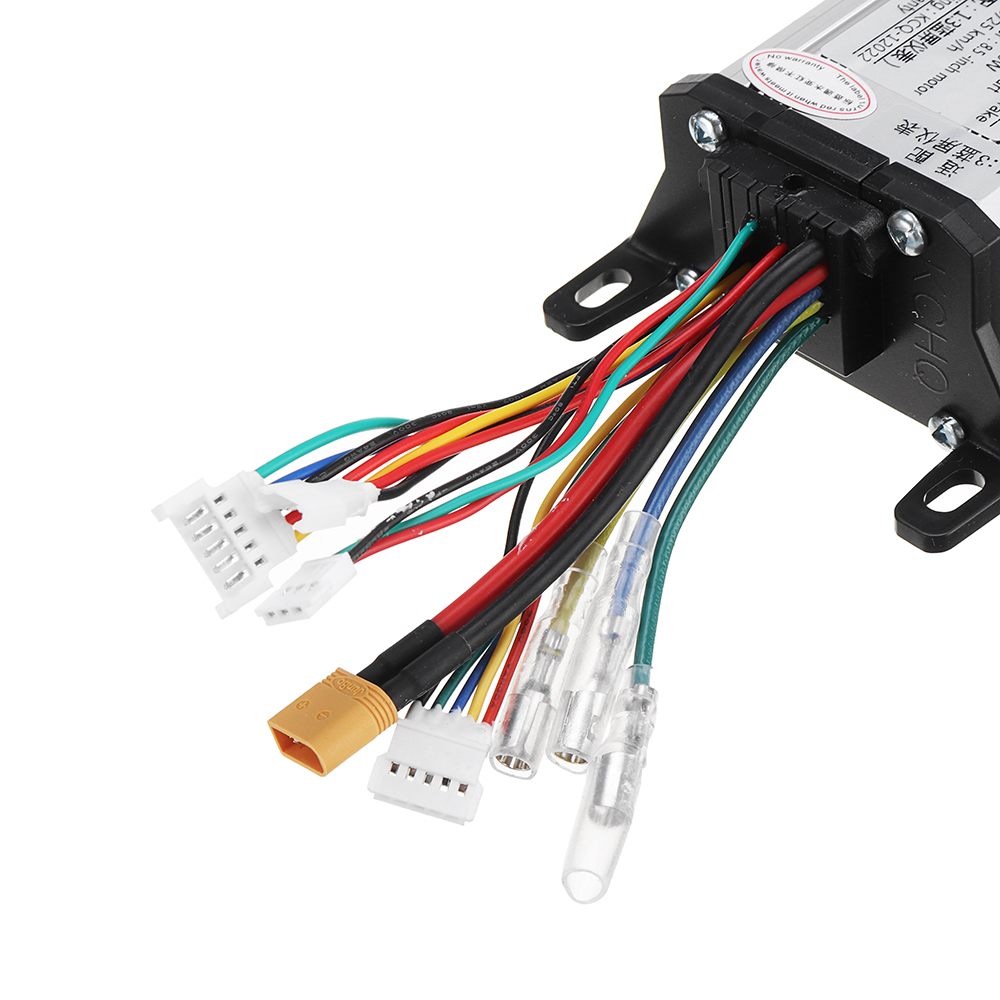

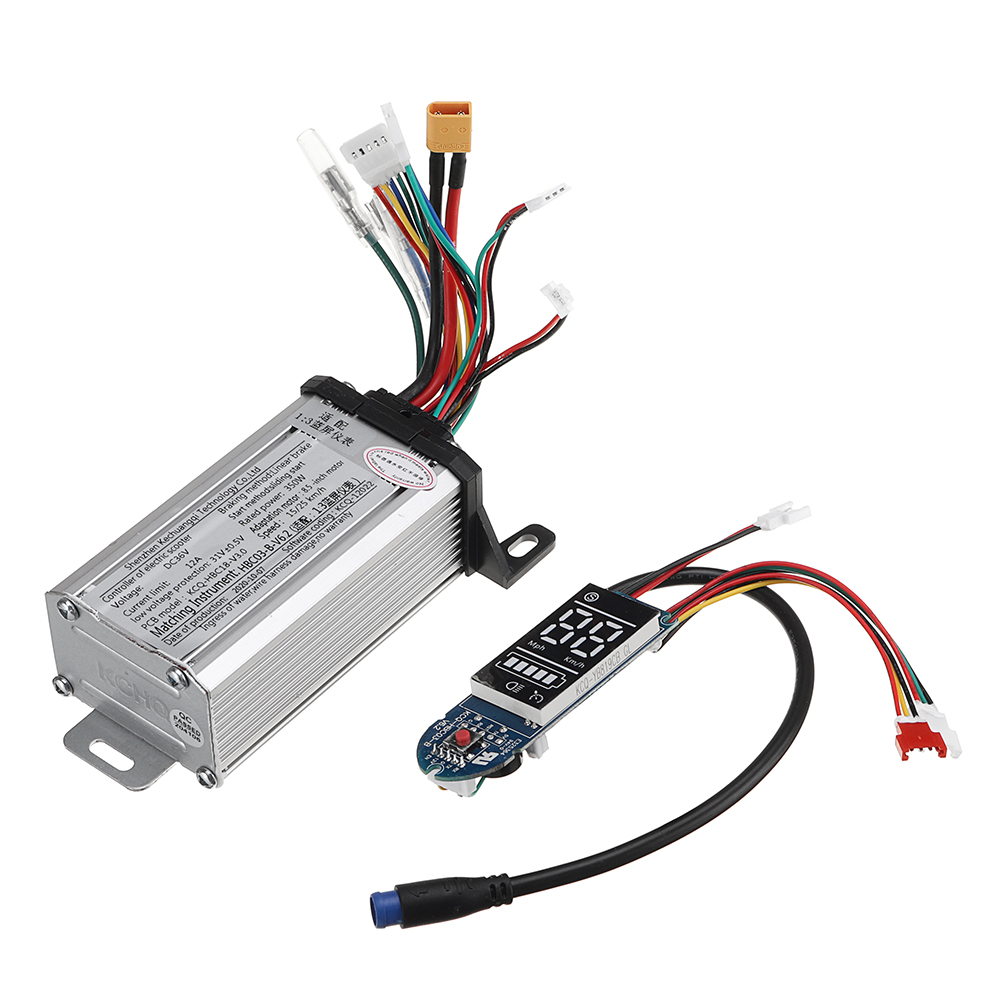

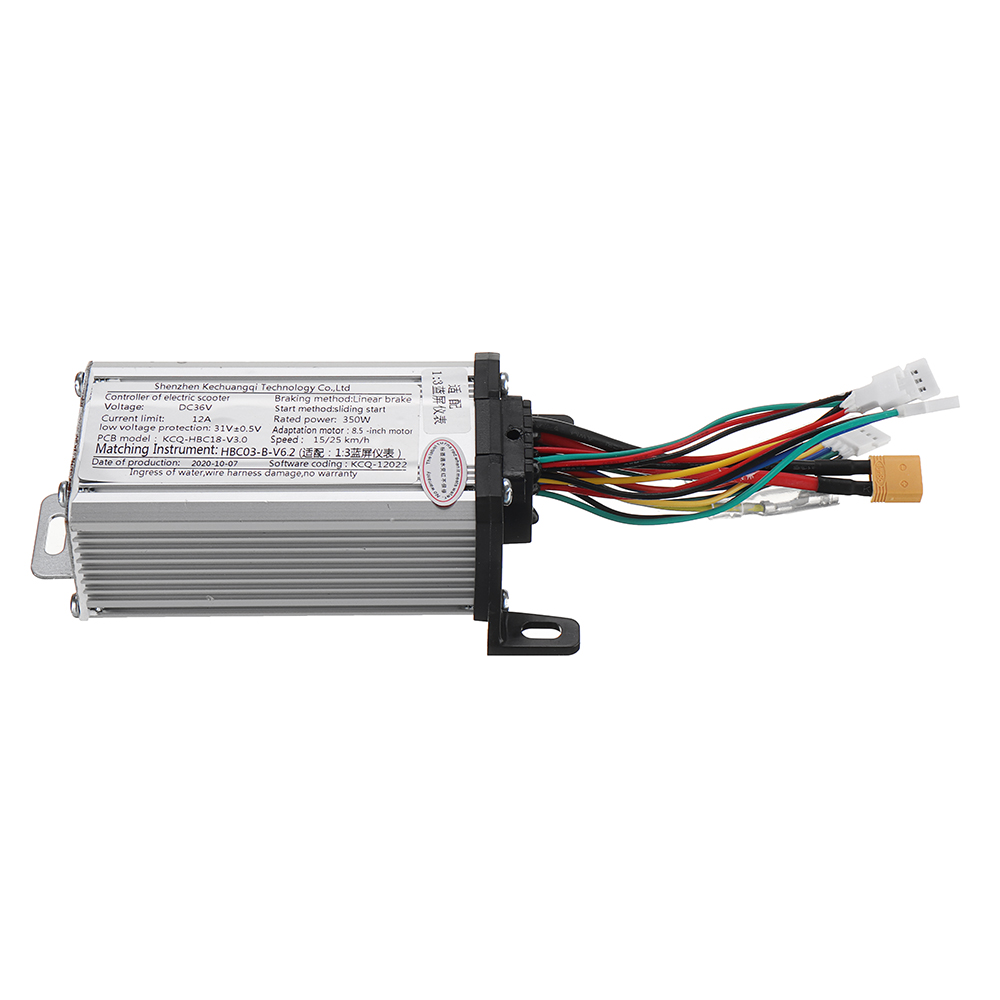

36V 350W XT30 Motor Controller Dashboard For Scooter Electric Bicycle E-bike
$35.63
- Product Code: ED0021364
- Availability: In Stock
- Ex Tax: $35.63
Note:
This controller is the replacement parts for ,if you don't have ID: 1647907 ,you should not buy it
Specification:
| Voltage |
DC 36V |
| Rated Power |
350W |
| Undervoltage |
30V |
| Current-Limiting |
8.8A |
Instruction:
1. Boot: Long press the boot (about 1s). At the same time, the buzzer sounds twice.
2. Shutdown: Press and hold 3s to shut down. At the same time, the buzzer sounds twice.
3. Light: In the power-on state, short press (within 1 second) once, turn on the front and rear lights,
the headlights are always on, and the taillights are flashing.
4. Brake: Electronic brake + disc brakes. The tail light is long on the brakes.
5. Gear shift: The power-on state, the default is the low-speed file;
press the button twice (press twice in one second) to switch the gear position; Green is low gear; red is high gear

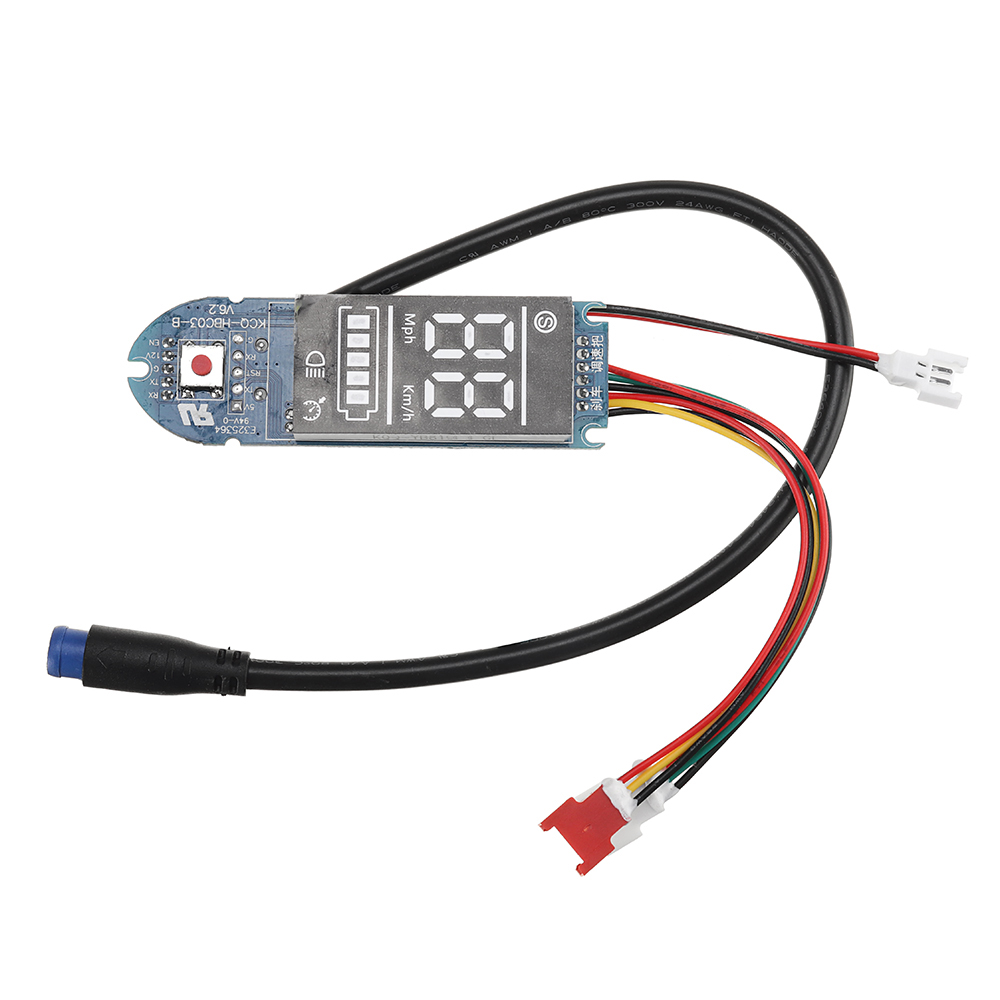

6. Battery display: 33v-36v The first light is long
36v-37v one or two lights long bright
37v-38.5v one or two lights long bright
38.5v or more, one, two, three, four lights
Low voltage alarm: The first light flashes when the battery is below 33V, and the buzzer sounds 6 times.
7. Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,
the throttle must return to the initial position to release the low voltage and return to normal operation.
8. Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control;
after the cruise is fixed, the throttle can be released; press the brake
or push the throttle again to release the cruise control and enter the manual mode.
9. Speed: The low speed gear is 15±2km/h; the high speed gear is 25±2km/h.
10.Automatic shutdown: Automatically shut down 10 minutes after no operation.
Error Code:
1) "E1" Motor Hall failure
2) "E2" MOS
MOS fault or motor phase line short circuit fault
3) "E3" Brake failure
4) "E4" Handlebar failure
5) "E5" Undervoltage protection
6) "E6" Instrument/control communication failure
7) "E7" Overvoltage protection
8) "E8" Controller op amp failure
9) "E9" Stall protection
Package Included:
| 1 X |

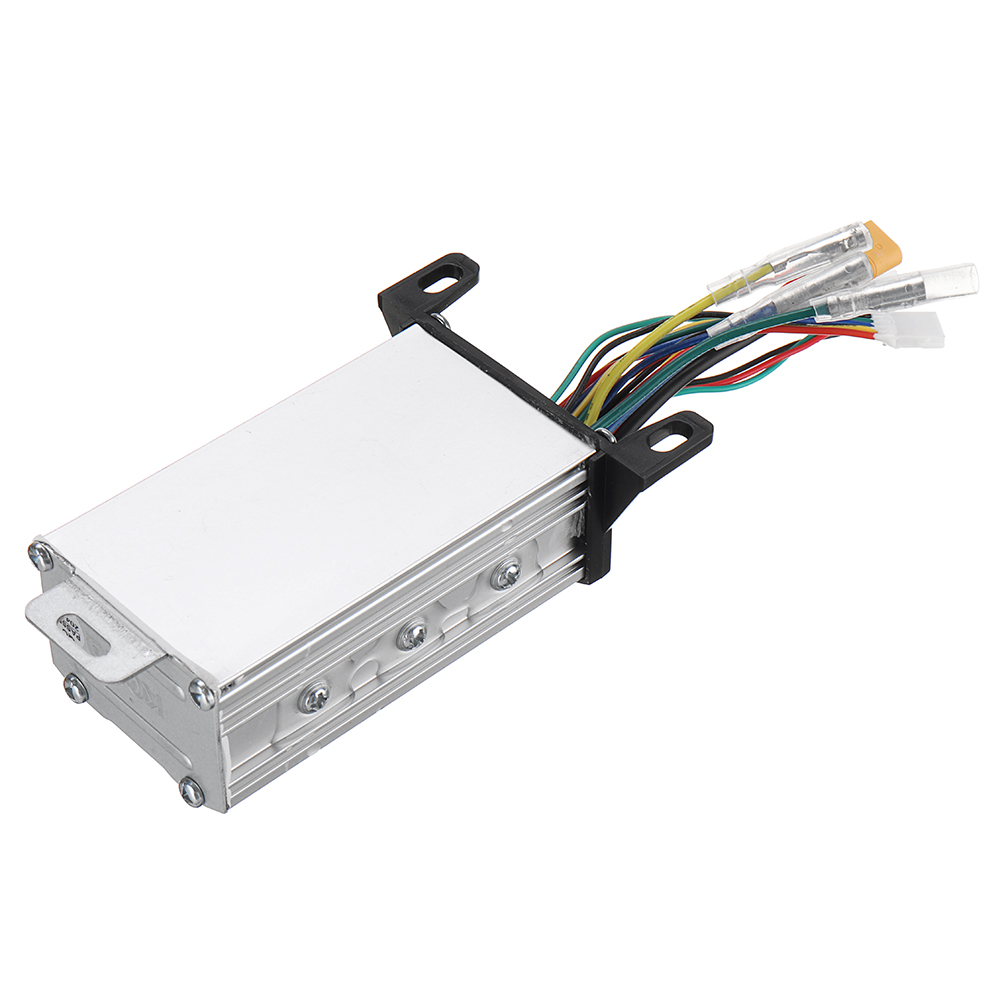

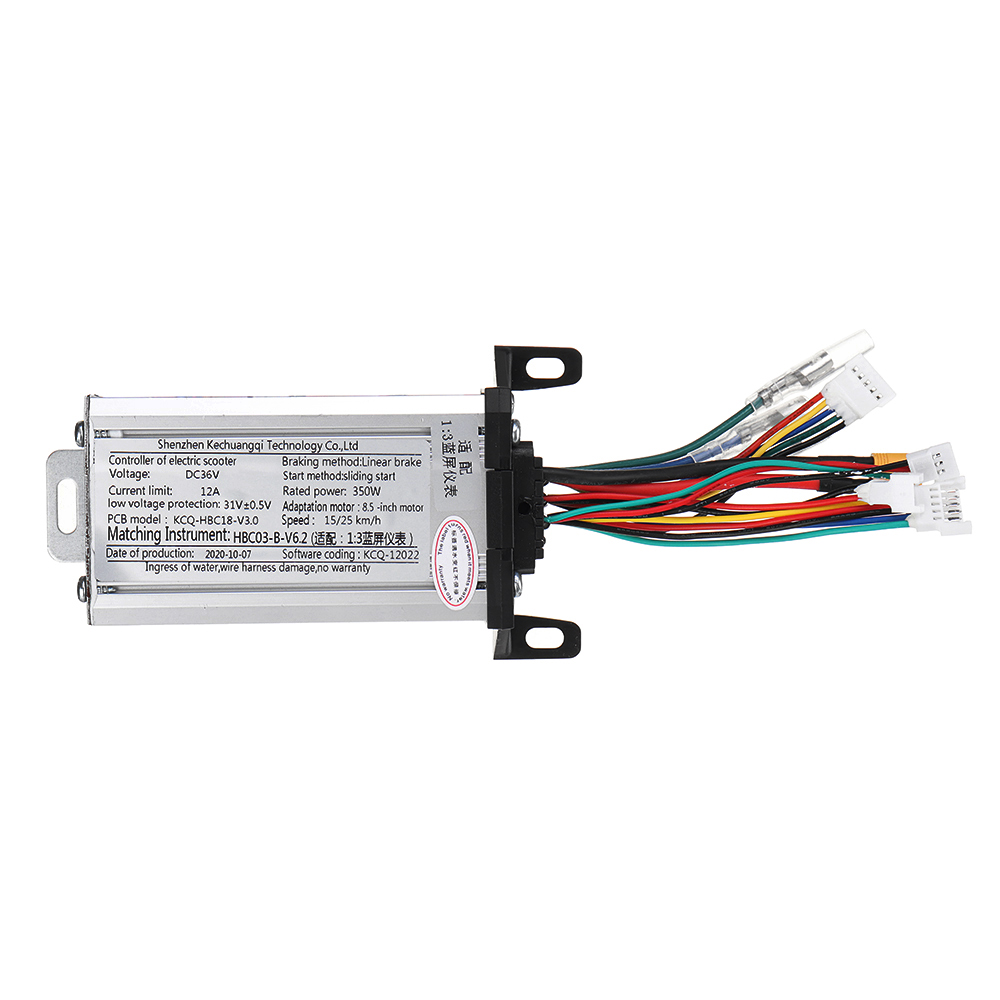

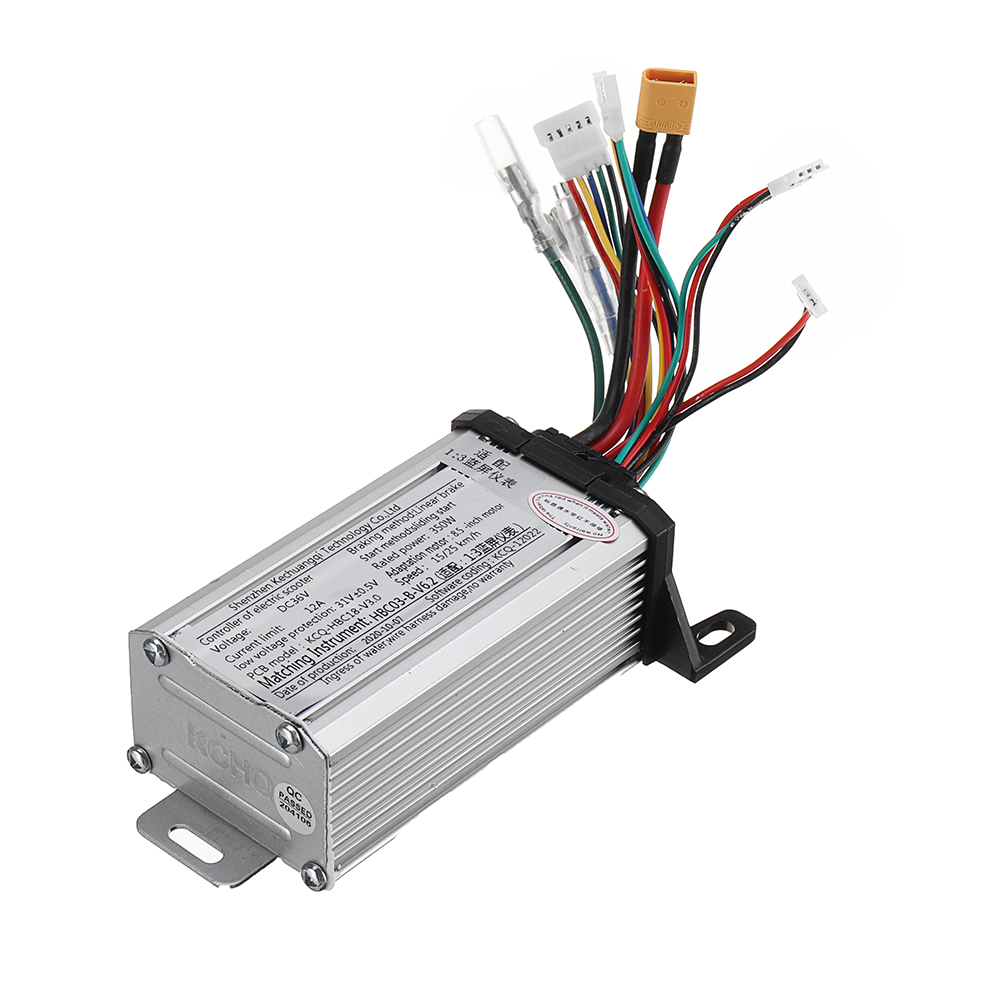

Controller |
| 1 X |

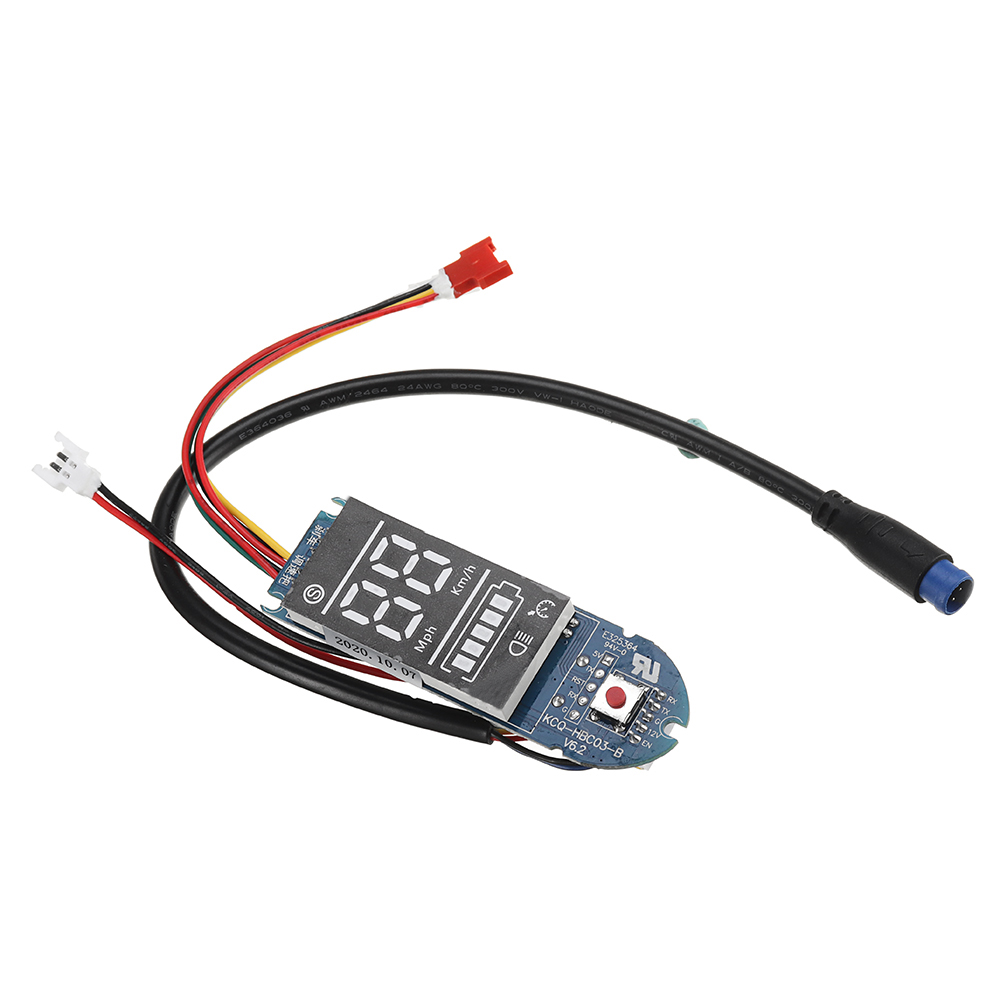

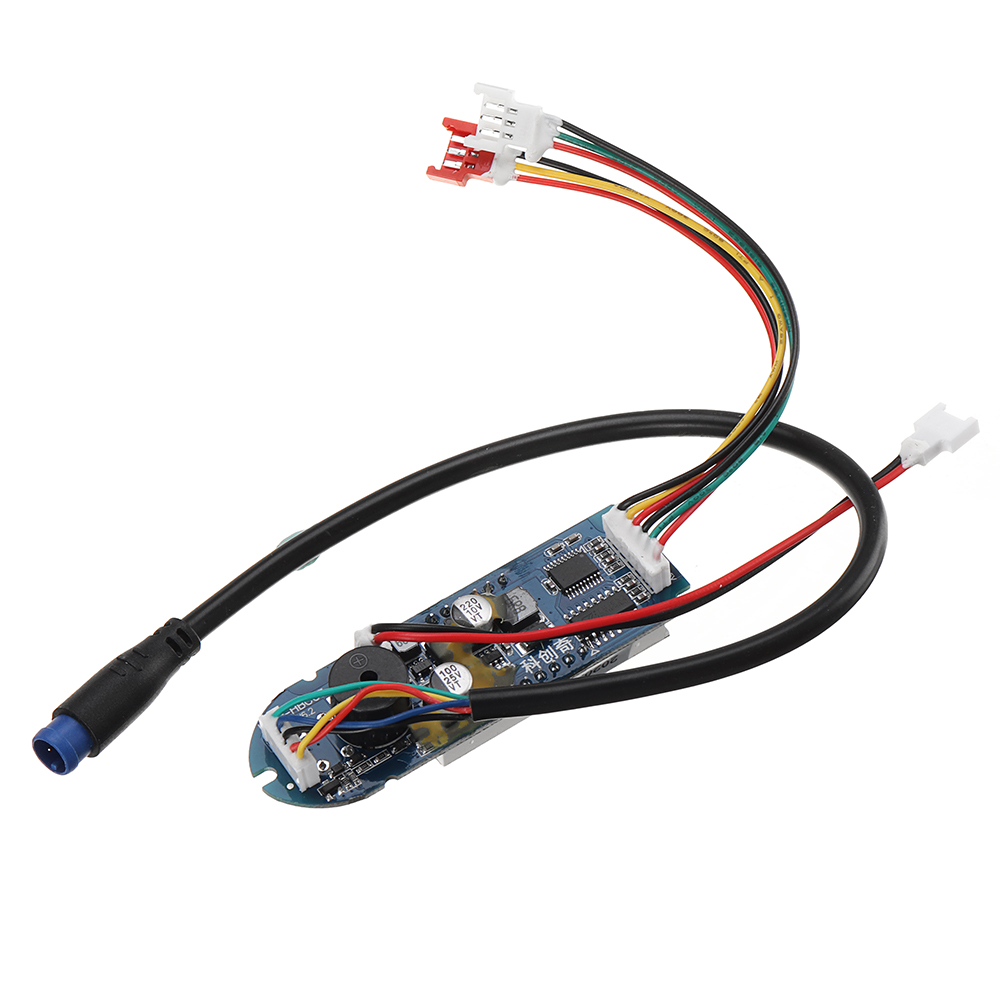

Dashboard |
