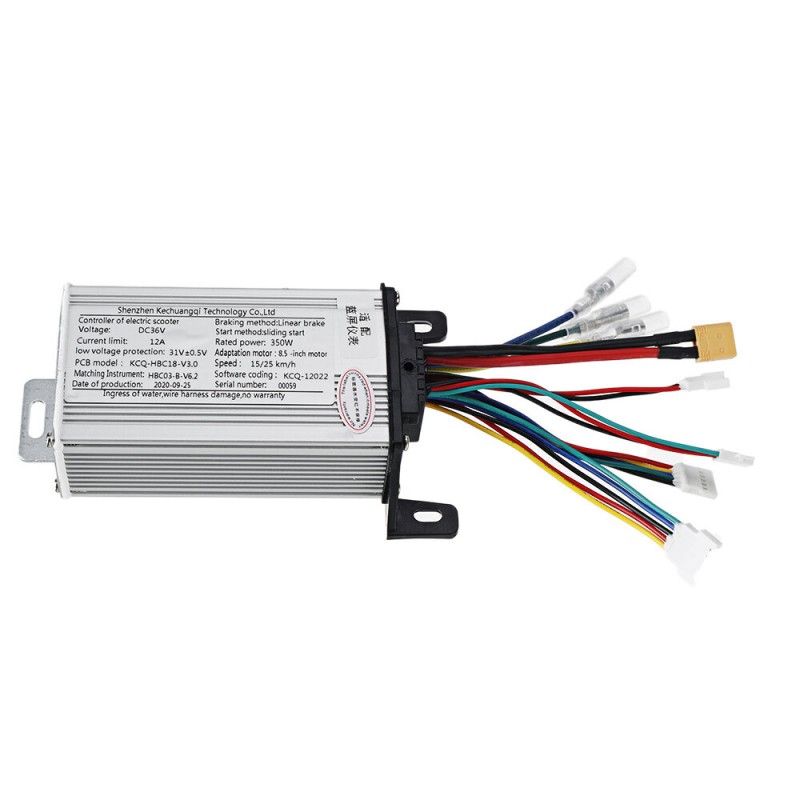

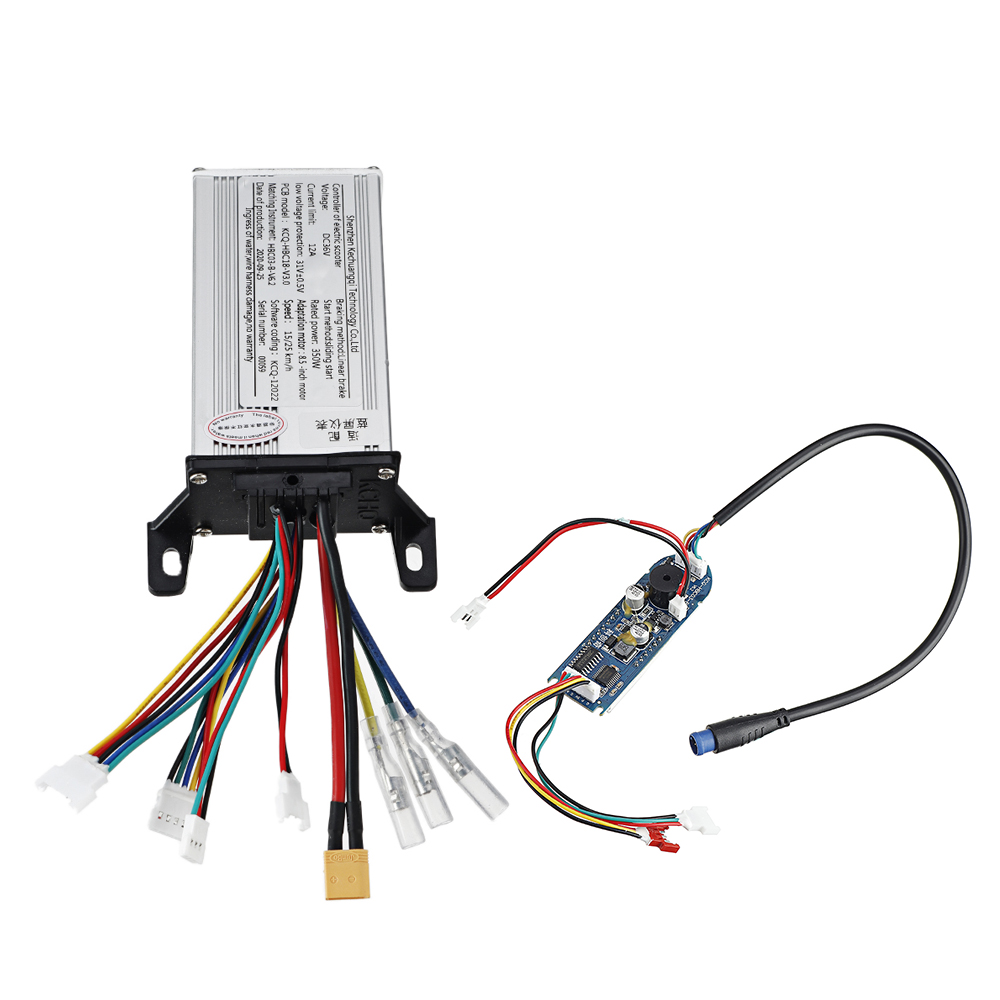

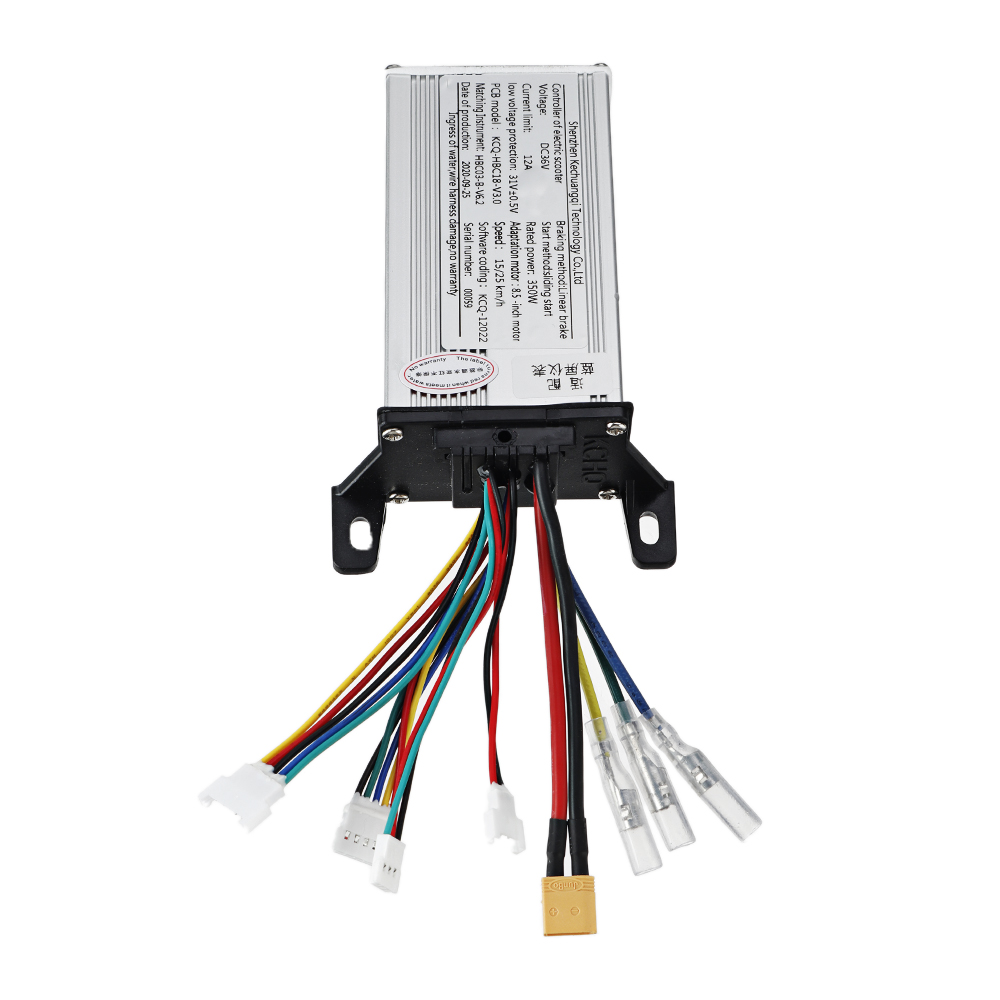

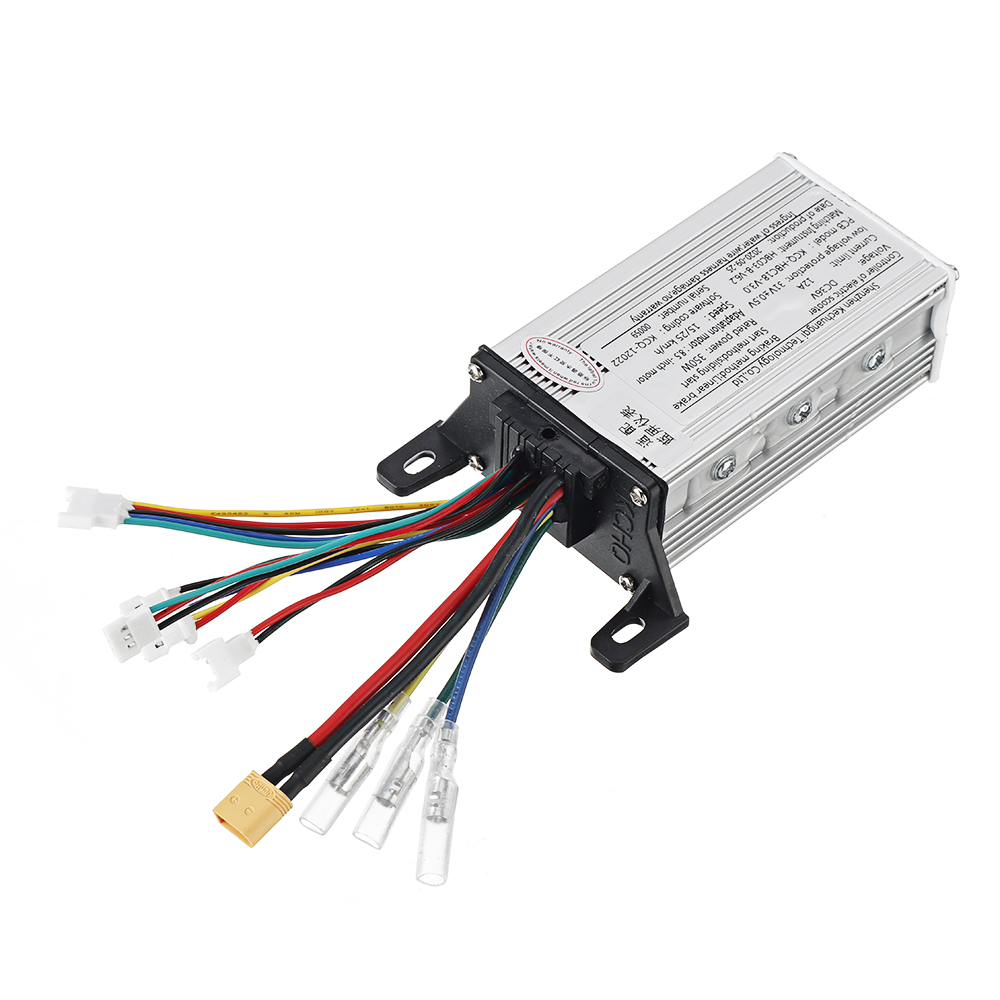

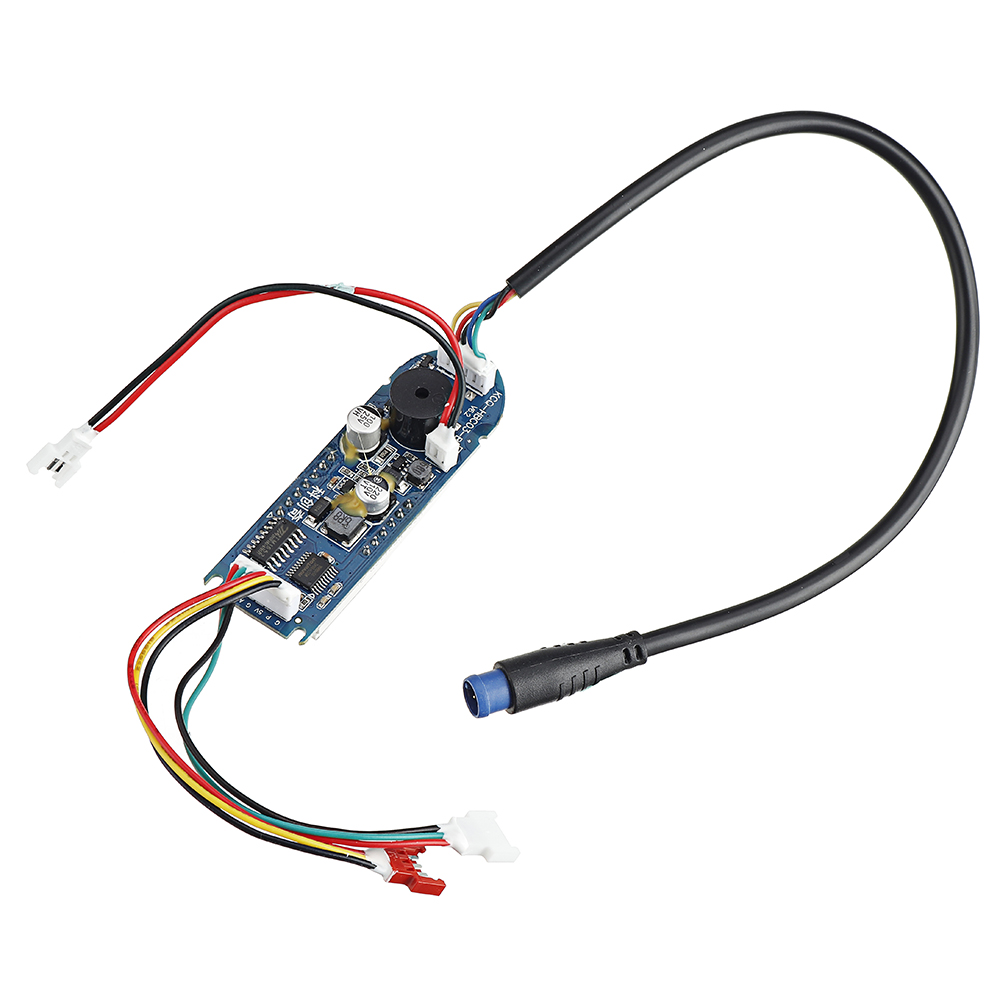

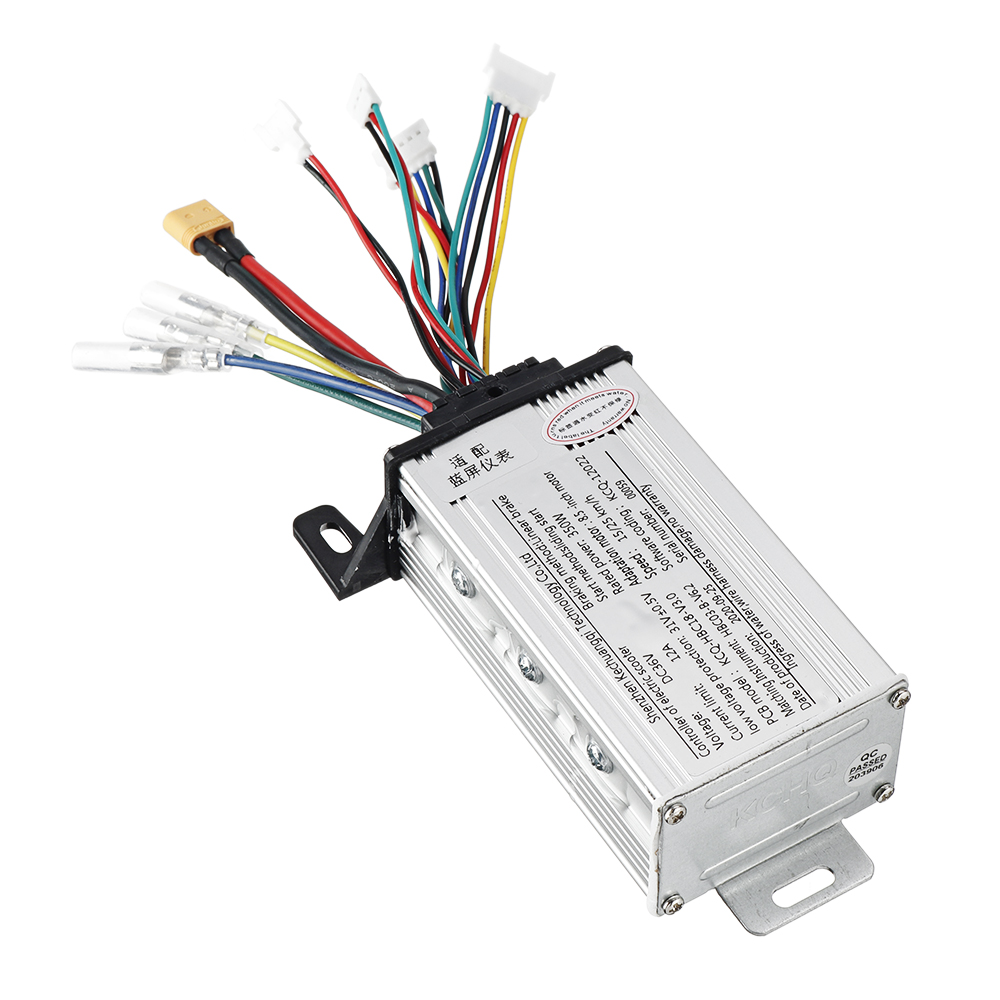

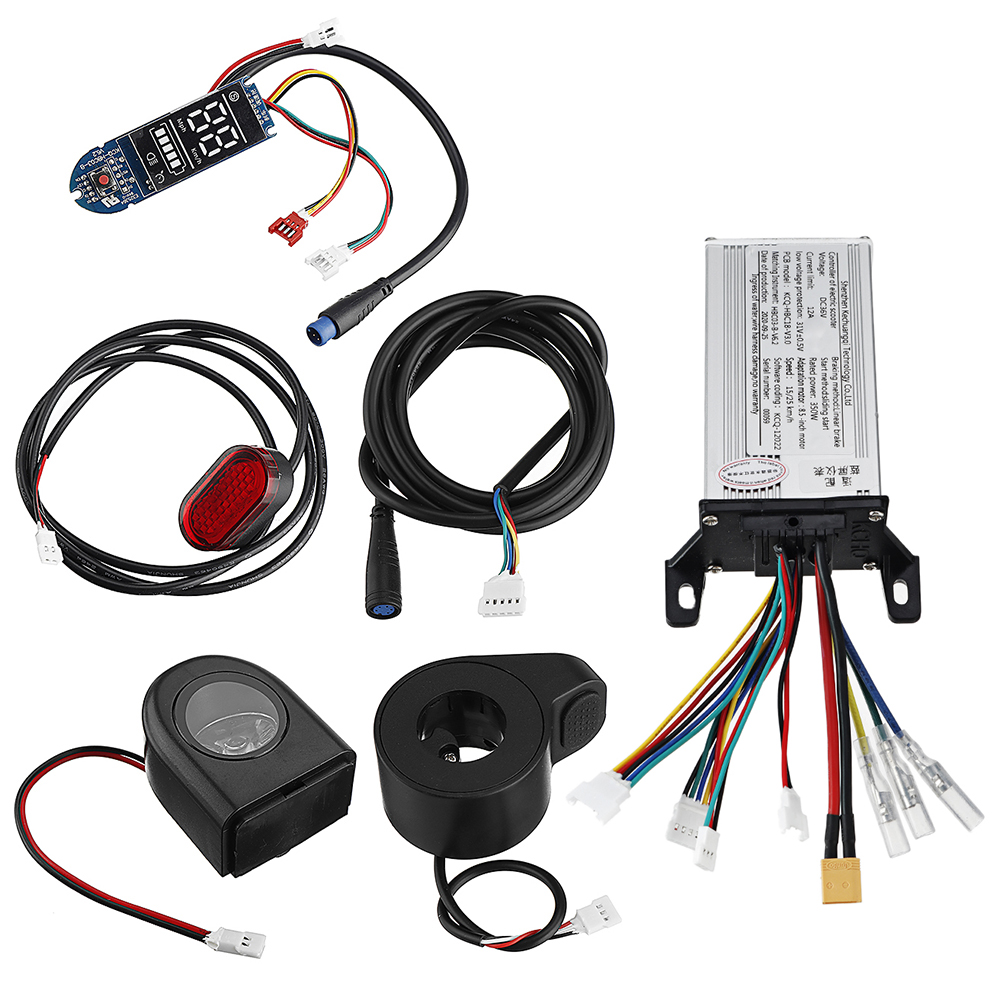

36V 350W XT30 Motor Controller+Dashboard+Front/Rear Light For Scooter Electric Bicycle E-bike

36V 350W XT30 Motor Controller+Dashboard+Front/Rear Light For Scooter Electric Bicycle E-bike

$49.99

Product Code: ED0021375
Availability: In Stock
Ex Tax: $49.99

Qty

Tags: Scooter

Description
Reviews (0)

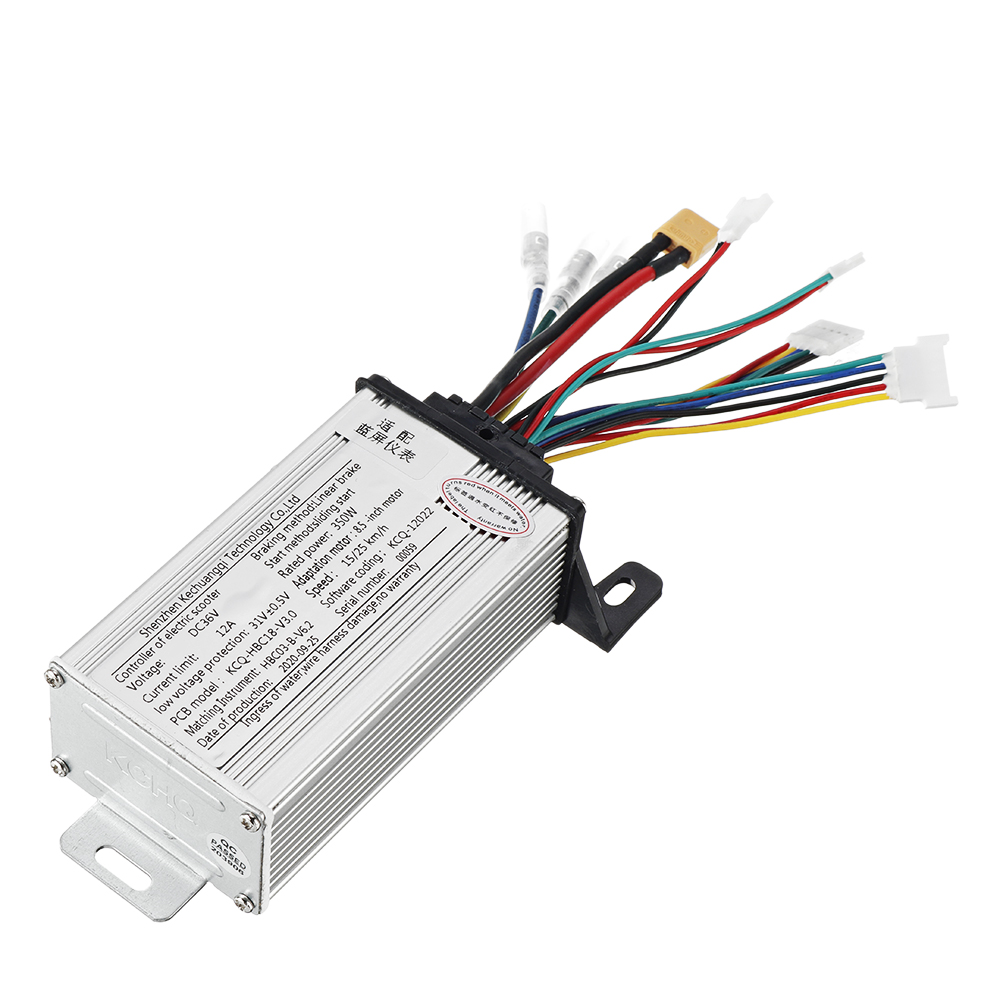

Specifications:

Voltage	DC 36V
Rated Power	350W
Undervoltage	30V
Current-Limiting	8.8A

Instruction:

1. Boot: Long press the boot (about 1s). At the same time, the buzzer sounds twice.

2. Shutdown: Press and hold 3s to shut down. At the same time, the buzzer sounds twice.

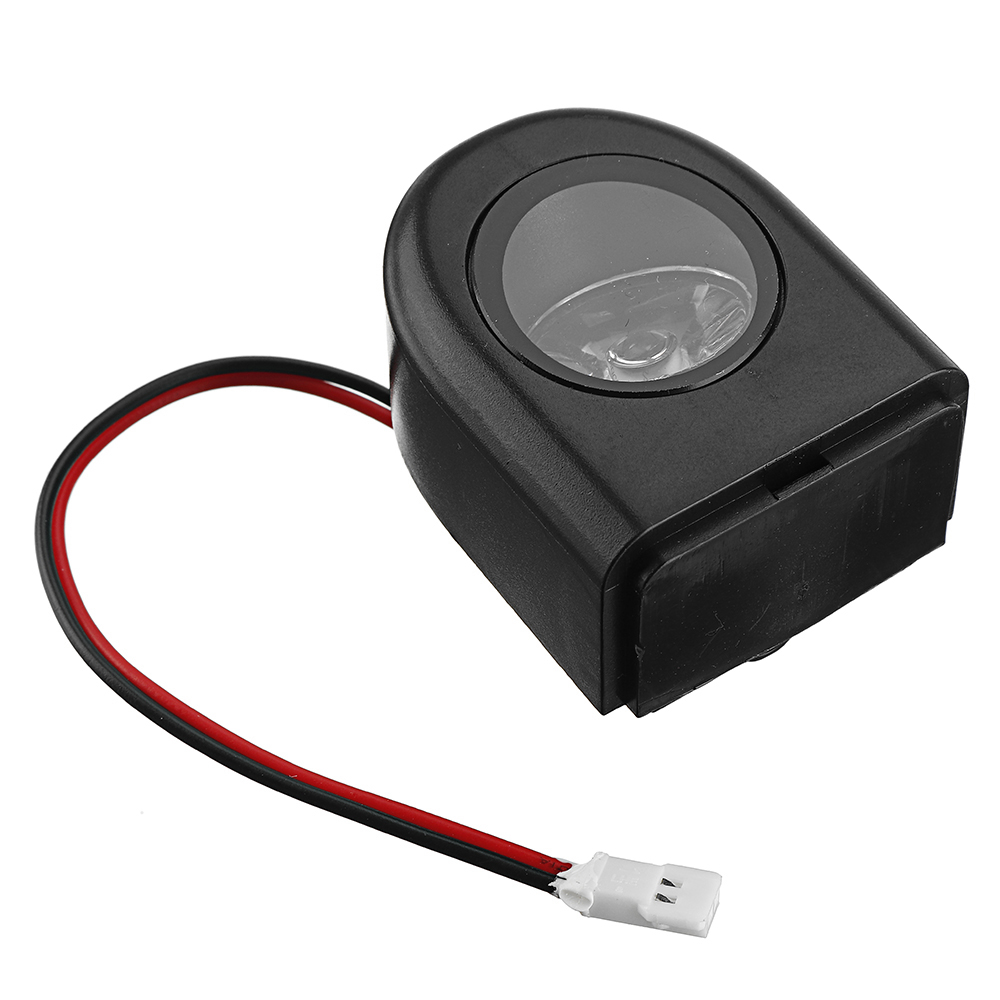

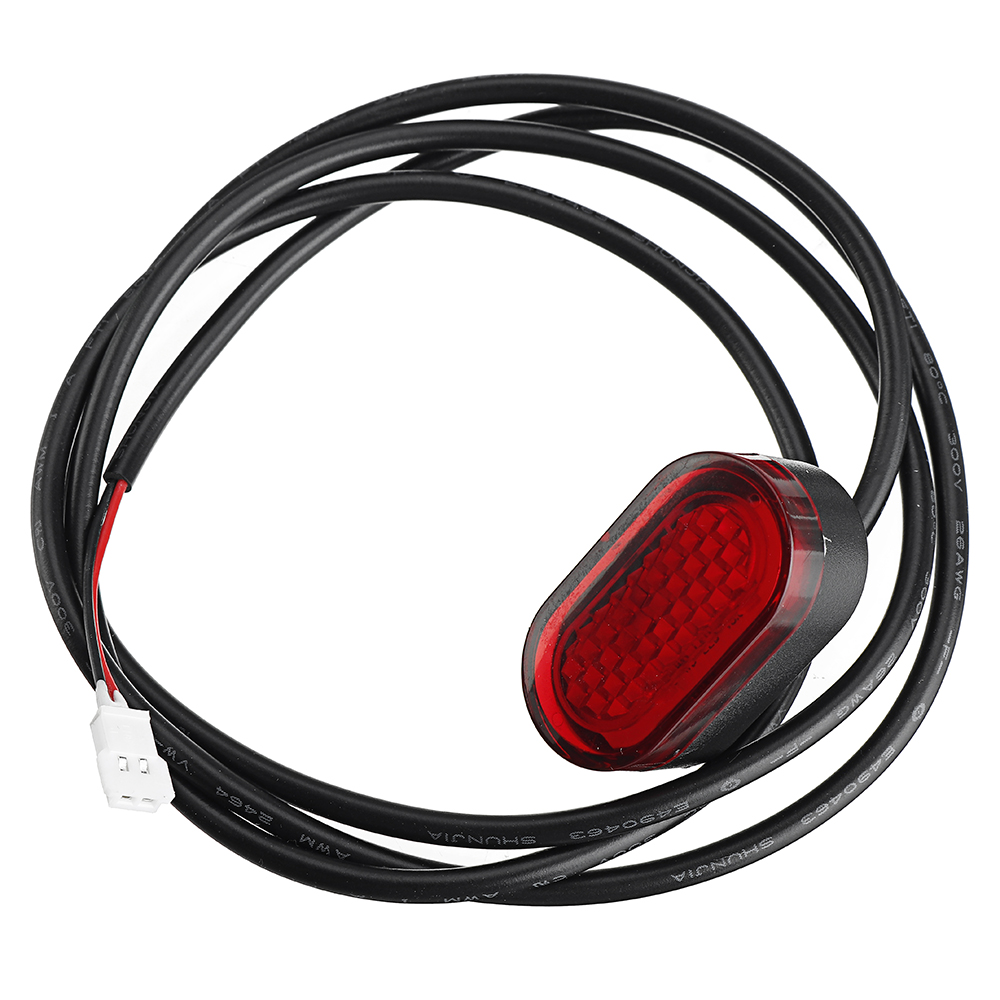

3. Light: In the power-on state, short press (within 1 second) once, turn on the front and rear lights,
the headlights are always on, and the taillights are flashing.

4. Brake: Electronic brake + disc brakes. The tail light is long on the brakes.

5. Gear shift: The power-on state, the default is the low-speed file;
press the button twice (press twice in one second) to switch the gear position; Green is low gear; red is high gear

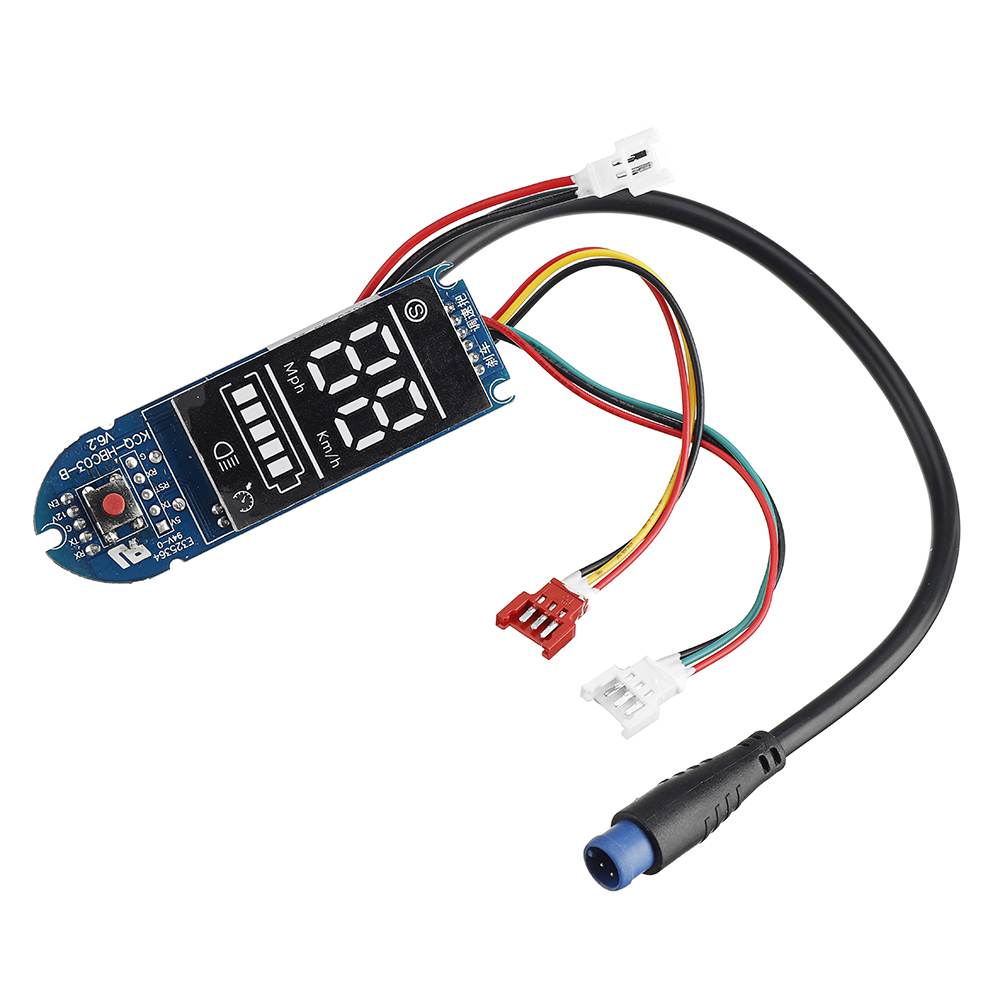

6. Battery display: 33v-36v The first light is long

36v-37v one or two lights long bright

37v-38.5v one or two lights long bright

38.5v or more, one, two, three, four lights

Low voltage alarm: The first light flashes when the battery is below 33V, and the buzzer sounds 6 times.

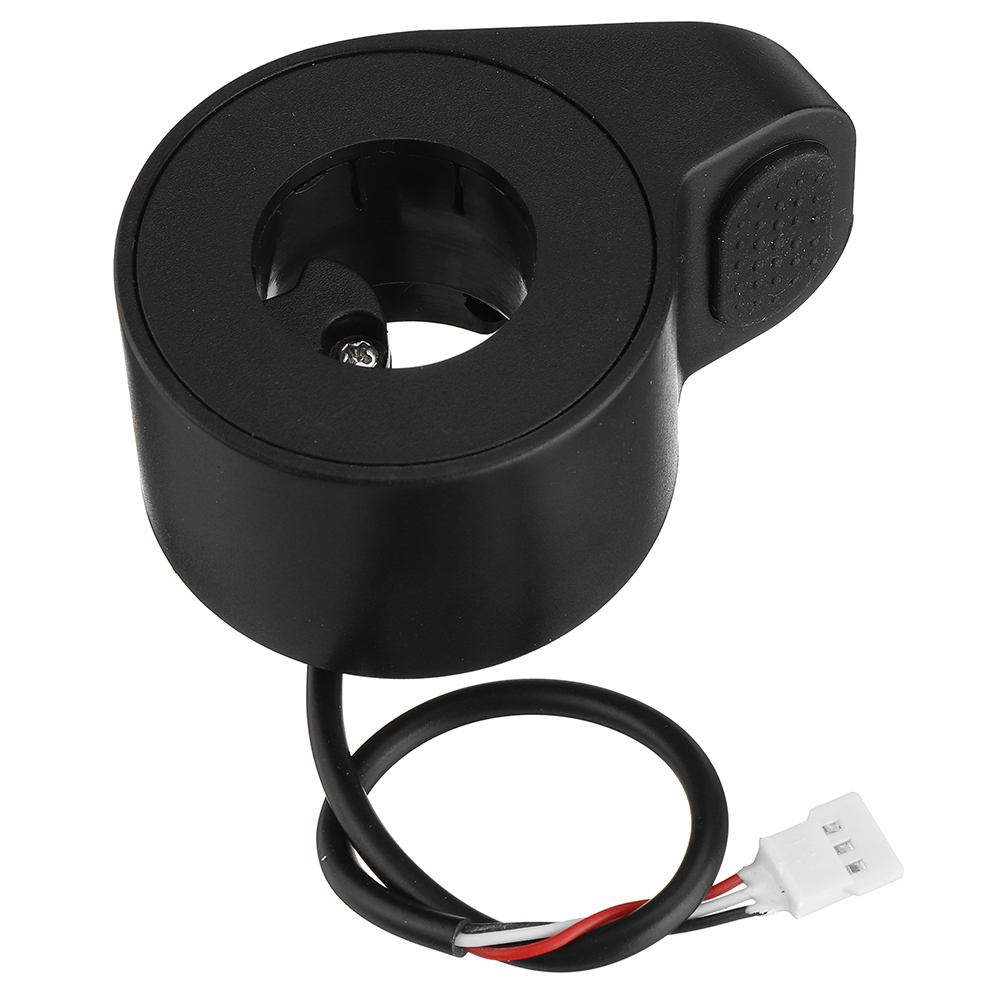

7. Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,
the throttle must return to the initial position to release the low voltage and return to normal operation.

8. Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control;
after the cruise is fixed, the throttle can be released; press the brake
or push the throttle again to release the cruise control and enter the manual mode.

9. Speed: The low speed gear is 15±2km/h; the high speed gear is 25±2km/h.

10.Automatic shutdown: Automatically shut down 10 minutes after no operation.

Power Display:

1) Voltage 38.2V-42V The first second third fourth fifth lights are always on

2) Voltage 36.6V-38.2V The first second third fourth light is always on

3) Voltage 34.5V-36.6V The first second third lights are always on

4) Voltage 32.8V-34.5V The first second light is always on

5) Voltage 31.5V-32.8V The first light is always on

6) Voltage 30-31.5V The last grid flashes

7) Turn-off of motor with voltage below 31V

Error Code:

1) "E1" Motor Hall failure
