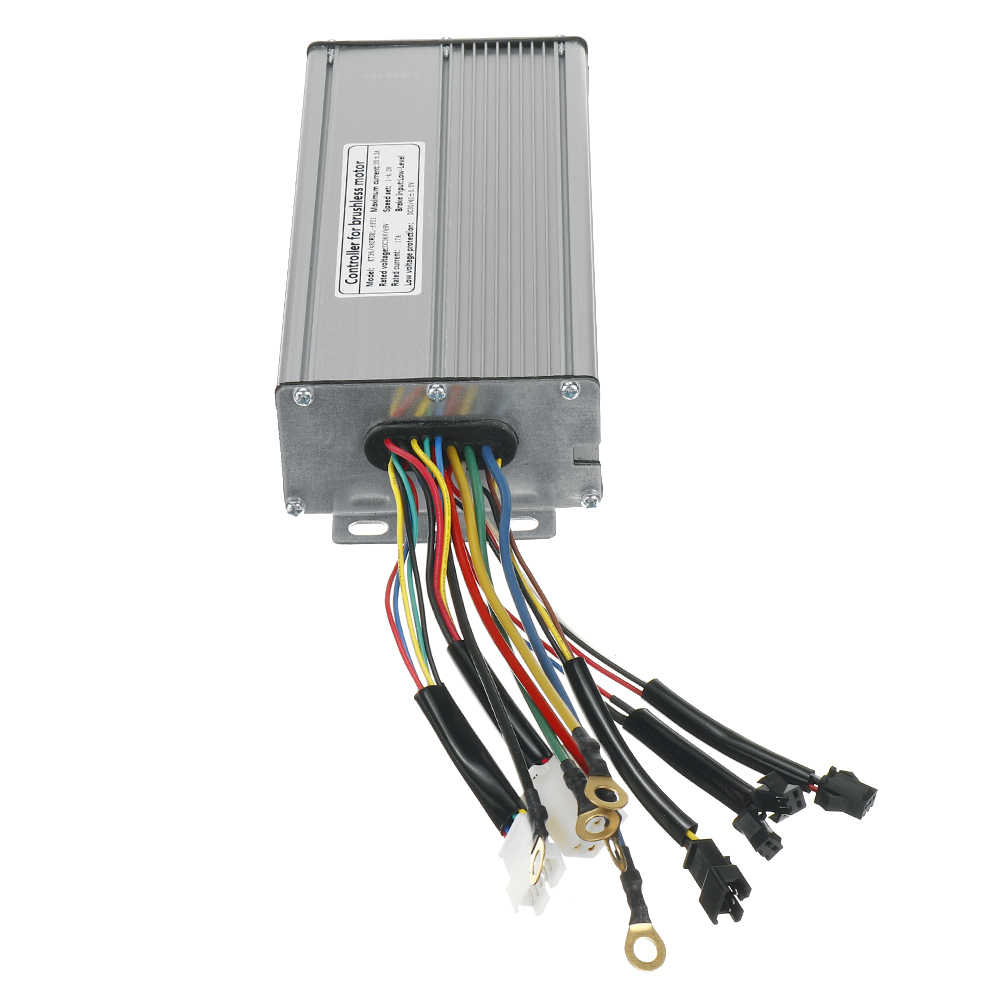

36V/48V 35A 1000W/1500W Electric Scooter Brushless Bicycle Standard Square Wave Controller Regular Cable Kt Kunteng Series Motor Conversion Kit

$68.99

  • Product Code: ED0021309
  • Availability: In Stock
  • Ex Tax: $68.99

Tags: Brushless Controller

Specification:
Controller dimension: About 19*8*4 cm
weight: 550g
cable length :all about 15cm
12 mosfets
Maximum current: 35±1A
Rated voltage: DC36V/48V
Speed set: 1-4.2V
Rated current: 18A
Brake input : Low-Level
Low voltage protection: DC40±0.5V

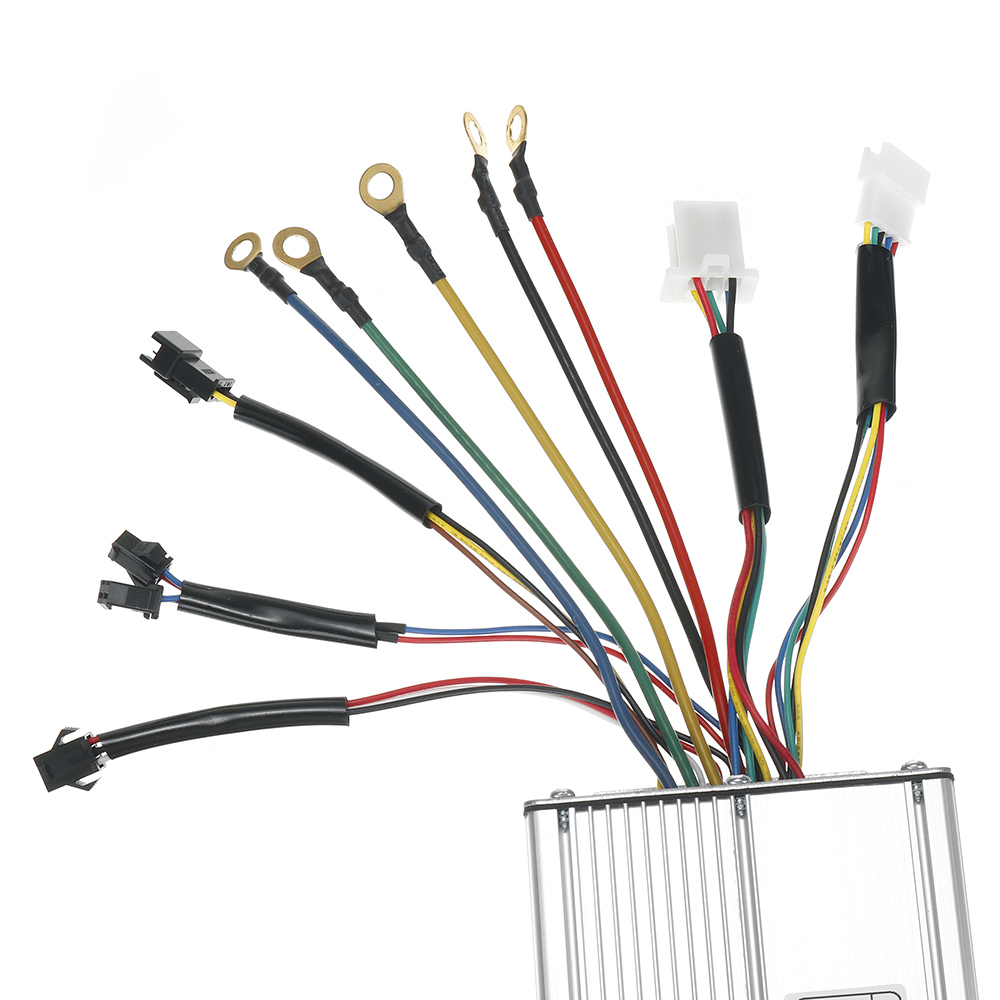

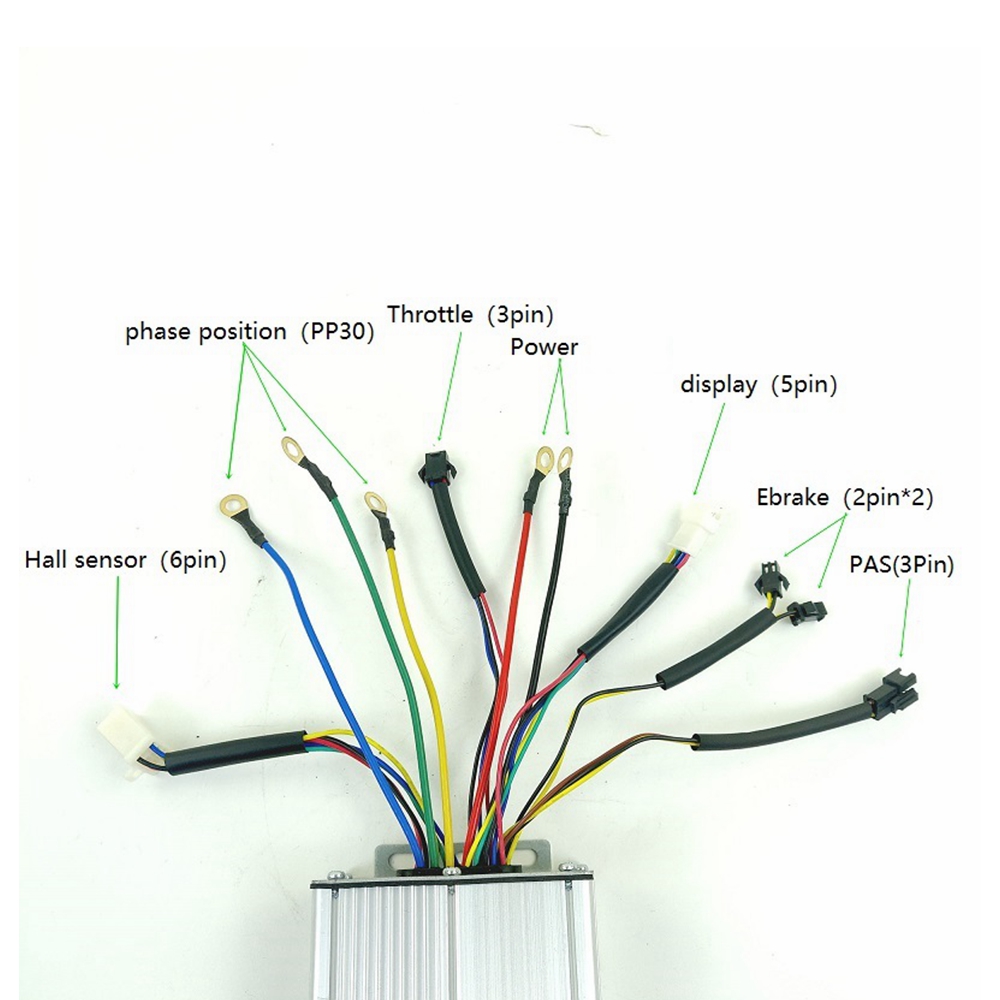

​FUNCTION & PLUG all bullet
motor (3-green-yellow-blue bullet + 6pin SM plug ) power (red-black bullet plug)
display (5 pin SM plug) throttle (3pin SM plug)
ebrake (3pin SM plug ) *2 PAS (3pin SM plug)
1T4 cable plug(8pin waterproof plug-Throttle-Display-Ebrake*2)
PAS (3pin waterproof plug)

Note:
KT controller just only compatible with KT display(same communication protocol) .
Please make sure that your system is KT system.
Waterproof connector is special that I can't promise you it can 100% compatible(because of the line sequance).
But most can use it if you check carefully.
Please check your motor cable if it is Julet or Higo 9pin waterproof plug(there is some letters on the connector ).
Julet is better.But for 250W 350W 500W.Higo is also OK.
Pakcage Included:
1 X Controller
