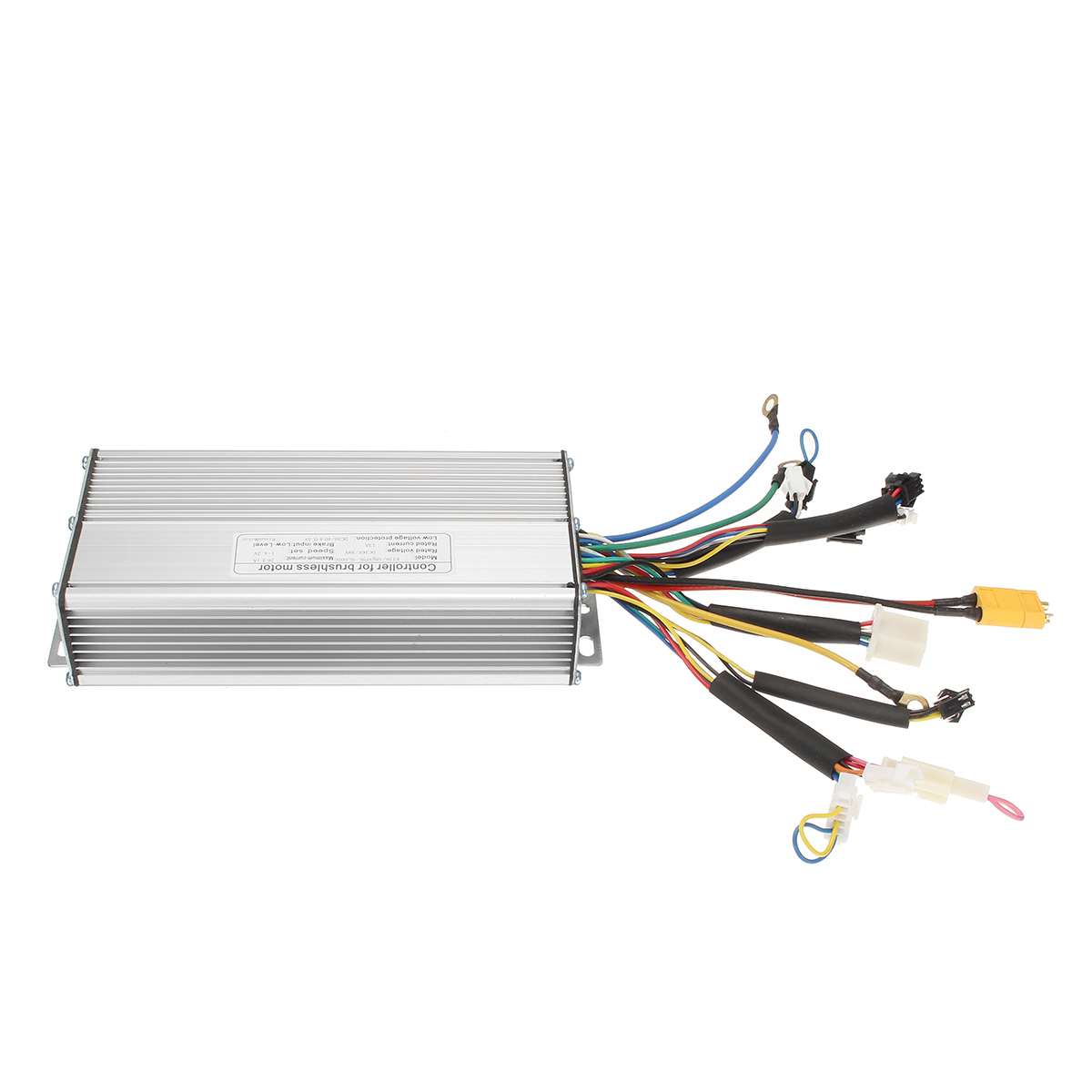

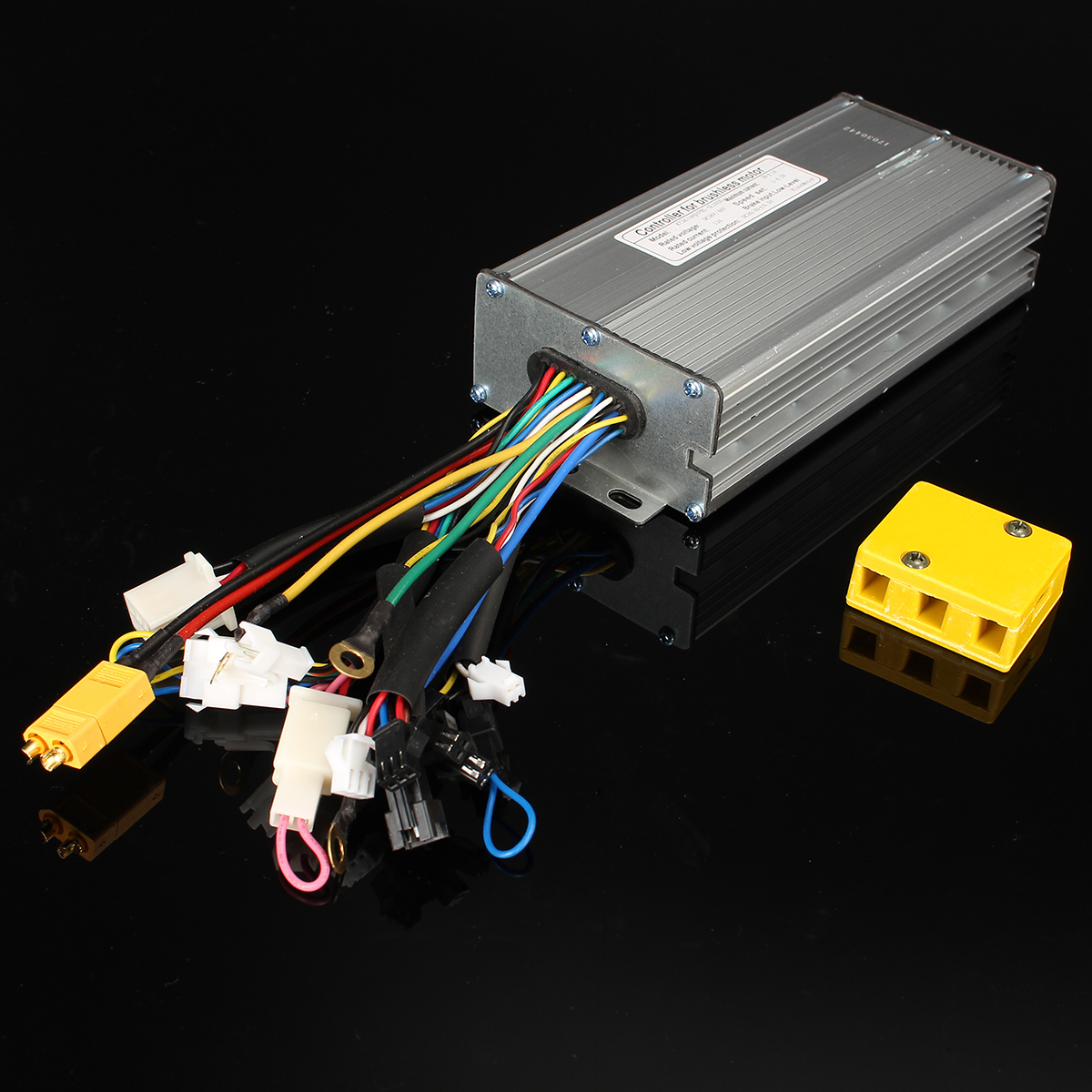

36V/48V 500W/700W Electric Bicycle E-bike Scooter Brushless DC Motor Controller
$55.99
- Product Code: ED0021277
- Availability: In Stock
- Ex Tax: $55.99
Description:
1. Use a wave sine control, the motor torque ripple is minimized to achieve no noise, no vibration, smooth and comfortable of driving vehicle;
2. Increase the low speed district of motor torque to meet the high torque requirements of the vehicle during its start-up and climbing,
improving climbing performance, zero start-up is available;
improving climbing performance, zero start-up is available;
3. Improve the operating efficiency of the motor; reduce the controller temperature-rise, increasing the vehicle continuous mileage;
4. With a multi-protection functions such as the stall, over-current, over-temperature, under-voltage, speed driving, phase shortage,
output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety;
output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety;
5. It can be customized for all types of controllers for users.
Specification:

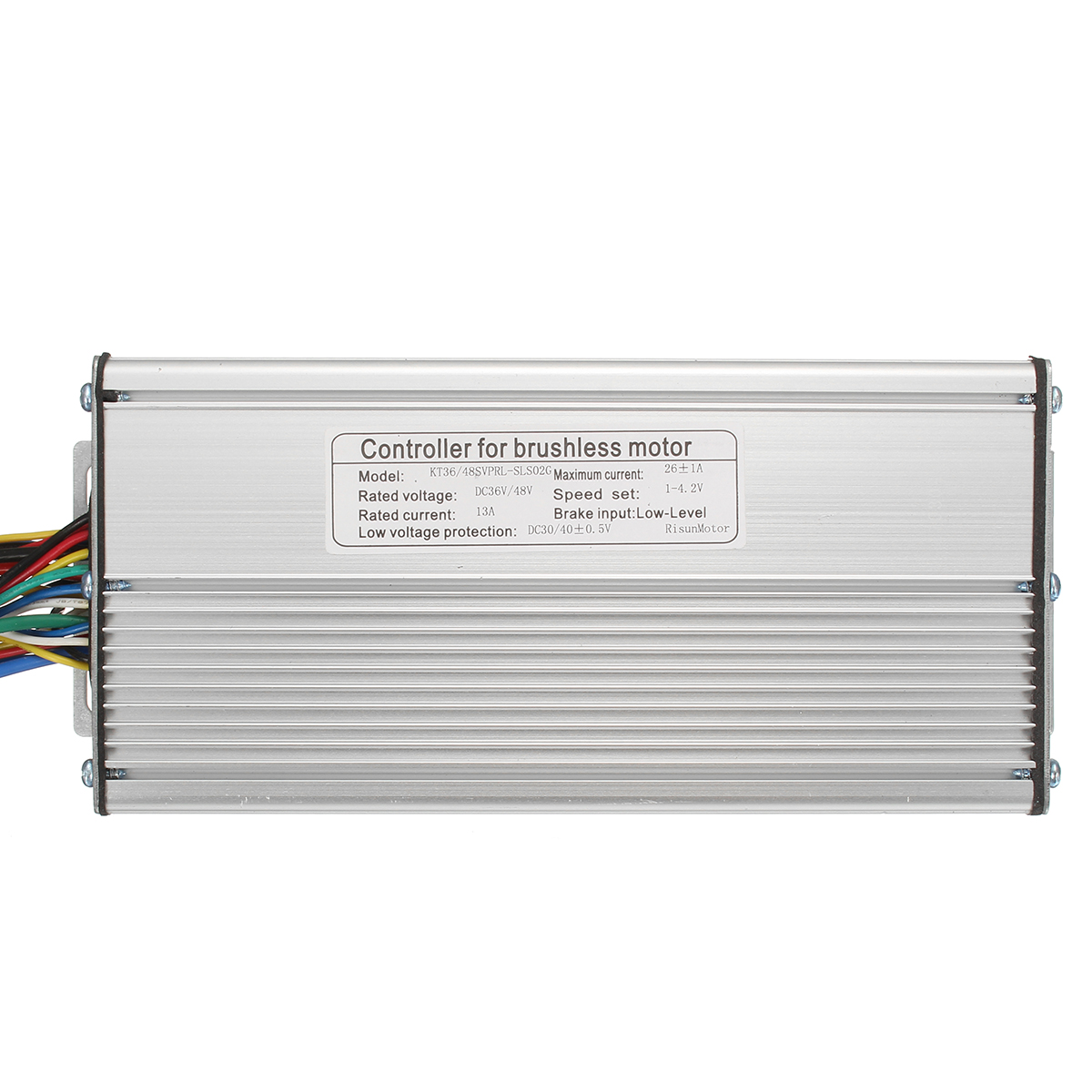

Main technical parameters:
Rated voltage: DC36 or 48V;
Rated current: 13±1A;
Maximum current: 26A±1A;

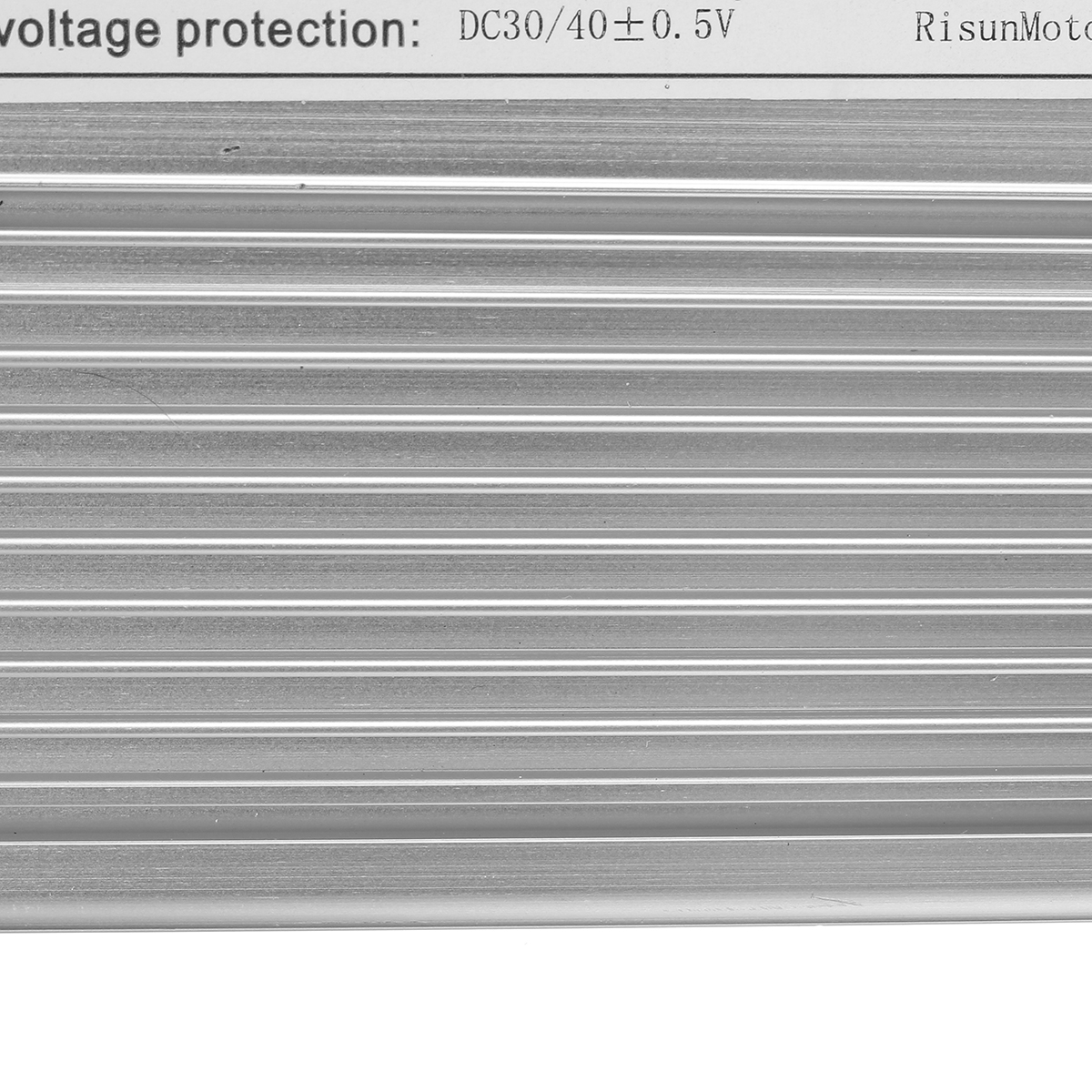

Min. Voltage & Under-voltage protection: DC30V/40±0.5V
Rated power: 468/624W;
Maximum power: 936/1248W;
Applications: Max. 36V/48V 500W or 36V/48V 750W Motor
MOSFET: 12 pcs MOSFET
Static power consumption: <50mA;
Driving mode: sine wave
Waterproof: basic protection of water washout IP64
Electromagnetic compatibility : outgoing lines can be added with the jacketed ring for interference protection
Lights drive: Optional headlight control and instrument headlight indicator

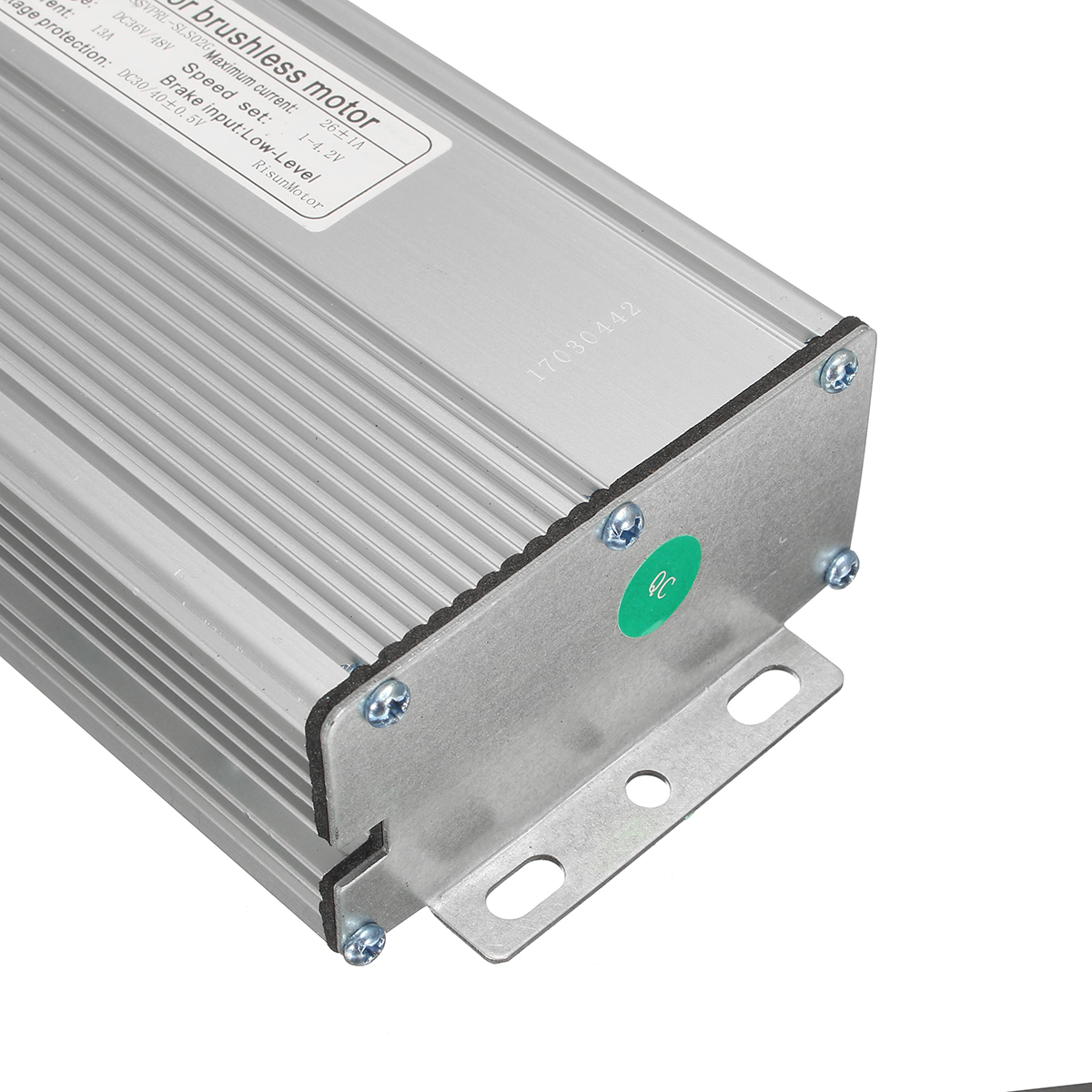

Housing holder: both ends are with the ears
Housing color: aluminum natural or black

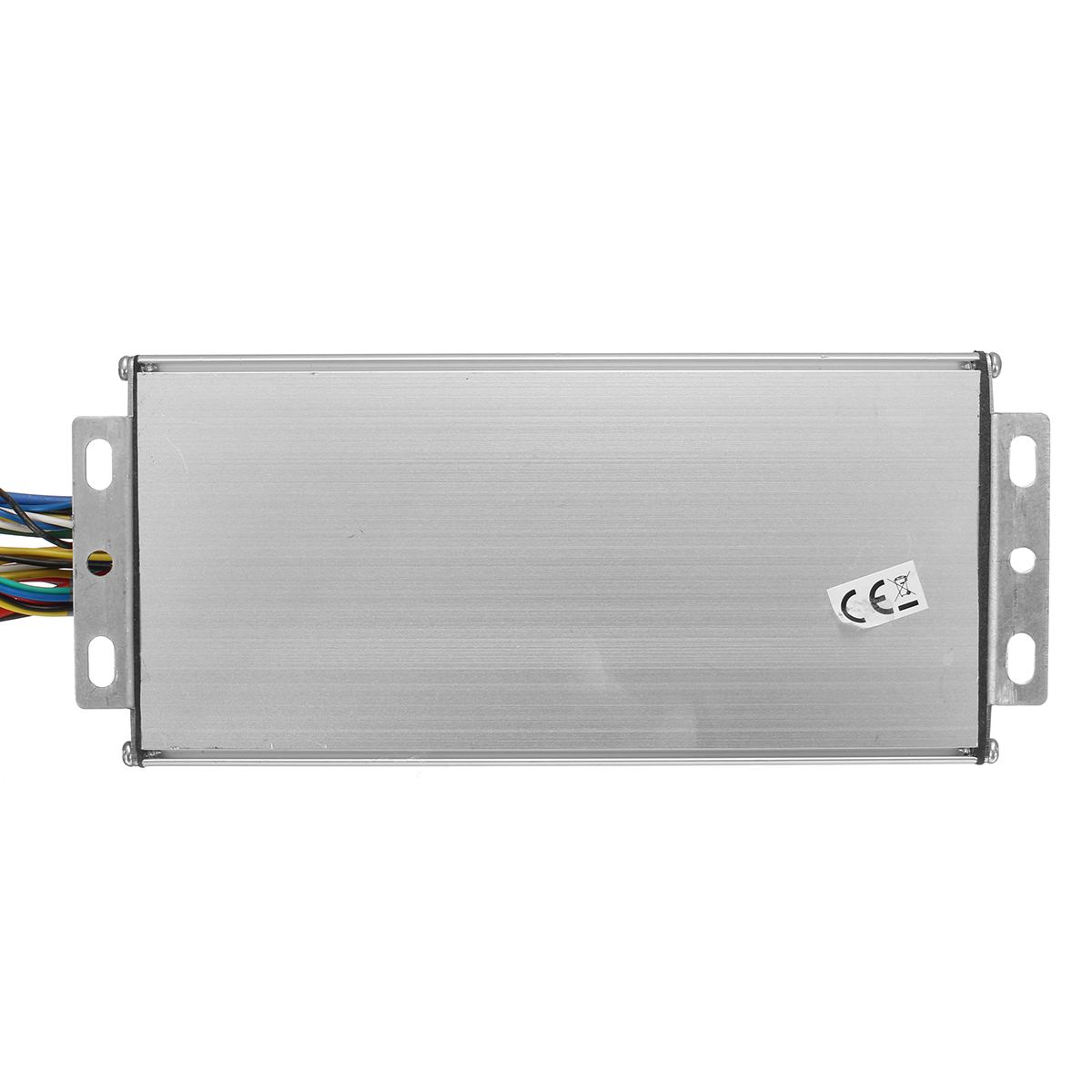

Product certification: CE certification

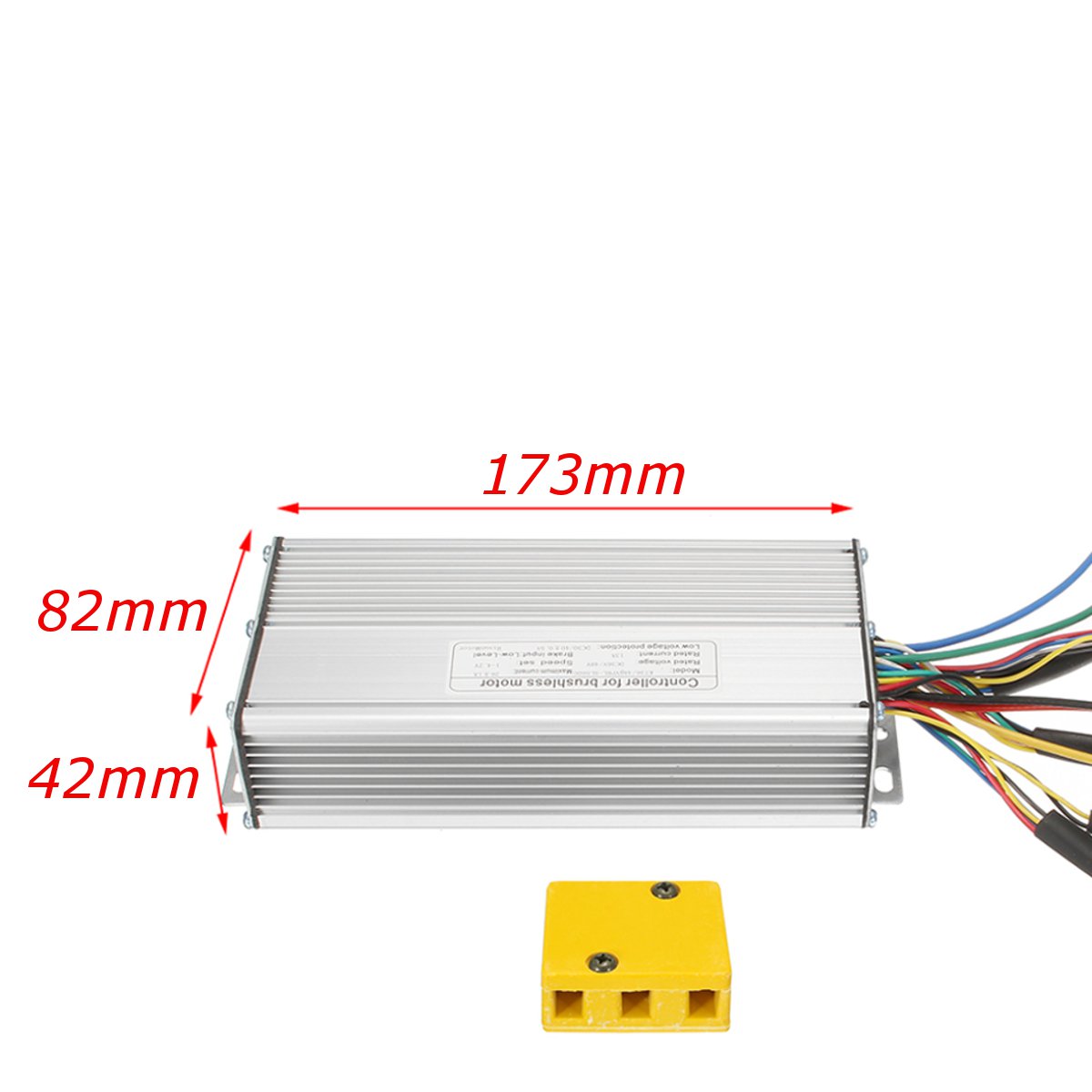

Dimensions: 173x82x42mm
Package Included:

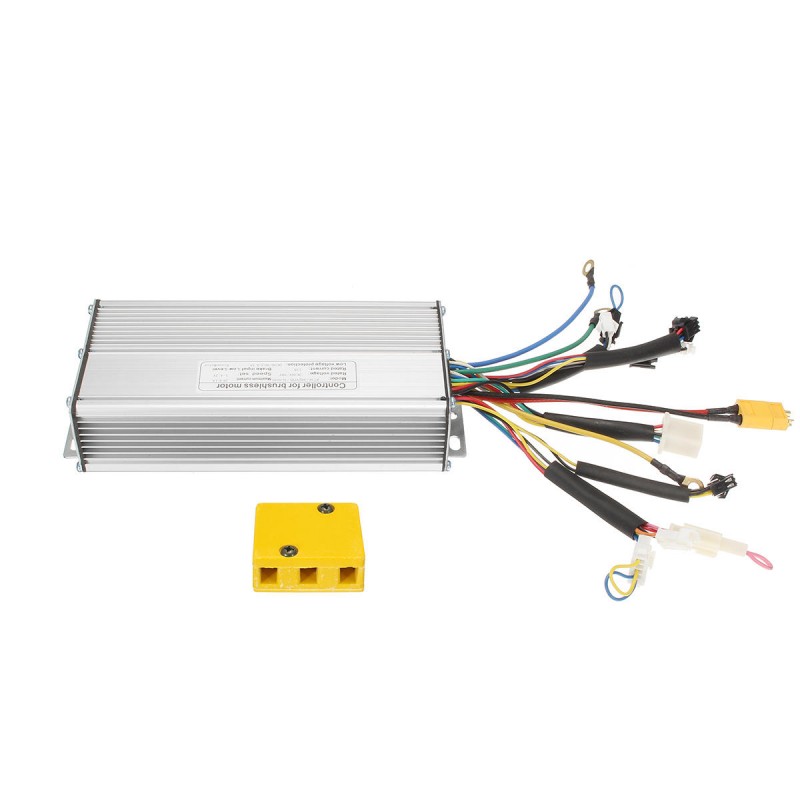

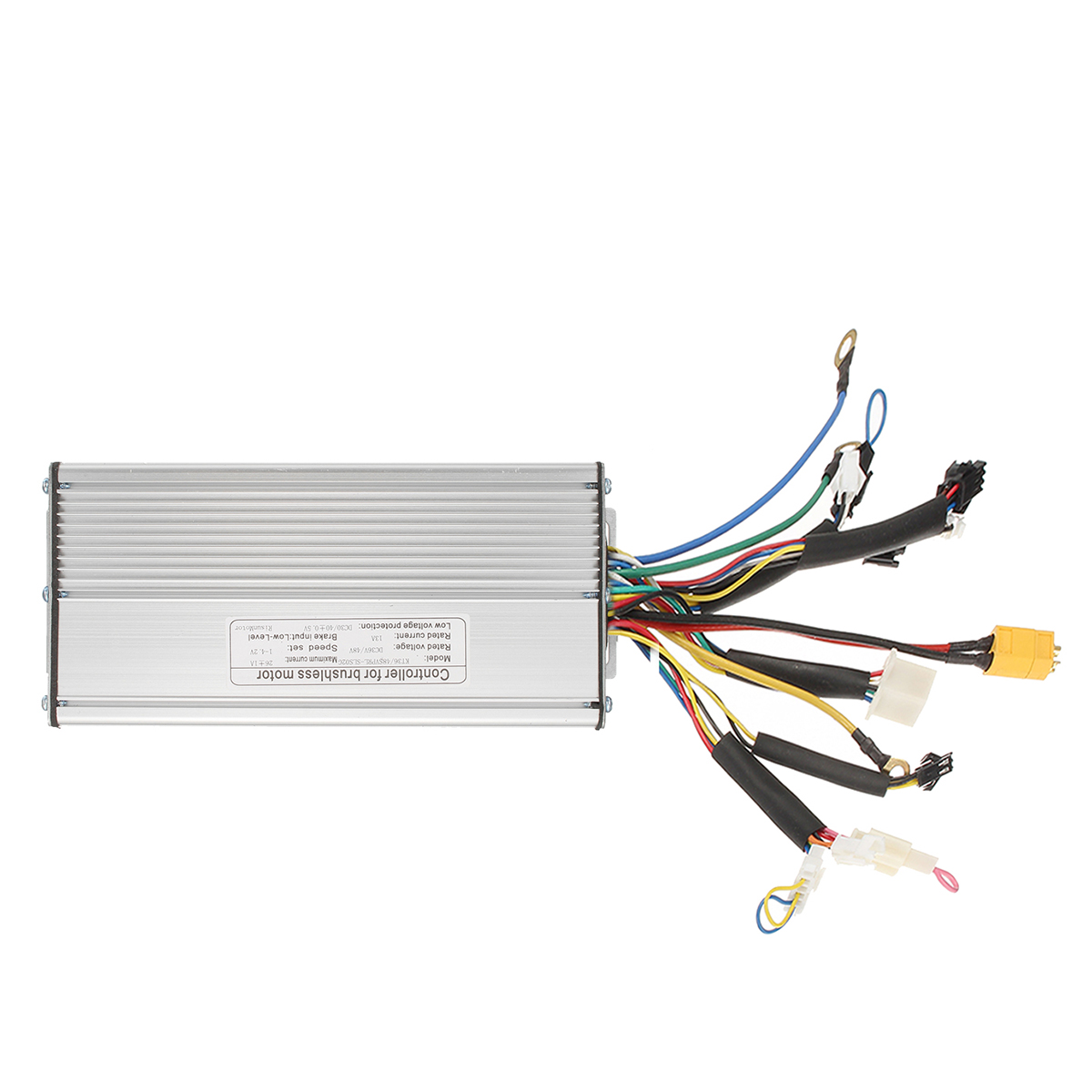

1 X Brushless DC Motor Controller
