36V 5A Golf Cart Battery Charger Universal Club Car
$114.99
- Product Code: ED0018725
- Availability: In Stock
- Ex Tax: $114.99
Description:
Power up your golf cart with this high efficiency and ultra secure golf cart battery charger!
Featuring intelligent battery, high efficiency, powerwise plug cable and quality protector,
the 36V 5A golf cart charger is safe and sturdy, charging up your batteries within hours but also preventing them from over charging.
This will increase battery validity and performance.

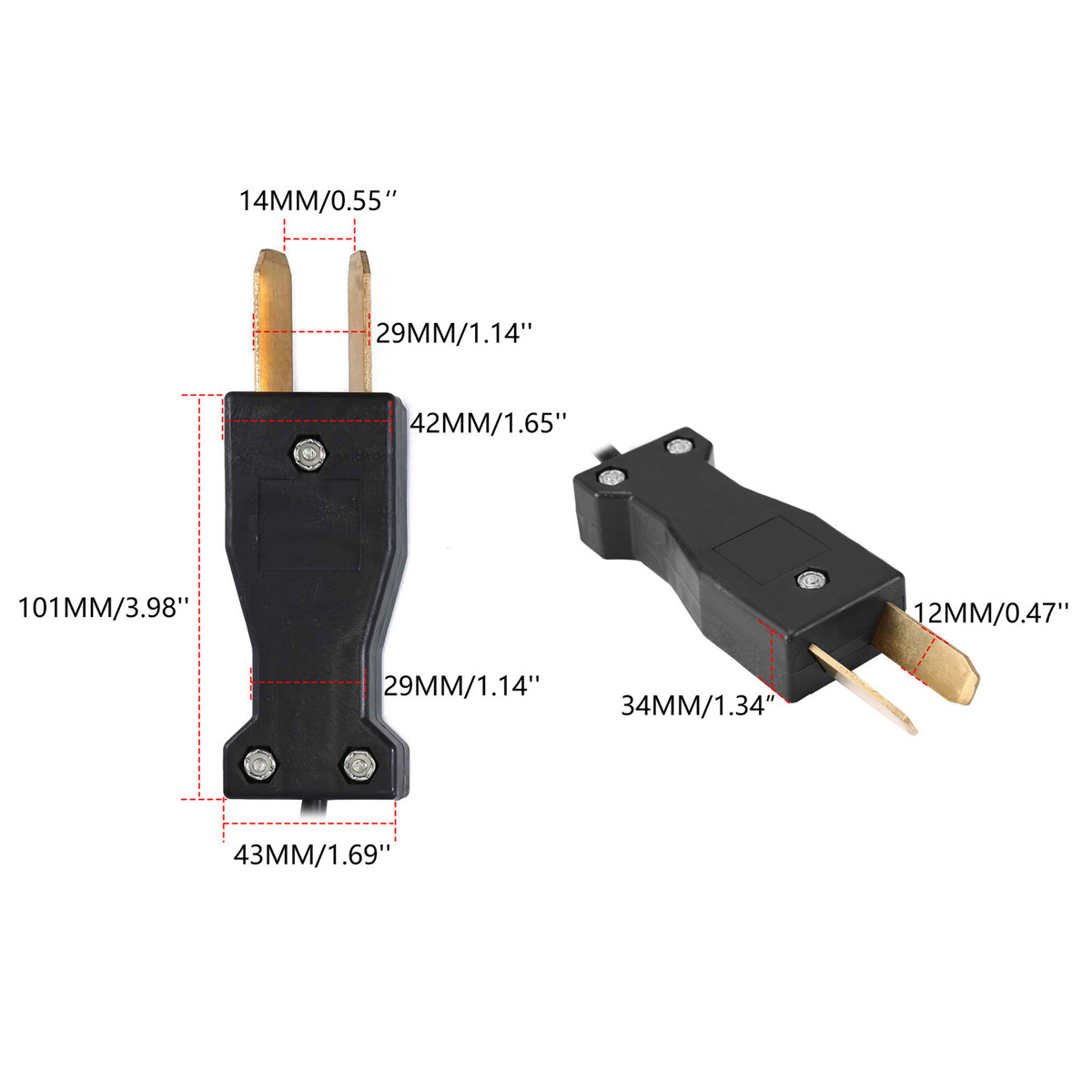

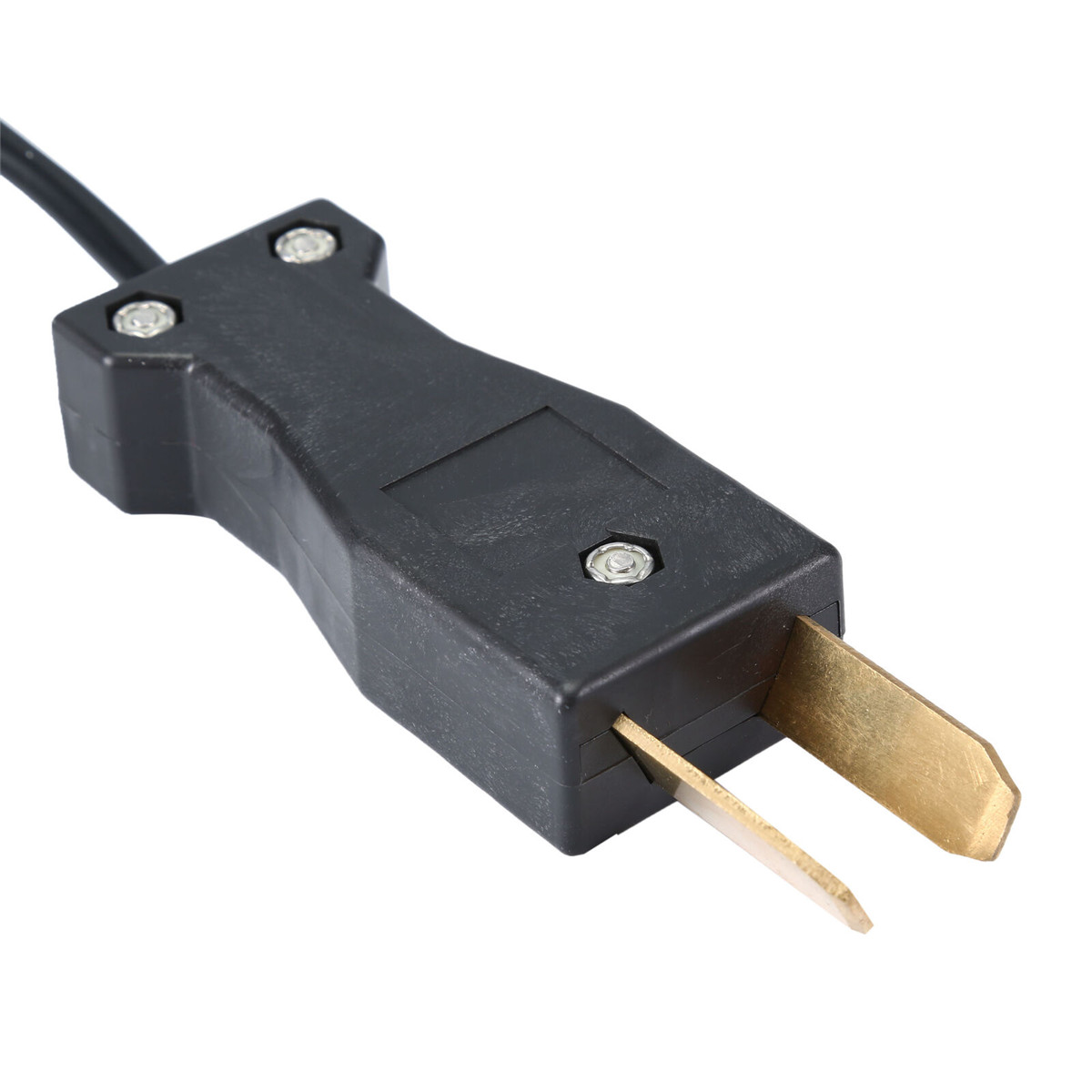

Golf cart charger with crows foot connector suits for different golf cart and club car types.
It is a must have for both golf cart and club car!
Featuring intelligent battery, high efficiency, powerwise plug cable and quality protector,
the 36V 5A golf cart charger is safe and sturdy, charging up your batteries within hours but also preventing them from over charging.
This will increase battery validity and performance.
Golf cart charger with crows foot connector suits for different golf cart and club car types.
It is a must have for both golf cart and club car!
Features:
Security Guaranty: 36V 5A fully automatic battery charger protects from over current,
over voltage and short circuit, 100% safe and reliable.
over voltage and short circuit, 100% safe and reliable.
Intelligent Battery: Powerwise and power drive golf cart charger helps prolong the life of your batteries
and it can have them charged up in a matter of hours.
and it can have them charged up in a matter of hours.
High Efficiency: Conversion efficiency of this golf cart charger is greater than 90%, high efficiency and environmental.

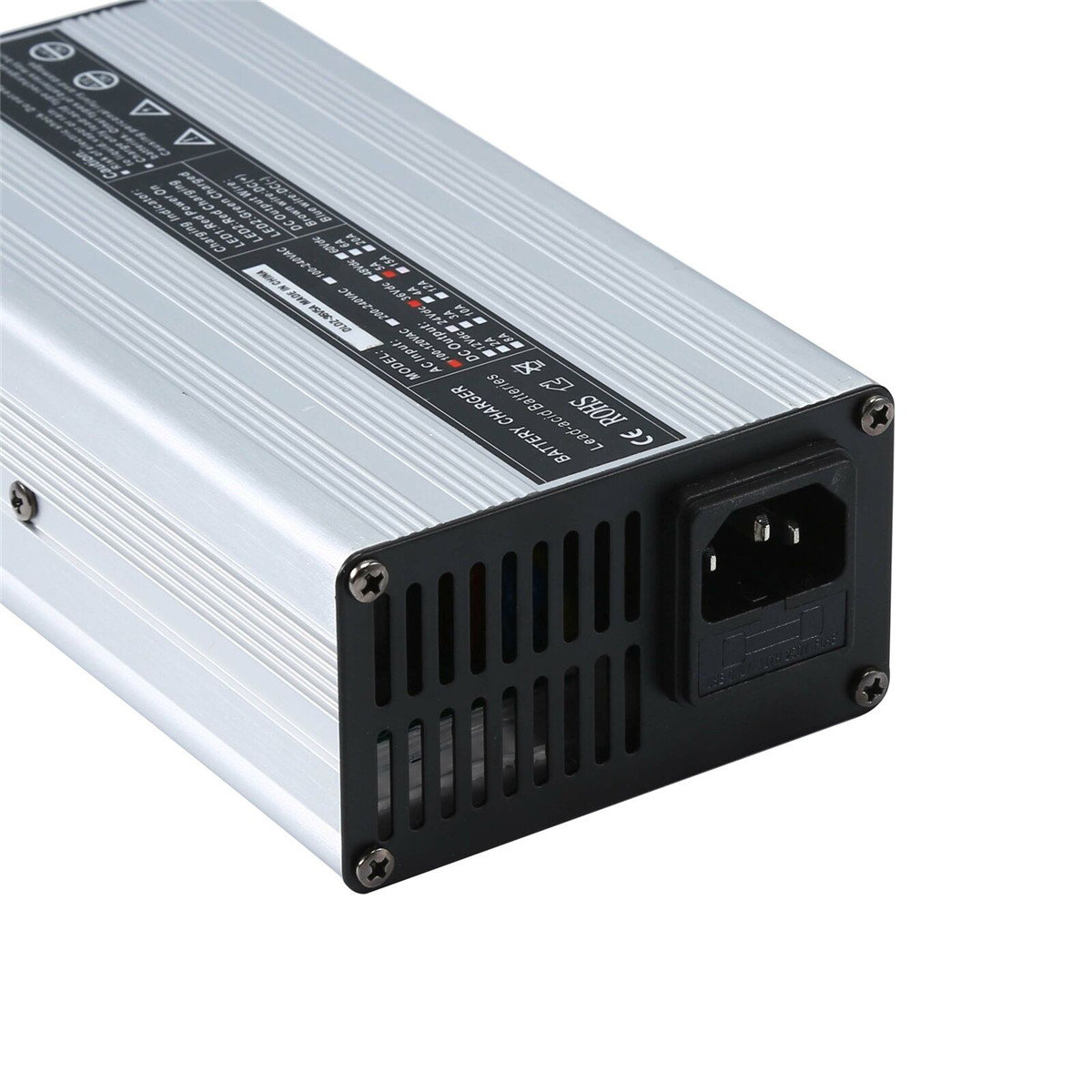

Compatible: Detachable US plug power supply cable allows for different cable connectors,
enabling the charger to be used with different golf cart types.
enabling the charger to be used with different golf cart types.
Aluminum Alloy Protector: Golf cart battery charger covered with aluminum alloy housing is durable and powerful.
It also comes with indicator lights for charging status.
It also comes with indicator lights for charging status.

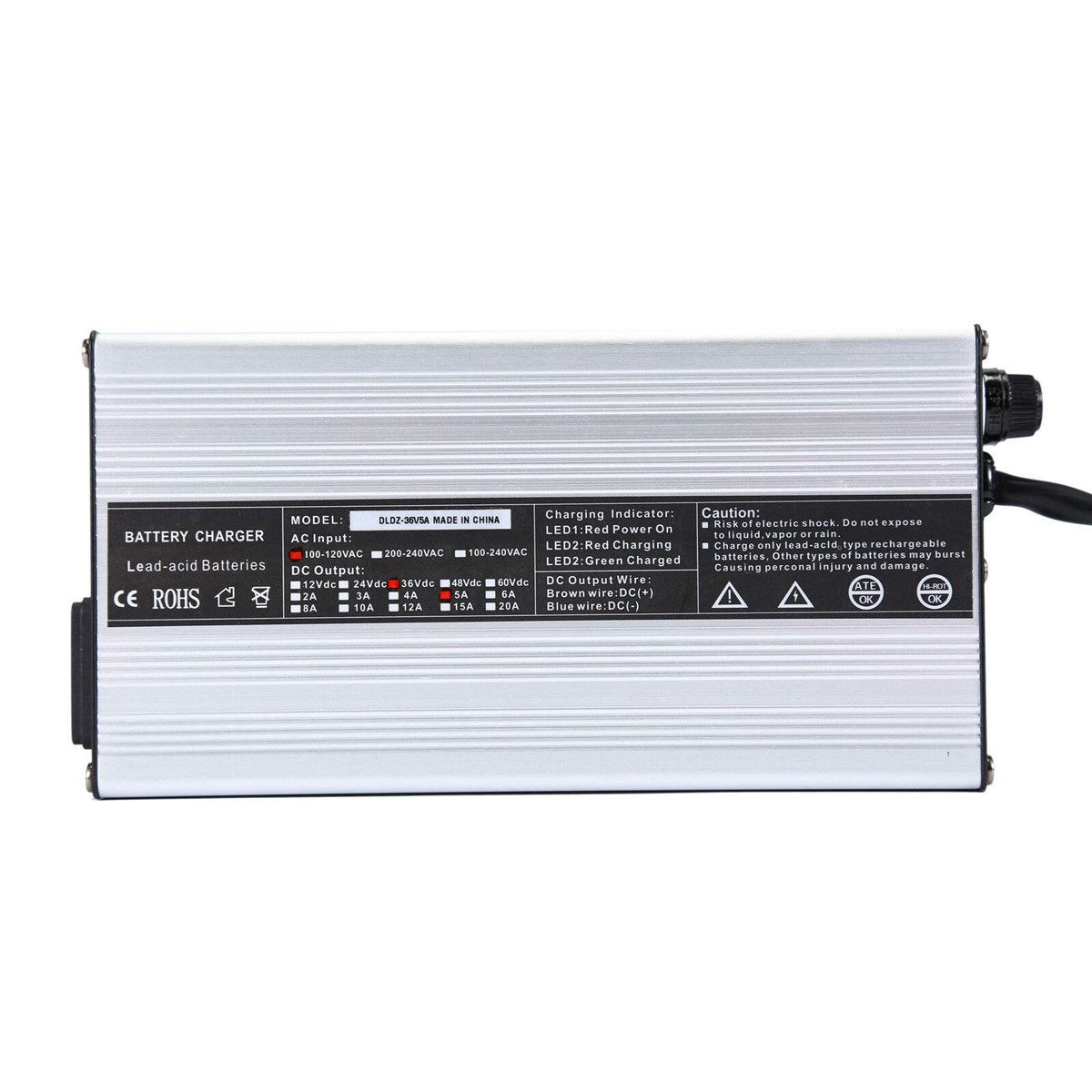

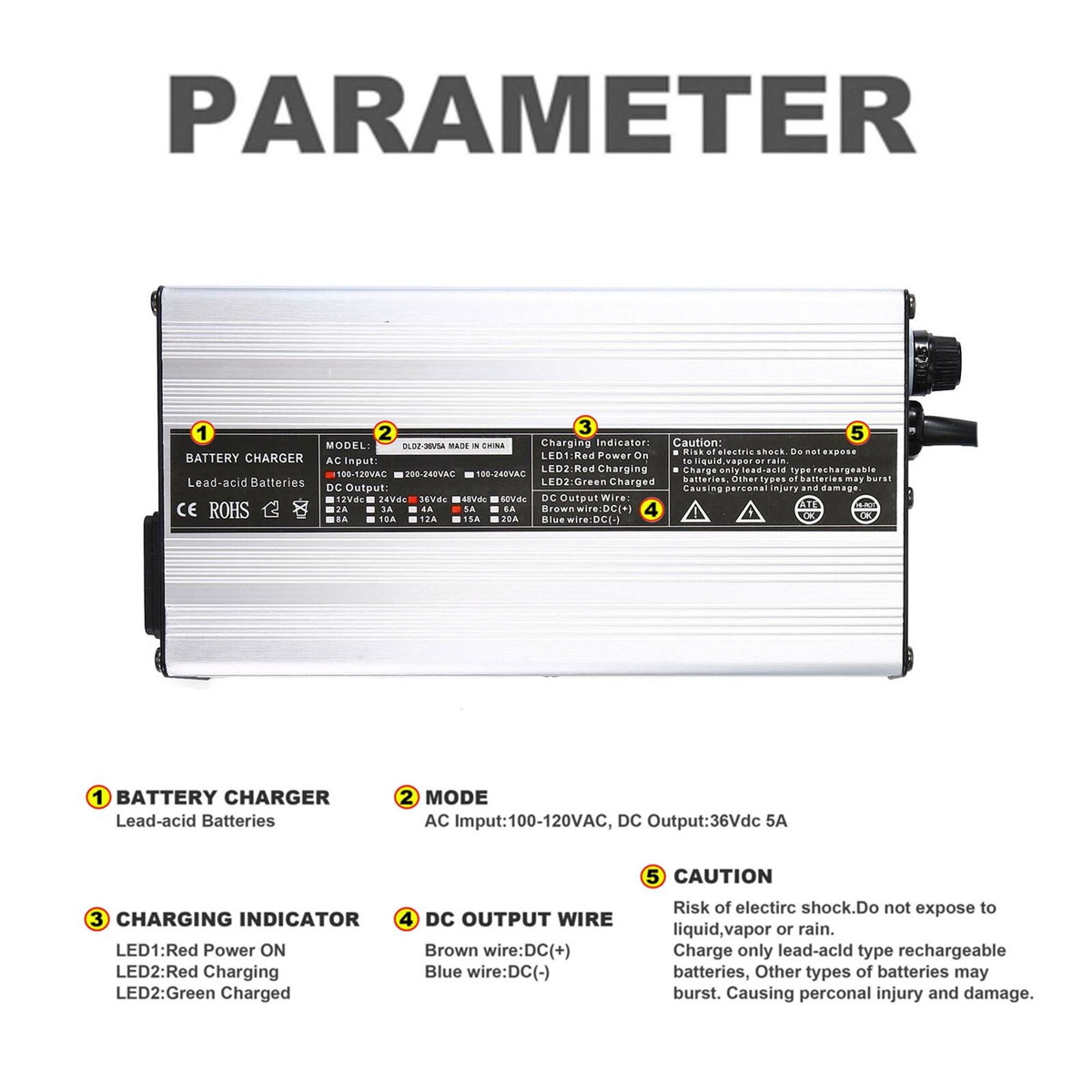

Specification:
Material: Aluminum Alloy
Input Voltage: 100-120V
Output: 36V, 5A
Note:
How to choose the right charger?
Confirm the voltage, battery capacity and plug type of the golf cart.
Exaples of battery capacity conversion:
The customer’s battery is 36V 40mAh. What kind of charger should he buy?
40mAh*0.125=5A (Battery capacity multiplying 0.125 can estimate how much amperage is needed.
The customer should buy a 36V 5A charger.
FAQ
1.It doesn’t charge.
(1)Confirm if it is lead-acid battery. If it is lithium battery, no full charge or fail to charge.
Solution: Send the video or instruction provided by factory to the customer,
and it can be converted to lithium battery charger after self-debugging.
and it can be converted to lithium battery charger after self-debugging.
(2) Be sure to check the voltage and current of the customer's golf cart,
and whether the voltage of the customer's country is 110V.
If the battery capacity of the cart is too large and the charger’s amperage is too small,
voltage mismatch will cause overtime charging or charging failure.
and whether the voltage of the customer's country is 110V.
If the battery capacity of the cart is too large and the charger’s amperage is too small,
voltage mismatch will cause overtime charging or charging failure.
Solution to unable to charge despite all parameters match: Ask the customer to provide images or videos of charging,
send to product developer and wait for factory to provide technical support.
send to product developer and wait for factory to provide technical support.
Operations:
1. Check if your local mains supply conforms to charger’s input voltage 110 or 230V.
Then connect the charger system to a wall socket. If charger has switch with OFF position, it MUST be set to ON.
Then connect the charger system to a wall socket. If charger has switch with OFF position, it MUST be set to ON.

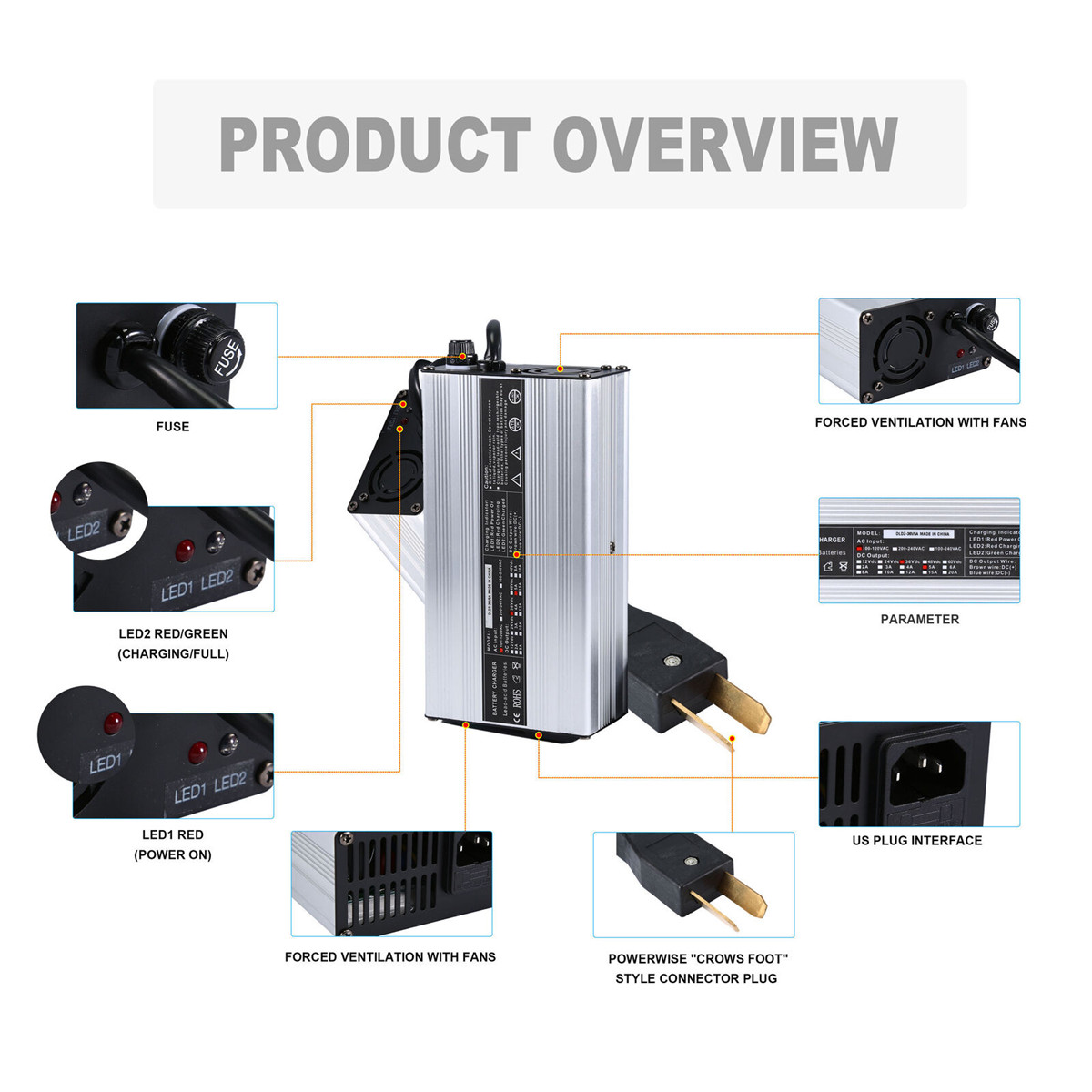

2. LED1 RED confirms AC power on, and the LED2 GREEN confirms charger connects well.
3. Connect the plug or the DC Output cord to battery terminals.
LED2 RED confirms charger is charging, LED2 GREEN confirms battery fully charged
(N→Positive + ; L→Negative - ; Brown→+ve terminal, Blue→-ve terminal).
Note:
If this charger with a Relay for Reverse Polarity Protection,
it doesn’t have output voltage and current when charger AC power on but disconnecting with the battery.
It will have voltage and current output when it connects with battery.
If the charger has a Fuse instead of Relay for Reverse Polarity Protection, it has output once AC power on.
it doesn’t have output voltage and current when charger AC power on but disconnecting with the battery.
It will have voltage and current output when it connects with battery.
If the charger has a Fuse instead of Relay for Reverse Polarity Protection, it has output once AC power on.
Precautions:
The phenomenon of Sparking is normal when it connects to battery because of high current.
This charger is designed for charging Lead Acid or Silicon type batteries only.
Avoid charging the wrong type of battery.
The battery maybe damaged if LED2 cannot be changed to green after a long time of charging.
Always place the charger in well-ventilated and dry environments.
The charger is designed with aluminum case as its heat sink. Do not cover it to avoid the case from being over heated while charging.
Please attention to DC terminal:
Brown→(+) Positive Terminal,Blue→(-) Negative Terminal
DO NOT disassemble charger. Take it to a qualified service person when service or repair is required.

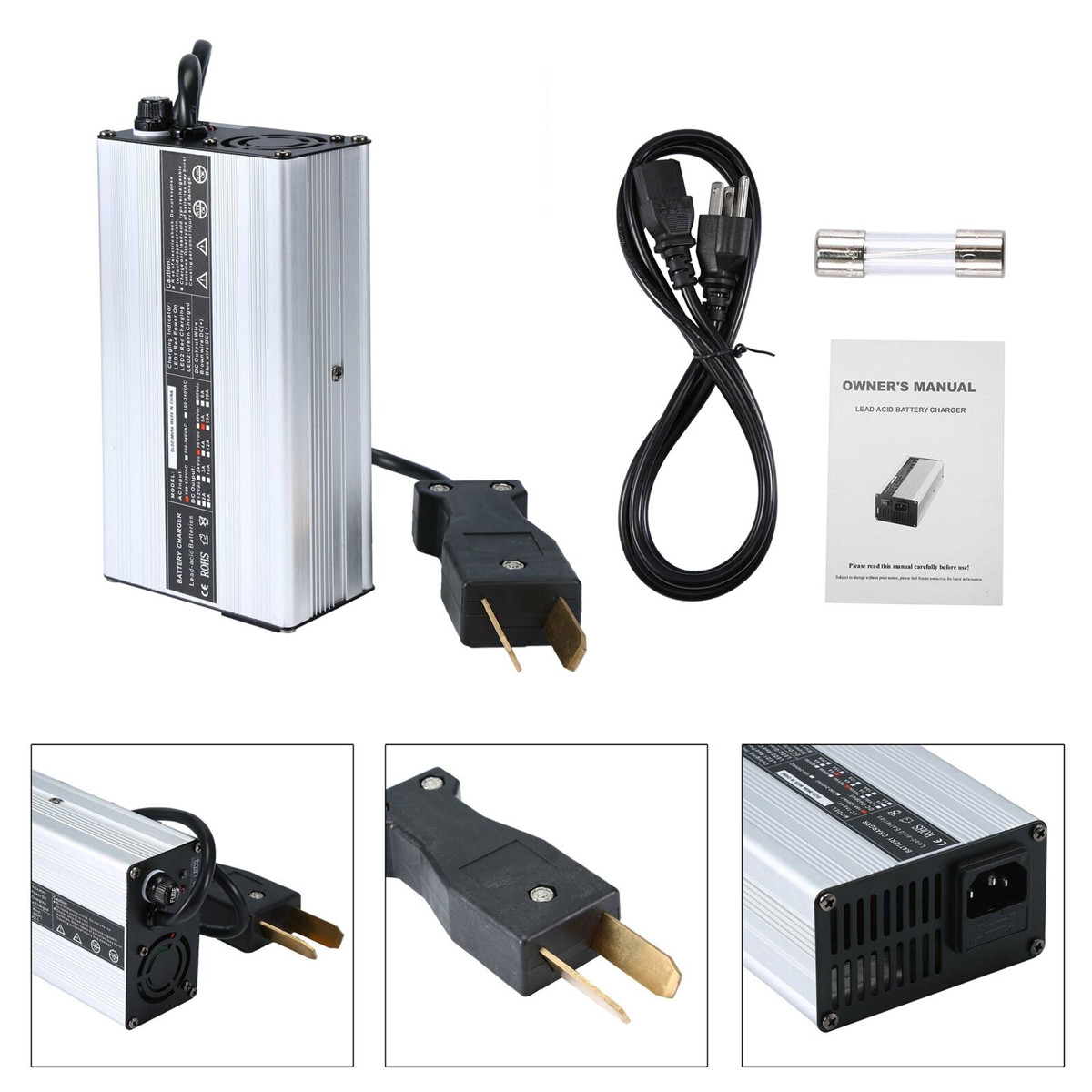

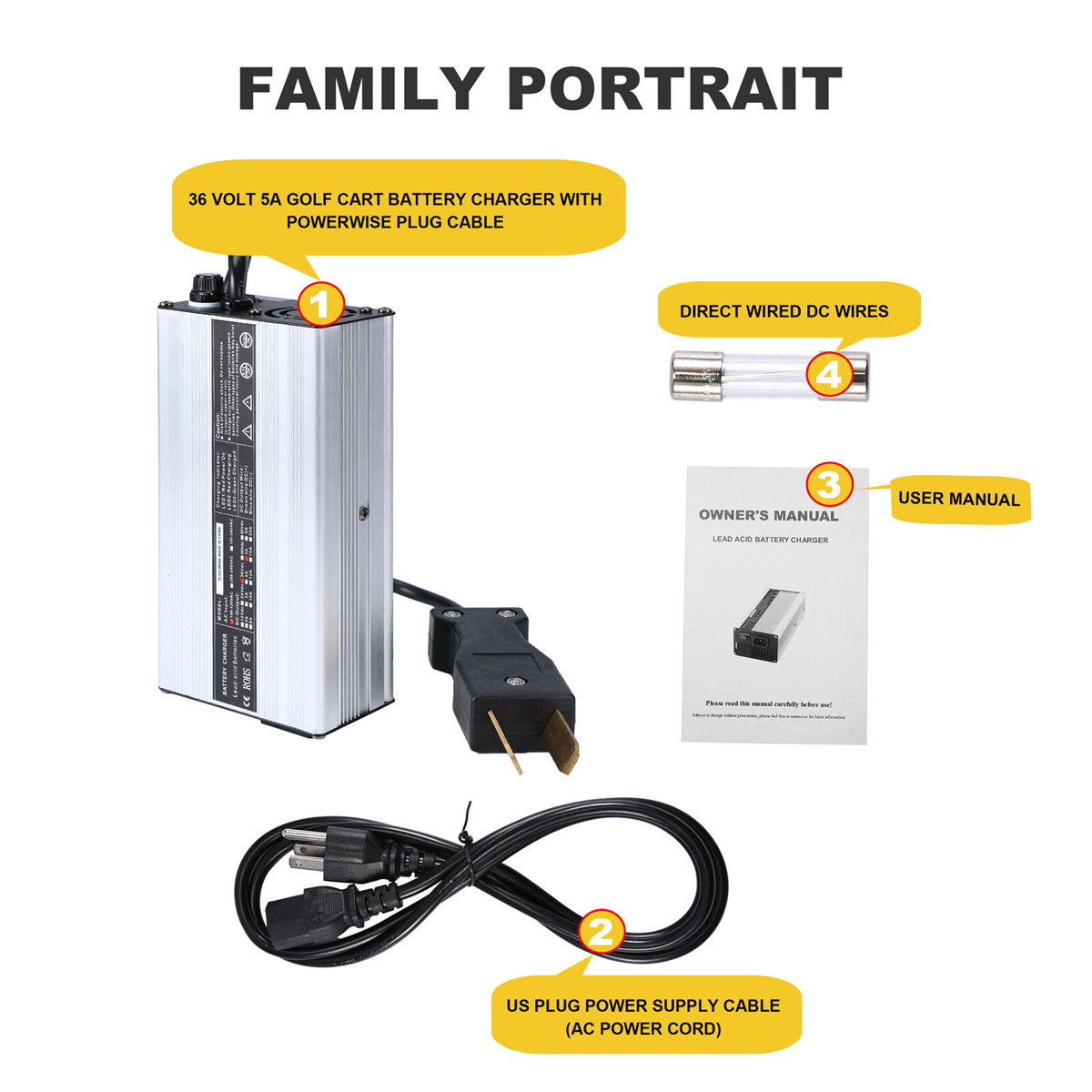

Package Included:
1 X Golf Cart Bare Wire Battery Charger

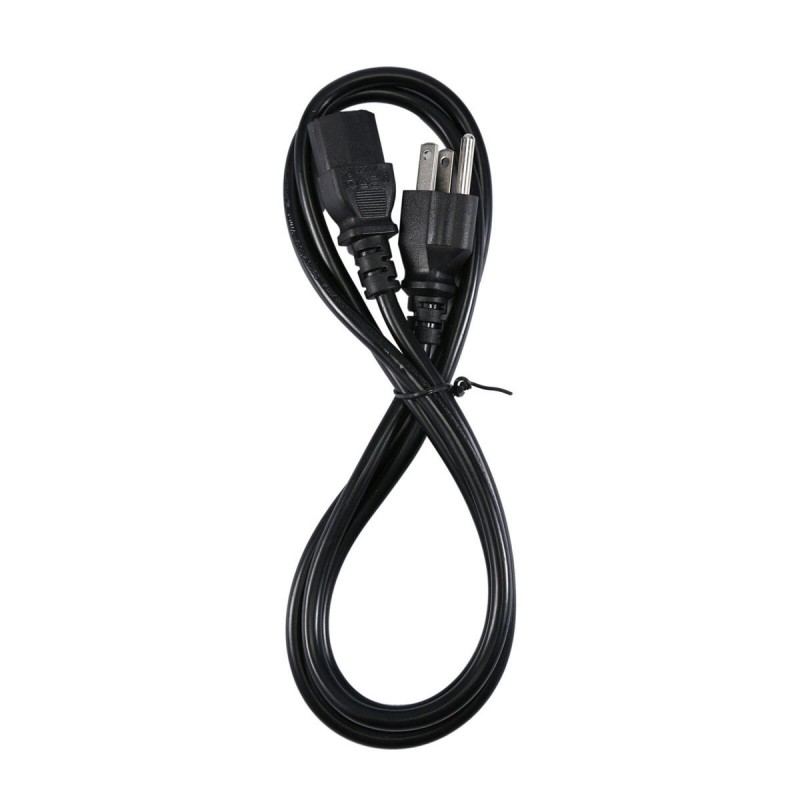

1 X US Plug Power Supply Cable
1 X User Manual
