36V Volt Golf Cart Battery Charger For Yamaha Ez Go Club Car MARATHON83-94 SB50
$81.99
- Product Code: ED0018586
- Availability: In Stock
- Ex Tax: $81.99
Description:
Power up your golf cart with this high efficiency and ultra secure golf cart battery charger!
Featuring intelligent battery, high efficiency, powerwise plug cable and connector plug,
the 36V 5A golf cart charger charges up your batteries within hours while protecting them from heat damage.
It suits for different golf cart types and is super easy to operate.
This practical and versatile battery charger is exactly what you need for your golf cart!
Featuring intelligent battery, high efficiency, powerwise plug cable and connector plug,
the 36V 5A golf cart charger charges up your batteries within hours while protecting them from heat damage.
It suits for different golf cart types and is super easy to operate.
This practical and versatile battery charger is exactly what you need for your golf cart!
Features:
Security Guaranty: 36V 5A fully automatic battery charger protects from over current,
over voltage and short circuit, 100% safe and reliable.
over voltage and short circuit, 100% safe and reliable.

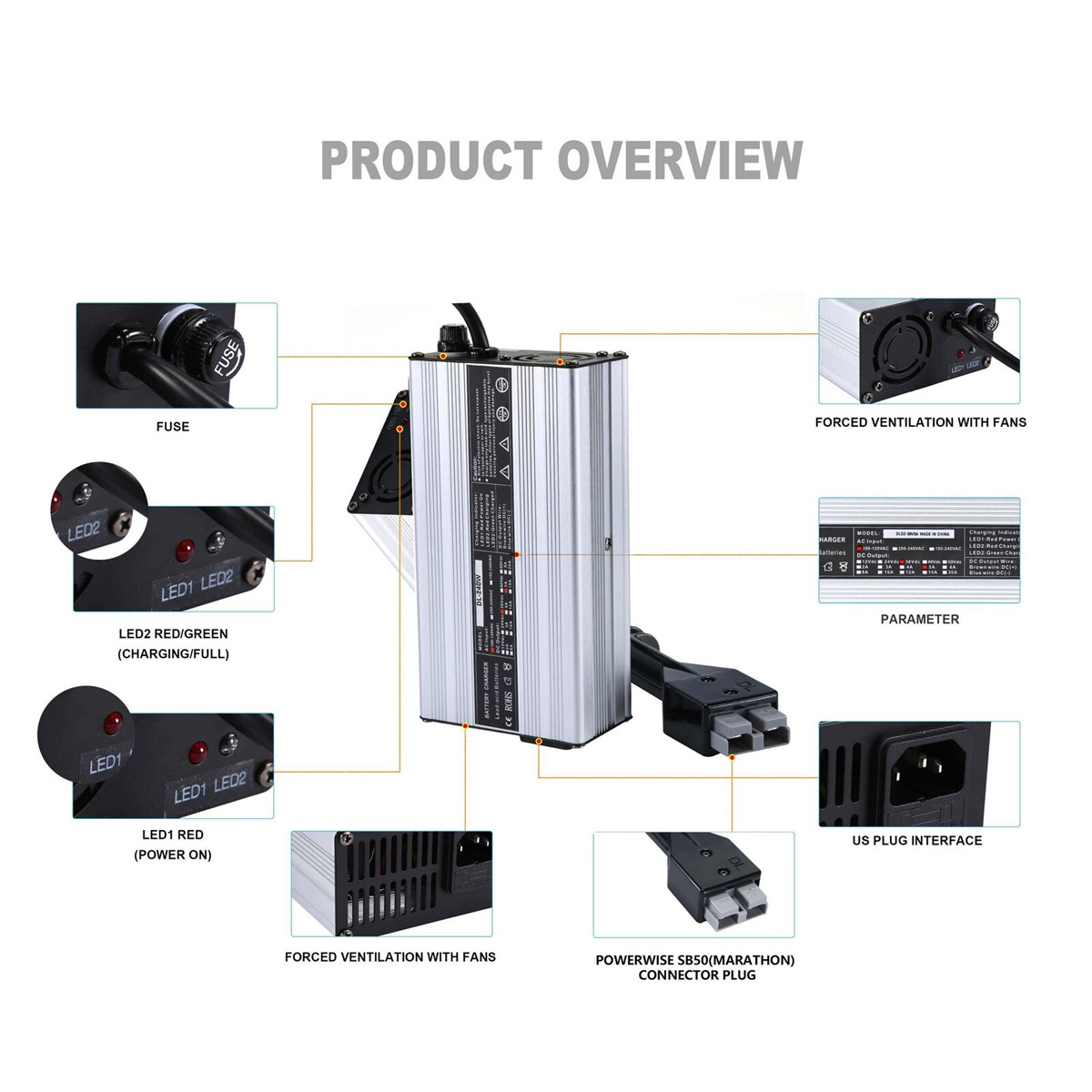

Cooling Fan: Golf cart battery charger equipped with a heat dissipation fan to allow for ventilation and cooling inside,
effectively prolongs the life of the charger.
effectively prolongs the life of the charger.

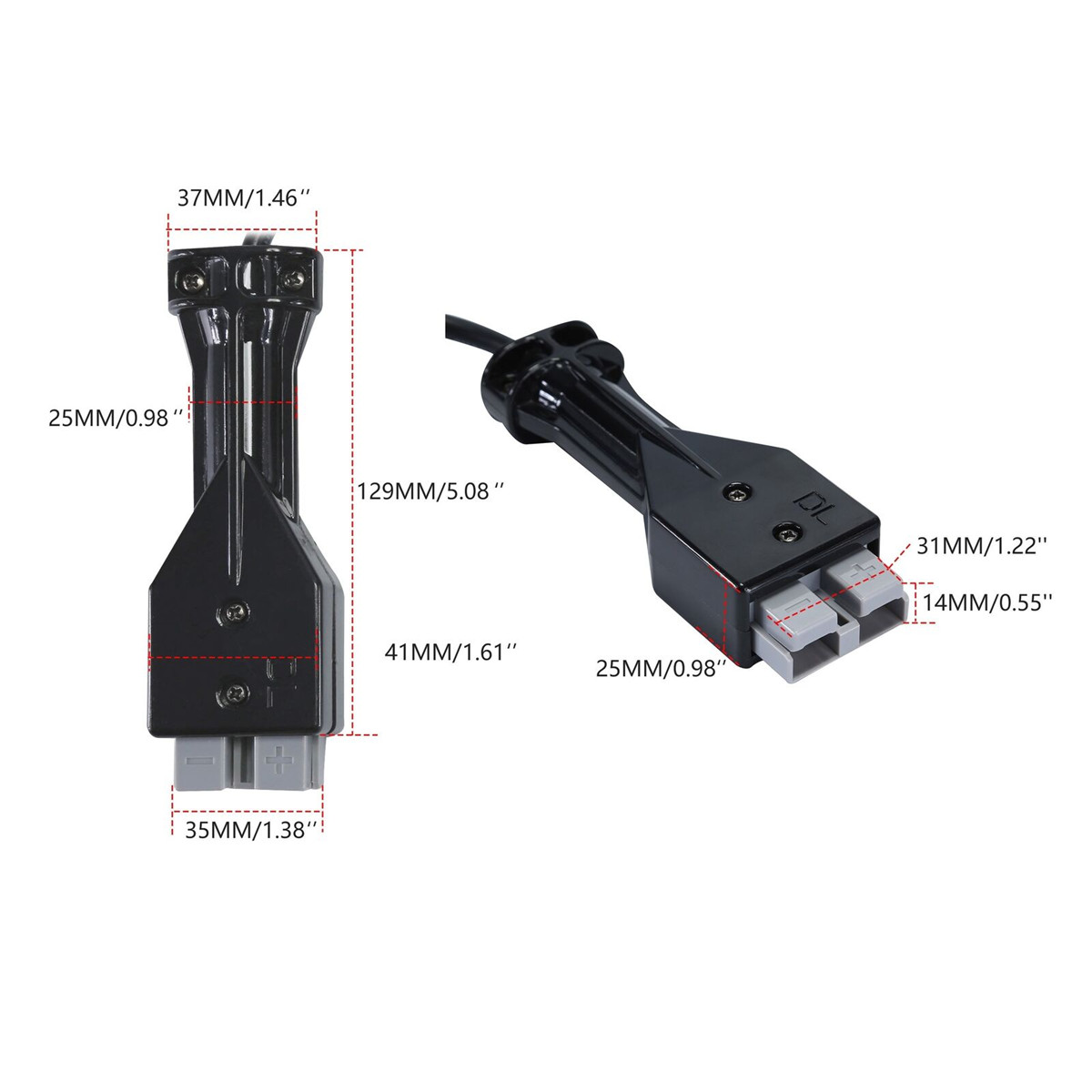

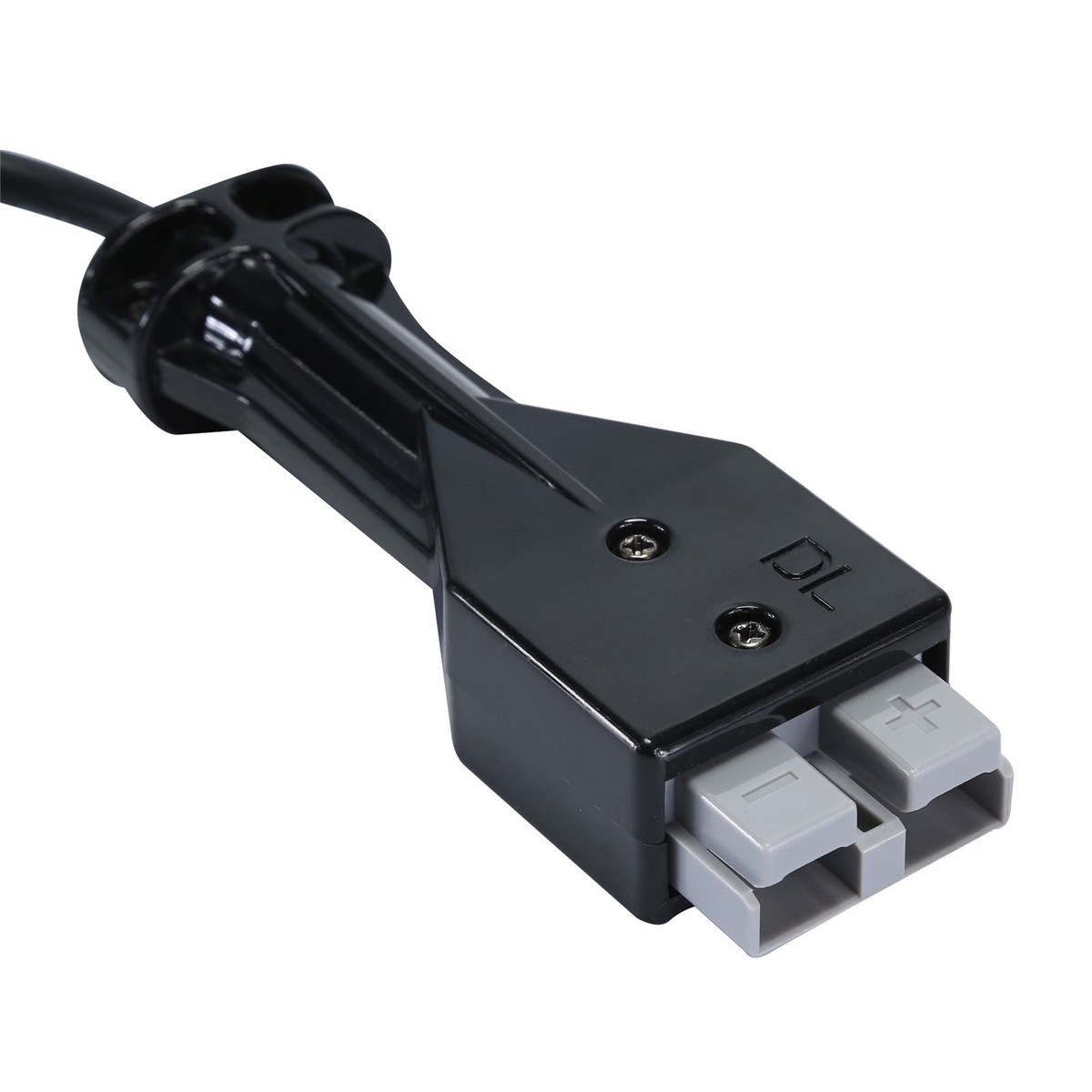

Rapid Charge: Powerwise SB50 connector plug helps prolong the life of your batteries
and it can have them charged up in a matter of hours.
and it can have them charged up in a matter of hours.
Compatible: Detachable US plug power supply cable allows for different cable connectors,
enabling the charger to be used with different golf cart types.
enabling the charger to be used with different golf cart types.
Quality Guarantee: Each product is under safety monitoring by manufacturer for quality assurance.
Dual color indicator light, clear indication and current state.
Dual color indicator light, clear indication and current state.
Specification:
Material: Aluminum Alloy
Input Voltage: 100-120V
Output: 36V, 5A
Note:
How to choose the right charger?
Confirm the voltage, battery capacity and plug type of the golf cart.
Examples of battery capacity conversion:
The customer’s battery is 36V 40mAh. What kind of charger should he buy?
40mAh*0.125=5A (Battery capacity multiplying 0.125 can estimate how much amperage is needed.
The customer should buy a 36V 5A charger.
FAQ
1.It doesn’t charge.
(1)Confirm if it is lead-acid battery. If it is lithium battery, no full charge or fail to charge.
Solution: Send the video or instruction provided by factory to the customer,
and it can be converted to lithium battery charger after self-debugging.
and it can be converted to lithium battery charger after self-debugging.
(2) Be sure to check the voltage and current of the customer's golf cart,
and whether the voltage of the customer's country is 110V.
If the battery capacity of the cart is too large and the charger’s amperage is too small,
voltage mismatch will cause overtime charging or charging failure.
and whether the voltage of the customer's country is 110V.
If the battery capacity of the cart is too large and the charger’s amperage is too small,
voltage mismatch will cause overtime charging or charging failure.
Solution to unable to charge despite all parameters match: Ask the customer to provide images or videos of charging,
send to product developer and wait for factory to provide technical support.
send to product developer and wait for factory to provide technical support.
Operations:
1. Check if your local mains supply conforms to charger’s input voltage 110 or 230V.
Then connect the charger system to a wall socket. If charger has switch with OFF position, it MUST be set to ON.
Then connect the charger system to a wall socket. If charger has switch with OFF position, it MUST be set to ON.

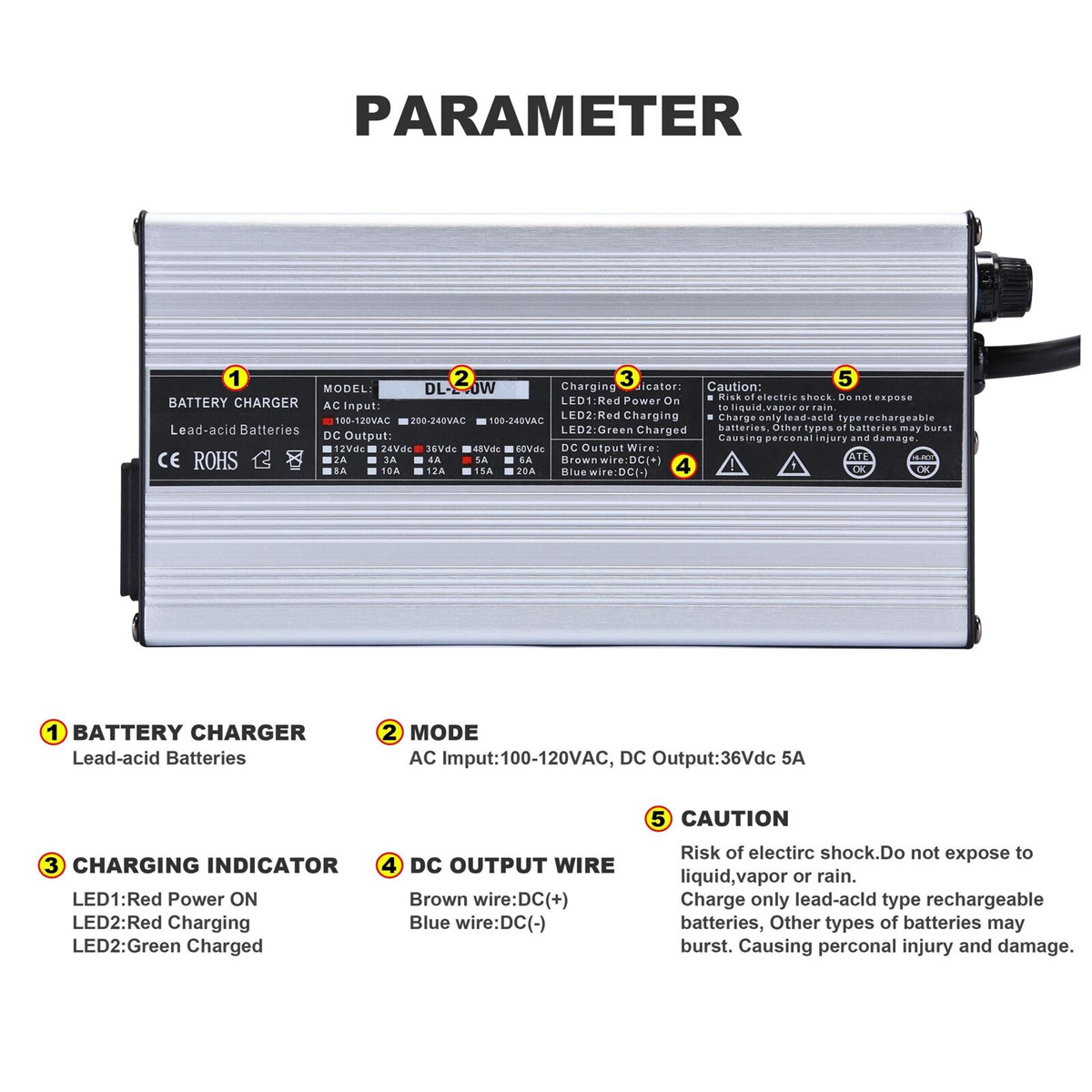

2. LED1 RED confirms AC power on, and the LED2 GREEN confirms charger connects well.
3. Connect the plug or the DC Output cord to battery terminals.
LED2 RED confirms charger is charging, LED2 GREEN confirms battery fully charged
(N→Positive + ; L→Negative - ; Brown→+ve terminal, Blue→-ve terminal).
Note:
If this charger with a Relay for Reverse Polarity Protection,
it doesn’t have output voltage and current when charger AC power on but disconnecting with the battery.
It will have voltage and current output when it connects with battery.
If the charger has a Fuse instead of Relay for Reverse Polarity Protection, it has output once AC power on.
it doesn’t have output voltage and current when charger AC power on but disconnecting with the battery.
It will have voltage and current output when it connects with battery.
If the charger has a Fuse instead of Relay for Reverse Polarity Protection, it has output once AC power on.
Precautions:
1. The phenomenon of Sparking is normal when it connects to battery because of high current.
1. This charger is designed for charging Lead Acid or Silicon type batteries only.
2. Avoid charging the wrong type of battery.
3. The battery maybe damaged if LED2 cannot be changed to green after a long time of charging.
4. Always place the charger in well-ventilated and dry environments.
5. The charger is designed with aluminum case as its heat sink.
Do not cover it to avoid the case from being over heated while charging.
Do not cover it to avoid the case from being over heated while charging.

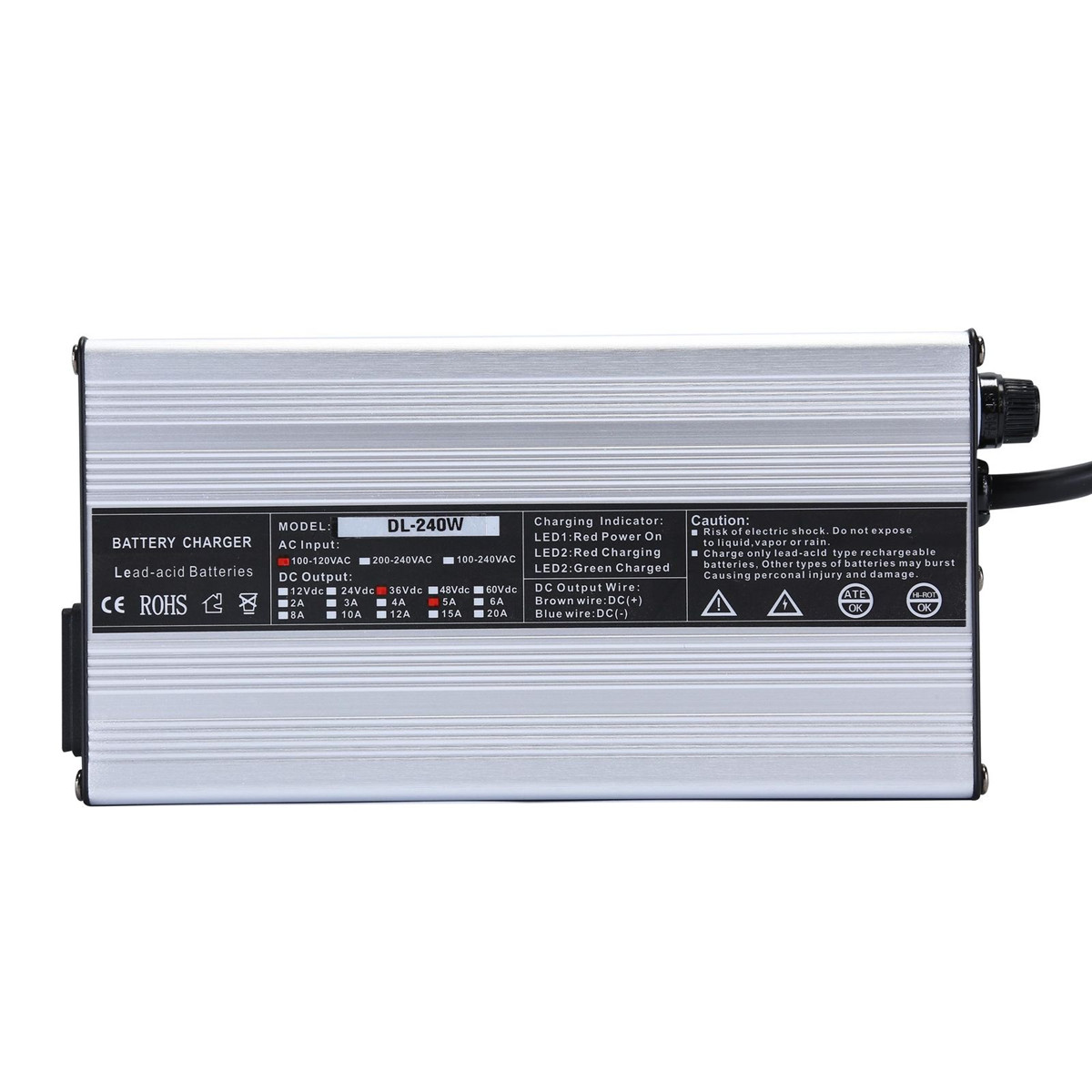

6.Please attention to DC terminal:
Brown→(+) Positive Terminal,Blue→(-) Negative Terminal
7. DO NOT disassemble charger. Take it to a qualified service person when service or repair is required.

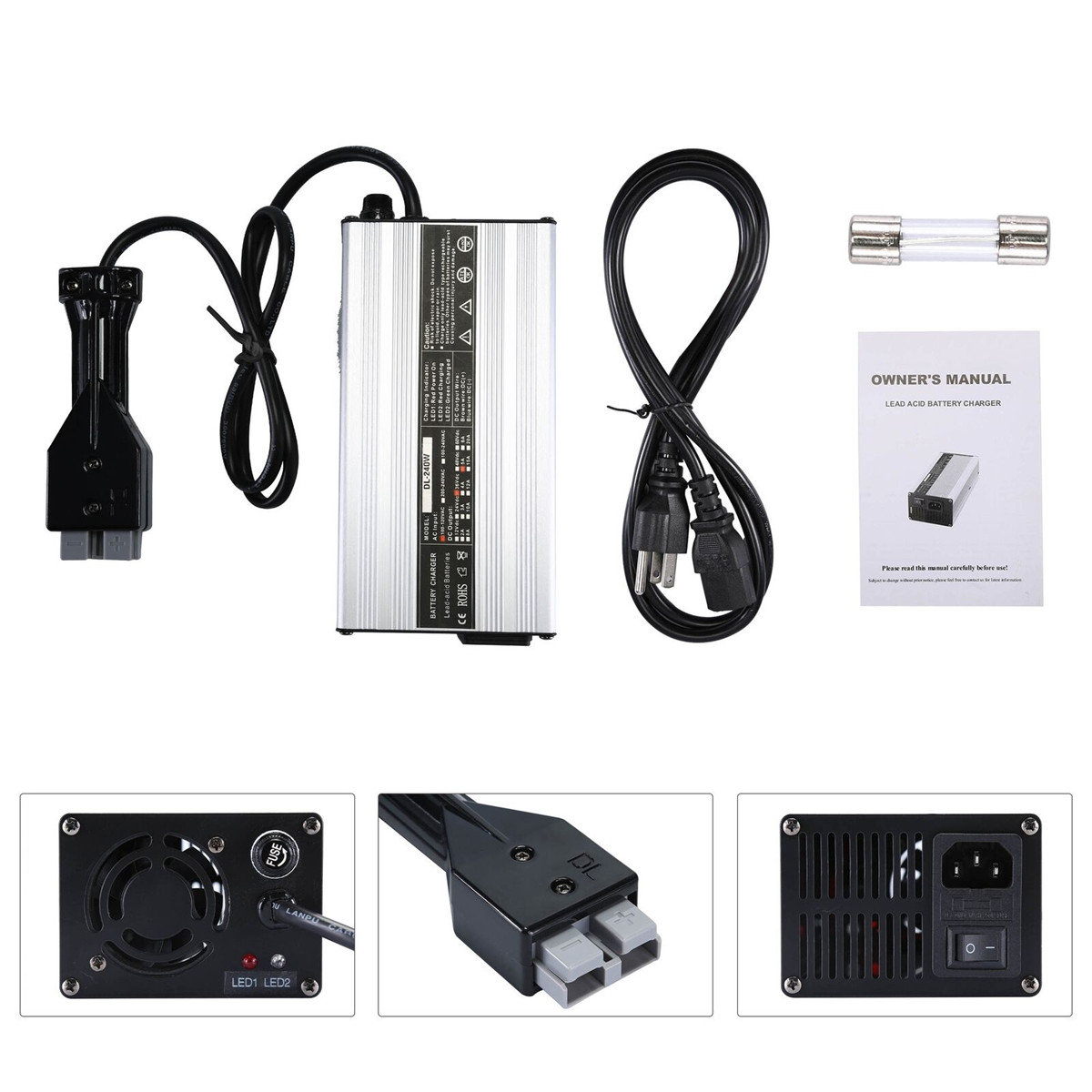

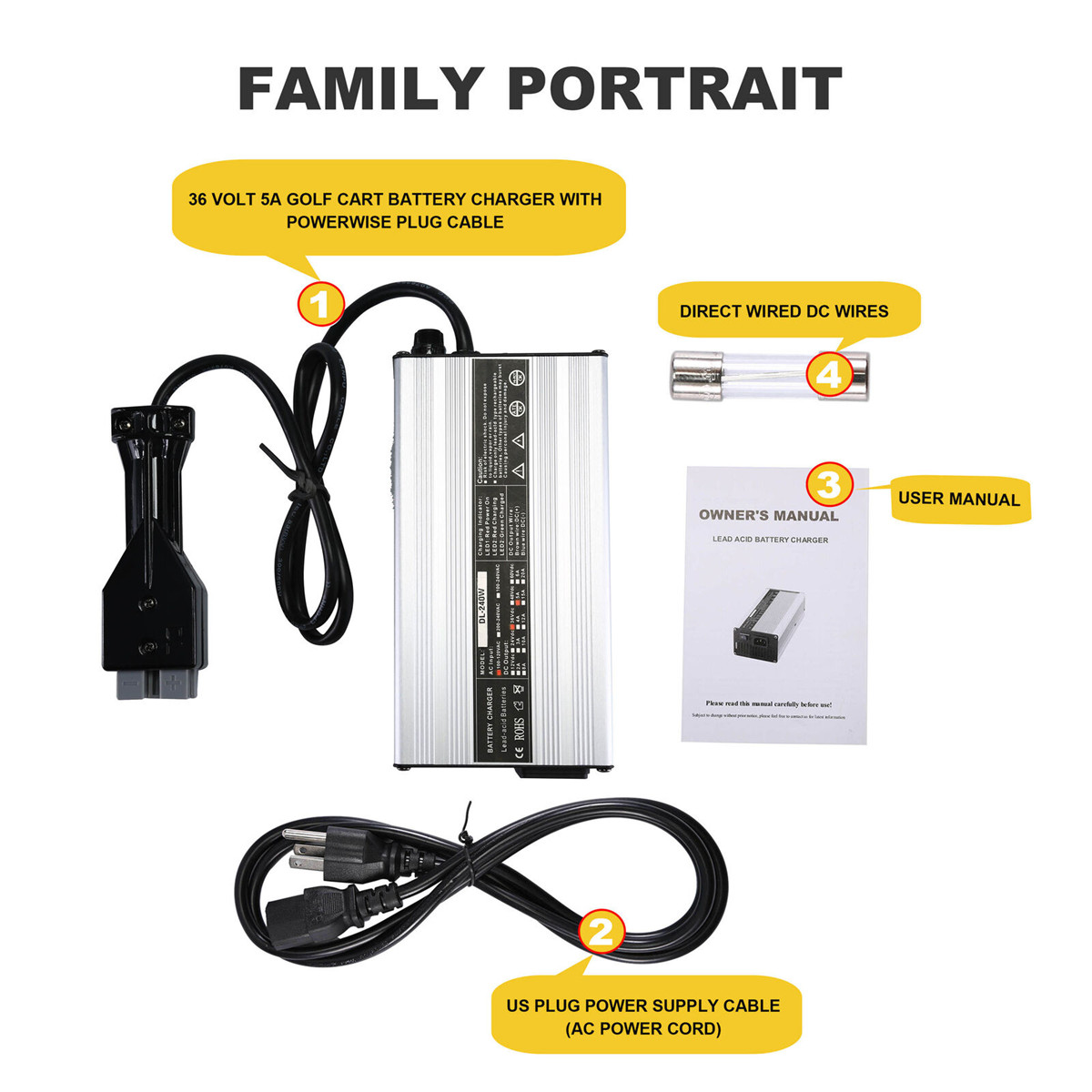

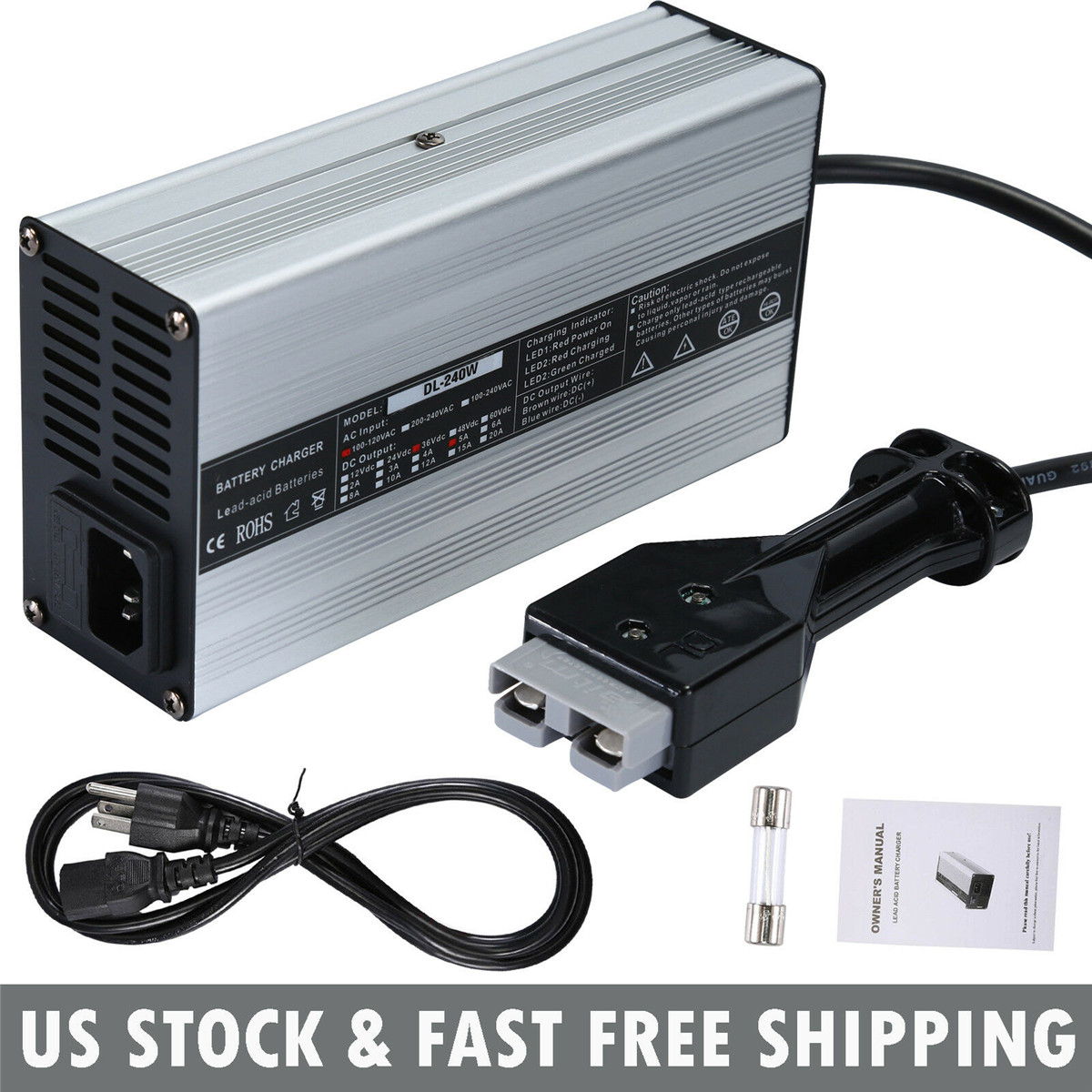

Package Included:
1 X Golf Cart Bare Wire Battery Charger
1 X US Plug Power Supply Cable
1 X User Manual
