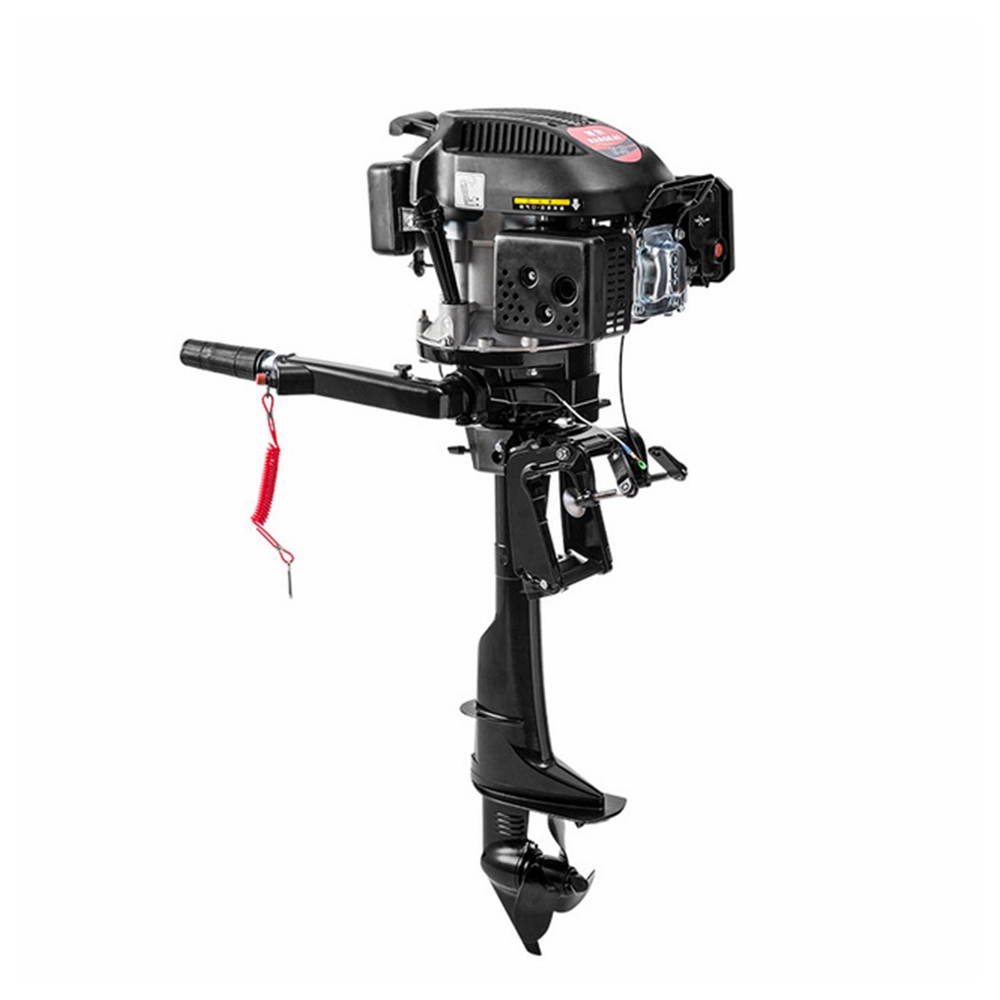

4 Stroke 6HP Outboard motor Boat Engine Boat Motor Air Cooling System
$831.99
- Product Code: ED0020485
- Availability: In Stock
- Ex Tax: $831.99
Description:
For four-stroke engine oil, please use gasoline of No. 92 or above, and add the oil to the internal fuel tank separately
Specification:
| Displacement |
140CC |
| Gear ratio |
1:1.5 (16:24) |
| Number of cylinders |
1 |
| Full throttle perating range |
2300-2500r/min |
| Maximum output |
3.75kw |
| Type |
4-stroke |
| Ignition system |
TCI system |
| Starting system |
Manual start |
| Cooling system | Air cooling |
Contorl System |
Tiller control |
| Gear positions | F-N |
| Recommended fuel |
Regular #92 unleaded gasoline |
| Recommended engine oil |
four-stroke engine oil |
| Tilt tilt system |
manual tilt |
| Standard fuel tank capacity |
whthin 1L |
| Bore x stoke | 61mm*48mm |
| Recommended Propeller Size |
3-7 1/2" x 5" |
Announcements:
After in the sea water or turbid water cruising
1.Use the fresh water cleaning the outboard motor
2.With the moderate SPREED circulating the engine,cool off the water down with fresh water.
3.Before completely running out cooling water,don't put the outboard motor outside.
Otherwise the water cam pass the exhaust port to enter the
air cylinder, from that will cause the engine breakdown.
4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.
5.Before the long term storing,you should run out of the gasoline in the fuel tank.
Note:
Please add gear oil to the gears before use the motor and replace gear oil after the run-in period (10hours).
(if you do not know how to handle this, please contact with us )
Warning:
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don't do the following will avoid cylinder Scoring:
1, start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,
then check the impeller of Water pump or check if the water outlet has been blocked.
Package Included:
| 1 X |
Boat Engine |
