4.3 Inch Car Rear View Kit TFT LCD Monitor LED IR Reversing Camera For Truck Bus
$44.89
- Product Code: ED0001155
- Availability: In Stock
- Ex Tax: $44.89
Description:

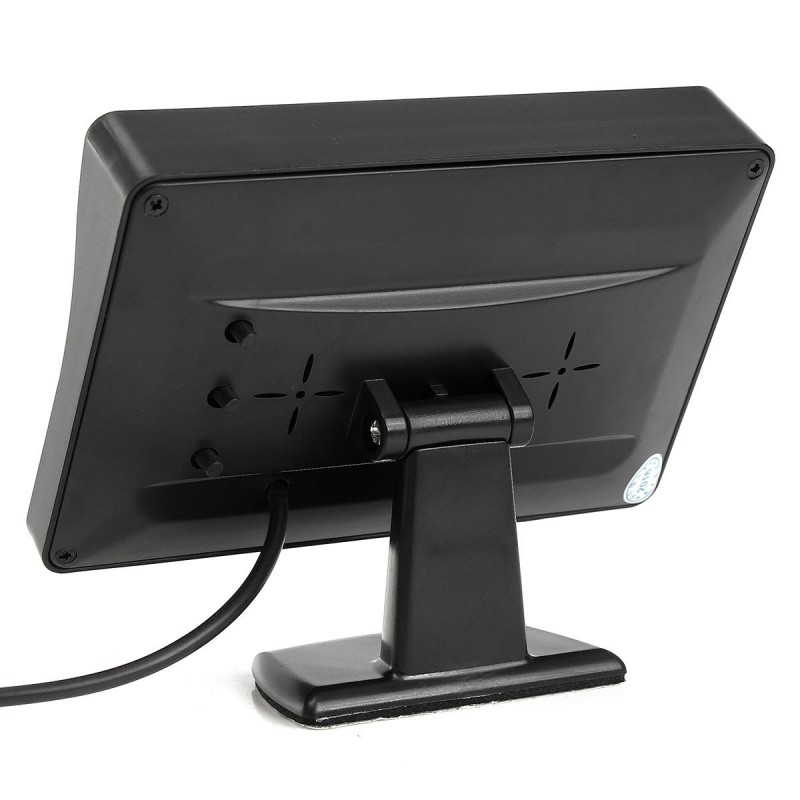

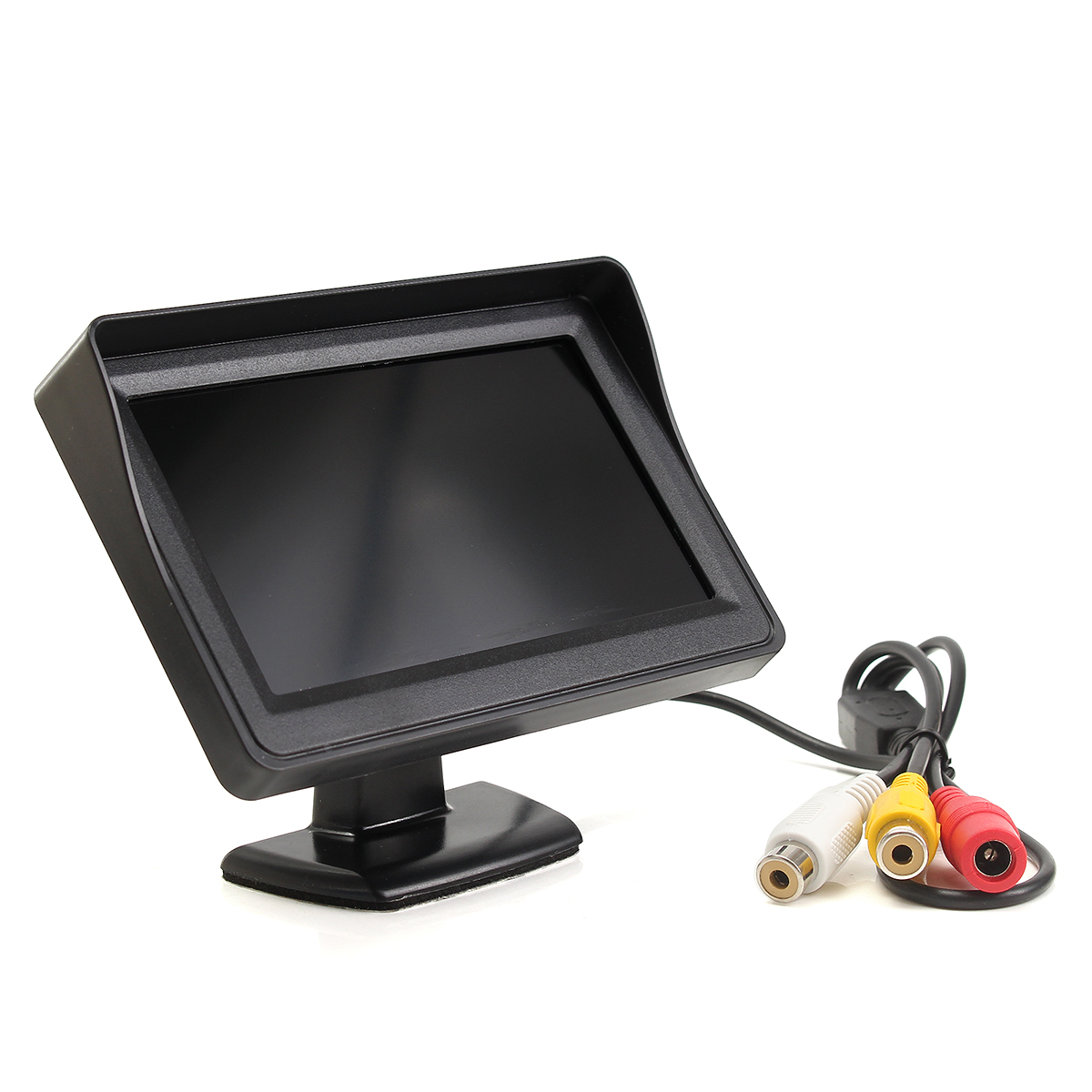

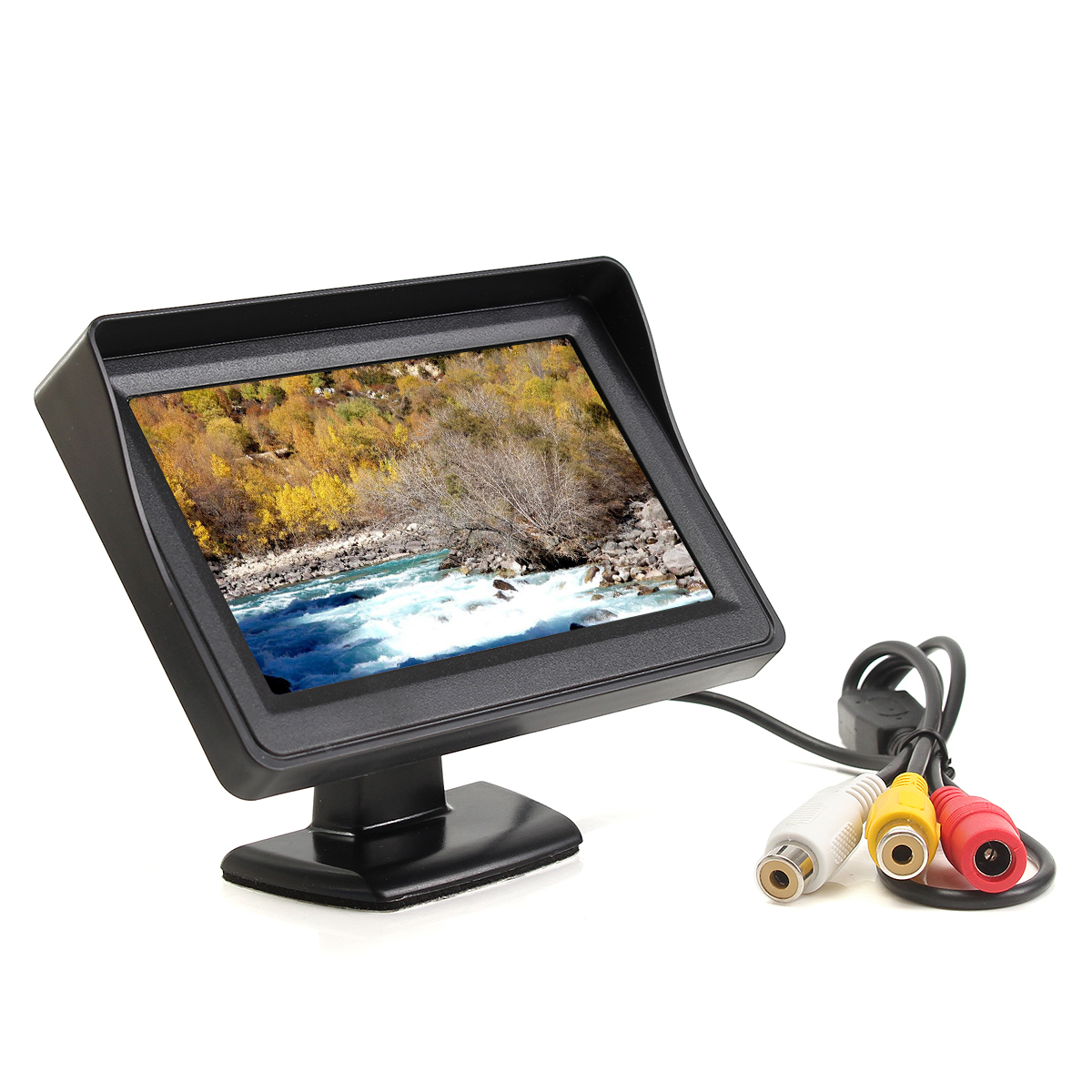

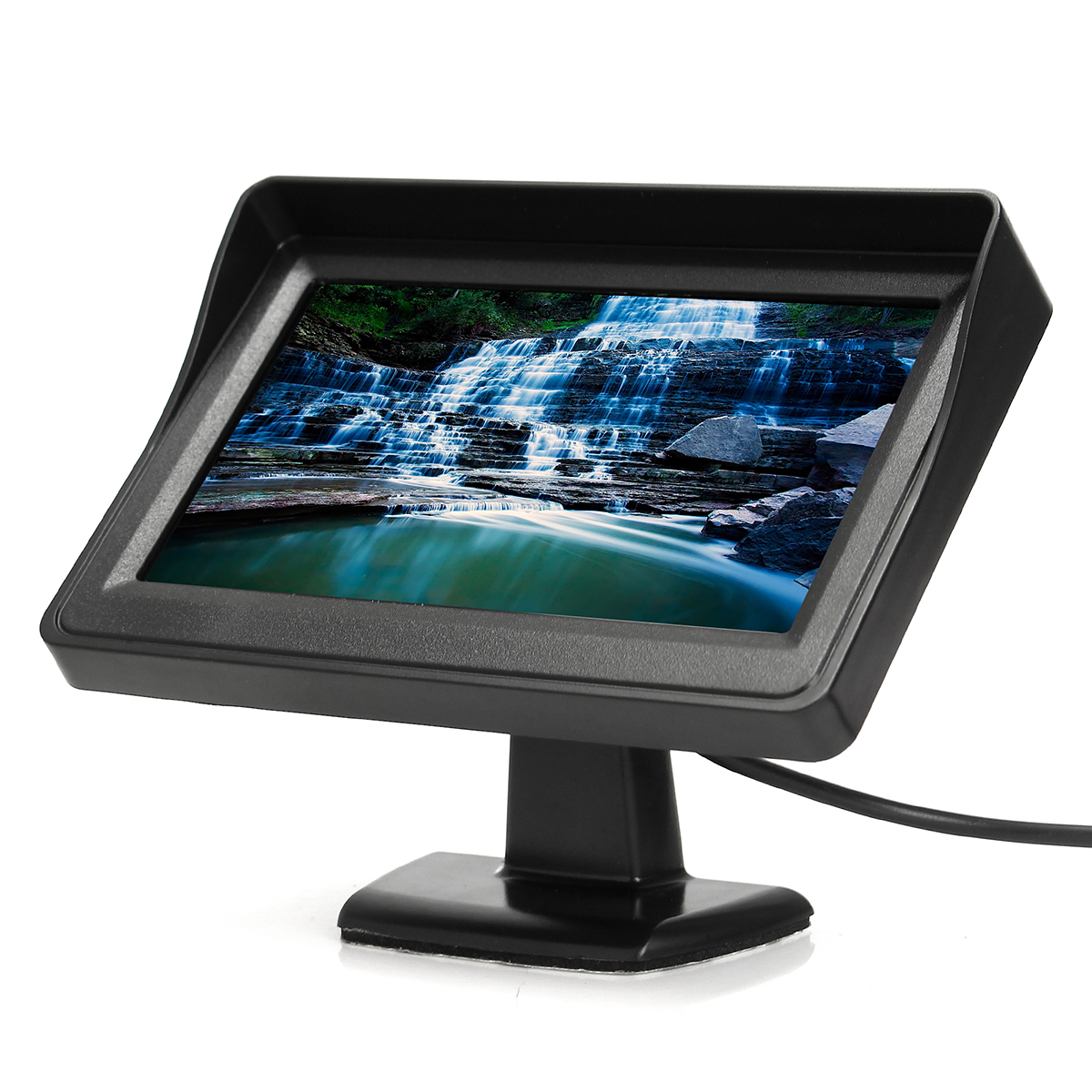

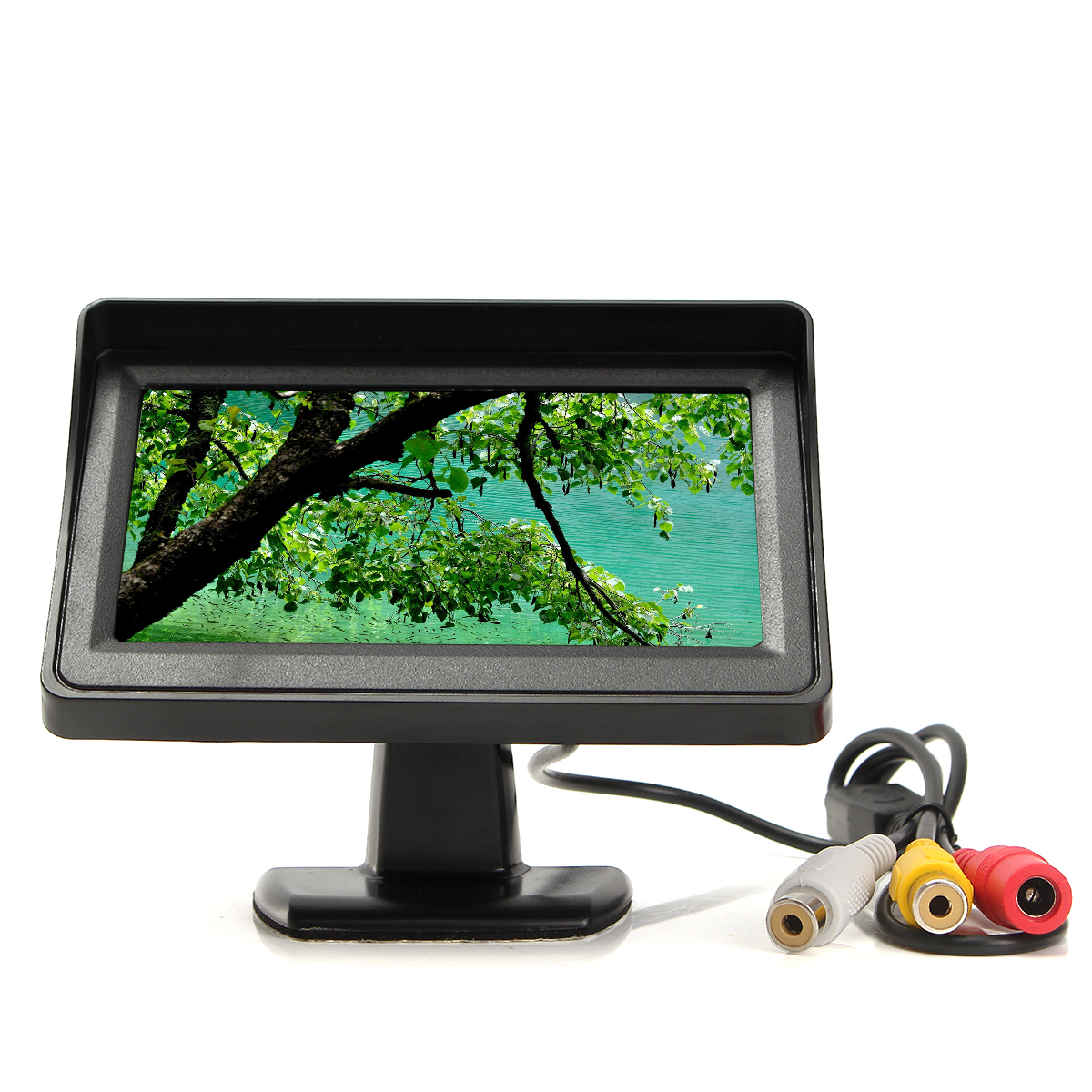

4.3" Color TFT LCD Car Rearview Monitor, works perfectly with car rearview cameras,
supports car Camera/ DVD/Serveillance camera/STB/Satellite receiver/other video equipments
Feature:
1.4.3 inch High-resolution Color TFT LCD monitor

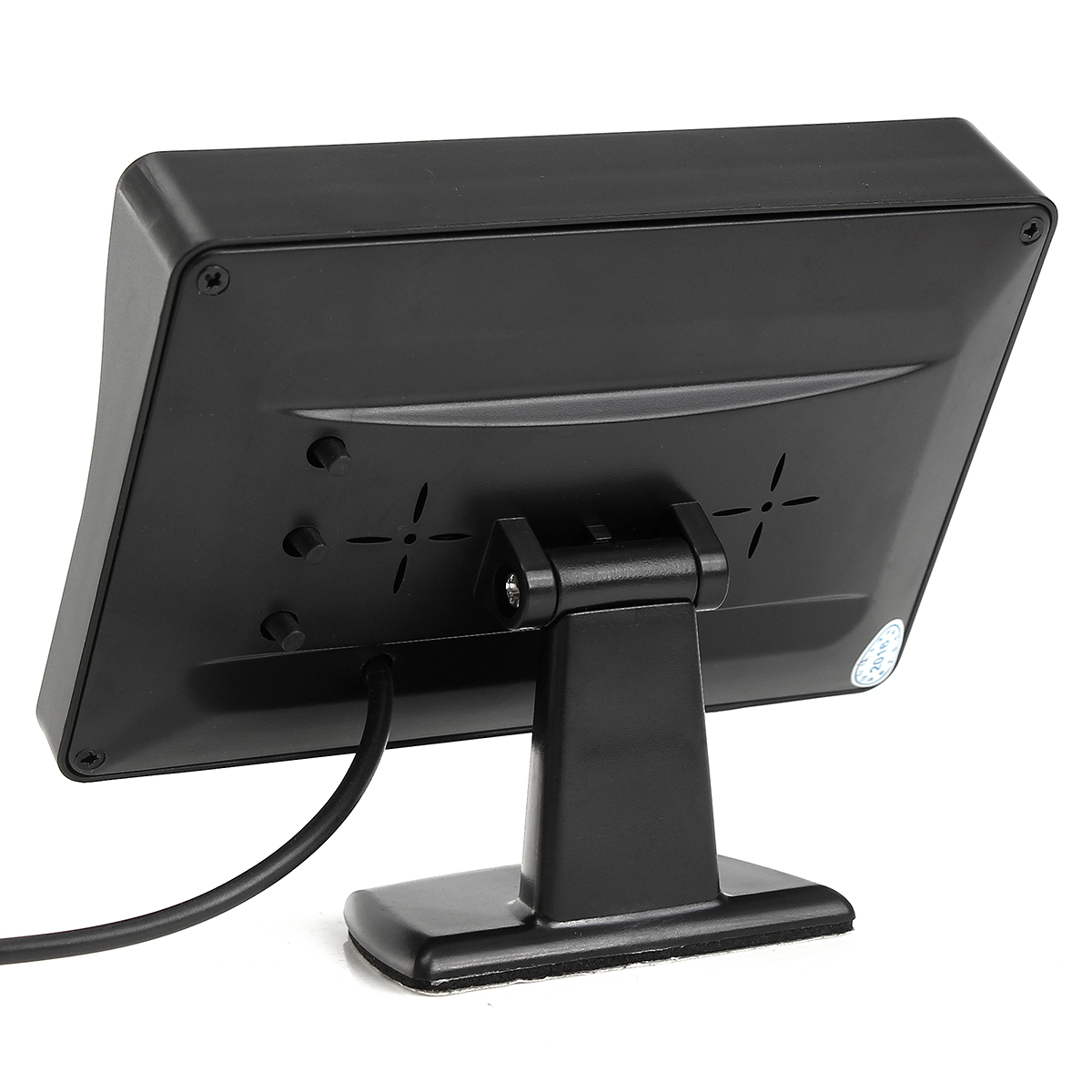

2.Easy to install, Screen rotatable
3.Full color TFT LCD display, Low power consumption
4.With 2 road video input port, white video cable connects to car rearview camera,
the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input,
the machine will prioritize the white end signal

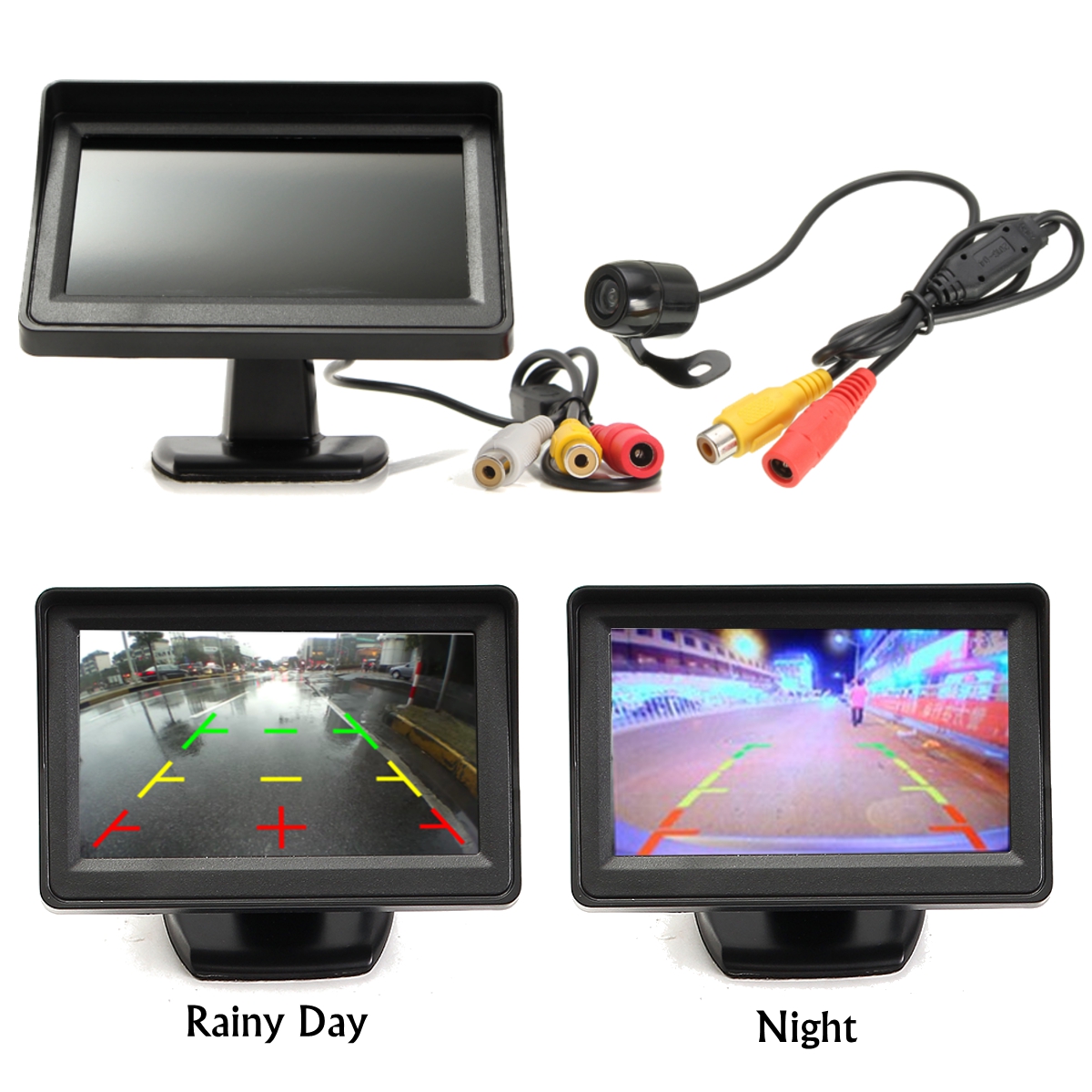

5.Parking rearview priority, The monitor will start up automatically, and synchronously display the video from
rearview camera when you're backing your car. The monitor will close itself after backing.
Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that
6.Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipments
7.Designed menu buttons, the brightness/contrast/hue/language is adjustable
8.No Audio input or output
9.RCA Video Cable
10.Weatherproof for outdoor use
11.100% shielded offering superb protection against EMI/ RFI interference
12.The two red wires are trigger wires particularly for Connecting DVD, Parking Monitor
13.Male to Male Connection with Detection Wire Cable
14.Compatible With: Car Rearview Camera, DVD player, professional CCTV/ surveillance camera, TV Box

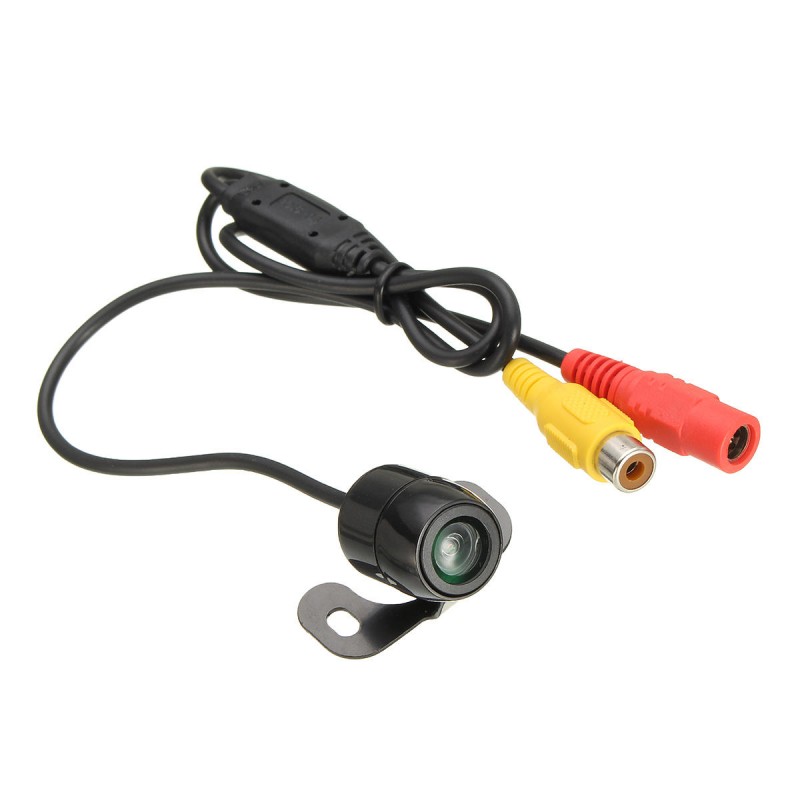

15.Car Rear View Camera
16.Made of high quality and durable material, Small compact design and easy to install
17.170 degree adjustable wide viewing angle with high sensitivity and definition
18.IP67-compliant dustproof and waterproof
19.Works as a revising camera or security camera, it help avoid incidents
20.Applicable to variety of Vehicles: car, truck, RV, mini-van, boat, trailer, camper, etc.
21.Please note that the camera without IR LED

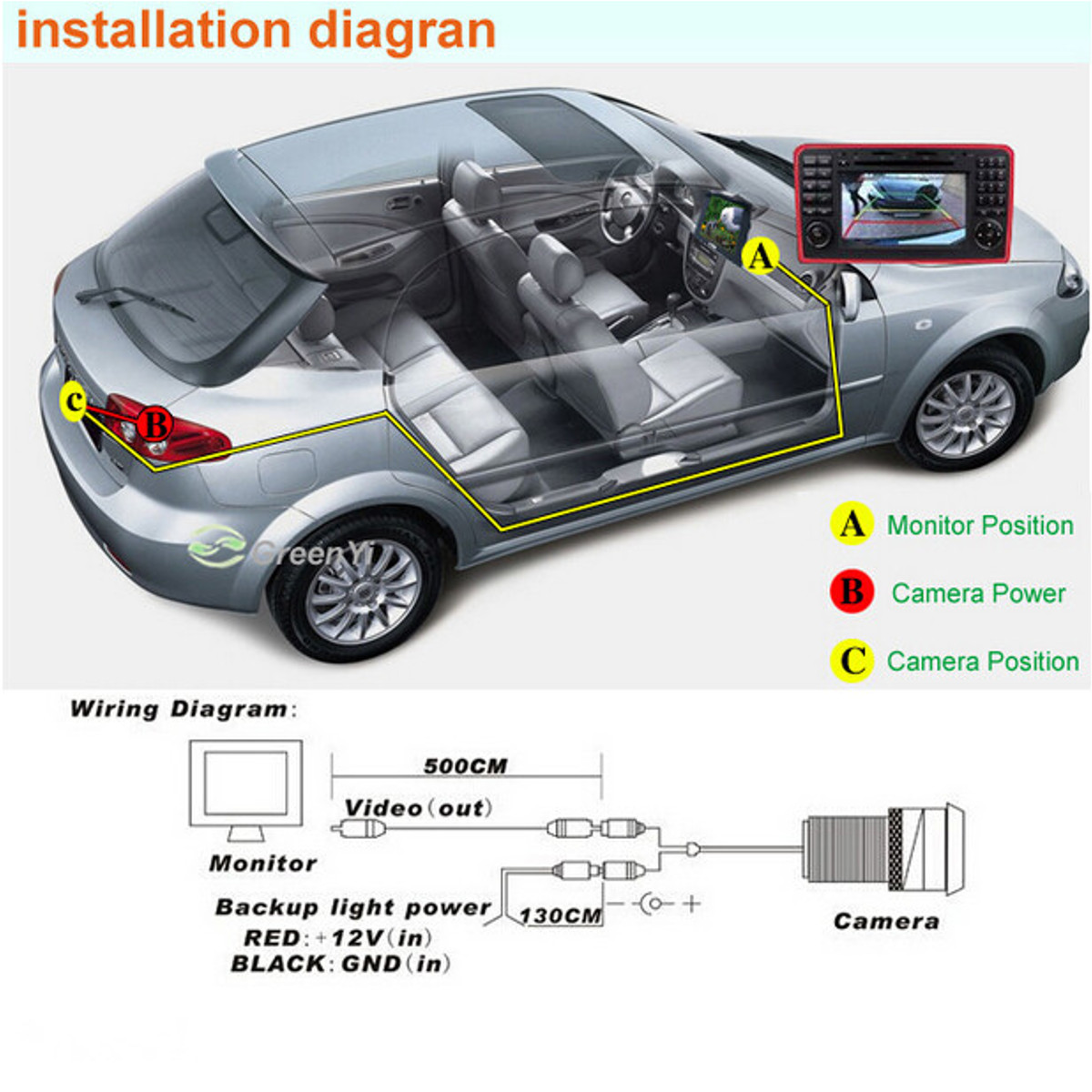

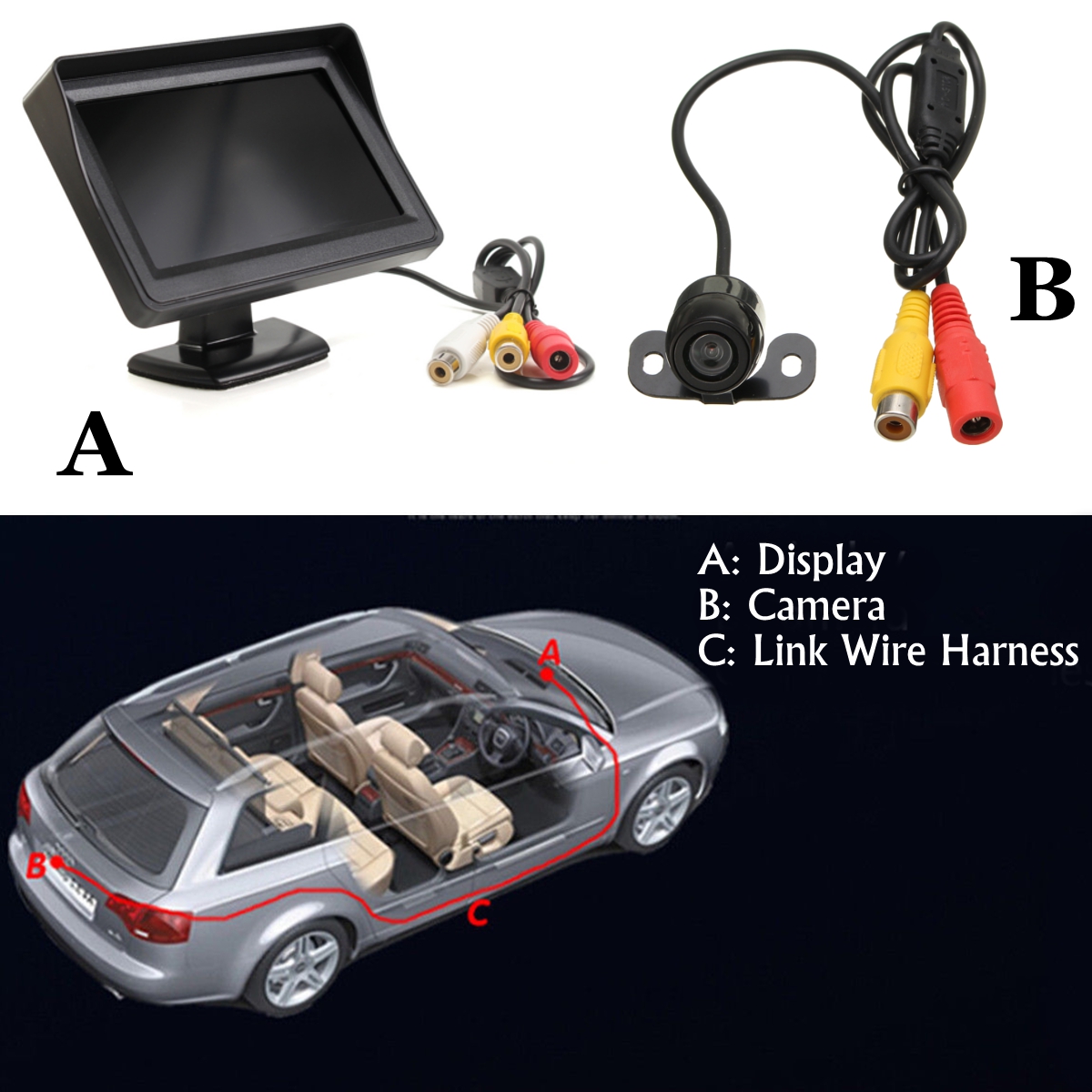

Installation:
1.Mount the camera to your car's license plate area, back window, or any other suitable place.
2.Adjust the lens of the camera to its best position.
3.Connect power wire (red and black) to your vehicle DC 12V power system.
4.Connect the video output (yellow wire) of the camera to the display in your vehicle.
Package Included:
supports car Camera/ DVD/Serveillance camera/STB/Satellite receiver/other video equipments
Feature:
1.4.3 inch High-resolution Color TFT LCD monitor
2.Easy to install, Screen rotatable
3.Full color TFT LCD display, Low power consumption
4.With 2 road video input port, white video cable connects to car rearview camera,
the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input,
the machine will prioritize the white end signal
5.Parking rearview priority, The monitor will start up automatically, and synchronously display the video from
rearview camera when you're backing your car. The monitor will close itself after backing.
Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that
6.Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipments
7.Designed menu buttons, the brightness/contrast/hue/language is adjustable
8.No Audio input or output
9.RCA Video Cable
10.Weatherproof for outdoor use
11.100% shielded offering superb protection against EMI/ RFI interference
12.The two red wires are trigger wires particularly for Connecting DVD, Parking Monitor
13.Male to Male Connection with Detection Wire Cable
14.Compatible With: Car Rearview Camera, DVD player, professional CCTV/ surveillance camera, TV Box
15.Car Rear View Camera
16.Made of high quality and durable material, Small compact design and easy to install
17.170 degree adjustable wide viewing angle with high sensitivity and definition
18.IP67-compliant dustproof and waterproof
19.Works as a revising camera or security camera, it help avoid incidents
20.Applicable to variety of Vehicles: car, truck, RV, mini-van, boat, trailer, camper, etc.
21.Please note that the camera without IR LED
Installation:
1.Mount the camera to your car's license plate area, back window, or any other suitable place.
2.Adjust the lens of the camera to its best position.
3.Connect power wire (red and black) to your vehicle DC 12V power system.
4.Connect the video output (yellow wire) of the camera to the display in your vehicle.
Package Included:
| 1 X 4.3 Inch Monitor | 1 X Car Rear View Camera |

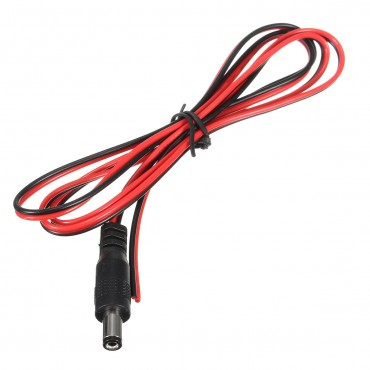

| 1 X 6M Video Cable | 2 X Power Cable |
| 2 X Screws | 1 X Instructions |
Specification:
| 4.3" Color TFT LCD Monitor | |
| Screen size | 4.3 inch |
| Resolution | 480(RGB) x 272 |
| Standard | PAL/NTSC (Automatic Identification) |
| Video in | AV1/AV2 |
| Aspect Ratio | 4:3 |
| Working Voltage | DC 9V-30V |
| Brightness | 300 nits |
| Contrast | 350:1 |
| Color | Black |
| Housing | Elecdeer |
| Package Size | 150 x 118 x 70mm |
| Package Weight | 346g |
| RCA Video Cable 4 | |
| Color | Black |
| RCA Video Cable length | 6m |
| Power Cable length | 1m |

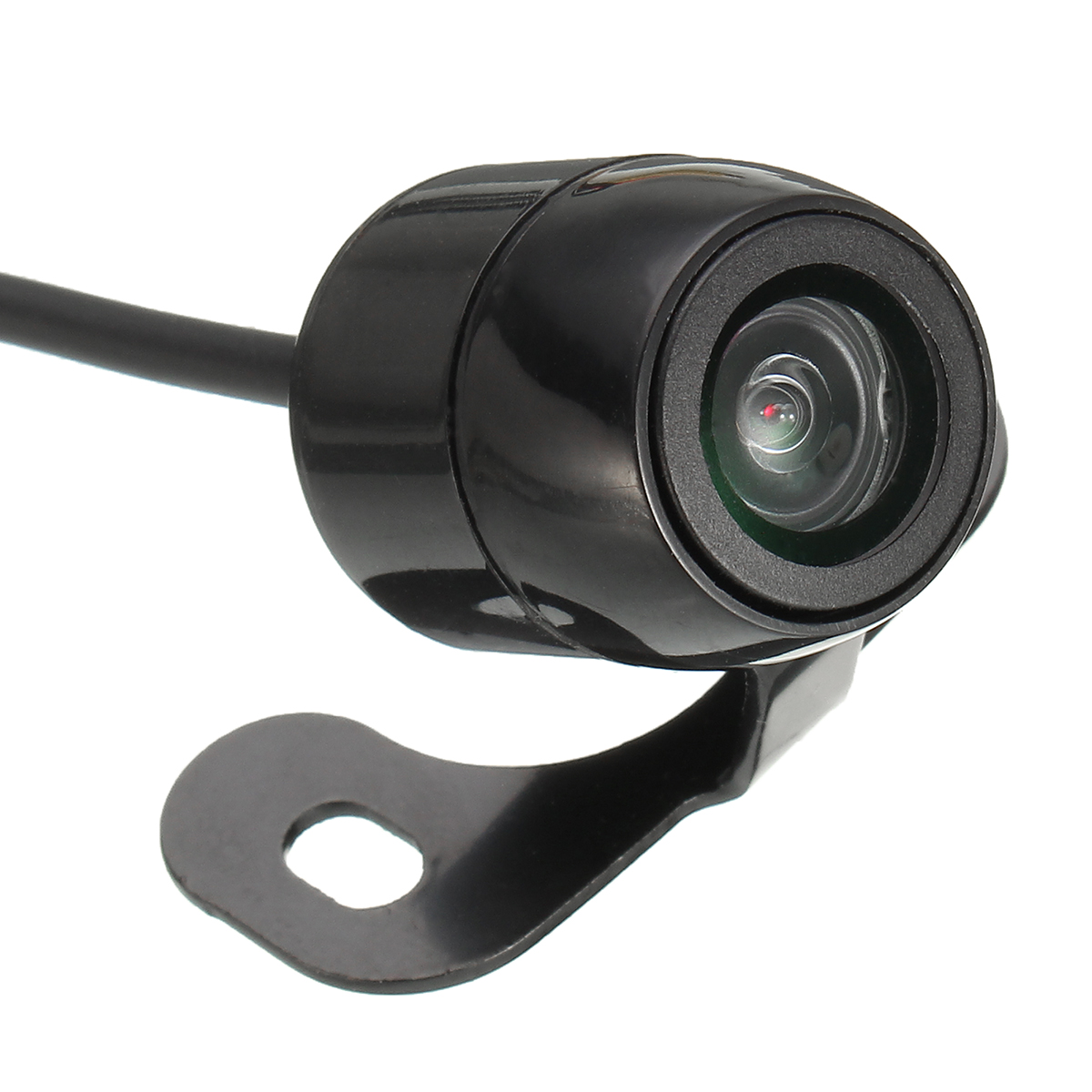

| Car Rear View Camera | |
| Image sensor | Color 1/3" Sensor CMOS |
| TV system | NTSC |
| Resolution | 659 x 492 Pixel |
| Horizontal resolution | 420 TVL |
| Minimum illumination | 0.1 Lux/F=1.2(0 Lux with IR on) |
| Automatic White Balance | Support |
| Automatic backlight compensation | Support |
| RCA video output | 1.0 VP-P,75 OHM |
| Lens angle (DIAGNOL) | 120°-170° |
| Operating Temperature | -20°C~ 60°C, RH10%-90% Max |
