Description:
1. High sensitivity.
2. Low maintenance.
3. Small compact size.
4. 120 degree wide angle.
2. Low maintenance.
3. Small compact size.
4. 120 degree wide angle.
5. Low power consumption.
6. No audio input or output.
6. No audio input or output.
7. Brand new and high quality.
8. Provide all color vision function.
8. Provide all color vision function.
9. 100% brand new and high quality.
10. Waterproof /Weatherproof function.
11. Easy and comprehensive installation.
10. Waterproof /Weatherproof function.
11. Easy and comprehensive installation.
12. Special optical lens substitute the original rearview mirror.
13. Supports car DVD, VCD, camera, and other video equipment.
14. With the menu button, brightness/contrast/hue/ language is adjustable.
15. When parking the car, the rearview image appears onto the screen automatically.
16. Easy installation, without damaging any parts of the car, clip on the original mirror.
14. With the menu button, brightness/contrast/hue/ language is adjustable.
15. When parking the car, the rearview image appears onto the screen automatically.
16. Easy installation, without damaging any parts of the car, clip on the original mirror.
17. With 2 video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD.
Feature:
For Monitor | |
Type | Digital TFT LCD |
Display Size | 3.5 /4.3 inch |
Aspect Ratio | 4:3/16:9 |
Video System | AV1/AV2 NTSC/PAL |
Power Supply | DC 6V-32V |
Rated Power | 3W |
Operating Temperature | -20℃~+60℃ |
Storage Temperature | -40℃~+85℃ |
Environemnt Humidity | 10%-90% |
Pixel | 480x234 |

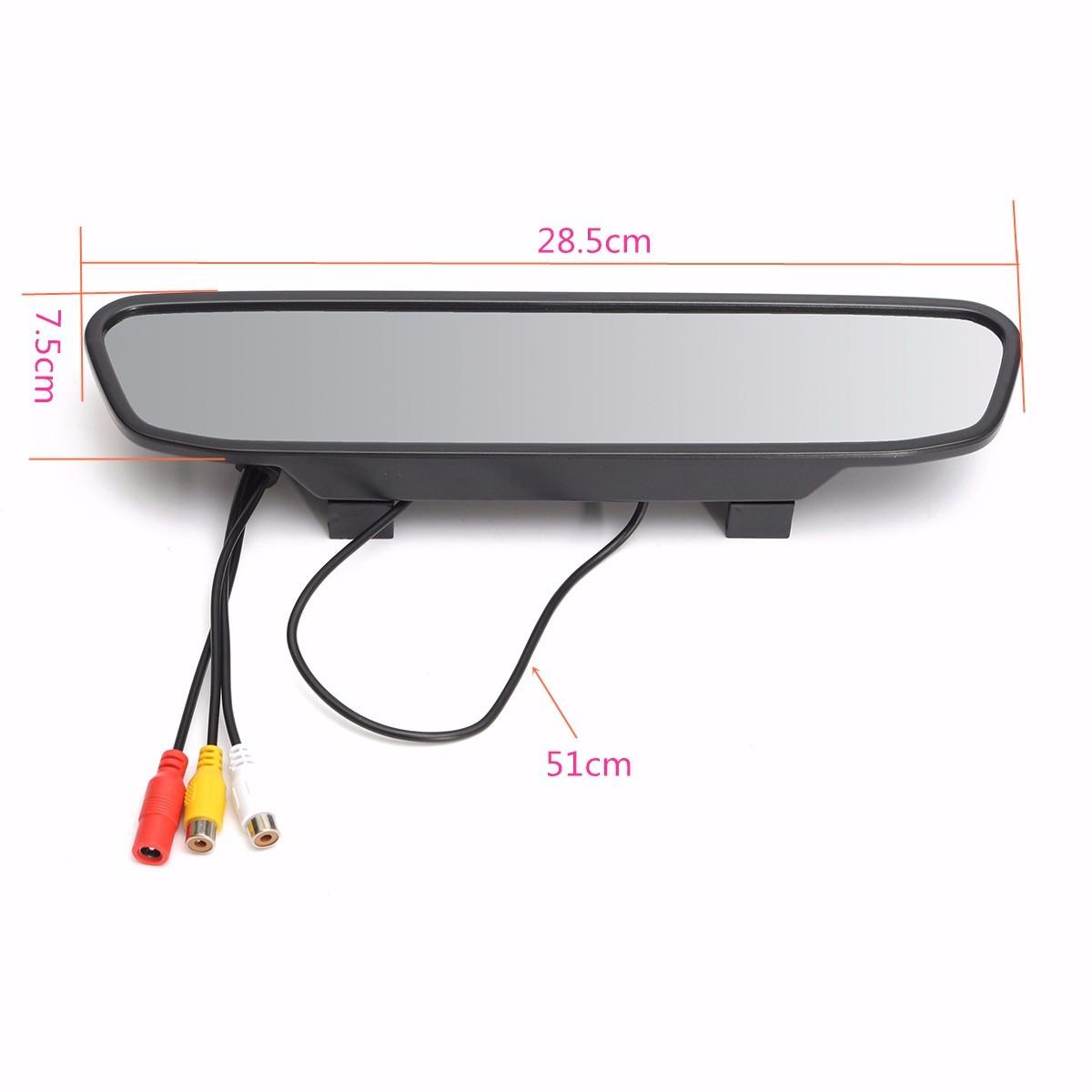

Size | Approx 285*75*mm |
Contrast | 350:1 |
Weight | 250g |

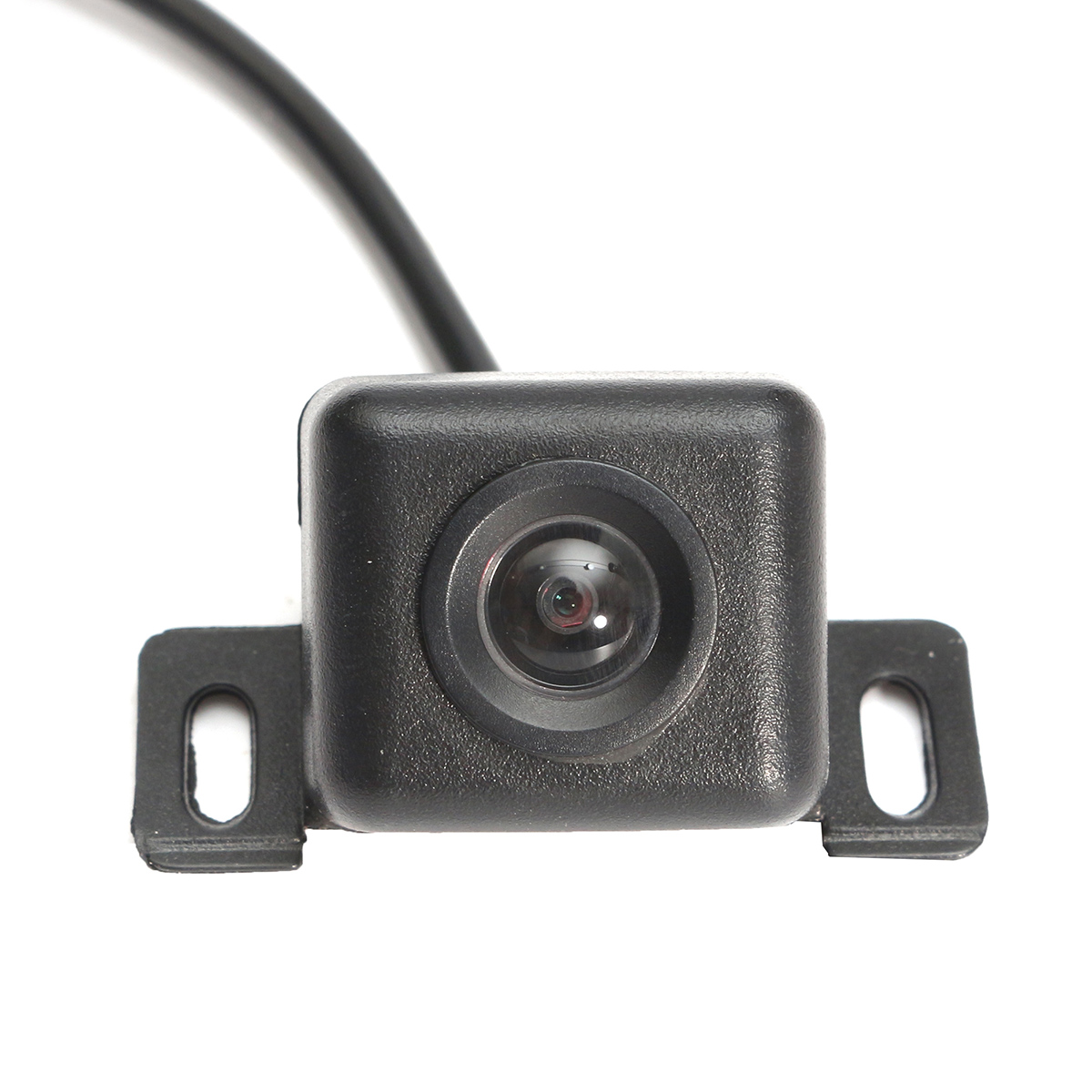

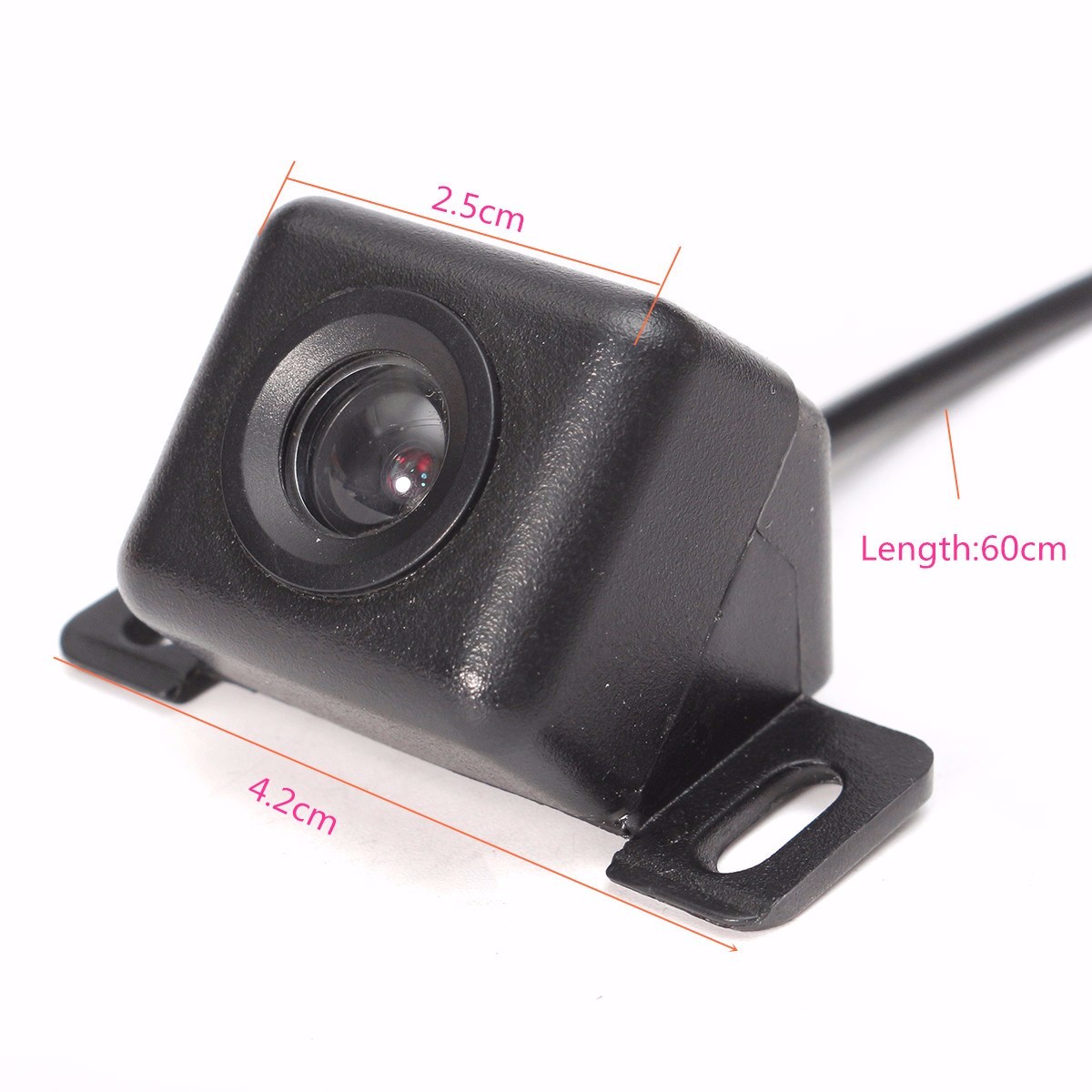

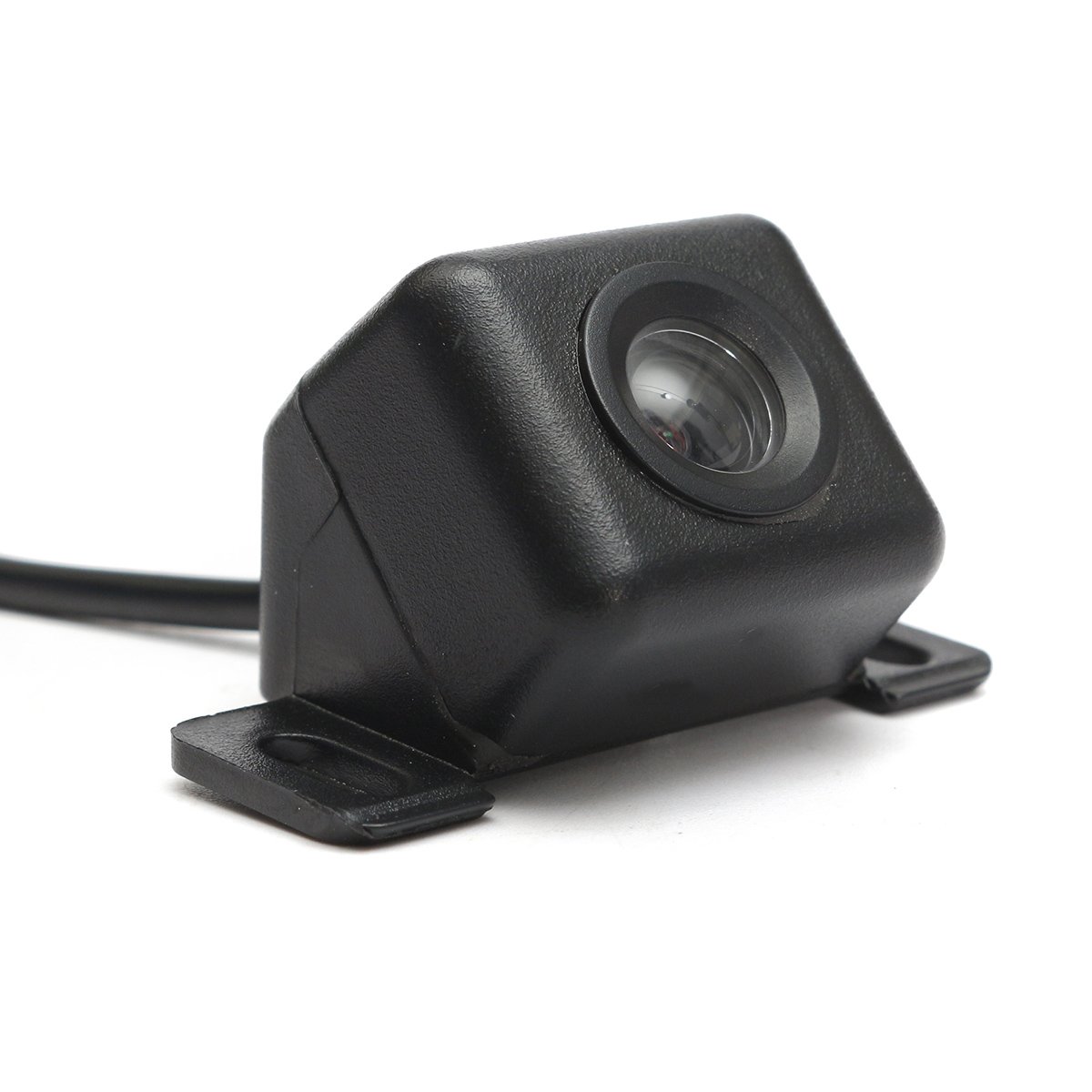

For Reversing Camera
|
|
Image Sensor | 1/3" CCD |
Signal System | NTSC/PAL. |
Effective Pixels | 648x488 |
Sensing Area | 5.961*4.276 mm |
Sync System | Internal |
Resolution | 480 TV lines |
Minimum Illumination | 0.5Lux |
Vertical Sync Frequency | PAL502HZ/ NTSC60HZ |
S/N Ratio | More Than 48db |
Water-Proof | IP67 |
Current Consumpition | No More 150mA |
Power Supply | DC 12V |
Scanning System | 2:1 Interlace |
Lens Angle | 120 Degree |
Horizontal Angle | 110 Degree |

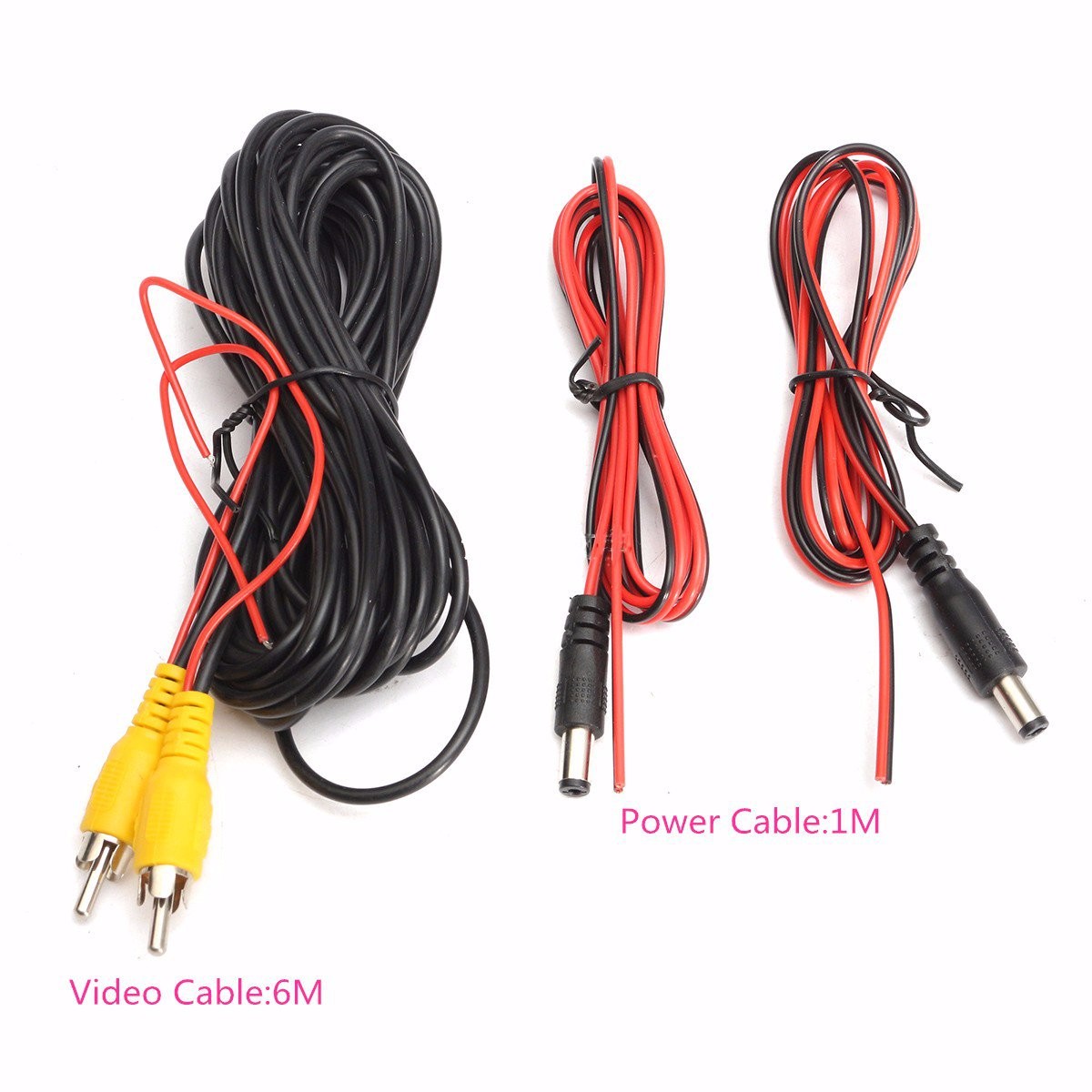

Video Cable Lenght | 6M |
Power Cord Length | 1M |

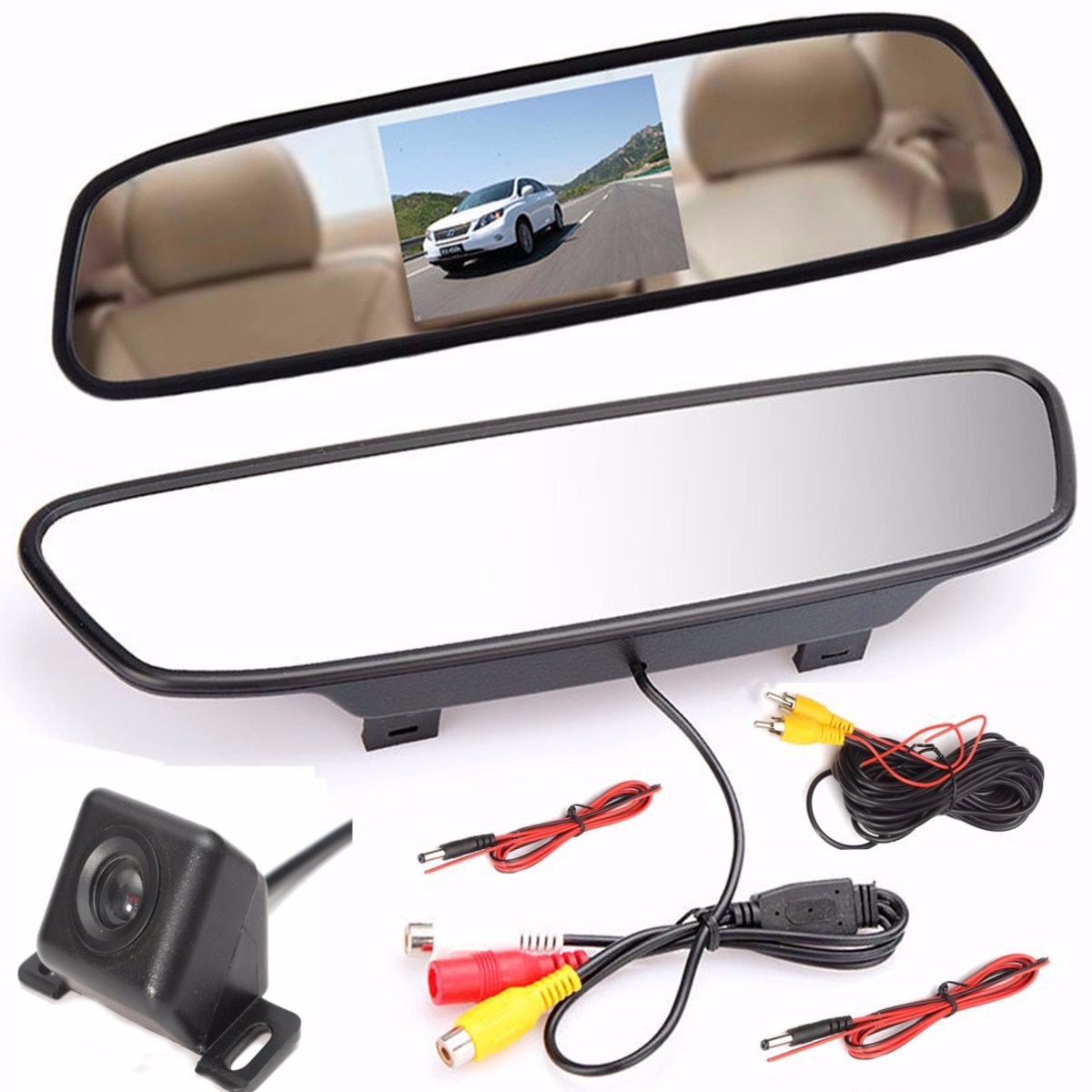

Package Included:
1 X 4.3 Inch Car Monitor
1 X Power Cable
1 X English-Chinese User Manual
