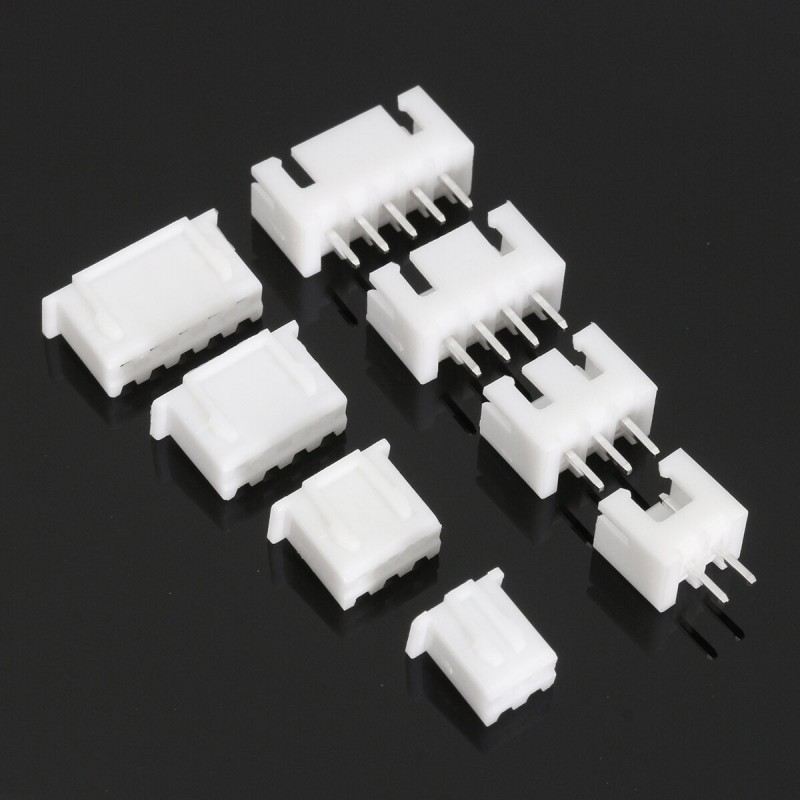

40 Sets JST 2.5mm XH 2P 3P 4P 5Pin Male Female Housing Connector with Crimps
$13.99
- Product Code: ED0018555
- Availability: In Stock
- Ex Tax: $13.99
Specification:
Model Number: 568390
Product Name: Housing Connector
Pitch: 2.54mm
Current Rating: 1A AC, DC
Voltage Rating: 125V AC, DC
Temperature Range: -25 deg C ~ +85 deg C
Insulation Resistance: 100M Omega Min.
Withstanding Voltage: 500V AC/minute
Wire Range : AWG#24~#32
Insulation O.D. : 1.00mm ( Max.)
Note:
We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

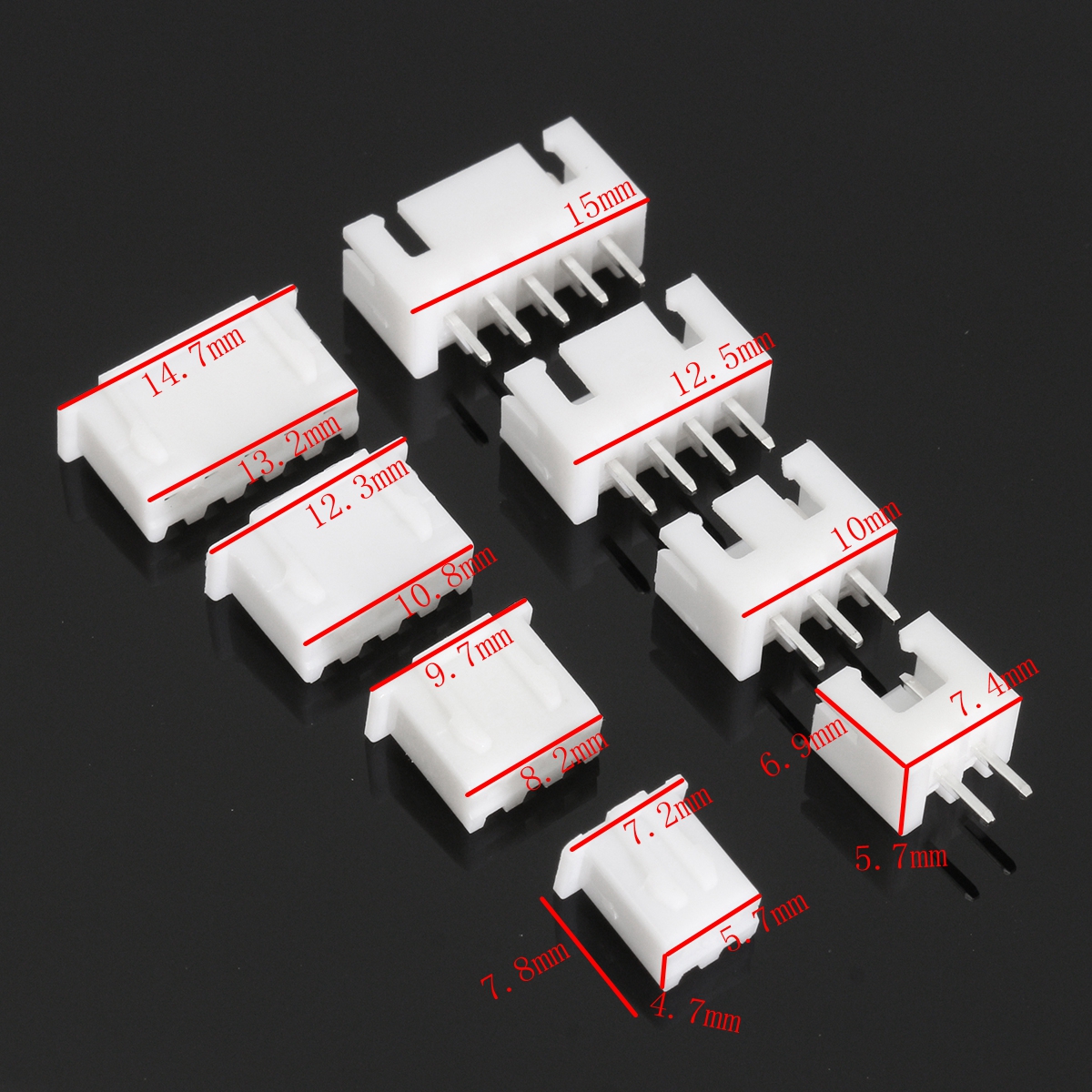

All dimensions are measured by hand, Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm).
There Are No Instructions Included In This Kit.Professional Installation Is Highly Recommended!

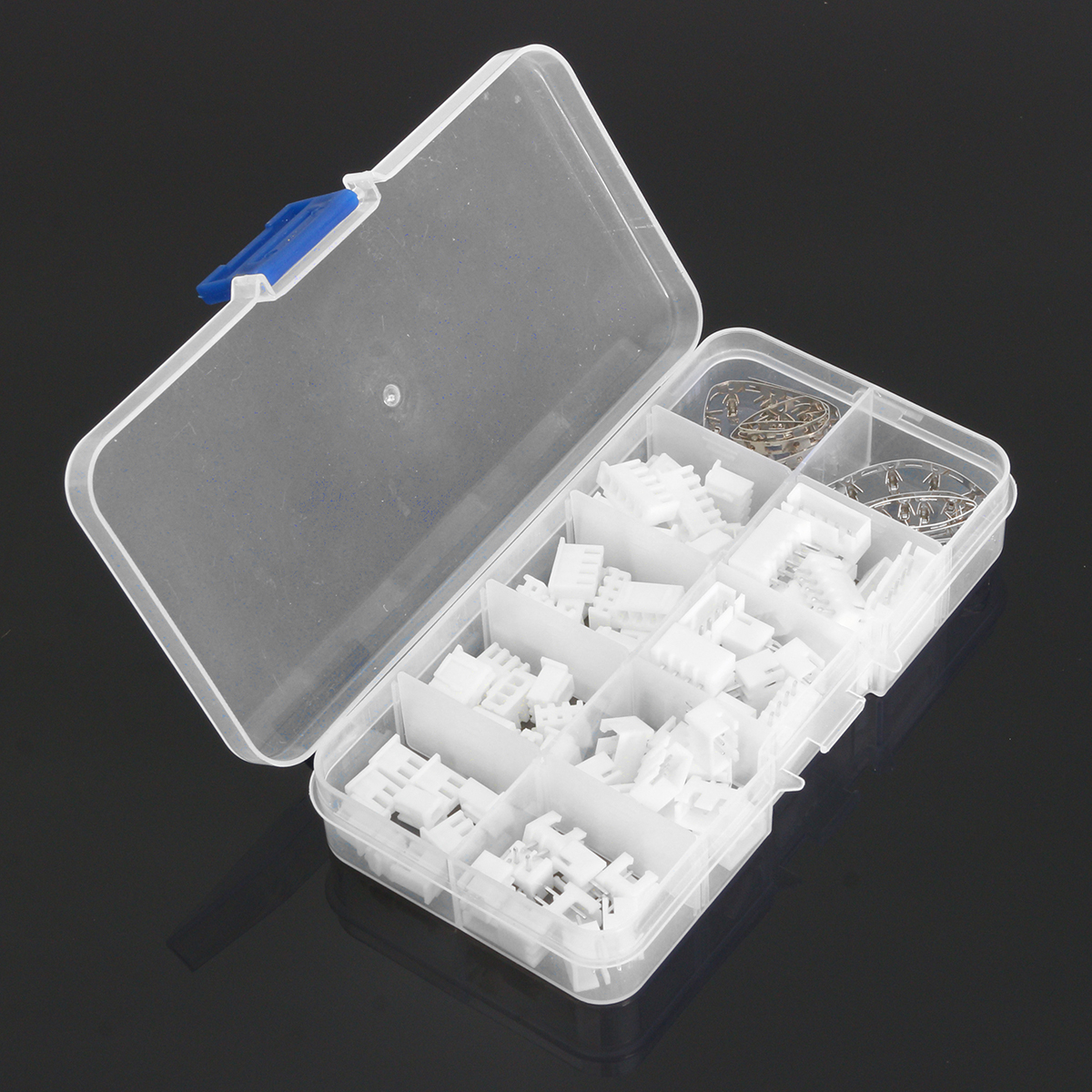

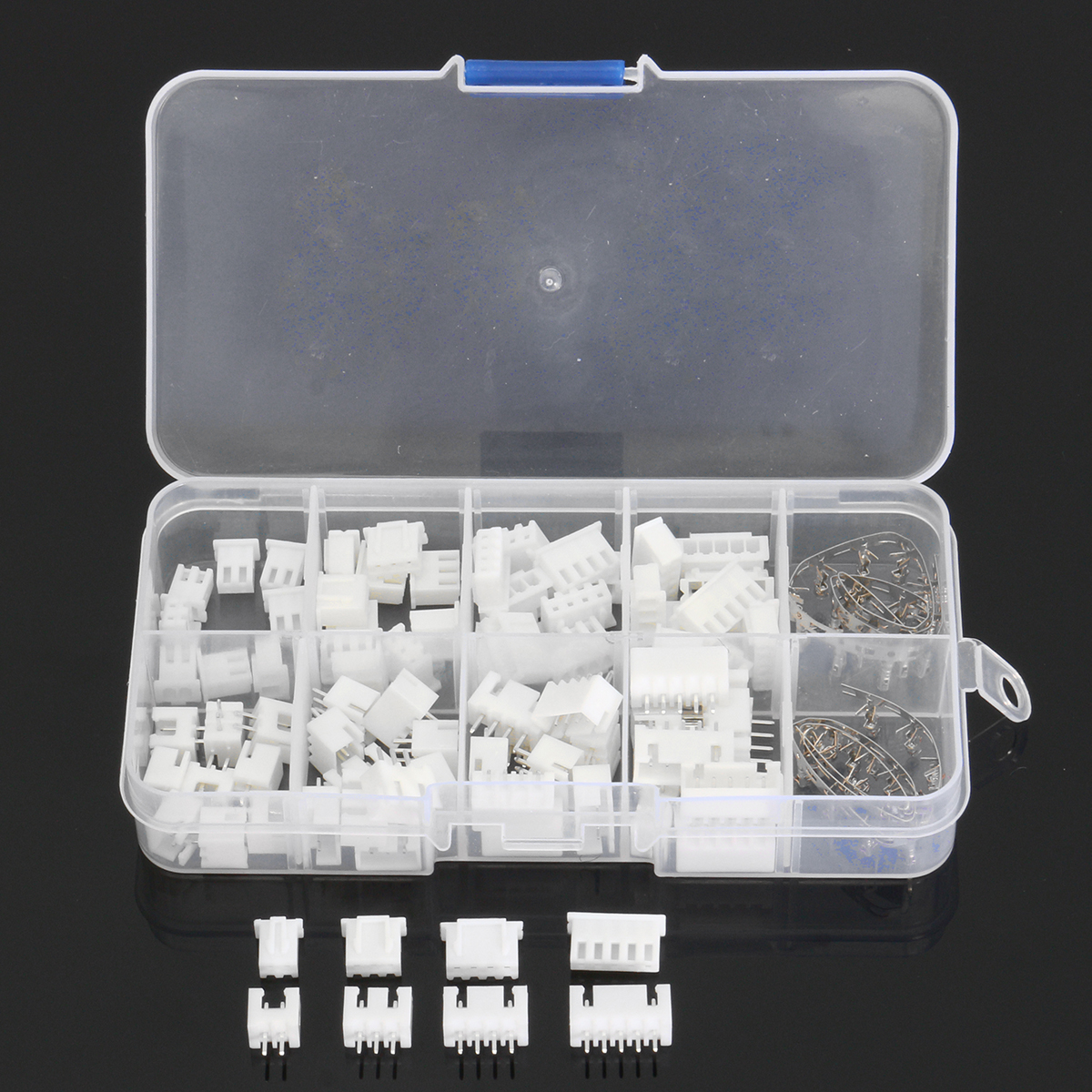

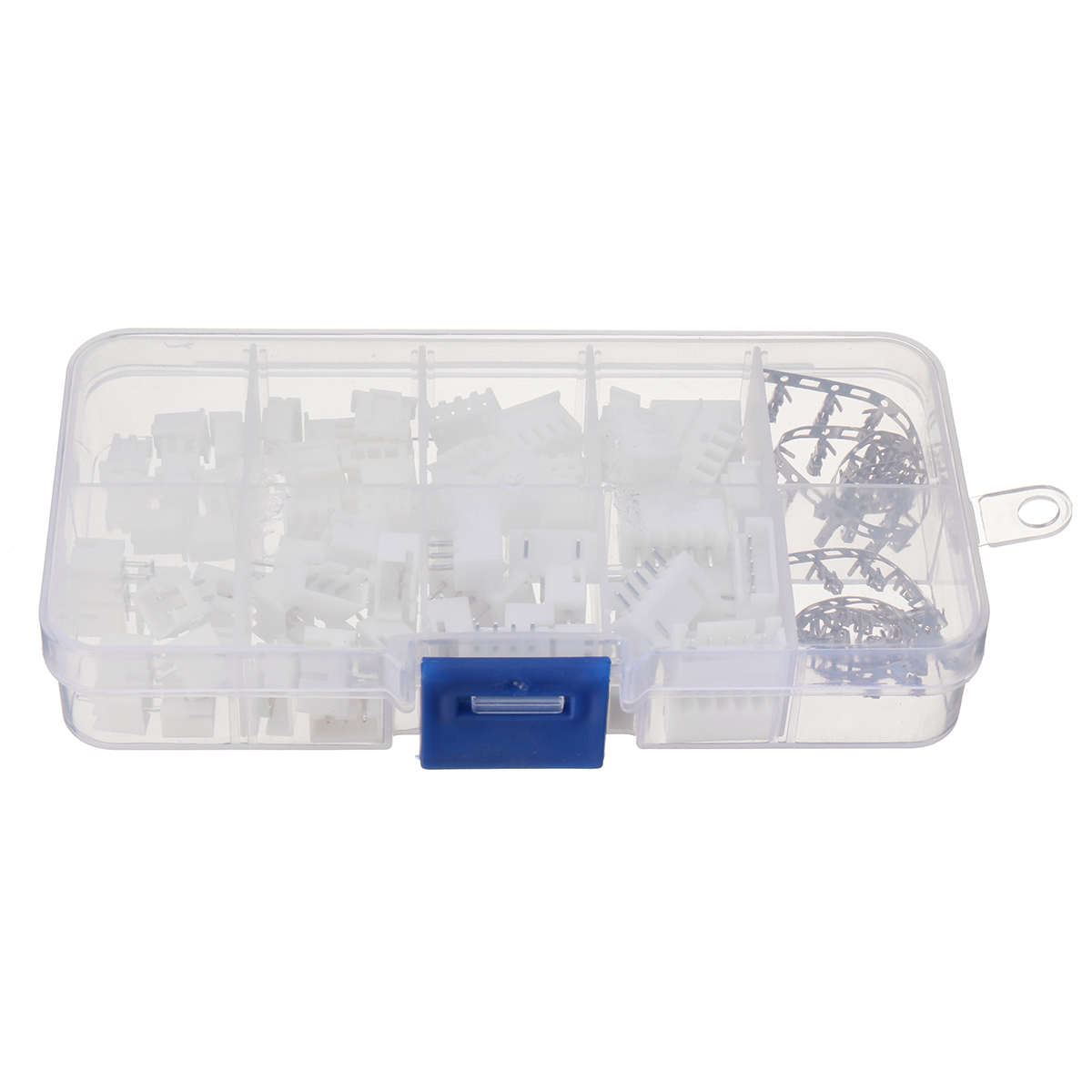

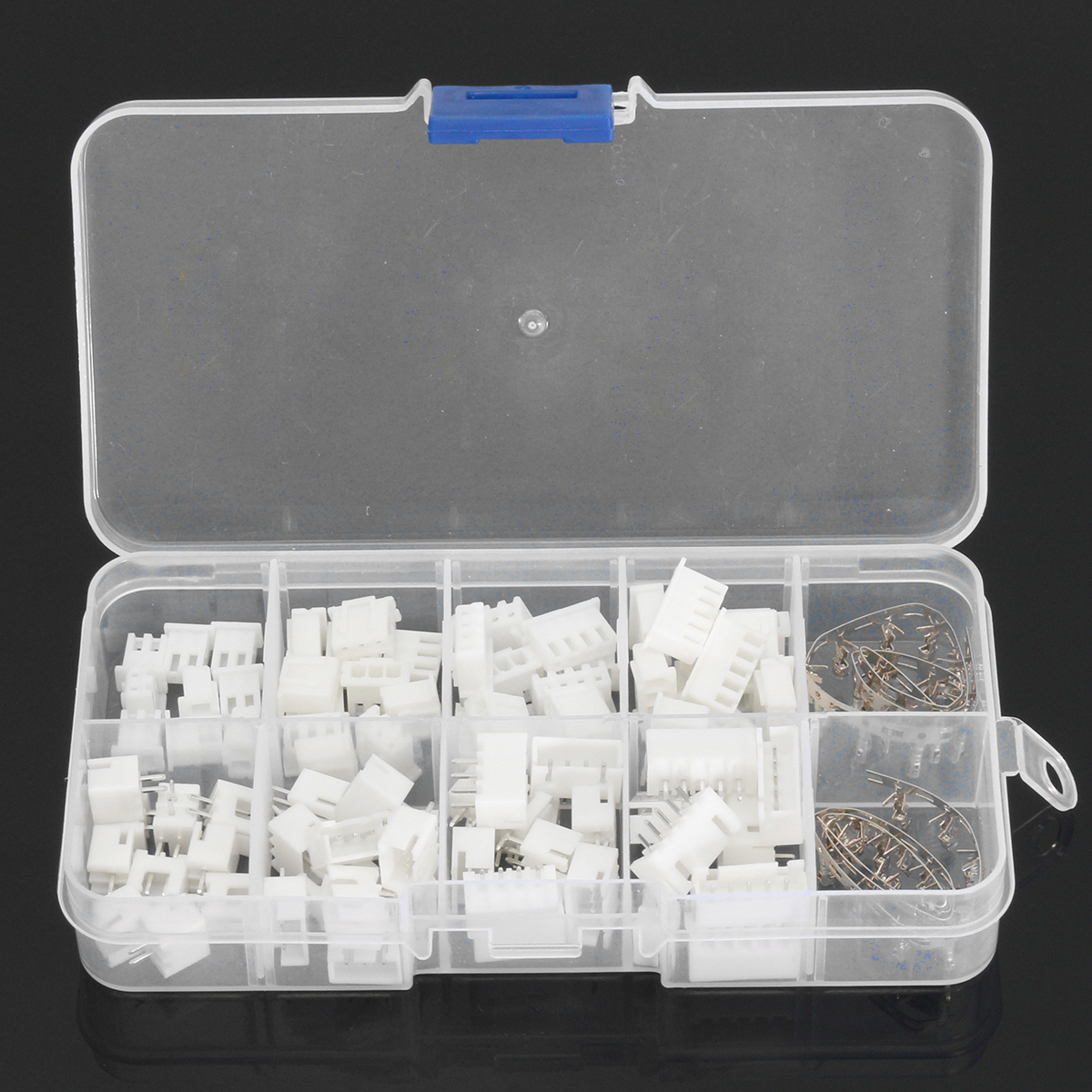

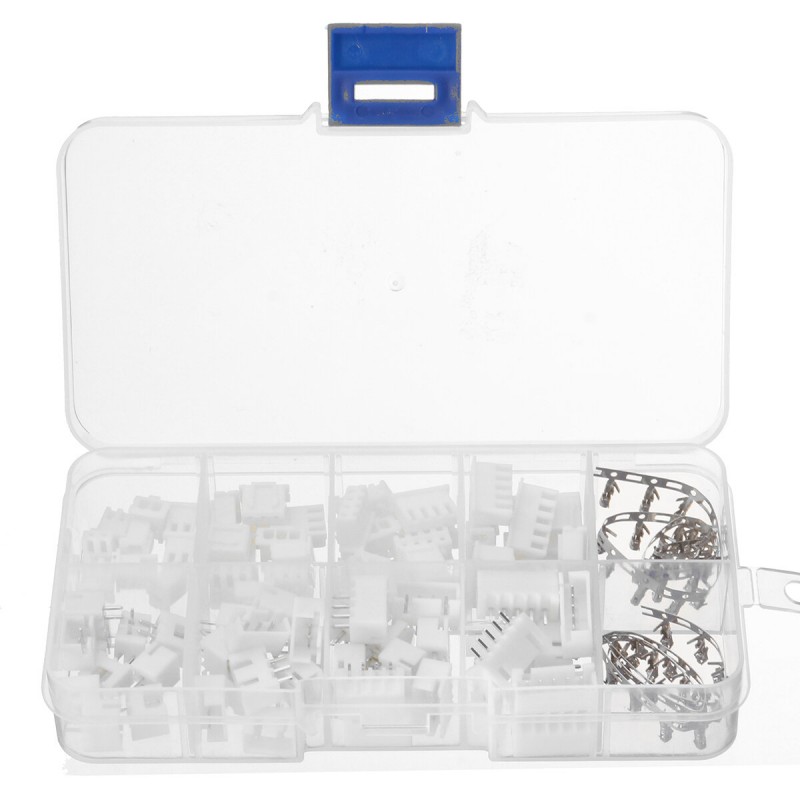

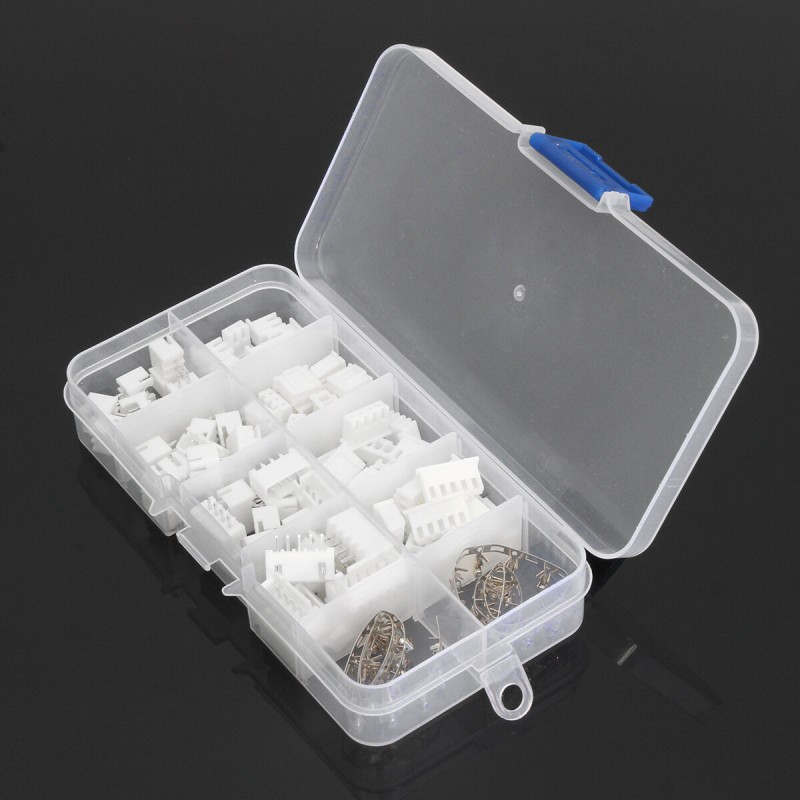

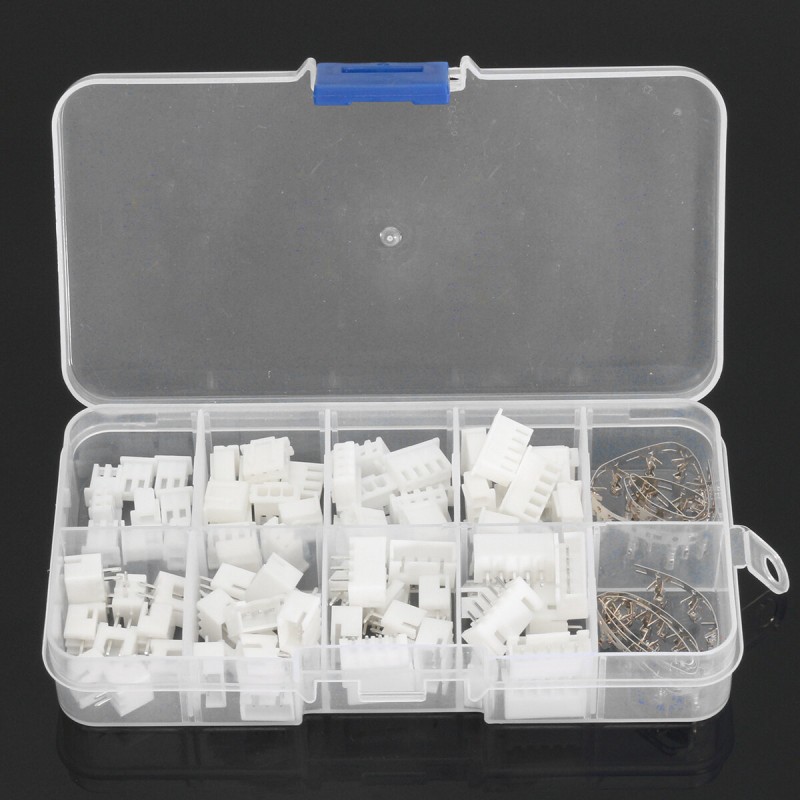

Package Included:
2pin = 10 sets
3pin = 10 sets
4pin = 10 sets
5pin = 10 sets

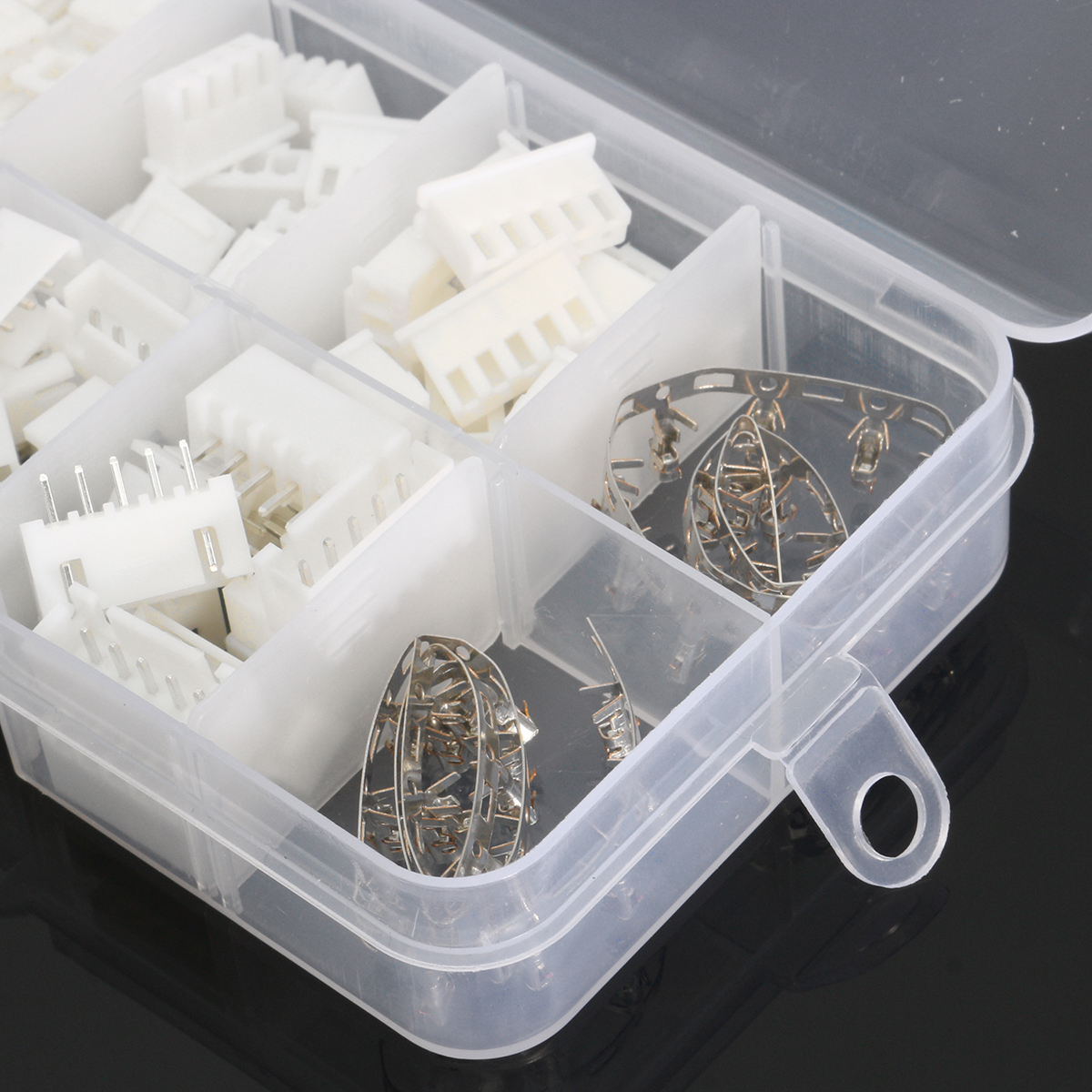

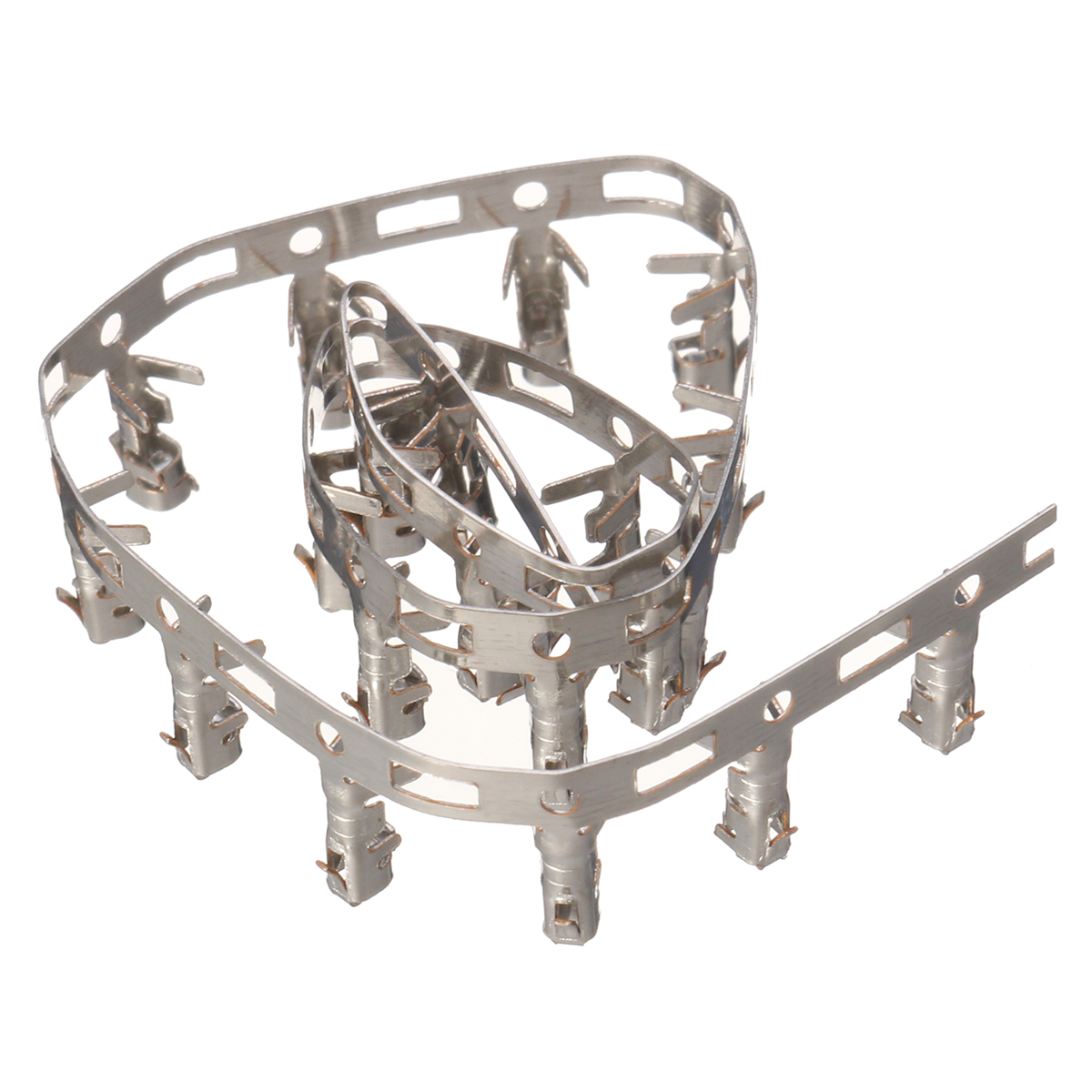

Pin Connector Terminal :50 pcs( Please allow 5% deviation )
