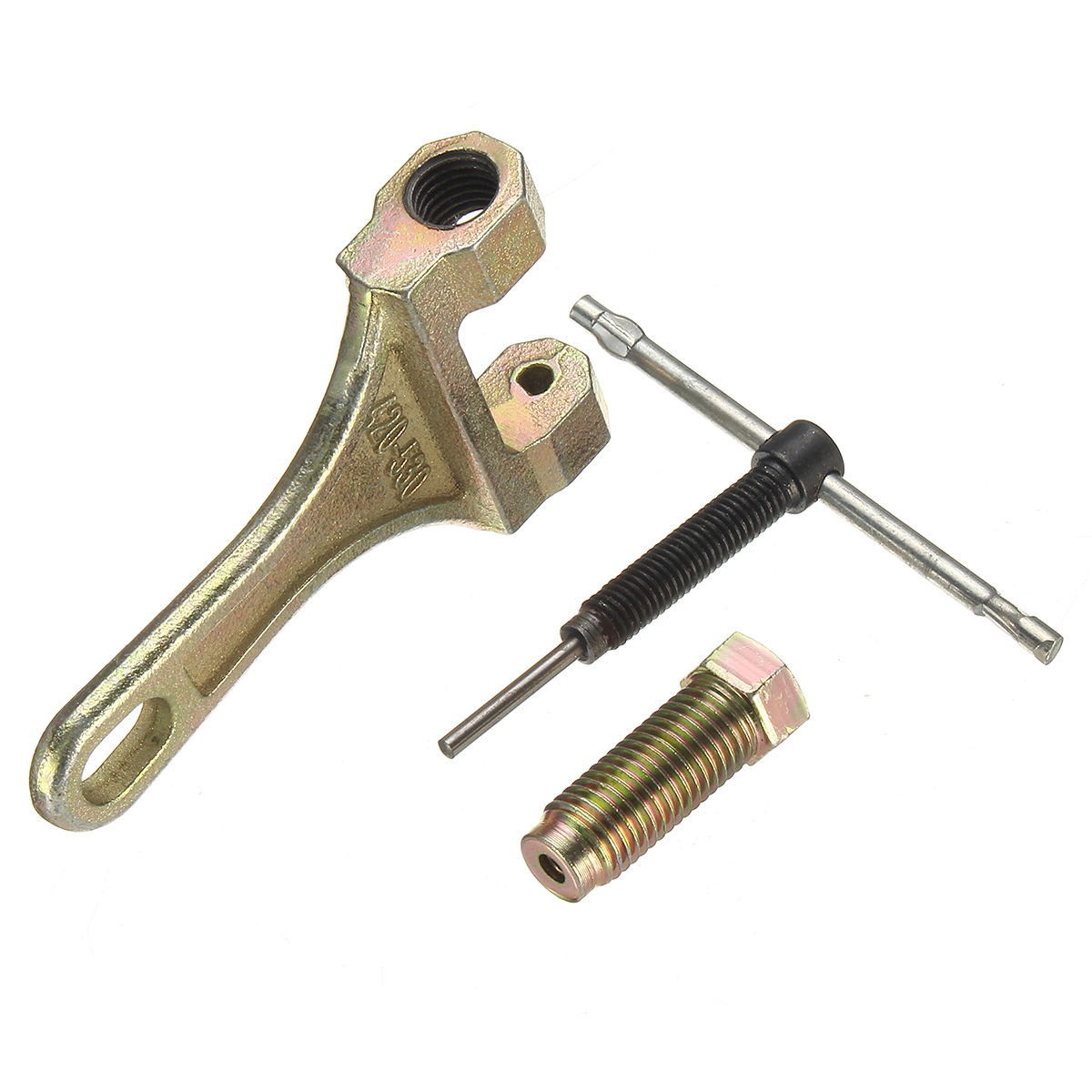

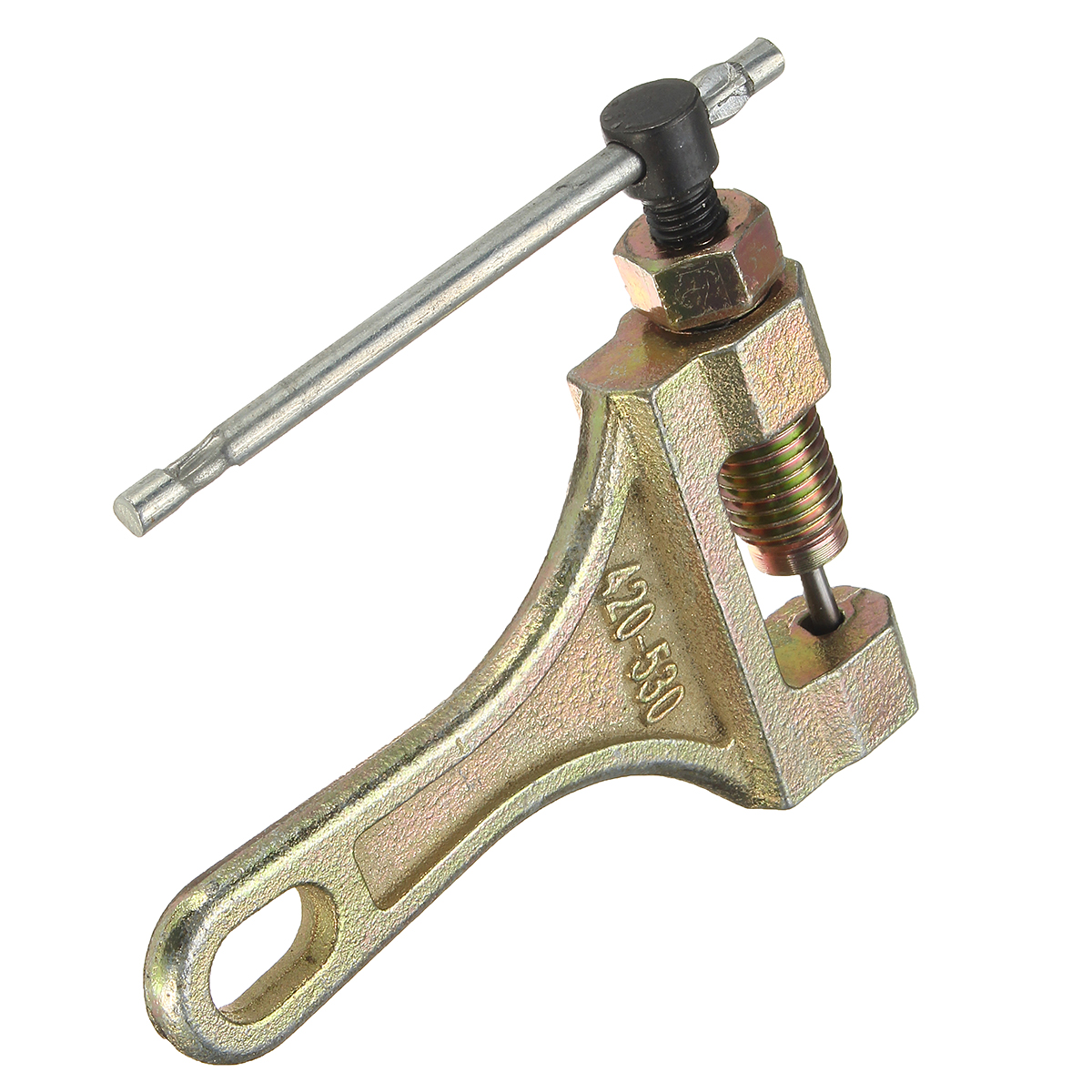

420 428 520 525 530 Chain Breaker Splitter Removal Cutter Repair Tool For Motorcycle Bike

$18.99

  • Product Code: ED0018478
  • Availability: In Stock
  • Ex Tax: $18.99

Tags: 420 530 Chain Breaker

Description:
1. This is an essential tool to have for anyone working on their own machine. Remove chains and extra links with ease
Suitable for chain 420, 428, 520, 525, 530
2. Replaceable press pin is heat treated and hardened
3. Please be sure to verify that the push pin is aligned properly with the chain pin
4. It is recommended to grind off the chain pin head before using this tool
5. This will significantly reduce the load on the tool and help prevent premature wear or damage to the breaking tips

Specification:

Material: Metal
Size: Approx. 12cm x 6.5cm/ 4.72"x 2.56"

Color: Gold or black(random)
Quantity: 1pc

Installation:
1. Unscrew bolt "A" so that the pin "C" is fully retracted into the bolt "B"
2. Unscrew bolt "B" and position the chain under "B", so that the ends of the chain pin can fit into the holes "D" adn the bolt "B"
3. Thread bolt "B" in until the chain is clamped in place, against the hole "D"
4. Turn bolt "A" to push the chain pin head out of its plate
5. Repeat the operation on the second pin of the link to be disassembled

Package Included:

1 X Chain Breaker Splitter Cutter Removal Repair Tool
