47cc 49cc Carburetor Carb Quad ATV Pocket Bike Petrol Pipe Fuel Filter Mini Moto

$12.99

  • Product Code: ED0017015
  • Availability: In Stock
  • Ex Tax: $12.99
Description:

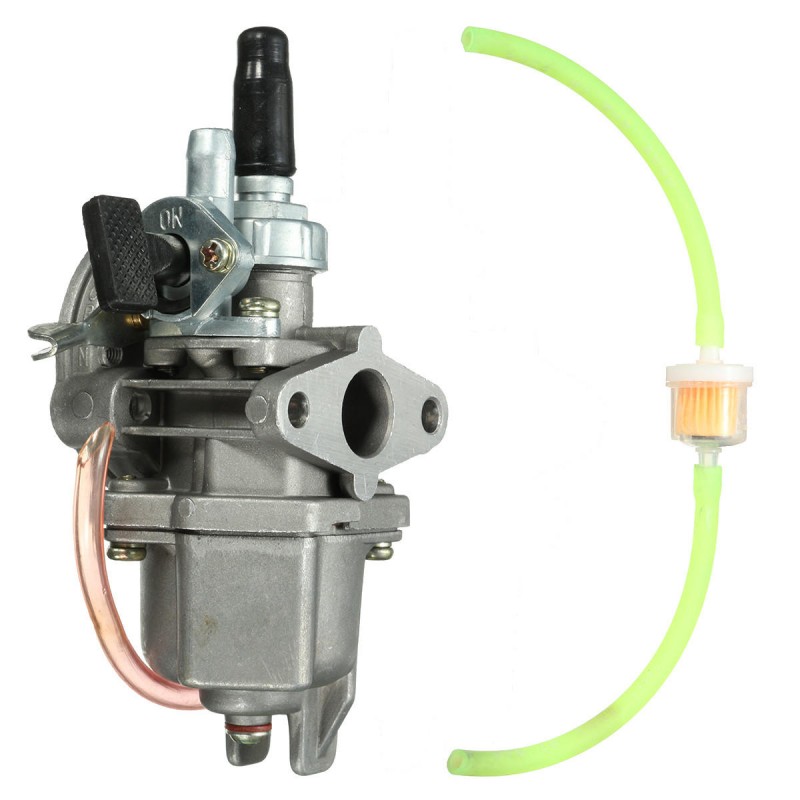

This is a mini moto standard replacement air cooled carburettor + petrol pipes + fuel filter for 47cc & 49cc mini pocket bike engines
This parts fits any air cooled model including the Mini Quad ATV, Mini Dirt Bike models, Mini Racing bike Cag GPand Mini Motard models

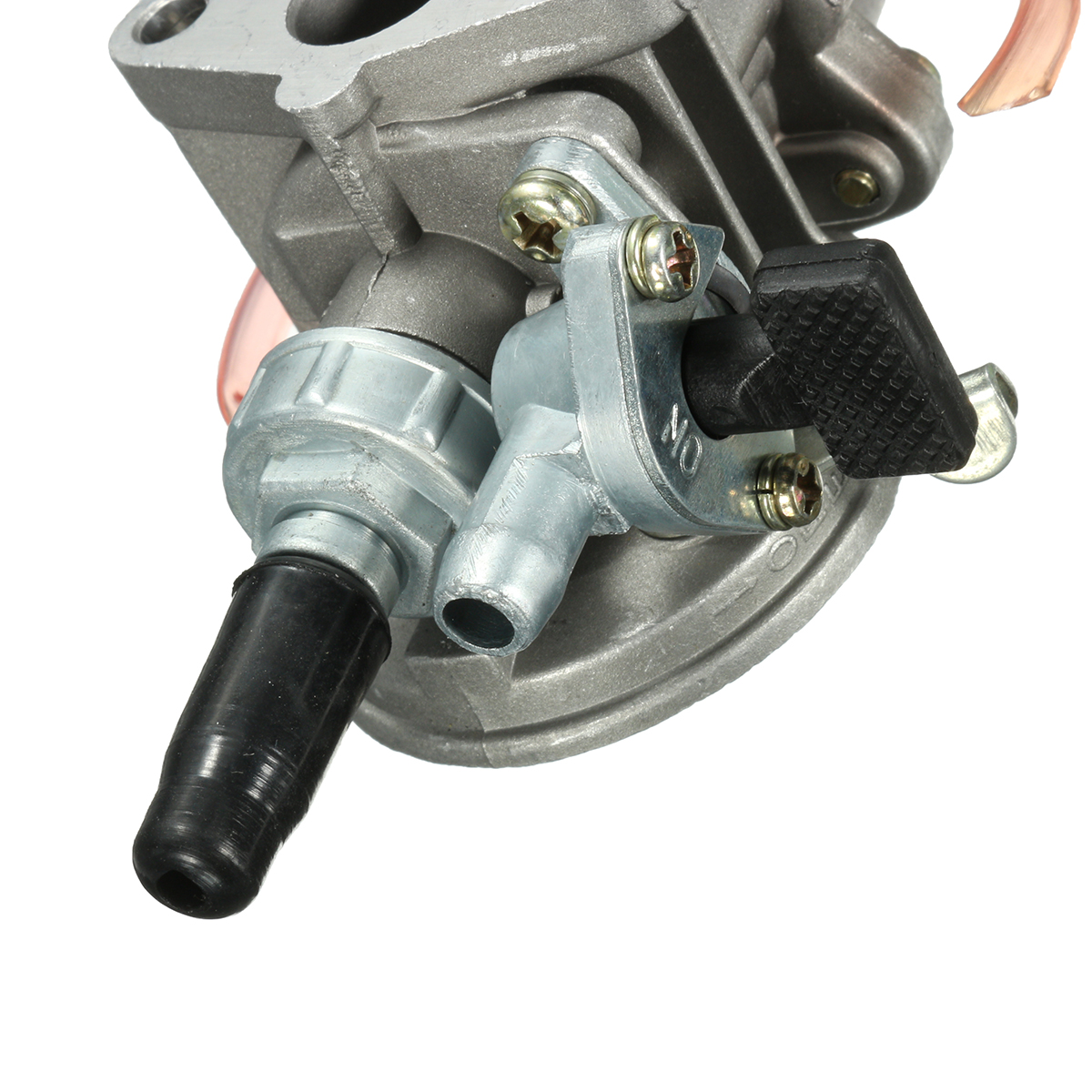

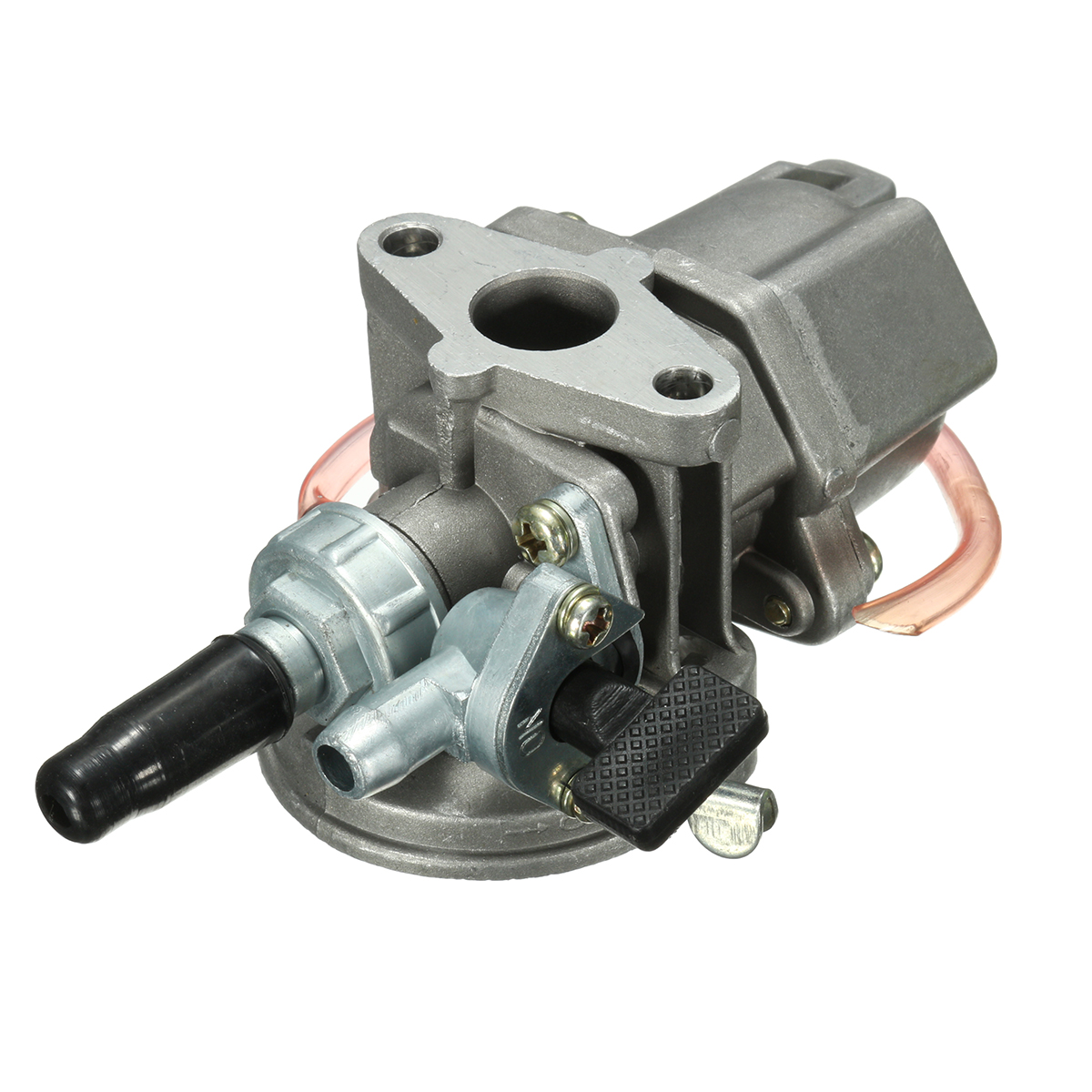

It incorporates a choke lever on the right when fitted, ON - Off fuel tap, overflow pipe and tick over setting screw
This is a gravity fed float style carburettor with internal throttle slide operation and shielded throttle cable connection point at the top

Specification:
Type: Carbutetor carb

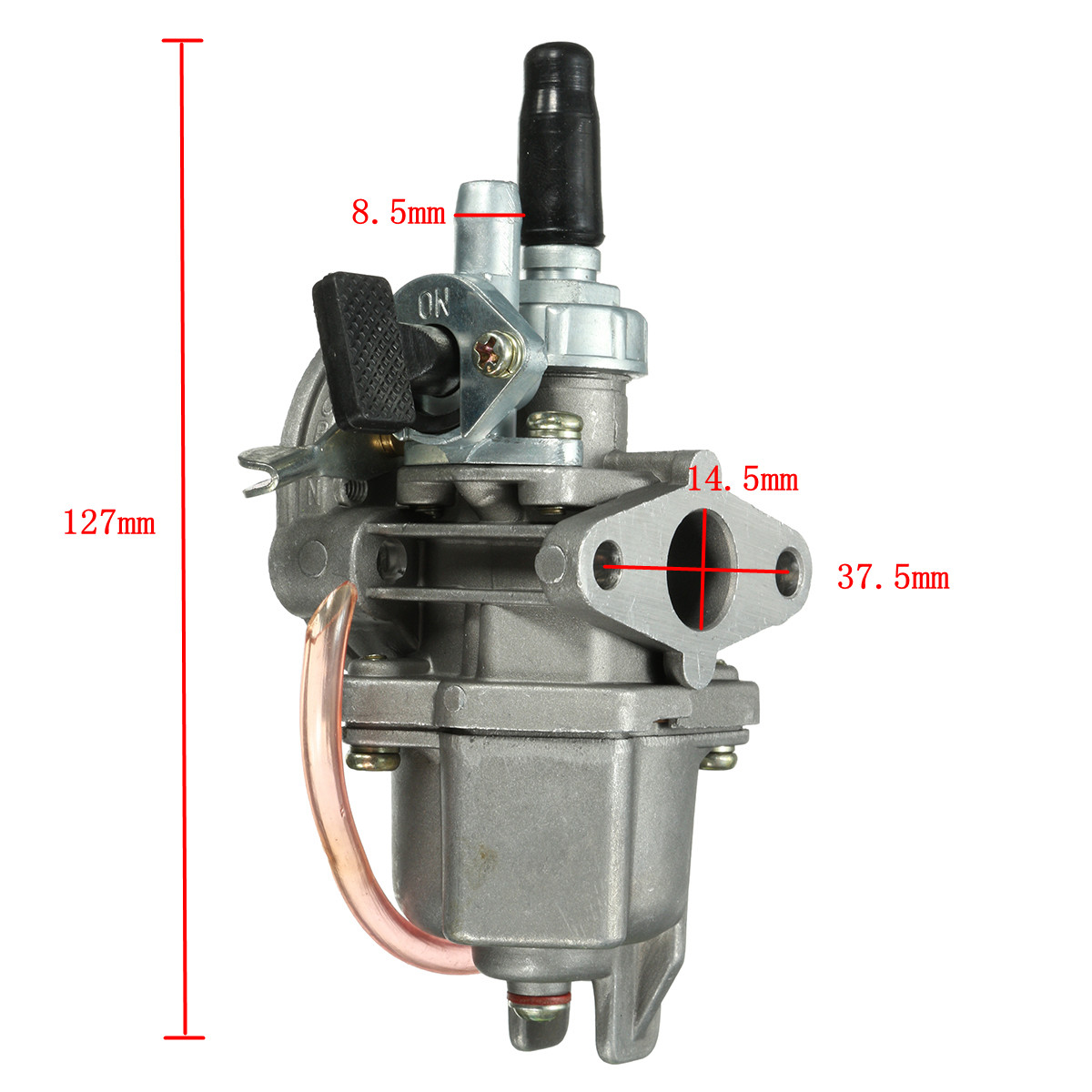

Height: 127mm

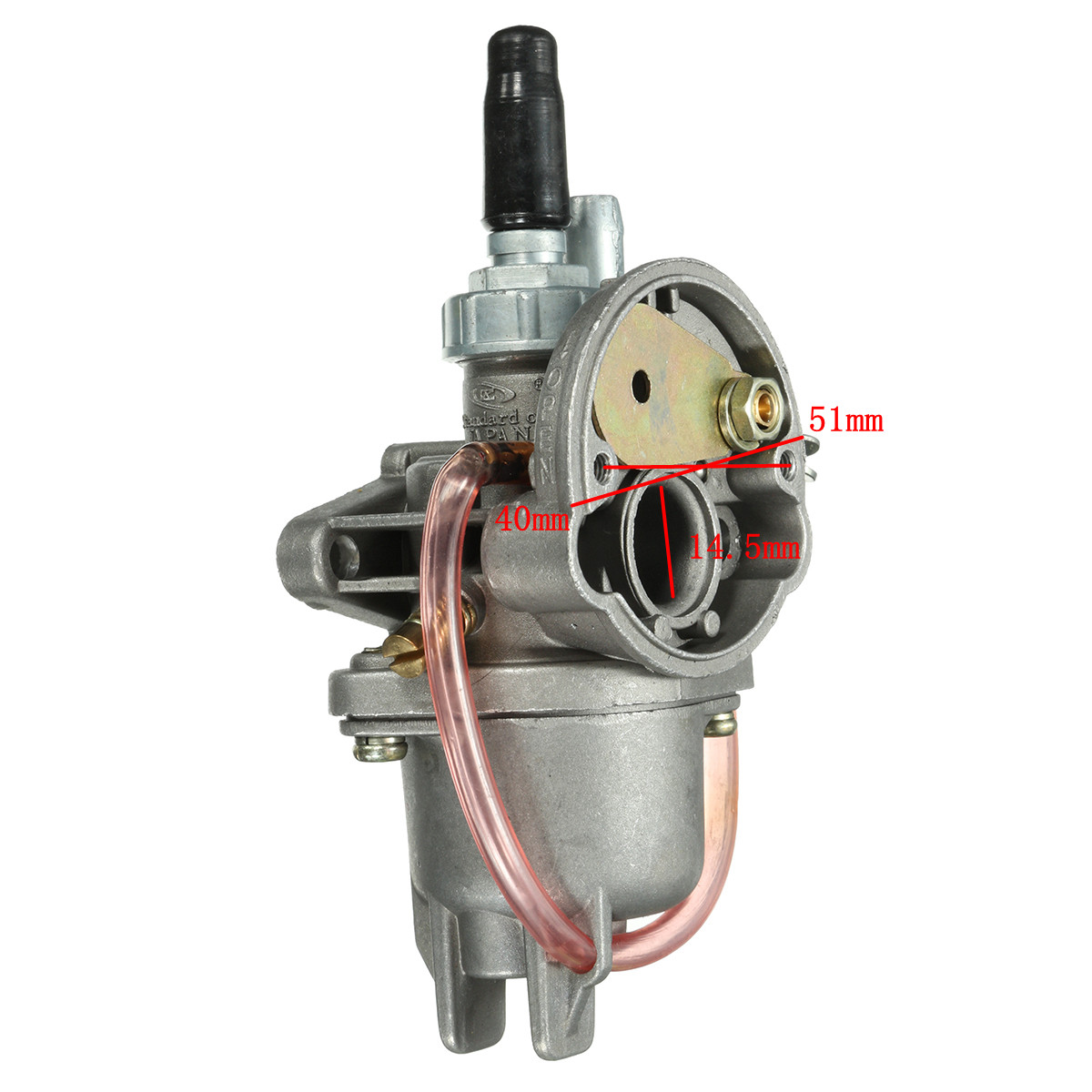

Outer Diameter of Air Filter Connection Point (excluding lip): 51mm
Internal Diameter of Fuel Chamber: 14.5mm
Distance Between Fixing Holes (inlet side, centre of eye to centre of eye): 40mm
Distance Between Fixing Holes (outlet side, centre of eye to centre of eye): 37.5mm

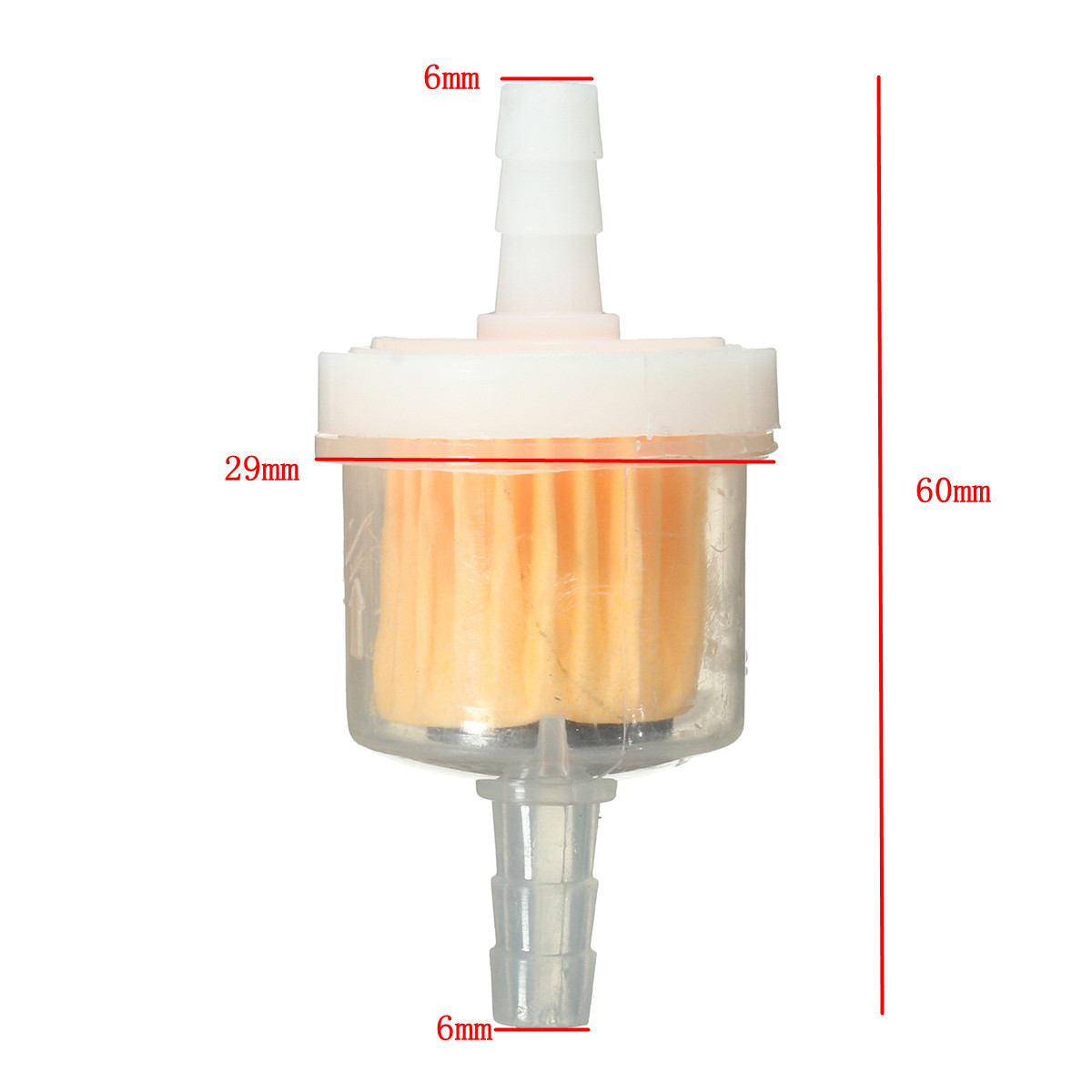

Filter Diameter: 6mm
Pipe Size: 5mm(I/D) ; 8mm(O/D) ; 16cm(Length)
Note:
1. Instruction is not included,professional installation is highly recommended.
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen

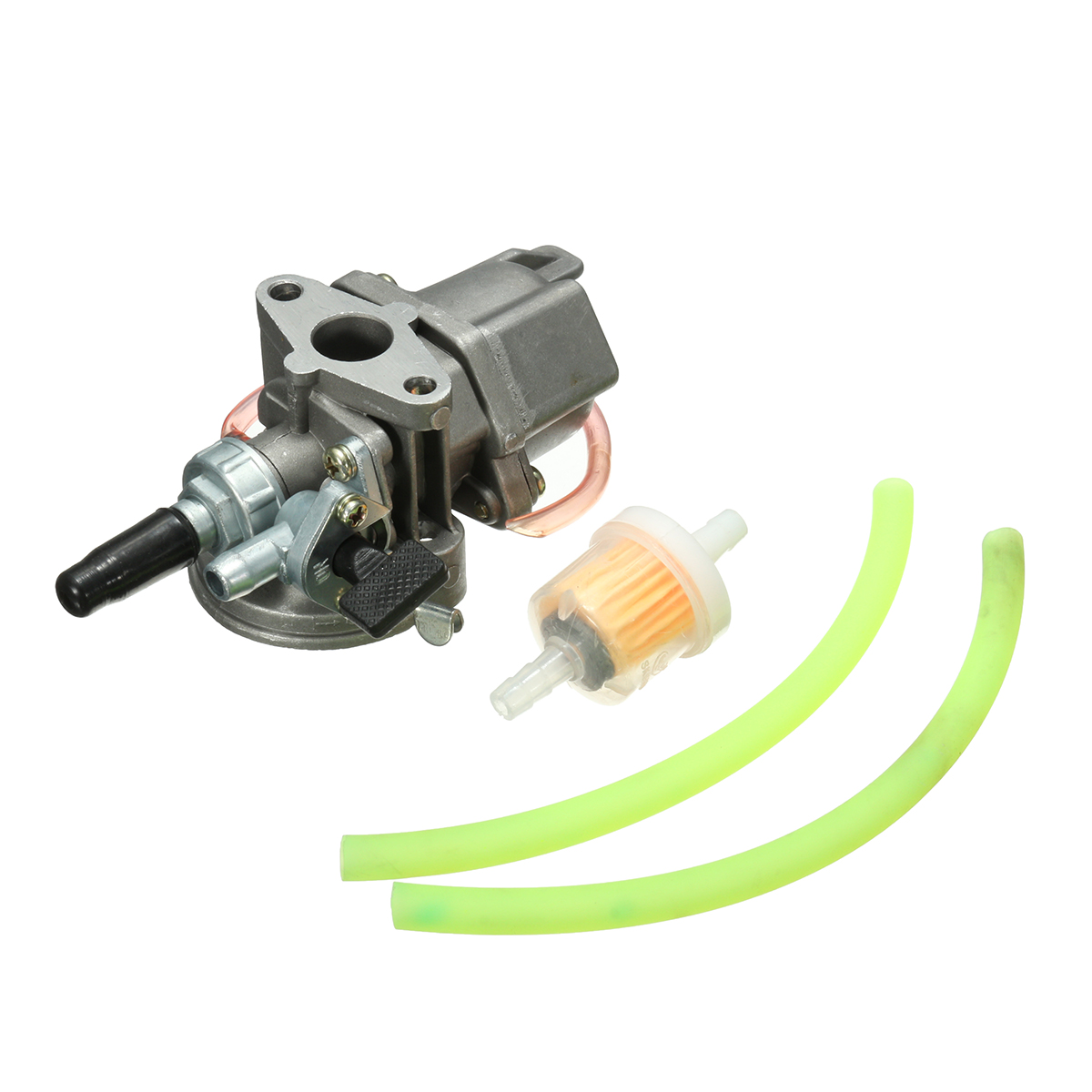

Package Included:
1 X Carburetor
2 X Petrol Pipes
1 X Fuel Filter
