48V 1000W Electric Bike Motor Scooter Speed Controller w/Throttle Twist Grips
₹3,763.06
- Product Code: ED0021417
- Availability: In Stock
- Ex Tax: ₹3,763.06

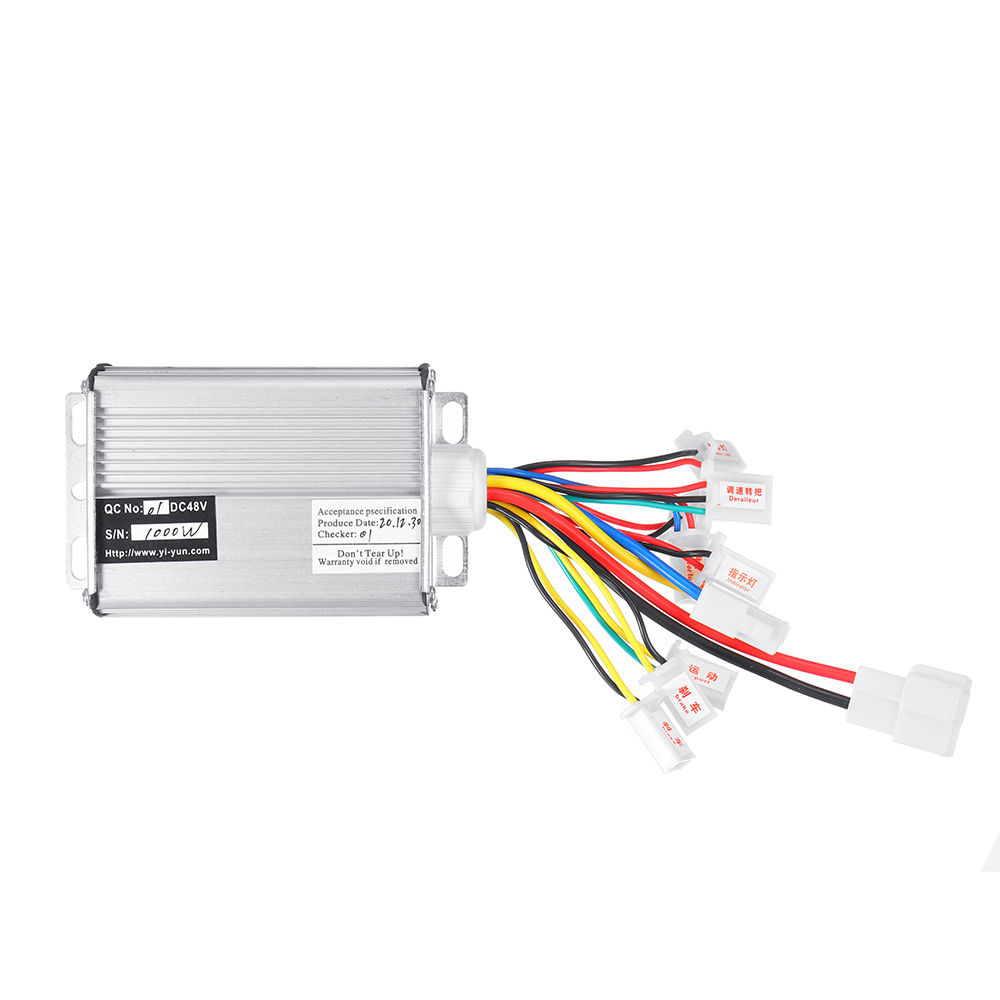

Specification:

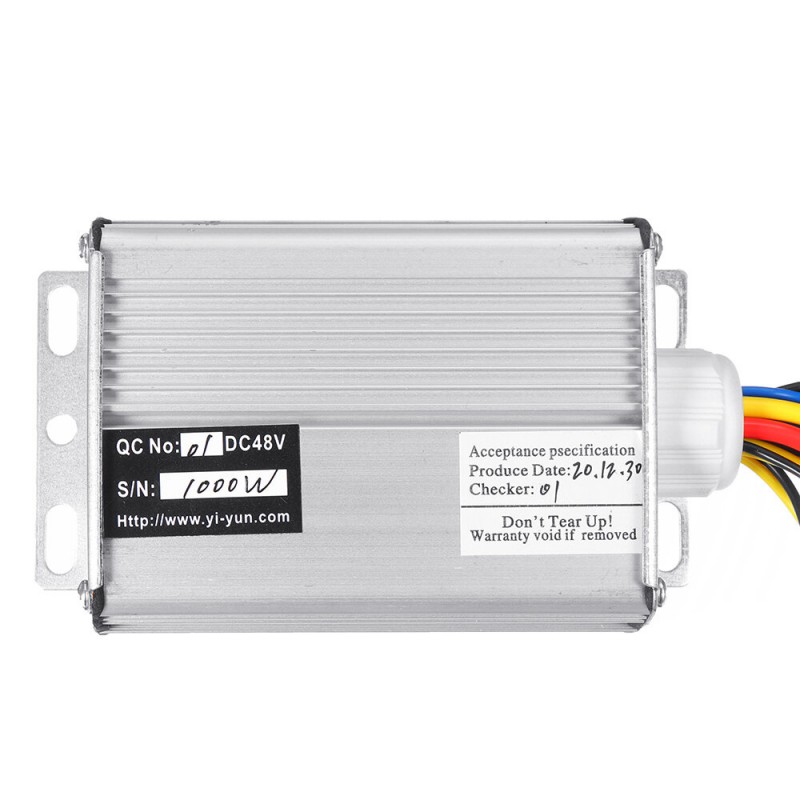

| Brushed Controller |
|
| Casing material |
Aluminium |
| Motor brushed controller |
For Electric bicycle & scooter |
| Rated voltage |
dc 48 v |
| Current limited |
30A |
| Rated power |
1000 w |
| Matching motor |
dc brushed motor |
| Under Voltage Protection |
42V |
| Throttle |
|
Material |
Plastic |

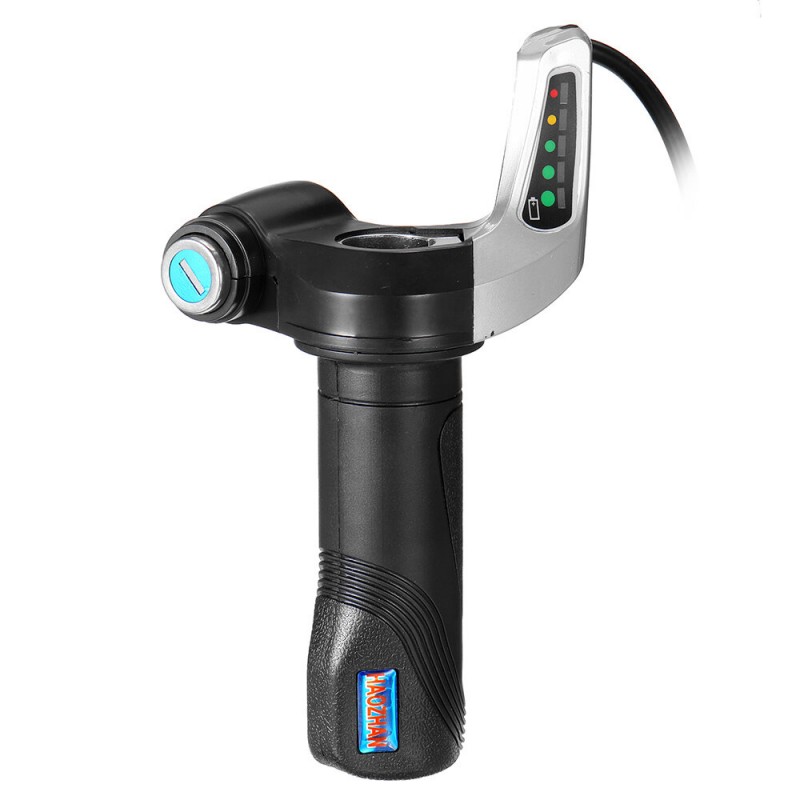

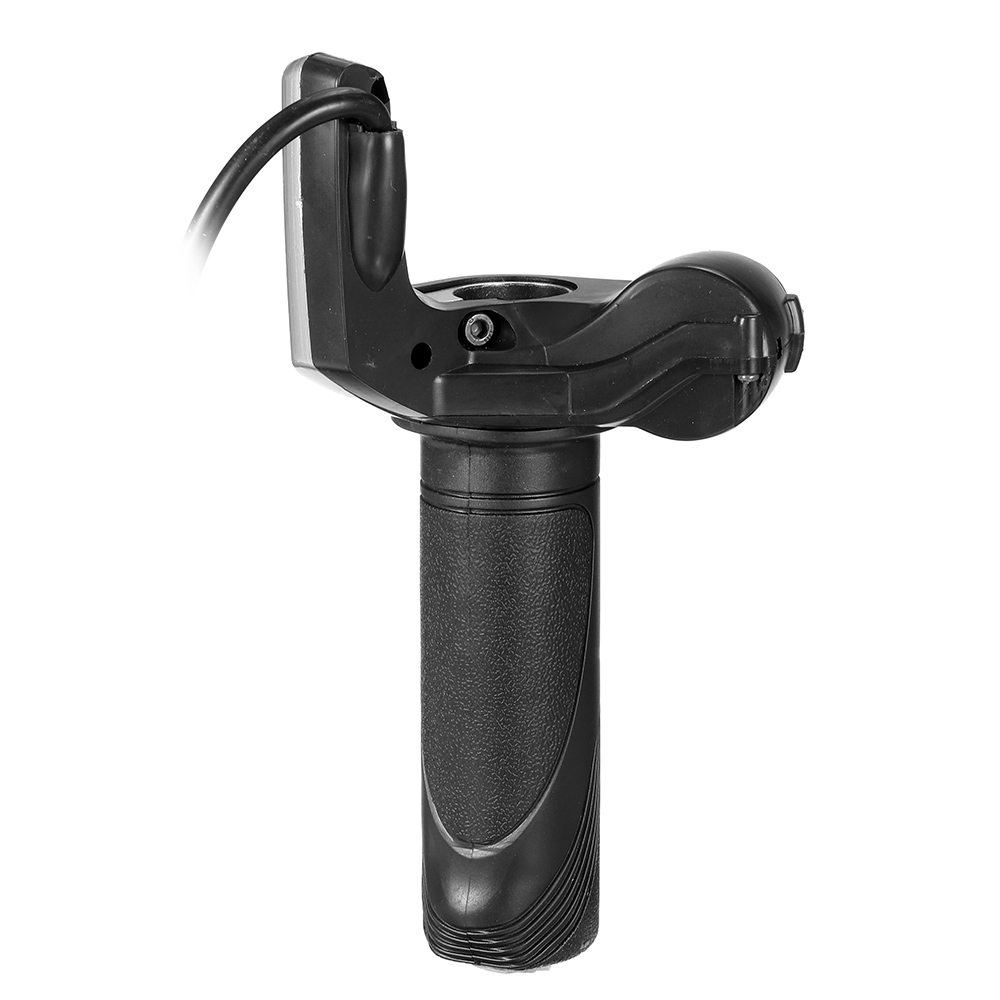

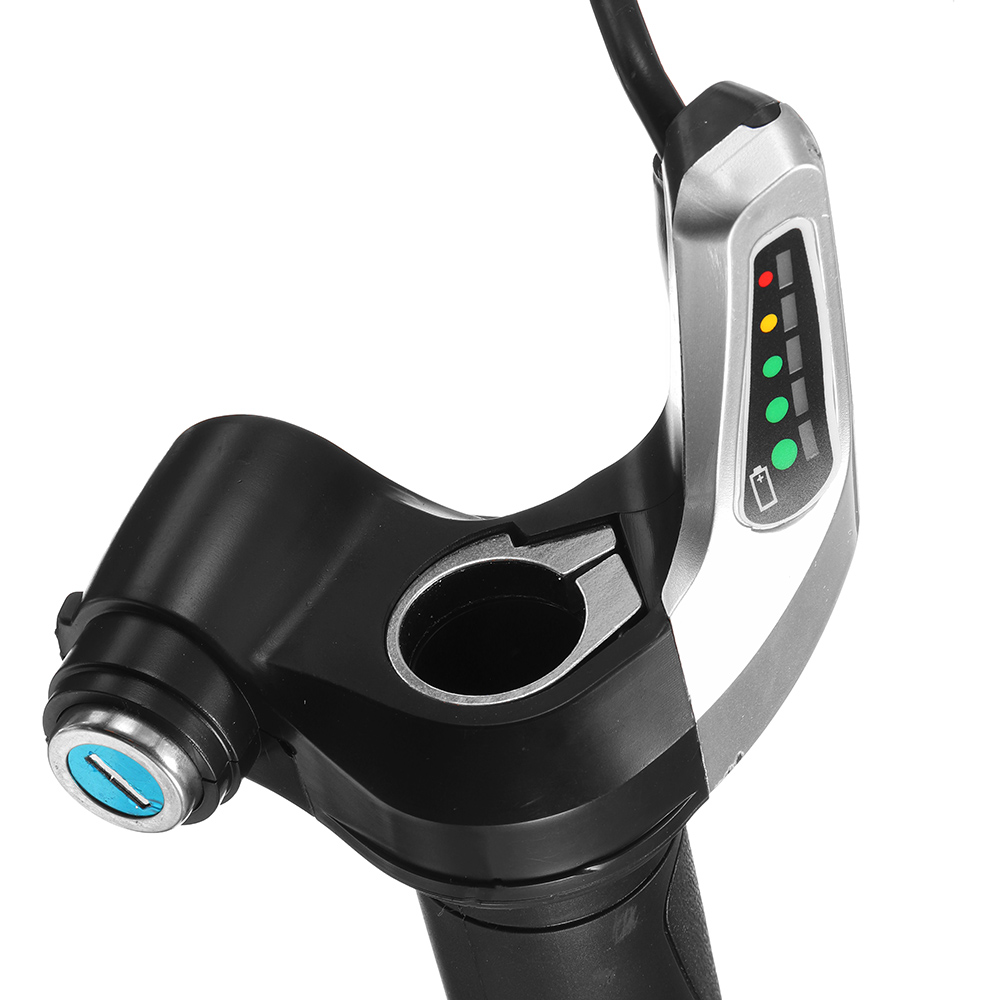

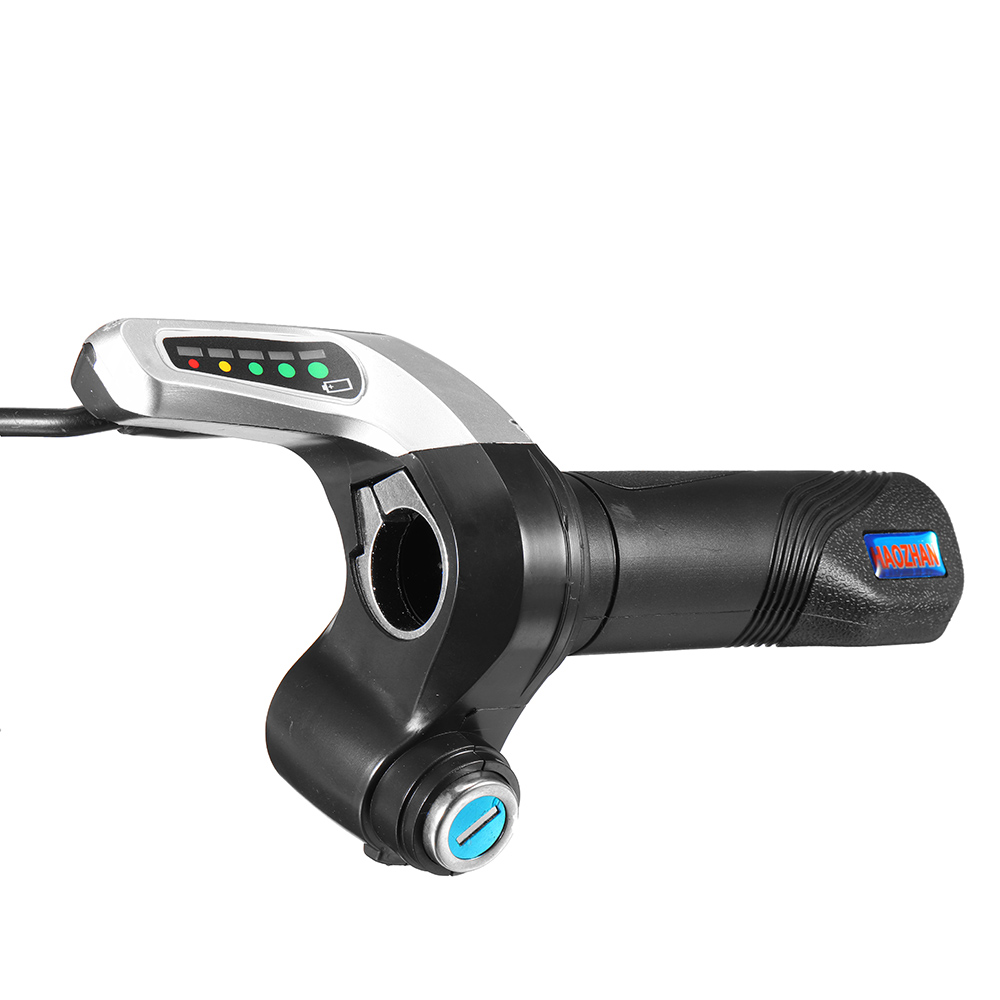

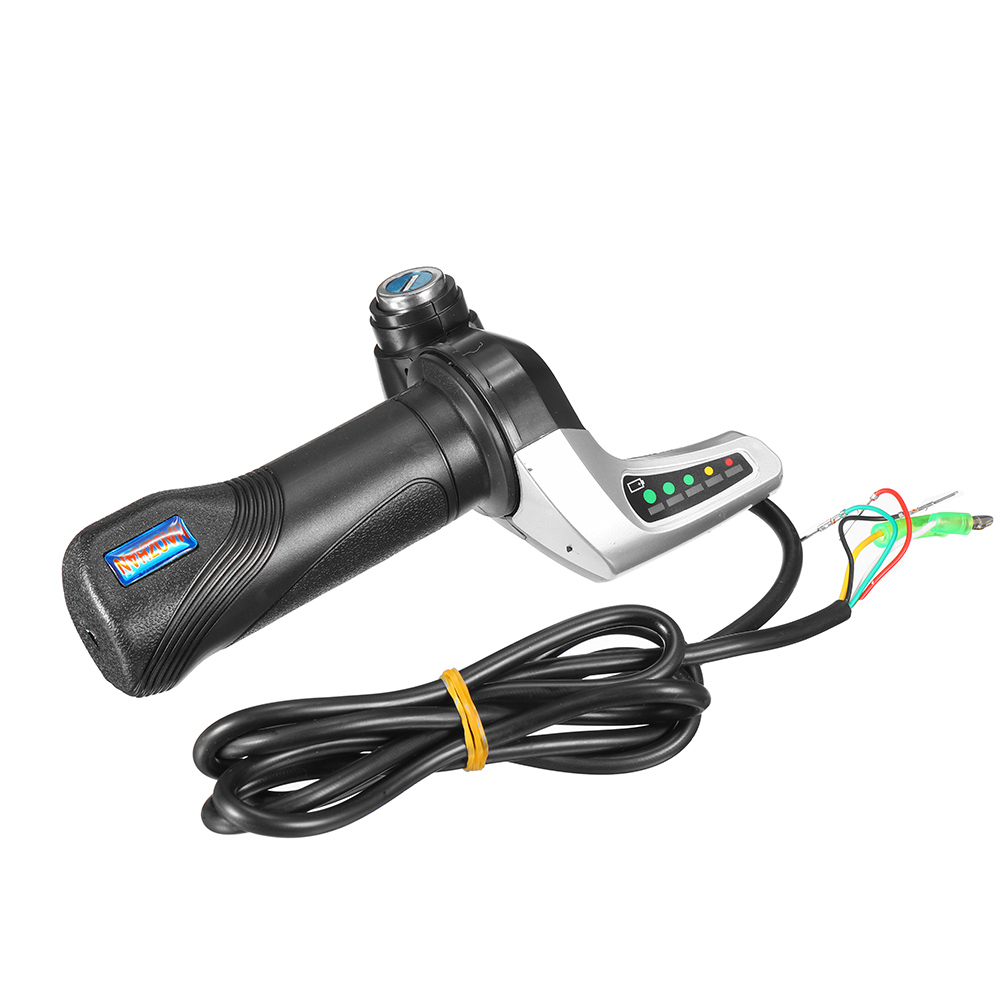

| Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator. |
|
| Throttle Works Voltage |
DC5V |
| Speed Adjusting Signal |
0.8V-4.3V |
| Power display Voltage |
DC 42V |

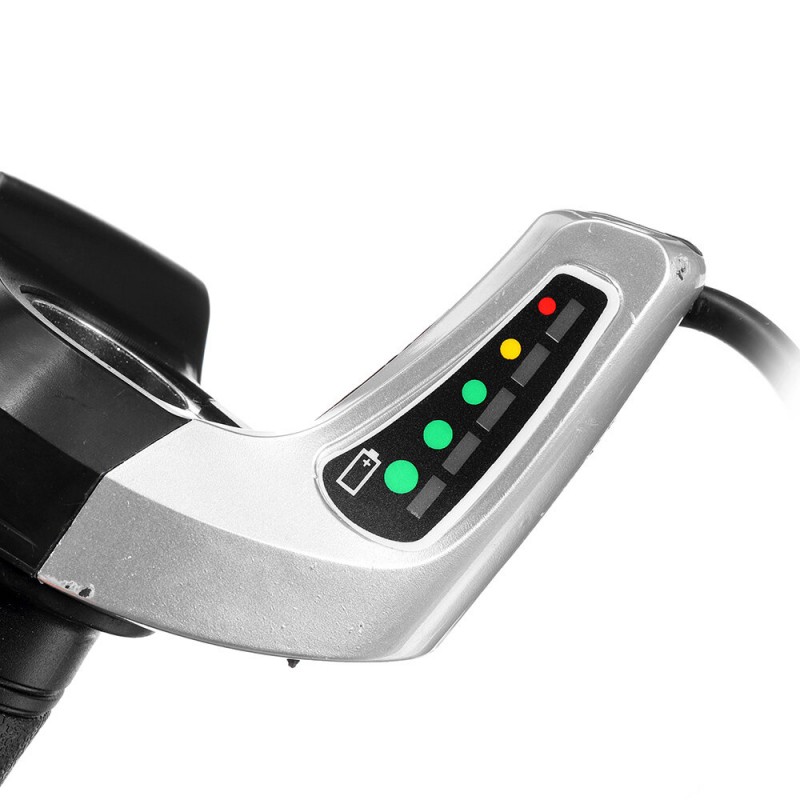

| Power display |
|
| Normal |
48V above, 3 Led Green |
| Half |
47V ~ 42V, Led Yellow |
| Empty |
42V or less, Led Red |
| Rotation angle |
0 °~ 70 ° |
| Working temperature |
-20 ℃~ +50 ℃ |
| Fit |
standard 7/8 inches(22.2mm) handle bars |
| Cable length |
approximately 47 inches (1.2m) |

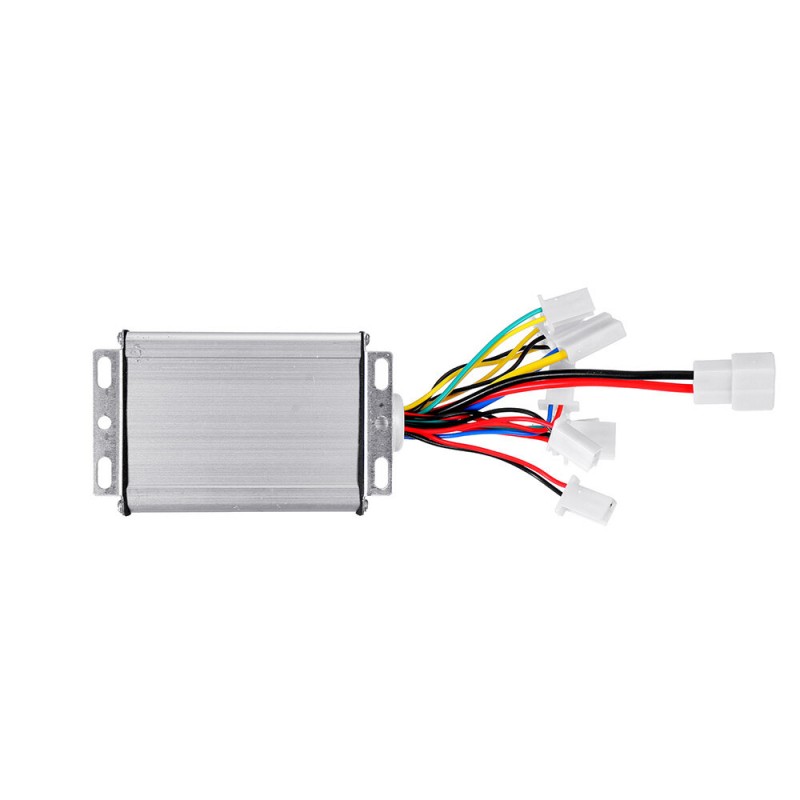

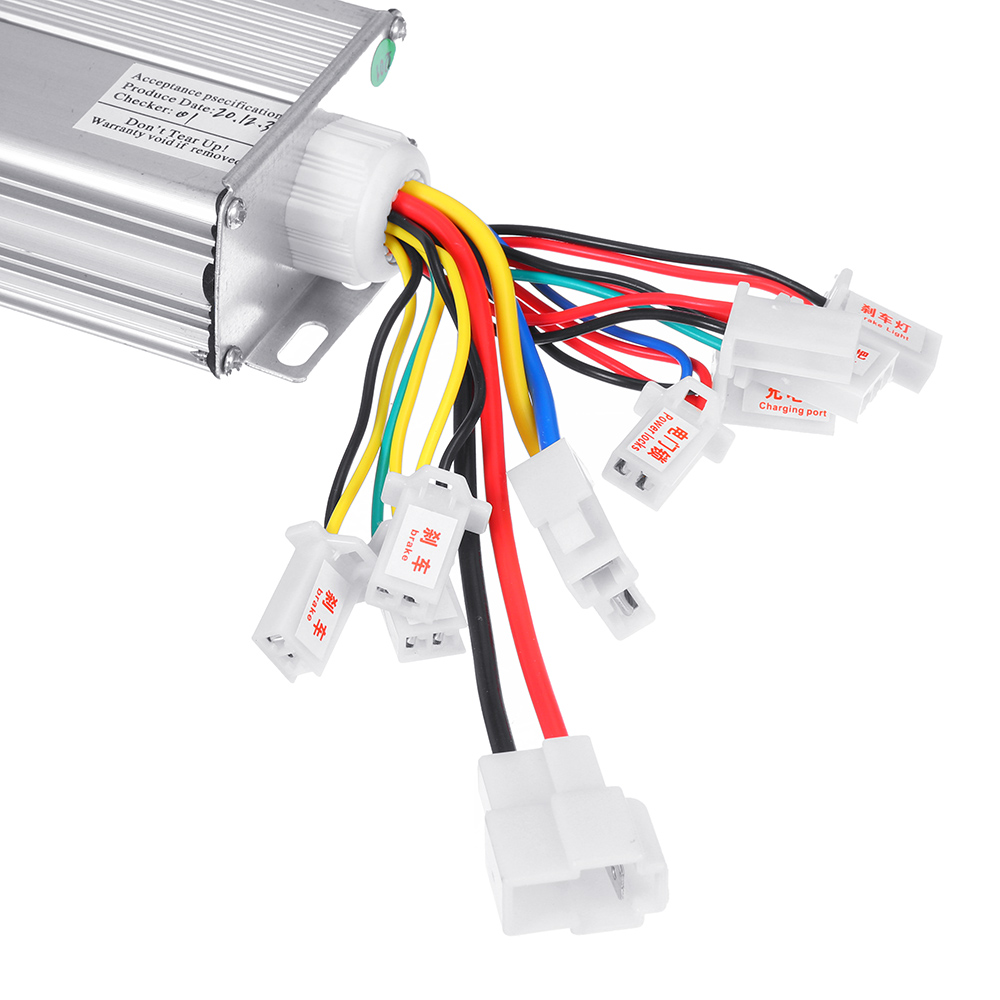

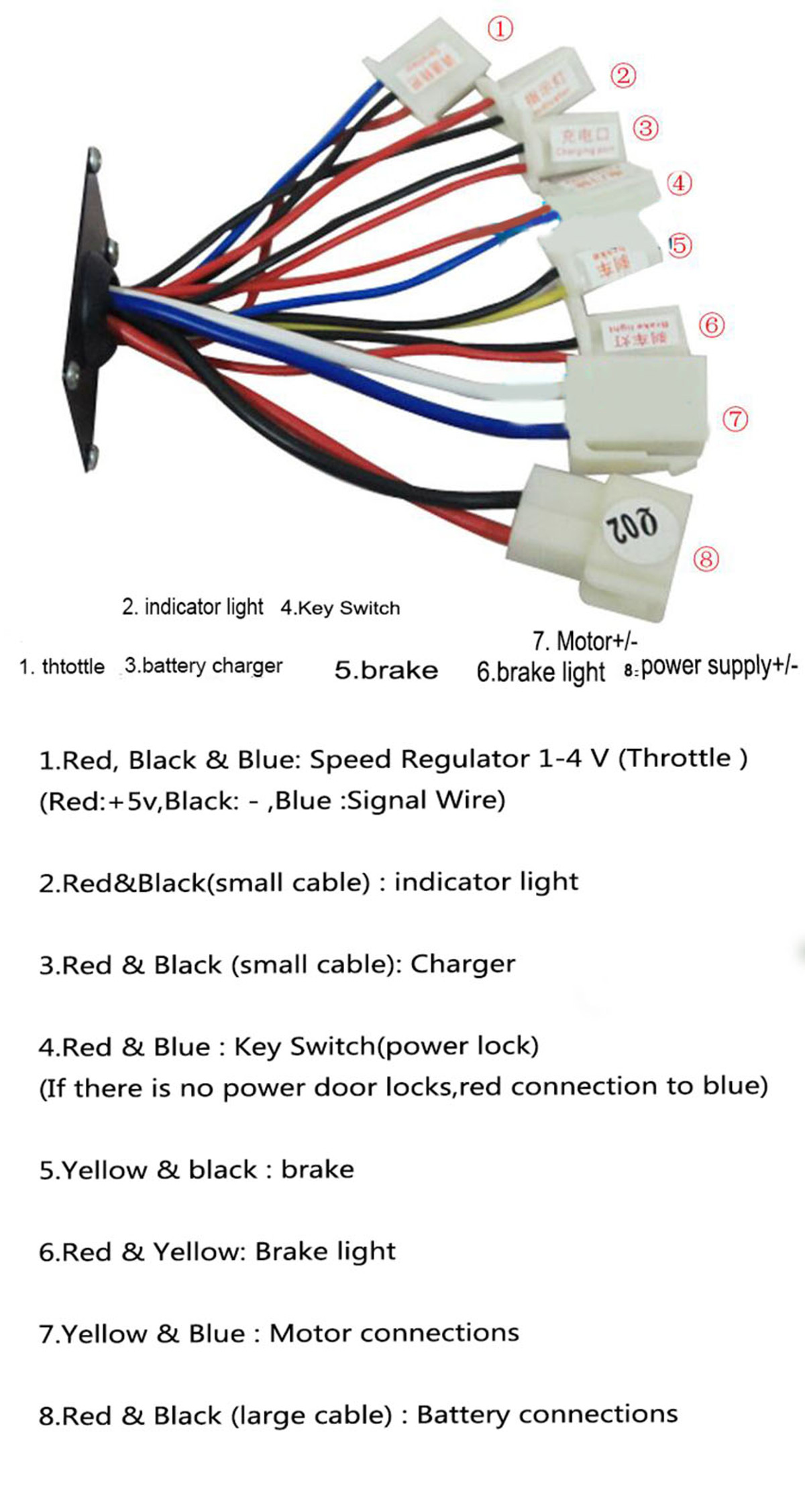

Controller Wires Interface Definition:
Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)

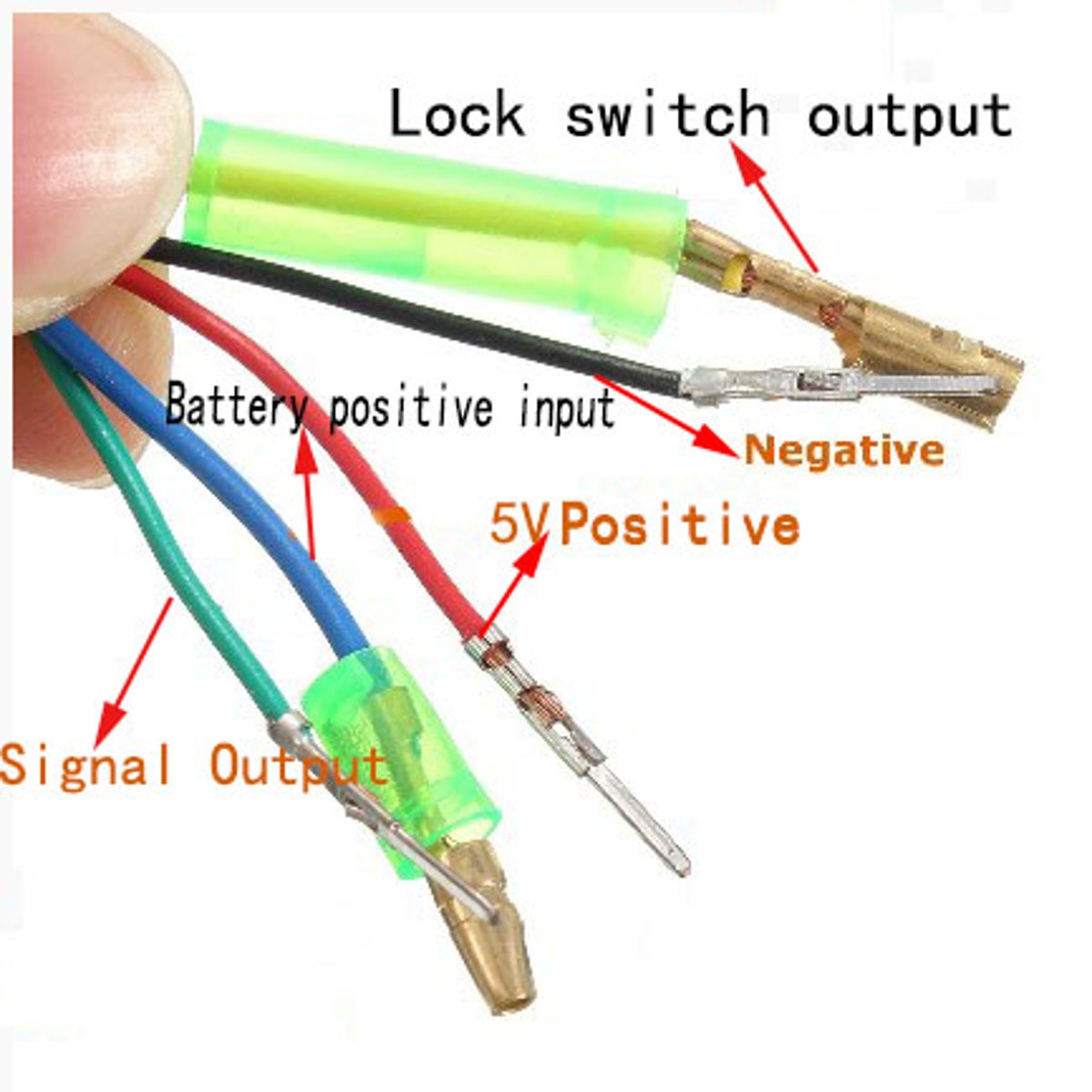

Ignition Switch :Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (Brake signal)/thin black(Negative Power)
Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light: Thin red (power Positive) /thin black (Power negative)
Sport: Thin yellow /thin green
Note:
1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display,pls understand.

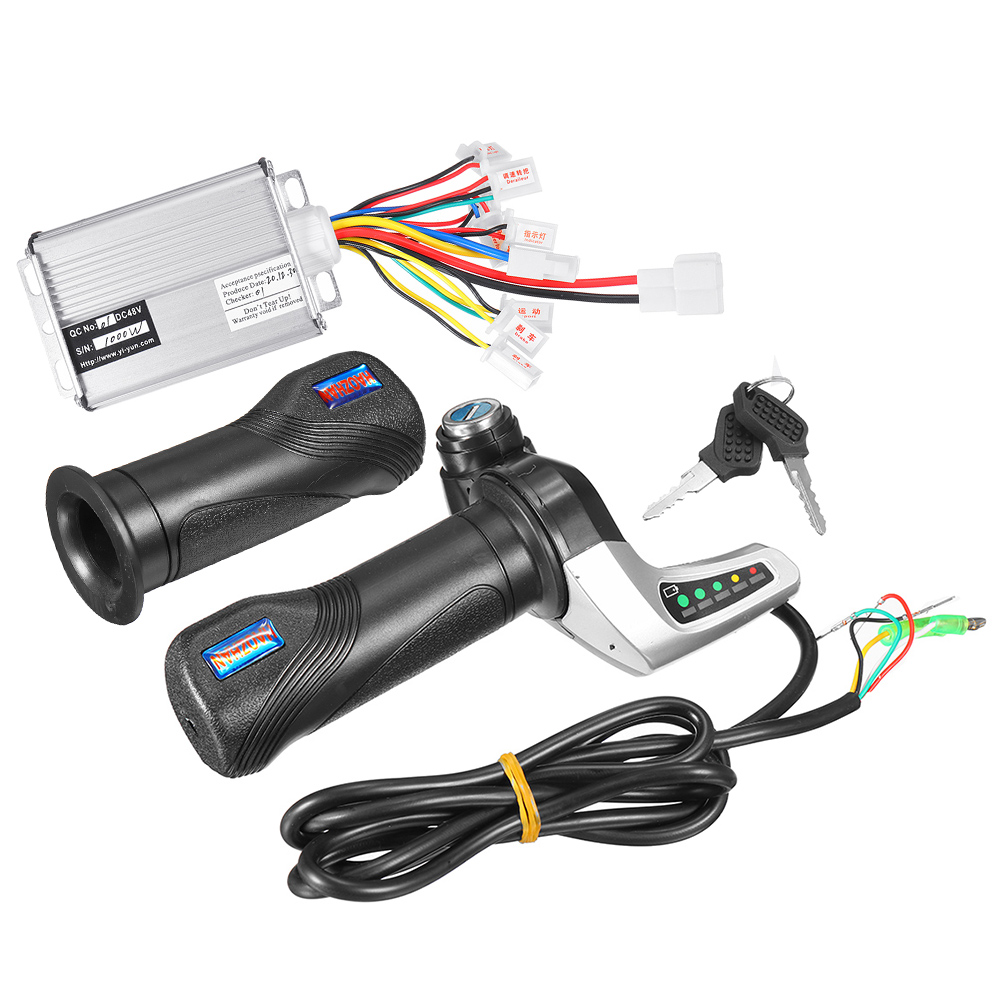

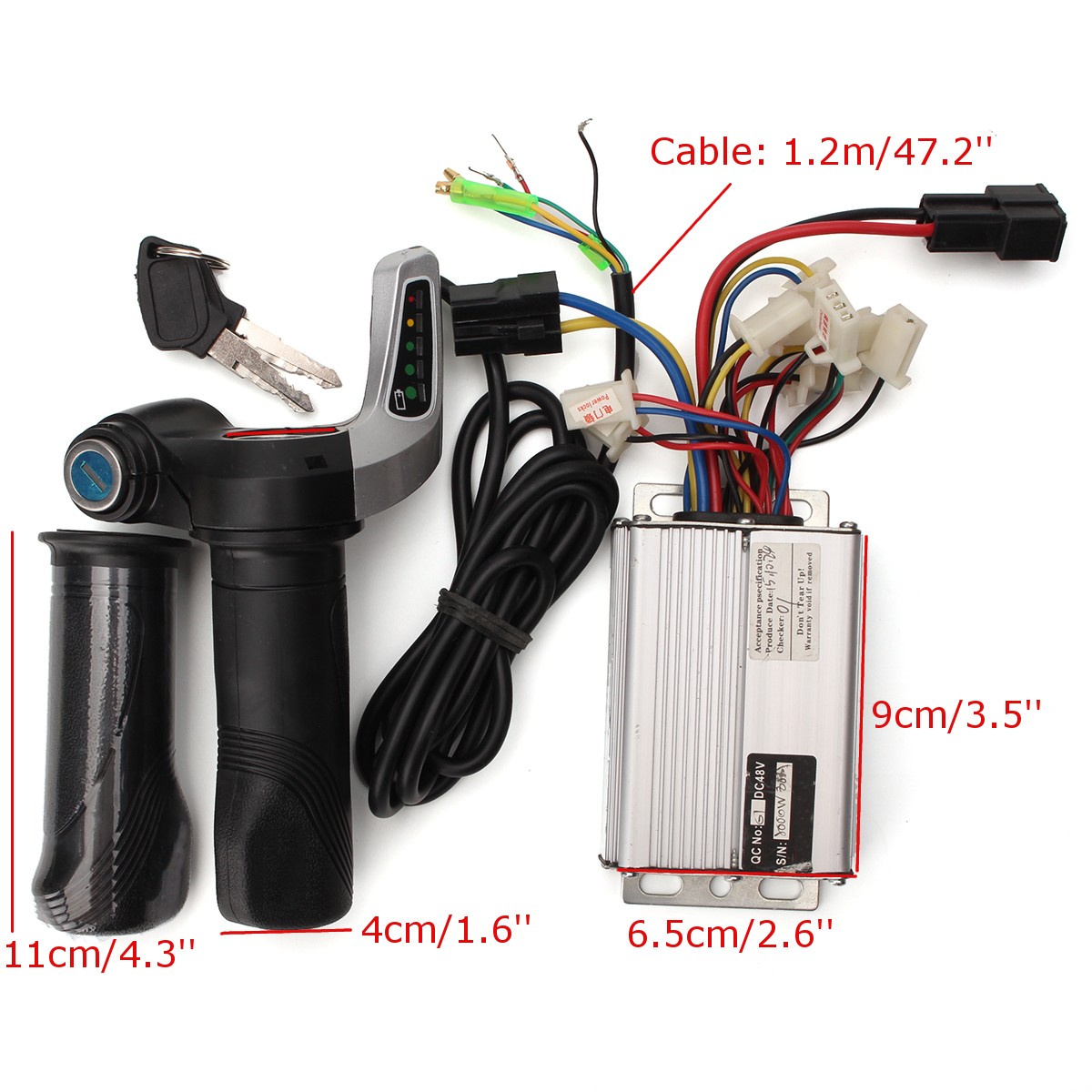

Package Included:
| 1 X |

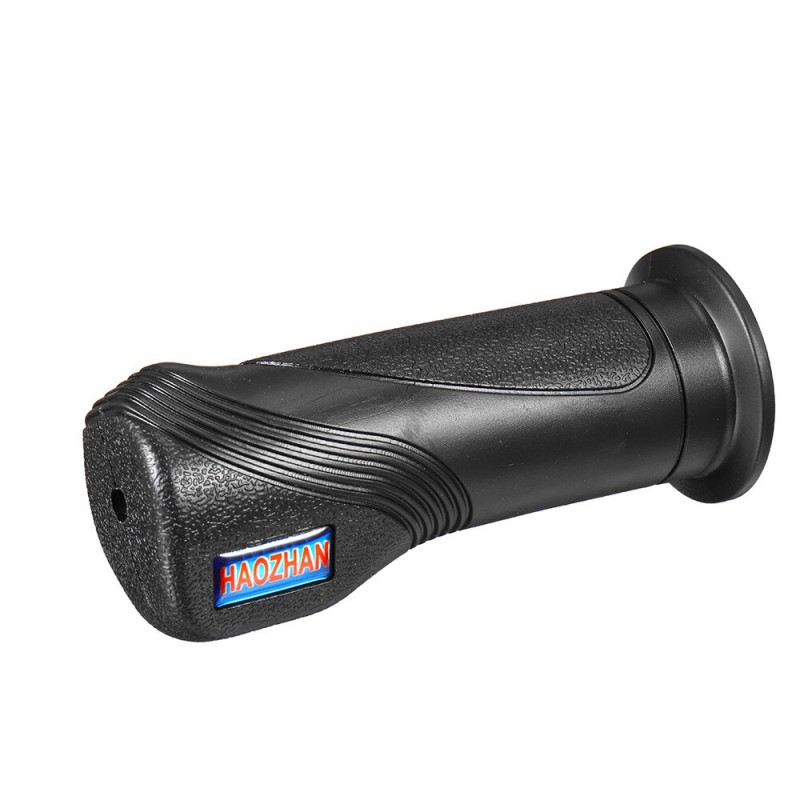

48V Throttle Grip With Normal Grip |
| 1 X |
48V 1000W Controller |
| 1 X |
Black Terminal Ends |
