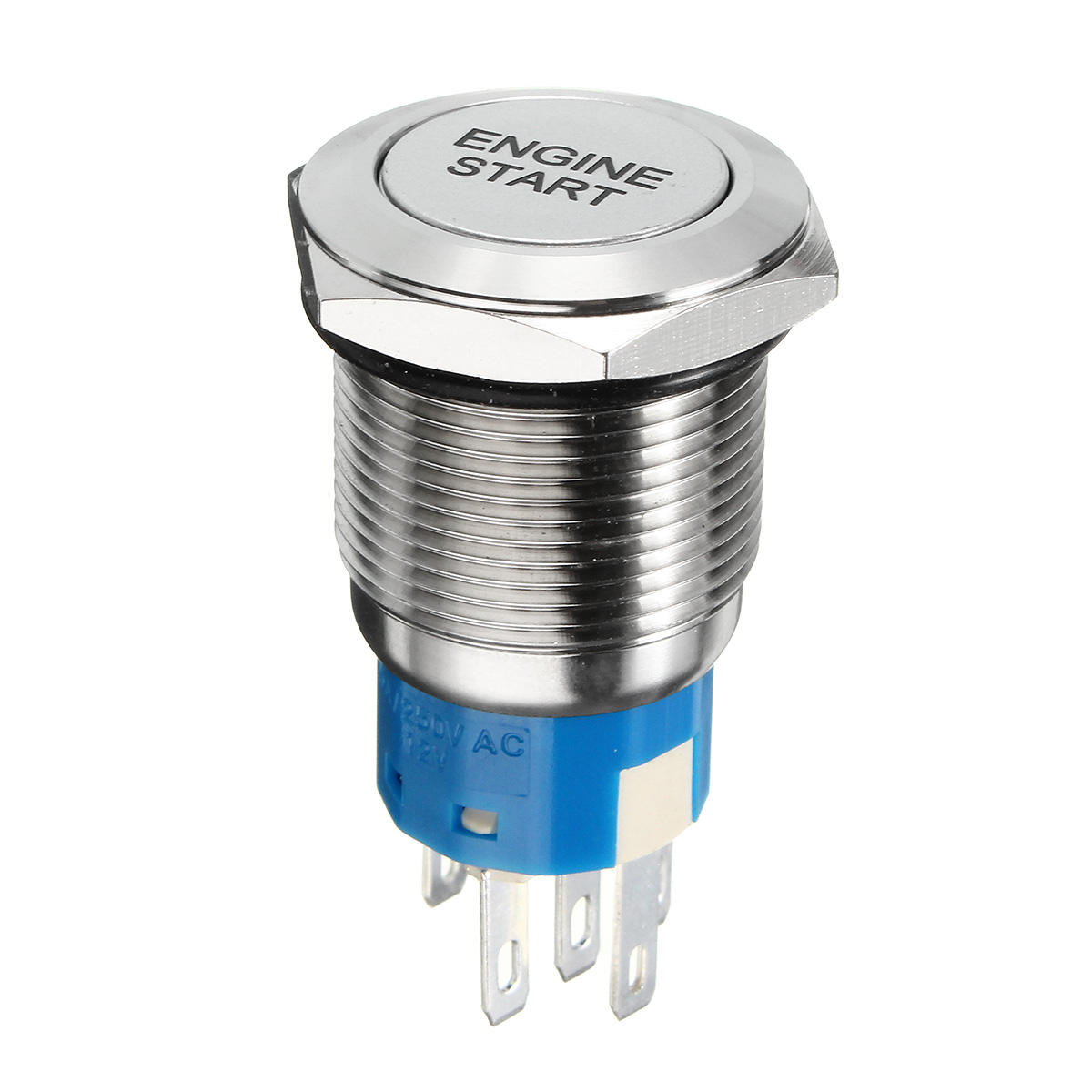

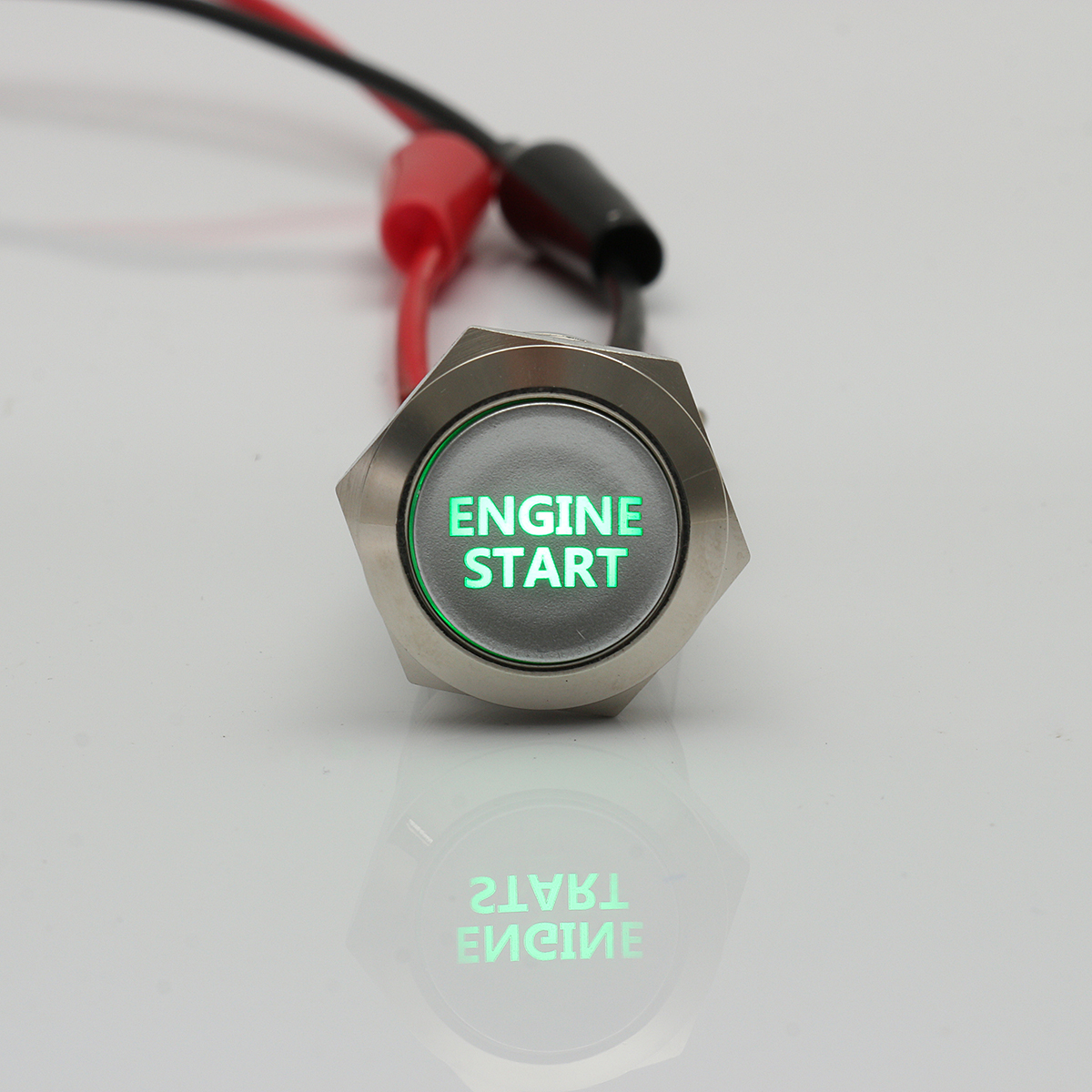

5 Colors 19mm Latching Engine Start Led Metal Switch Push Button Lighted 12V
$4.74
- Product Code: ED0014138
- Availability: In Stock
- Ex Tax: $4.74
Available Options
Description:
1. This has a wide range of functions. For example, it can be applied as the switches for the additional equipment inside & outside the vehicle.
2. For load under 3 Amp, you do not need a relay with this switch. For load above 3 Amps, we advise you to use of Automotive Relay
3. Easy setup. All you need is a 19mm hole and the switch will sit in nicely.
4. LED Latching on-off button.
Specification:
Model: 489192
Material: Metal

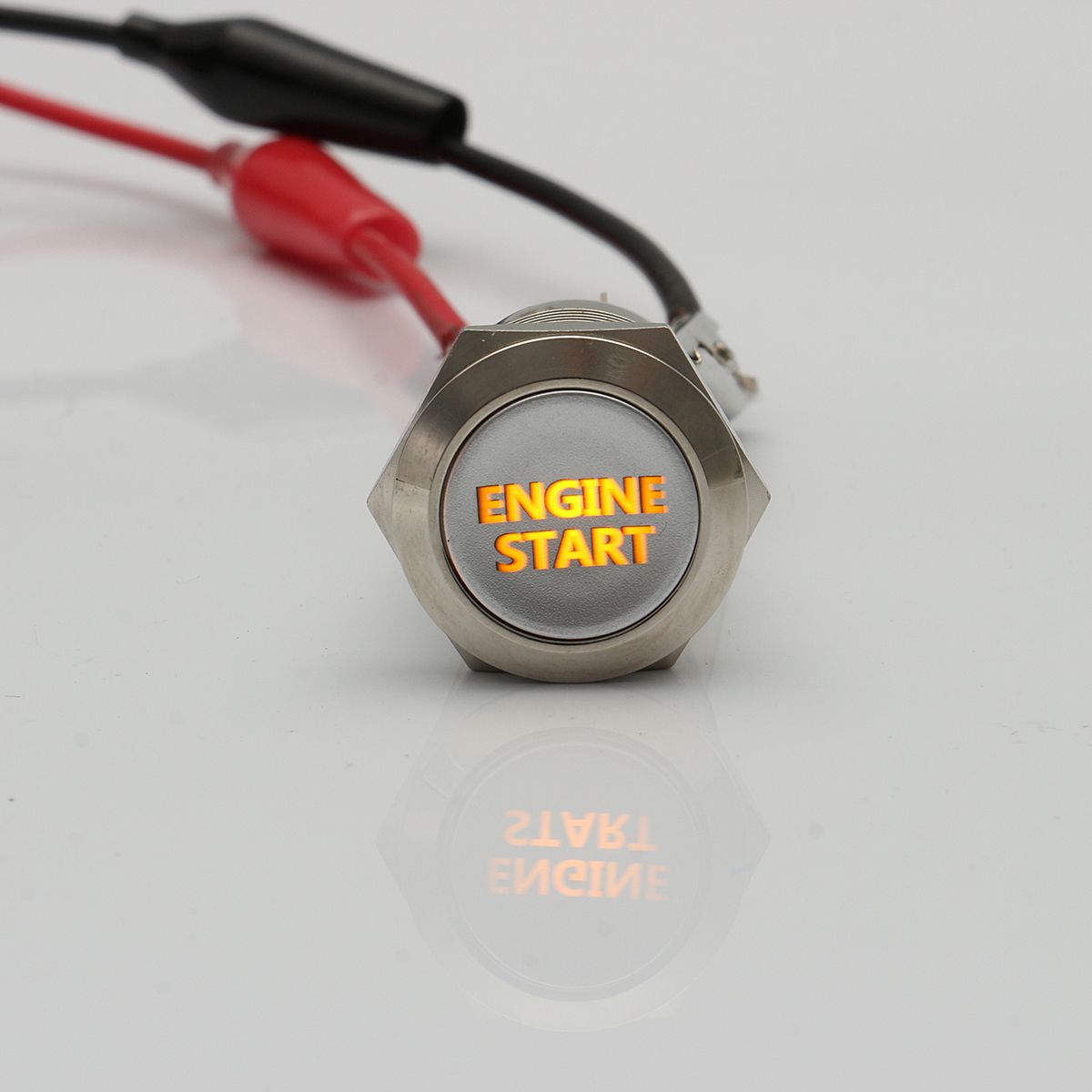

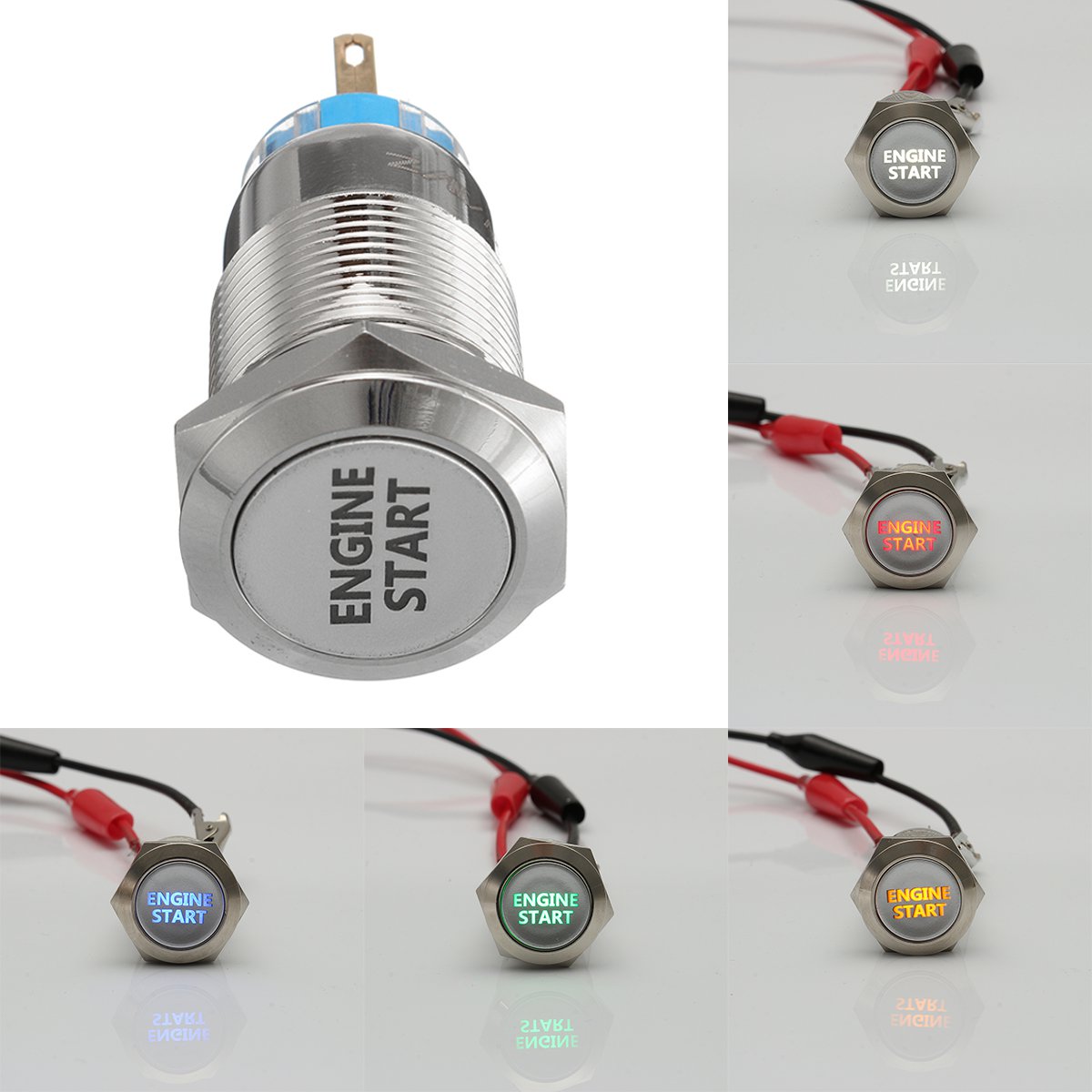

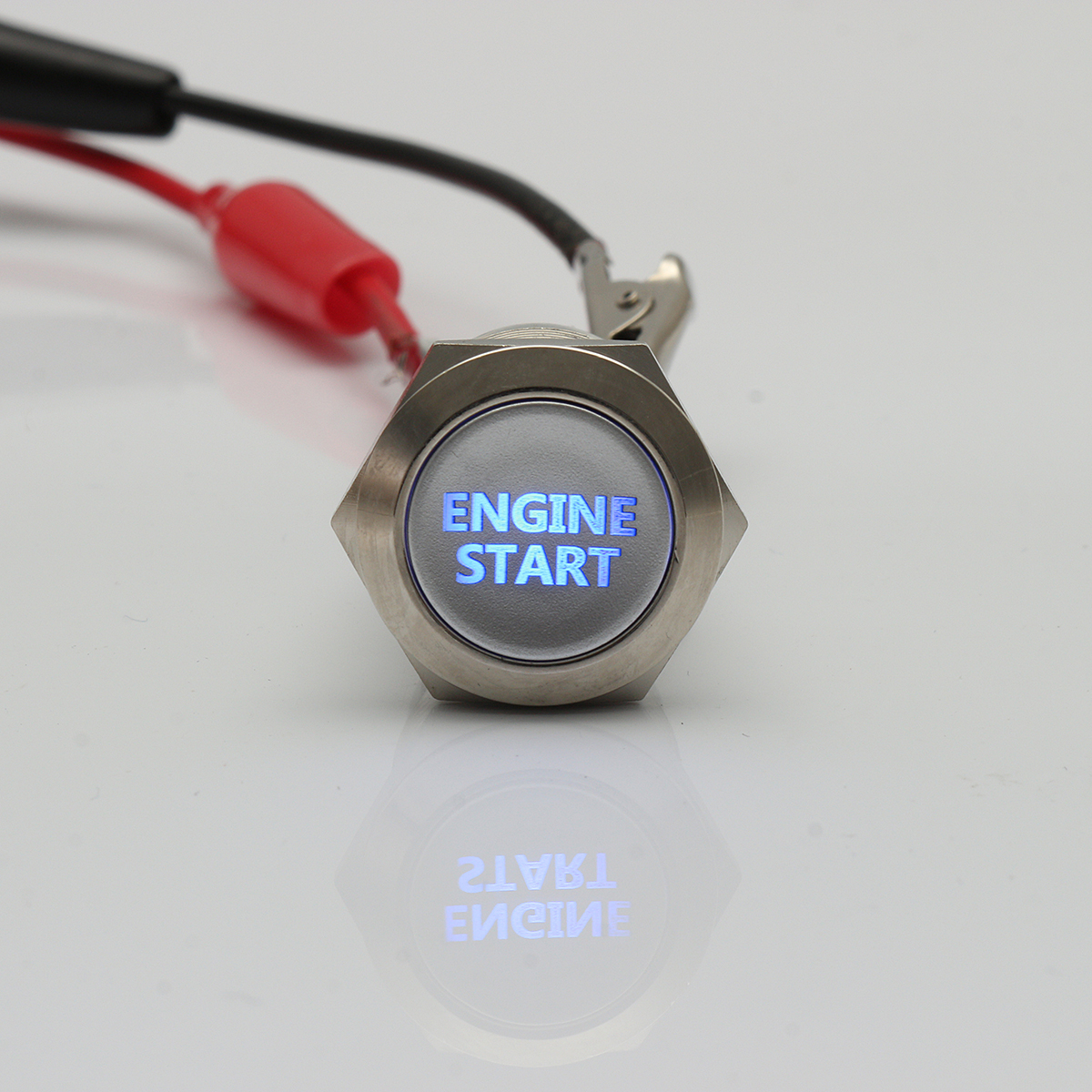

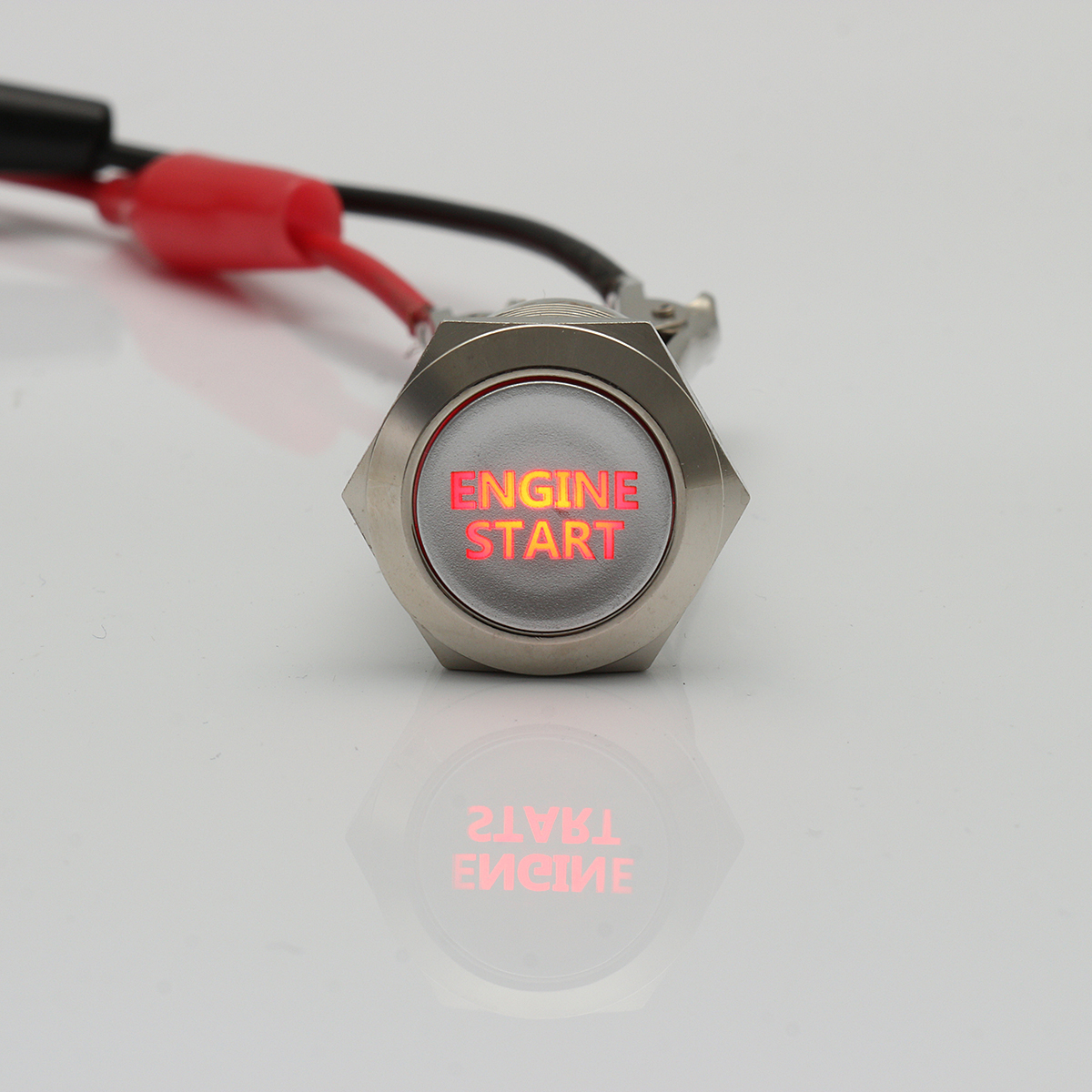

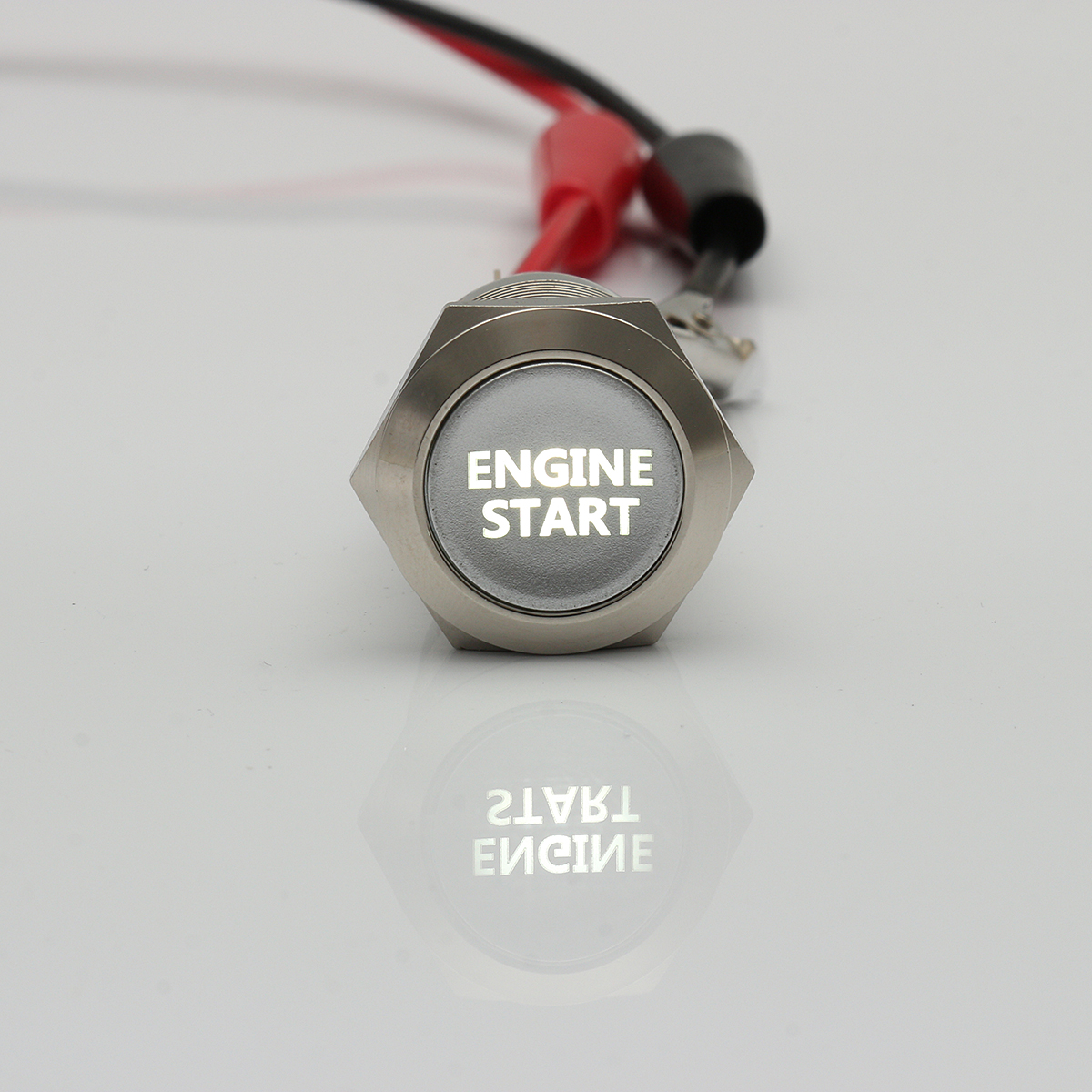

Light Color : White/Yellow/Red/Green/Blue
LED Voltage: 12V only
Operation Type: Latching

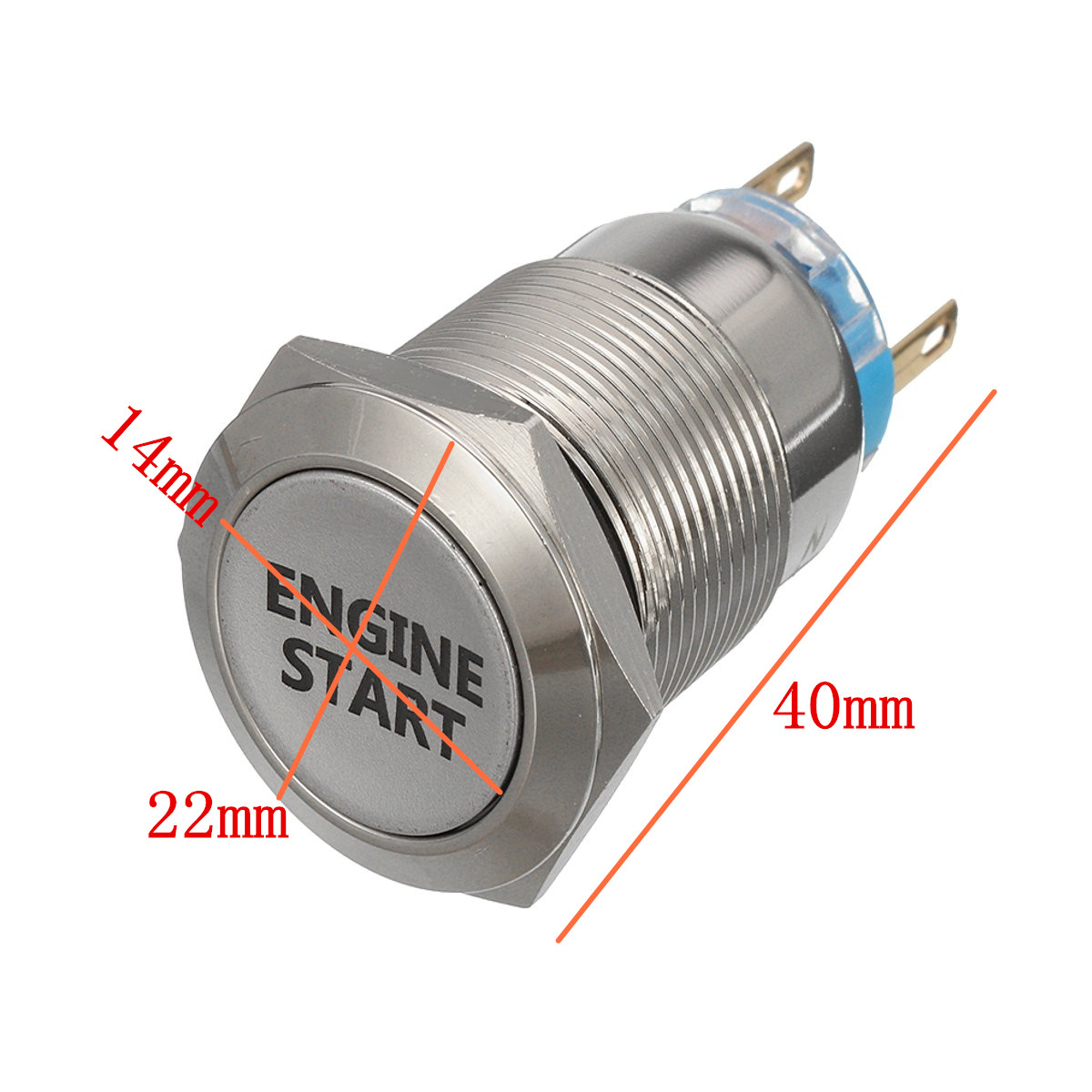

Depth Inc Contacts: 40mm
Head Diameter: 22mm
Button Diameter: 14mm
Hole Size Required: 19mm
Switch Rating: 5A/250V AC

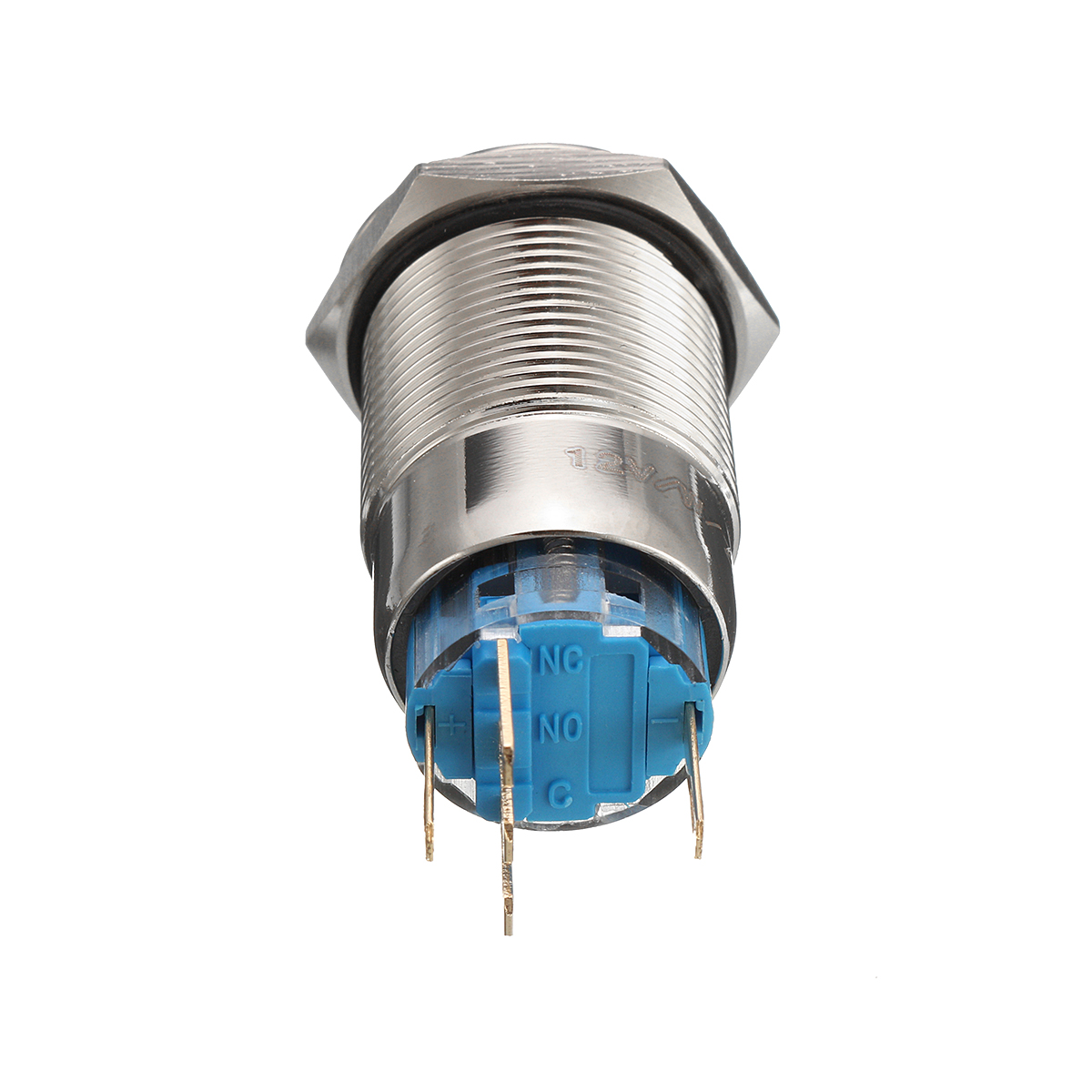

Contact Configuration: 1NO 1NC
Weight: 20g
Package Included:
1 X Led Blue Lighted Push Button Switch (Engine Start)
,
,
,
,
,
,
,
,
