Description:
1.Two Numbers of Fixing Holes
2.This calliper is standard equipment for ATV Quad Pit Dirt BIKES Buggies front or rear.
3.There are generally two types of brake callipers, cable and hydraulic. This calliper is a hydraulic type. When a calliper stops working you may see brake fluid leaking from the
seals or the mechanism will not appear to grip the brake disc. Seal kits are not available for Chinese callipers so you will need to change the calliper.
4.The brake callipers we supply all come with pads and high performance seals as standard where applicable
Specification:
Type |
Hydraulic |
Banjo Bolt |
10mm |
Distance Between Fixing Holes (Center of Eye to Center of Eye) |
63mm |
Calliper Overall Height (excluding operation arm, if present) |
80mm |
Calliper Overall Width (excluding operation arm, if present) |
86mm |
Applicable models |
50cc 70cc 90cc 110cc 125cc 150cc ATV |
Note:
Please measure your old brake calliper prior to purchase to ensure you order the right type for your machine. Things to check are the overall dimensions of the calliper,particularly the distance between the fixing holes which should be measured centre of eye to centre of eye.
Package Included:
1 X |

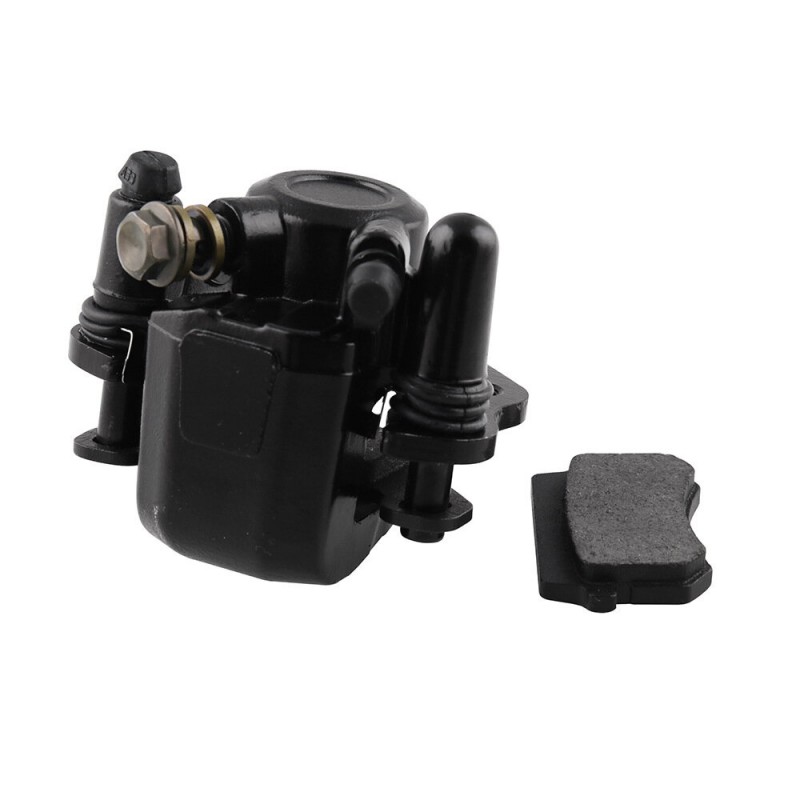

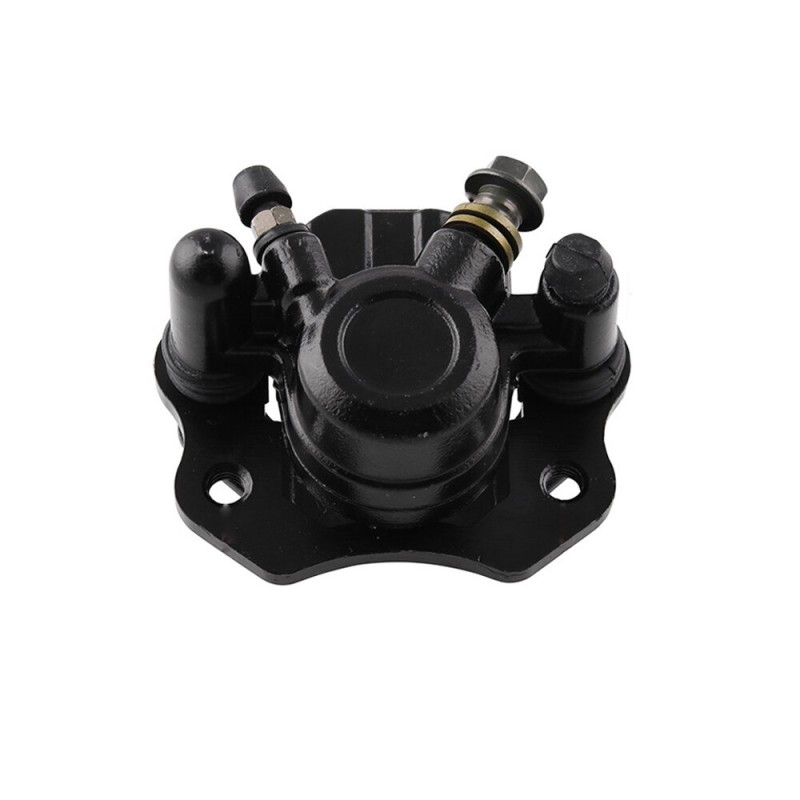

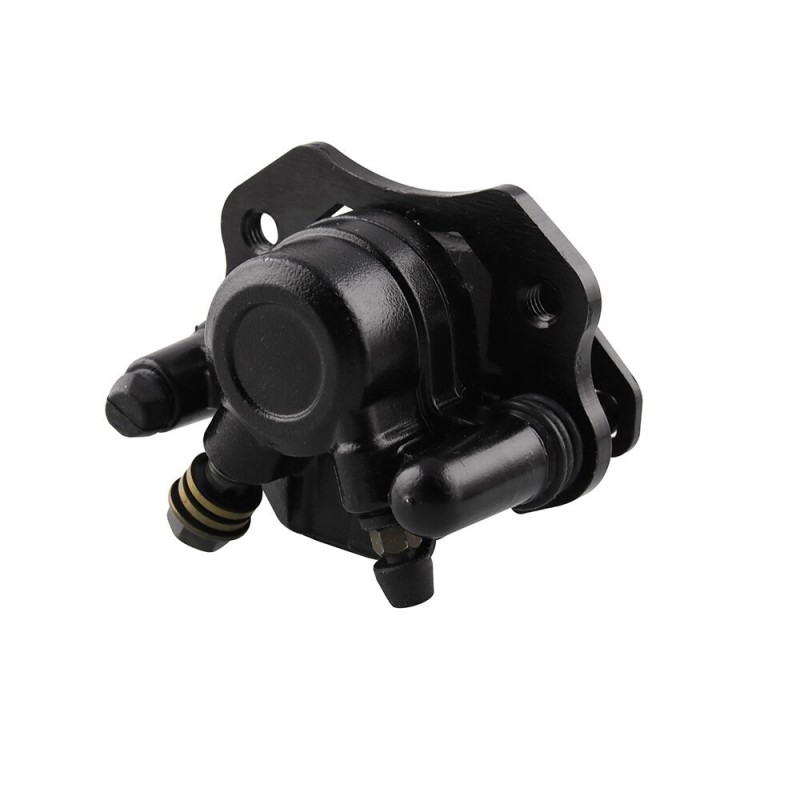

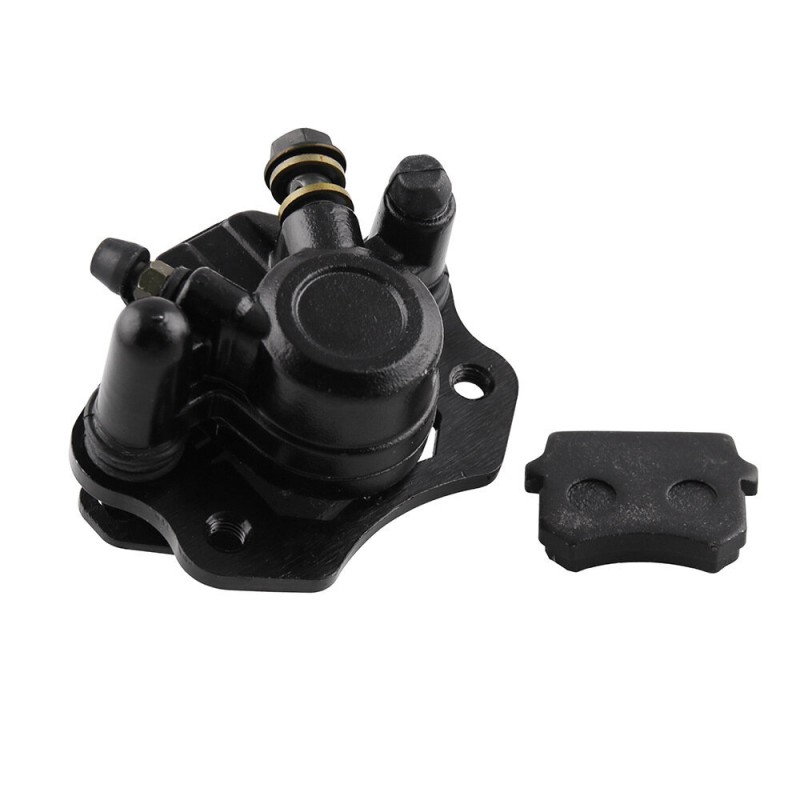

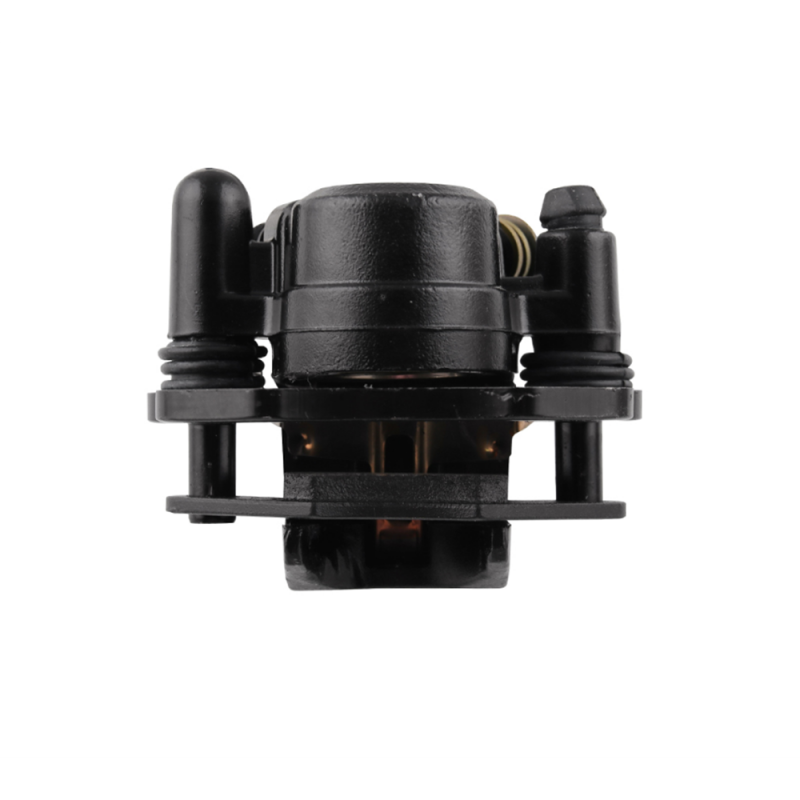

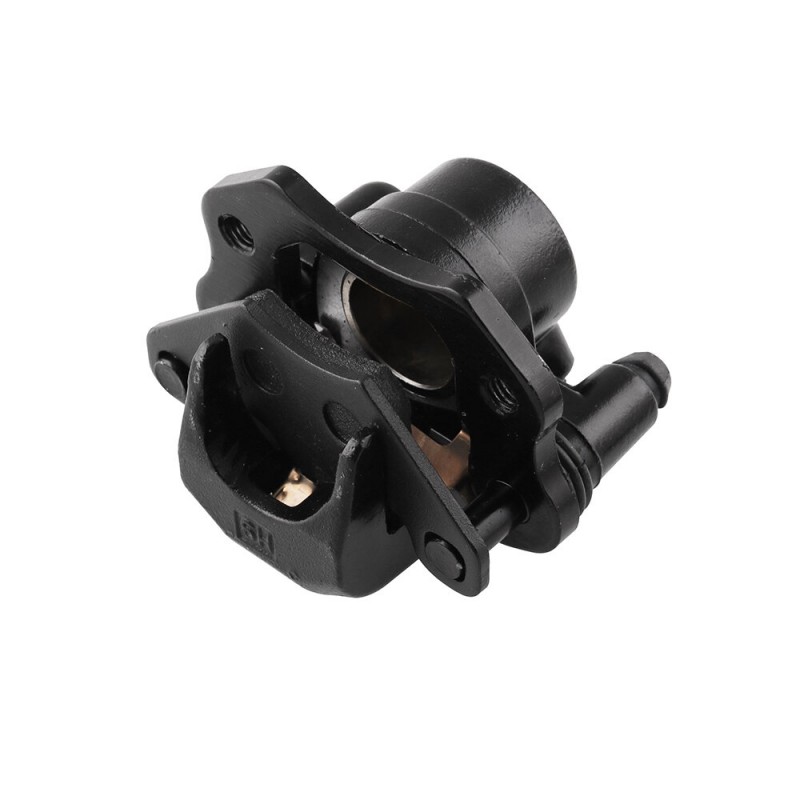

Rear Brake Caliper |
