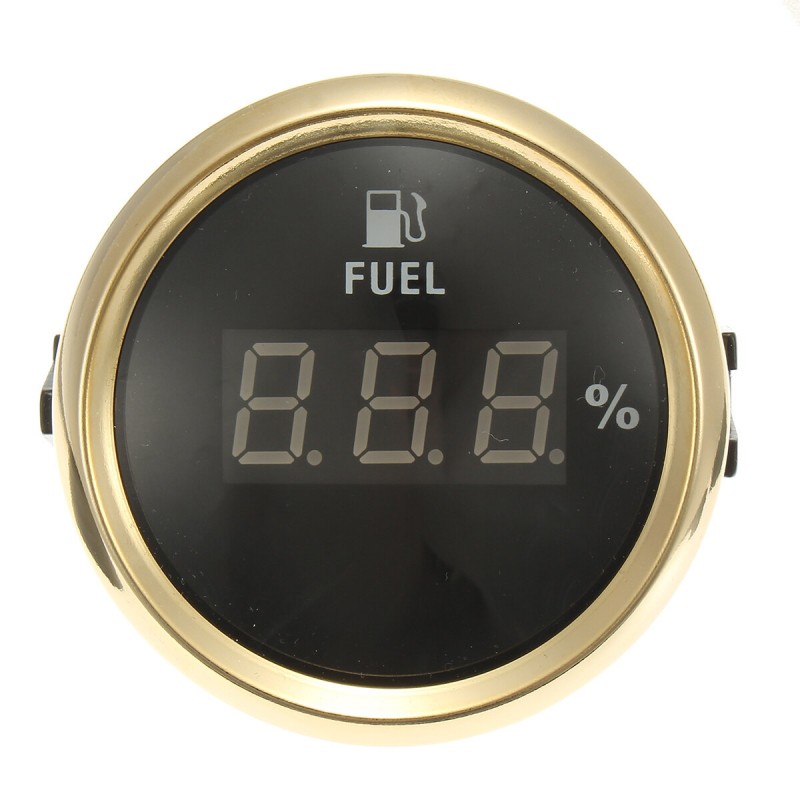

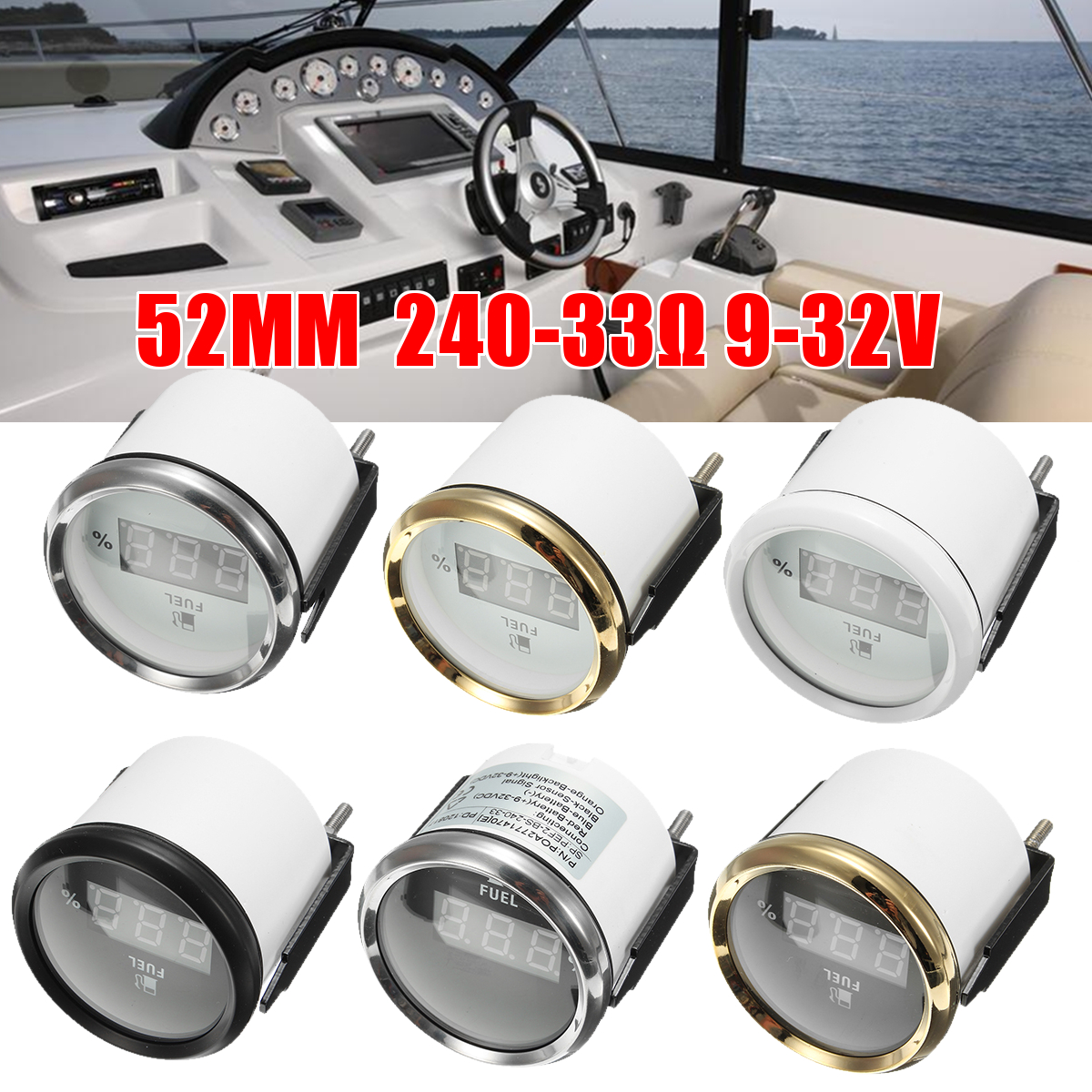

52mm Fuel Level Gauge Meter Sensor Sender Marine Kit For Universal Motor Car Truck Boat
$13.99
- Product Code: ED0020747
- Availability: In Stock
- Ex Tax: $13.99
Available Options
Package Contents:

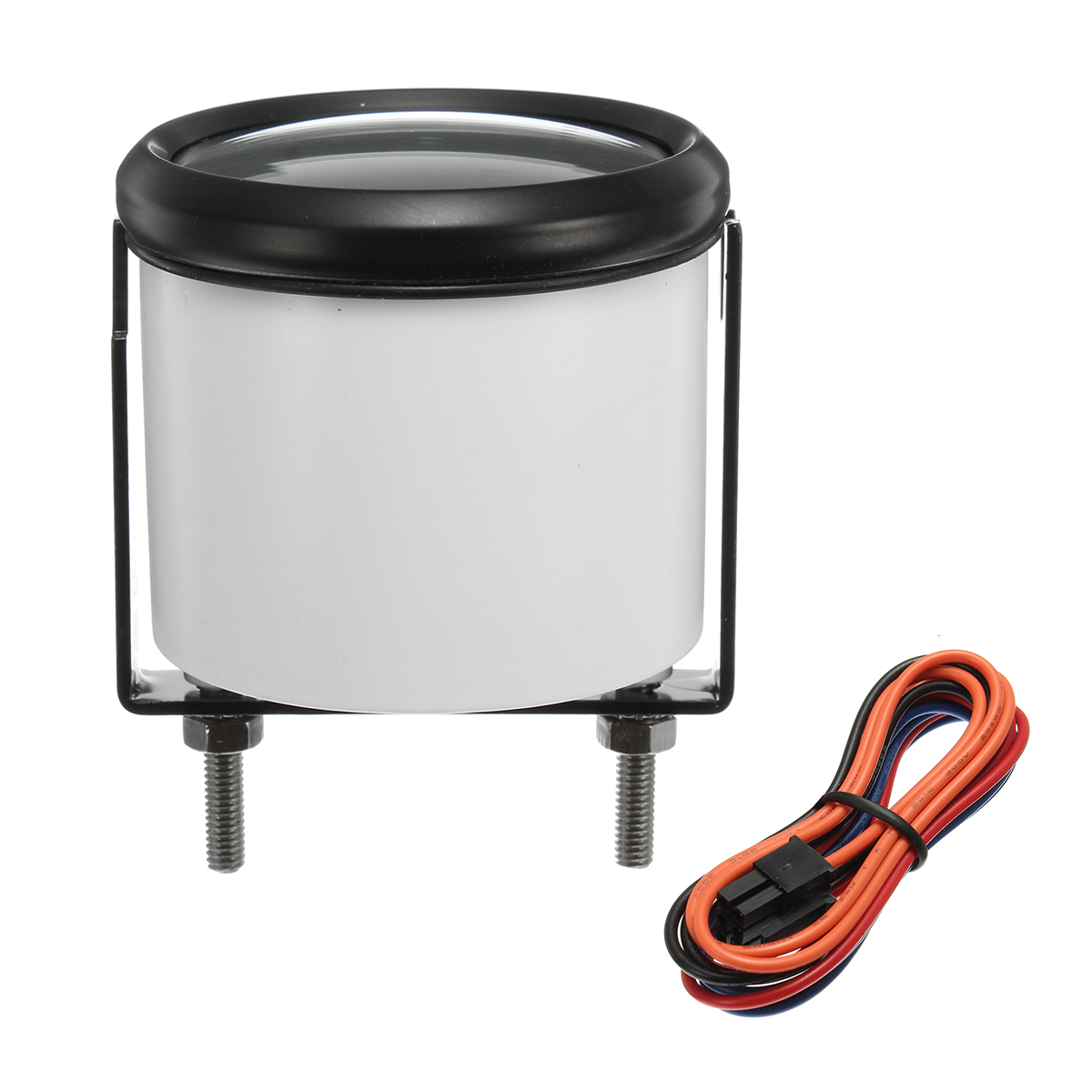

1x Fuel Level Gauge & line set
1x Instruction
Technical Specifications:
Material: 316L stainless steel front cover
Color: As shown
Backlight color: Red
Product size: approx.55.4mm*53mm
Panel opening diameter : 52mm (2-1/16")
Operating voltage: 9~32V DC

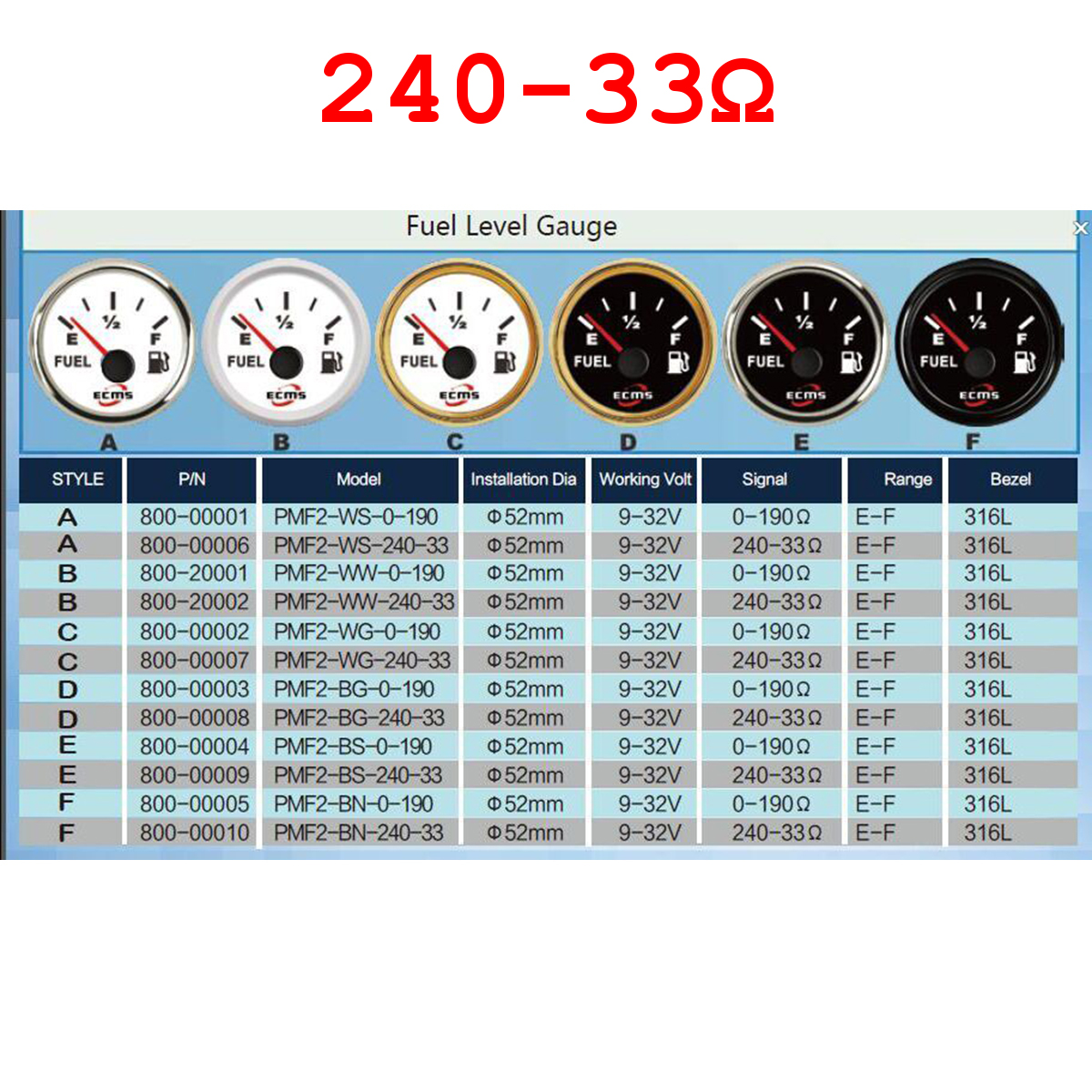

Signal: 240-33Ω
Working current: ≤60mA
Operating temperature:-30~+75℃
Storage temperature: -40~+85℃
Protection level: IP67

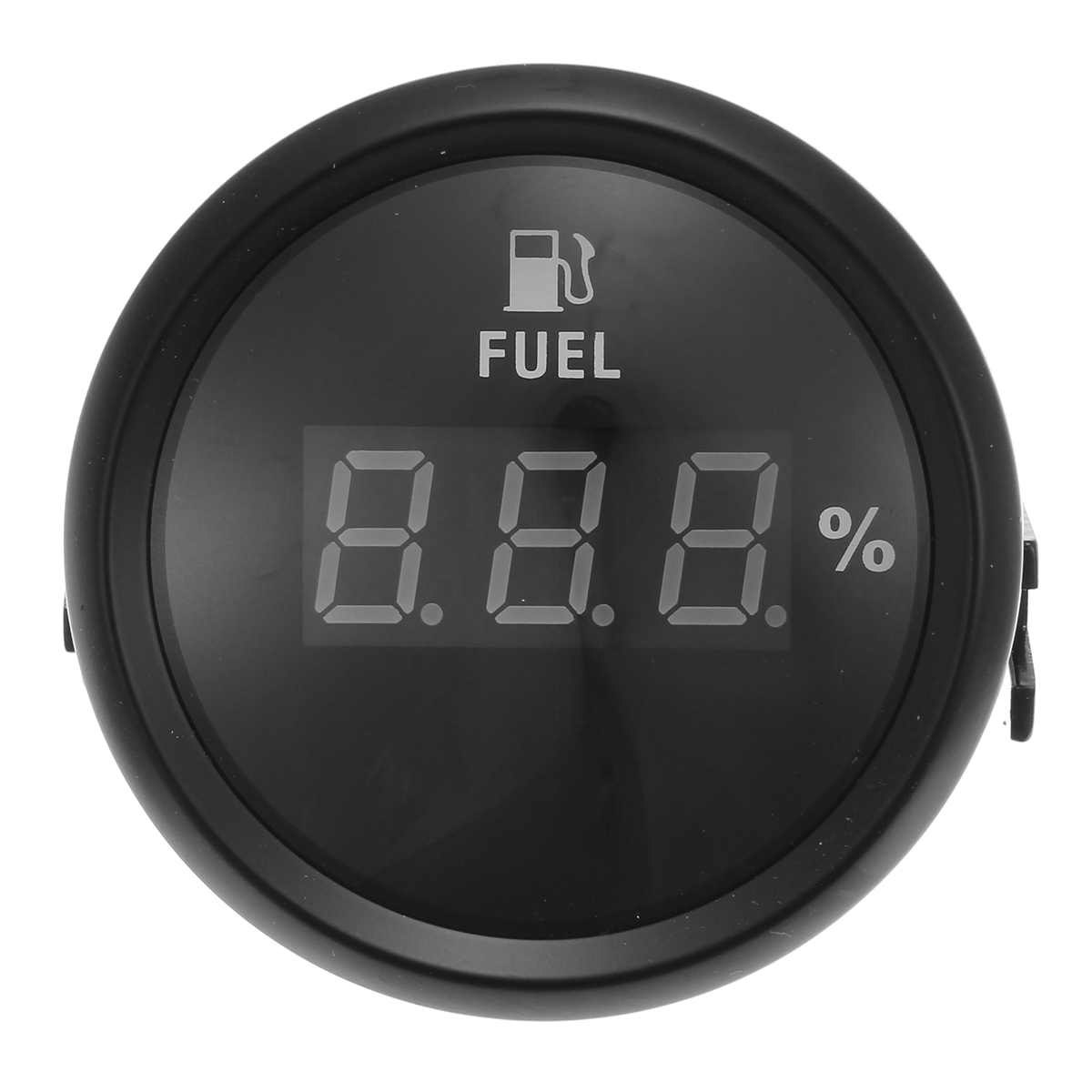

Product description :The fuel level gauge is suitable for all kinds of oil level sensor, using the cross coil drive pointer, product durability and good shock resistance, with anti fog function.
Application:
Suitable for various oil level sensor, display the position of the oil tank level;9~32V universal.
Main applications: craft, engineering machinery, vehicles, generators, engines, machinery etc.

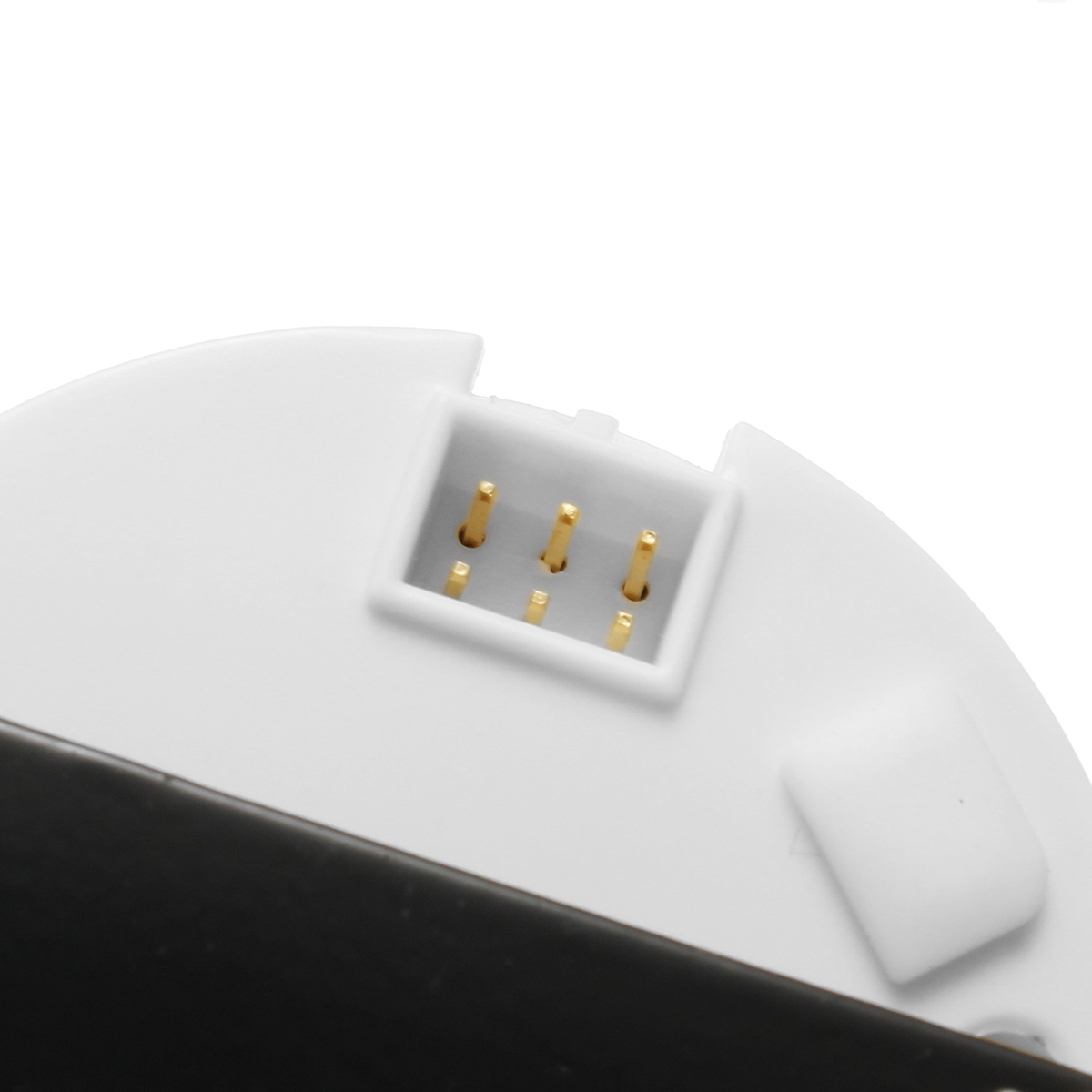

Connecting instructions:

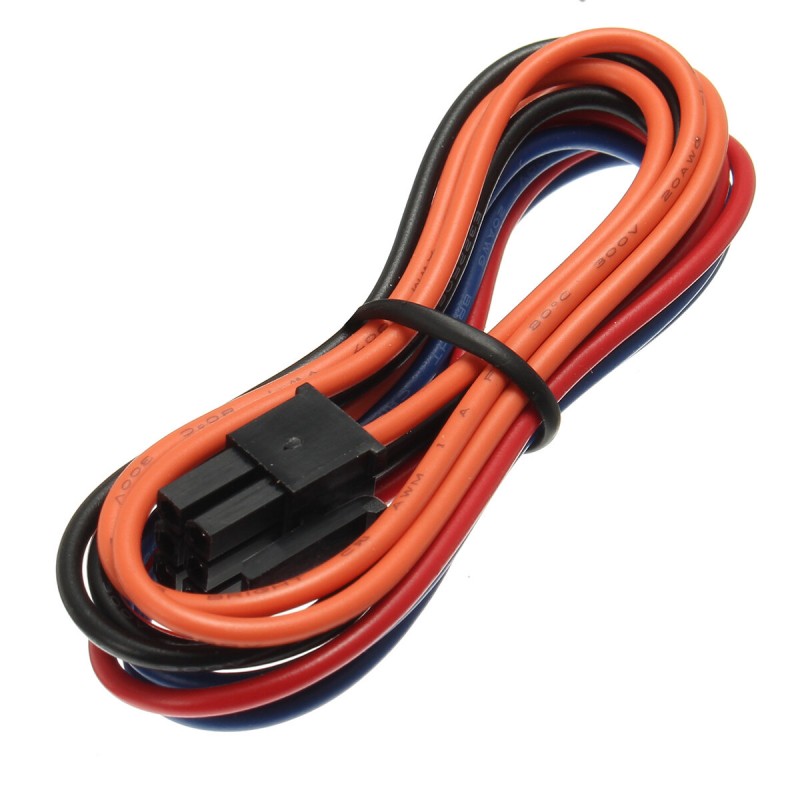

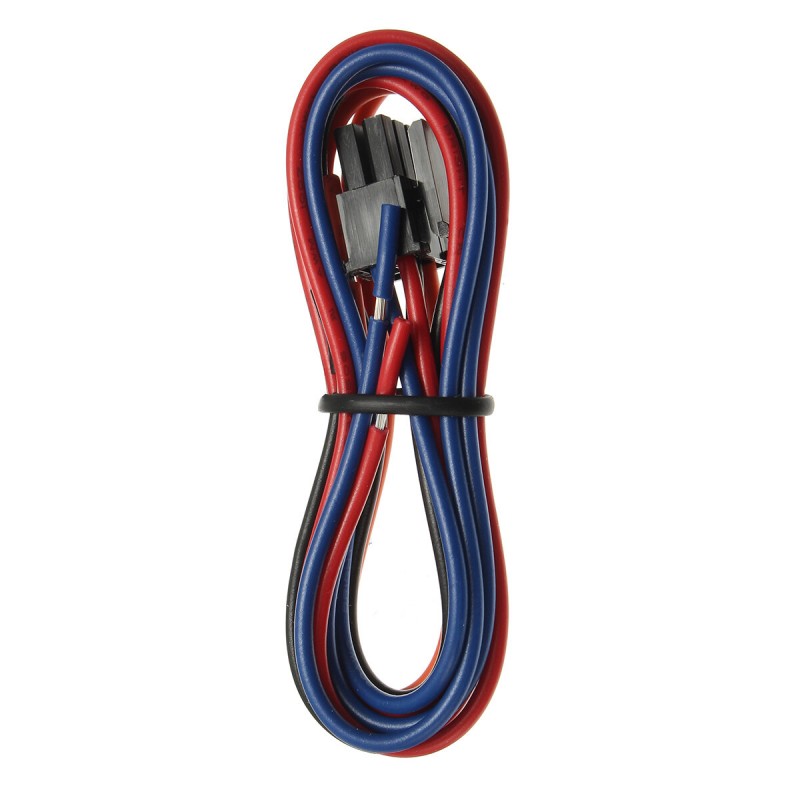

Orange - BlackLight
Red - (+9~32V)
Blue - (Battery-)
Black - Sensor signal

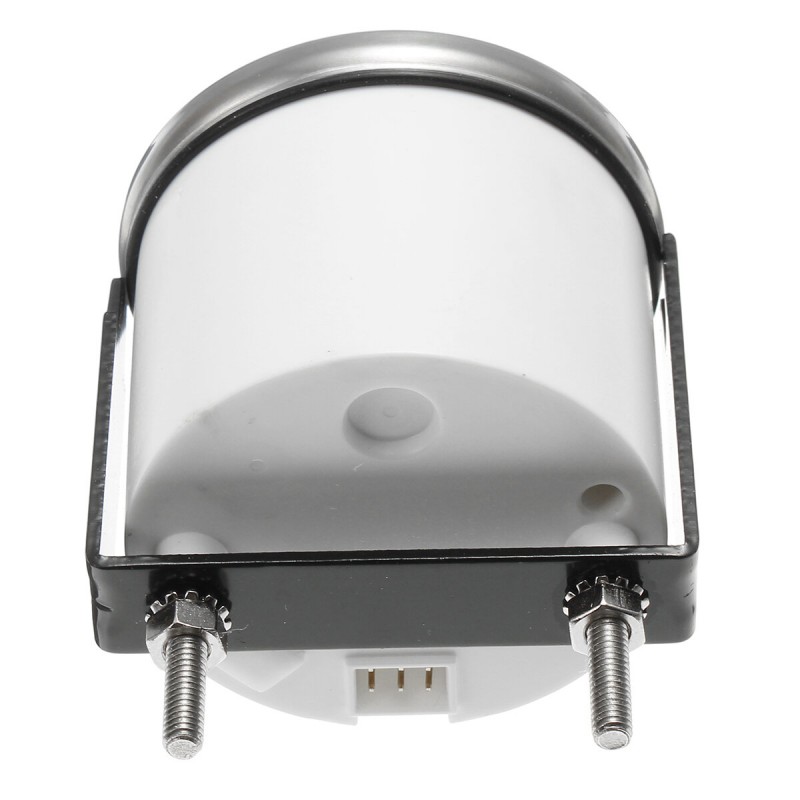

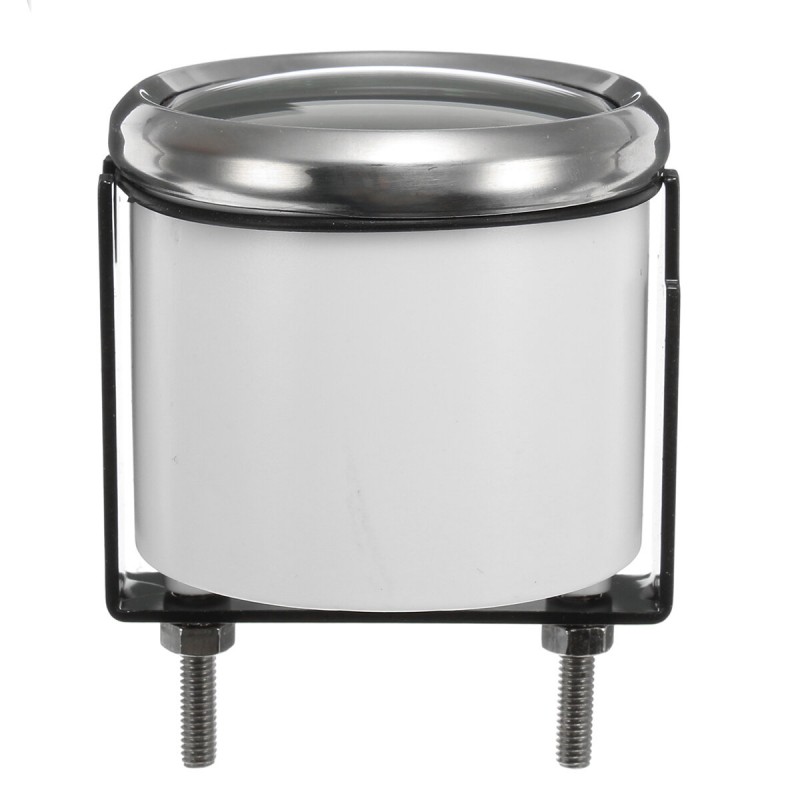

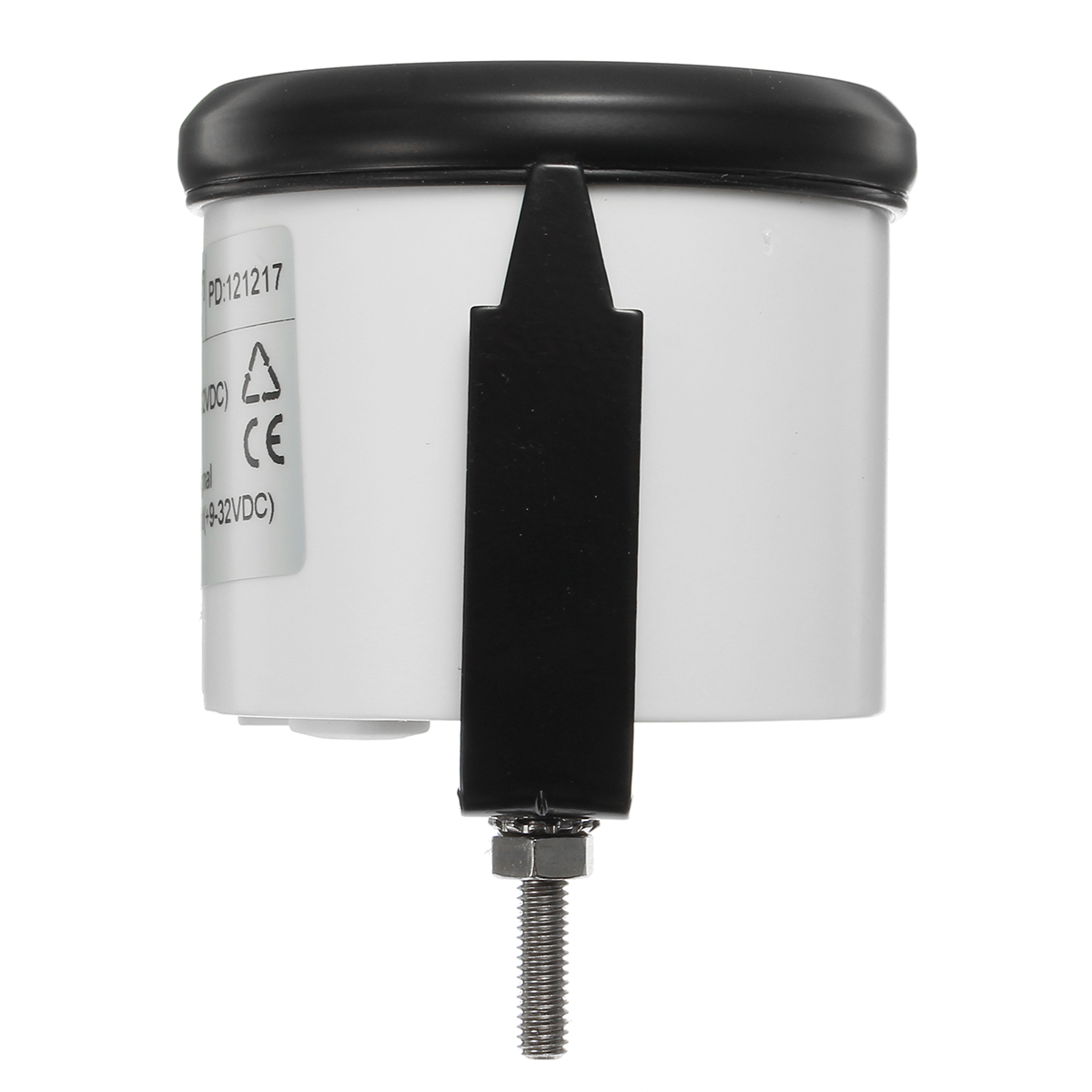

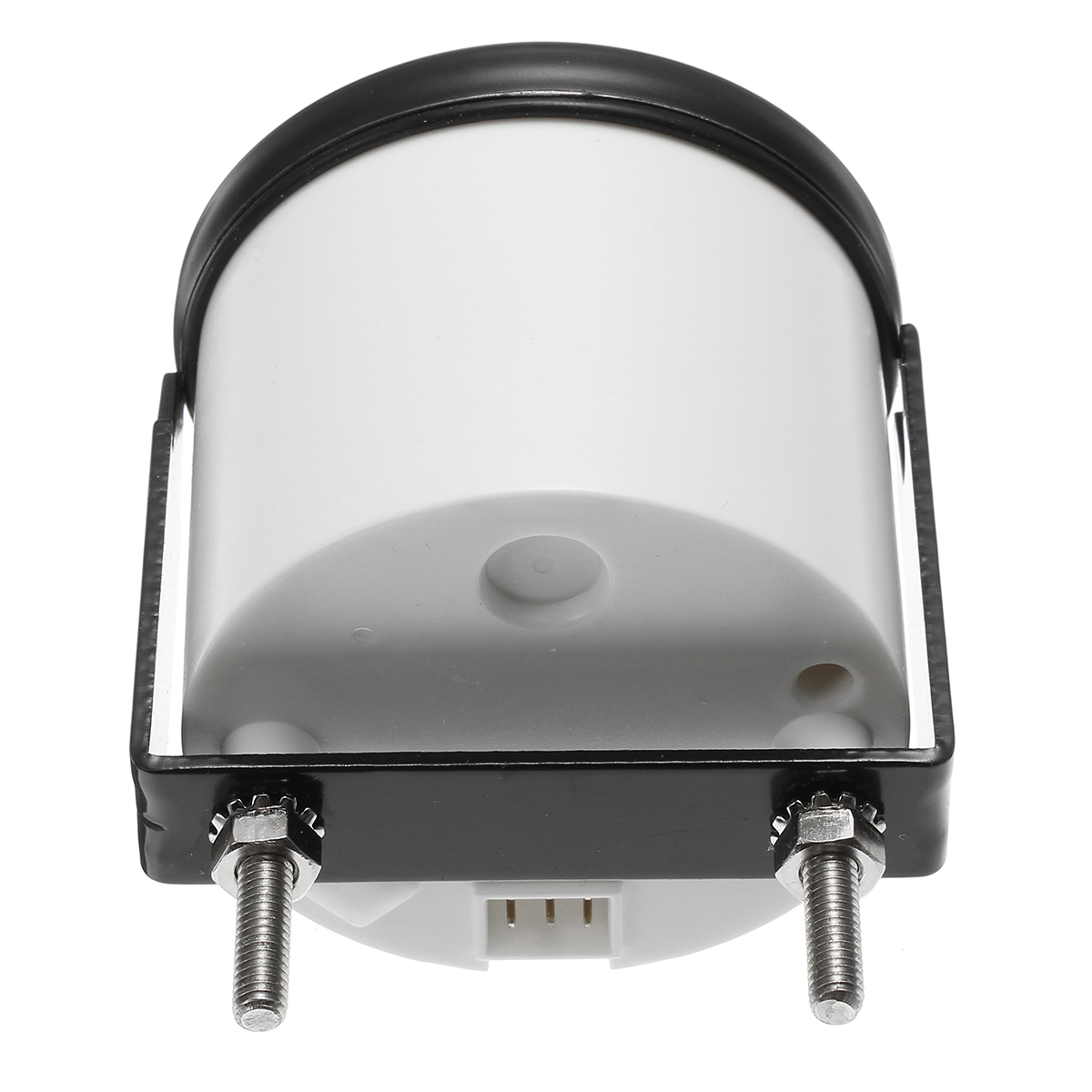

Installation steps

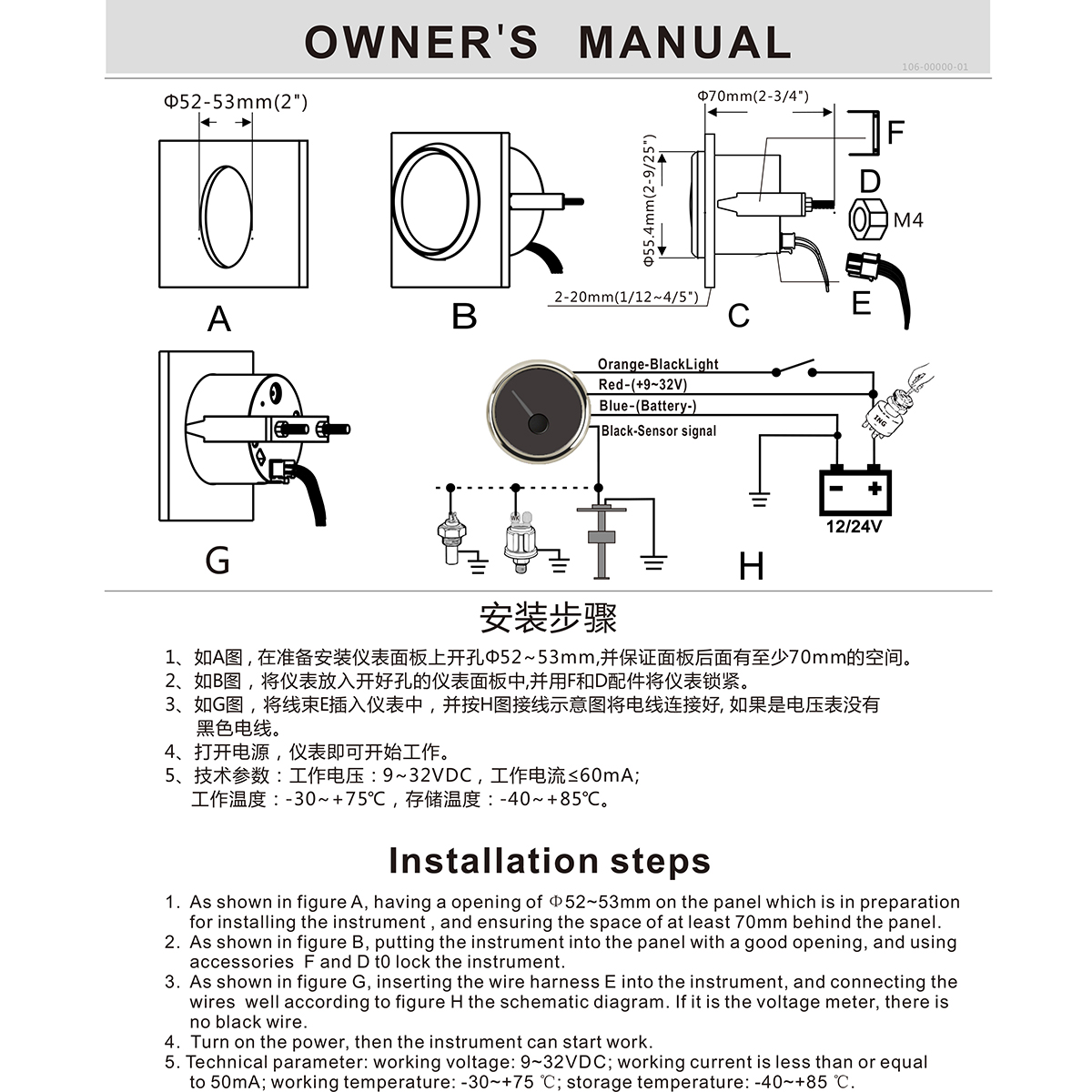

1. As shown in figure A, having a opening of Φ52~53mm on the panel which is in preparation for installing the instrument , and ensuring the space of at least 70mm behind the panel.
2. As shown in figure B, putting the instrument into the panel with a good opening, and using accessories F and D t0 lock the instrument.
3. As shown in figure G, inserting the wire harness E into the instrument, and connecting the wires well according to figure H the schematic diagram. If it is the voltage meter, there is no black wire.
4. Turn on the power, then the instrument can start work.
5. Technical parameter: working voltage: 9~32VDC; working current is less than or equal to 50mA; working temperature: -30~+75 ℃; storage temperature: -40~+85 ℃.
Notice:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.
