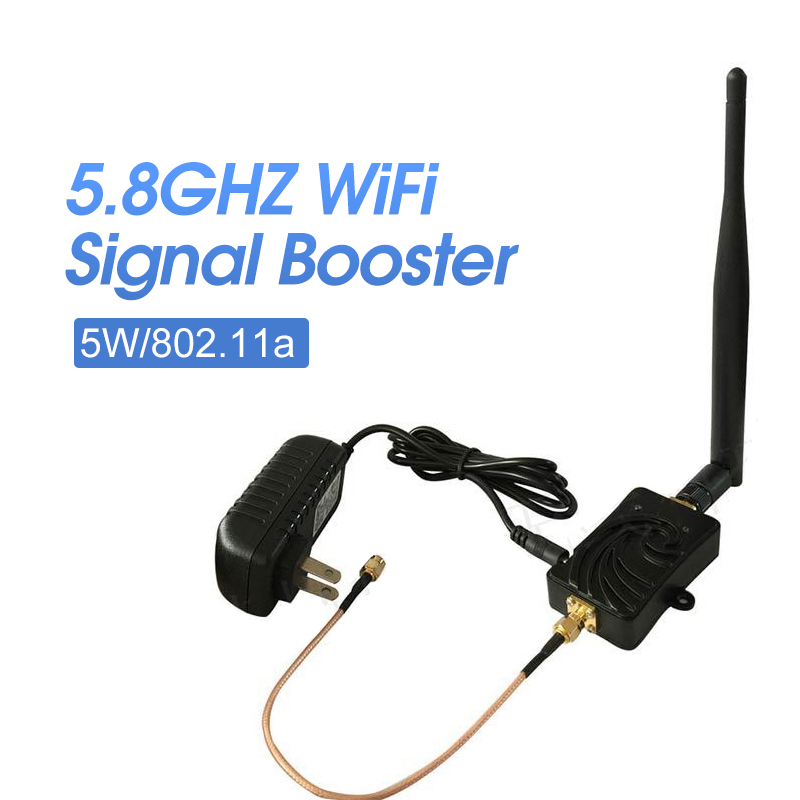

5W 37dBm 5.8G Wireless WIFI 11b/g/n Signal Amplifier Signal Booster for FPV with FCC Certification

$61.26

  • Product Code: ED0001788
  • Availability: In Stock
  • Ex Tax: $61.26

Tags: Signal Amplifier

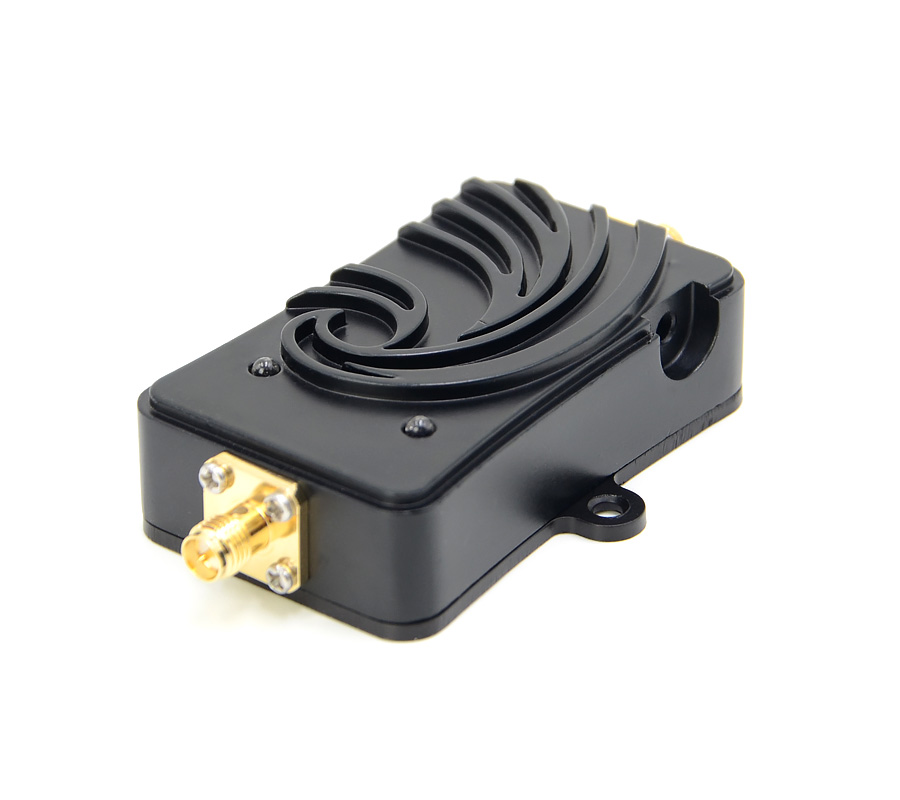

SZHUASHI 5W 37dBm 5.8GHz 11b/g/n Bidirectional Wireless WiFi Signal Booster for FPV Factory Signal Amplifier with FCC Certification

Product description:
This product is specially developed for 5.8GHz frequency band and conforms to IEEE.802.11 a/n standard bidirectional power amplifier. The product matches frequency expansion techniques such as Direct Sequence (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM). Time Division Duplex (TDD) fast microwave detection technology and linear power amplifier technology are used to greatly expand the wireless communication distance under the condition that the transmission rate of 802.11a/n wireless devices is unchanged.

Features:
1. The transmission gain is 20dB, which can increase the transmission power by 100 times and greatly expand the transmission distance.
2. The noise figure is 3.0dB, which can improve the receiving sensitivity of the product, greatly expand the receiving distance and transmit power of 5000mW, which can greatly improve the coverage area of the product.
3. Ultra-wide power supply voltage input range of 6~16V, which is very convenient for engineering network
4. Can be extended to any 5.8G frequency band, working mode is TDD's product coverage plug and play, no software setting required

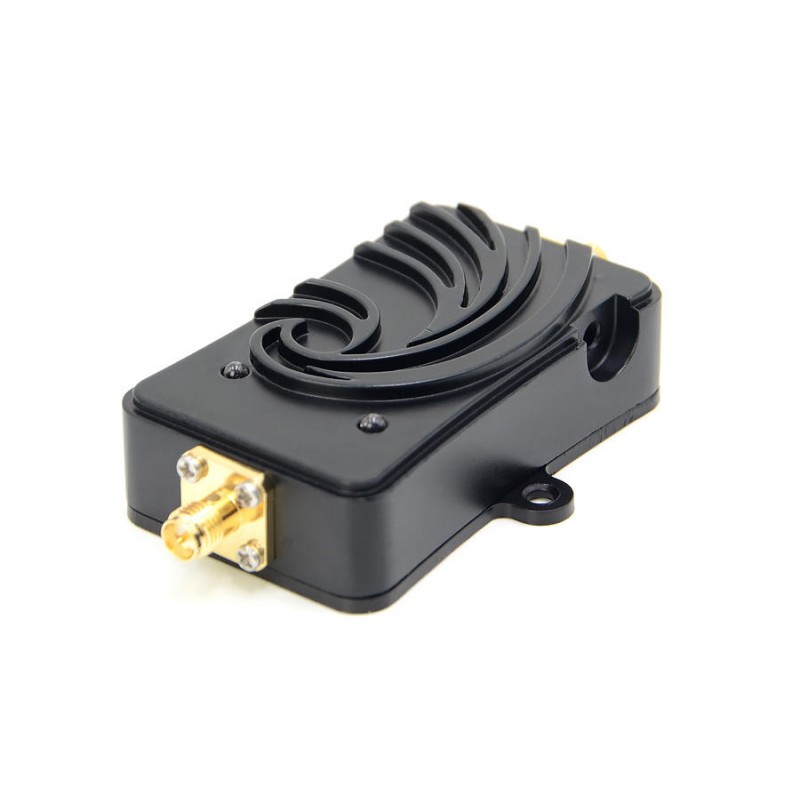

5. Full metal housing for maximum heat dissipation

Product specifications:

Working frequency band 5.725~5.85GHz
Working voltage 6~16V
Receive gain 15dB±1
Transmit gain 20dB±1
Input power range minimum 0dBm; maximum 10dBm
maximum output power (P1dB) 37dBm (5W)
EVM 3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC power consumption 700mA@Pout 29dBm 12V
Noise figure < 3.0dB
TX/RX Switch delay <1us

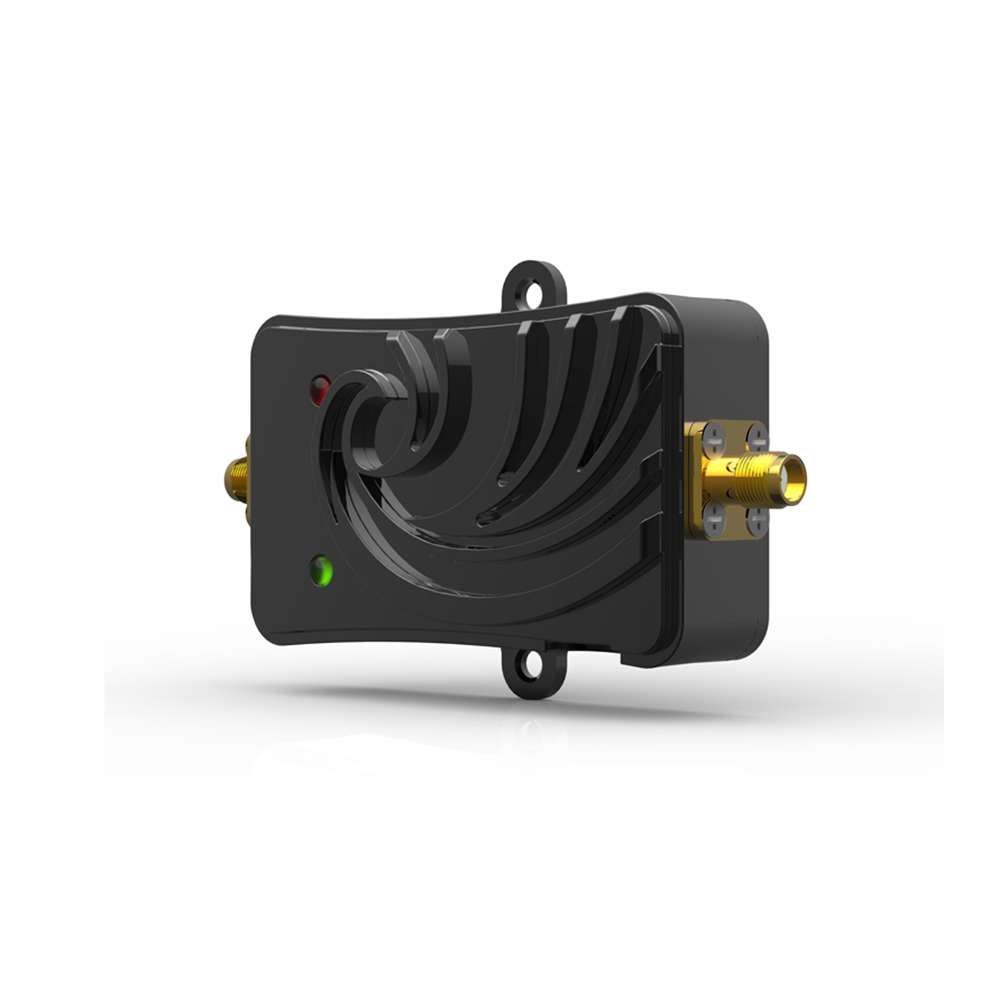

LED indicator status Transmit: Green; Receive: Red; Transceiver switch: Orange (composite color of green and red)
Working temperature -40 °C ~ +70 °C
Working humidity <95% RH
Size 82mm × 50mm × 21mm
Net weight 0.25Kg

Installation steps:
Step 1: Remove the wireless AP/Router power supply
Step 2: Remove the wireless AP/Router antenna

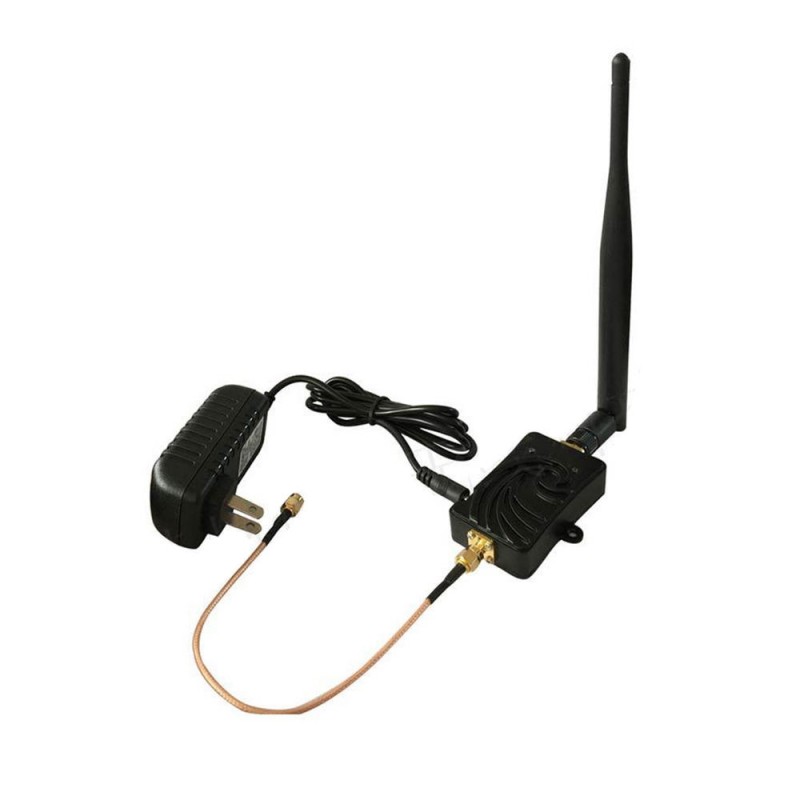

Step 3: Connect the bidirectional amplifier RFIN and the wireless AP/Router antenna with the standard RG316 feeder.

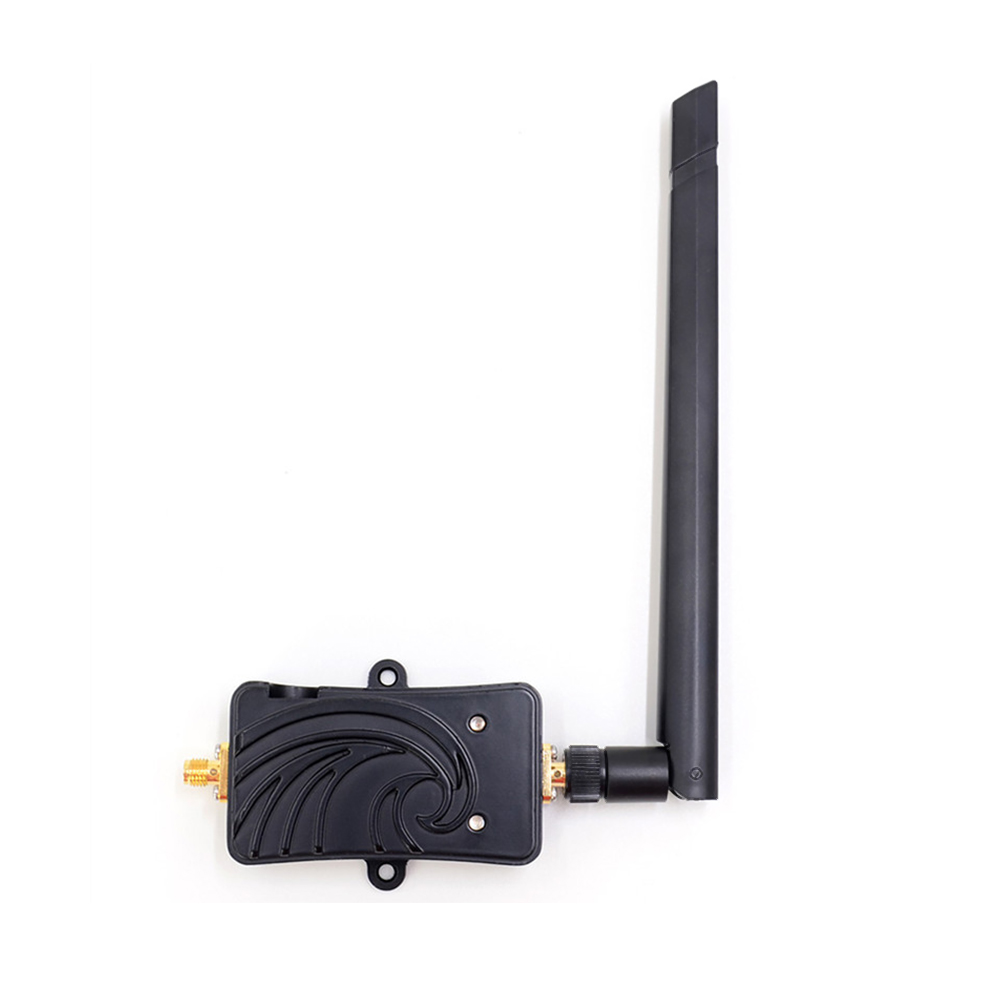

Step 4: Screw the antenna to the RFOUT port of the bidirectional amplifier.
Step 5: Power the bidirectional amplifier first, then power the wireless AP/Router

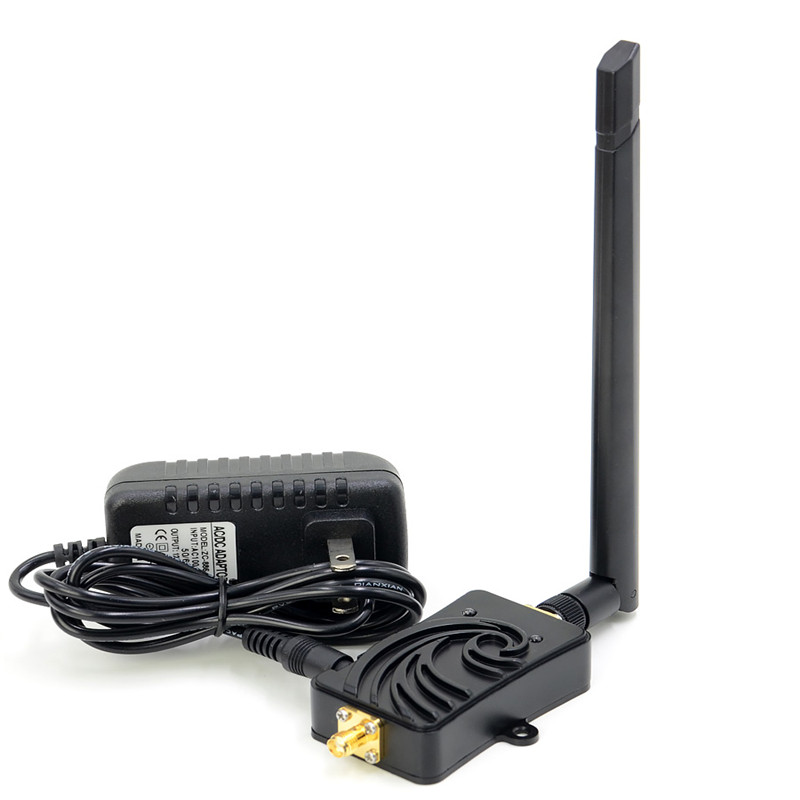

Package Included:
1 x Wifi Signal Booster
1 x antenna
1 x power supply
1 x user manual
