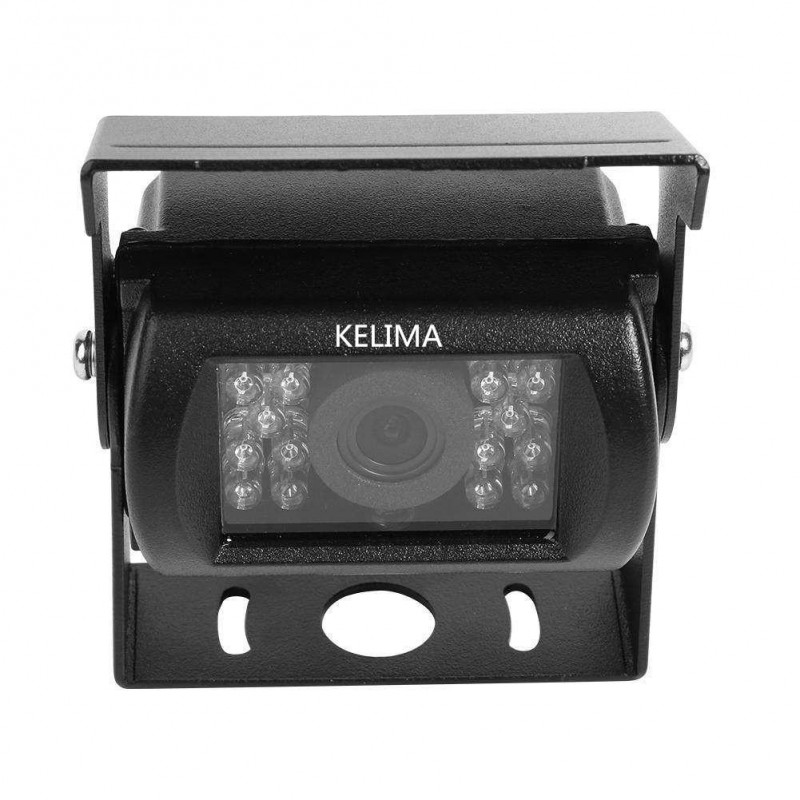

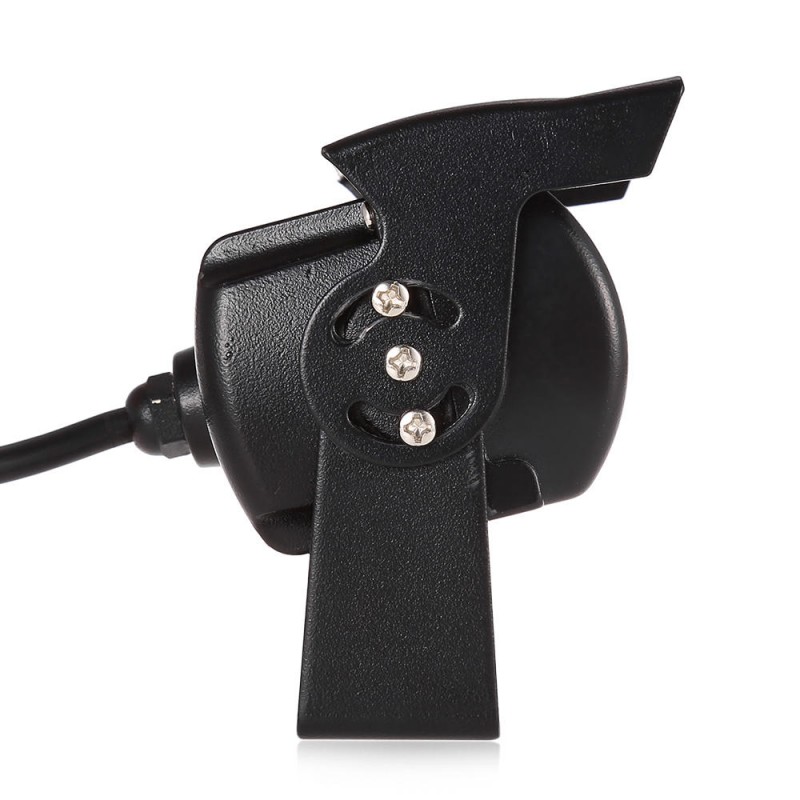

6988 AV Interface Universal 18 Infrared Night Vision Waterproof Car Rear View Camera

$25.24

  • Product Code: ED0001113
  • Availability: In Stock
  • Ex Tax: $25.24

Tags: Car Rear View Camera

Description:
Signal to noise ratio 48db (AGC OFF) Minimun llumination 0.8LUX / F1.2 BLC open white balance automatic video output 1.0Vp-p.75, BNC auxiliary synchronization system internal synchronous working temperature -20 ° C? + 80 ° C power supply DC 12- 24V this product.

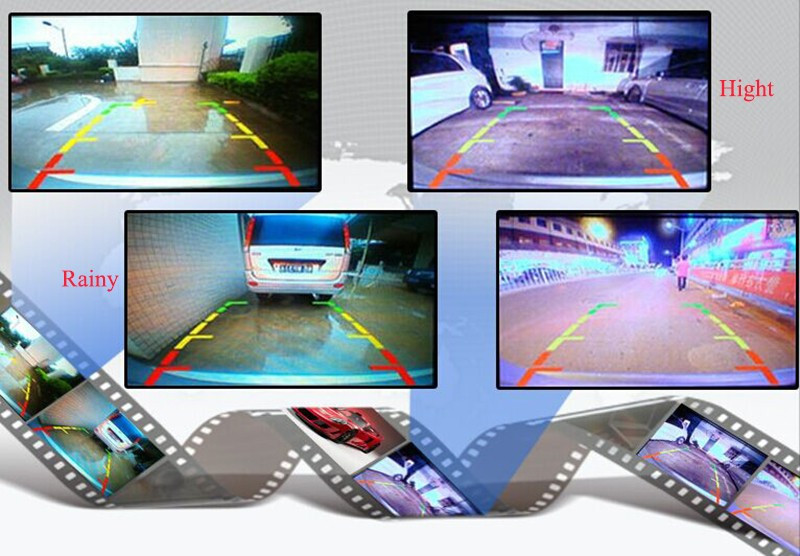

The installation is simple and convenient, and can be applied to buses, school buses, buss, excavators, harvesters, etc., with reversing ruler lines and reversing at a glance.

Feature:
Model No: KELIMA-6988
Brand Name: Elecdeer
Product Name: Bus reversing camera
Material: pig iron AV interface

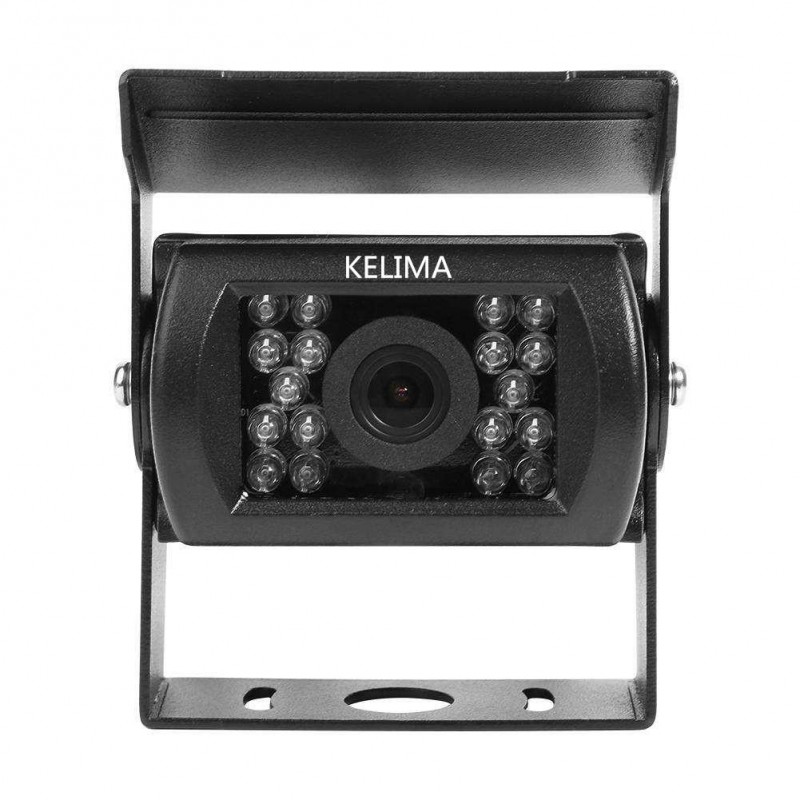

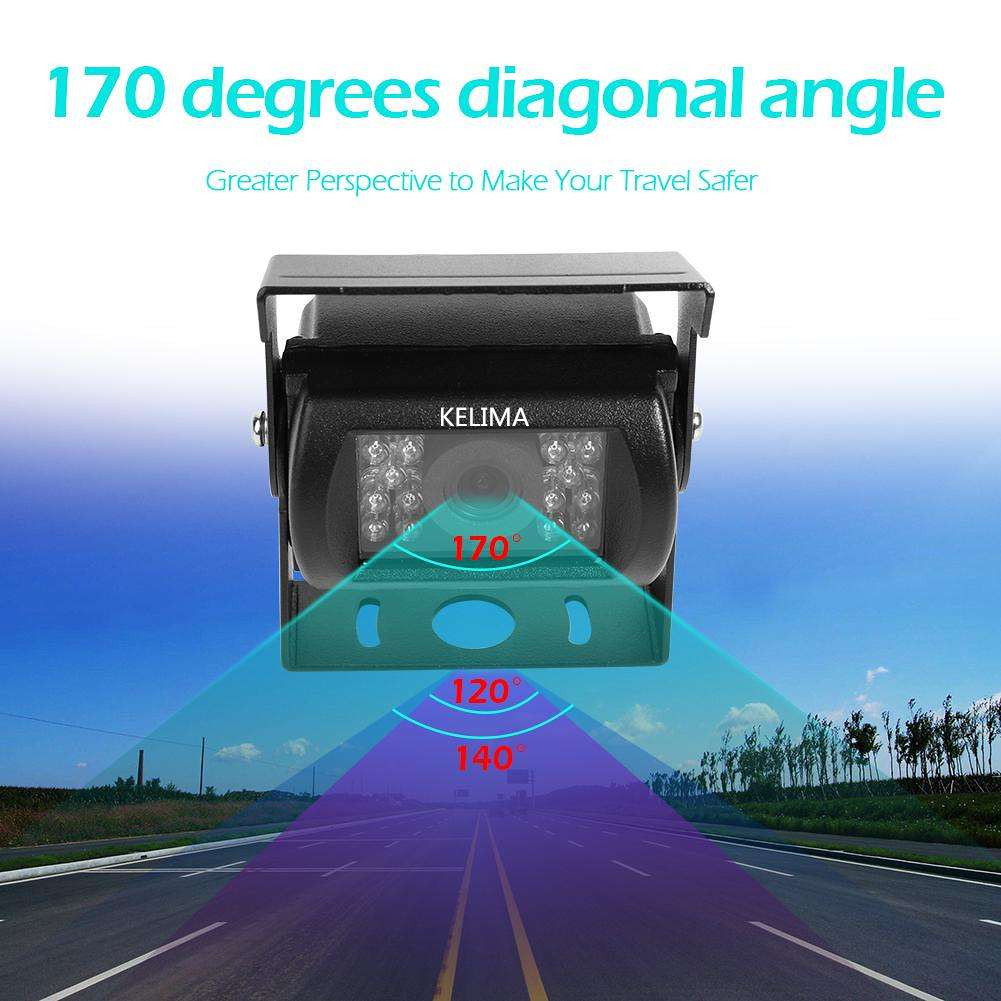

Voltage input: 12-24V 18 infrared night vision lights, night vision distance 3-5 meters waterproof infrared camera, wide angle / 140-170 degrees system PAL (CCIR) NTSC (EIA)
Resolution 640*480
Image sensor: 1/4 inch CMOS PC7080
Effective pixels: 6 pixels
Horizontal resolution: 480TV line
Night vision: support 3-5 meters

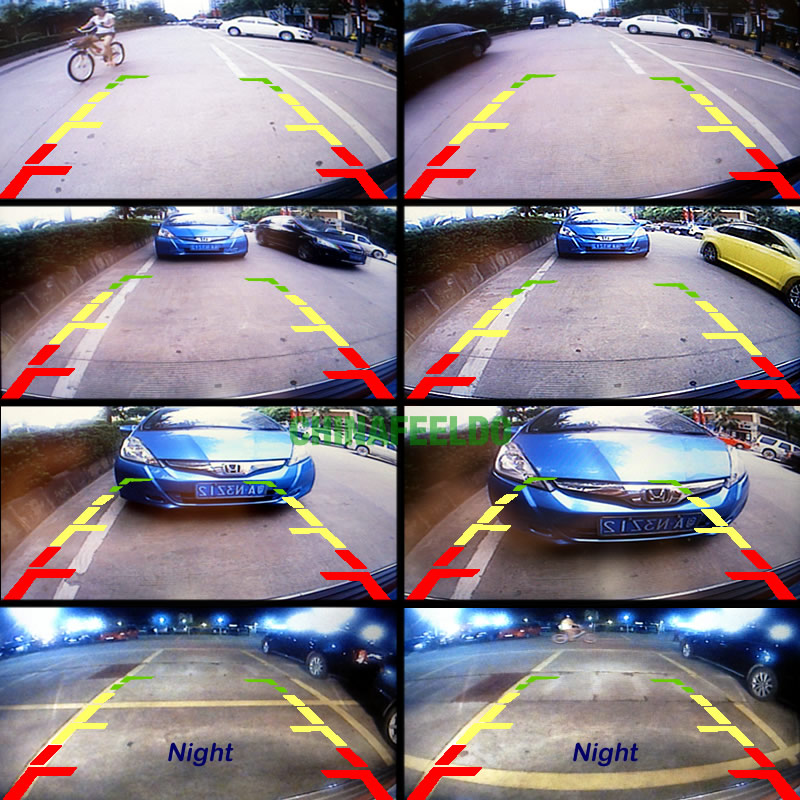

Parking guide: support
Wire switch: No
Reversing image: mirroring

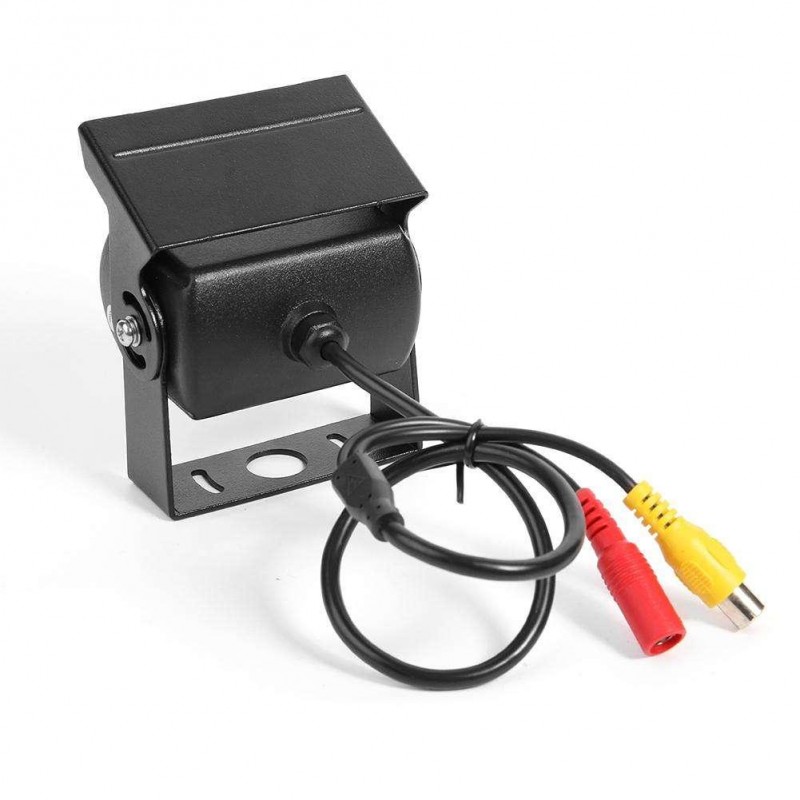

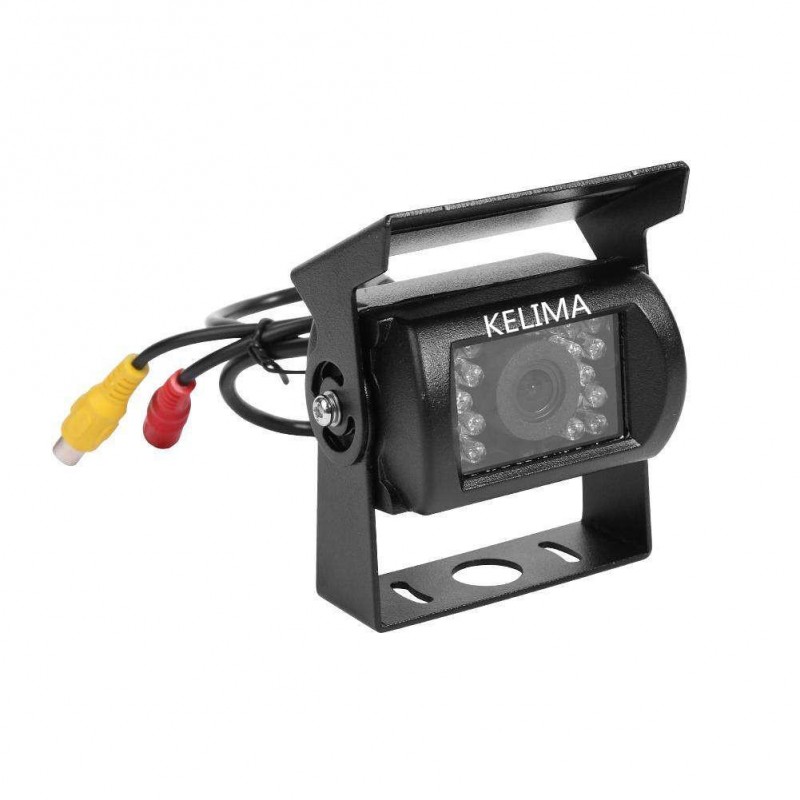

Video output: CVBS RCA connector (1.0VP-P, 70OHM)
Minimum illumination: 0.01 Lux / F = 1.2 (0 Lux and IR on)
Power consumption: 120mA
Operating temperature: -20 ° C -75 ° C, RH 95% MAX
Storage temperature: -40 ° C -80 ° C, RH 95% MAX

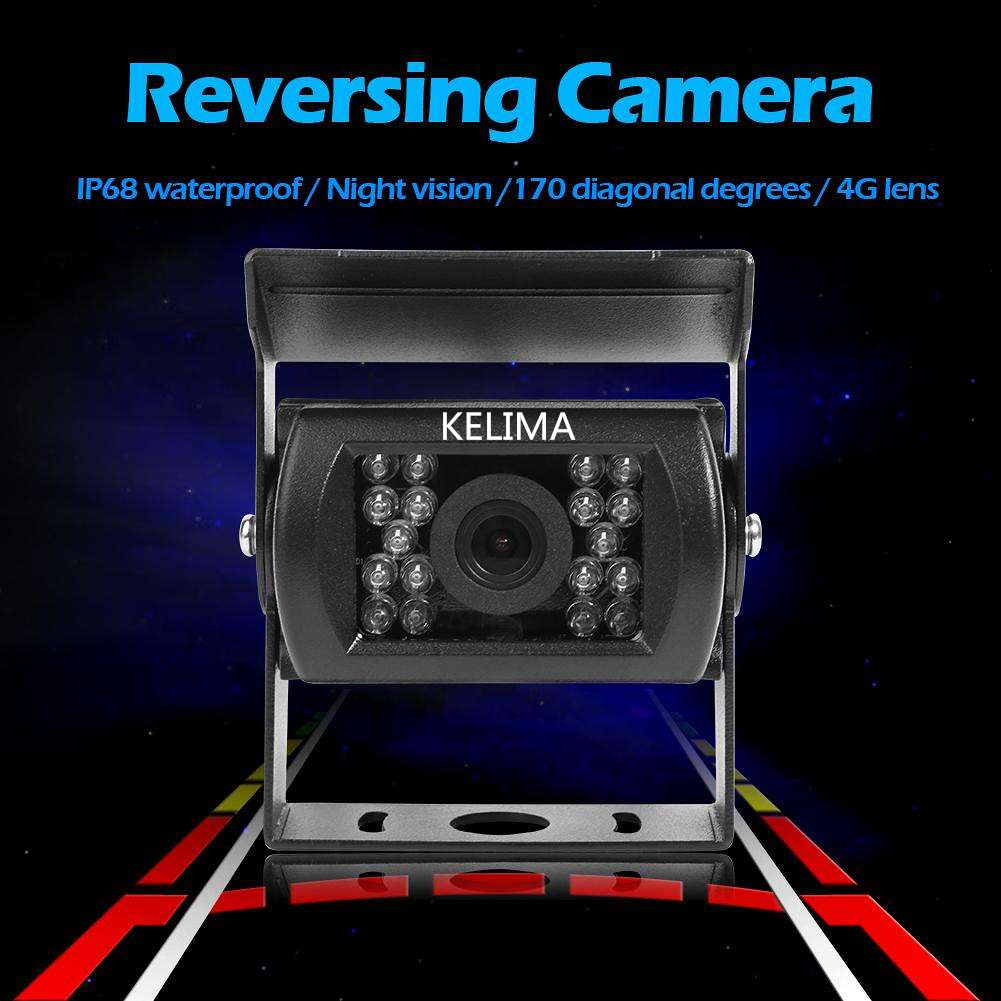

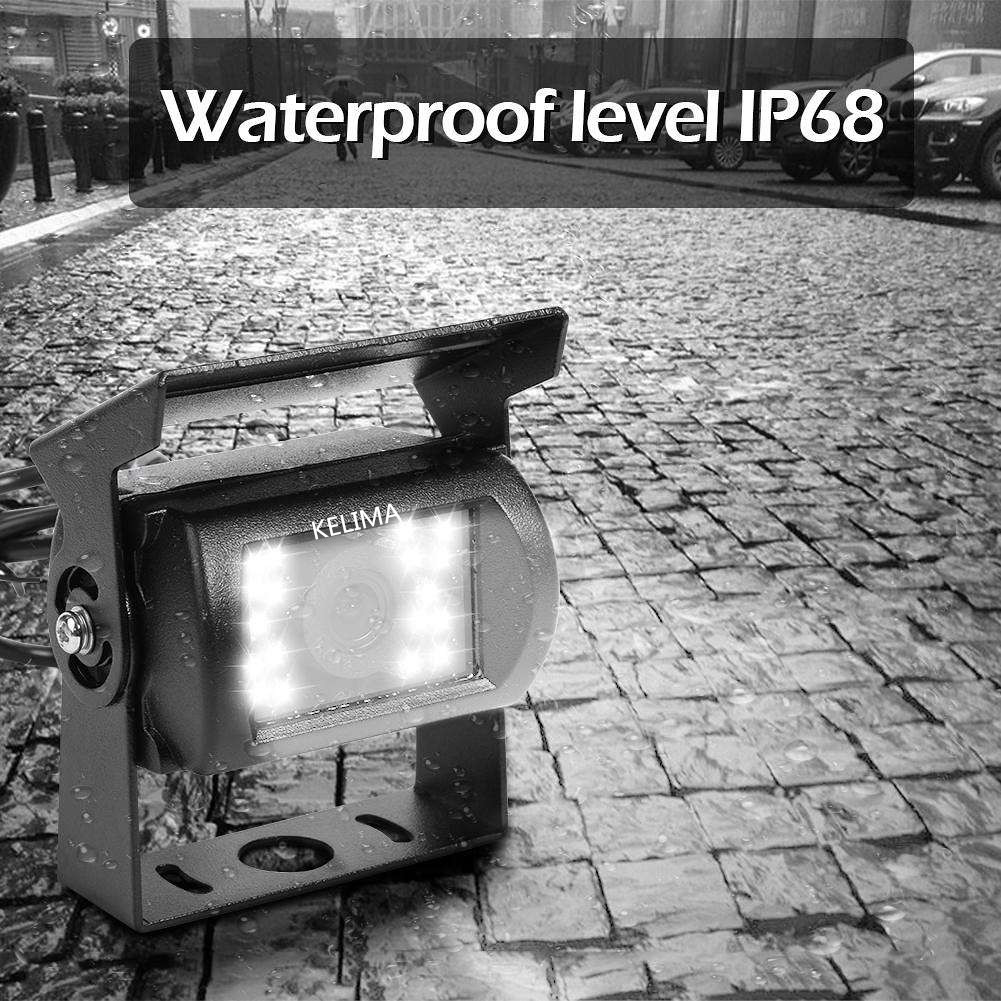

Waterproof rating: IP68 Note is rain
Lens: 2.8 mm
Pixels 500 (H) X 582 (V) 510 (H) X 492 (V)
Horizontal resolution 420TV
Line scan frequency 50HZ 60HZ
Electronic shutter 1 / 50-1 / 100 (seconds) 1 / 60-1 / 100,000 (seconds)
Product net weight: 0.2490 KG
Actual weight: 0.2550 KG
Product size: 7*7*4CM
Packing size: 10*10*7CM

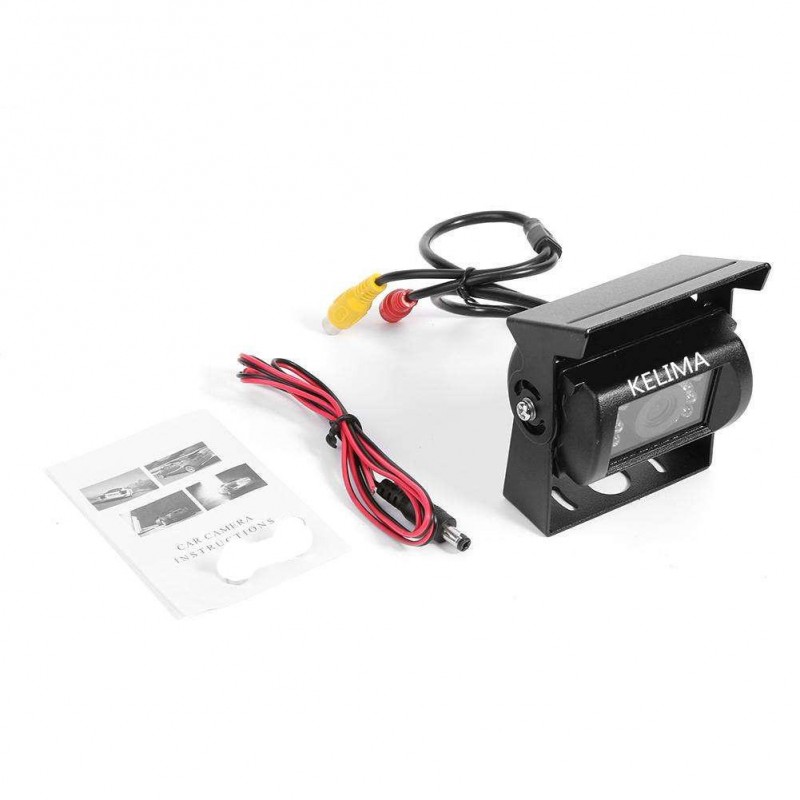

Package Included:
1 X Bus Camera
1 X Power Cord(50cm)
1 X English Manual
