Specification :
Material | ABS+PC |
Voltage | 12V-24V |
Light Source Power | 1.2W |
Current | 0.1A |

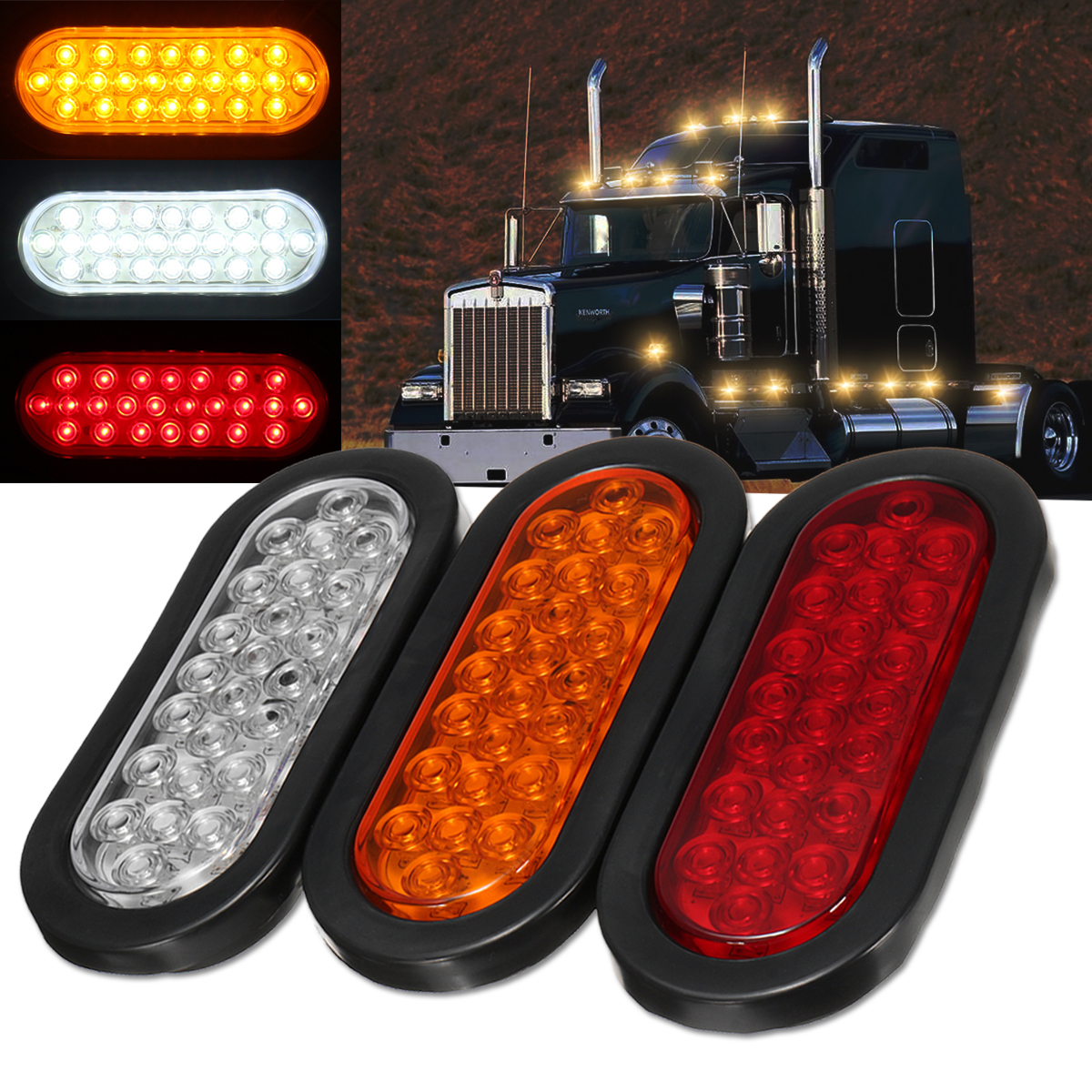

Color of Light & Lens | Red / Yellow / White |
Lifespan | 70,000 Hours |
LED Quantity | 24 |

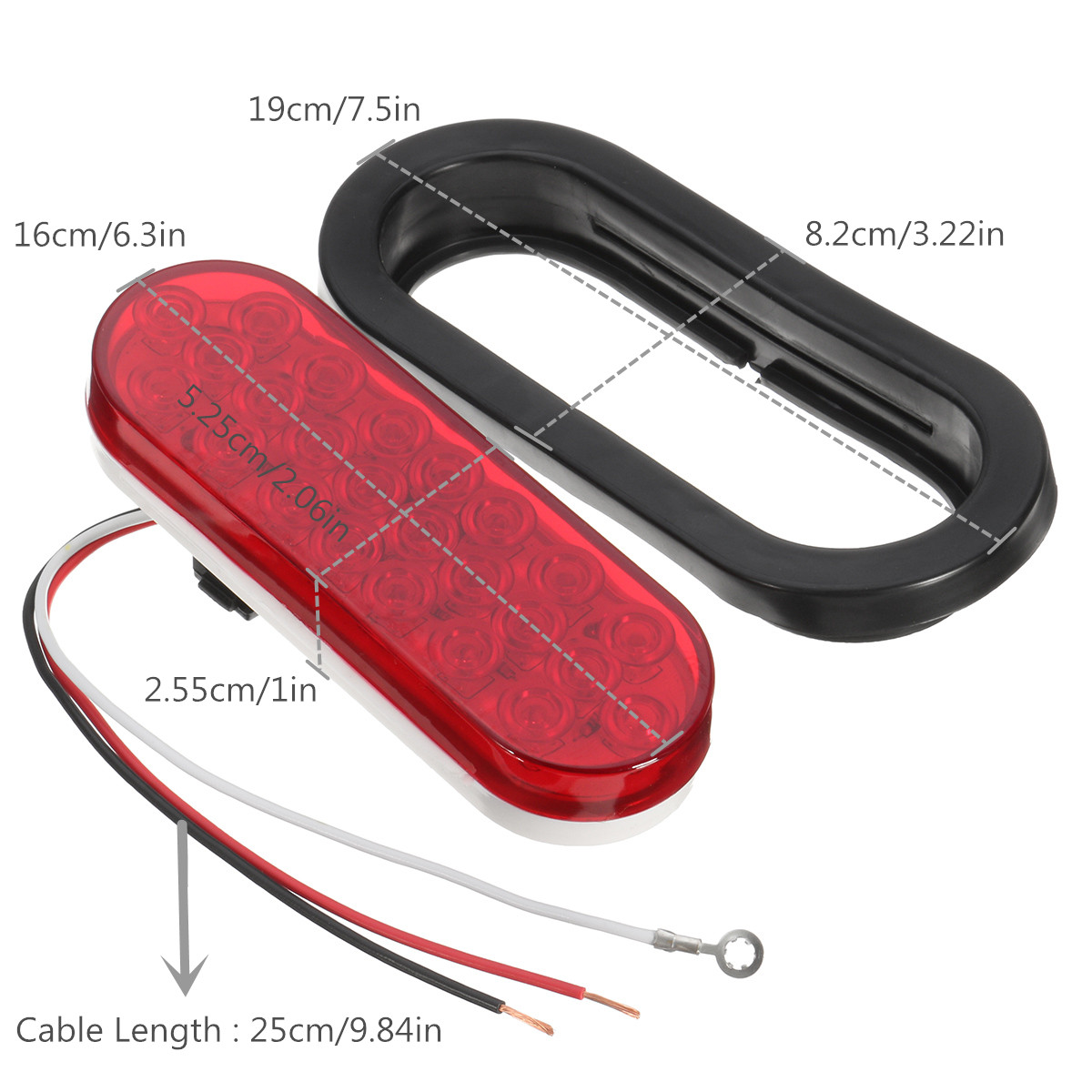

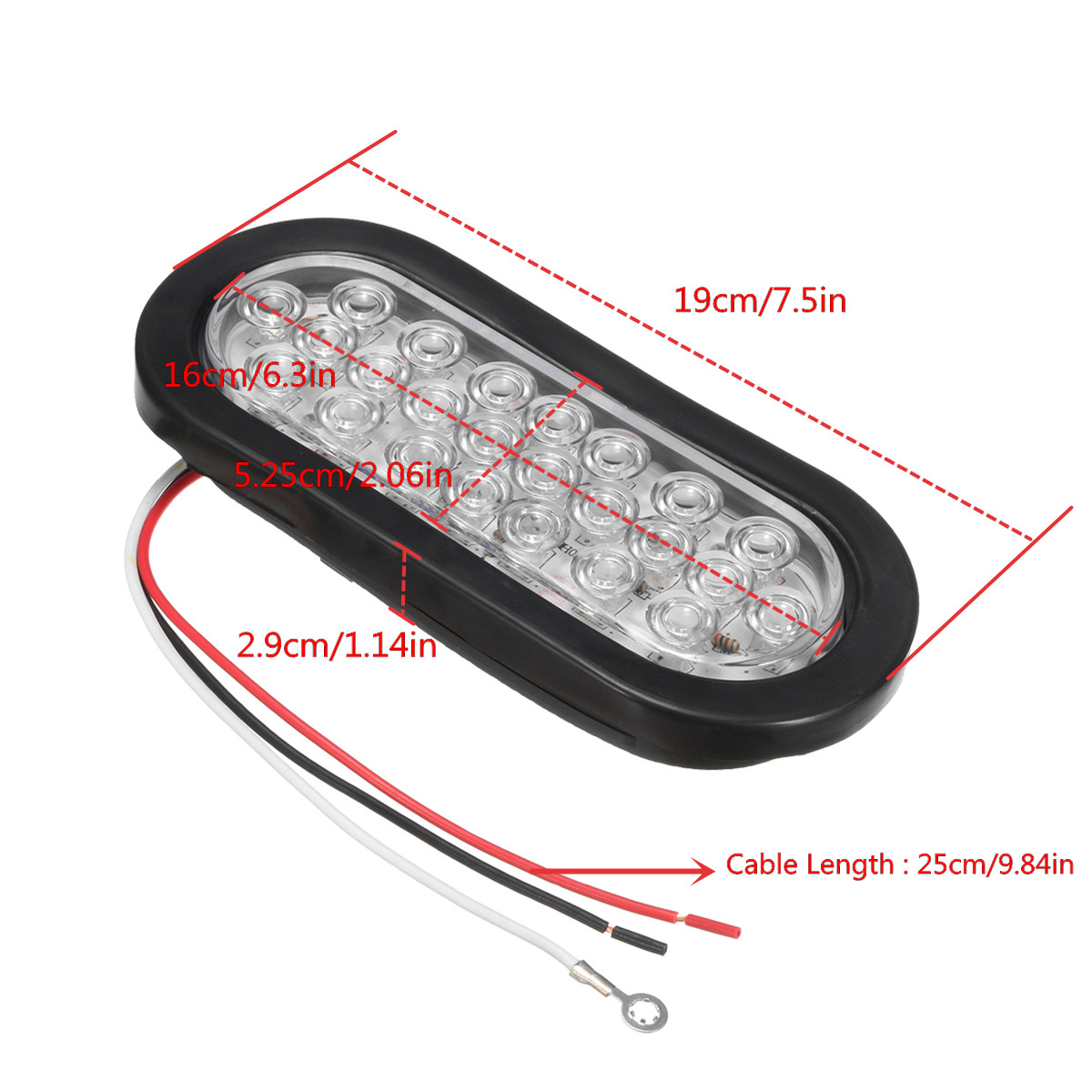

Size | 19cm/7.5in x 8.2cm/3.22in x 2.9cm/1.14in (L x W x H) |
Cable Length | 25cm/9.84in |
Placement on Vehicle | Rear / Left / Right |
Fitment | Trucks, Trailers, RVs, and Boats etc. |

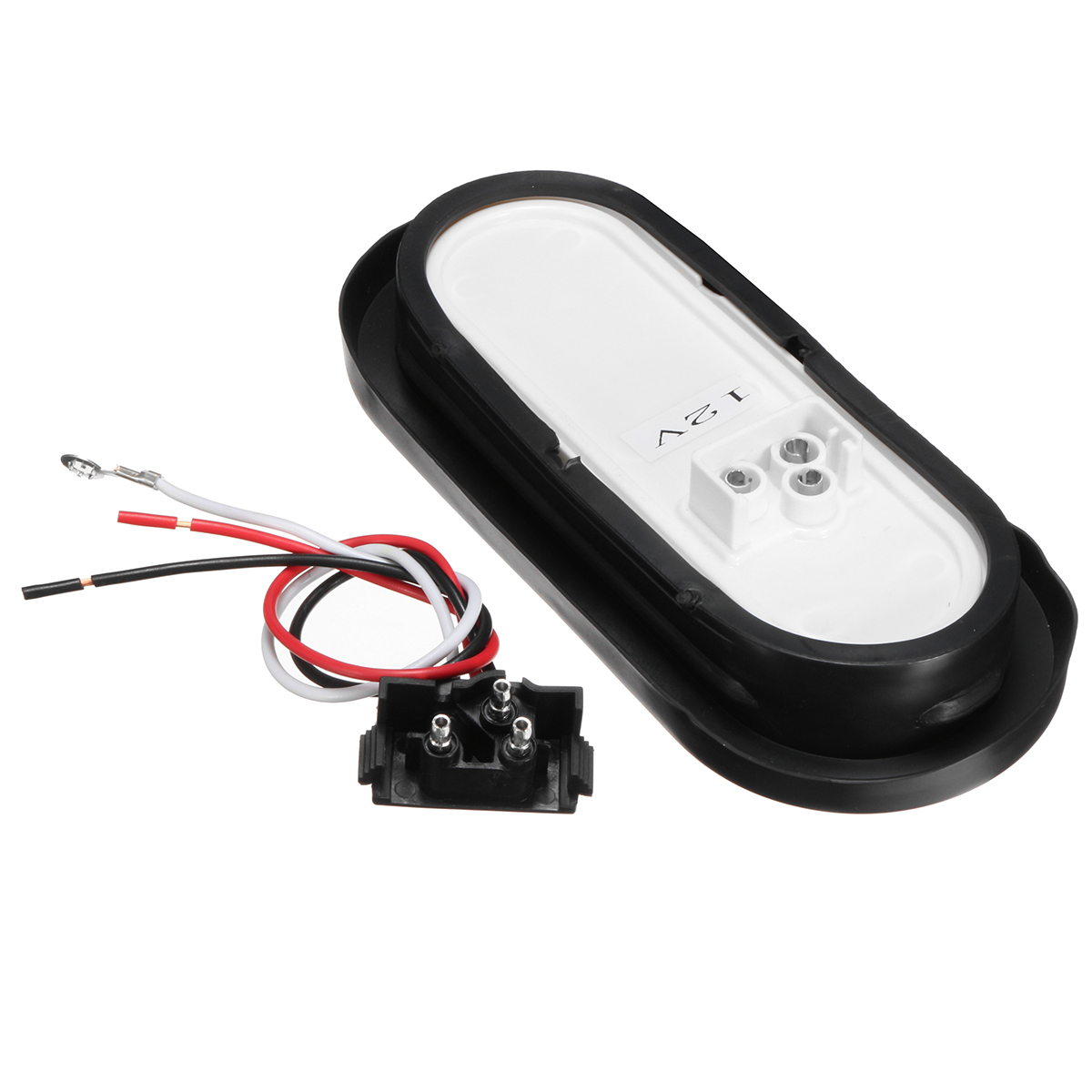

Wire Connection :
Black Wire is the ground;

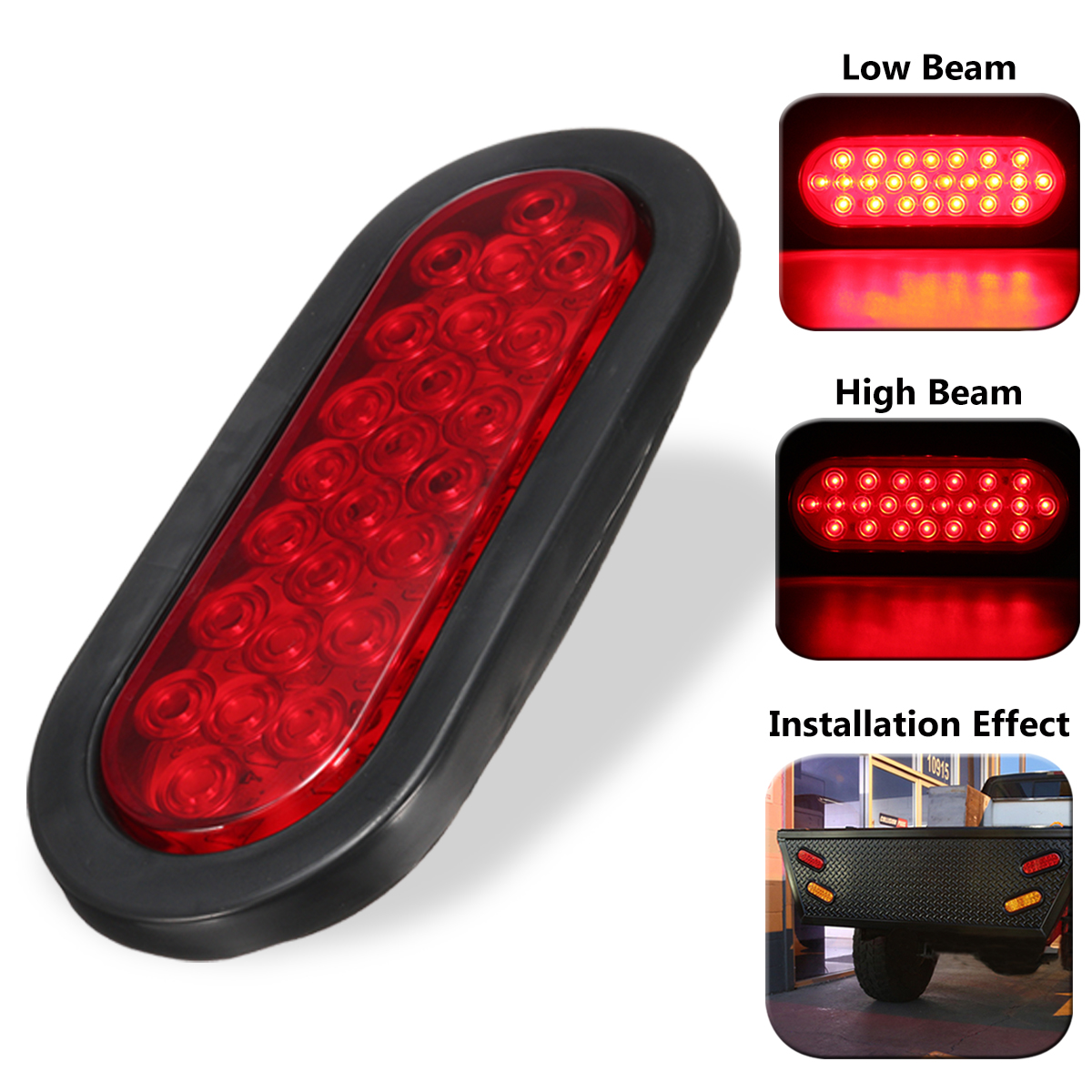

Red Wire is the high brightness;
White Wire is the low brightness.
Feature :
1. Molded plastic housing and durable lens protect against corrosion.
2. PC lens and housing welded together to ensure permanent and waterproof seal.
3. LED circuit board coated with conformal coating for excellent moisture and environmental protection.
4. Have PVC grommet mounting and three wires for adjusting high low brightness.
5. Sealed Waterproof LED Light for Trucks, Trailers, RVs, and Boats.
Note :
1. Please check as much as possible to make sure the item the one that you need.
2.The color of actual item maybe has slightly differs with listing image due to different computer screens,
thanks for your understanding.
thanks for your understanding.
3.Please allow 0.5-1cm difference due to manual measurement.
4.Installation manual is not included. Professional installation is highly recommended!
Package Included :
1 X Tail Light
,,,,,,,,,
