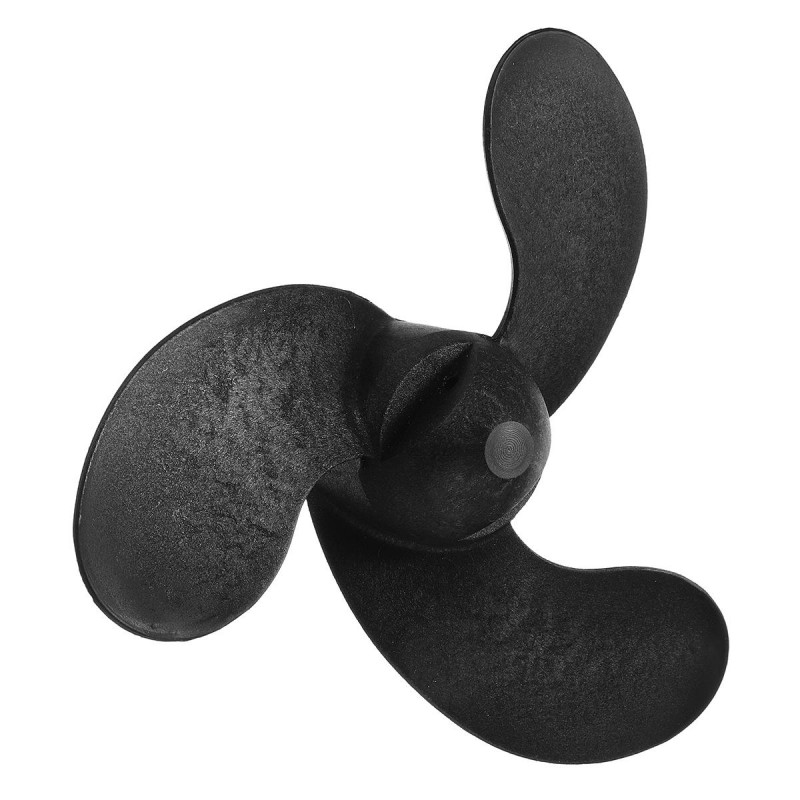

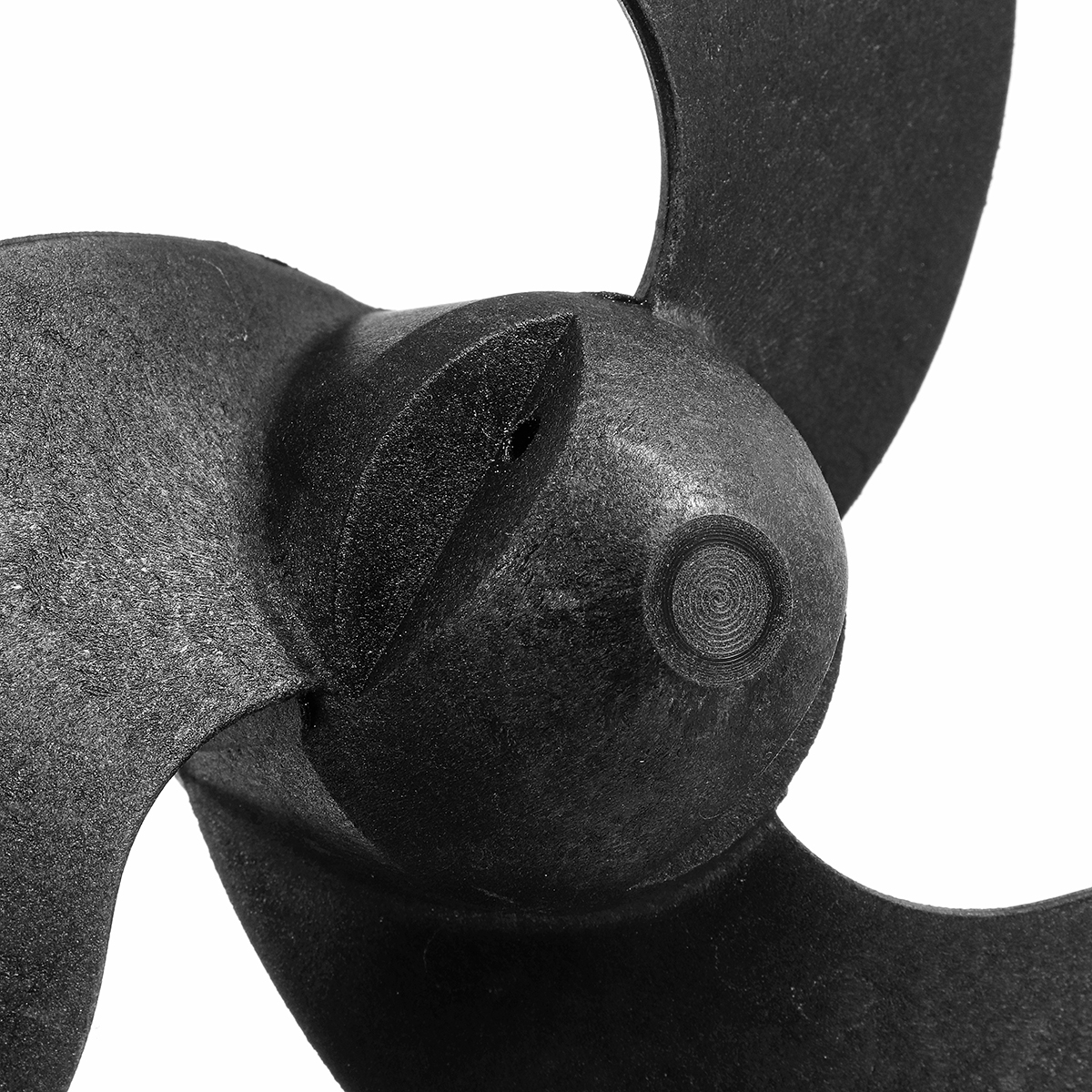

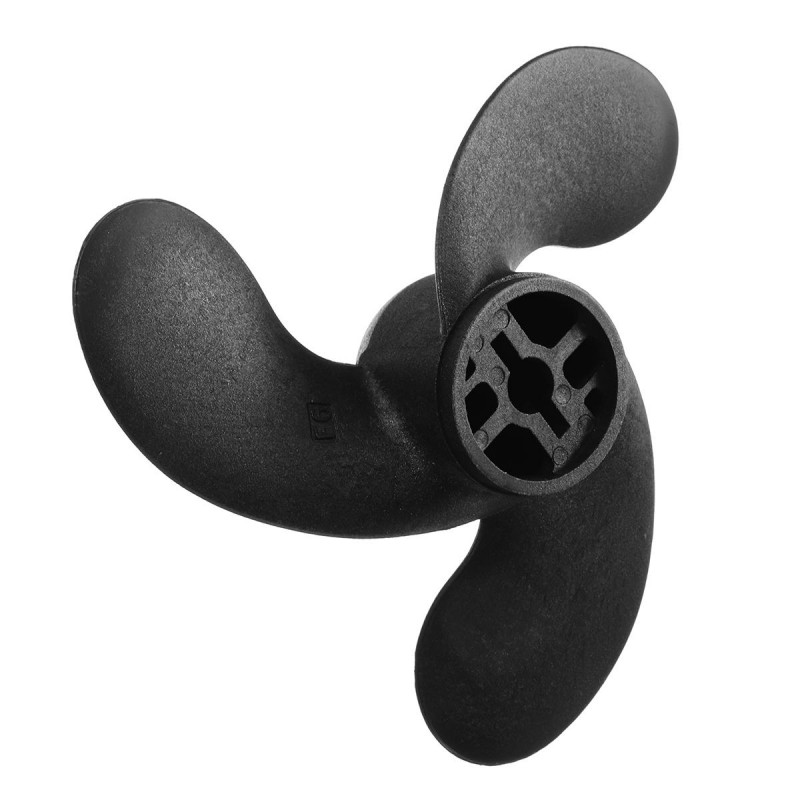

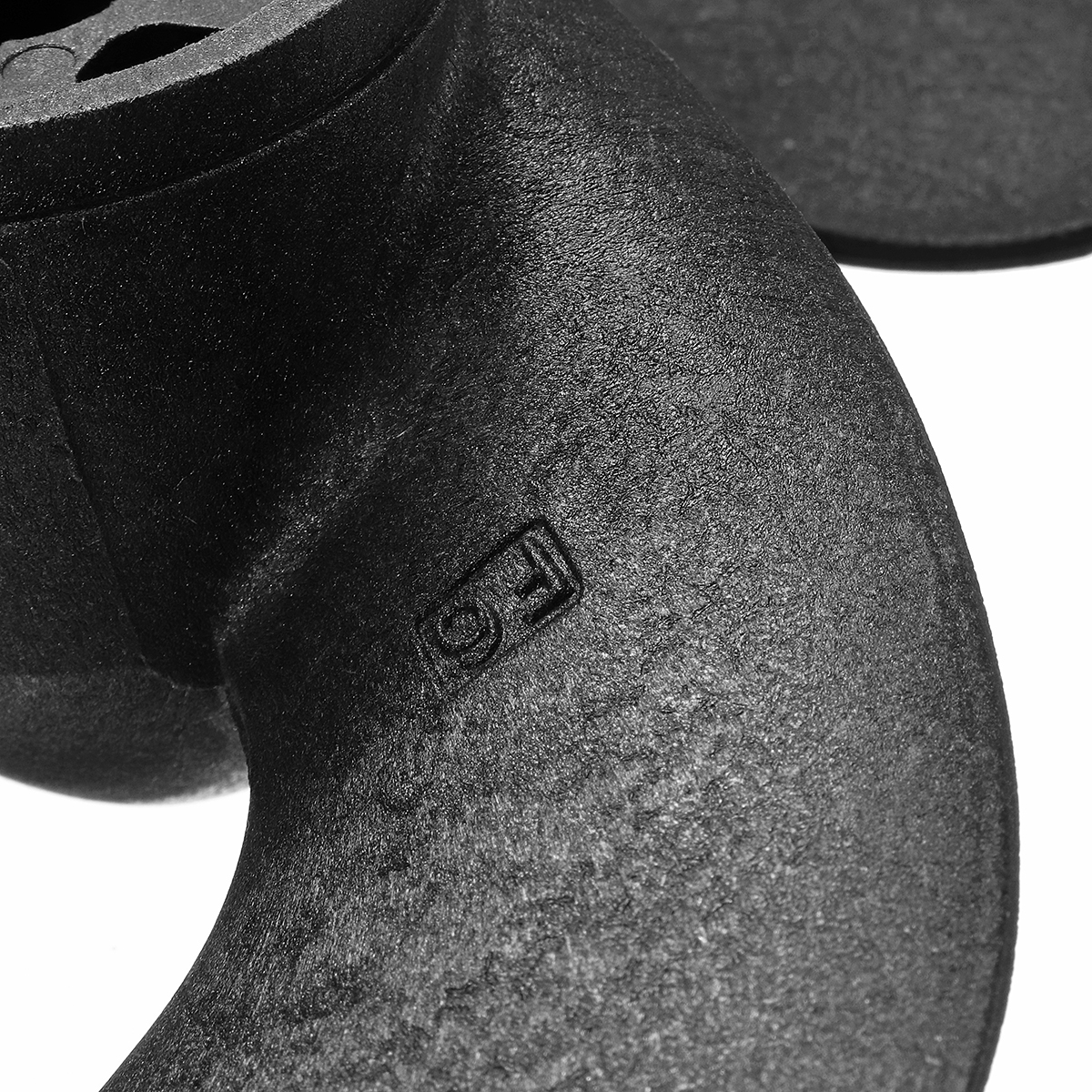

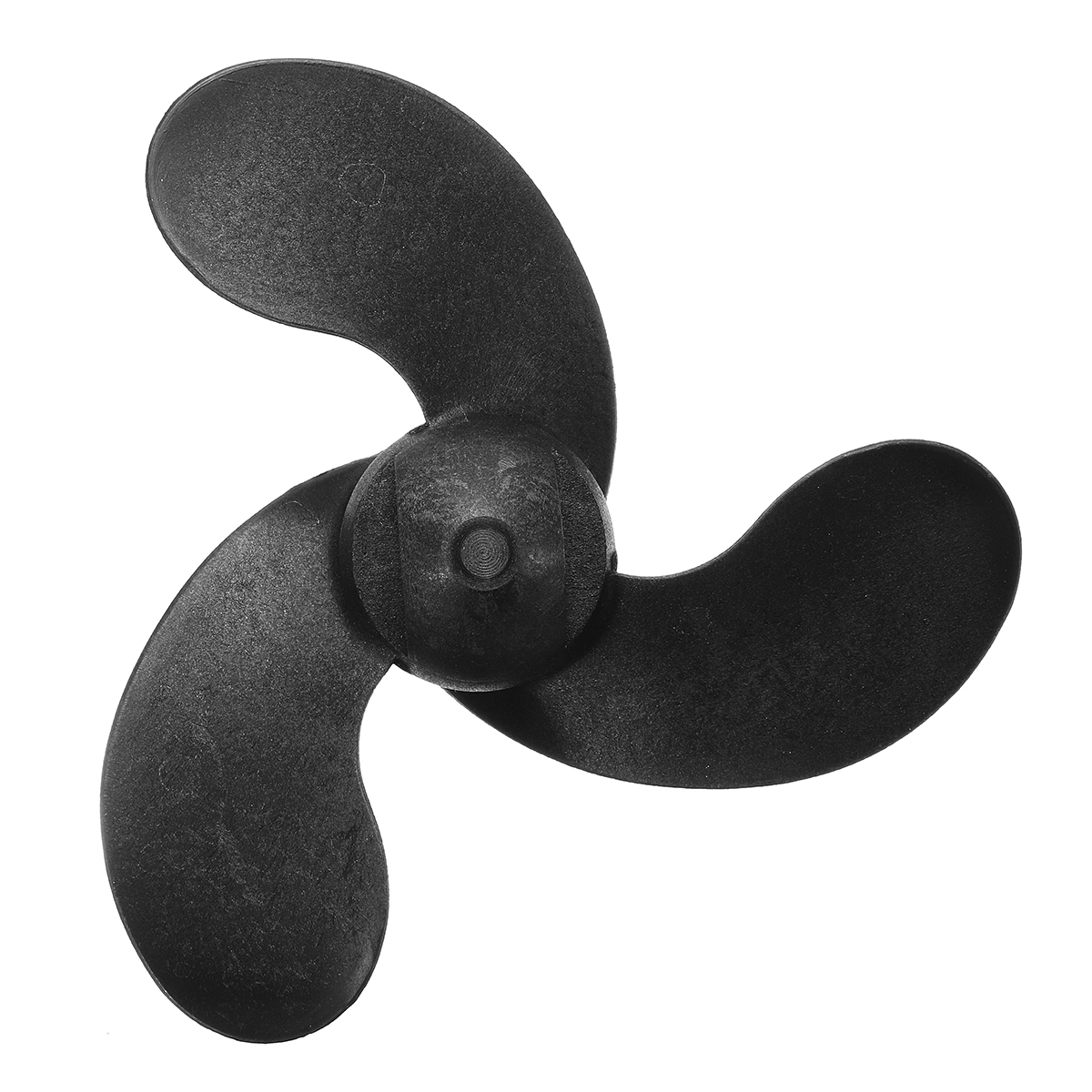

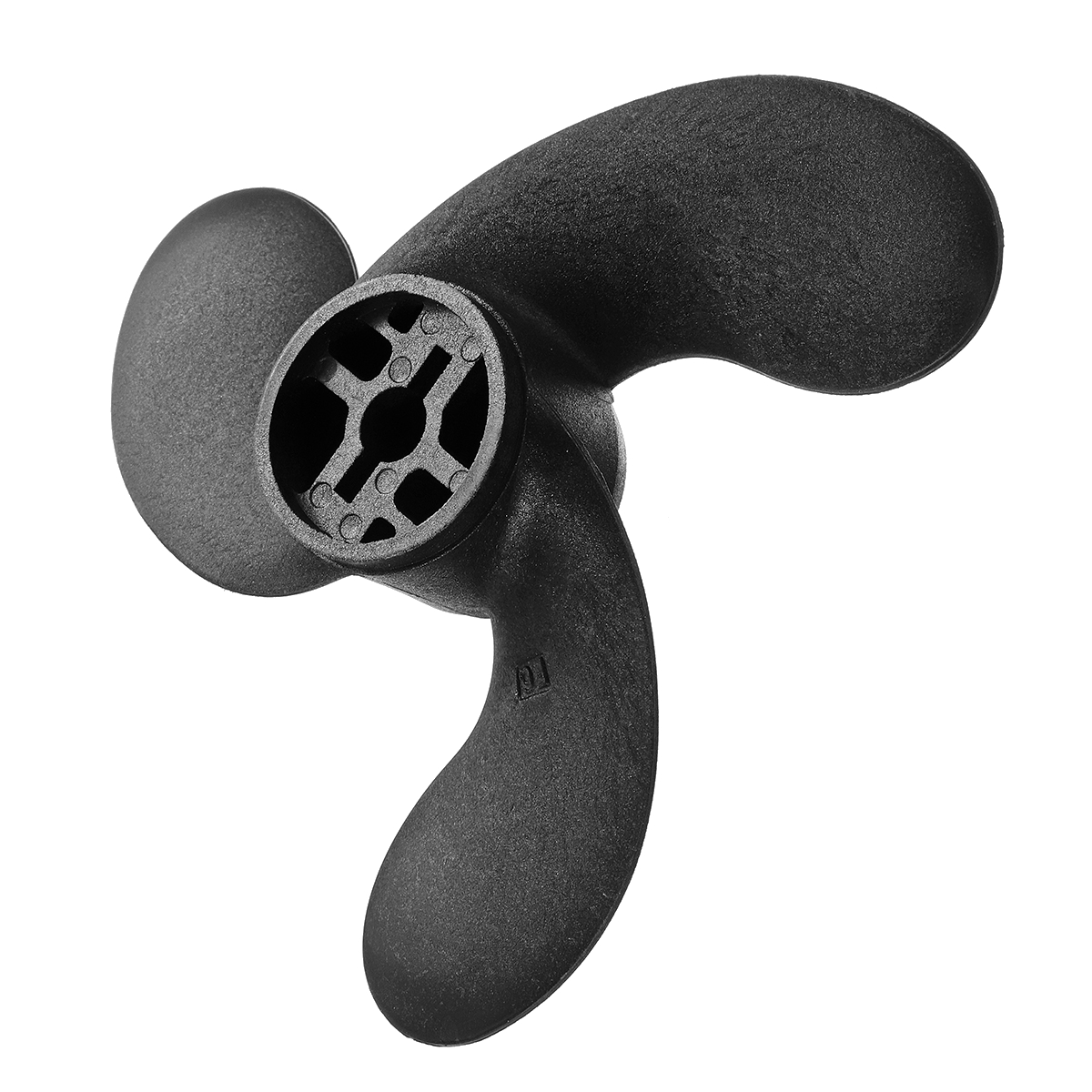

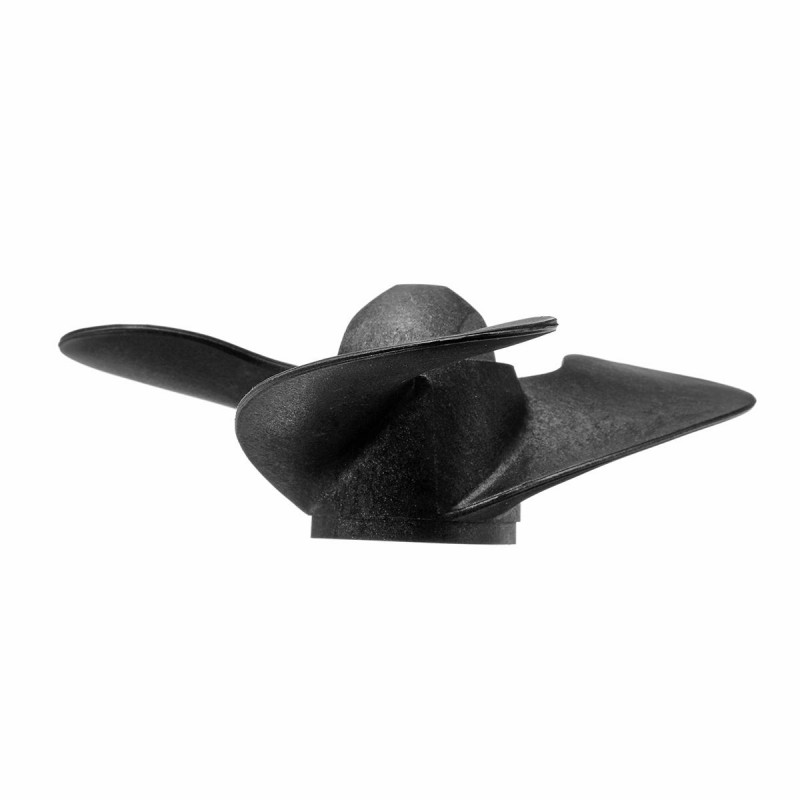

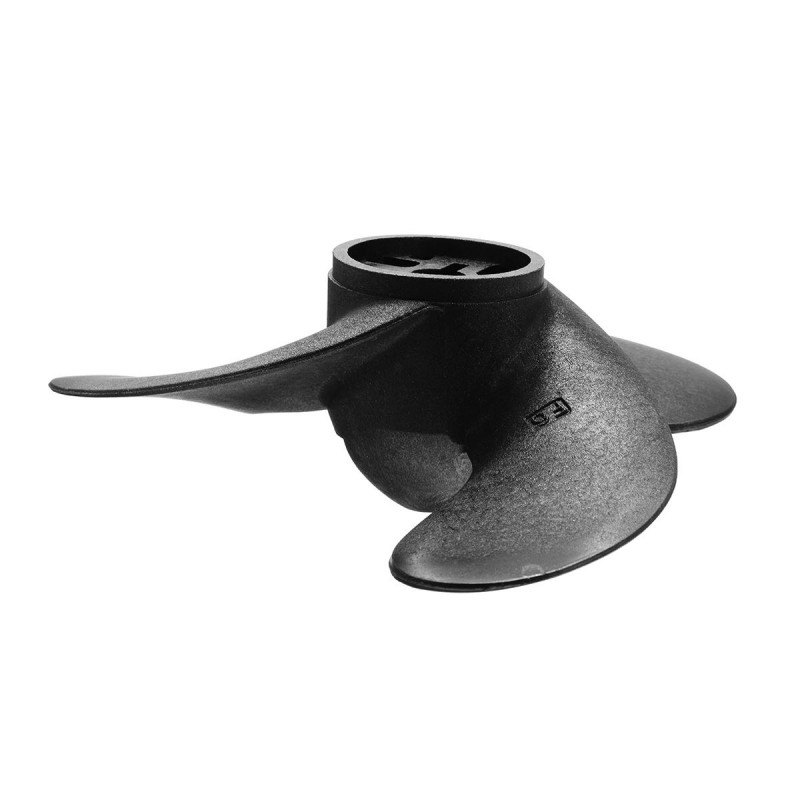

Specification:
Material: Composite Plastic Material
Color: Black
Pitch: 5.7 "
Rotation: R
Number of Blades: 3

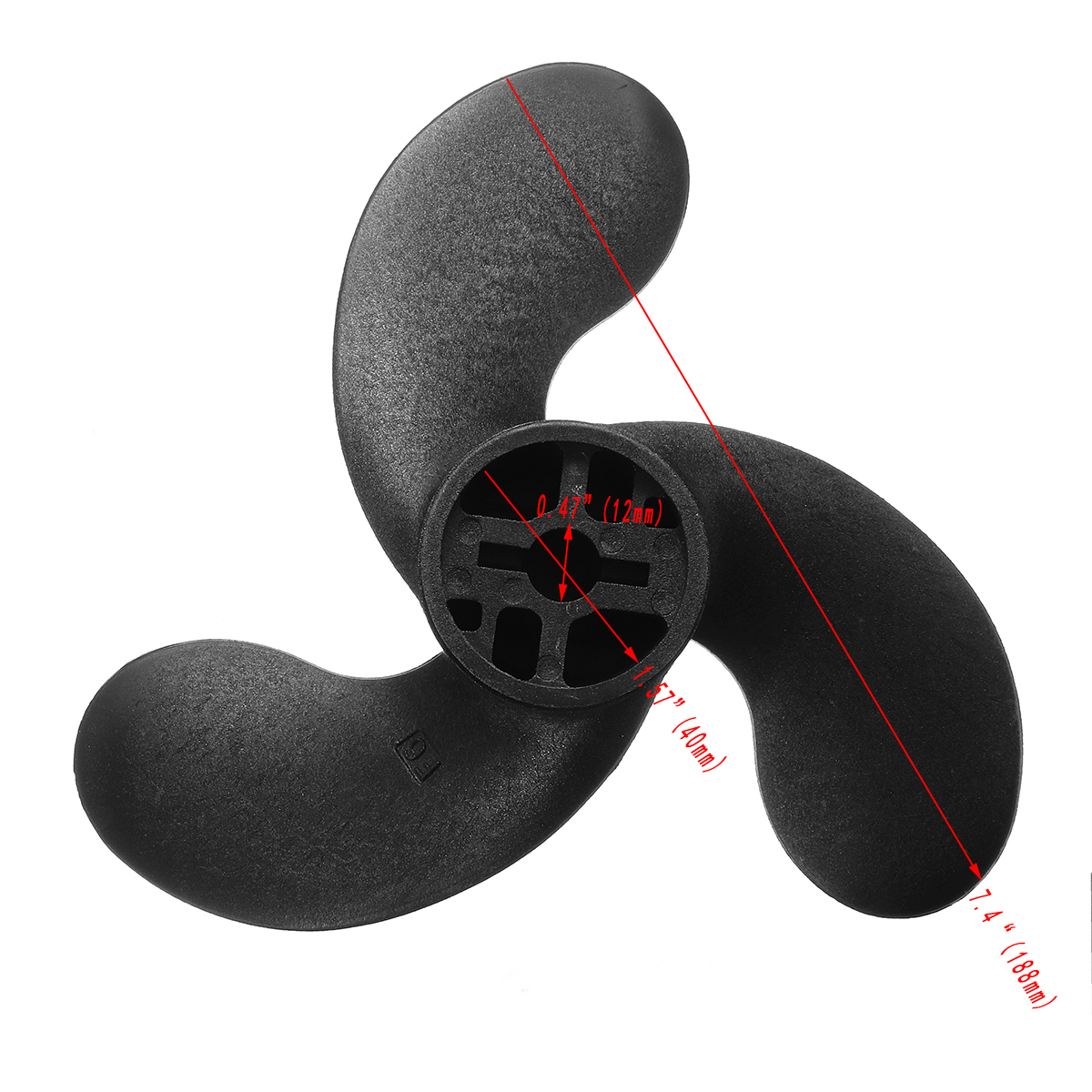

Diameter: Approx. 7.4“ (188mm)

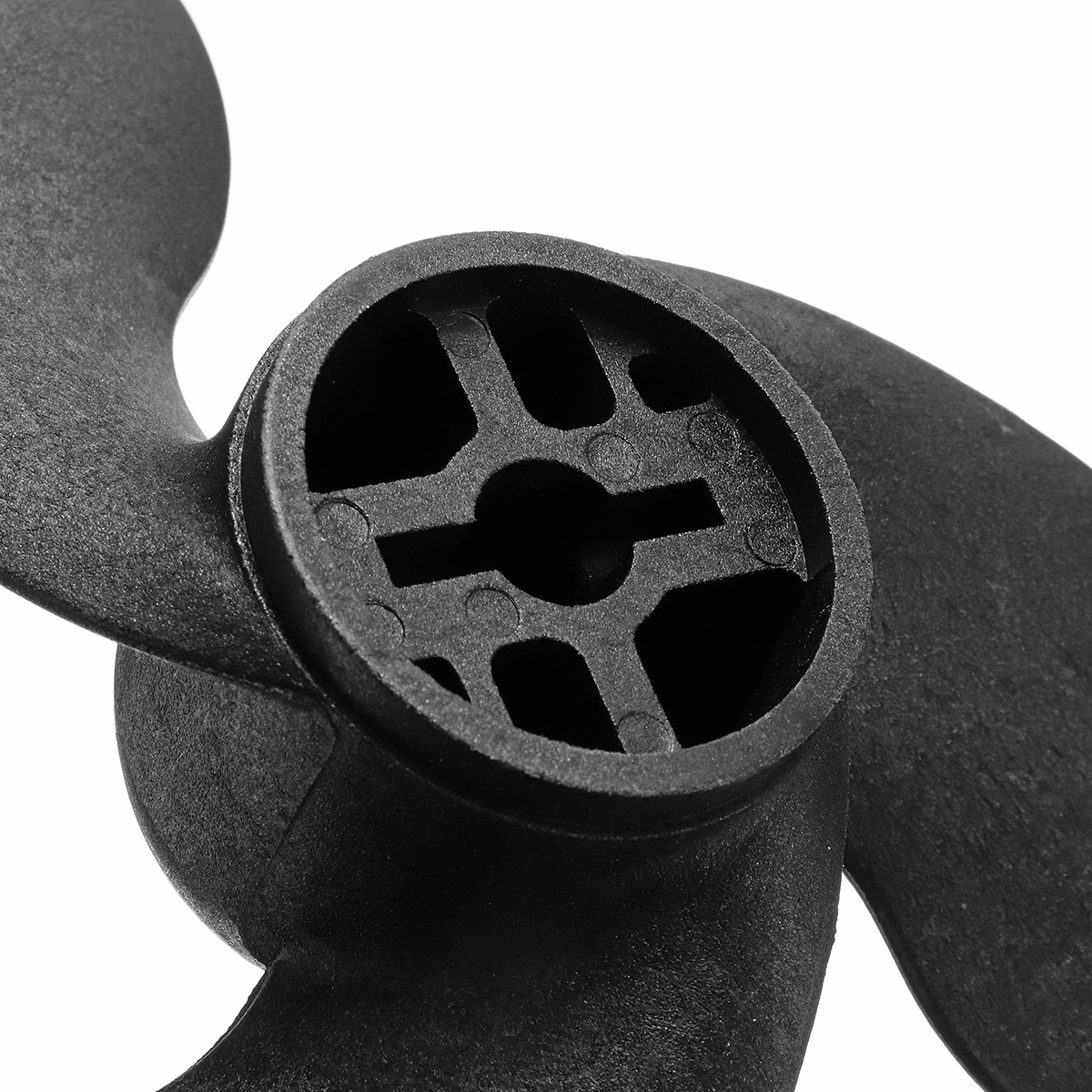

Shaft Diameter/Inner Bore Diameter: 12mm
Fitment:
Fit For Mercury 3.3HP outboard motor;
Fit For Johnson / Evinrude 3.3HP outboard motor.
Fit For Nissan / Tohatsu 2-stroke 2.5HP and 3.5HP outboard motor. it replace Tohatsu Part No. :
30964-1060M
309-64106-0
Applications:
For Tohatsu/Nissan Outboard Engines:
2003 M2.5A2 9. 2.5A2/3.5A2 Model Only - Drive Shaft Propeller
2003 NS2.5A2 9. 2.5A2/3.5A2 Model Only - Drive Shaft Propeller
2003 M2.5A2 10. 3.5B2 Model Only - Gear Case (Propeller Shaft)
2003 NS2.5A2 10. 3.5B2 Model Only - Gear Case (Propeller Shaft)
2003 M3.5A2 9. 2.5A2/3.5A2 Model Only - Drive Shaft Propeller (Selected)
2003 NS3.5A2 9. 2.5A2/3.5A2 Model Only - Drive Shaft PROPELLER
2003 M3.5A2 10. 3.5B2 Model Only - Gear Case (PROPELLER SHAFT)
2003 NS3.5A2 10. 3.5B2 Model Only - Gear Case (Propeller Shaft)
2003 M3.5B2 9. 2.5A2/3.5A2 Model Only - Drive Shaft Propeller
2003 NS3.5B2 9. 2.5A2/3.5A2 Model Only - Drive Shaft Propeller
2003 M3.5B2 10. 3.5B2 Model Only - Gear CaseE (Propeller Shaft)
2003 NS3.5B2 10. 3.5B2 Model Only- Gear Case (Propeller Shaft)
2014 NSF2.5B 10. Gear Case
2014 MFS2.5B 10. Gear Case
2013 NSF2.5B 10. Gear Case
2013 MFS2.5B 10. Gear Case
2012 NSF2.5B 10.Gear Case
2012 MFS2.5B 10.Gear Case
2011 NSF2.5B 10. Gear Case (Drive Shaft)
2011 MFS2.5B 10. Gear Case (Drive Shaft)
2010 NSF2.5B 10. Gear Case (Drive Shaft)
2010 MFS2.5B 10.Gear Case (Drive Shaft
2009 NSF2.5B 11. Gear Case (Propeller Shaft)
2009 MFS2.5B 11. Gear Case (Propeller Shaft)
2006 MFS2.5A 11. Gear Case (Propeller Shaft)
2006 NSF2.5A 11. Gear Case (Propeller Shaft)
2014 NSF3.5B 10. Gear Case
2014 MFS3.5B 10. Gear Case
2013 NSF3.5B 10. Gear Case
2013 MFS3.5B 10. Gear Case
2012 NSF3.5B 10. Gear Case
2012 MFS3.5B 10. Gear Case
2011 NSF3.5B 10. Gear Case (Drive Shaft)
2011 MFS3.5B 10. Gear Case (Drive Shaft)
2010 NSF3.5B 10. Gear Case (Drive Shaft)
2010 MFS3.5B 10. Gear Case (Drive Shaft)
2009 MFS3.5B 11. Gear Case (Propeller Shaft)
2009 NSF3.5B 11. Gear Case (Propeller Shaft)
2006 NSF3.5A 11. Gear Case (Propeller Shaft)
2006 MFS3.5A 11. Gear Case (Propeller Shaft)
2006 NSF2A 11. Gear Case (Propeller Shaft)
2006 MFS2A 11. Gear Case (Propeller Shaft)
Package Included:

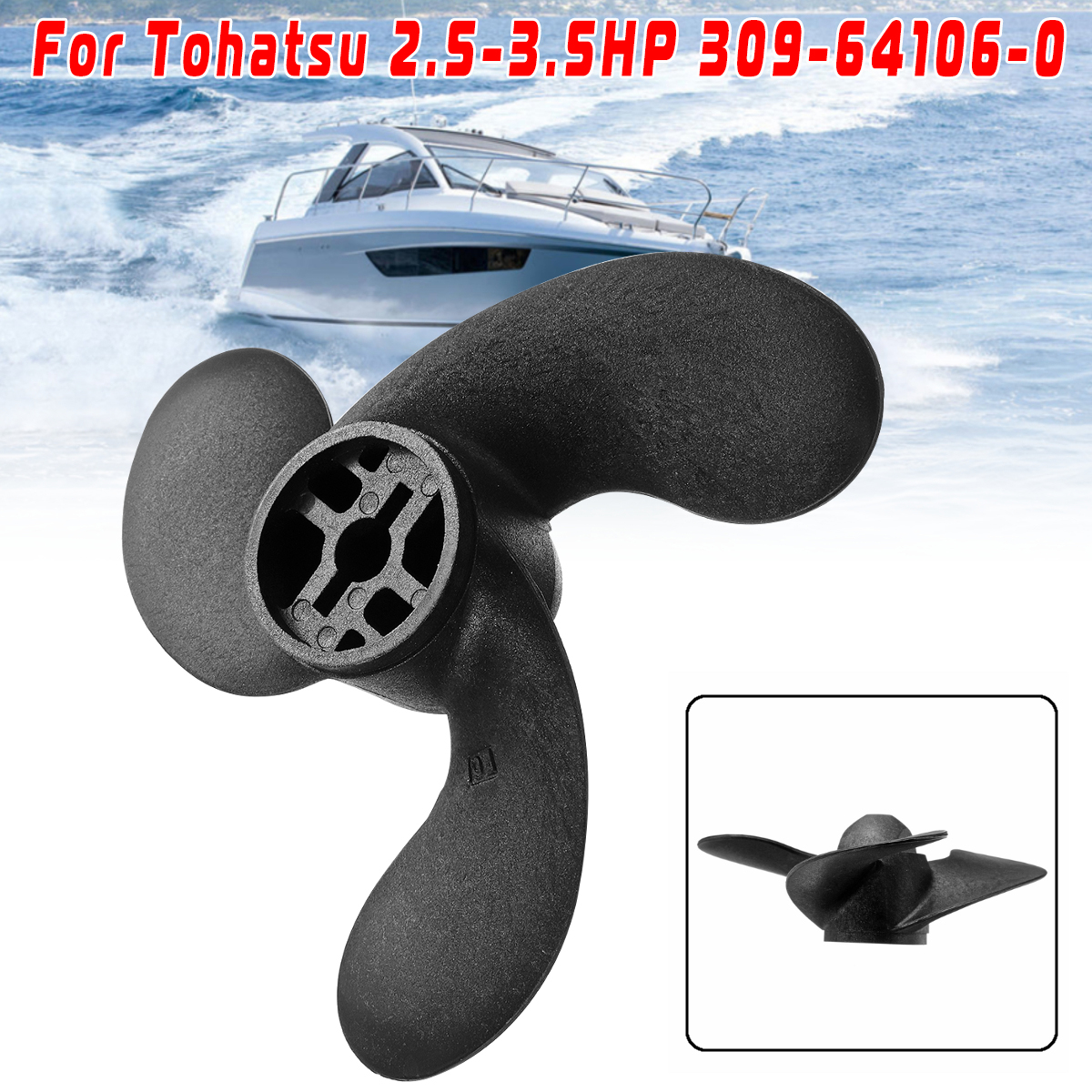

1 X Propeller For Tohatsu Outboard Engine 2.5-3.5HP 309-64106-0
